Non-Contact Infrared Thermometers
Operating Manual
3p
06/08-62B
2
3
TABLE OF CONTENTS
INTRODUCTION………………………………………4
FEATURES……………………………………………4
WIDER ANGE APPLICATION ……………………..….5
SAFETY……………………………………………….5
DISTANCE&SPOTSIZE………………………………..6
SPECIFICATIONS……………………………………..6
FRONT PANEL DESCRIPTION………………..………8
INDICATOR……………………………………………8
BUTTONS……………………………………………..9
MEASURMENT OPERATION……………..…………..11
BATTER YREPLACEMENT……..…………………….13
NOTES………………………………………………. 14
MAINTENANCE ………………………………………17
4
INTRODUCTION
Thank you for purchase of the IR Thermometer. This is
capable of non-contact(infrared) temperature measurements
at the touch of a button. The built-in laser pointer increases
target accuracy while the backlight LCD and handy
push-buttons combine for convenient, ergonomic operation.
The Non-contact Infrared Thermometers can be used to
measure the temperature of objects’ surface that is improper
to be measured by traditional (contact) thermometer (such
as moving object, the surface with electricity current or the
objects which are uneasy to be touched.)
Proper use and care of this meter will provide years of
reliable service.
FEATURES:
Rapid detection function
Precise non-contact measurements
Dual laser sighting
Unique flat surface, modern housing design
Automatic Data Hold
°C/°F switch
Emissivity Digitally adjustable from 0.10 to 1.0
MAX temperature displays
5
Backlight LCD display
Automatic selection range and Display Resolution
0.1ºC(0.1ºF)
Trigger lock
Set high and low alarms
WIDE RANGE APPLICATION:
Food preparation, Safety and Fire inspectors, Plastic
molding, Asphalt, Marine and Screen printing, measure ink
and Dryer temperature, HVAC/R, Diesel and Fleet
maintenance.
SAFETY
Use extreme caution when the laser beam is turned on.
Do not let the beam enter your eye, another person’s
eye or the eye of an animal.
Be careful no to let the beam on a reflective surface
strike your eye.
Do not allow the laser light beam impinge on any gas
which can explode.
6
Distance & Spot Size
As the distance (D) from the object increases, the spot size
(S) of the area measured by the unit becomes larger. The
relationship between distance and spot size for each unit is
listed below. The focal point for each unit is 914mm (36”).
The spot sizes indicate 90% encircled energy.
D:S= 12:1
D
S
12in.
1in @
6in.
0.5in @
25mm @
300mm
150mm
12.5mm @
1. SPECIFICATIONS
Temperature range D: S
-50 to 650 °C(-58°F ~ 1202°F) 12:1
Display resolution 0.1 °C(0.1°F) <1000
1°F >1000
Accuracy for targets:
7
Assumes ambient operating temperature of 23 to 25°C(73 to
77°F)
-50 ~ 20°C (-58°F ~ 68°F) ±2.5°C (4.5°F)
20°C ~300°C (68°F ~572°F) ±1.0% ±1.0°C (1.8°F)
300°C ~650°C (572°F ~ 1202°F) ±1.5%
Repeatability
-50~20°C (-58~68°F) : ±1.3°C (2.3°F)
20~650°C (68~1202°F): ±0.5% or ±0.5°C (0.9°F)
Response time 150ms
Spectral response 8~14um
Emissivity Digitally adjustable from 0.10 to 1.0
Over range indication LCD will show “----”
Polarity Automatic (no indication for positive polarity);
Minus (-) sign for negative polarity
Diode laser output <1mW,Wavelength 630~670nm,
Class 2 laser product
Operating temp. 0 to 50°C (32 to 122°F)
Storage temp. –10 to 60°C (14 to 140°F)
Relative humidity 10%~90%RH operating,
<80%RH storage
Power supply 9V battery, NEDA 1604A or IEC 6LR61,
or equivalent
Safety “ CE ” Comply with EMC
8
Note:
Field of View: Make sure that the target is larger than
the unit’s spot size. The smaller the target, the closer
you should be to it. When accuracy is critical, make
sure the target is at least twice as large as the spot
size.

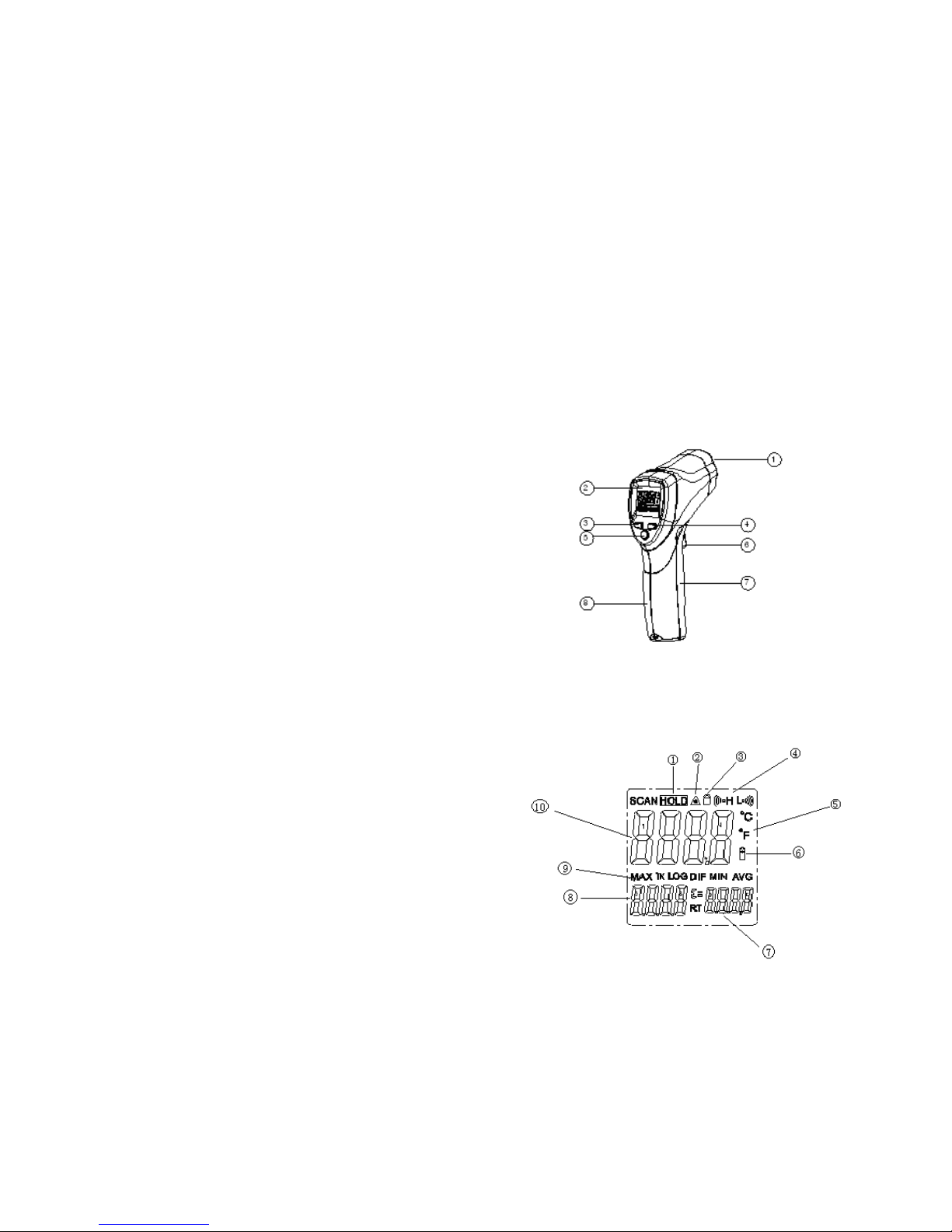

2. FRONT PANEL DESCRIPTION
① IR sensor
② LCD Display Laser
pointer beam
③ up button
④ down button
⑤ mode button
⑥ Measurement Trigger
⑦ Battery Cover
⑧ Handle Grip
3. INDICATOR
① Data hold
② Laser ” on” symbols
③ Lock symbol
④ High alarm and low alarm symbol
⑤ °C/°F symbol
9
⑥ Low power symbols
⑦ Emissivity symbol and value
⑧ Temperature values for the MAX
⑨ Symbols for MAX
⑩ Current temperature value
4. Buttons
① Up button (for EMS,HAL,LAL)
② Down button (for EMS,HAL,LAL)
③ MODE button (for cycling
through the mode
loop)
Functional Design
1. the switches of C/F sat in a cell switching
2. In the measuring time up, down keys to adjust the
Emissivity.
3. IN the hold time, up keys to turn on or off the laser Down
keys to turn on or off the backlight
4. To set values for the High Alarm (HAL), Low Alarm (LAL)
and Emissivity (EMS), press the MODE button until the
appropriate code appears in the display, press the
UP and down buttons to adjust the desired values.
10

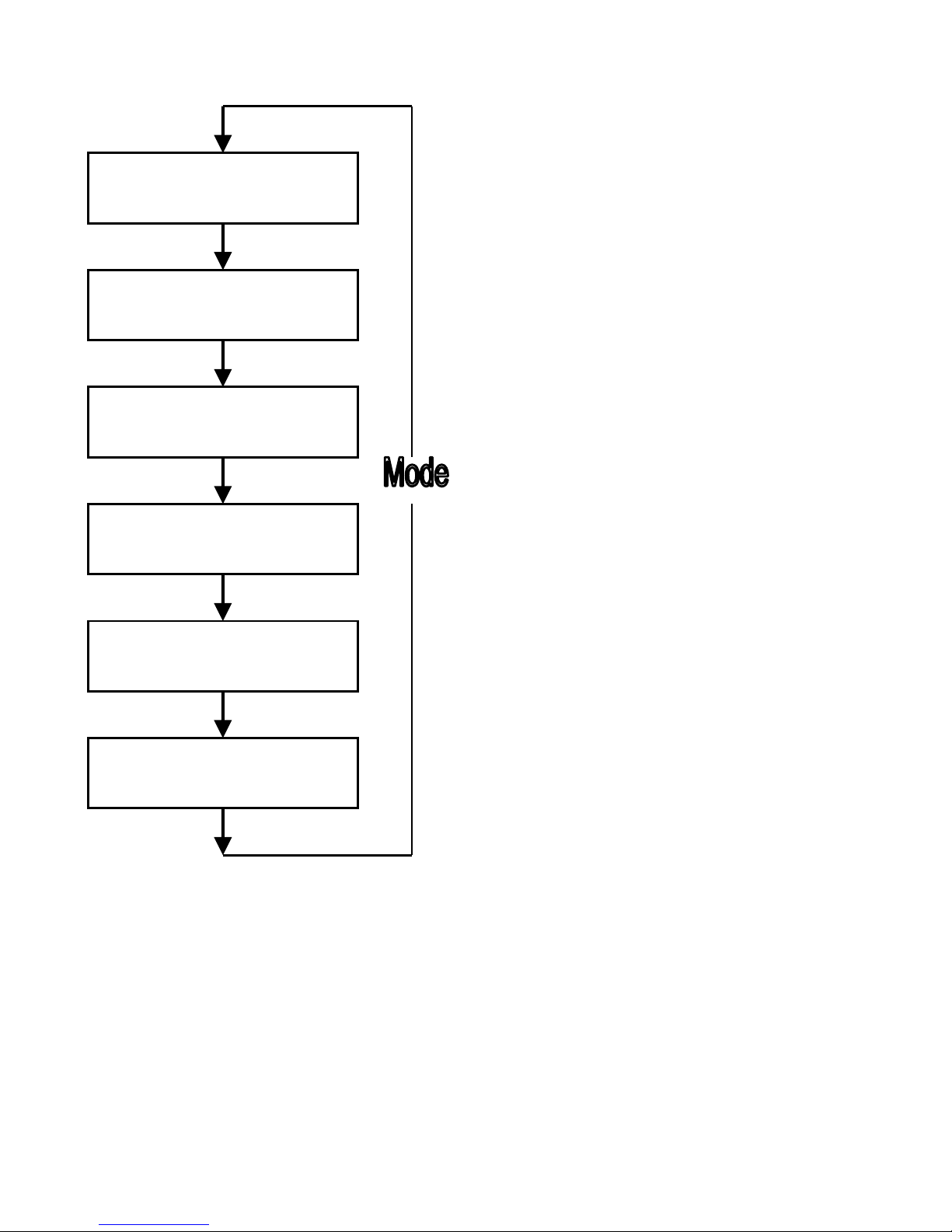

MODE Button Function
Press the mode button also
allows you to access the
setstate,Emissivity(EMS),
Lock on/off,HAL on/off, HAL
adjustment LOW on/ off,
LOW adjustment,Each time
you press set you advance
through the mode cycle.The
diagram shows the
sequence of functions in the
mode cycle.
EMS adjustment. The
Emissivity(EMS) digitally
adjustable from 0.10 to 1.0,
LOCK on/off. The lock mode
is particularly useful for
continuous monitoring of temperatures. Press the up
button or down button to turn on or off . Press the
Measurement Trigger to confirm the lock measurement
mode. The IR Thermometer will continuously display the
temperaure until press again the Measurement Trigger.
LOCK on/off
HAL on/off
HAL adjustment
LOW on/off
LOW adjustment
EMS adjustment
11
In lock mode, press the up button or down button
adjustable the Emissivity.HAL (LOW) on/off. Press the
up button or down button to turn on or turn off. Press
the Measurement Trigger to confirm the High(Low)alarm
mode.Hal(LOW) adjustment. The high(Low) alarm
adjustable form
-50 to 650 °C (-58°F ~ 1202°F)
Switching C/F
Select the temperature units (°C or °F)
using the oC/oF switch ( ① )
Max indicate the max record that
displays between the pressing and
releasing the "ON/OFF" button each time
MEASUREMENT OPERATION
① Hold the meter by its Handle Grip and point it
toward the surface to be measured.
② Pull and hold the Trigger to turn the meter on and
begin testing. The display will light if the battery is
good. Replace the battery if the display does not
light.
③ Release the Trigger and the HOLD display icon will
12
appear on the LCD indicating that the reading is being
held. In HOLD status, press the UP button to turn on
or off the laser. And press the DOWN button to turn on
or off the backlight.
④ The meter will automatically power down after
approximately 7 seconds after the trigger is
released.(Unless the unit is locked on)
This device is provided with vision alarm function.
During measurement, if the measured temperature is
higher than the High Alarm temperature ( High Alarm is
ON ), red LED will flash on the LCD.
During measurement, if the measured temperature is
lower than the Low Alarm temperature ( Low Alarm is
ON ), red LED will flash on the LCD.
Note: Measurement considerations
Holding the meter by its handle, point the IR Sensor
toward the object whose temperature is to be measured.
The meter automatically compensates for temperature
deviations from ambient temperature. Keep in mind that
13
it will take up to 30 minutes to adjust to wide ambient
temperatures are to be measured followed by high
temperature measurements, some time (several
minutes) is required after the low (and before the high)
temperature measurements are made.
This is a result of the cooling process, which must take
place for the IR sensor.
5. BATTERY REPLACEMENT
① As battery power is not
sufficient, LCD will display
“ ” replacement with
one new battery type 9V is
required.
② Open battery cover, then
take out the battery from instrument and replace with a
new 9-Volt battery and place the battery cover back.
.
14
NOTES:
How it Works
Infrared thermometers measure the surface
temperature of an object. The unit’s optics sense
emitted, reflected, and transmitted energy, which is
collected and focused onto a detector. The unit’s
electronics translate the information into a temperature
reading, which is display on the unit. In units with a
laser, the laser is used for aiming purposes only.
Field of View
Make sure that the target is larger than the unit’s spot
size. The smaller the target, the closer you should be to
it. When accuracy is critical, make sure the target is at
least twice as large as the spot size.
Distance & Spot Size
As the distance (D) from the object increases, the spot
size (S) of the area measured by the unit becomes
larger. See: Fig: 1.
Locating a hot Spot
To find a hot spot aim the thermometer outside the area
of interest, then scan across with an up and down
motion until you locate hot spot.
Reminders
15
① Not recommended for use in measuring shiny or
polished metal surfaces ( stainless steel, aluminum,
etc.).See Emissivity
② The unit cannot measure through transparent surfaces
such as glass. It will measure the surface temperature
of the glass instead.
③ Steam, dust, smoke, etc., Can prevent accurate
measurement by obstructing the unit’s optics.
Emissivity
Emissivity is a term used to describe the
energy-emitting characteristics of materials.
Most (90% of typical applications) organic materials
and painted or oxidized surfaces have an emissivity of
0.95 (pre-set in the unit). Inaccurate readings will result
from measuring shiny or polished metal surfaces. To
compensate, cove the surface to be measured with
masking tape or flat black paint. Allow time for the tape
to reach the same temperature as the
materialunderneath it. Measure the temperature of the
tape or painted surface.
16
Emissivity Values
Substance
Thermal
emissivity
Substance
Thermal
emissivity
Asphalt
0.90 to 0.98
Cloth (black)
0.98
Concrete
0.94
Human skin
0.98
Cement
0.96
Lather
0.75 to 0.80
Sand
0.90
Charcoal
(powder)
0.96
Earth
0.92 to 0.96
Lacquer
0.80 to 0.95
Water
0.92 to 0.96
Lacquer
(matt)
0.97
Ice
0.96 to 0.98
Rubber
(black)
0.94
Snow
0.83
Plastic
0.85 to 0.95
Glass
0.90 to 0.95
Timber
0.90
Ceramic
0.90 to 0.94
Paper
0.70 to 0.94
Marble
0.94
Chromium
oxides
0.81
Plaster
0.80 to 0.90
Copper
oxides
0.78
Mortar
0.89 to 0.91
Iron oxides
0.78 to 0.82
Brick
0.93 to 0.96
Textiles
0.90
17
7. MAINTENANCE
Repairs or service are not covered in this manual and
should only be carried out by qualified trained
technician.
Periodically, wipe the body with a dry cloth. Do not use
abrasives or solvents on this instrument.
For service, use only manufacturer’s specified parts.
18
