Turbo Air TOM-40B, TOM-40M, TOM-50, TOM-50B, TOM-50M User Manual
Turbo Air Speeds up the Pace of Innovation
Open Display Merchandiser
Installation and Operation Manual
Please read this manual completely before attempting to install or operate this equipment.
Extra Deep
TOM-36-DX*-**-*
TOM-48-DX*-**-*
TOM-60-DX*-**-*
Full Heights
TOM-40*-**-*
TOM-50*-**-*
Mid Heights
TOM-40M*-**-*
TOM-50M*-**-*
Vertical Air Curtain
TOM-36E*-**-*
TOM-48E*-**-*
TOM-60E*-**-*
www.turboairinc.com
CONTENTS
PAGE
INTRODUCTION
SPECIFICATIONS
INSTALLATION
Damage inspection
Location of display
Leveling of display
TURBO AIR RECOMMENDED OPERATING CONDITIONS
OPERATING INSTRUCTIONS
Power switch
Light switch
Temperature control
Thermometer
Placing the product
MAINTENANCE & CLEANING
Condenser coil
TROUBLESHOOTING
3
4
5
6
7
8
9
Merchandiser not functioning
Merchandiser is warm
Lights are not working

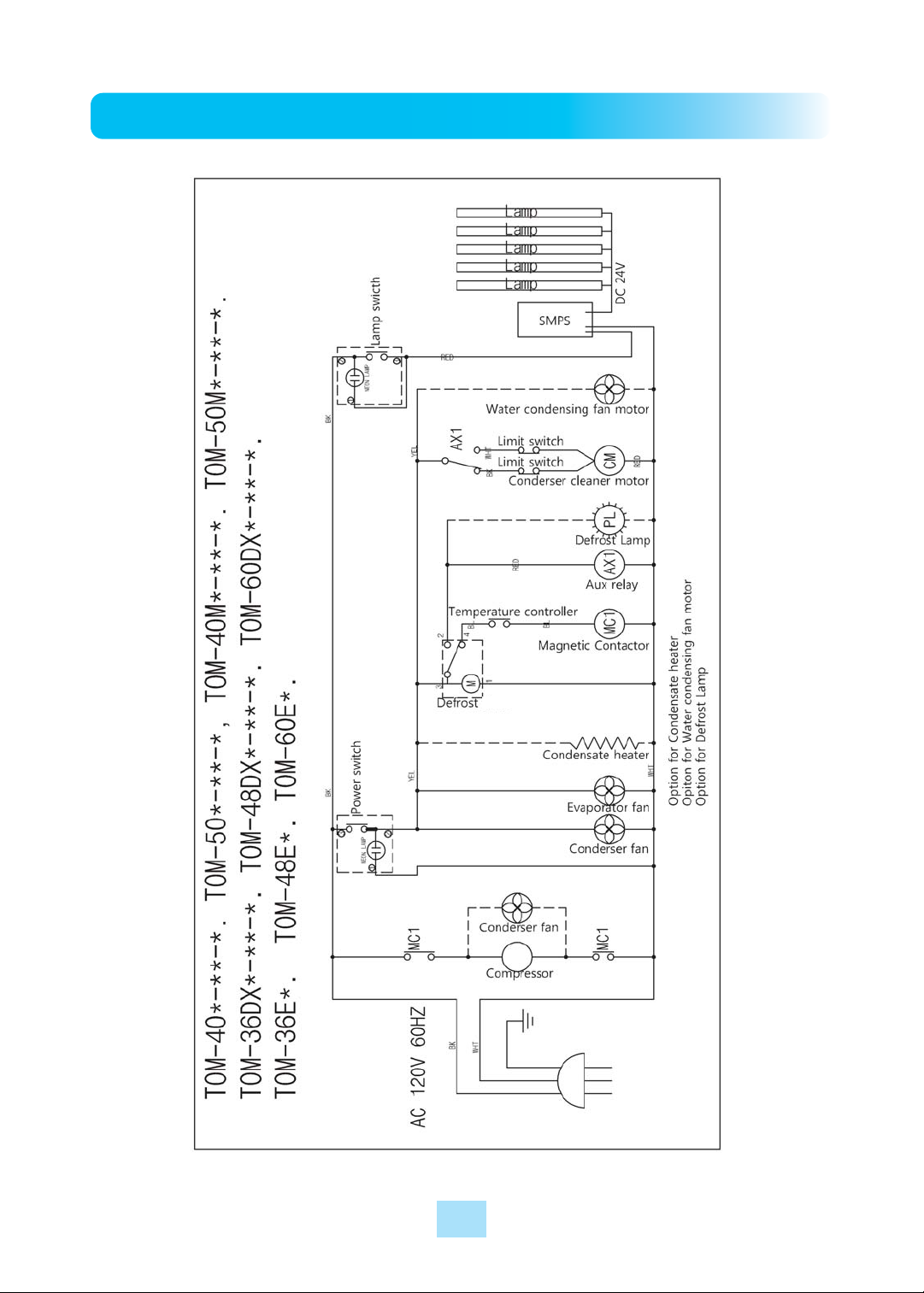

WIRING DIAGRAM
WARRANTY
10
11 - 13
22
INTRODUCTION
This owner’s manual has important information. Please read the entire
manual before installing your new Turbo Air Open Display Merchandiser.
For specific questions not answered on this manual, please call:
CUSTOMER SERVICE DEPARTMENT
TURBO AIR
4184 E. Conant St.
Long Beach, CA 90808
1-800-381-7770
Please write down the model and serial number of your merchandiser for
future references:
MODEL NUMBER
SERIAL NUMBER
WARNING
Keep this manual in a safe place for your reference.
Failure to read this manual in its entirety can result in misuse of the equipment, which may cause personal injury or equipment failure.
WARNING!
Display Case should be on a minimum 20 Amps dedicated outlet and
minimum 12 AWG wire for proper operation.
3
SPECIFICATIONS
Model TOM-40*-**-*
Dimension
(W x D x H) in.
39 x 28 x 78.5
Electricity
Full Load Amperes
15A
Compressor
Refrigerant
Lighting
10.8W X 5
Defrost
Net Weight
512 lbs.
Model TOM-36DX*-**-*
Dimension
(W x D x H) in.
36 x 34.2 x 78.8
Electricity
Full Load Amperes
16.5A
TOM-50*-**-*
50.9 x 28 x 78.5
120V/1Ph/60Hz
15A
NT6226GK / CAJ9513Z
R-404A
14.4W X 5
Timed off defrost
590 lbs.
TOM-48DX*-**-*
48 x 34.2 x 78.8
120V/1Ph/60Hz
16.5A
TOM-40M*-**-*
39 x 28 x 60.5
15A
10.8W X 5
421 lbs.
TOM-50M*-**-*
50.9 x 28 x 60.5
15A
14.4W X 4
463 lbs.
TOM-60DX*-**-*
60 x 34.2 x 78.8
16.5A
Compressor
Refrigerant
Lighting
9.6W X 5
Defrost
Net Weight
Model TOM-36E*-**-*
Dimension
(W x D x H) in.
36 x
Electricity
Full Load Amperes
Compressor
Refrigerant
Lighting
9.6W X 5
Defrost
Net Weight
488 lbs.
29.5 x 81.2
15A
498 lbs.
NT6226GK / CAJ9513Z
R-404A
13.2W X 5
Timed off defrost
562 lbs.
TOM-48E*-**-*
29.5 x 81.2
48 x
120V/1Ph/60Hz
15A
NT6226GK
R-404A
13.2W X 5
Timed off defrost
573 lbs.
16.8W X 5
635 lbs.
TOM-60E*-**-*
29.5 x 81.2
60 x
15A
16.8W X 5
648 lbs.
4
