Turbo Air PRCBE84RN Specifications
4184 E. Conant St.
Chef
s
e
p t
h (
) s
)
brush that moves up and
ess
dup
F
S
Long Beach, CA 90808
Tel. 310-900-1000
Fax. 310-900-1077
more durable, efficient, beautiful
www.turboairinc.com

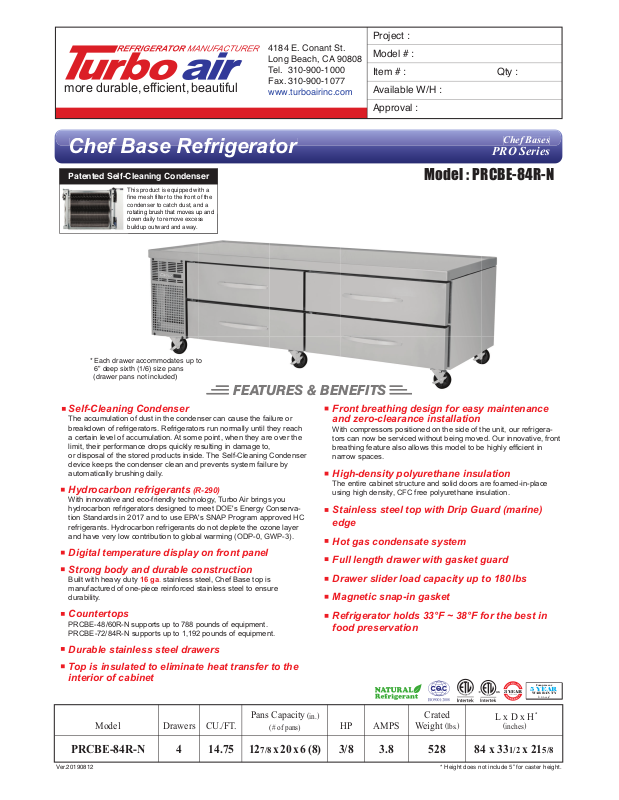

Chef Base Refrigerator
Project :
Model # :
Item # : Qty :
Available W/H :
Approval :
Chef Bases
PRO Series
Base
Patented Self-Cleaning Condenser
This product is equipped with a
fine mesh filter to the front of the
condenser to catch dust, and a
rotating brush that moves up and
down daily to remove excess
own daily to remove exc
buildup outward and away.
uil
outward and away.
* Each drawer accommodates up to
6” deep sixth (1/6) size pans
(drawer pans not included)
r accommodates u
t
1/6
ize pans
s not included
o
FEATURES & BENEFITS
EATURES & BENEFIT
Self-Cleaning Condenser
The accumulation of dust in the condenser can cause the failure or
breakdown of refrigerators. Refrigerators run normally until they reach
a certain level of accumulation. At some point, when they are over the
limit, their performance drops quickly resulting in damage to,
or disposal of the stored products inside. The Self-Cleaning Condenser
device keeps the condenser clean and prevents system failure by
automatically brushing daily.
Hydrocarbon refrigerants (R-290)
With innovative and eco-friendly technology, Turbo Air brings you
hydrocarbon refrigerators designed to meet DOE's Energy Conservation Standards in 2017 and to use EPA's SNAP Program approved HC
refrigerants. Hydrocarbon refrigerants do not deplete the ozone layer
and have very low contribution to global warming (ODP-0, GWP-3).
Digital temperature display on front panel
Strong body and durable construction
Built with heavy duty 16 ga. stainless steel, Chef Base top is
manufactured of one-piece reinforced stainless steel to ensure
durability.
Countertops
PRCBE-48/60R-N supports up to 788 pounds of equipment.
PRCBE-72/84R-N supports up to 1,192 pounds of equipment.
Durable stainless steel drawers
Top is insulated to eliminate heat transfer to the
interior of cabinet
Model : PRCBE-84R-N
Front breathing design for easy maintenance
and zero-clearance installation
With compressors positioned on the side of the unit, our refrigerators can now be serviced without being moved. Our innovative, front
breathing feature also allows this model to be highly efficient in
narrow spaces.
High-density polyurethane insulation
The entire cabinet structure and solid doors are foamed-in-place
using high density, CFC free polyurethane insulation.
Stainless steel top with Drip Guard (marine)
edge
Hot gas condensate system
Full length drawer with gasket guard
Drawer slider load capacity up to 180 lbs
Magnetic snap-in gasket
Refrigerator holds 33°F ~ 38°F for the best in
food preservation
Compressor
5 YEAR
3 YEAR
WARRANTY
(
)
U.S.A only
Pans Capacity
Model Drawers CU./FT. HP AMPS
(# of pans)
(
)
in.
Crated
Weight
(
)
lbs.
PRCBE-84R-N 4 14.75 127/8 x 20 x 6 (8) 3/8 3.8 528 84 x 331/2 x 215/8
Ver.20190812
* Height does not include 5” for caster height.
L x D x H
(
)
inches
*
Chef Bases
Chef Bases
PRO Series
Model : PRCBE-84R-N
ELECTRICAL DATA
Voltage
Plug Type
Full Load Amperes
Compressor HP
Cord Length (ft.)
Refrigerant
DIMENSIONAL DATA
Ext. Length Overall (in.)
Ext. Depth Overall (in.)
Ext. Height Overall (in.)
*
# of Drawers
Pans Capacity (in.)(# of pans)
Net Capacity (cu. ft.)
Net Weight (lbs.)
Gross Weight (lbs.)
Design and specifications subject to change without notice.
Actual shipping weight may differ due to extra packing materials for product protection.
* Height does not include 5” for caster height.
3 Year Parts and Labor Warranty
Additional 2 Year Warranty on Compressor
115/60/1
NEMA 5-15P
3.8
3/8
9
R-290
84 (2134mm)
33
1/2 (852mm)
21
5/8 (550mm)
4
12
7/8 x 20 x 6 (8)
14.75
461
528
PLAN VIEW
*
Each drawer accommodates up to 6” deep sixth (1/6) size pans
(drawer pans not included)
(unit : inch)
127/8 (325mm)
(530mm)
20
TOP VIEW
84 (2134mm)
STANDARD FEATURES
• Anti-corrosion coated evaporator
• Self-contained system
• 4” dia. swivel casters standard
OPTIONAL ACCESSORIES
• 1” caster, ½” diameter & 13 TPI: S28R813660 (non-brake)
• 2.5” caster, ½” diameter & 13 TPI: 30265H0100 (non-brake),
30265H0200 (w/ brake)
• 5” caster, ½” diameter & 13 TPI: M726500100 (non-brake),
M726500200 (w/ brake)
• Leveling leg, ½” - 13 TPI x 1.54”: LFM1213566
• 6” ABS plastic leg: 30221M0200
• 6” stainless steel leg: 30221M0600
• Condensing unit on the right available
Please allow lead time for shipping. Please contact factory for more details.
*
Ver.20190812
21/8
(54mm)
9
(230mm)
9
(230mm)
353/8 (898mm) 353/8 (898mm)
FRONT VIEW
331/2 (852mm)
301/4 (766mm)
SIDE VIEW
215/8 (550mm)
265/8 (677mm)
3 YEAR
Compressor
5 YEAR
WARRANTY
(
U.S.A only
Turbo Air : 800-627-0032
)
Warrant y : 800-381-7770
GK : 800-500-3519
AC : 888-900-1002
