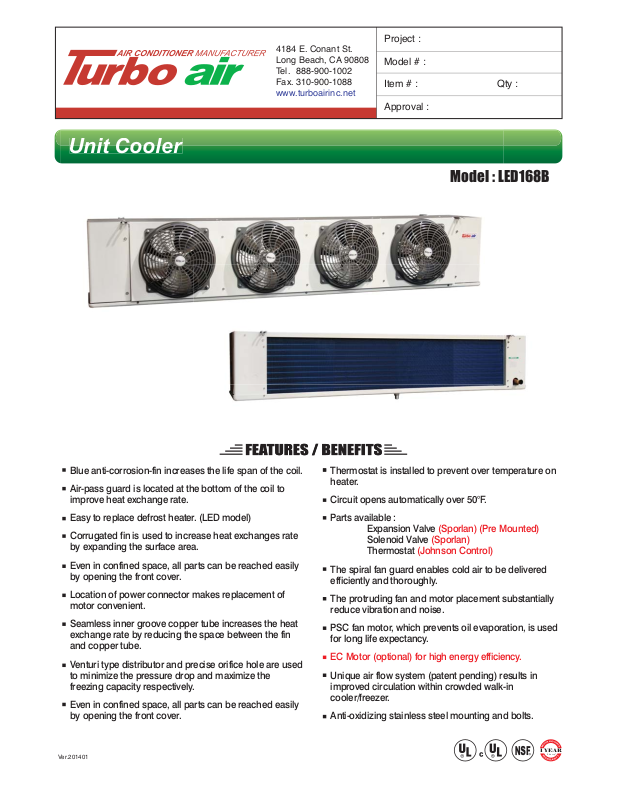

Unit Cooler
Model : LED168B
: L
Blue anti-corrosion-fin increases the life span of the coil.
Air-pass guard is located at the bottom of the coil to
improve heat exchange rate.
Easy to replace defrost heater. (LED model)
Corrugated fin is used to increase heat exchanges rate
by expanding the surface area.
Even in confined space, all parts can be reached easily
by opening the front cover.
Location of power connector makes replacement of
motor convenient.
Seamless inner groove copper tube increases the heat
exchange rate by reducing the space between the fin
and copper tube.
Venturi type distributor and precise orifice hole are used
to minimize the pressure drop and maximize the
freezing capacity respectively.
Even in confined space, all parts can be reached easily
by opening the front cover.
Ver.201401
es the life span of the coil
Thermostat is installed to prevent over temperature on
hermostat is installed to prevent over temperature on
heater.
Circuit opens automatically over 50°F.
Parts available :
Expansion Valve (Sporlan) (Pre Mounted)
Solenoid Valve (Sporlan)
Thermostat (Johnson Control)
The spiral fan guard enables cold air to be delivered
efficiently and thoroughly.
The protruding fan and motor placement substantially
reduce vibration and noise.
PSC fan motor, which prevents oil evaporation, is used
for long life expectancy.
EC Motor (optional) for high energy efficiency.
Unique air flow system (patent pending) results in
improved circulation within crowded walk-in
cooler/freezer.
Anti-oxidizing stainless steel mounting and bolts.
1 YEAR
(
)
U.S.A only
Unit Cooler
Model : LED168B
LED ELECTRIC DEFROST MODELS 60HZ. WITH PSC MOTORS.
Capacity
BTUH/Watts
10°F /6°C TD
-20°F / -29°C SST
16880
EC Motor Data
230V 1Ph 60Hz
HP Watts Watts
1/15 1.40 320 3600 15.7 9.0
Total
Amps
Connections (Inches)
Coil
Inlet Lbs
1/2 OD 1-1/8 ID 3/4 MPT 77
Design and specifications subject to change without notice
Suction
1 Year Fan Motor and Parts Warranty
PLAN VIEW
CFM/m
2600 4
External
Equalizer
1/4 OD
Fan Data
3
H
No.
Defrost Heater
(Total Amps)
230 /
1/60
Drain
230 /
3/60
Approx.
Net Wt.
(unit : inch)
1 YEAR
(
U.S.A only
3/4” MPT (14NPS)
Drain Connection
FRONT VIEW
65
773/8”
TOP VIEW
)
3/8”
15”
1313/16”
12
7/16”
1115/16”
157/16”
SIDE VIEW
