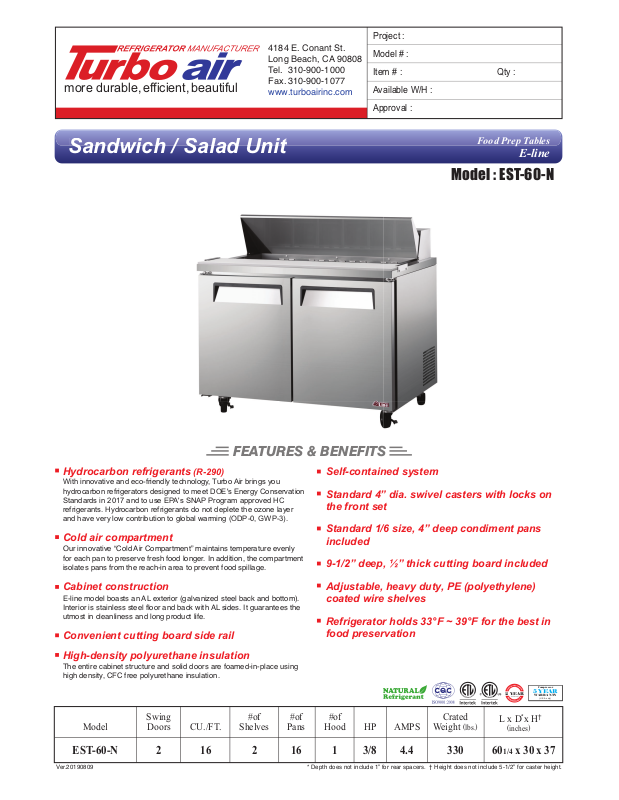

Turbo Air EST60N Specifications
more durable, efficient, beautiful
4184 E. Conant St.
Long Beach, CA 90808
Tel. 310-900-1000
Fax. 310-900-1077
www.turboairinc.com
Project :
Model # :
Item # : Qty :
Available W/H :
Approval :
Sandwich / Salad Unit
Food Prep Tables
E-line
Model : EST-60-N
FEATURES & BENEFITS
Hydrocarbon refrigerants (R-290)
With innovative and eco-friendly technology, Turbo Air brings you
hydrocarbon refrigerators designed to meet DOE's Energy Conservation
Standards in 2017 and to use EPA's SNAP Program approved HC
refrigerants. Hydrocarbon refrigerants do not deplete the ozone layer
and have very low contribution to global warming (ODP-0, GWP-3).
Cold air compartment
Our innovative “Cold Air Compartment” maintains temperature evenly
for each pan to preserve fresh food longer. In addition, the compartment
isolates pans from the reach-in area to prevent food spillage.
Cabinet construction
E-line model boasts an AL exterior (galvanized steel back and bottom).
Interior is stainless steel floor and back with AL sides. It guarantees the
utmost in cleanliness and long product life.
Convenient cutting board side rail
High-density polyurethane insulation
The entire cabinet structure and solid doors are foamed-in-place using
high density, CFC free polyurethane insulation.
Model
Swing
Doors CU./FT.
#of
Shelves HP AMPS
#of
Pans
Self-contained system
Standard 4” dia. swivel casters with locks on
the front set
Standard 1/6 size, 4” deep condiment pans
included
9-1/2” deep, ½” thick cutting board included
Adjustable, heavy duty, PE (polyethylene)
coated wire shelves
Refrigerator holds 33°F ~ 39°F for the best in
food preservation
Compressor
5 YEAR
2 YEAR
WARRANTY
(
U.S.A only
*
inches
†
)
#of
Hood
Crated
Weight
)
L x D x H
(
(
lbs.
)
EST-60-N 2 16 2
Ver.20190809
16
1 3/8 4.4 330 60
* Depth does not include 1” for rear spacers. † Height does not include 5-1/2” for caster height.
1/4
x 30 x 37
Sandwich / Salad Unit
Food Prep Tables
E-line
Model : EST-60-N
ELECTRICAL DATA
Voltage
Plug Type
Full Load Amperes
Compressor HP
Cord Length (ft.)
Refrigerant
DIMENSIONAL DATA
Ext. Length Overall (in.)
Ext. Depth Overall (in.)
Ext. Height Overall (in.)
# of Doors
# of Shelves
# of Pans
Net Capacity (cu. ft.)
Shelf Size (in.)
Net Weight (lbs.)
Gross Weight (lbs.)
Design and specifications subject to change without notice.
Actual shipping weight may differ due to extra packing materials for product protection.
* Depth does not include 1” for rear spacers.
† Height does not include 5-1/2” for caster height.
*
†
115/60/1
NEMA 5-15P
4.4
3/8
9
R-290
1/4 (1530mm)
60
30 (762mm)
(939mm)
37
2
2
16
16
x 167/8
27
308
330
PLAN VIEW
11/8
(29mm)
601/4 (1530mm)
58 (1472mm)
57 (1448mm)
47/8 (123mm)
561/2 (1435mm)
TOP VIEW
(unit : inch)
11/8
(29mm)
41/4
(108mm)
143/8 (364mm)293/8 (745mm)
57 (1450mm)
257/8 (656mm)257/8 (656mm)
2 Year Parts and Labor Warranty
Additional 3 Year Warranty on Compressor
STANDARD FEATURES
• Self-contained system
• Standard 4” dia. swivel casters with locks on the front set
• Standard 1/6 size, 4” deep condiment pans included
OPTIONAL ACCESSORIES
• 1” caster, ½” diameter & 13 TPI: S28R813660 (non-brake)
• 2.5” caster, ½” diameter & 13 TPI: 30265H0100 (non-brake),
30265H0200 (w/ brake)
• 5” caster, ½” diameter & 13 TPI: M726500100 (non-brake),
M726500200 (w/ brake)
• Leveling leg, ½” - 13 TPI x 1.54”: LFM1213566
• 6” ABS plastic leg: 30221M0200
• 6” stainless steel leg: 30221M0600
• Removable food cover: RCT-60
• Stainless steel double overshelf: TSOS-5R
Ver.20190809
11/2 (40mm)
265/8 (678mm)
13/4
(45mm)
105/8 (270mm)
291/2 (749mm)
SIDE VIEW
193/8 (492mm)
133/8 (340mm)
131/4
(337mm)
7 (179mm)
7 (177mm)
30 (762mm)
51/2
(142mm)
2 YEAR
Compressor
5 YEAR
WARRANTY
(
U.S.A only
Turbo Air : 800-627-0032
)
Warranty : 800-381-7770
GK : 800-500-3519
AC : 888-900-1002
