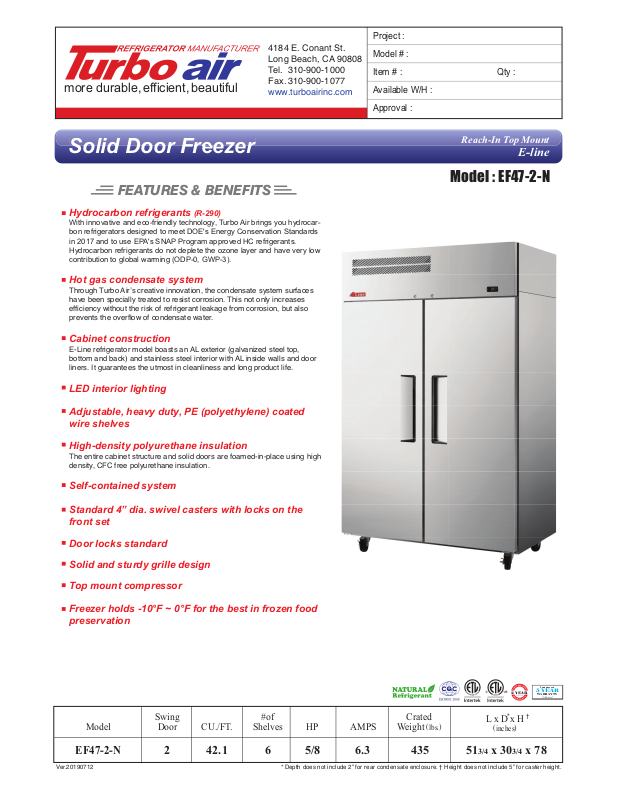

Turbo Air EF472N Specifications
4184 E. Conant St.
Long Beach, CA 90808
Tel. 310-900-1000
Fax. 310-900-1077
more durable, efficient, beautiful
www.turboairinc.com
Solid Door Freezer
FEATURES & BENEFITS
Hydrocarbon refrigerants (R-290)
With innovative and eco-friendly technology, Turbo Air brings you hydrocarbon refrigerators designed to meet DOE's Energy Conservation Standards
in 2017 and to use EPA's SNAP Program approved HC refrigerants.
Hydrocarbon refrigerants do not deplete the ozone layer and have very low
contribution to global warming (ODP-0, GWP-3).
Hot gas condensate system
Through Turbo Air’s creative innovation, the condensate system surfaces
have been specially treated to resist corrosion. This not only increases
efficiency without the risk of refrigerant leakage from corrosion, but also
prevents the overflow of condensate water.
Project :
Model # :
Item # : Qty :
Available W/H :
Approval :
Reach-In Top Mount
E-line
Model : EF47-2-N
Cabinet construction
E-Line refrigerator model boasts an AL exterior (galvanized steel top,
bottom and back) and stainless steel interior with AL inside walls and door
liners. It guarantees the utmost in cleanliness and long product life.
LED interior lighting
Adjustable, heavy duty, PE (polyethylene) coated
wire shelves
High-density polyurethane insulation
The entire cabinet structure and solid doors are foamed-in-place using high
density, CFC free polyurethane insulation.
Self-contained system
Standard 4” dia. swivel casters with locks on the
front set
Door locks standard
Solid and sturdy grille design
Top mount compressor
Freezer holds -10°F ~ 0°F for the best in frozen food
preservation
EF47-2-N
Ver.20190712
Model
2 YEAR
Swing
Door CU./FT.
#of
Shelves HP AMPS
Crated
Weight
(
)
lbs.
*
L x D x H
(
)
inches
2 42.1 6 5/8 6.3 435 513/4 x 303/4 x 78
* Depth does not include 2” for rear condensate enclosure. † Height does not include 5” for caster height.
†
Compressor
5 YEAR
WARRANTY
(
U.S.A only
)
Solid Door Freezer
Reach-In Top Mount
E-line
Model : EF47-2-N
ELECTRICAL DATA
Voltage
Plug Type
Full Load Amperes
Compressor HP
Feed Wires with Ground
Cord Length (ft.)
Refrigerant
DIMENSIONAL DATA
# of Doors
# of Racks Accepted
Net Capacity (cu. ft.)
Ext. Length Overall (in.)
Ext. Depth Overall (in.)
Ext. Height Overall (in.)
*
†
Int. Length Overall (in.)
Int. Depth Overall (in.)
Int. Height Overall (in.)
# of Shelves
Shelf Size (L x D) (in.)
Gross Weight (lbs.)
Design and specifications subject to change without notice.
Actual shipping weight may differ due to extra packing materials for product protection.
* Depth does not include 2” for rear condensate enclosure.
† Height does not include 5” for caster height.
2 Year Parts and Labor Warranty
Additional 3 Year Warranty on Compressor
115/60/1
NEMA 5-15P
6.3
5/8
3
9
R-290
2
2
42.1
51
3/4 (1314mm)
30
3/4 (780mm)
78 (1980mm)
47
3/4 (1214mm)
26
1/2 (675mm)
54
1/4 (1378mm)
6
23 x 23
435
1/2
PLAN VIEW
283/8 (720mm)
245/8 (625mm)
211/2 (547mm)
25 (634mm)
513/4 (1314mm)
473/4 (1214mm)
4
(100mm)
TOP VIEW
303/4 (780mm)
283/8 (720mm)
(unit : inch)
54 (1374mm)
211/2 (547mm)
25 (634mm)
STANDARD FEATURES
• Self-contained system
• Standard 4” dia. swivel casters with locks on the front set
• Door locks standard
• Magnetic door gaskets
• Solid and sturdy grille design
OPTIONAL ACCESSORIES
• 5” caster, ½” diameter & 13 TPI: M726500100 (non-brake),
M726500200 (w/ brake)
• 6” stainless steel leg: 30221M0600
• Half door bun tray rack: TSP-2224
(each holds up to six 18”L x 26”D sheet pans)
• Full door bun tray rack: TSP-2250
(each holds up to fifteen 18”L x 26”D sheet pans)
Ver.20190712
Compressor
5 YEAR
2 YEAR
WARRANTY
(
)
U.S.A only
261/2 (675mm)
SIDE VIEW
Turbo Air : 800-627-0032
Warranty : 800-381-7770
121/4
(310mm)
63/8
(161mm)
83 (2106mm)
78 (1980mm)
541/4 (1378mm)
5
(127mm)
GK : 800-500-3519
AC : 888-900-1002
