SEQUENCER
SERIES E1T
USER MANUAL
01/03/2016
Manual Release 1.24
Hardware Release 1.3
Page 2
1
General Description
Sequencer for controlling the pneumatic cleaning function of industrial dust collection
systems. The device has two output relays contacts and two digital input contacts. A
large, bright display is provided for reading the timer operation, the active solenoid valves
and any alarms in any moment.
Technical Specifications
Casing
• Made of insulating, ABS base and polycarbonate lid.
• Degree of protection to water and dust: IP65 (EN60529).
• Shock resistance: IK07 2 Joule (EN62262).
Performance Of The Device
LED display with 7 segments, 3 digits 0.8” each.
Operating times expressed in seconds with selectable ranges for any application.
Power supplier 115-230 Vac 50-60 Hz selectable via jumper, optional 24 Vac/Vdc.
Output voltage 24 Vdc, 24-115-230 Vac selectable by means of jumper, must also
set with F05.
Fan off washing function (post-cleaning) by means of contact with selectable
number of cycles up to 99.
Total and partial hour counter for maintenance.
Two alarm relays, normally closed.
Solenoid valve not working alarm.
External contact cleaning activation.
Compressed air presence enable input.
Manual solenoid valve activation.
Page 3
2
Important:
Read the installation
Electric Specifications
Electric Power:
• 115 Vac ± 10% 50-60 Hz – 25W
• 230 Vac ± 10% 50-60 Hz – 25W
• 24 Vac ± 10% 50-60 Hz – 25W (Optional)
• 24 Vdc ± 10% 25W (Optional)
Selectable Output Voltage:
• 24 Vdc
• 24 Vac
• 115 Vac
• 230 Vac
Inputs And Outputs Not Galvanically Insulated:
• Enable contact (remote cleaning enable).
• Fan contact (post-cleaning).
The solenoid valves connected to the unit are normally closed.
The activation of a solenoid valves causes them to open and consequently let out a jet of
air.
Alarm Relays:

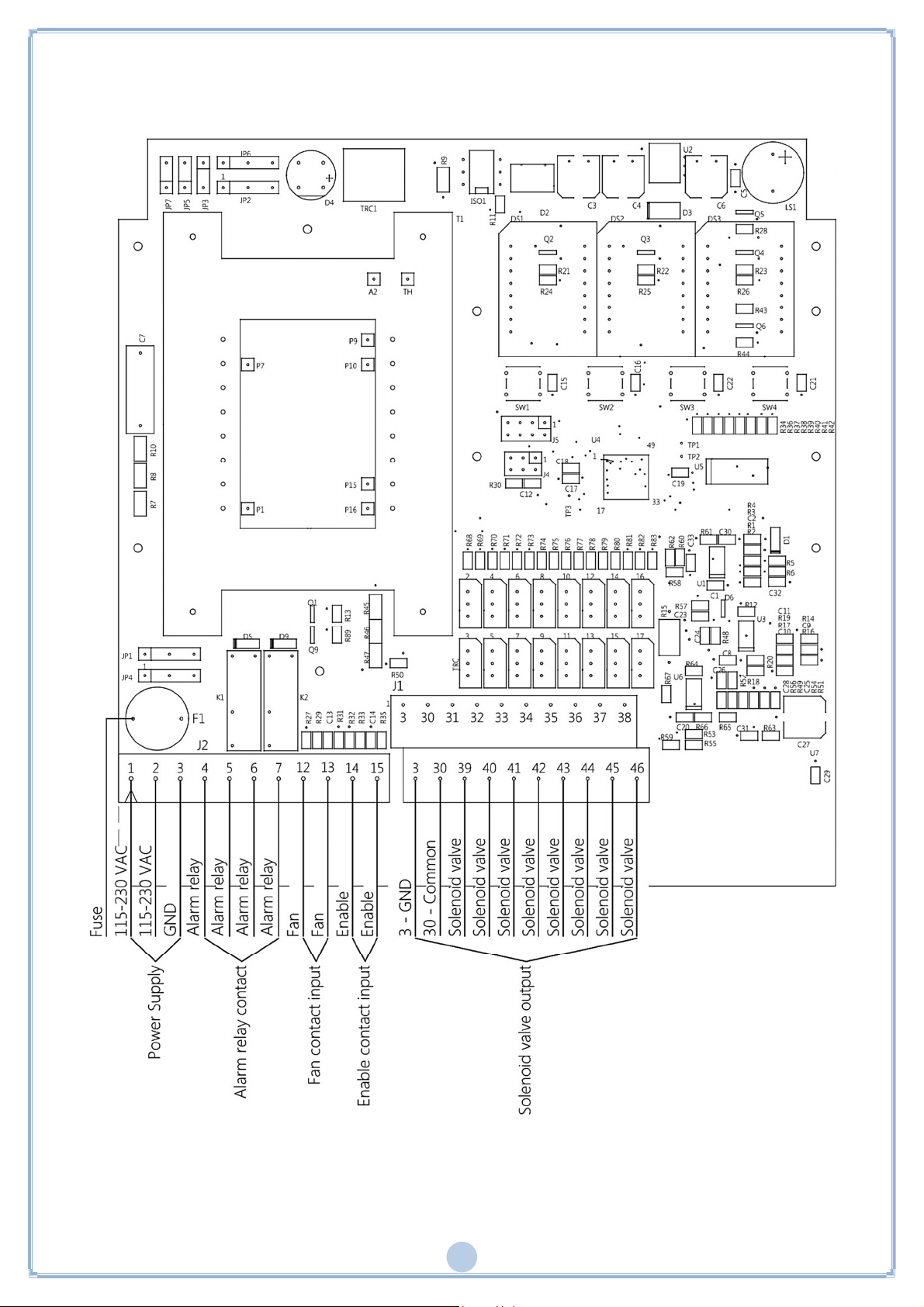

The alarm relays has two voltage-free contacts on terminals 4-5 (Relay 1) and 6-7 (relay 2).
Maximum permitted load: 3A @ 250Vac - 2A @ 24Vdc, 24 Vac.
The relays are normally closed, opens in case of alarms, and opens with the control unit
off or in the absence of power.
Fuse
1 x 1 A @ 230 Vac 1 x 1 A @ 115 Vac.
1 x 3 A @ 24 Vac 1 x 3 A @ 24 Vdc.
Working Temperature:
from -10°C to 55°C
Storage Temperature:
from -20°C to 60°C
Timer Specifications:
Pulse Time (Valve Opening)
from 50 msec. to 5 sec.
Pause Time (Interval Between Valve Openings)
1 sec - 999 sec.
instruction section before
connecting the device.
Page 4
3
Warning Symbols Used In This Manual
The information regarding safety are highlighted using the symbols:
Warning-Danger
Generic - Warning-
Risk – Danger Electric Current
Dispose according to the standards for electrical and
electronic equipment RAAE

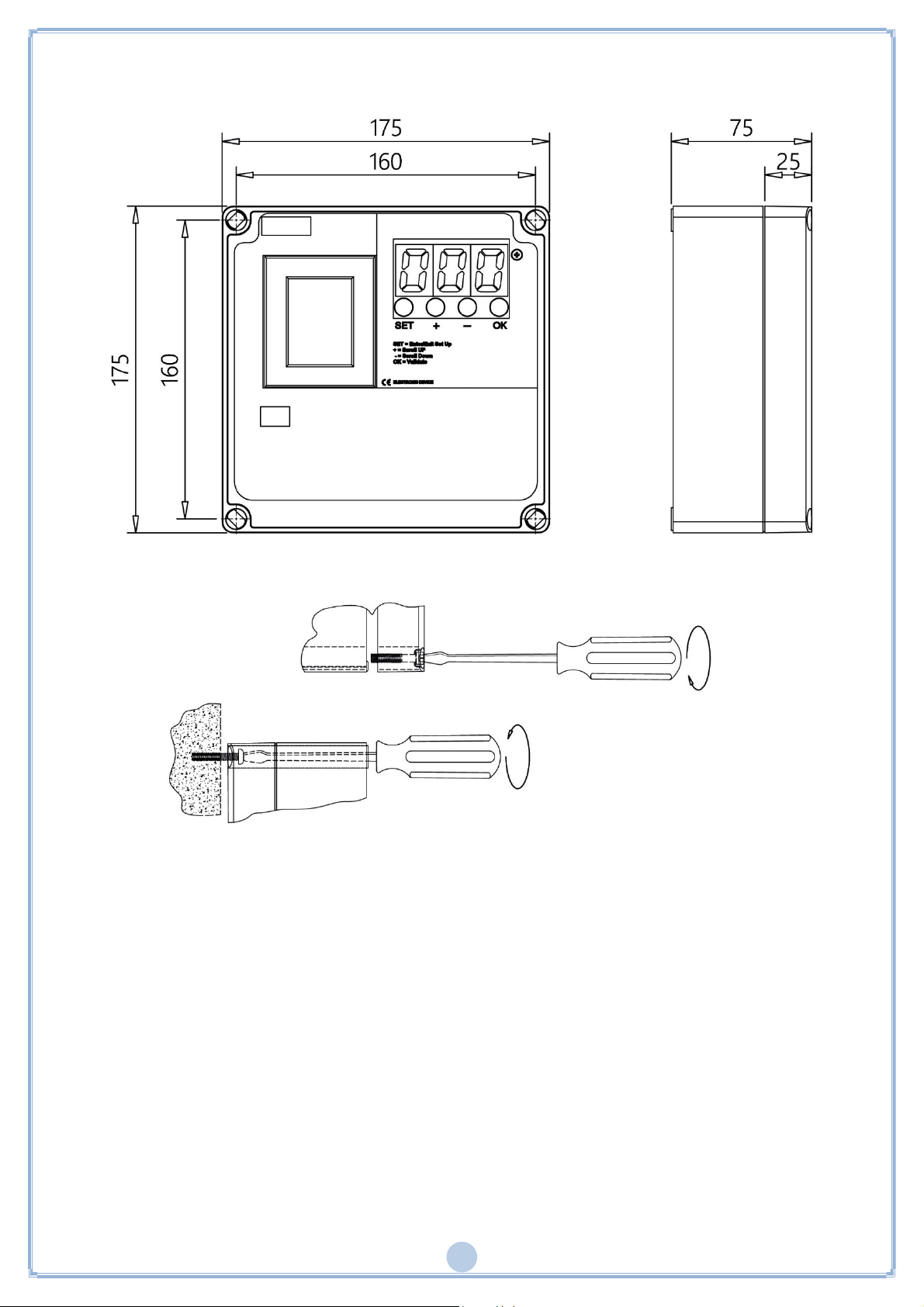

Installation Rules Notes and Warnings
Protect the device from direct exposure to sunlight.
Do not position the device near or directly in contact with sources of heat or
electromagnetic fields.
Fix the device of a height of at least 60 cm from the ground.
In a clearly visible place easily accessible.
Connect the device to power lines other than those for operating motors or other
large power devices which could generate network interference or instability.
The electrical supply of the unit must be protected by a differential switch 230Vac~
30mA and a bipolar magneto thermic 230Vac~ 10A, positioned in a place easily
accessible.
Before working on the equipment to perform any operation switch off the
magneto thermic differential switch.
For electric operations, always remove voltage, wait 30 seconds for the
inside capacitors to discharge before opening. At the end of the operations,
close the device to restore the correct degree of protection before powering up.
For the connection of the supply voltage, use anti-flame wires with a minimum
section of 0.75mm² certified and conform to the standard IEC60227 or IEC60245.
Use flame-retardant cables with a minimum cross-section area of 0.75 mm² for all
control signals.
Use flame-retardant cables with a minimum cross-section area of 0.75 mm² to
connect to the indicating relays.
Use flame-retardant cables with a minimum cross-section area of 0.5 mm² for
electro valves control signals.
The wire ground conductor of protection must be yellow/green.
The wire ground conductor of protection must be connected first.
The wire which is colored yellow/green must only be used for the ground conductor.
Page 5
4
The cable glands must be chosen according to the diameter of the cable to be used.
The sealing of the press cable is guaranteed by the compression of the rubber gasket
that tightens on the outer diameter of the cable.
The tightness of the cable gland is guaranteed by the compression of the rubber seal
that tightens on the outer diameter of the cable.
The size of cable and cable gland must ensure that a power cord traction is not
acting on the terminals.
The terminal block must not be the point of mechanical anchoring of the conductors.
The cable gland PG9 supplied on request, has cable diameter minimum of 4mm and a
maximum of 8mm, with clamping nut by 19mm.
Any use not described in this user instruction manual or incorrect use of the device
may cause damage to the device or to the devices connected to it.
Furthermore, incorrect use or tampering with the device may cause injury.
Waterproofness of the casing is guaranteed when the flap is closed.
Make sure that rigid or flexible ducts used for wiring, if any, do not fill up with water
or other liquids.
Do not make holes not protected on the container or protected by accessories with
protection degree lower than that of the housing of the control unit.
Cut off power supply immediately if water is found in the casing.
If the control unit is used in ways not specified by the manufacturer, the protection
provided by the device may be impaired.
The Control Unit does not release potentially toxic or harmful substances to the
health and the environment.
No part with dangerous voltage is normally accessible.
Do not use the control unit if you have not read or do not understand this manual.
Page 6
5

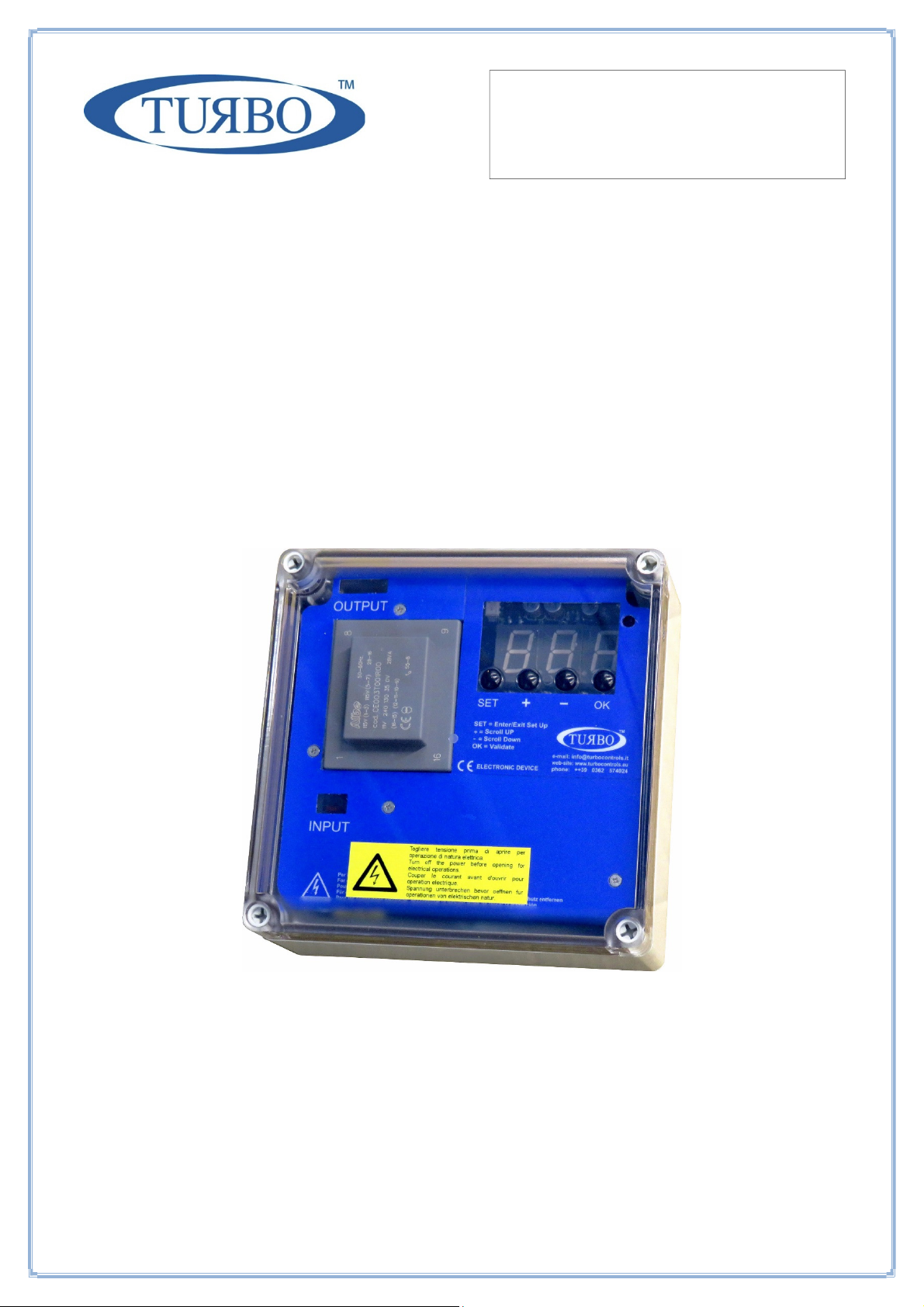

Display / Keypad

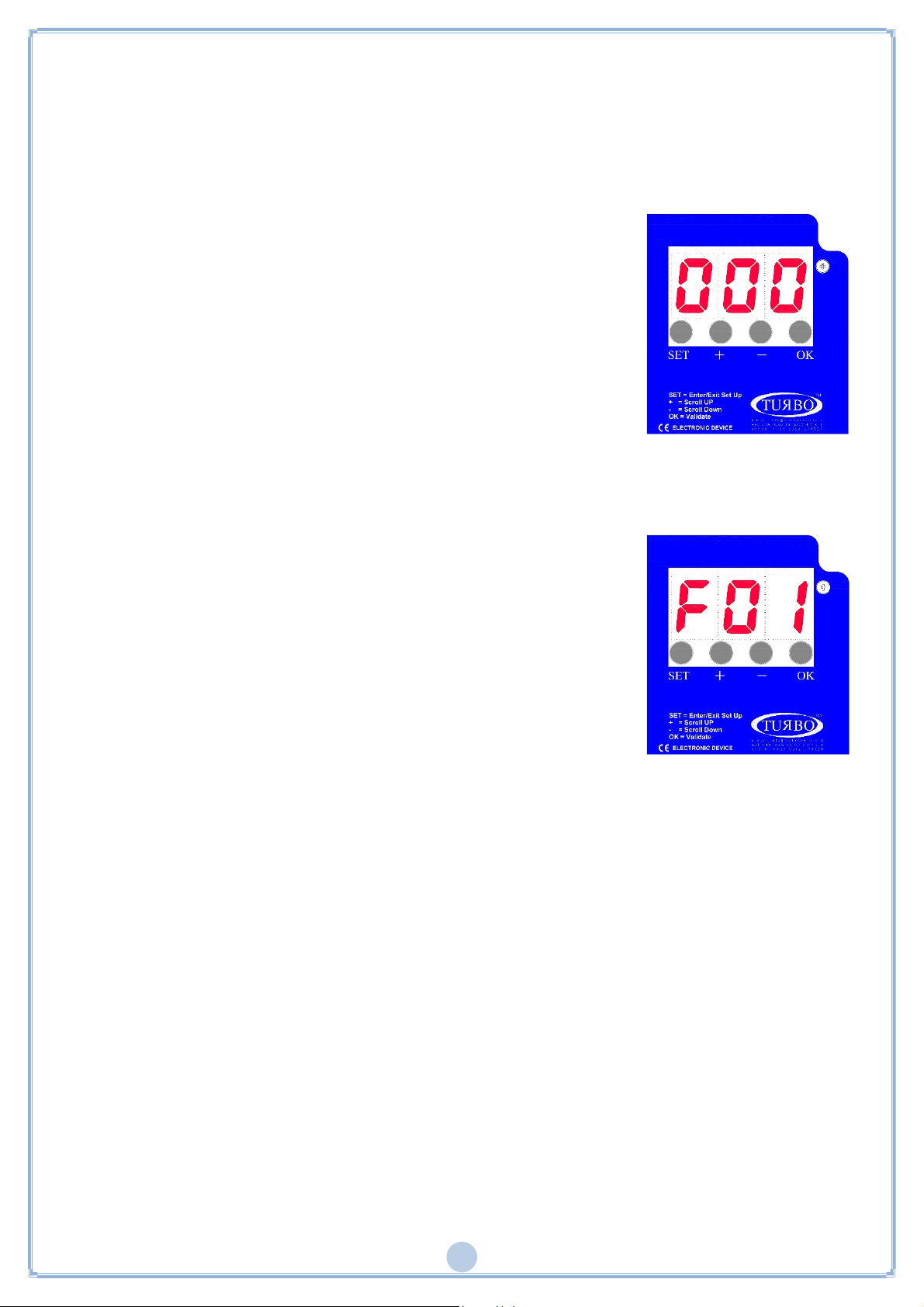

There are four round buttons on the front panel for controlling the device on the front
panel. The display will appear similar to the following when it is turned on.
The SET button enables to enter and exit the
programming menu, and activate the manual test of
solenoid valve selected in function F06.
The + and – buttons enable to scroll functions from
F01 to Fxx. After entering one of the Fxx functions use
the OK button to select and then + and - increase or
decrease the values.
The OK button is used to confirm data and reset alarms.
If the + button is pressed during ordinary operation,
the activity hour meter is displayed.
The – Button pressed during the ordinary operation,
displays the counts partial hours of activity.
Menu Diagram
Press SET, the letter F flashes.
Press + and – to select the required function.
Press OK to confirm.
Increase or decrease the value of the parameter with +
and - buttons.
Holding down the + and – buttons to scroll through all
the functions until the end of the left or right.
Press OK to confirm and exit.
Press SET again to exit programming mode.
Page 7
6
List Of Functions
F02:
Solenoid valve activation time.
Possible values: 0.05” – 5.00” step 0.01”.
Default = 0.20”.
F03:
Washing pause time between solenoid valves.
Possible values: 001” – 999” step 1”.
Default = 020”.
F04:
Number of connected outputs.
Possible values: 01 – 16 step 1.
Default = 001.
F05:

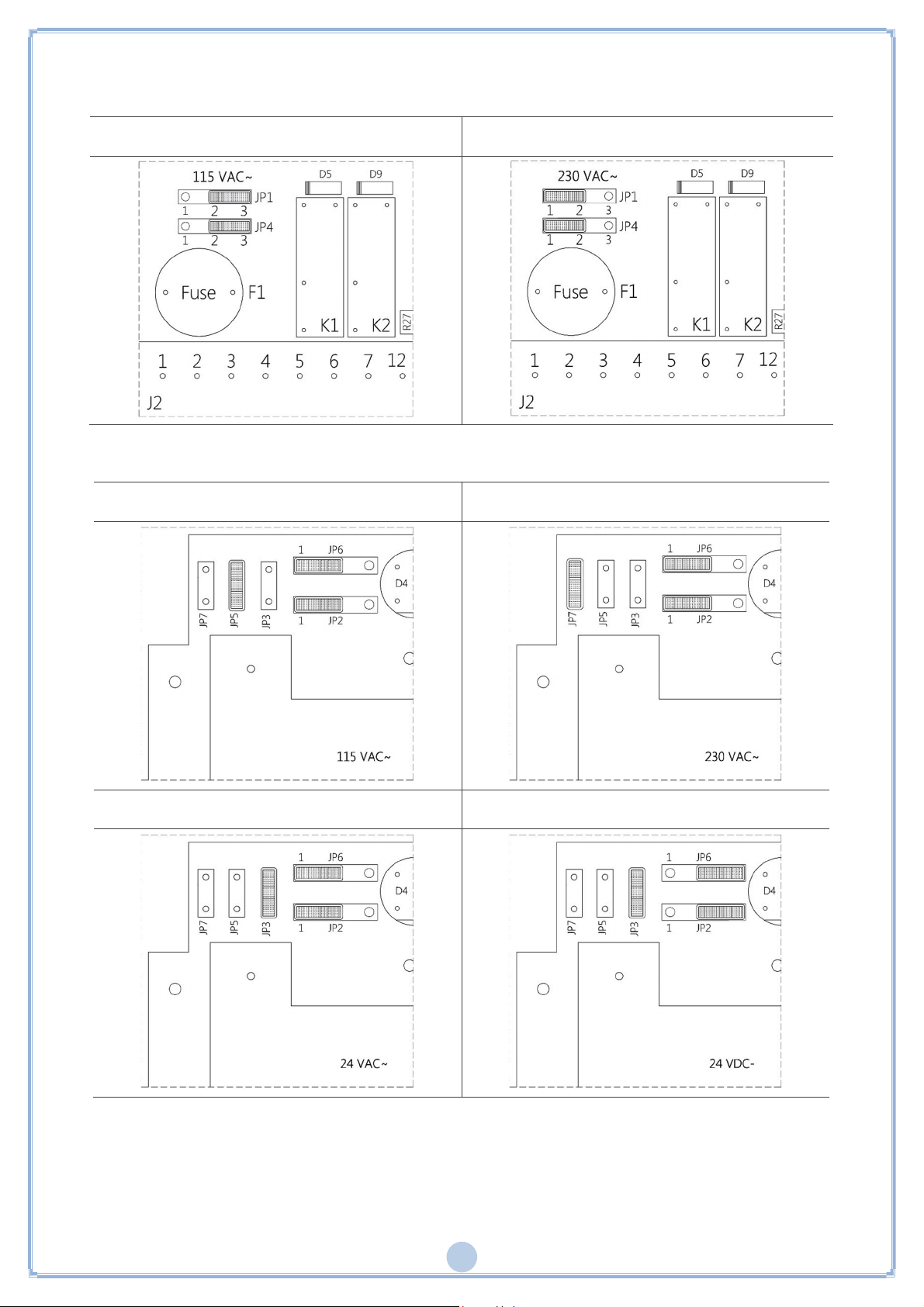

Output voltage setting, must agree with jumpers.
Possible values: d24, a24, 115, 230.
Default = a24.
F06:
Manual output activation.
Possible values: 1 – number of outputs set in F04.
Press SET to activate the set output.
F13:
Number of post cleaning cycles after stopping the fan.
Possible values: 01 – 99 step 1.
Default = 01.
F14:
Post cleaning mode pause time (fan off).
Possible values: 001” – 999” step 1”.
Default = 010”.
F15:
Maintenance frequency expressed in tens of hours (e.g.: 1=10h, 10=100h).
Possible values: 001 – 999 step 1.
Default = 100 (=1000h).
F16:
Maintenance deadline alarm enable.
Possible values: 0 (disabled) – 1 (enabled).
Default = 0 (disabled).
F17:
Maintenance hour counter reset.
Possible values: 0 (disabled) – 1 (reset).
Default = 0 (disabled).
Note: The maintenance hour counter will be reset and the F17
F24
Exclusion of the valve in short circuit.
If set to 1 the valve shorted is excluded from the cycle.
parameter will be set back to 0 by setting F17 to 1.
Settable Values 0 (not excluded) - 1 (excluding)
Default = 0 (not excluded).
Page 8
7
Alarms
The unit runs a number of checks during the start-up cycle and during normal
operation. The possible alarms and respective solutions are shown in the following
table.
Alarm
No.
E01
E02
E03
E04
E05
E06
E07
E08
Description Action
F05 set to 24 Vdc
Vac jumper detected
F05 set to 24 Vac
Vdc jumper detected
F05 set to 24 Vac or Vdc.
Voltage out of range detected
F05 set to 115 Vac.
Voltage out of range detected
F05 set to 230 Vac.
Voltage out of range detected
Solenoid valve current lower than
minimum threshold or disconnected
solenoid valve
Solenoid valve current higher than
maximum threshold
Output short circuit. Alarm
The signaling of the code E08 alternates
with the indication of the interested
output is shown as Uxx where xx is the
number of the output.
- For 24 Vdc, switch the device off and
move the AC/DC jumpers to DC.
- For 24 Vac, press OK, then press
SET, set the function F05 using “+”
and “-”, select A24 and press OK to
confirm.
- For 24 Vac, switch the device off and
move the AC/DC jumpers to AC.
- For 24 Vdc, press OK, then press
SET, set the function F05 using “+”
and “-”, select d24 and press OK to
confirm.
- To use 24V valves, switch the device
off and move the output voltage
selection jumper to 24V.
- If the jumper is in the correct
position, press OK, then SET, select
the F05 function with “+” and “-”, set
115 or 230 (as jumper) and press OK.
- To use 115V valves, switch the
device off and move the output voltage
selection jumper to 115V.
- If the jumper is in the correct
position, press OK, then SET, select
the F05 function with “+” and “-”, set
115 or 230 (as jumper) and press OK.
- To use 230V valves, switch the
device off and move the output voltage
selection jumper to 230V.
- If the jumper is in the correct
position, press OK, then SET, select
the F05 function with “+” and “-”, set
a24, d24 or 115 (as jumper) and press
OK.
Check correct connection of the
solenoid valve and respective data.
The alarm is self-reset.
Check correct connection of the
solenoid valve and respective data.
The alarm is self-reset.
Switch the device off and back on after
having checked the solenoid valve
system.
E11 Maintenance deadline reached Carry out maintenance.
Page 9
8
Indicates that a valve in short circuit has
been excluded from the cycle.
The signaling of the code E14 alternates
with the indication of the interested
E14
output is shown as Uxx where xx is the
number of the output.
An output is considered a short circuit if
not responding for 3 following
activations.
An activation without error resets the
counting.
Switch the device off and back on after
having checked the solenoid valve
system.
Description Of Operation
The installed SW version and the symbol ---, meaning that coherence between settings
stored in E2Prom and the set jumpers is being checked, will appear on the display when
the sequencer is powered up. A corresponding error code will appear in case of
discrepancies between settings (see Alarms Table). Only editing functions will be allowed
on the unit. The operator may switch off the unit and configure the jumpers correctly.
Symbol 0_0 will appear on the display if the test is entirely successful.
The following pages will then appear:
• OFF if the enabling contact is open (14-15)
• -0- if the enabling contact (14-15) is closed and the fan is off
Operative Mode
The device works as a programmable cycle sequencer. The connected outputs will be
activated at the programmable frequencies. The firing and pausing times can be set on the
configuration menu.
Cleaning Function With Fan Off (PCC)
This function allows to carry out one or more cleaning cycles (the number of cycles is
defined by F13) when the fan is off. The on or off state of the fan is determined by the
state of contacts 12-13 (contacts open = fan off). The pulse time of the valves will always
be that defined in F02, while the pause time in this case is defined in F14.
The display alternately shows the number of the valve activated and the word PCC.
Number Of Output Selection
The number of outputs (solenoid valves) on which the sequencer will run the cleaning cycle
can be selected. Cleaning will be carried out in order from the first to the last solenoid
valve. The valves can be adjusted by the F04 function.
Fuse
A fuse which can be reset in case of need is located near the power terminal board. Use a
delayed fuse 5x20mm.
Page 10
9
Connection Diagram
Page 11
10
Contacts And Relay Terminal Block J2
Enable contact input consensus 14.15 terminals.
Is used to activate the control unit remotely, it can be turned on and off remotely.
The unit is supplied with a jumper on the two terminals 14:15, without it will not turn
on.
Fan contact 12.13 input terminals.
Indicated by the control unit that the plant has been started and is in operation.
The unit is supplied with a jumper on two 12:13 terminals to simulate the state of the
plant, as if the fan was turned on.
Alarm Relay K1 4.5 terminals.
The relay is normally closed, opens in case of alarms, and opens with the control unit off
or in the absence of power.
The alarms that open the relays are:
Problem with solenoid valves E06-E08.
Maintenance interval has been reached.
If one of these occurs, the relay is activated.
Terminal Table
Terminal n.
1 Power supply 115 – 230 Vac
2 Power supply 115 – 230 Vac
Description Terminal n. Description
32 Solenoid 2 output
33 Solenoid 3 output
3 Earth (GND) 34 Solenoid 4 output
4 Relay contact 1 35 Solenoid 5 output
5 Relay contact 1 36 Solenoid 6 output
6 Relay contact 2 37 Solenoid 7 output
7 Relay contact 2 38 Solenoid 8 output
12 Fan input 39 Solenoid 9 output
13 Fan input 40 Solenoid 10 output
14 Enable input 41 Solenoid 11 output
15 Enable input 42 Solenoid 12 output
43 Solenoid 13 output
3 Solenoid Valve Gnd 44 Solenoid 14 output
30 Solenoid Valve Common 45 Solenoid 15 output
31 Solenoid 1 output 46 Solenoid 16 output
If the sequencer is in G2 version with reinforced transformer, connect two solenoid valves in parallel
to each terminal.
Fuse Table
Voltage Value
230 Vac 1 A
115 Vac 1 A
24 Vdc / Vac 3 A
Page 12
11
Jumper Configuration Power Input 115 / 230 VAC
115 VAC 230 VAC
Jumper Configuration Output
115 VAC 230 VAC
24 VAC 24 VDC
Page 13
12

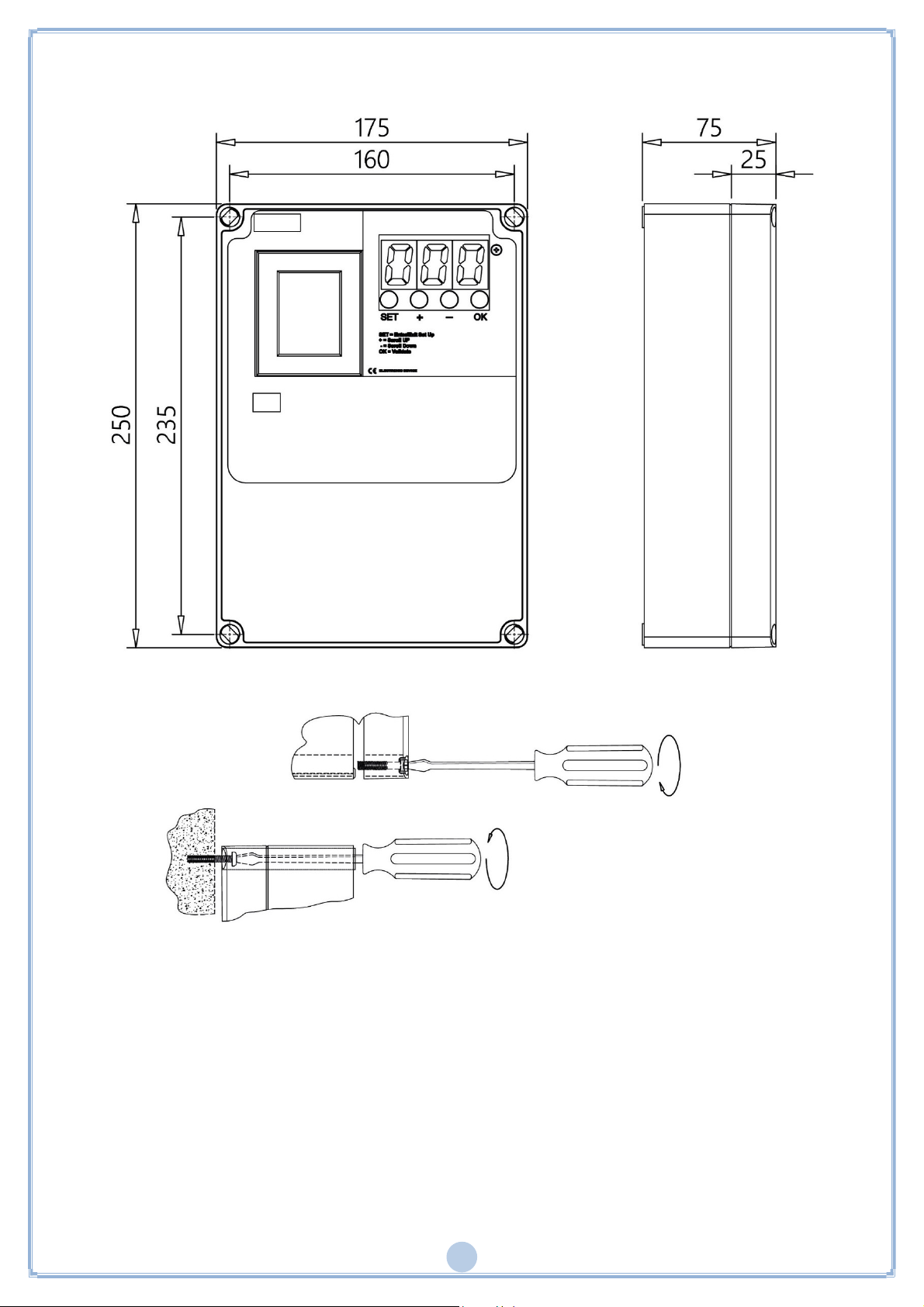

Installation – Casing Dimensions 4 - 8 Outputs
Weight 1.8 Kg
Page 14
13
Installation – Casing Dimensions 12 - 16 Outputs
Weight 2.1 Kg
Page 15
14
Maintenance
Function
Maintenance hour counter reset: set 1 and confirm to reset the
The only parts which may be replaced are fuses. All other operations must be carried out
by the manufacturer.
Scrapping
Dispose of properly after use. Dispose of the product according to laws in force for
electronic equipment.
This device is for use in a dust collection system and is therefore part of a fixed
installation.
Default Settings
The default settings are:
Number
F02 Solenoid valve activation time. 0.20”
F03 Pause time between solenoid valves in normal cycle. 020”
F04 Number of outputs. 1
F05 Output voltage: 24 Vdc, 24 Vac, 115 Vac, 230 Vac. 24 Vac
F06 Manual solenoid valve activation. 1
F13 Number of cycles after fan stop. 1
F14 Pause time between solenoid valves in cycle with fan off. 010”
F15 Maintenance frequency in 10h (1=10h, 100=1000h). 100
F16 Maintenance deadline alarm on (1) or off (0). 0
F17
F24 Exclusion of valve in short circuit.
maintenance hour counter.
Description Set Value
0
0
Warranty
The warranty lasts for 2 years. The manufacturer will replace any faulty electronic
component at their own facilities only, unless otherwise authorised by the manufacturer.
Warranty Exclusions
The warranty will be cancelled in case of:
• Signs of unauthorised tampering and repairs.
• Incorrect use of the device not respecting technical data.
• Incorrect electric connections.
• Failure to respect system standards.
• Use not in accordance with EC standards.
•
Atmospheric events (lightening, electrostatic discharges, power surges).
Page 16
15
Problem Solution
Check the protection fuse on
Check that the unit and
Check the alarm code with
Check the there is no
Fault Possible Cause Solution
The display does not light
up.
The outputs are not
activated.
FAQ
Burnt fuse.
Incorrect output voltage.
Wiring to solenoid valves.
the power voltage.
Check that the power
voltage is present and
compliant with that required
for the device (terminals 1,
2 and 3).
solenoid vale output voltage
agree.
Check wiring between
sequencer and solenoid
valves.
Do alarm messages appear?
Do the alarms fail to
activate signalling devices?
The sequencer resets
occasionally
System wiring errors.
No power to alarm devices.
filtered pulse load on the
power line (spot welding
machines, welding
machines, plasma cutters
etc.).
the table.
The alarm devices must be
powered by voltage external
to the sequencer. Activating
to open the respective relay.
Install a filter on the power
line of the sequencer, if
needed.
Page 17
16
Declaration Of Conformity Of The Manufacturer
The Manufacturer:
TURBO SRL
The Manufacturer's Address:
Via Po 33/35 20811 Cesano Maderno (MB), Italy
Declares That
Product Name:
Sequencer E1T
Models:
E1T 4 - 16
Product Options:
All
Complies with the following directives:
Electromagnetic Compatibility Directive 2014/30/EU, meeting EU harmonised standards
EN61000-6-2:2005 class B of Standard EN61000-6-4:2001.
Low Voltage Directive 2014/35/EU meeting EU harmonised standards EN 60947-1:2004.
A typical configuration of the product was tested.
Cesano Maderno, 01/03/2016
F. MESSINA (C.E.O.)
TURBO s.r.l.
Code And Serial Number
Loading...
