Universal Sensor
Installation Guide
Insert a brief description here, to
provide the reader with a brief
summary about the product.
2
Contents
1. Features and Introduction................................................................................... 3
Your Universal Sensor ....................................................................................................3
Universal Sensor Illustration ........................................................................................4
2. Getting Started ................................................................................................... 6
What’s in the box? .........................................................................................................6
How to install .................................................................................................................6
Unlocking the Universal Sensor .....................................................................................7
Language Selection ........................................................................................................8
Configuration Menu .....................................................................................................10
Select Mode .................................................................................................................12
Advanced Mode ...........................................................................................................15
Passage Time ................................................................................................................16
Monitoring Deactivated ...............................................................................................17
Battery .........................................................................................................................19
ALB – Auto Low Battery ...............................................................................................20
AP – Auto Presence ......................................................................................................20
Status – Battery ............................................................................................................20
Send Message ..............................................................................................................21
Setup Summary ............................................................................................................23
About ...........................................................................................................................24
Virtual Bed ...................................................................................................................25
Virtual Bed – attaching a pad. ......................................................................................26
Door Contact ................................................................................................................27
Enuresis Sensor ............................................................................................................28
Enuresis Sensor – attaching the Moisture Sensing Mat ..............................................29
Pendant ........................................................................................................................30
Epilepsy Sensor ............................................................................................................31
CO Detector .................................................................................................................32
Door Guard ..................................................................................................................33
Gas Detector ................................................................................................................34
Smoke Detector ...........................................................................................................35
Bed Occupancy Sensor .................................................................................................36
How to reset the Universal Sensor ..............................................................................40
3. How to program to the Tunstall Home Unit ...................................................... 41
4. Notes and Warnings .......................................................................................... 42
Service Information......................................................................................................42
Changing the battery ...................................................................................................42
5. Compliance and Standards ................................................................................ 43
Declaration of conformity ............................................................................................43
3
1. Features and Introduction
Your Universal Sensor
The Universal Sensor works as an interface between wired electrical devices and
Tunstall telecare enabled systems. These may include an existing intruder alarm
system, natural gas detector, carbon monoxide detector or pressure mat.
Programmed using the built-in buttons and LCD screen the Universal Sensor is easily
set to send a message to the home unit identifying which type of device it is linked
to. When the attached device is triggered the Universal Sensor sends the appropriate
message, providing the operator at the response centre with sufficient information
to respond accordingly.
The Universal Sensor can also receive inputs from normally open or normally-closed
contacts enabling it to be connected to a wide range of devices.
Responsibility for suitability and relevant standards compliance lies with the Service
Provider.
4
Universal Sensor Illustration
9
1
8
6
5
4
3
2
7
5 4
5

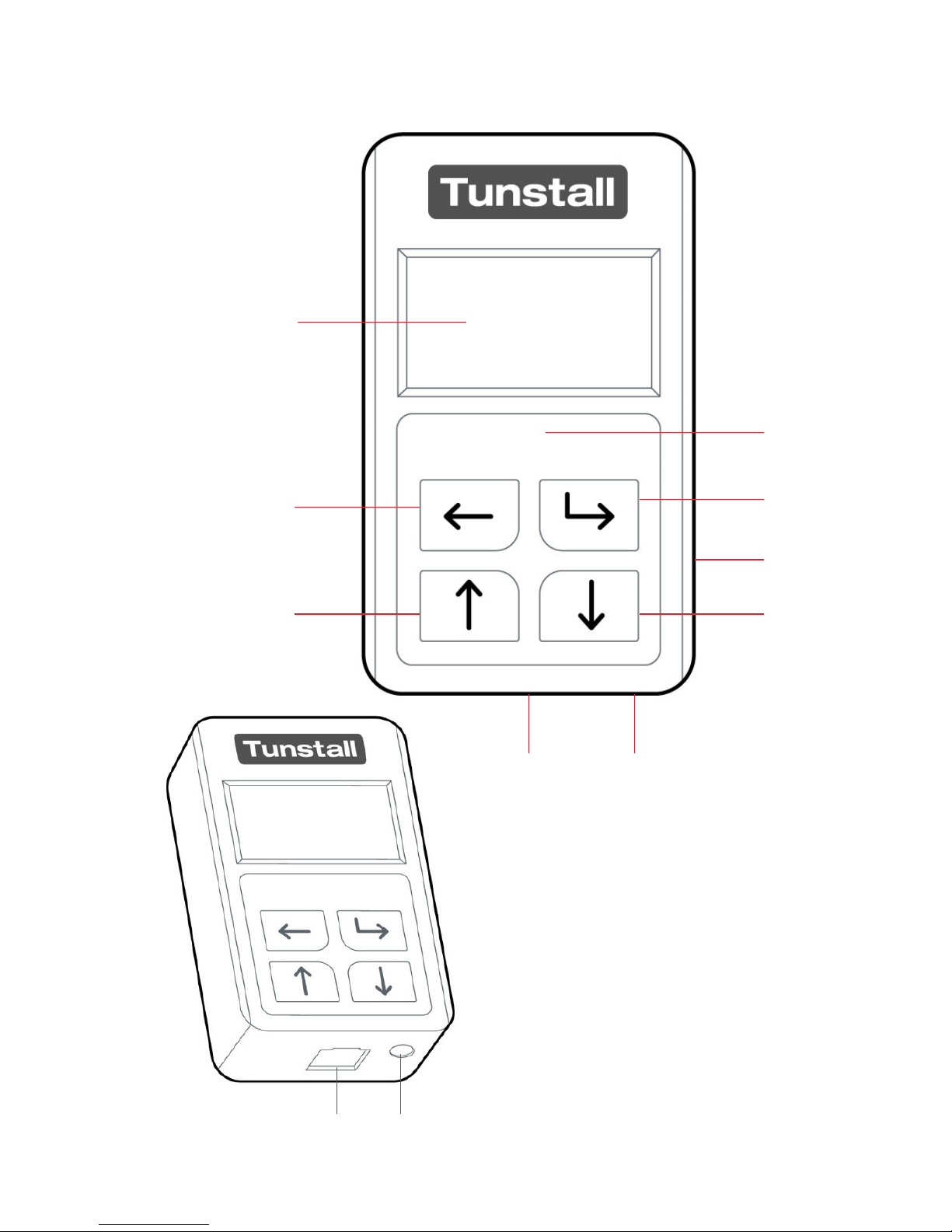

Illustration Legend
Universal Sensor
1 LCD Screen
2 Back Button
3 Up Button
4 RJ11 Input
5 3.5mm Input
6 Down Button
7 Reed Switch
8 Select Button
9 Red LED
6
2. Getting Started
What’s in the box?
1No. Universal Sensor
2No. Door Contacts
4No. Door Contact screws
2No. Velcro Pads
1No. RJ11 Cable
How to install
The Universal Sensor should be installed in a clean, dry environment and for
optimum radio performance should be mounted away from metallic surfaces.
The Universal Sensor can be fastened to the wall etc. by a variety of methods –
integral keyhole slots, sticky pads, Velcro etc. The installer should determine the
most appropriate method.
When installed using a Door Contact it is important to
line the top screw hole with the bottom of the
Universal Sensor screen; this ensures that the built-in
reed switch and magnetic contact are correctly
aligned.
7
Unlocking the Universal Sensor

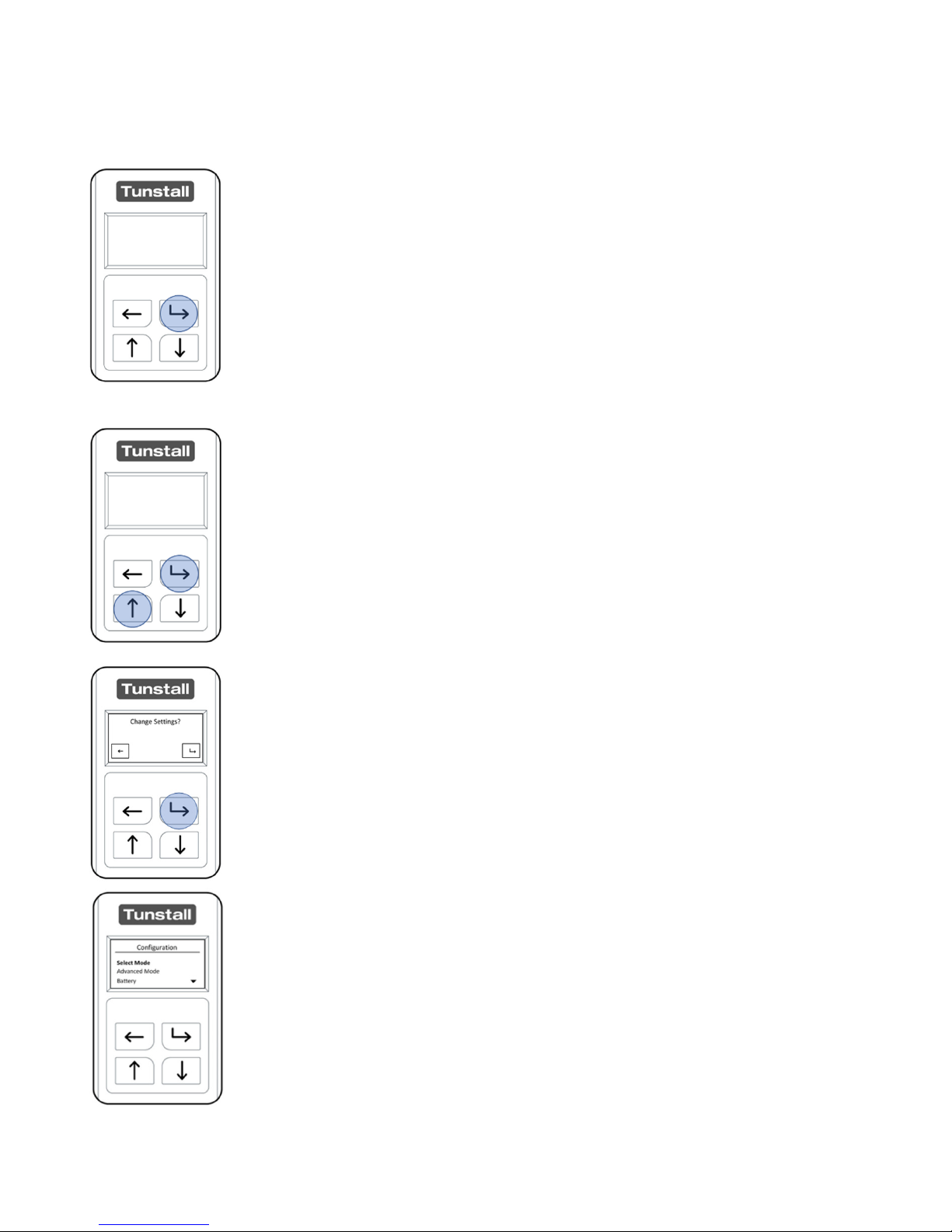

To unlock the Universal Sensor:
Press and hold the “Select Button”
Whilst still pressing the ‘Select Button’, press and hold the “Up
Button” until ‘Change Settings’ appears on the display.
Press the “Select Button” to confirm you want to unlock the sensor.
The Universal Sensor is now unlocked and can now be configured.
8
Language Selection
The Default language for a new Universal Sensor is English (UK). You can change the
language setting on the Universal Sensor if it is incorrect or if you have accidentally
changed the language to a language you do not understand.
After unlocking the Universal Sensor, the “Configuration Menu will
be displayed.

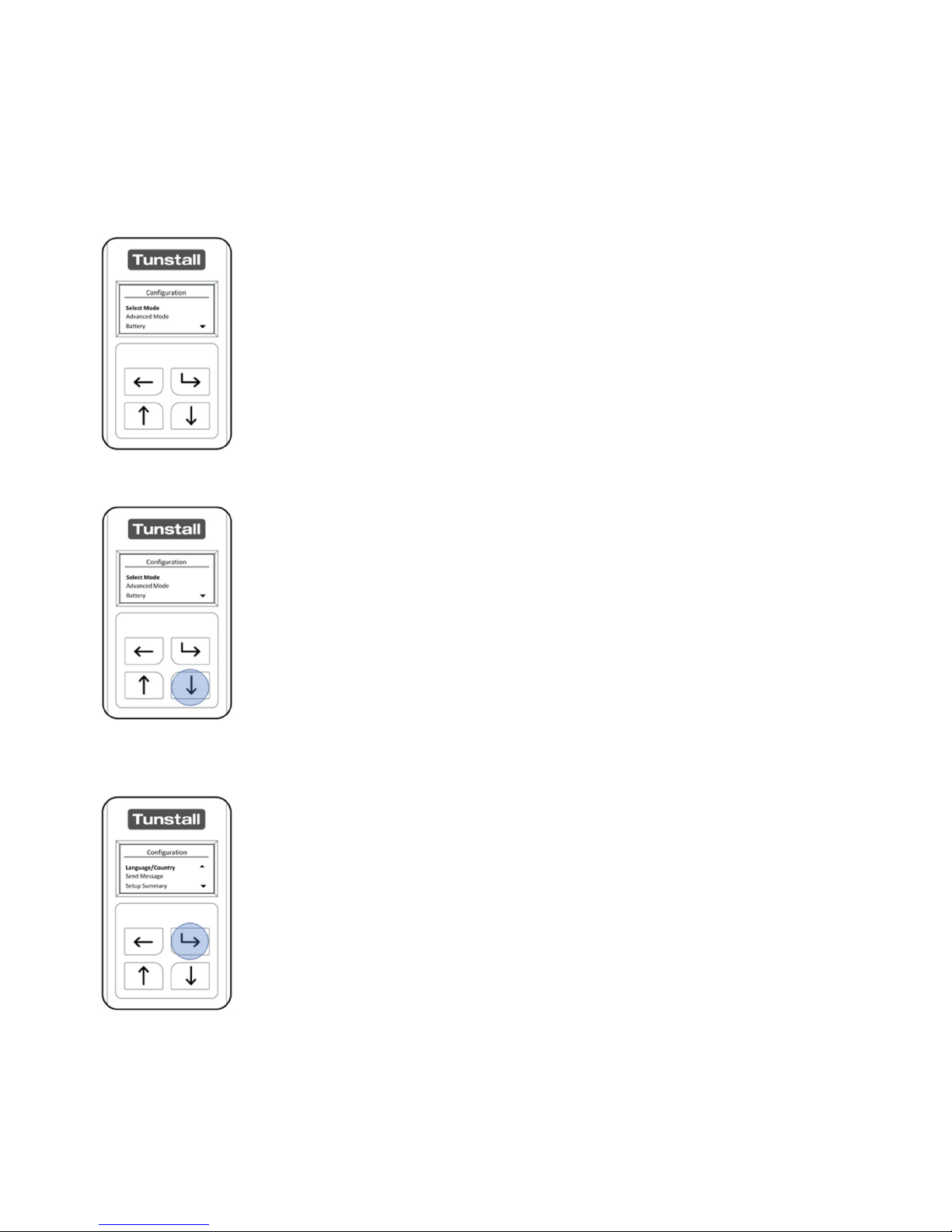

Select ‘Language/Country’ from the ‘Configuration Menu’ by
pressing the “Down Button” 3 times, once highlighted press the
“Select Button”.
The “Language/Country” menu is the first option on the second
screen page of the “Configuration Menu”. Open this menu by
pressing the “Select Button”.
9

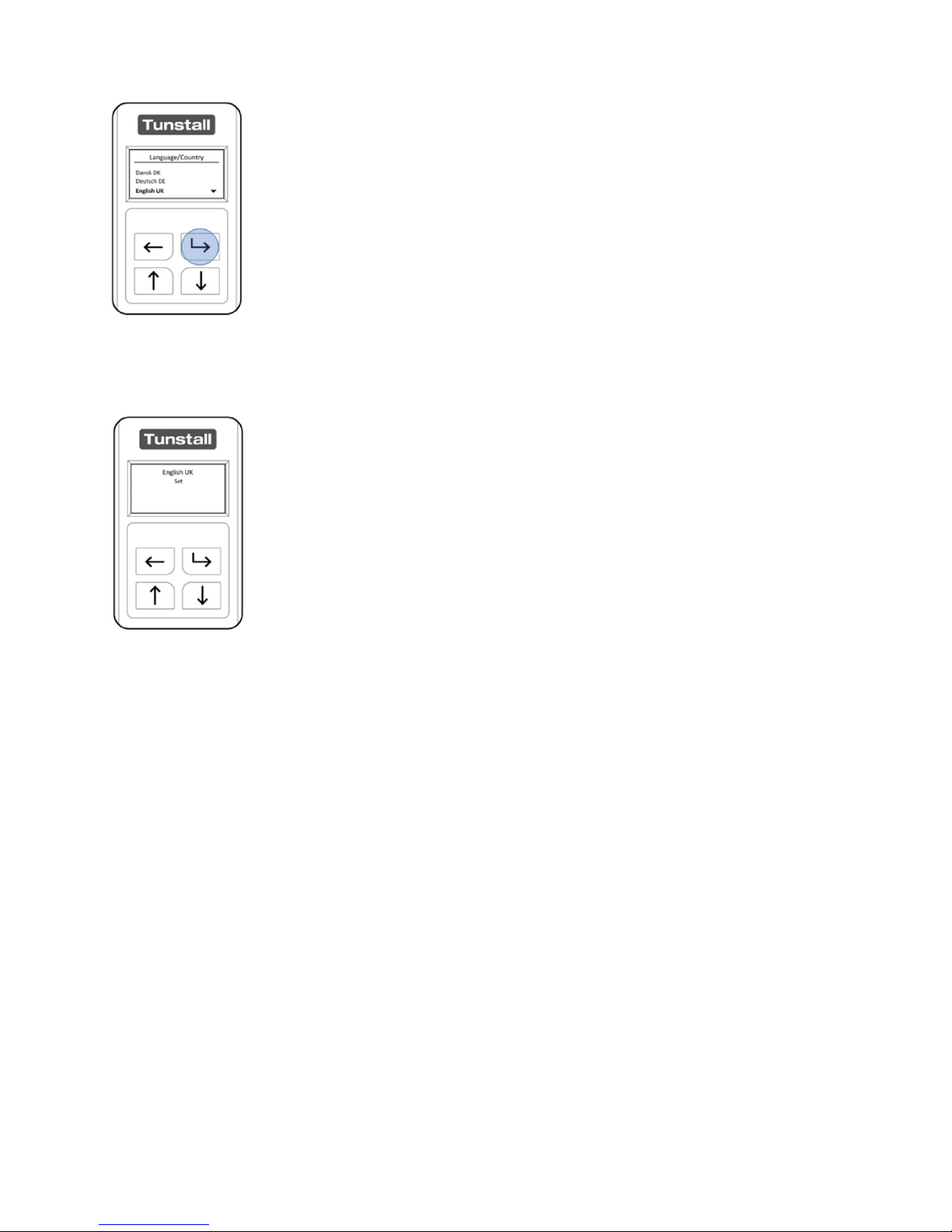

The “Language/Country” Menu displays a list of available
languages. Navigate this list using the “Up Button” and the “Down
Button” and use the “Select Button” to choose the new language.
The Universal Sensor will confirm on screen that the newly selected
language has been set. Once completed the Universal Sensor will
return to “Configuration Menu”.
10

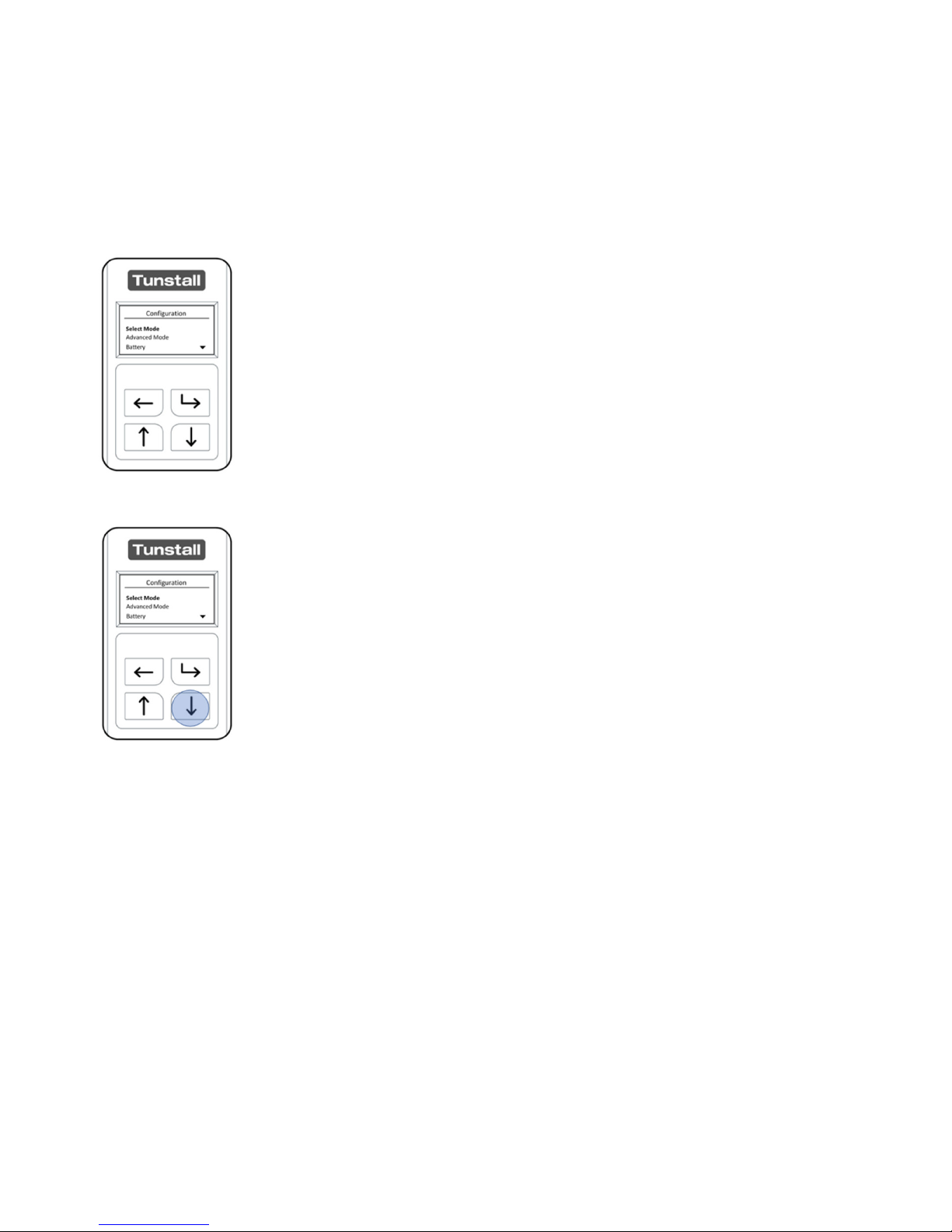

Configuration Menu
The “Configuration Menu” is accessed after unlocking the Universal Senor and
contains a list of the options used to set up the Universal Sensor.
Select Mode: Used to select which
predefined sensor type the
Universal Sensor should
operate as.
Advanced Mode: Changes can be made here to
the Input type (RJ11 or
3.5mm) and the contact
channel (Normally Open or
Normally Closed).

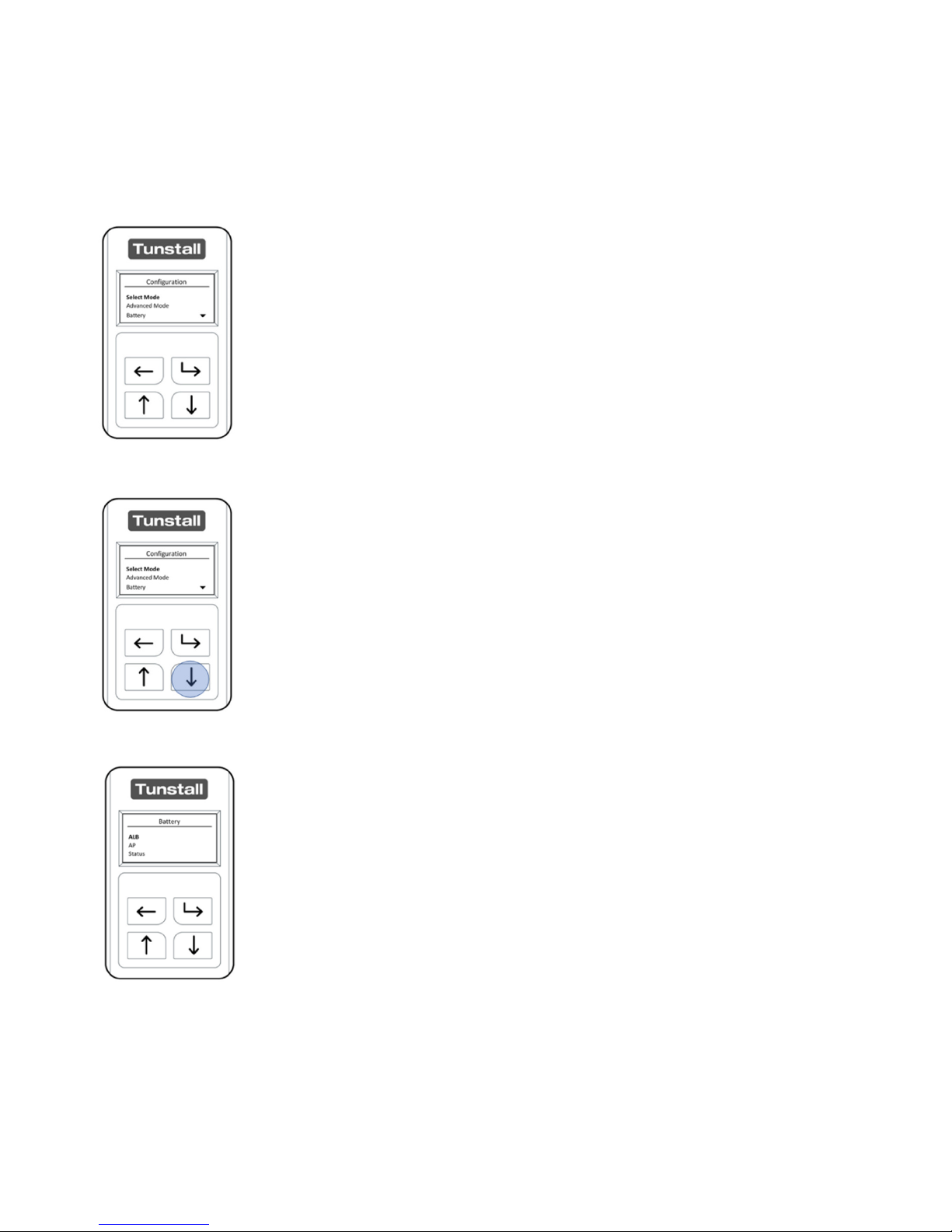

Battery: Used to configure AP and ALB
and displays the status of the
user changeable battery.
Language: Displays a list of selectable
display languages which the
Universal Sensor can operate
in.

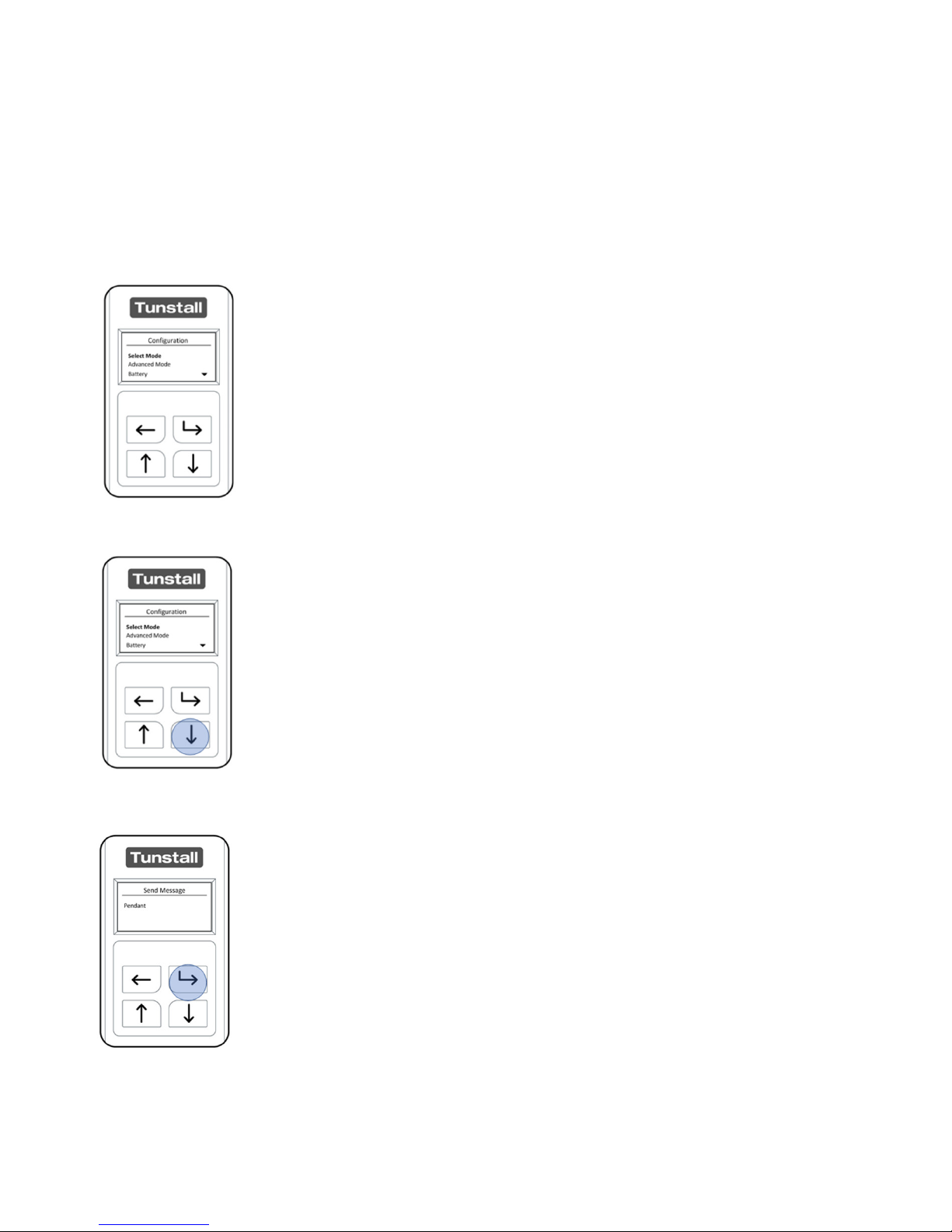

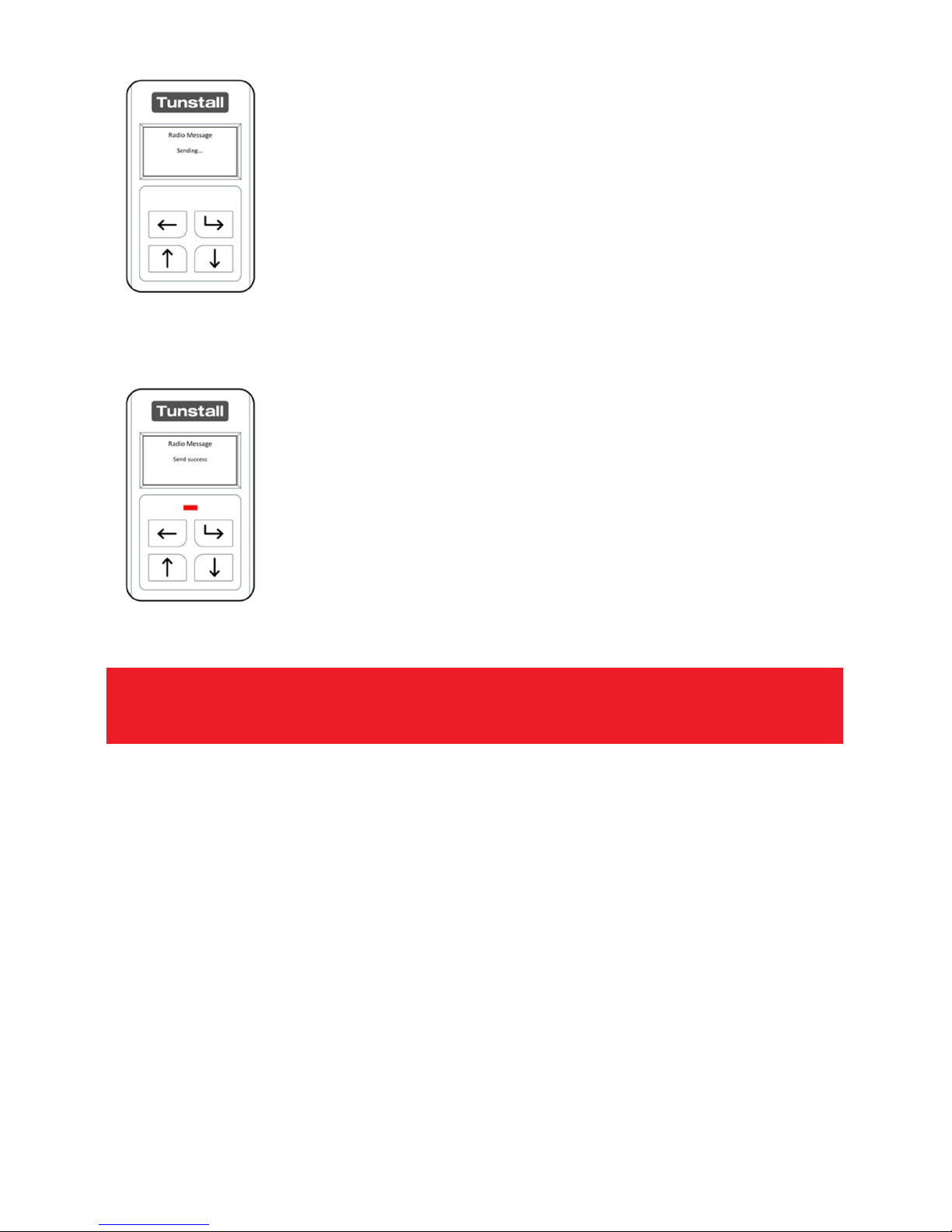

Send Message: Sends a test radio message
from the Universal Sensor.
This will raise an alarm on the
Tunstall device. Exits back to
the Configuration Menu.
Setup Summary: Displays the current
configuration of the Universal
Senor.
About: Displays the current installed
firmware.
Exit: Exits the Configuration Menu
and puts the Universal Sensor
into its configured mode.
11
12
Select Mode
“Select Mode” is used to select which sensor type the Universal Sensor should
operate as.
After unlocking the Universal Sensor, the “Configuration Menu will
be displayed.

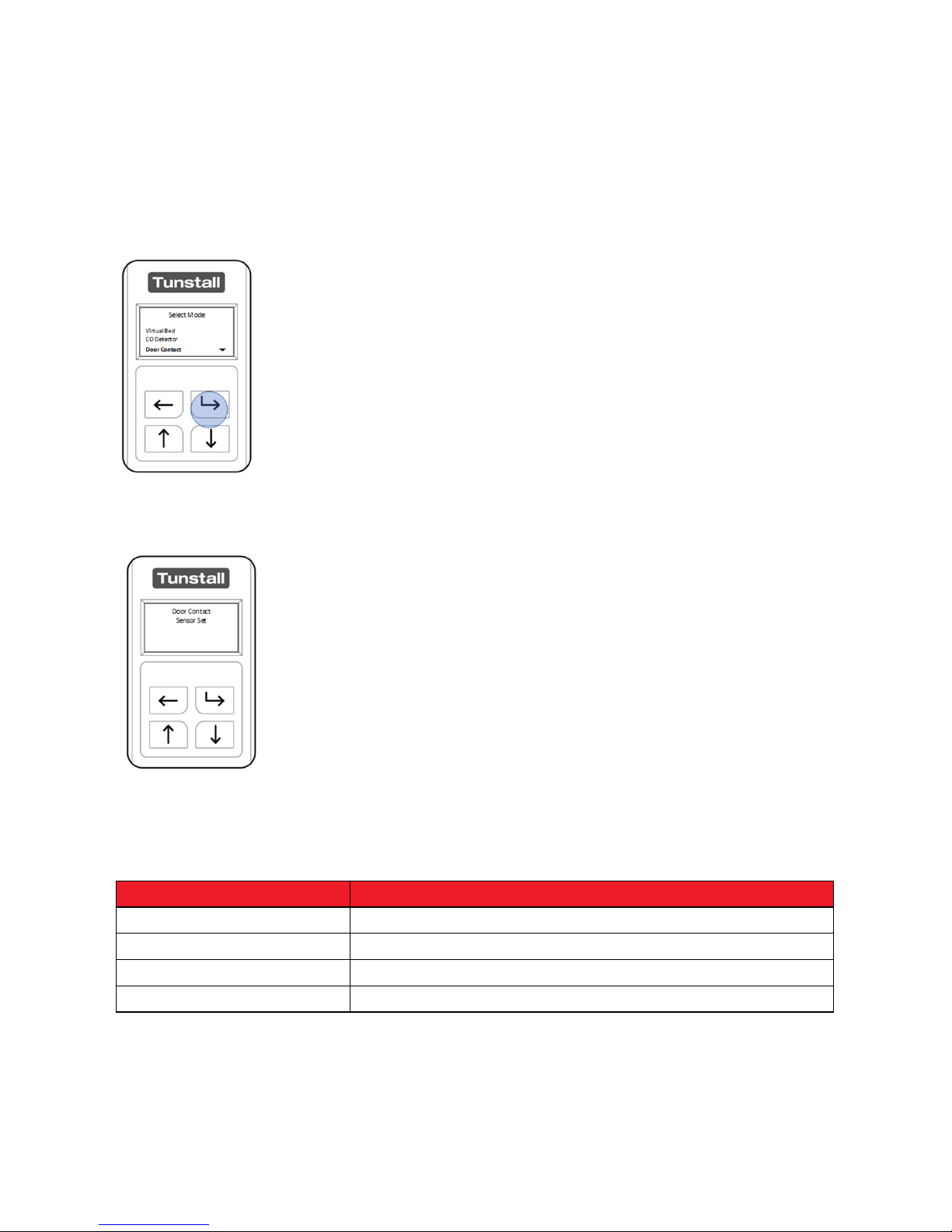

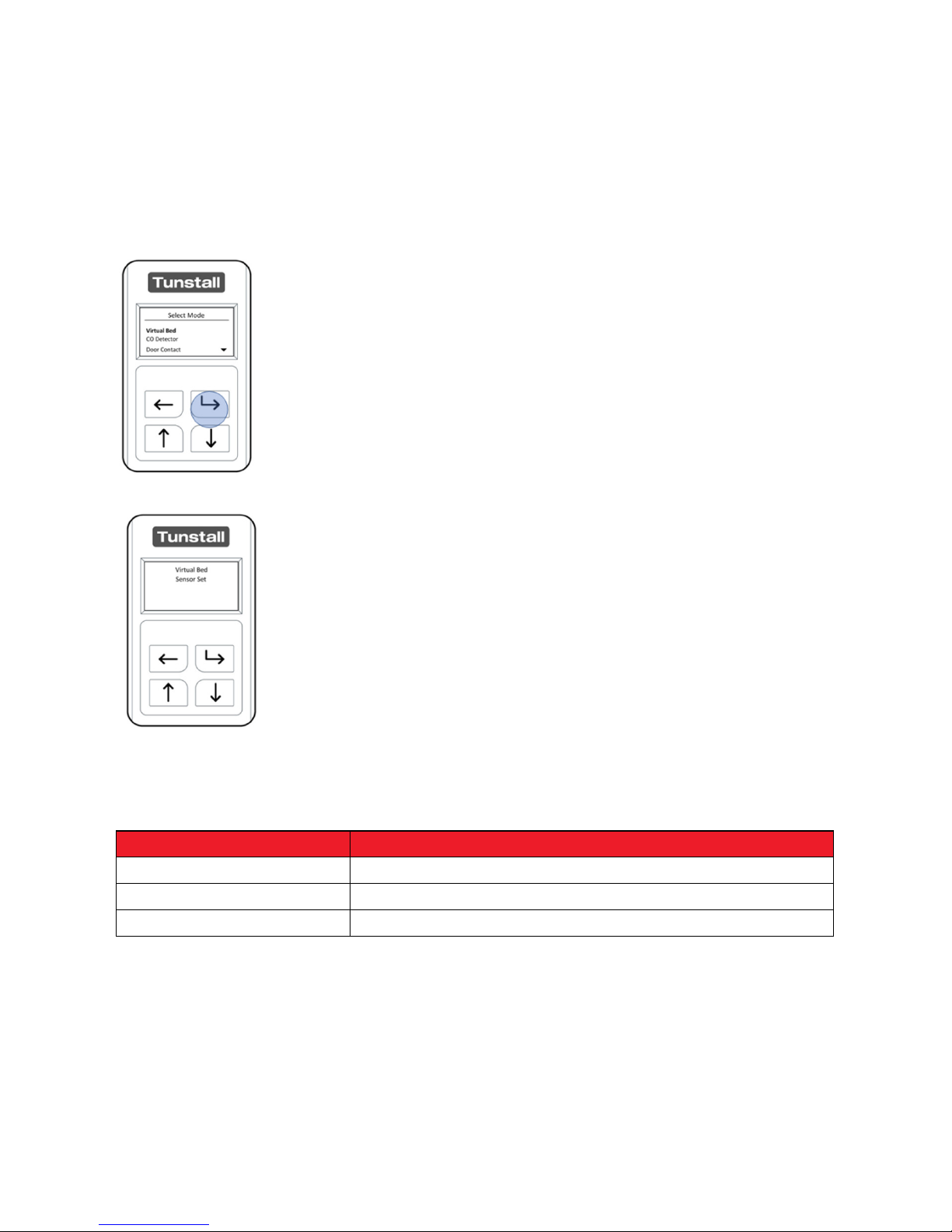

The “Select Mode” menu will be selected when first opening the
“Configuration Menu” press the “Select Button” to enter “Select
Mode”
13
The Universal Sensor can be configured to transmit to a Tunstall Telecare enabled
solution as the following device types:
Virtual Bed The Virtual Bed sensor sends an event call if a client
has got in or out of bed (or a chair).

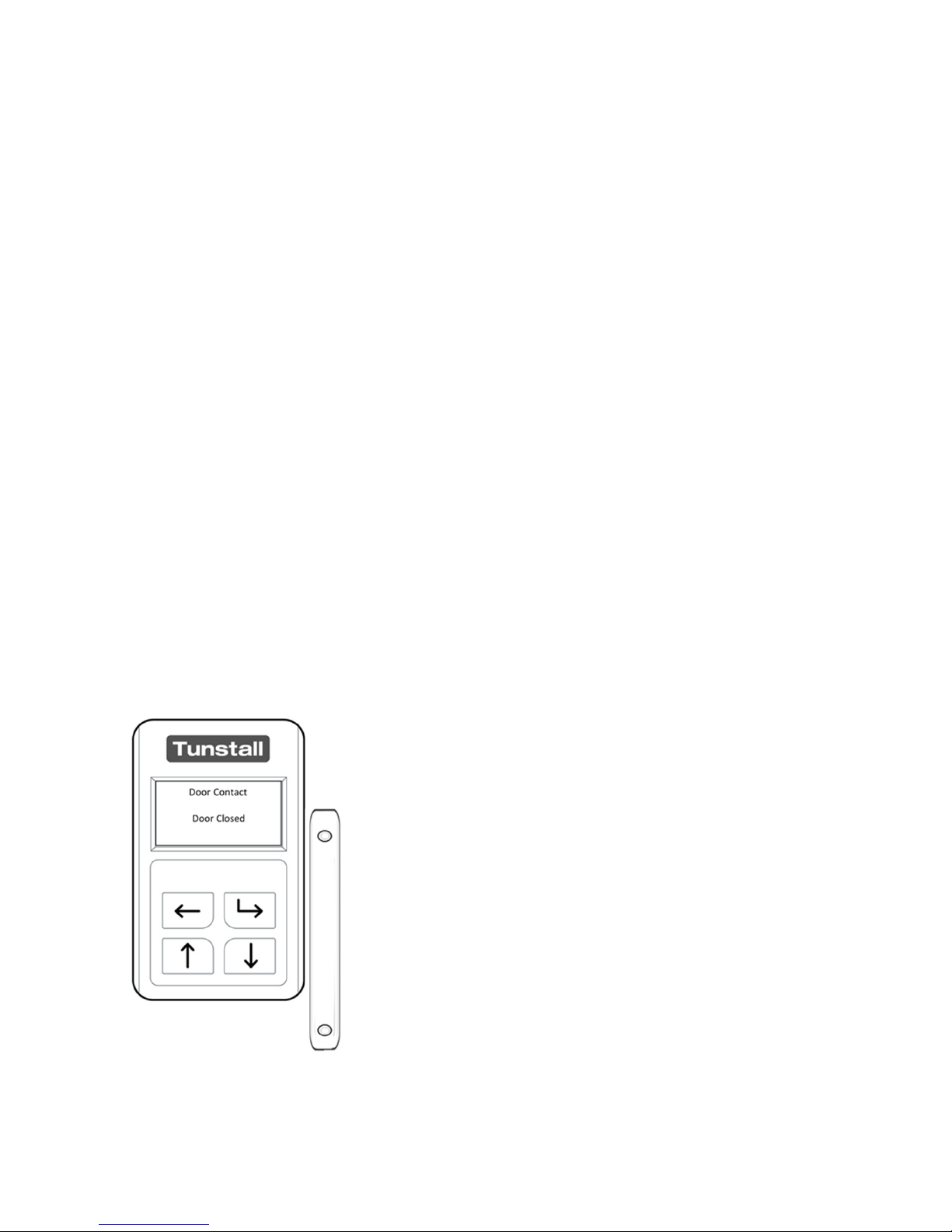

Door Contact Normally used with the magnetic contact and the
built in Reed Switch; this simulates the event call
when the door is opened and closed.
Enuresis Sensor When connected to an appropriate Enuresis Sensor
(available separately) if moisture is detected the
Universal Sensor will communicate with the Tunstall
Lifeline or Telecare Overlay System to enable care to
be delivered quickly.

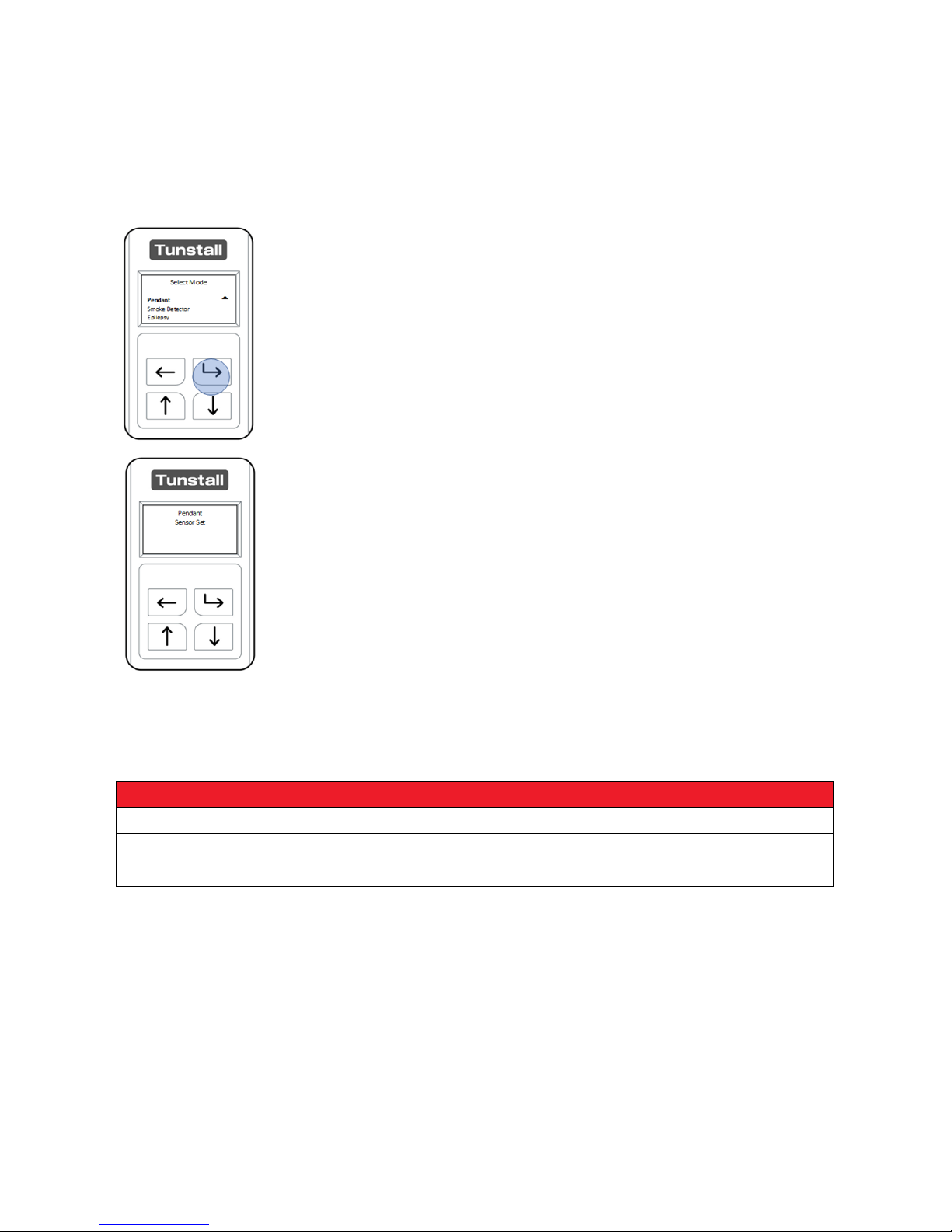

Pendant The Universal Sensor will simulate the call from a
personal alarm trigger. This is used to enable third
party devices to send a personal trigger alert to the
Tunstall Lifeline or Telecare Overlay system.
Epilepsy Sensor When connected to an appropriate Epilepsy Sensor
(available separately) once movement is detected
the Universal Sensor will communicate with the
Tunstall Lifeline or Telecare Overlay System to
enable care to be delivered quickly.

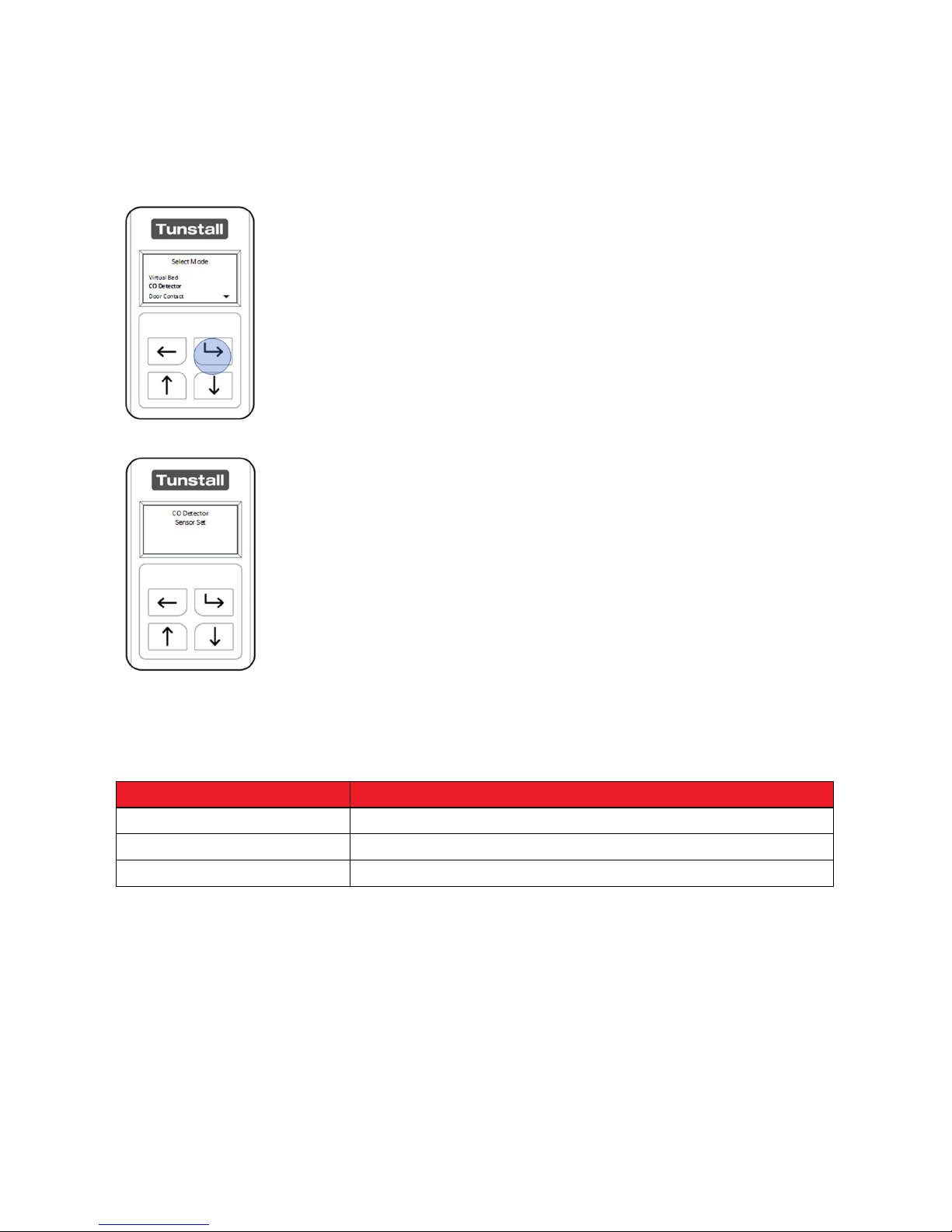

CO Detector The Universal Sensor can be configured to work with
3rd party CO Detectors meaning when Carbon
Monoxide is detected the Universal Sensor will
communicate with the Tunstall Lifeline or Telecare
Overlay System to enable care to be delivered
quickly.
Door Guard Like the Door Contact mode, but an alarm is raised
when the door is opened. A carer can use the built-in
pause monitoring facility to enter and exit the
property without raising an alarm call.
Gas Detector The Universal Sensor can be configured to work with
3rd party Gas Detectors meaning when Natural Gas is
detected the Universal Sensor will communicate
with the Tunstall Lifeline or Telecare Overlay System
to enable care to be delivered quickly.

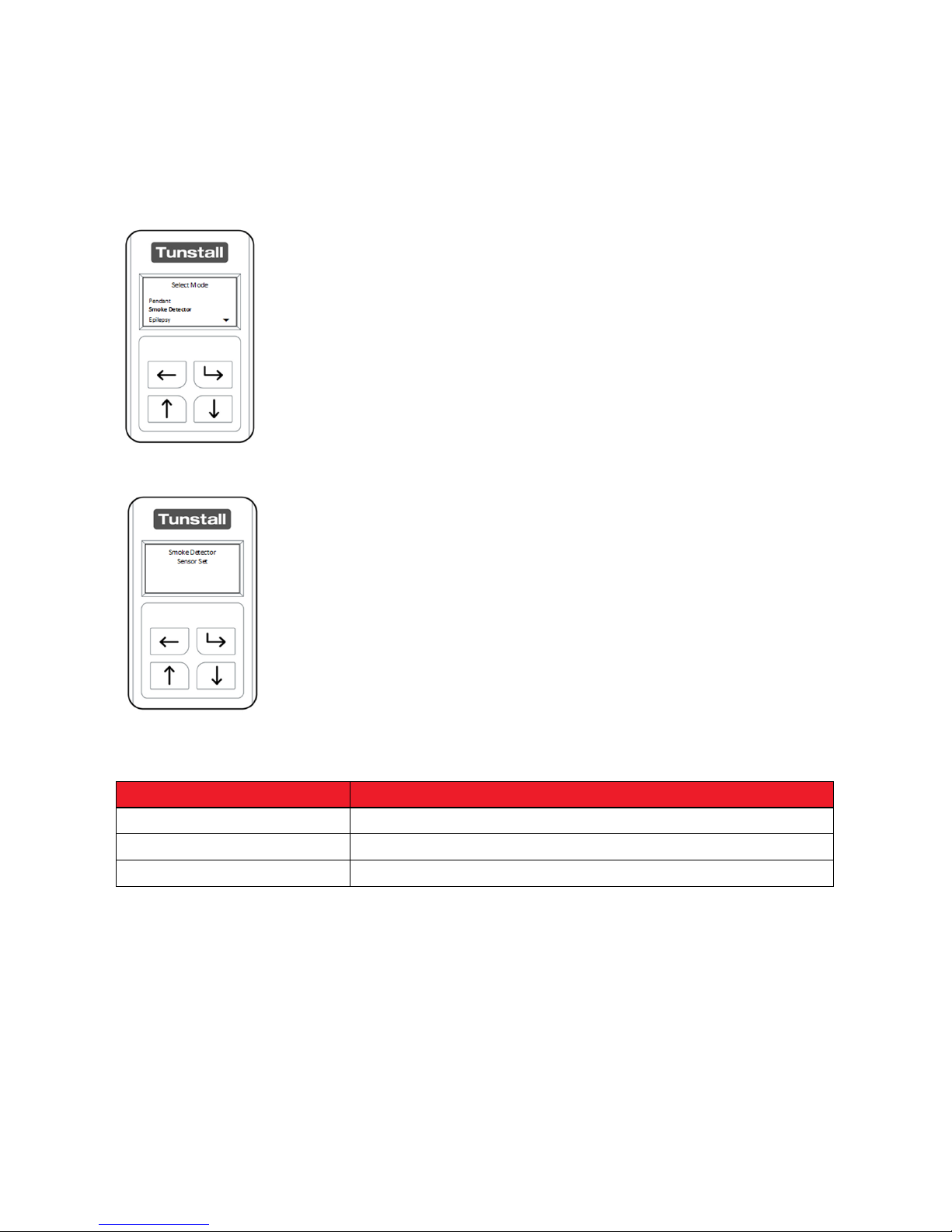

Smoke Detector The Universal Sensor can be configured to work with
3rd party Smoke Detectors meaning when Smoke
with the dwelling is detected the Universal Sensor
will communicate with the Tunstall Lifeline or
14
Telecare Overlay System to enable care to be
delivered quickly.

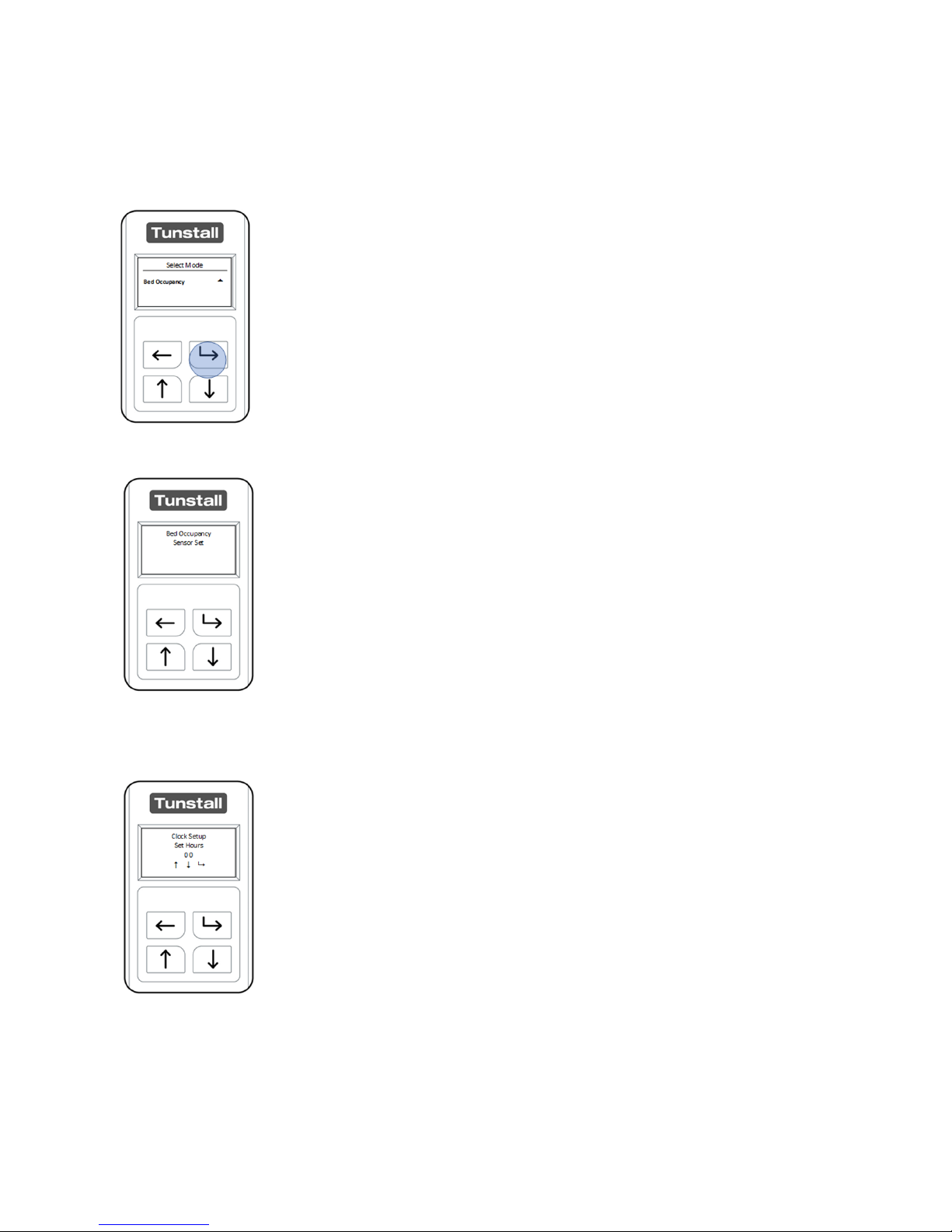

Bed Occupancy Sensor The bed/chair absence sensor generates an alarm if
a client has got out of bed (or chair) during a
monitoring time window (e.g.
night)
The bed/chair absence sensor works like the
conventional bed/chair occupancy sensor,
generating an alarm if a client has got out of bed (or
chair) during a monitoring time window (e.g.
night) for longer than a considered safe period of
time (configurable). When the client gets out of the
bed/chair (during the monitoring period), the timer
is started. If the timer expires before the client has
got back into the bed/chair then a Bed/Chair
Absence event is generated. However, the sensor
also provides the ability to extend the time period if
user activity is detected elsewhere in the property
e.g. client has gone downstairs to make a drink,
therefore reducing false calls. The home unit
supports two Bed/Chair Absence sensors. It is also
possible to set an alarm to be raised if the user does
not go to bed or fails to get up out of bed at a
configurable time.
15
Advanced Mode
To access the Advanced menu:
After unlocking the Universal Sensor, the “Configuration Menu will
be displayed.

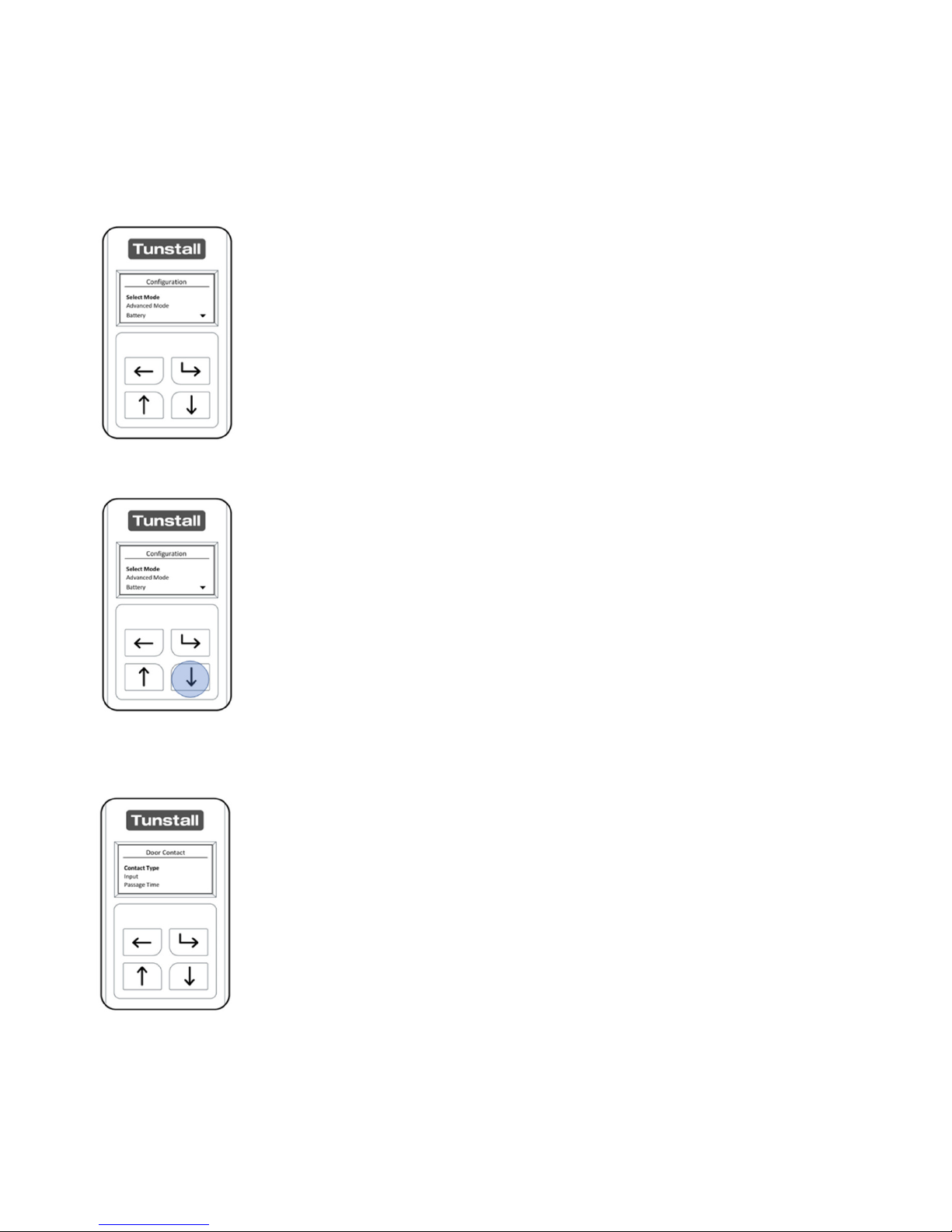

The “Select Mode” menu will be selected when first opening the
“Configuration Menu” Press the “Down Button” once to navigate to
the “Advanced” Menu and press the “Select Button”.
The “Advanced Menu” options depend on the configuration of the
Universal Sensor. The Input type and the Contact Channel can be
changed for all configurations and passage time can be configured.
Also the ability to set the times associated when used in Bed
Occupancy mode.
16
Passage Time

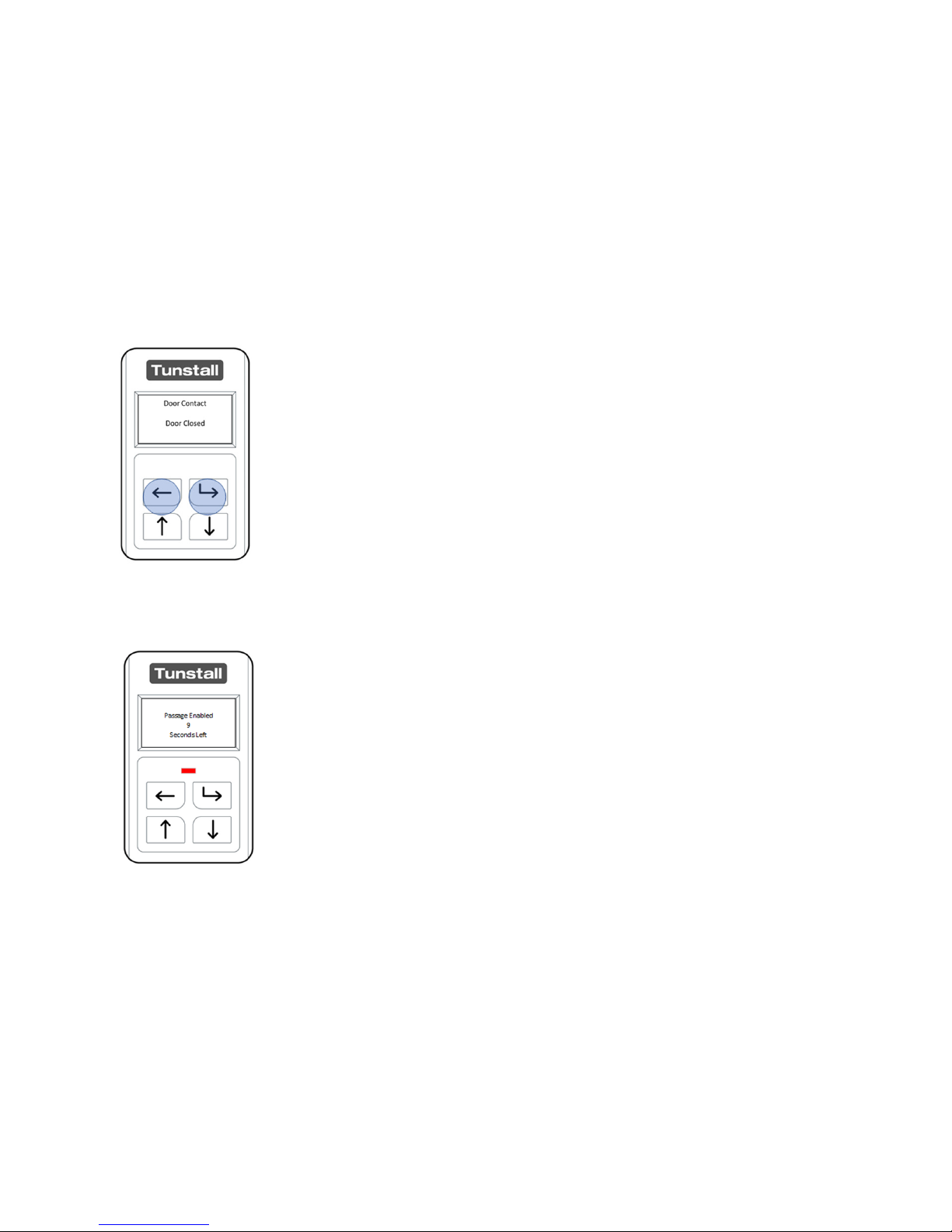

Passage time is used in Door Contact Mode. Using Passage Time; it is possible to stop
the Universal Sensor from sending door events to the Tunstall Lifeline or Telecare
Overlay System for a maximum of 120 seconds, (this time is definable in the
“Advanced Mode”). After the Passage Time has elapsed the Universal Sensor will
start to send radio messages to the Tunstall Home Unit.

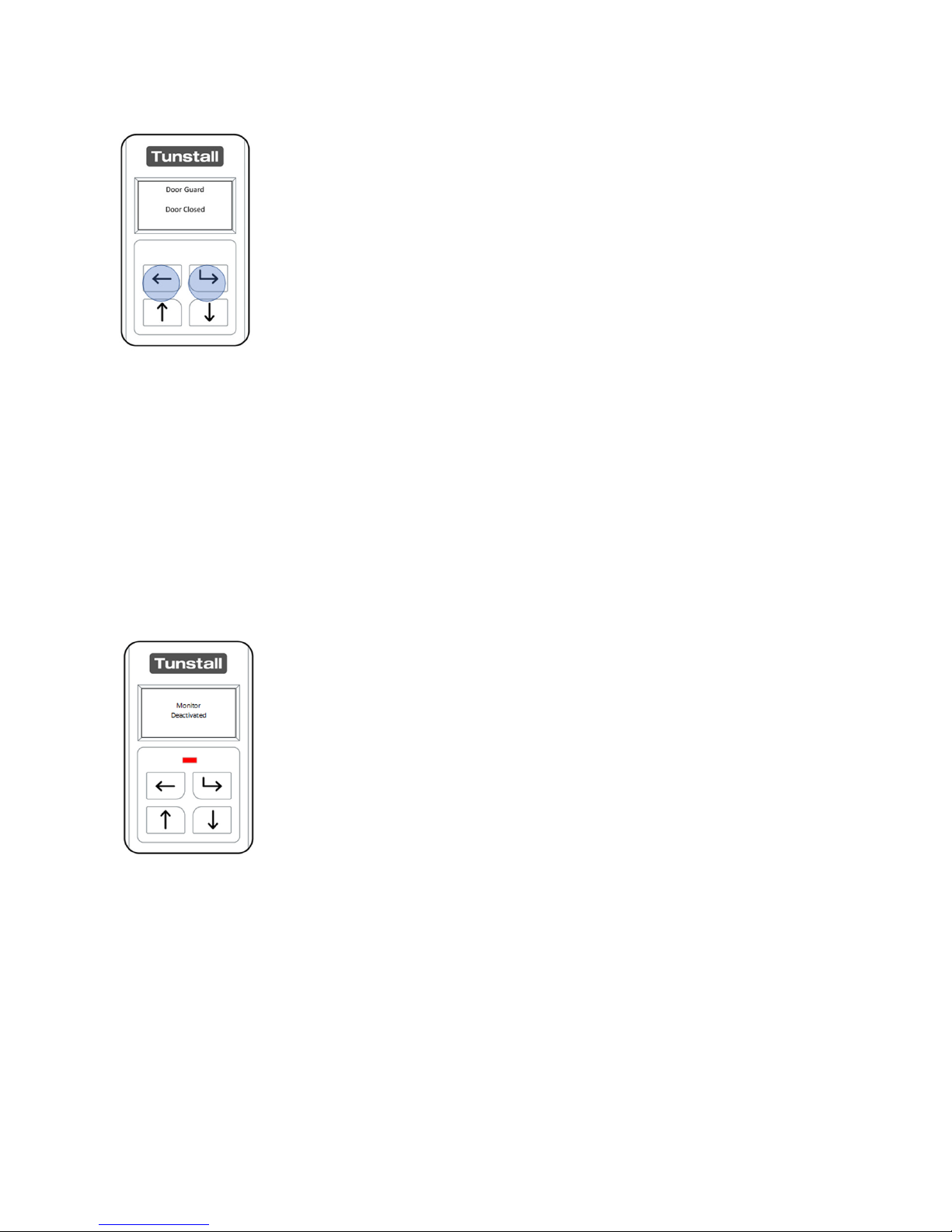

Whilst the Universal Sensor is assigned and operating as a Door
Contact Sensor press and hold the “Select Button” and the “Back
Button” together for 3 seconds.
The red LED will flash every 2 seconds and the Universal Sensor
will begin counting down until it will begin monitoring and
sending alarms to the Tunstall Home Unit.
17
Monitoring Deactivated
In Bed Occupancy and Door Guard Modes it is possible to stop the
Universal Sensor from sending alarms to the Tunstall Home Unit
for a maximum of 60 minutes.
After 60 minutes the Universal Sensor will start to send radio
messages to the Tunstall Lifeline or Telecare Overlay System.

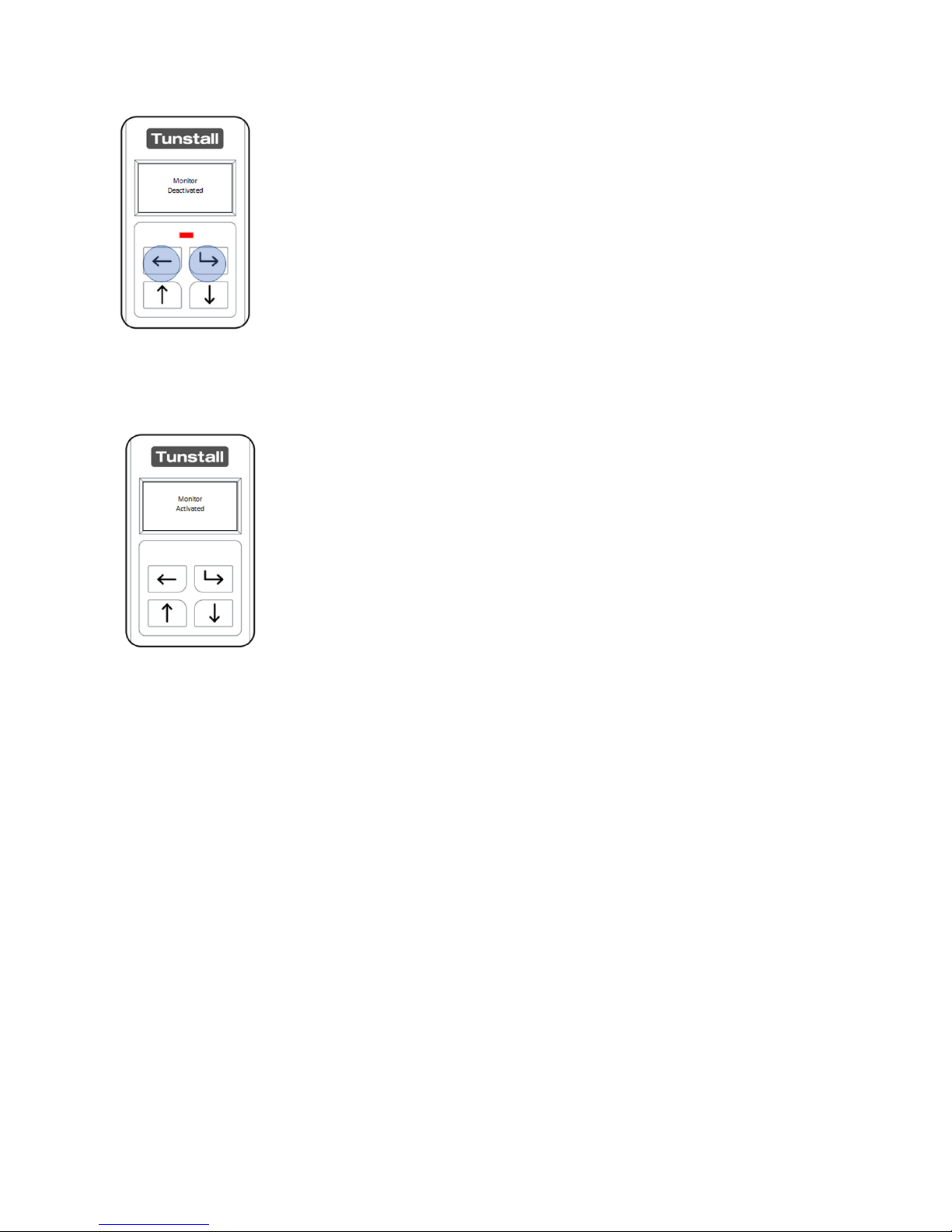

Whilst the Universal Sensor is assigned and operating as a Bed Occupancy Sensor or
Door Guard press and hold the “Select Button” and the “Back Button” together for 3
seconds.
The Universal Sensor will confirm that monitoring has been
deactivated. Whilst in this state the red LED will flash every 30
seconds. After 60 minutes the Universal Sensor will return to
monitoring for activity and will raise an alarm via the Tunstall
Home Unit.
18
To activate monitoring press and hold the “Select Button” and the
“Back Button” together for 3 seconds.
The Universal Sensor will confirm that monitoring is activated and
will raise an alarm via the Tunstall Home Unit.
19
Battery
To access the Battery menu:
After unlocking the Universal Sensor, the “Configuration Menu will
be displayed.
The “Select Mode” menu will be selected when first opening the
“Configuration Menu” Press the “Down Button” twice to navigate to
the “Battery” Menu and press the “Select Button”.

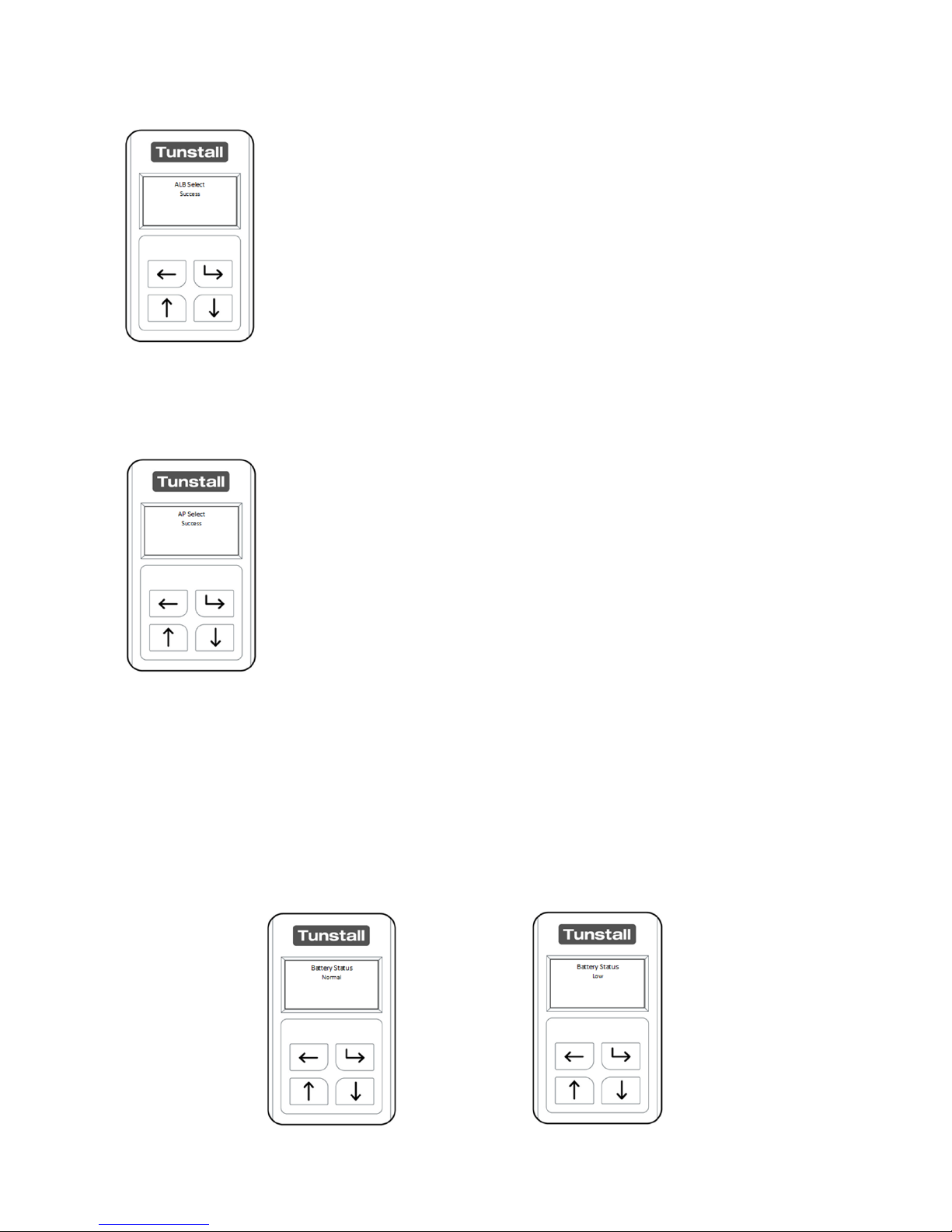

The Battery Menu” has 3 options; ALB, AP and Status. The
Universal Sensor will only operate in ALB or AP Mode.
20
ALB – Auto Low Battery
When the battery is low the Universal Sensor will automatically
notify the monitoring service. When a battery is low it is
recommended that the battery is replaced within 2 weeks.
AP – Auto Presence
Auto Presence provides additional checks that the Universal
Sensor is functioning. When activated the Universal Sensor sends
a signal to the home unit every 4 hours. If the Universal Sensor is
then taken out of the property or has its battery removed, these
signals will not be received, and the Tunstall Home Unit will raise
an alert at the monitoring centre if configured to do so. If the
Universal sensor is used in AP mode, the device will need to be
deleted from the system if it is removed from the property,
otherwise alarms will be raised.
Status – Battery
Using the “Status” menu it is possible to check the status of the internal battery. The
battery will either report “Normal” or “Low”. When “Low” is displayed the battery
should be replaced and at this stage the Universal Sensor will have sent an ALB alarm
to the monitoring centre.
21
Send Message
Once configured it is recommended to test the connection of the Universal Sensor to
the Tunstall Lifeline or Telecare System; this can be done using the “Send Message”
menu.
After unlocking the Universal Sensor, the “Configuration Menu will
be displayed.
The “Select Mode” menu will be selected when first opening the
“Configuration Menu” Press the “Down Button” four times to
navigate to the “Send Message” Menu and press the “Select
Button”.
The Universal Sensor will display the available radio message it can
transmit - this will depend on the Universal Sensors current
configuration. Press the “Select Button” to continue or “Back
Button” to exit.
22
After pressing the “Select Button” the Universal Sensor will send
the radio message to the Tunstall Lifeline or Telecare Overlay
System.
Once the radio message has been sent by the Universal Sensor; it
will confirm the status on screen. If
configured correctly to the
Tunstall Lifeline or Telecare System this will now alarm in the
transmitted radio type.
Note: Always make an end to end test call using the device connected to the
Note: Always make an end to end test call using the device connected to the Note: Always make an end to end test call using the device connected to the
Note: Always make an end to end test call using the device connected to the
Universal Sensor through to the monitoring centre.
Universal Sensor through to the monitoring centre. Universal Sensor through to the monitoring centre.
Universal Sensor through to the monitoring centre.
23
Setup Summary

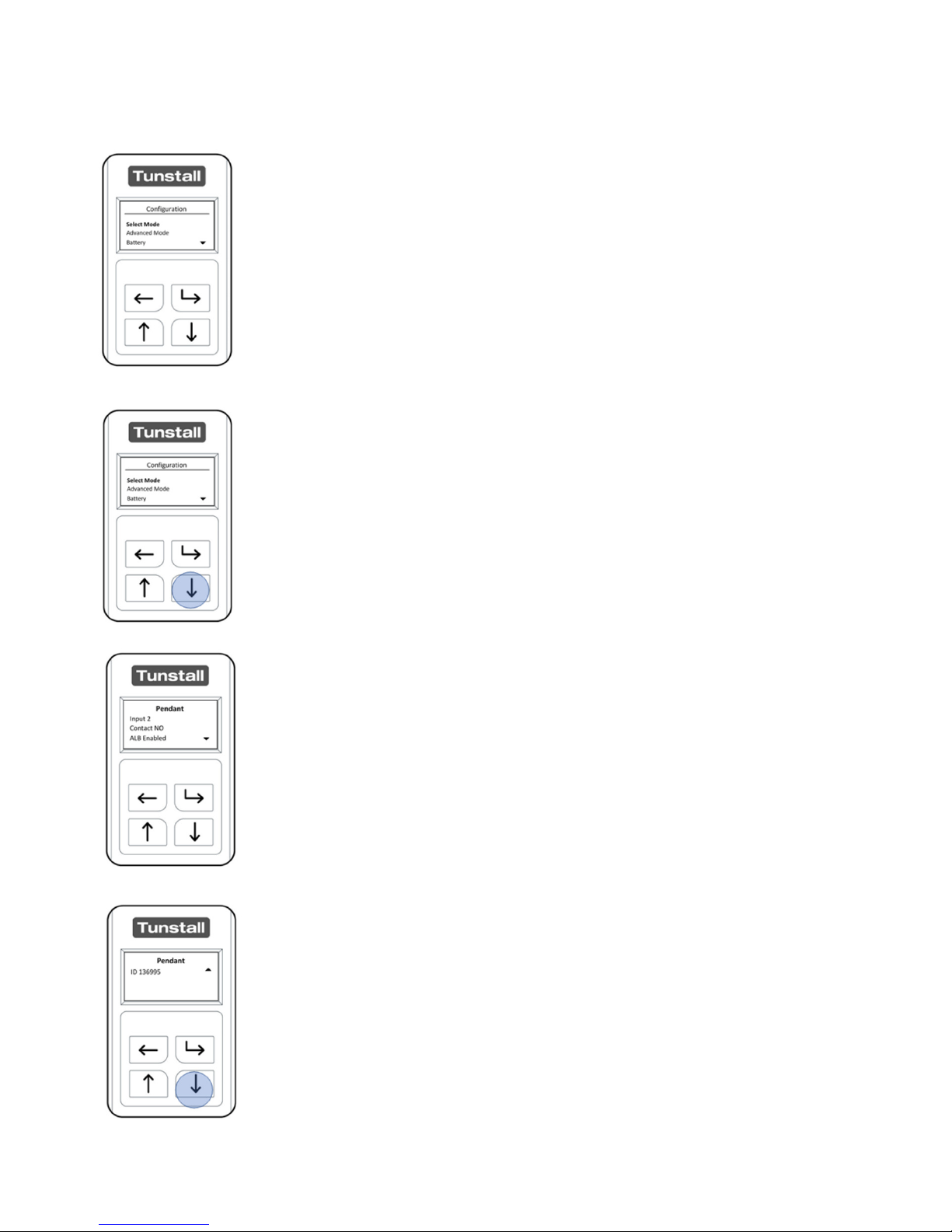

After unlocking the Universal Sensor, the “Configuration” Menu will
be displayed.
The “Select Mode” menu will be selected when first opening the
“Configuration Menu” Press the “Down Button” five times to
navigate to the “Setup Summary” Menu and press the “Select
Button”.
The Sensor Type and configuration will be displayed.
Pressing the “Down Button” will then display the Sensor ID. After 8
seconds the Universal Sensor will revert to the “Configuration
Menu”
24

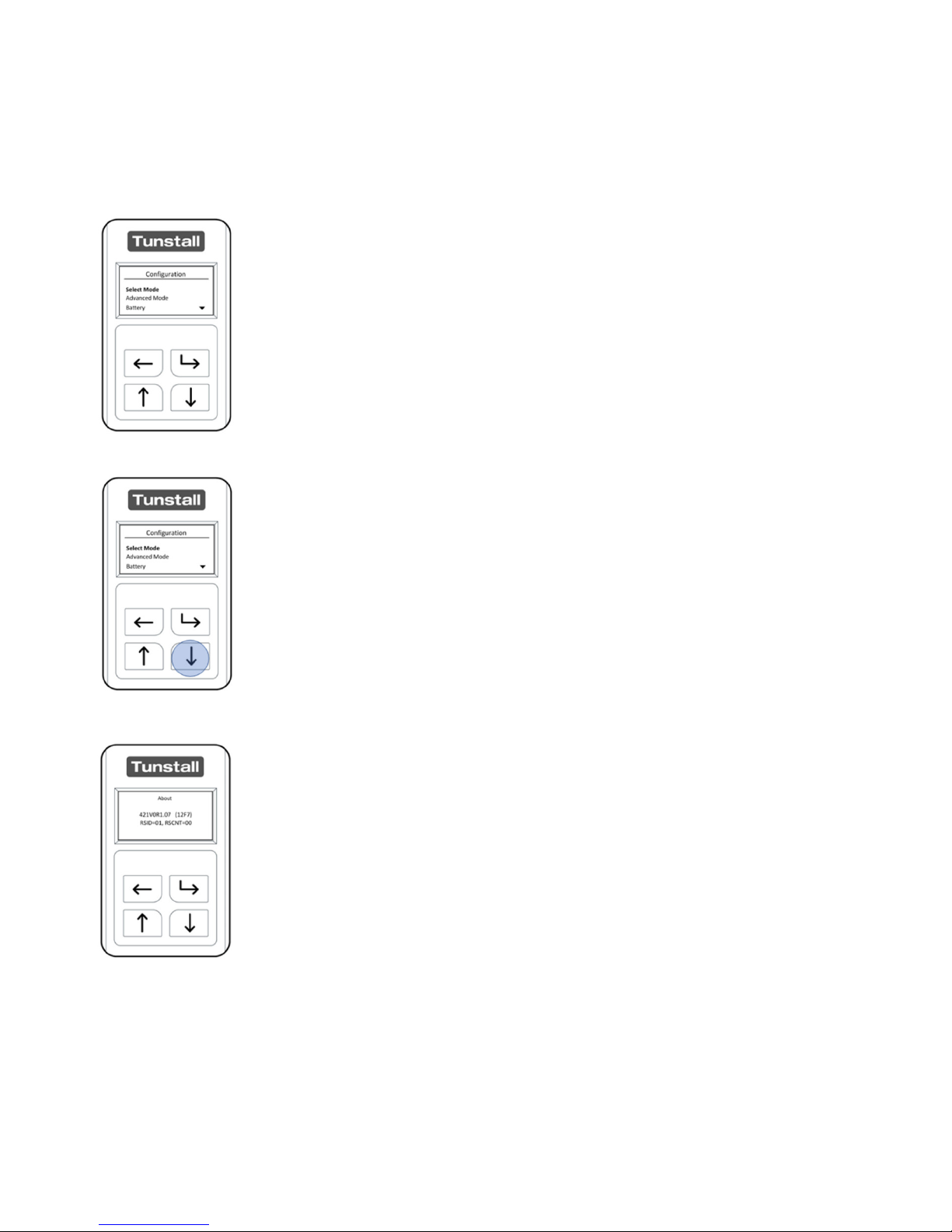

About
The about menu displays the installed firmware version, the RSID and the reset count
number.
After unlocking the Universal Sensor, the “Configuration” Menu will
be displayed.
The “Select Mode” menu will be selected when first opening the
“Configuration Menu” Press the “Down Button” six times to
navigate to the “About” Menu and press the “Select Button”.
After displaying the installed firmware version and the RSID and the
reset count number; the Universal Sensor will timeout of the “About
Menu” after 5 seconds will return to the “Configuration” Menu.
25
Virtual Bed
After unlocking the Universal Sensor and entering “Select Mode” navigate the menu
using the “Up Button” and or “Down Button”
When “Virtual Bed” is highlighted press the “Select Button”
The Universal Sensor will confirm it is now configured as a Virtual
Bed Sensor.
Suggested Configuration: this can be changed using “Advanced Mode”.
Contact Type NO
Input Channel 1
Cable Connection RJ11
The Universal Sensor can now be connected to a Bed/ Chair Pad (sold separately) and
the Tunstall Lifeline or Telecare System. Tunstall recommends completing a test call
before leaving the property.
26
Virtual Bed – attaching a pad.
Bed Pad Installation
The bed pad should be positioned: -
• Across the bed
• At around 1/3 of the distance between the head and foot of the bed.
• On a firm base – if the bed frame is not solid, then the sensor pad should be
fitted on a suitable sheet of plywood or similar
For a single bed, a single bed sensing panel should be used. If the person sleeps alone
in a double bed, two bed sensing panels should be used. One panel should be placed
on either side of the bed, each as described above.
If the person sleeps in a double bed with someone else, then only one bed-sensing
panel should be used, on the side of the bed that the person sleeps on. Note that in
this case the bed sensor cannot be relied upon to work correctly as correct operation
will rely on the other person in the bed not encroaching into the area of the bed
monitored by the bed pad.
Chair Pad Installation
The chair sensing panel is typically fitted between the squab (the chair cushion the
person sits on) and chair frame/base. If the chair does not have a squab (or similar)
then correct operation of the chair sensor may not work reliably.
27

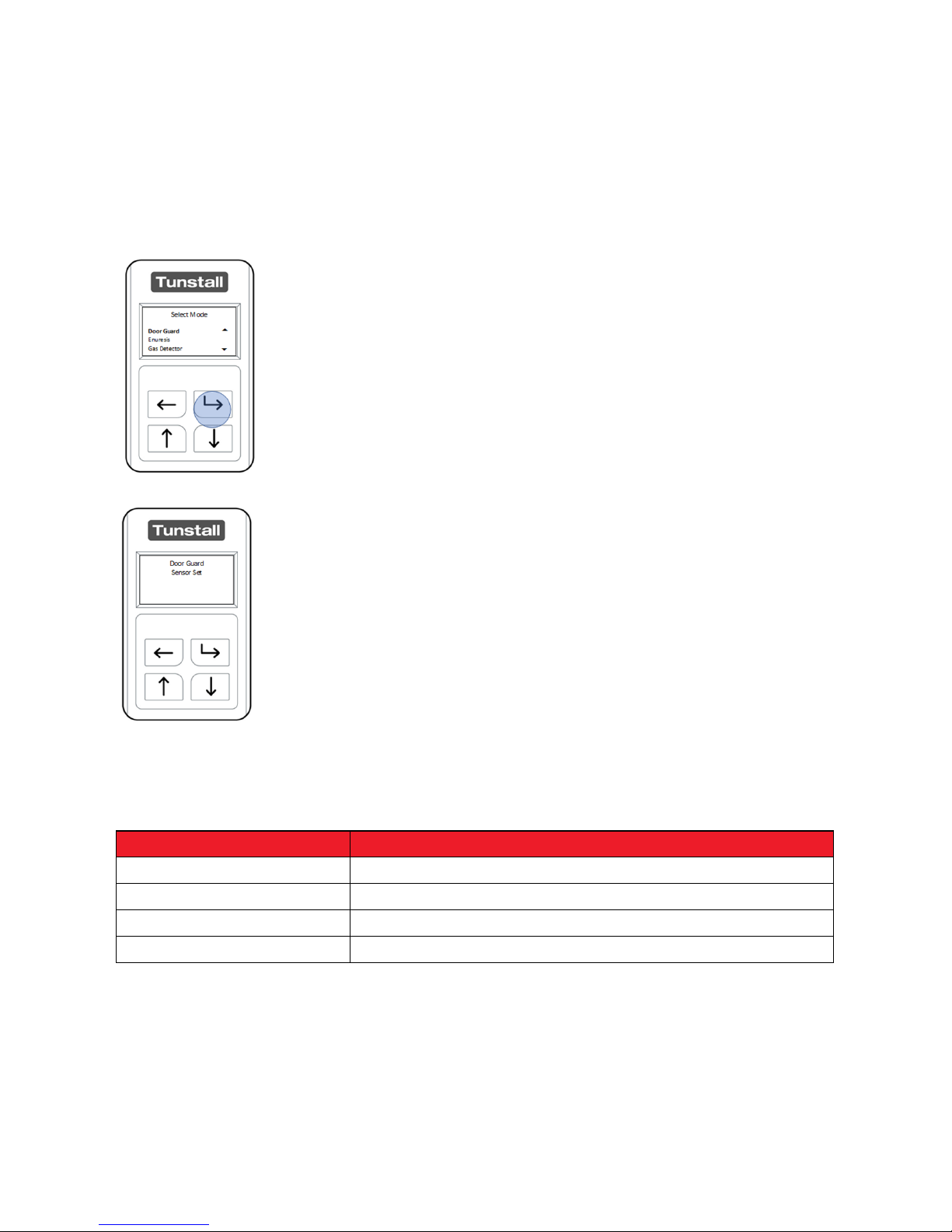

Door Contact
After unlocking the Universal Sensor and entering “Select Mode” navigate the menu
using the “Up Button” and or “Down Button”
When “Door Contact” is highlighted press the “Select Button”
The Universal Sensor will confirm it is now configured as a Door
Contact Sensor.
Suggested Configuration: this can be changed using “Advanced Mode”.
Contact Type NC
Input Channel 1
Cable Connection Using the included magnetic contact
Passage Time Dependent on clients walking speed.
The Universal Sensor can now be used with the magnetic contacts (included in the
box) and the Tunstall Home unit. Tunstall recommends completing a test call before
leaving the property.
28
Enuresis Sensor
After unlocking the Universal Sensor and entering “Select Mode” navigate the menu
using the “Up Button” and or “Down Button”
When “Enuresis” is highlighted press the “Select Button”
The Universal Sensor will confirm it is now configured to be used
with a 3rd party device as an Enuresis Sensor.
Suggested Configuration: this can be changed using “Advanced Mode”.
Contact Type NC
Input Channel 1
Cable Connection RJ11
The Universal Sensor can now be connected to a 3rd party device which is going to be
used as an Enuresis Sensor and the
Tunstall Home unit. Tunstall recommends
completing a test call before leaving the property.
29
Enuresis Sensor – attaching the Moisture Sensing Mat
1. Deploy the Enuresis Sensor by placing the Moisture Sensing Mat underneath a
cotton top sheet and on top of any protective sheet. The shiny side of the
Moisture Sensing Mat should be uppermost and the centre of the mat should be
located at the position where bed wetting is most likely.
2. Connect the plug at the end of the Moisture Sensing Mat cable to the RJ11
socket labelled 1 on the Universal Sensor.
3. The Universal Sensor should be located in a convenient place nearby, ensuring
the cable is safely routed. It is important that the Universal Sensor is not placed
in a position where it may become wet. For optimum radio performance the
Universal Sensor should be mounted away from metallic surfaces.
User Instructions
The Enuresis Sensor will signal an alarm event once when a wet bed condition is
detected. After a wet bed event has occurred the Enuresis Sensor can be reset by
disconnecting the Moisture Sensing Mat from the Universal Sensor, cleaning it with
detergent and a non-abrasive damp cloth, and then drying it with a suitable nonabrasive absorbent cloth.
Once the Moisture Sensing Mat is dry, reconnect it to the Universal Sensor and
replace in the dry bed.
It is possible that sweating during the night may cause false triggering of the Enuresis
Sensor. If this is the case then a folded cotton sheet or bath towel should be placed
above the Moisture Sensing Mat
30

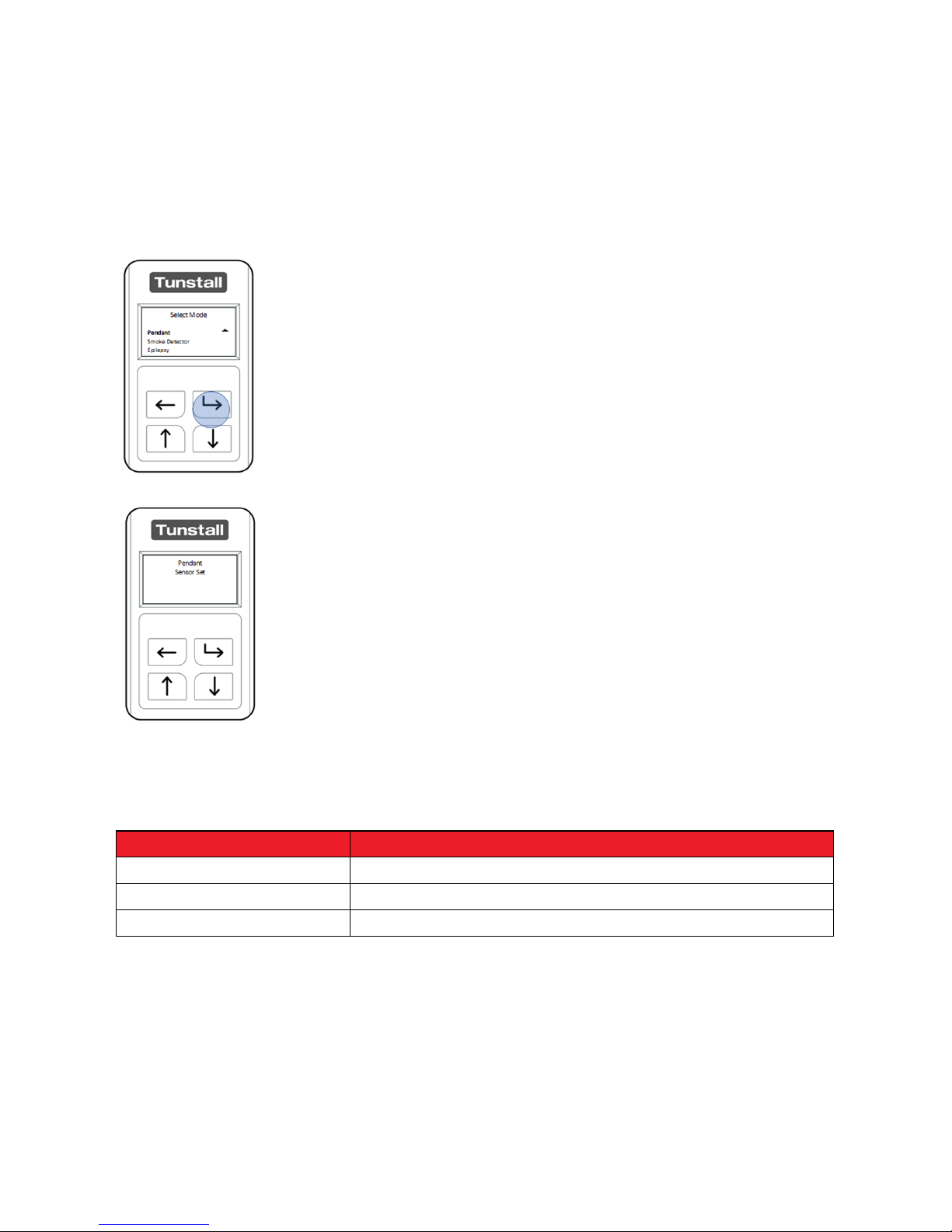

Pendant
After unlocking the Universal Sensor and entering “Select Mode” navigate the menu
using the “Up Button” and or “Down Button”
When “Pendant” is highlighted press the “Select Button”
The Universal Sensor will confirm it is now configured to be used
with a 3rd party device as a Pendant.
Suggested Configuration: this can be changed using “Advanced Mode”.
Contact Type NO
Input Channel 2
Cable Connection 3.5mm Jack
The Universal Sensor can now be connected to a 3rd party device which is going to be
used as a pendant and the
Tunstall Home unit. Tunstall recommends completing a
test call before leaving the property.
31
Epilepsy Sensor
After unlocking the Universal Sensor and entering “Select Mode” navigate the menu
using the “Up Button” and or “Down Button”
When “Epilepsy” is highlighted press the “Select Button”
The Universal Sensor will confirm it is now configured to be used
with a 3rd part device as an Epilepsy Sensor.
Suggested Configuration: this can be changed using “Advanced Mode”.
Contact Type NO
Input Channel 1
Cable Connection Specialised 3rd party cable into the RJ11
The Universal Sensor can now be connected to a 3rd party device which is going to be
used as a Epilepsy Sensor and the Tunstall Home unit. Tunstall recommends
completing a test call before leaving the property.
The Universal Sensor has a specific interface to ensure compatibility with Abilia
Epilepsy Control Units (and their associated sensing pads). It is therefore only
compatible with this item (number D-1090).
32

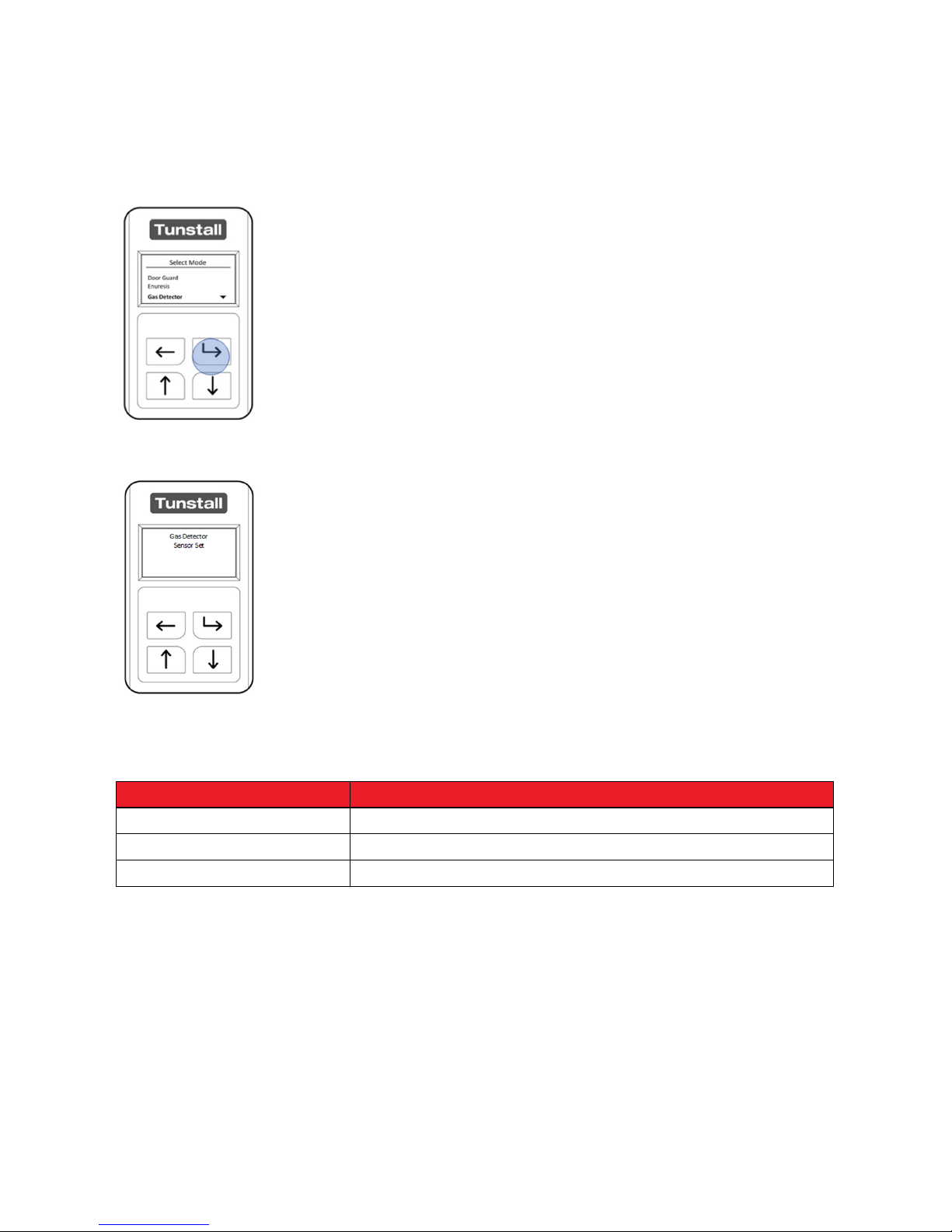

CO Detector
After unlocking the Universal Sensor and entering “Select Mode” navigate the menu
using the “Up Button” and or “Down Button”
When “CO Detector” is highlighted press the “Select Button”
The Universal Sensor will confirm it is now configured to be used
with a 3rd party device as a CO Detector.
Suggested Configuration: this can be changed using “Advanced Mode”.
Contact Type NC
Input Channel 1
Cable Connection RJ11
The Universal Sensor can now be connected to a CO Detector with a normally closed
relay (sold separately) and to the Tunstall Home unit. Tunstall recommends
completing a test call before leaving the property.
33
Door Guard
After unlocking the Universal Sensor and entering “Select Mode” navigate the menu
using the “Up Button” and or “Down Button”
When “Door Guard” is highlighted press the “Select Button”
The Universal Sensor will confirm it is now configured as a Virtual
Bed Sensor.
Suggested Configuration: this can be changed using “Advanced Mode”.
Contact Type NC
Input Channel 1
Cable Connection Using the included magnetic contact and RJ11
Monitoring Deactivated Monitoring can be disabled for 60 mins
The Universal Sensor can now be used with the magnetic contacts (included in the
box) and the
Tunstall Home unit. Tunstall recommends completing a test call before
leaving the property.
34
Gas Detector
After unlocking the Universal Sensor and entering “Select Mode” navigate the menu
using the “Up Button” and or “Down Button”
When “Gas Detector” is highlighted press the “Select Button”
The Universal Sensor will confirm it is now configured to be used
with a 3rd party device as a Gas Detector.
Suggested Configuration: this can be changed using “Advanced Mode”.
Contact Type NC
Input Channel 1
Cable Connection RJ11
The Universal Sensor can now be connected to a Gas Detector with a normally open
relay (sold separately) and to the Tunstall Home unit. Tunstall recommends
completing a test call before leaving the property.
35
Smoke Detector
After unlocking the Universal Sensor and entering “Select Mode” navigate the menu
using the “Up Button” and or “Down Button”
When “Smoke Detector” is highlighted press the “Select Button”
The Universal Sensor will confirm it is now configured to be used
with a 3rd party device as a Smoke Detector Sensor.
Suggested Configuration: this can be changed using “Advanced Mode”.
Contact Type NC
Input Channel 1
Cable Connection RJ11
The Universal Sensor can now be connected to a Smoke Detector with a normally
closed relay (sold separately) and to the Tunstall Home unit. Tunstall recommends
completing a test call before leaving the property.
36
Bed Occupancy Sensor
After unlocking the Universal Sensor and entering “Select Mode” navigate the menu
using the “Up Button” and or “Down Button”
When “Bed Occupancy” is highlighted press the “Select Button”
The Universal Sensor will confirm it is now configured as a Bed
Occupancy Sensor. The Universal Sensor will now prompt you to
set the current time and date.
Using the “Up Button” and “Down Button” set the current hour.
This is a 24-hour clock. (00-23) and press the “Select Button” to
confirm.
37

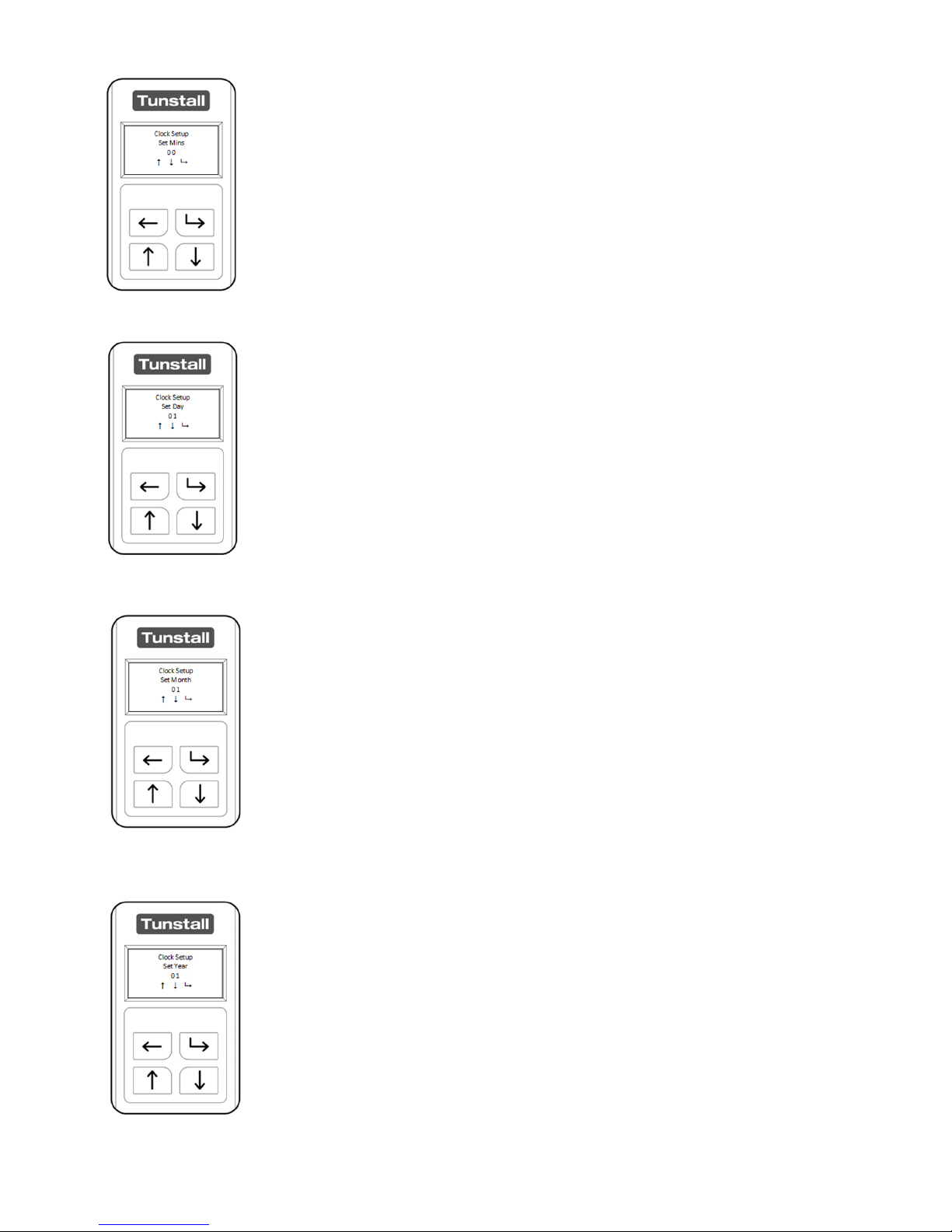

Using the “Up Button” and “Down Button” set the current minute.
(00-59) and press the “Select Button” to confirm.
Using the “Up Button” and “Down Button” set the current day. (00-
31) and press the “Select Button” to confirm.
Using the “Up Button” and “Down Button” set the current month.
(01-12) and press the “Select Button” to confirm.
Using the “Up Button” and “Down Button” set the current year and
press the “Select Button” to confirm.
38
Configuration of the Absence Period, Absence Start, Absence Stop, Not in Bed, Not
Out of Bed and enable/disable Daylight savings is done via the
“Advanced Mode”.
Suggested Configuration: this can be changed using “Advanced Mode”.
Contact Type NC
Input Channel 1
Cable Connection RJ11
Pad Type Bed or Chair (depending on application)
Set times Absence Period – How long the client is out of bed
before an alarm is triggered.
Absence Start – The time at which monitoring should
start
Absence Stop – The time at which monitoring should
end
Not in Bed - the time when a client should be in bed
Not Out Bed - the time when a client should be out of
bed
Daylight Saving - On
Monitoring Deactivated Monitoring can be disabled for 60 mins
The Universal Sensor can now be connected to a Bed Pad with a normally closed
relay (sold separately) and to the Tunstall Home unit. Tunstall recommends
completing a test call before leaving the property.
Note: to
Note: to Note: to
Note: to enable
enableenable
enable 24
2424
24----hour
hourhour
hour continuous
continuouscontinuous
continuous monitoring
monitoring monitoring
monitoring program the Absence Start and
program the Absence Start and program the Absence Start and
program the Absence Start and
Absence Stop times to be the same.
Absence Stop times to be the same. Absence Stop times to be the same.
Absence Stop times to be the same.
E.g.
E.g. E.g.
E.g. Absence Start: 00:00, Absence Stop: 00:00
Note: whilst operating in
Note: whilst operating in Note: whilst operating in
Note: whilst operating in 24
2424
24----hour
hourhour
hour continuo
continuocontinuo
continuouuuussss monitoring
monitoringmonitoring
monitoring,,,, th
thth
the Universal Sensor
e Universal Sensor e Universal Sensor
e Universal Sensor
will raise an alarm
will raise an alarm will raise an alarm
will raise an alarm only
only only
only once per absence period
once per absence periodonce per absence period
once per absence period (if the absence persists)
(if the absence persists)(if the absence persists)
(if the absence persists).
. .
. IIIIf
f f
f
operating in
operating inoperating in
operating in non
nonnon
non----24
2424
24----hour
hourhour
hour monitoring
monitoringmonitoring
monitoring,
, ,
, the Universal Sensor shall raise an alarm
the Universal Sensor shall raise an alarm the Universal Sensor shall raise an alarm
the Universal Sensor shall raise an alarm
everytime the absence period is reached
everytime the absence period is reachedeverytime the absence period is reached
everytime the absence period is reached (if absence persists)
(if absence persists)(if absence persists)
(if absence persists).
. .
. For example, if
For example, if For example, if
For example, if
the absence period is set to 10 minutes, an alarm will be raised every 10
the absence period is set to 10 minutes, an alarm will be raised every 10 the absence period is set to 10 minutes, an alarm will be raised every 10
the absence period is set to 10 minutes, an alarm will be raised every 10
minutes until the user returns to bed.
minutes until the user returns to bed. minutes until the user returns to bed.
minutes until the user returns to bed.
39
Bed Occupancy Sensor – attaching the Pad
Bed Pad Installation
The bed pad should be positioned: -
• Across the bed
• At around 1/3 of the distance between the head and foot of the bed.
• On a firm base – if the bed frame is not solid, then the sensor pad should be
fitted on a suitable sheet of plywood or similar
For a single bed, a single bed sensing panel should be used. If the person sleeps alone
in a double bed, two bed sensing panels should be used. One panel should be placed
on either side of the bed, each as described above.
If the person sleeps in a double bed with someone else, then only one bed-sensing
panel should be used, on the side of the bed that the person sleeps on. Note that in
this case the bed sensor cannot be relied upon to work correctly as correct operation
will rely on the other person in the bed not encroaching into the area of the bed
monitored by the bed pad.
Chair Pad Installation
The chair sensing panel is typically fitted between the squab (the chair cushion the
person sits on) and chair frame/base. If the chair does not have a squab (or similar)
then correct operation of the chair sensor may not work reliably.
40

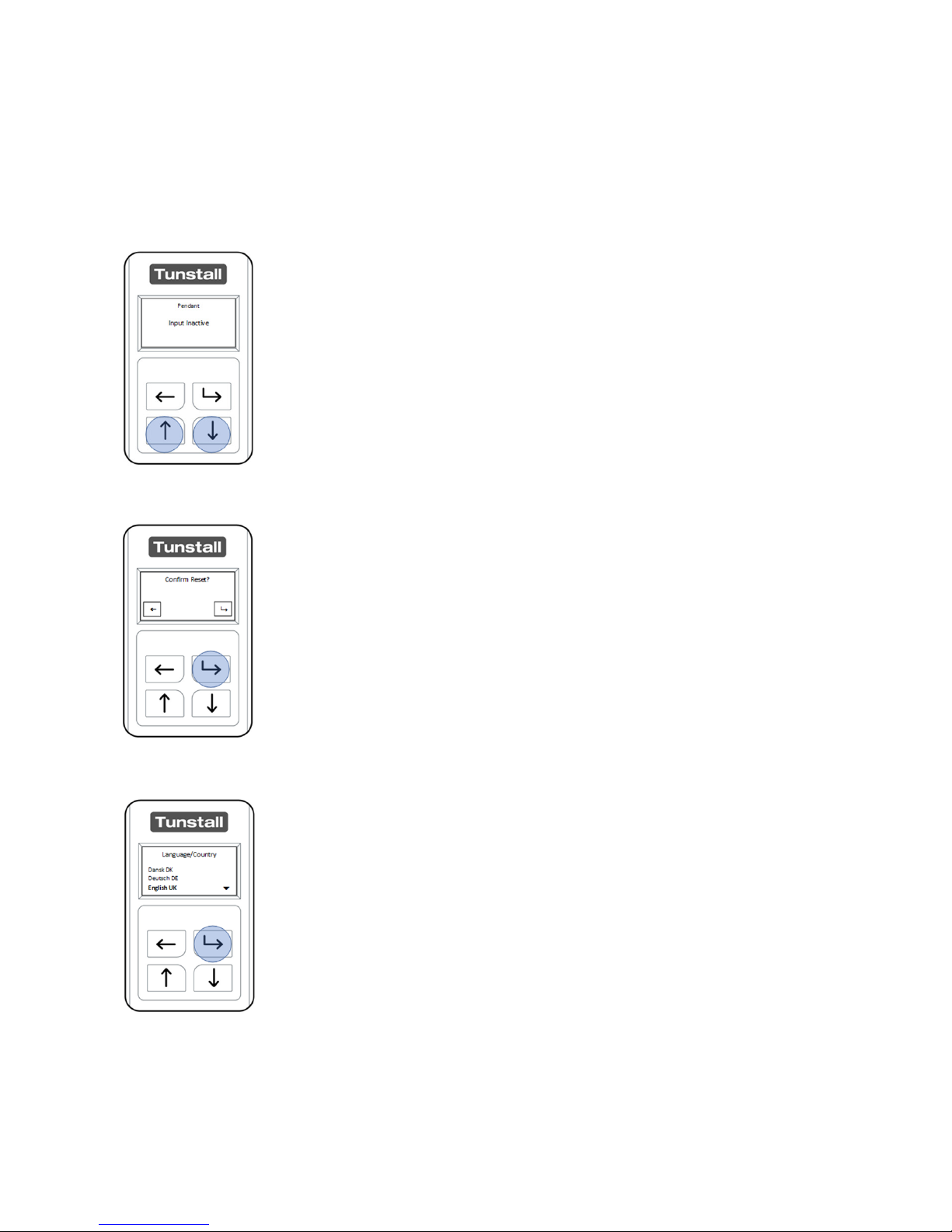

How to reset the Universal Sensor
A reset sets all the settings on the Universal Sensor back to factory default. The
Universal Sensor will then need to be programmed before it can be deployed.
With the LCD activated press and hold the “Up Button” and
“Down Button” for 30 seconds.
After holding for 30 seconds the LCD will display “Confirm Reset”.
Press the “Back Button” to cancel and the “Select Button” to
confirm.
After a reset the unit will go to the “Language Selection” menu.
The Universal Sensor will need to be configured before it can be
installed.
41
3. How to program to the Tunstall Home Unit
The Universal Sensor enables Plug and Play programming. This is achieved by putting
the Tunstall home unit into radio trigger assign mode and then generating a radio
transmission from the Universal Sensor by activating the device to which it is
connected (e.g. door contacts, bed sensor mat).
1. Press and hold the cancel button on the Tunstall home unit until it beeps
(some units will announce ‘programming mode’).
2. Press the cancel button again until the Tunstall home unit beeps
3. Then activate the Universal Sensor by activating the device to which it is
connected (e.g. switch contacts, bed sensor mat). The LED on the Universal
Sensor should flash to confirm a radio transmission has been sent.
4. The Tunstall home unit should beep to confirm the Universal Sensor has
been programmed to the unit (some units will announce the name of the
sensor that the Universal Sensor is configured to e.g. ‘door sensor
programmed’)
42
4. Notes and Warnings
Service Information
The Universal Sensor contains no user serviceable parts. It contains a EVE ER14505V
3.6V battery with up to 5 years (typical usage). This battery is user-replaceable and
when it has expired it should be disposed of according to current local regulations.
Changing the battery
To change the battery of the Universal Sensor;
• Place the sensor face down on the desk.
• Remove the battery cover.
• Eject the current battery and dispose of according to local regulations.
• Insert a new 3.6V AA Battery. Tunstall recommends using the EVE ER14505
• Replace the battery cover; ensuring that it is securely fitted.
• The Universal Sensor will power on retaining its previous operational mode.
Note:
Note:Note:
Note: Following a battery change remember to check the configuration is still
Following a battery change remember to check the configuration is still Following a battery change remember to check the configuration is still
Following a battery change remember to check the configuration is still
relevant
relevantrelevant
relevant to the user.
to the user. to the user.
to the user.
Note: Remember to wake the screen using the “Select Button” before
Note: Remember to wake the screen using the “Select Button” before Note: Remember to wake the screen using the “Select Button” before
Note: Remember to wake the screen using the “Select Button” before
beginning programming.
beginning programming. beginning programming.
beginning programming.
Warning
Warning Warning
Warning –––– During battery replacement the Universal Sensor wil
During battery replacement the Universal Sensor wilDuring battery replacement the Universal Sensor wil
During battery replacement the Universal Sensor willlll not
notnot
not be able to
be able to be able to
be able to
generate a help call.
generate a help call. generate a help call.
generate a help call.
43
5. Compliance and Standards
Radio Frequency: 869.2125MHz
Radiated Power: Less than 1 milliwatts
Area of Use: Europe
Environmental Group: Group 2 – Indoor in general
EMC: EN 55032
EN 301 489-1
EN 301 489-3
EN 50130-4
Radio: EN300 220-2
Safety: EN60950-1
Radio Trigger: EN 300 220-2
Design, Manufacture Installation and Service: ISO 9001:2008
Declaration of conformity
Tunstall declare that the radio equipment is in compliance with Directive
2014/53/EU. The full text of the EU declaration of conformity is available at the
following address: uk.tunstall.com/approvals
t: 01977 661234
f: 01977 660562
e: enquiries@tunstall.co.uk
w: tunstall.co.uk
Version: IL1117
44
Loading...
