All the reassurance you need
Communicall Vision

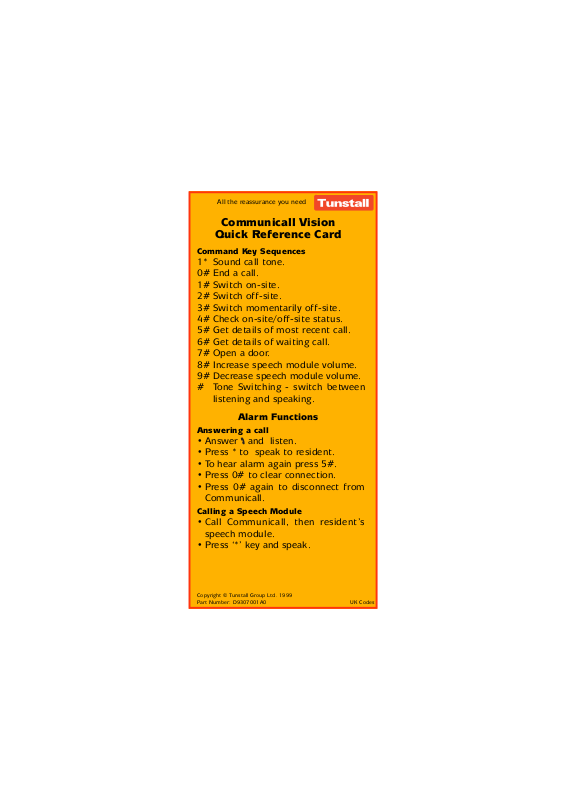

Quick Reference Card
Command Key Sequences
1* Sound call tone.
0# End a call.
1# Switch on-site.
2# Switch off-site.
3# Switch momentarily off-site.
4# Check on-site/off-site status.
5# Get details of most recent call.
6# Get details of waiting call.
7# Open a door.
8# Increase speech module volume.
9# Decrease speech module volume.
# Tone Switching - switch between
listening and speaking.
Alarm Functions
Answering a call
• Answer and listen.
• Press * to speak to resident.
• To hear alarm again press 5#.
• Press 0# to clear connection.
• Press 0# again to disconnect from
Communicall.
Calling a Speech Module
• Call Communicall, then resident’s
speech module.
• Press ‘*’ key and speak.
Copyright © Tunstall Group Ltd. 1999
Part Number: D9307001A0 UK Codes
All the reassurance you need
900 Commands
952-959 Dialling to pre-set remote
Schemes/Dispersed Alarms
(tone switched).
974 Speak to Control Centre.
975 Switch to ’On-Site’.
976 Switch to ’Off-Site’.
978 Speak On/Off-Site Status.
988 Check for dial tone at TIC
card (ability to go ‘off-site’).
900 800 Reset the system.
Functions Using Communicall’s
Telephone Exchange
Calling Wardens & External Numbers
Dial warden’s number (9 for an outside
line). No alarm calls can be received
during call.
Transferring Calls
Press the ‘R’ key and dial wardens
Number. Once answered hang-up.
Diverting Zones
Press , then # followed by extension
number to divert, press 1 and hangup. To stop diversion enter …#<your
own extension>0 .
Programming Terminal
• Must be plugged in at all times in a
place where it will be heard.
• Used for Communicall programming
operations.
Locking the phone
• To lock press MENU and then *.
• To unlock press MENU and *.
Tel. 01977-661234 http://www.tunstall.co.uk/
