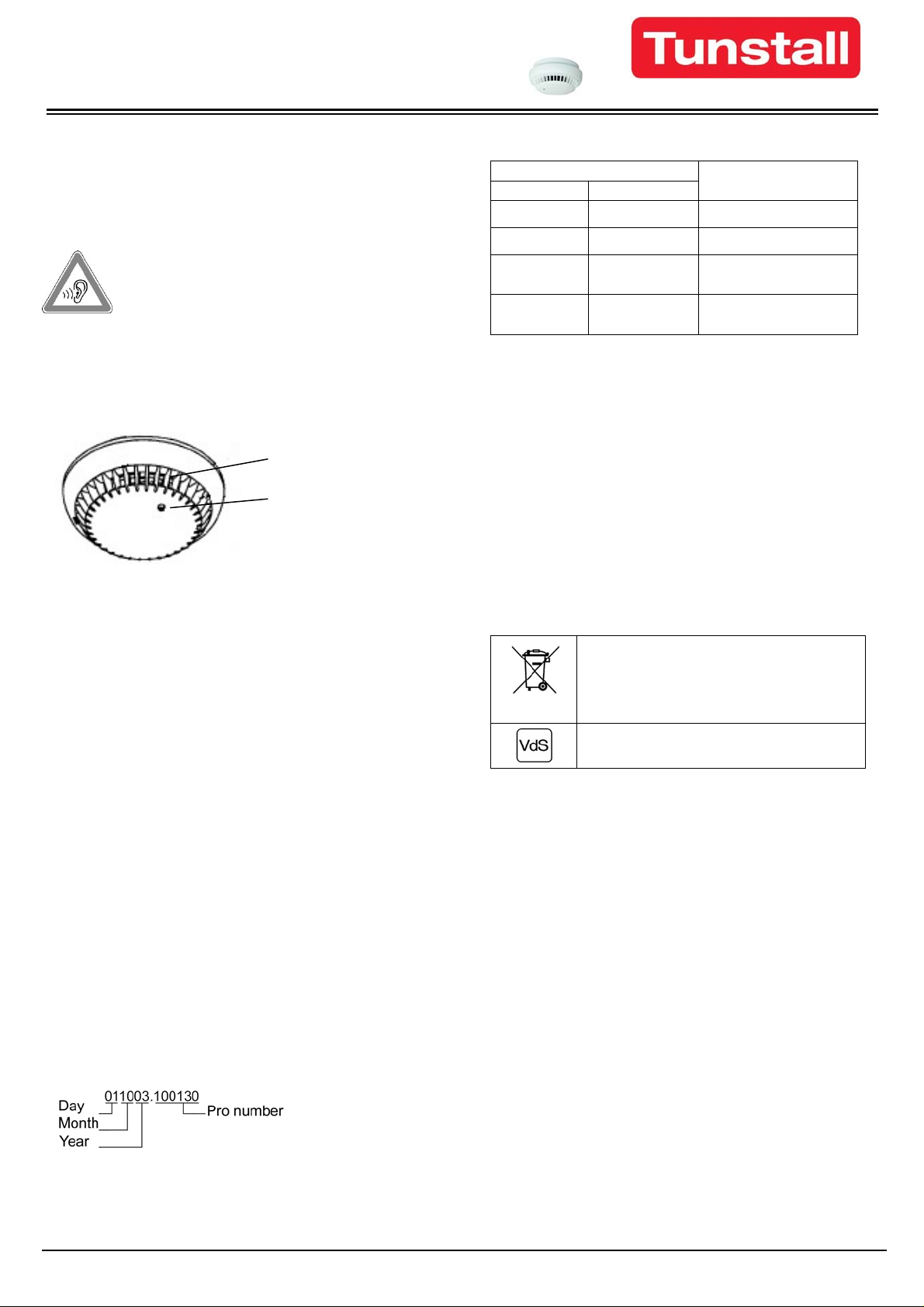

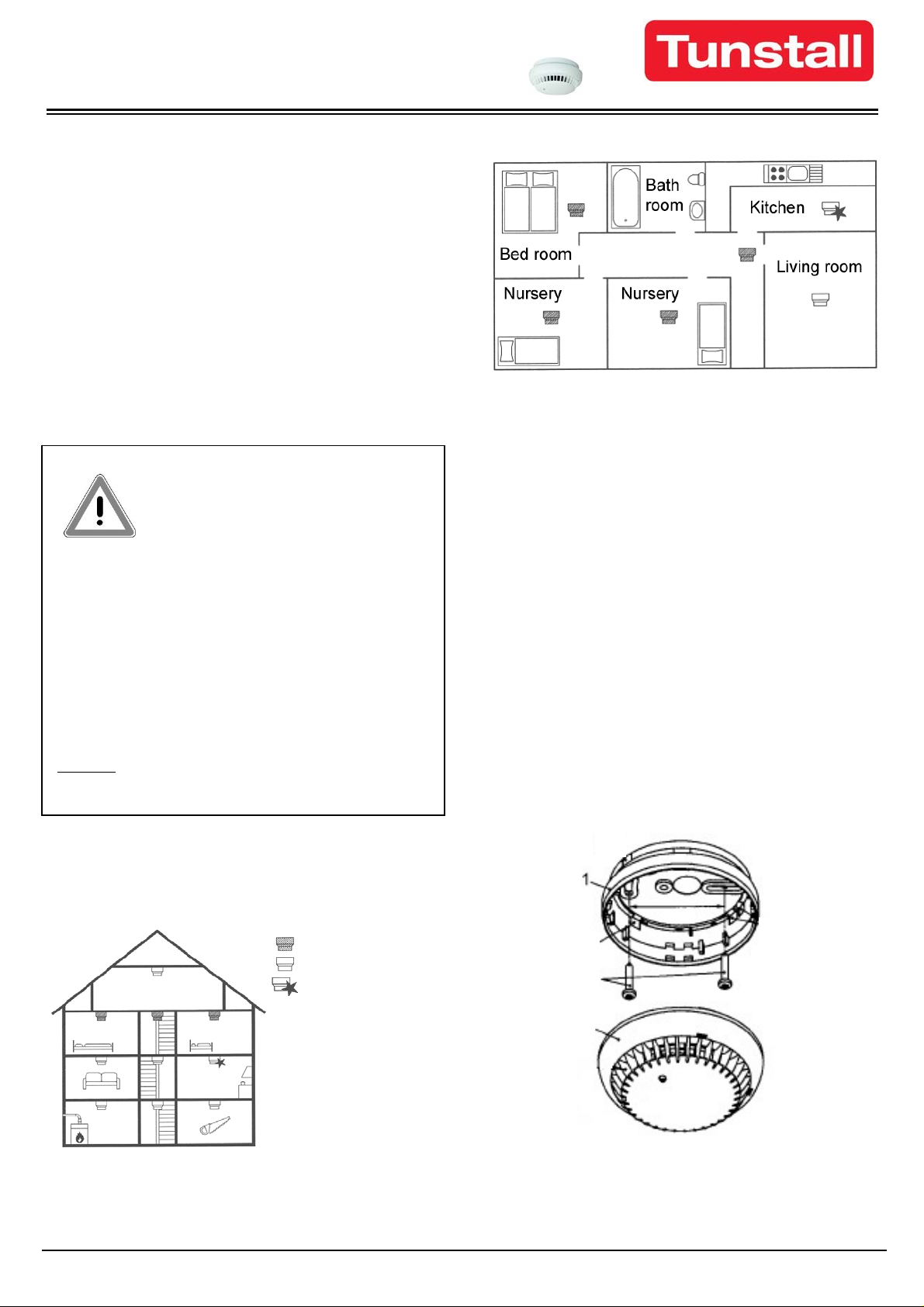

User/Installation Instructions for Radio Smoke Detector
Model Number: 67005/94
Brief detector presentation
- Battery powered radio smoke detector using the scattered light
method
- Early and reliable fire detection through precise adjustment of the
release characteristics
- Outstanding operating safety by intelligent analysis of the
measuring chamber signal
- Provides precise smoke detection
- Reduces false alarms due to its high performance measuring
chamber
- Automatic self-test of the complete electronic
- Powerful alarm signal of more than 85 dB(A) in case of fire
- Operating temperature range –10°C up to +60°C
- Wireless linking to Tunstall emergency equipment, via 869MHz
European Social Alarm Frequency
- Typical radio frequency range 25-50 metres
- Licensed for detection and alarming in recreation vehicle and buses
- The pack includes the detector base, battery, screws and anchors
Safety instructions
- The smoke detector generates a powerful and
shrill noise, which can be harmful to your ears.
Keep at least a 50 cm distance from the detector
while performing the function test.
supply circuits for power supply. This could cause malfunctioning or
early breakdown of the detector.
- Never paint the smoke detector.
- Please note: Smoke detectors will always identify the smoke of a
fire. They will not identify the flame itself.
- Smoke detectors are not able to extinguish any fire. In case of
alarm evacuate the building and call the fire service.
- The smoke detector is capable to survey only a defined zone
around its own position. For optimum protection, ensure that a
sufficient number of detectors are installed in the area to be
monitored.
- Persons under the influence of alcohol or drugs may have difficulty
hearing the alarm.
Attention!
Danger of explosion, during incorrect fitting of the battery.
Only exchange for the same or similar type of battery.
- Never use rechargeable batteries, or main
Place of installation
The smoke detector performs best when installed on the ceiling in the
centre of the room. If this is not possible, ensure the detector is at least
50 cm from the wall.
To be sure that you are woken up by the smoke alarm at night,
detectors should be placed in all bedrooms to provide minimum protection. In houses with several floors one smoke detector should be
placed in the hallway of each floor.
Minimum protection
Minimum protection
Enhanced protection
Optimal protection
Equipment with restrictions
Brief detector presentation
Unsuitable places for installation
To avoid false alarms and malfunctions, never install the smoke detector:
- inside rooms where heavy vapour, dust or smoke develop under
regular conditions (bath, kitchen)
- near to fireplaces and open fires
- near t o ventilation systems. The flow of air may deviate the smoke
so it will never reach the detector
- near to neon lamps and energy saving lamps. The starter may
cause false alarms by electric fields that arise when turning on the
lamp (minimum distance: 50 cm)
- in edges – for example house gables - in such areas smoke free
air can accumulate and the identification of fire is hindered
- inside rooms with temperatures beneath -10°C or above +60°C
Installation
I. Fix base (1) using the enclosed assembling parts (2). Do not
allow the detectors to get dirty through occurring bore dust.
Do not use countersunk head bolts.
II. Connect the 9V lithium battery with the battery clip and in-
sert the battery in the battery tray.
III. Place the smoke detector (3) in the base and lock it by turn-
ing it gently clockwise.
IV. Proceed to the function test (see chapter “Function test“).
Note II: The smoke detector will not engage inside the base
2
3
without the battery inserted.
D6707263A
Page 1 of 2
User/Installation Instructions for Radio Smoke Detector
Model Number: 67005/94
Wireless Transmitter Module (869MHz)
The Smoke Detector is equipped with a wireless 869MHz transmitter
module. This will transmit alarm signals via Tunstall Emergency
equipment to monitoring centres.
Function test
Attention: The smoke detector generates a very
powerful and shrill tone which can be harmful to
your ears. Please keep at least a distance of 50 cm
during the function test.
Perform the function test every month. Proceed as follows:
1. Check if the LED is flashing.
2. Press the fibre-optical button for at least 1 sec.: If a signal tone is
generated, the detector works properly. If no signal tone is
generated, please replace the batteries.
smoke inlet apertures
fibre-optical button
3. If after replacing the batteries a tone can still not b e heard then the
smoke detector is damaged and has to be replaced by a new one.
Programming to Tunstall equipment
Register the radio smoke detector to Tunstall emergency equipment
by placing the emergency equipment in trigger registration mode and
pressing the fibre-optical button for at least 1sec. A signal tone is generated and the detector transmits a radio message to the emergency
equipment. Check that the registration is successful by pressing the
fibre-optical button again to raise an emergency call. If no alarm is
given, please check the following:
- Battery state?
- Smoke detector faulty?
- Emergency equipment within radio range?
- Emergency equipment programming correctly?
Self-test and battery test
The smoke detector identifies smoke at an early stage of development.
An independent self-test permanently controls the function of the
smoke evaluation. Possible faults are shown per alarm signal
(signal tone or light diode). The power supply is continuously checked
through the battery test. If the battery voltage decreases under a defined point, the smoke detector signals 30 days long that the battery
should be replaced. The smoke detector continues to function fully
during these 30 days, however the battery should be replaced as soon
as possible. Life time of the battery: approx. 5 years (using only lithium-batteries). Check the functionality of the smoke detector after each
battery change by pressing the fibre-optical-button [item 2 function
test] for a few seconds.
Serial number to be found on the “type label”
Replace all smoke detectors after 10 years. The recommended exchange date is located on the label of the smoke detector!
Operation- and alarm signals
Signal
Signal tone LED
No Tone Flashes each 40 s Automatic self-test, regular
Loud
interval tone
Short signal
tone each
40 s
Short signal
tone each
40 s
Flashes Local smoke alarm or func-
Flashes alternating
with signal tone
Flashes parallel to
signal tone
Meaning
operation mode
tion test
Failure / pollution
Indication for battery replacement
Maintenance
A maintenance service should be provided every 6 months (or in case
of a failure message) in order to guarantee the operating safety of the
smoke detector over a long period.
To carry out this service please proceed as follows:
- Remove the sm oke detector from the base (turn counter clockwise) and clear away the dust.
- Wipe the smoke detector with a damp cloth.
- Place the smoke detector back in the base and turn it clockwise
until it is locked.
Note: the smoke detector will not engage inside the base
without the battery inserted.
- Check if the automatic self-test (smoke detector flashes approximately every 40 seconds) is executed.
- Perform a function test.
Meaning of symbols
The crossed-out refuse container on this product
indicates that it should not be disposed with other
business waste at the end of its working life. To
help ensure that valuable resources are reused
and recycled and to prevent possible harm to the
environment.
Product-Approval according to EN 14604 and
VdS 2344 by the VdS Schadensverhütungs
GmbH.
Technical data
Detection method:......................................................Tyndall-effect
Operating voltage:.................................................................9V DC
Alarm indication: ..............................................optical and acoustic
Class of protection:............................................... EN 14604:2005
Recommended battery using wireless module.....FDK CP-V9J 9V
e.g. Panasonic FDK CP-V9J (compound-battery)
Average lifetime of the Lithium battery @15-20ºC:approx. 5* years
Operating temperature range:.....................................-10 to+60 °C
Max. monitored area:.......................................60 m² till 6 m height
Indicator:............................................................................red LED
Signal tone:...............................................................>85 dB(A)/3m
Dimensions without base (Ø x H): .......................... 100 x 35,0 mm
Dimensions with base (Ø x H): ............................... 100 x 51,0 mm
Mounting hole distance on base:............................28,0 - 65,0 mm
Housing material/color:...................................................ABS/white
Wireless range:..................................................Typically 25 - 50m
Detector Life:..................................................................... 10 years
VdS Approval:............................. G 202042 and 0786-CPD-20681
CE Approval:................................................................. CE marked
* Typically without wireless module
