Tunai CLIP User Manual

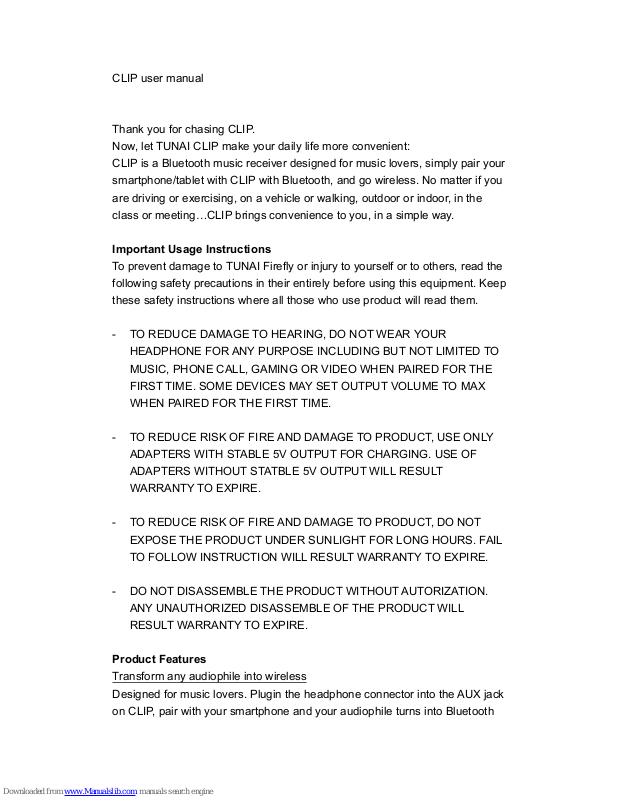

CLIP user manual

Thank you for chasing CLIP.

Now, let TUNAI CLIP make your daily life more convenient:

CLIP is a Bluetooth music receiver designed for music lovers, simply pair your

smartphone/tablet with CLIP with Bluetooth, and go wireless. No matter if you

are driving or exercising, on a vehicle or walking, outdoor or indoor, in the

class or meeting…CLIP brings convenience to you, in a simple way.

Important Usage Instructions

To p revent damage to TUNAI Firefly or injury to yourself or to others, read the

following safety precautions in their entirely before using this equipment. Keep

these safety instructions where all those who use product will read them.

- TO REDUCE DAMAGE TO HEARING, DO NOT WEAR YOUR

HEADPHONE FOR ANY PURPOSE INCLUDING BUT NOT LIMITED TO

MUSIC, PHONE CALL, GAMING OR VIDEO WHEN PAIRED FOR THE

FIRST TIME. SOME DEVICES MAY SET OUTPUT VOLUME TO MAX

WHEN PAIRED FOR THE FIRST TIME.

- TO REDUCE RISK OF FIRE AND DAMAGE TO PRODUCT, USE ONLY

ADAPTERS WITH STABLE 5V OUTPUT FOR CHARGING. USE OF

ADAPTERS WITHOUT STATBLE 5V OUTPUT WILL RESULT

WARRANTY TO EXPIRE.

- TO REDUCE RISK OF FIRE AND DAMAGE TO PRODUCT, DO NOT

EXPOSE THE PRODUCT UNDER SUNLIGHT FOR LONG HOURS. FAIL

TO FOLLOW INSTRUCTION WILL RESULT WARRANTY TO EXPIRE.

- DO NOT DISASSEMBLE THE PRODUCT WITHOUT AUTORIZATION.

ANY UNAUTHORIZED DISASSEMBLE OF THE PRODUCT WILL

RESULT WARRANTY TO EXPIRE.

Product Features

Transform any audiophile into wireless

Designed for music lovers. Plugin the headphone connector into the AUX jack

on CLIP, pair with your smartphone and your audiophile turns into Bluetooth

audiophile right away. Never need to pick between sound quality and

convenience from wireless again.

1-button access to voice assistant

SiRi TM, S-Voice TM, Goolge NowTM or others

No need to take out your phone from pocket or bags again to make phone call

or check on weather forecast, traffic, time...etc. CLIP is capable to trigger the

voice assistant built in your smartphone. Speak to make your request, and let

the voice assistant do the rest. (Services may vary depending on the voice

assistant available)

Remote recording, recording everything regarding distance

CLIP can be used as remote voice recorder. Voice will be captured by CLIP in

wideband (16Khz) quality, and saved in your smartphone via Bluetooth. Yo u

can use the voice memo APP from iOS 9 or above, or the download our

recorder APP – CLIP from Google Play.

Place CLIP near the voice source where you want to record, and use APP to

start, stop and mark the recording.

Answering phone calls, 1-button access to microphone mute

When incoming call, CLIP will pause the music instantly and you can press

to accept the call and press again to end. CLIP will resume music

automatically once the call ends. You can mute your microphone during the

call by pressing .

Concise exterior design with built-in unique cable manager

CLIP come with a unique cable manager for you to wrap and hide the long

cables, setting you free from the tangling headphone cables.

LED indicator

To make CLIP easier to use, LED and sound has been used to notify all status

and changes.

1.CLIP at a glance

Organizing cables

Plug-in your headphone into the 3.5mm headphone jack on CLIP, and wrap

the headphone cable along the cable manager until you are comfortable with

the length.

2.Pairing with CLIP

Reminder: Some smartphones will set the output volume to maximum when

paired with a new Bluetooth device. To prevent hearing damage from potential

burst sound, do not put your headphone on with music playing when pairing

Power&on/off,&Pairing&mode&(long&press&2sec)&

Play,&pause,&answer&call,&end&call,&trigger&voice&

assistant&

Previous&song&

Next&song,µphone&mute&during&calls&

Volume&up&

Volume&down &

Microphone&

LED&indicator&

3.5mm&headphone&jack&

CLIP&

Micro&USB&charger&port&

Strap&hole&

Cable& &

manager&

with CLIP for the first time.

iOS and Android systems

STEP 1 : Plug-in your headphone to 3.5mm jack on CLIP.

STEP 2 : Short press to power on CLIP when it is fully charged. The LED

will blink slowly in blue when powered on.

STEP 3 : Long press for 3 seconds until you hear 2 beep sounds. CLIP will

enter the pairing mode, and LED will blink fast.

Goto setting > Bluetooth > Turn on Bluetooth > Start searching for Bluetooth

devices, and you will see “TUNAI CLIP”. Click on it and the

connection will be established in 5-10 seconds. Once paired

successfully, you will hear a beep sound and the LED will blink

slowly again in blue.

u CLIP will memorize 8 last paired devices, and auto reconnect

when power on.

u When CLIP is power on but unpaired with any device, the LED

will blink every 3 seconds in blue.

STEP 5 : You can start to use your favorite APP for music now.

Shut down CLIP
u Short press to turn off CLIP. The LED indicator will go out, and you will

hear 4 beep sounds before turning off CLIP.

u If CLIP is out of range (10meters max, will varies depending on the

interference in between), you will hear two beep sounds. When CLIP is

back in the range again, you will head three beep sounds. If CLIP is out

of range for too long, CLIP will disconnect with your smartphone and will

not reconnect automatically.

u CLIP will shut down automatically is CLIP is not connected with any

devices for one minute.

3.Music playback

STEP 1 : Connect CLIP with your smartphone first. (See section 2 to learn

how to connect with CLIP)

STEP 2 : Use the preferred APP for music and press to start the music.

STEP 3 : Short press and to jump into previous / next song. Short

press again to pause or continue the music. Short press to
