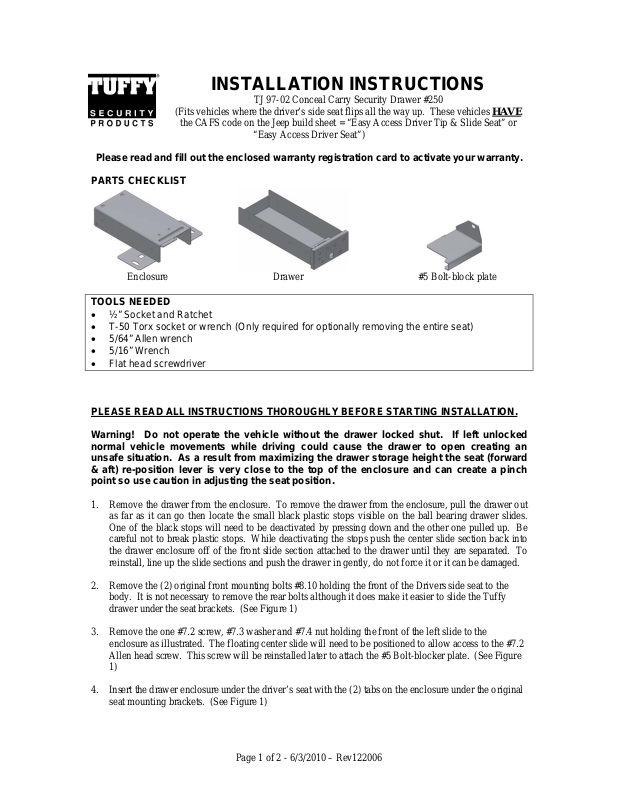

INSTALLATION INSTRUCTIONS

TJ 97-02 Conceal Carry Security Drawer #250

(Fits vehicles where the driver’s side seat flips all the way up. These vehicles HAVE

the CAFS code on the Jeep build sheet = “Easy Access Driver Tip & Slide Seat” or

“Easy Access Driver Seat”)

Please read and fill out the enclosed warranty registration card to activate your warranty.

PARTS CHECKLIST

Enclosure Drawer #5 Bolt-block plate

TOOLS NEEDED

• ½” Socket and Ratchet

• T-50 Torx socket or wrench (Only required for optionally removing the entire seat)

• 5/64” Allen wrench

• 5/16” Wrench

• Flat head screwdriver

PLEASE READ ALL INSTRUCTIONS THOROUGHLY BEFORE STARTING INSTALLA TION.
Warning! Do not operate the vehicle without the drawer locked shut. If left unlocked

normal vehicle movements while driving could cause the drawer to open creating an
unsafe situation. As a result from maximizing the drawer storage height the seat (forward
& aft) re-position lever is very close to the top of the enclosure and can create a pinch
point so use caution in adjusting the seat position.

1. Remove the drawer from the enclosure. To remove the drawer from the enclosure, pull the drawer out

as far as it can go then locate the small black plastic stops visible on the ball bearing drawer slides.
One of the black stops will need to be deactivated by pressing down and th e other one pulled up. Be
careful not to break plastic stops. While deactivating the stops push the center slide section back in to
the drawer enclosure off of the front slide section attached to the dr awer until they are separated. To
reinstall, line up the slide sections and push the drawer in gently, do not force it or it can be damaged.

2. Remove the (2) original front mounting bolts #8.10 holding the front of the Drivers side seat to the

body. It is not necessary to remove the rear bolts although it does make it easier to slide the Tuffy
drawer under the seat brackets. (See Figure 1)

3. Remove the one #7.2 screw, #7.3 washer and #7.4 nut holding the front of the left slide to the

enclosure as illustrated. The floating center slide will need to be positioned to allow access to the #7.2
Allen head screw. This screw will be reinstalled later to attach the #5 Bolt-blocker plate. (See Figure

1)

4. Insert the drawer enclosure under the driver’s seat with the (2) tabs on the enclosure under the original

seat mounting brackets. (See Figure 1)

Page 1 of 2 - 6/3/2010 – Rev122006

Note: On some vehicles the cable connected to the bottom of the driver’s seat may need to be rerouted. To
do this, unplug the cable and in some vehicles pop the cable clamp out of the hole in the vehicle floor using
a flat head screwdriver then reroute the cable and plug it back in. Carefully check that the cable will not
catch, be pinched or stretched and damaged when the seat is maneuvered all the way forward, back and
when flipped up forward.

5. Insert the (2) original front seat front mounting bolts #8.10 and tighten them all the way. Reinstall the

rear mounting bolts as well if they were removed previously. (See Figure 1)

6. For additional security install the #5 Bolt-blocker plate by first inserting the tab on the plate into the

rectangle hole in the enclosure the pushing it toward the rear of the vehicle until the holes line up. The
tabs and front flange on the #5 plate should be sandwiched under the enclosure and the carpet. (See
Figure 1)

7. Reinstall the one #7.2 screw, #7.3 washer and #7.4 nut securing the #5 Bolt-blocker plate to the

enclosure and the front of the left slide as illustrated. The floating center slide will need to be
positioned to allow access to the #7.2 Allen head screw. (See Figure 1)

Figure 1

Call [phone] for Technical Support

Page 2 of 2 - 6/3/2010 – Rev122006
