OWNER’S MANUAL
Maintenance & Assembly Instructions
IMPORTANT: KEEP THIS MANUAL FOR FUTURE REFERENCE
NOTICE
It is the Purchaser’s/Owner’s obligation:
1. To disclose and post all Rules & Regulations, Alert Sign, Wall Chart, Danger,
Warning and Caution labels axed on the machine to their users.
2. Equipment to be installed by TuStu Fitness Authorized Dealer or a service
company approved by TuStu Fitness.
3. Provide scheduled inspection, maintenance & repairs and must be performed
by TuStu Fitness Authorized Dealer or a service company approved by
TuStu Fitness.
4. Must use only genuine TuStu Fitness replacement parts.
SPT-6X_Rev3
Revision Date 10-29-2013
www.tuffstuffitness.com
SPT-6X
Six-Pak Trainer
Table of Contents
Important Safety Instructions ����������������������������������������������������������������������� Page 3
Registration, Service & Assembly ����������������������������������������������������������������Page 4
Assembly Steps �������������������������������������������������������������������������������������� Pages 5 - 20
Lat Cable Routing �������������������������������������������������������������������������������� Pages 11 - 12
Lat Cable Mapping Diagram ��������������������������������������������������������������������� Page 13
Low Row Cable Routing ��������������������������������������������������������������������Pages 14 - 15
SPT-6X Exploded View ���������������������������������������������������������������������Pages 21 - 22
SPT-6X Parts List �������������������������������������������������������������������������������������������� Page 23
Inspection / Maintenance ��������������������������������������������������������������������������� Page 24
Cable Inspection ��������������������������������������������������������������������������������������������� Page 25

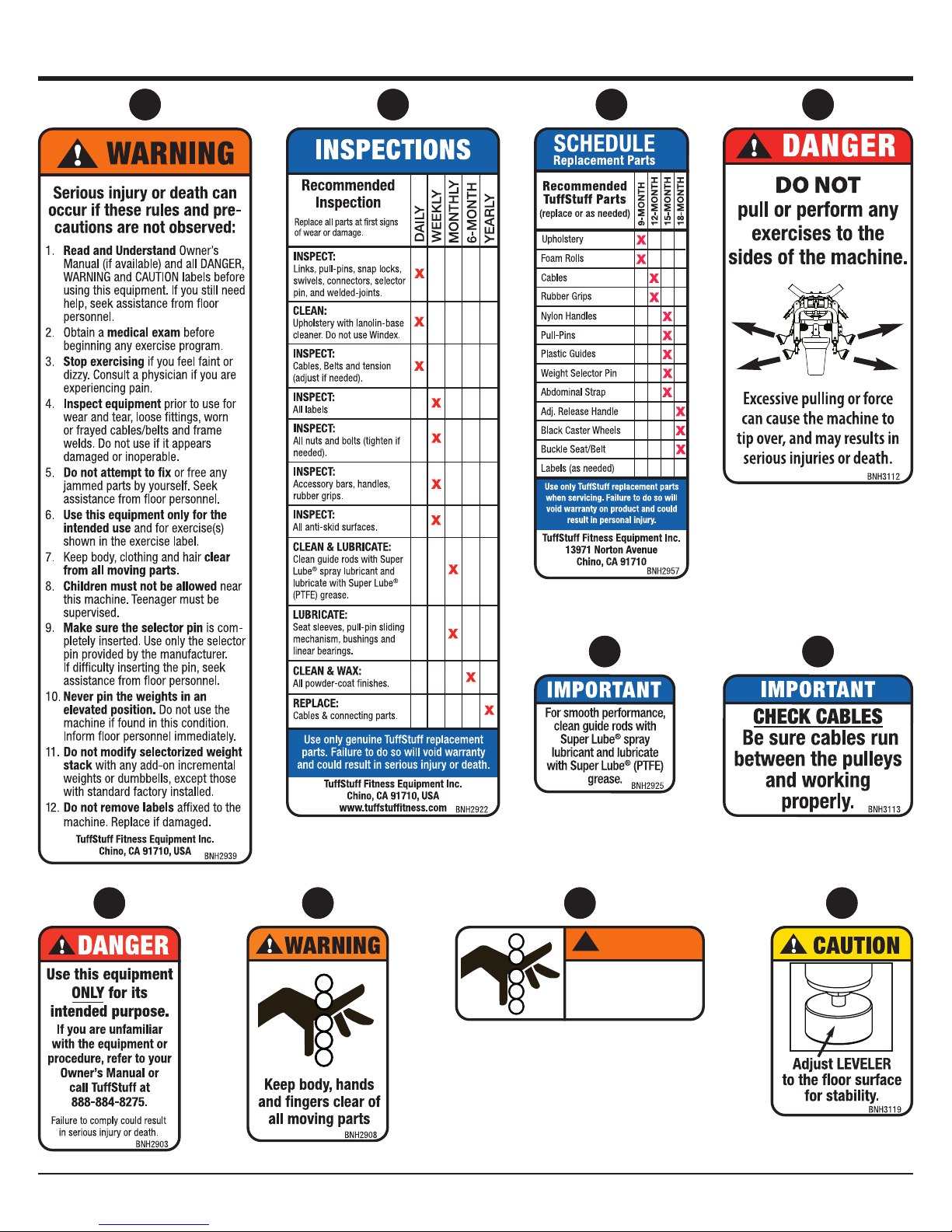

DANGER, WARNING, & CAUTION Labels Information ������������� Pages 26 - 27
SPT-6X Label Placement �����������������������������������������������������������������Pages 28 - 29
TuffStuff Fitness Equipment Inc. continually engages in research related to product improvements. Please take the time to carefully read through this manual
thoroughly. Instructions contained in this manual are not intended to cover all details or variations possible with this equipment, or to cover every contingency
that may be met in conjunction with assembly, installation, operation, maintenance or troubleshooting of the equipment. Eventhough we have prepared
this manual with extreme care, neither the manufacturer nor the author can accept responsibility for any errors in, or omission from, the information given.
Should additional information be required, or should situations arise that are not covered by this manual, the matter should be directed to Customer Service at
TuffStuff Fitness Equipment Inc. in Chino, California.
Overhead Specifications
2 SPT-6X Six-Pak Trainer
www.tuffstuffitness.com
L 67” x W 32” x H 80”
TOTAL UNIT WEIGHT: 500 LBS
Important Safety Instructions
It is the responsibility of the owner and users of the equipment to review the Owner’s Manual, Exercise Chart and understand all Danger,
Warning and Caution labels axed on the machine.
SERIOUS INJURY OR DEATH CAN OCCUR IF
THESE SAFETY PRECAUTIONS ARE NOT OBSERVED:
1. Obtain a medical exam before beginning any exercise program.
2. Read and understand Owner’s Manual, Exercise Chart and all Danger,
Warning and Caution labels before using this equipment. If you
still need help, seek assistance from oor personnel or call TuStu
Fitness at 888-884-8275.
3. Inspect the equipment before each use for wear and tear, loose
ttings, worn or frayed cables and frame welds. DO NOT USE if it
appears to be inoperable or damaged.
4. Stop exercising if you feel faint or dizzy. Consult a physician if you are
experiencing pain.
5. Keep body, clothing and hair clear from all moving parts. Do not
attempt to free any jammed parts by yourself.
6. Always warm-up before and cool-down after weight training.
Warm-up for 10-15 minutes with stretching and cardiovascular
exercises. Cool-down should include light stretching exercises for
5-15 minutes.
7. Never hold your breath – will limit the ow of oxygen to your brain
and may cause dizziness. The most often used breathing is inhaling
during least resistance and exhaling during maximum resistance.
8. Do not use accessories or accessory attachments that are not
recommended by TuStu Fitness.
9. Make sure adjustment pull-pins are completely inserted and fully
engaged before each use.
10. Never pin the weights in an elevated position. Do not use the machine
if found in this condition.
5. Post and disclose all safety, rules and regulations on a bulletin board
easily accessible to users.
6. Perform regular maintenance (see Inspection Label). Pay special attention to areas most susceptible to wear and tear, including but not
limited to cables, pulleys and rubber grips.
7. Do not lean against or pull on the framework, weight stack or any
component at all times.
8. Children must not be allowed near the equipment. Teenager must
be supervised.
9. Replace immediately all parts at rst sign of wear or damage. If unable
to replace worn or damaged components/parts, remove machine from
service until the repair is made.
10. Use only genuine TuStu Fitness replacement parts. Failure to do so
will void warranty and could result in serious injury or death to the
users.
11. Do not remove any LABELs axed to the machine. Replace if
damaged.
12. Do not alter or modify the original manufacturer’s weight stack with
any add-on incremental weights, weight plates or dumbbells except
those with standard factory installed option.
13. Maintain a service contract with a TuStu Fitness Authorized Dealer
or a Professional Service Company approved by TuStu Fitness. Keep
a service log of all maintenance and repair activities. NOTICE: It is
the sole responsiblity of the owner or facility operator to ensure that
regular maintenance is performed.
Facility Safety Guidelines and Practices
1. Read and understand the Owner’s Manual before assembling,
servicing or using the equipment.
2. Equipment to be installed by TuStu Fitness Authorized Dealer or by
a Professional Service Company approved by TuStu Fitness.
3. Make sure each machine is set up and operated on a solid level
surface. Do not install equipment on an uneven surface.
4. Provide an adequate safety perimeter between the machine, walls
and other equipment to ensure that the facility has proper clearance
for usage and training.
DANGER: indicates an imminently hazardous situation which, if not
avoided, will result in death or serious injury.
WARNING: indicates a potentially hazardous situation which, if not
avoided, will result in death or serious injury.
CAUTION: indicates a hazardous situation which, if not avoided, could
result in minor or moderate injury.
www.tuffstuffitness.com
3SPT-6X Six-Pak Trainer
Loosely Tighten
Fully Tighten
Registration, Service & Assembly
Thank you for purchasing the SPT-6X Six-Pak Trainer.
This machine is part of the TuStu Fitness line of quality strength training equipment.
To maximize your use of the equipment, please study the Owner’s Manual thoroughly.
Registration
To avoid unnecessary delays on warranty parts and to insure that a
permanent record of your purchase is on le with our company, be
sure to register online at:
http://www.tustutness.com/productregistration.jsp
within 10 days of purchase.
Obtaining Service
Please use this Owner’s Manual as your guide to all parts included in
your shipment. When ordering parts, you must specify the part number
and description from this manual. Use only genuine TuStu Fitness
replacement parts when servicing the equipment. Failure to do
so will void warranty and could result in serious injury or death.
For information about product operation or service:
Phone: 909-629-1600 Toll Free 888-884-8275
Fax: 909-629-4967
E-mail: service@tustu.net or service1@tustu.net
Hours: M–F 8:00 – 4:30 PST
Or write to: TuStu Fitness Equipment Inc.
Customer Service
13971 Norton Avenue, Chino, CA 91710
Retain this Owner’s Manual for future reference when ordering
service or parts. To assist you better, please be prepared to
provide the following information:
1. Model Number 2. Place of Purchase
3. Serial Number 4. Part # and Description
• Allowamplespacearoundthemachineforsafeunrestricteduseand
easier access.
• Insertallboltsinthesamedirection.Foraestheticappearance,insert
all bolts in the same direction unless specied (in text or illustration) to
do otherwise.
• Leaveroomforadjustments.Donotfullytightenfastenersuntil
instructed in the assembly steps to do so (to prevent any diculty with
alignment of parts during the assembly process). When not instructed,
tighten fasteners such as bolts, nuts and screws so the unit is stable,
but leave room for adjustments.
Assembly Tips
Read all “Notes” on each page before beginning each step.
While you may be able to assemble the SPT-6X using the illustrations only,
IMPORTANT safety notes and other tips are included in the text.
Some pieces may have extra holes that you will not use. Use only those
holes indicated in the instructions and illustration.
NOTE: With so many assembled parts, proper alignment and adjustment
is critical. While tightening the nuts and bolts, be sure to leave room for
nal adjustments.
CAUTION: Obtain assistance from TuStu Fitness if you have diculty
assemblying the SPT-6X. Please do not attempt to complete the assembly
as this could result in equipment failure and serious injuries to the users.
Symbols & Description
Required Tools
The basic tools that you will need to assemble the SPT-6X but are not
limited to:
• 1/2”,9/16”,3/4”,7/8”CombinationWrenches
• RatchetWrenchwith1/2”,9/16”,3/4”sockets
• CrescentAdjustableWrench
• Externalretainingringpliers
• SuperLube®spraylubricantandgrease
• Rubbermallet,measuringtape&utilityknife
• Windexorhouseholdglasscleaner
Assembly Requirements
• Aminimumoftwostrongpersonsarerequiredforthisassembly.
• FollowtheseinstallationrequirementswhenassemblyingtheSPT-6X.
• Layoutyouroorplanbeforeassemblying.
• SetuptheSPT-6Xonaclean,solid,atsurface.Asmooth,atsurface
under the machine helps keep it level.
4 SPT-6X Six-Pak Trainer
www.tuffstuffitness.com
70%
100%
Loosely Tighten
Loosely tighten all hardware in this step. DO NOT Fully
Tighten. Some component(s) may need pre-assembly
and or alignment during the assembly process.
Fully Tighten
Wrench tighten all hardware in this step.
Fully Tighten
Step 1
Assembly List
Item # Description Qty.
11 MAIN FRAME 1
12 REAR STABILIZER 1
25 HANDLE 2
49 FLAT WASHER SAE B/O 3/8” 20
56 HEX HEAD CAP SCREW GR-5 B/O 3/8-16 X 1 3/4 6
60 HEX HEAD CAP SCREW GR-5 B/O 3/8-16 X 4 2
67 NYLON INSERT THIN LOCK NUT B/O 3/8-16 8
68 BLACK NYLON PULLEY 3/8 X 1 X 3 1/2 4
85 SPLIT LOCK WASHER B/O 3/8” 4
91 HEX HEAD CAP SCREW GR-5 B/O 3/8-16 X 4 1/4 4
100%
Wrench tighten all hardware in this step.
68
68
49
49
67
56
56
67
49
49
56
56
68
68
49
49
49
49
49
49
67
67
91
91
85
11
49
85
49
49
67
91
91
85
85
25
49
25
49
49
60
49
12
67
49
www.tuffstuffitness.com
5SPT-6X Six-Pak Trainer
Fully Tighten
Step 2
100%
Wrench tighten all hardware in this step.
68
Assembly List
Item # Description Qty.
1 ADJUSTABLE DOUBLE PULLEY BRACKET 1
4 DOUBLE FLOATING PULLEY BRACKET LT 1
5 DOUBLE FLOATING PULLEY BRACKET RT 1
21 TOP BEARING HOUSING 2
23 TOP SWIVEL PULLEY BRACKET 2
49 FLAT WASHER SAE B/O 3/8” 14
56 HEX HEAD CAP SCREW GR-5 B/O 3/8-16 X 1 3/4 6
57 HEX HEAD CAP SCREW GR-5 B/O 3/8-16 X 3 1
67 NYLON INSERT THIN LOCK NUT B/O 3/8-16 7
68 BLACK NYLON PULLEY 3/8 X 1 X 3 1/2 4
69 NYLON PULLEY 3/8 X 1 X 4 1/2 BLACK 4
56
49
68
5
49
49
67
57
49
1
49
49
56
67
49
68
4
49
67
49
67
68
56
49
21
69
23
49
6 SPT-6X Six-Pak Trainer
www.tuffstuffitness.com
67
69
67
49
21
69
23
49
56
Loosely Tighten
Loosely Tighten
Step 3
47
43
1
43
84
47
Assembly List
Item # Description Qty.
1 ADJUSTABLE DOUBLE PULLEY BRACKET 1
9 LONG DOUBLE SWIVEL PULLEY BRKT 2
20 SHORT DOUBLE SWIVEL PULLEY BRKT 2
43 FINISHED HEX NUT B/O 1/2-13 2
47 FLAT WASHER SAE B/O 1/2” 2
75 RETAINING SNAP RING EXT. PLAIN 1 1/4” 4
84 SPLIT LOCK WASHER B/O 1/2” 1
70%
70%
Loosely tighten all hardware in this step.
DO NOT Fully Tighten. Some component(s)
may need pre-assembly and or alignment
during the assembly process.
75
11
20
75
20
75
9
75
9
www.tuffstuffitness.com
7SPT-6X Six-Pak Trainer
Fully Tighten
Step 4
56
68
56
68
49
68
49
49
67
49
49
56
67
49
56
49
20
56
56
68
49
49
49
68
67
49
67
49
49
56
68
67
11
100%
Wrench tighten all hardware in this step.
56
49
56
8 SPT-6X Six-Pak Trainer
49
67
49
68
67
20
68
56
49
49
68
www.tuffstuffitness.com
49
9
67
49
68
67
49
67
67
49
67
49
11
67
68
56
49
9
49
68
Assembly List
Item # Description Qty.
49 FLAT WASHER SAE B/O 3/8” 30
56 HEX HEAD CAP SCREW GR-5 B/O 3/8-16 X 1 3/4 15
67 NYLON INSERT THIN LOCK NUT B/O 3/8-16 15
68 BLACK NYLON PULLEY 3/8 X 1 X 3 1/2 15
Fully Tighten
Step 5
NOTE: If Downgrading to 150 lbs.Weight
Stack, you’ll need to assemble:
Item # Description Qty.
50 FLAT WASHER B/O 3/4 X 2” 2
93 WEIGHT STACK SPACER 5” (USED ONLY WITH 150 lbs) 2
as illustrated below.
49
67
49
56
49
68
100%
Wrench tighten all hardware in this step.
93
50
7
93
50
56
49
27
22
43
84
18
Assembly List
Item # Description Qty.
7 GUIDE ROD 3/4 RD X 67 1/2 2
18 SELECTOR PIN W/COIL 3/8 X 4 GOLD KNOB 1
22 TOP PLATE PULLEY BRACKETS 1
26 10 LB STEEL WEIGHT PLATE BLACK 19
27 10 LB TOP PLATE W/ADJ SLTR BAR 1
43 FINISHED HEX NUT B/O 1/2-13 1
49 FLAT WASHER SAE B/O 3/8” 8
50 FLAT WASHER B/O 3/4 X 2” 2
56 HEX HEAD CAP SCREW B/O 3/8-16 X 1 3/4 2
58 HEX HEAD CAP SCREW B/O 3/8-16 X 3 1/2 2
67 NYLON INSERT THIN LOCK NUT B/O 3/8-16 4
68 BLACK NYLON PULLEY 3/8 X 1 X 3 1/2 2
76 RUBBER DONUT 1 X 2 1/2 4
84 SPLIT LOCK WASHER B/O 1/2” 1
76
50
7
50
26
76
7
58
49
49
67
11
7
49
49
67
Raise and hold Guide Rods 7 up to assemble
hardware as shown.
58
www.tuffstuffitness.com
9SPT-6X Six-Pak Trainer
Step 6
NOTE:
1� TOP PLATE LABEL GOES ON HOLE OFF CENTER AS
SHOWN� LABEL WILL COVER HOLE ON CENTER�
Weight stack label and lubrication instructions
1� Wipe front surface of weight stack with rubbing alcohol and wipe dry�
2� Peel o back sheet (adhesive side) from label #41 and make sure that the labels remain
attached to the application tape�
3� Line up hole on the second label to hole on the rst weight plate�
4� Make sure the hole on the last label lines up with last weight plate and slowly press into
place�
5� Gently remove application tape and rub each label rmly against the weight stack�
6� Once this is complete, repeat this procedure for top plate label�
6� Allow labels to stand for 2 days to allow adhesive to cure fully�
7� Open the lube package provided and apply a thin lm of lubricant around the rst 3 inches
of the guide rods above the top plate�
8� After the cables are installed, do a set of reps to spread the lubricant thoroughly�
10 SPT-6X Six-Pak Trainer
www.tuffstuffitness.com
Step 7 (Lat Cable Routing)
NOTE:
1� CAREFULLY FOLLOW CABLE ROUTING INSTRUCTIONS, MAKING SURE THAT THE
FLOATING DOUBLE PULLEY BRACKETS GET ASSEMBLED AS ILLUSTRATED BELOW�
www.tuffstuffitness.com
11SPT-6X Six-Pak Trainer
8
51
79
86
81
92
49
59
21
85
59
49
5
4
8
51
79
86
81
92
49
59
21
85
59
49
5
4
545
4
Step 8 (Lat Cable Routing)
STEP 1
21
59
59
85
85
49
49
21
49
49
59
59
92
92
45
79
79
51
51
86
86
81
81
8
8
51
86
81
92
STARTING POINT
RUN CABLE THROUGH STARTING POINT INTO
TOP SWIVEL PULLEY BRACKET AS SHOWN AND
THEN ASSEMBLE IT TO THE UNIT.
STEP 3
G
STEP 2
A
FOLLOW LETTER SEQUENCE
TO ROUTE THE CABLE.
C
E
D
B
NOTE: PULLEY BRACKETS (#4, #5) HAVE BEEN
SWAPED PLACES FROM PREVIOUS OWNERS
MANUAL. ASSEMBLE AS SHOWN ABOVE.
STEP 4
I
E
F
STEP 5
45
51
86
81
92
12 SPT-6X Six-Pak Trainer
M
www.tuffstuffitness.com
L
K
G
H
Assembly List
Item # Description Qty.
4 DOUBLE FLOATING PULLEY BRACKET LT 1
5 DOUBLE FLOATING PULLEY BRACKET RT 1
8 LAT CABLE 1
21 TOP BEARING HOUSING 2
45 Oval Head Phillips Screw #10-32 X 1 1/8 2
I
J
49 FLAT WASHER SAE B/O 3/8” 4
51 Cable Stopper Shell 1 1/2 x 1 3/4 2
59 HEX HEAD CAP SCREW GR-5 B/O 3/8-16 X 3/4 4
81 SNAP LINK Z/P 8MM X 80MM 2
85 SPLIT LOCK WASHER B/O 3/8” 4
86 7/8 Rd X 1 5/8 Link 1/8 Cable 2
92 CONTOUR ERGO HANDLE SHORT STRAP 2
Step 9 (Lat Cable Mapping Diagram)
L
G
M
A
K
E
I
C
B
J
5
D
4
8
H
F
Assembly List
Item # Description Qty.
4 DOUBLE FLOATING PULLEY BRACKET LT 1
5 DOUBLE FLOATING PULLEY BRACKET RT 1
8 LAT CABLE 1
www.tuffstuffitness.com
13SPT-6X Six-Pak Trainer
86
51
81
79
64
86
51
81
79
64
5
79
51
86
81
64
4
5
79
51
86
81
64
4
Step 10 (Low Row Cable Routing)
4
4
5
5
65
65
65
48
48
65
53
53
48
48
53
53
48
48
Assembly List
5 DOUBLE FLOATING PULLEY BRACKET RT 1
10 LOW ROW CABLE 1
Item # Description Qty.
B
45 Oval Head Phillips Screw #10-32 X 1 1/8 2
51
NOTES:
48 FLAT WASHER SAE B/O 1/4” 4
51 Cable Stopper Shell 1 1/2 x 1 3/4 2
53 HEX HEAD CAP SCREW GR-5 B/O 1/4-20 X 1 3/4 2
64 CONTOUR ERGO HANDLE LONG STRAP 2
65 NYLON INSERT LOCK NUT B/O 1/4-20 2
81 SNAP LINK Z/P 8MM X 80MM 2
86 7/8 Rd X 1 5/8 Link 1/8 Cable 2
1. SOME PARTS NOT SHOWN FOR CLARITY
C
C
D
E
F
A
64
45
86
STEP 1
14 SPT-6X Six-Pak Trainer
81
www.tuffstuffitness.com
STEP 2
45
51
86
81
64
81
86
51
79
64
81
86
51
79
64
79
51
86
81
4
10
64
79
51
86
81
4
10
64
Step 11 (Low Row Cable Routing)
Assembly List
63
63
53
53
48
65
65
53
53
48
48
65
65
48
NOTES:
1. SOME PARTS NOT SHOWN FOR CLARITY
4 DOUBLE FLOATING PULLEY BRACKET LT 1
10 LOW ROW CABLE 1
45 Oval Head Phillips Screw #10-32 X 1 1/8 2
48 FLAT WASHER SAE B/O 1/4” 4
51 Cable Stopper Shell 1 1/2 x 1 3/4 2
53 HEX HEAD CAP SCREW GR-5 B/O 1/4-20 X 1 3/4 2
63 NYLON ANKLE STRAP 1
64 CONTOUR ERGO HANDLE LONG STRAP 2
65 NYLON INSERT LOCK NUT B/O 1/4-20 2
81 SNAP LINK Z/P 8MM X 80MM 2
86 7/8 Rd X 1 5/8 Link 1/8 Cable 2
Item # Description Qty.
4
4
5
5
81
86
64
45
51
A
B
10
10
81
45
64
86
51
F
STEP 1
C
STEP 2
D
www.tuffstuffitness.com
E
C
15SPT-6X Six-Pak Trainer
Fully Tighten
Step 12
Assembly List
Item # Description Qty.
6 FRONT FRAME 1
49 FLAT WASHER SAE B/O 3/8” 6
58 HEX HEAD CAP SCREW GR-5 B/O 3/8-16 X 3 1/2 3
67 NYLON INSERT THIN LOCK NUT B/O 3/8-16 3
67
49
67
100%
Wrench tighten all hardware in this step.
58
49
49
58
49
6
49
16 SPT-6X Six-Pak Trainer
www.tuffstuffitness.com
Fully Tighten
Step 13
Assembly List
Item # Description Qty.
3 BACK PAD FRAME 1
15 SEAT BEARING HOUSING 1
16 SEAT FRAME 1
47 FLAT WASHER SAE B/O 1/2” 2
49 FLAT WASHER SAE B/O 3/8” 2
52 HEX HEAD CAP SCREW GR-5 B/O 1/2-13 X 5 1/2 1
59 HEX HEAD CAP SCREW GR-5 B/O 3/8-16 X 3/4 2
66 NYLON INSERT THIN LOCK NUT B/O 1/2-13 1
83 SOCKET SET SCREW ALLOY 3/8-16 X 1/2 1
85 SPLIT LOCK WASHER B/O 3/8” 2
100%
Wrench tighten all hardware in this step.
MAKE SURE THE SOCKET SET 3/8-16 X
1/2 83 IS LOCKED ON THE NOTCH OF
THE MAIN FRAME 6.
66
47
16
6 83 6
83
52
47
3
15
6
59
85
49
59
85
49
www.tuffstuffitness.com
17SPT-6X Six-Pak Trainer
Fully Tighten
Step 14
Assembly List
100%
Wrench tighten all hardware in this step.
Item # Description Qty.
24 WEIGHT SHIELD 1
48 FLAT WASHER SAE B/O 1/4” 4
54 HEX HEAD CAP SCREW GR-5 B/O 1/4-20 X 3/4 4
11
48
54
48
48
24
48
54
18 SPT-6X Six-Pak Trainer
www.tuffstuffitness.com
Fully Tighten
Step 15
Assembly List
Item # Description Qty.
2 BACK PAD 1
17 SEAT PAD 1
49 FLAT WASHER SAE B/O 3/8” 4
57 HEX HEAD CAP SCREW GR-5 B/O 3/8-16 X 3 4
17
2
49
16
57
49
3
49
57
100%
Wrench tighten all hardware in this step.
www.tuffstuffitness.com
19SPT-6X Six-Pak Trainer
Fully Tighten
Step 16
100%
Proceed to align and Wrench Tighten these
hardware assemblies and all of the previous
assemblies that were left loosely fastened.
20 SPT-6X Six-Pak Trainer
22298
MAKE NECESARY ADJUSTMENTS
ON THE TWO ADJUSTABLE
ADAPTERS
www.tuffstuffitness.com
SPT-6X Exploded View
56
49
4
68
49
68
103
67
49
67
47
43
56
49
49
67
SEE VIEW2
1
49
91
85
69
57
49
68
68
49
5
59
43
84
47
49
67
91
49
85
56
78
49
70
91
85
49
78
75
30
59
21
85
20
49
23
30
48
25
53
67
56
49
49
49
23
68
85
49
59
56
27
56
49
22
43
84
18
49
67
49
56
49
68
60
71
56
49
60
56
44
28
49
12
68
25
20
56
49
68
49
67
49
67
49
SEE VIEW1
75
30
49
11
67
68
75
30
9
77
30
49
65
48
68
49
67
26
77
77
30
48
65
49
67
9
76
48
49
www.tuffstuffitness.com
50
7
53
56
49
68
76
50
7
41
21SPT-6X Six-Pak Trainer
SPT-6X Exploded View
VIEW 2
56
56
68
49
68
49
49
48
54
48
67
49
54
88
67
49
49
67
72
68
49
17
82
56
11
VIEW 1
12
49
60
47
49
67
52
49
49
82
67
58
74
11
49
2
67
71
67
58
49
48
24
54
48
31
67
80
57
42
49
49
67
59
79
58
80
73
85
49
13
29
49
49
58
67
55
6
66
47
15
29
32
85
49
49
83
57
55
49
49
67
85
19
77
59
49
107
3
72
49
49
46
57
107
46
14
22 SPT-6X Six-Pak Trainer
www.tuffstuffitness.com
SPT-6X Parts List
COLOR CHART
BOLD FONT = SUB-ASSEMBLY PARTS
BLACK= HARDWARE
1 ADJUSTABLE DOUBLE PULLEY BRACKET 0 UP6165 1
4 DOUBLE FLOATING PULLEY BRACKET LT 0 UP6170 1
5 DOUBLE FLOATING PULLEY BRACKET RT 0 UP6171 1
7 GUIDE ROD 3/4 RD X 67 1/2 0 UP6187 2
9 LONG DOUBLE SWIVEL PULLEY BRKT 0 UP6173 2
15 SEAT BEARING HOUSING 0 UP6169 1
18 SELECTOR PIN W/COIL 3/8 X 4 GOLD KNO
20 SHORT DOUBLE SWIVEL PULLEY BRKT 0 UP6182 2
22 TOP PLATE PULLEY BRACKETS 0 UP6183 1
23 TOP SWIVEL PULLEY BRACKET 0 UP3634 2
GIEW LEETS BL 0162
2
7 10 LB TOP PLATE W/ADJ SLTR BAR 19 BLK WTS BNH1982 1 80 SINGLE STRAND CONNECTING LINK #40 BNH0066 1
30 BALL BEARING R20-RS ( 4 I.D. X 2 1/4 X 1/2 ) BNH1712 12 83 SOCKET SET SCREW ALLOY 3/8-16 X 1/2 BNH0474 1
A TNATROPMI-lebaL33
4 Label WARNING_Serious Injury or Death BNH2939 1 87 SUPER LUBE TEFLON LUBRICANT 82340 BNH0704 2
3
7 Label-IMPORTANT For smooth performance... BNH2925 1 91 HEX HEAD CAP SCREW GR-5 B/O 3/8-16 X 4 1/4 BNH0317 4
3
38 Label IMPORTANT Check Cables BNH3113 1 92 CONTOUR ERGO HANDLE SHORT STRAP BNH2739 2
39 Label-WARNING Keep body, hands… BNH2926 1
40 Label WARNING Keep body, hands, 1 1/2 x 2 1/4 BNH2908 2 94 Label-INSPECTIONS Recommended Inspection… BNH2922 1
42 EDGE PROTECTOR CHROME 11 GA BNH1724 1 96 Label-DANGER Use this equipment ONLY... BNH2903 1
1 Cable Stopper Shell 1 1/2 x 1 3/4 BNH4230 6 105 Label WARNING ATTENTION USERS!... BNH2911 1
5
53 HEX HEAD CAP SCREW GR-5 B/O 1/4-20 X 1 3/4 BNH1338 4
B 0 UP3035 1
SPT-6X
Parts List
54 HEX HEAD CAP SCREW GR-5 B/O 1/4-20 X 3/4 BNH0890 4
17616PU0DAP KCAB2
18616PU1EMARF DAP KCAB3
12716PU0EMARF TNORF6
14816PU0ELBAC TAL8
24957PU0ELBAC WOR WOL01
15716PU0EMARF NIAM11
15957PU0REZILIBATS RAER21
17716PU0ELDNAH ESAELER31
18716PU0ROTCETORP HCTARCS41
19716PU1EMARF TAES61
10816PU0DAP TAES71
11816PU0ETALP ROTCELES91
26616PU0GNISUOH GNIRAEB POT12
15816PU0DLEIHS THGIEW42
25707PU0ELDNAH52
55 HEX HEAD CAP SCREW GR-5 B/O 3/8-16 X 1 BNH0275 5
56 HEX HEAD CAP SCREW GR-5 B/O 3/8-16 X 1 3/4 BNH0274 29
57 HEX HEAD CAP SCREW GR-5 B/O 3/8-16 X 3 BNH0282 5
58 HEX HEAD CAP SCREW GR-5 B/O 3/8-16 X 3 1/2 BNH0280 5
59 HEX HEAD CAP SCREW GR-5 B/O 3/8-16 X 3/4 BNH0283 6
60 HEX HEAD CAP SCREW GR-5 B/O 3/8-16 X 4 BNH0285 2
64 CONTOUR ERGO HANDLE LONG STRAP BNH2738 4
6 NYLON INSERT THIN LOCK NUT B/O 1/2-13 BNH0366 1
6
67 NYLON INSERT THIN LOCK NUT B/O 3/8-16 BNH0365 41
68 Black Nylon Pulley Wide Groove 3/8 X 1 X 3 1/2 BNH2832 25
69 Black Nylon Pulley Wide Groove 3/8 X 1 X 4 1/2 BNH2834 4
72 PLASTIC INSERT CAP ELLIPTICAL 2 X 4 BNH1794 2
74 PUSH PULL PIN 1/2 X 5 5/8 LIGHT SPRING BNH0586 1
75 RETAINING SNAP RING EXT. PLAIN 1 1/4" BNH1718 6
93 WEIGHT STACK SPACER 5" (USED ONLY WITH 150 LB) UP5238 2
oD REGNAD-lebaL7931020HNB31-2/1 O/B TUN XEH DEHSINIF34
ngiS TRELA201217780HNB"4/1 O/B EAS REHSAW TALF84
TUAC lebaL40148780HNB"2 X 4/3 O/B REHSAW TALF05
REV3
.YTQ.ON TRAPNOITPIRCSED.ON METI.YTQ.ON TRAP.VERNOITPIRCSED.ON METI
12730HNB"23/3 YOLLA YEK XEH16
11730HNB"61/3 YOLLA MRA GNOL YEK XEH26
13023HNBPARTS ELKNA NOLYN36
43120HNB02-4/1 O/B TUN KCOL TRESNI NOLYN56
24000HNBAG 41-01 DR "2 PAC TRESNI CITSALP07
44631HNBAG 41-01 DR "3 PAC TRESNI CITSALP17
11271HNBDELLIRD 2/1 3 YSSA NIP LLUP37
48600HNB2/1 2 X 4/3 TUNOD REBBUR67
57461HNBETALP 4/1 4 X 6 ROF TOOF REBBUR77
21040HNBDI "4/3 TEMMORG REBBUR87
18170HNB4/3 X 8/3 YOLLA TLOB REDLUOHS97910561HNB61/7 9 X 61/9 4 ETALP TH
65600HNBMM08 X MM8 P/Z KNIL PANS1829722HNBRETPADA ELBATSUJDA82
23740HNB8/1 X 03-01 YOLLA WERCS TES TEKCOS2828260HNB615 W# GNIRAEB LLAB92
23560HNB"2/1 O/B REHSAW KCOL TILPS4818181HNB8/7 4 X 2/1 PIRG REBBUR KCALB13
118560HNB"8/3 O/B REHSAW KCOL TILPS5815101HNB2/1 1 X 8/3 REHSAW EMORHC23
61324HNBelbaC 8/1 kniL 8/5 1 X dR 8/76814292HNBereH noisneT elbaC TSUJD
13024HNB2 x 5 euqalP ssentiF ffutSffuT8822092HNB1x5.1 ...tun gniniater KCEHC REGNAD lebaL53
48070HNB02-4/1 TUN ELOH DEPPAT ELYTS-U9817722HNB)6-TPS( TRAHC ESICREXE-lebaL63
17592HNB...straP tnemecalpeR ELUDEHCS lebaL5919604HNBkcalB & wolleY sgk/sbl 002-01 srebmuN lebaL14
22113HNB...mrofreP ro lluP toN
29113HNBreleveL tsujdA NOITUAC -lebaL8921560HNB5.1-01M O/B TUN XEH DEHSINIF44
10213HNB)X6-TPS( rebmuN laireS-lebaL9963972HNB8/1 1 X 23-01# P/Z wercS spillihP daeH lavO54
25113HNBS906,626D tnetaP-lebaL00123612HNB8/3 X 02-4/1 TUCREDNU SPILLIHP TALF64
16113HNBS531,606D tnetaP-lebaL10149320HNB"2/1 O/B EAS REHSAW TALF74
15103HNB11 x 2/1 8 remotsuC rof
25842HNB91 X LLAW 511. X DI 49. EBUT TALF REBBUR301699320HNB"8/3 O/B EAS REHSAW TALF94
12192HNB8/3 1 x 2/1 1 ...ylluf si nip-lluP KCEHC NOI
28250HNB8/1 X 8/7 X 2/1 GNIHSUB EZNORB70117620HNB2/1 5 X 31-2/1 O/B 5-RG WERCS PAC DAEH XEH25
www.tustutness.com
23SPT-6X Six-Pak Trainer
Inspection / Maintenance
Perform regular maintenance (see Inspection Label). Pay special attention to areas most susceptible to wear and tear.
TuStu Fitness recommends you maintain a service contract with a TuStu Fitness Authorized Dealer or a Professional Service Company
approved by TuStu Fitness. Keep a service log of all maintenance and repair activities. Extra copies can be downloaded from our website.
INSPECTION / MAINTENANCE RECORDS
DATE REPLACEMENT REPAIRS INSPECTED BY
24 SPT-6X Six-Pak Trainer
www.tuffstuffitness.com
WARRANTY REPAIRS
DATE REPLACEMENT REPAIRS INSPECTED BY
Cable Inspection
WARNING:
THE FOLLOWING CONDITIONS MAY INDICATE A WORN CABLE� REPLACE IMMEDIATELY�
“NECKING”, STRECHED CABLE COVERING
A TEAR IN THE CABLE COVER
A CRACK IN THE CABLE COVER
A BREAK ON THE CABLE
CABLE END SLIPPING OUT
IMPORTANT NOTE:
DAMAGED OR WORNED CABLE (AS SHOWN ABOVE) MAY DAMAGE THE PULLEY(S)� YOU MUST INSPECT
THE PULLEYS AT THIS TIME FOR WEAR AND TEAR� REPLACE IF NEEDED�
www.tuffstuffitness.com
25SPT-6X Six-Pak Trainer
Carefully read ALL DANGER, WARNING & CAUTION labels posted on the machine
22234 22294 22295 22297
2224022296 22239
and fingers clear of
BNH2926
!
WARNING
Keep body, hands
all moving parts.
2223822237
22298
26 SPT-6X Six-Pak Trainer
www.tuffstuffitness.com
Carefully read ALL DANGER, WARNING & CAUTION labels posted on the machine
2224122236 222101 22210022299
22288
22235
22233
222104
222102
BE ALERT!
THE FITNESS EQUIPMENT YOU
HAVE JUST PURCHASED PRESENTS
HAZARDS WHICH, IF NOT AVOIDED,
COULD CAUSE SERIOUS INJURY
OR DEATH.
Prior to using the equipment, READ the OWNER’S
MANUAL thoroughly, all danger, warning & caution
labels and instruction placards affixed to the machine.
If you are unsure on how to use the equipment,
seek the assistance of a certified training instructor,
TuffStuff authorized
service personnel.
Immediately report any piece of equipment that is
not functioning properly. DO NOT ATTEMPT to use or
fix any piece of equipment yourself. Contact TuffStuff
immediately.
dealer or TuffStuff customer
TUFFSTUFF FITNESS EQUIPMENT INC. CHINO, CA 91710ASTM F1749-96
BNH3015
222105
It is extremely important that the BE ALERT!
Sign shown to the left be installed in plain view of
the unit�
You should have received it along with this
Owners Manual� If you did not receive this Sign
with your order, you can obtain one at no cost
to you from TuStu Fitness by contacting our
service department at:
1 (888) 884-8275
service@tustu�net
service1@tustu�net
222102
www.tuffstuffitness.com
27SPT-6X Six-Pak Trainer
SPT-6X Label Placement
22233
100
222
97
222
96
222
22240
22240
22234
22297
102
222
BE ALE RT !
THE FITNESS EQUIPMENT YOU
HAVE JUST PURCHASED PRESENTS
HAZARDS WHICH, IF NOT AVOIDED,
COULD CAUSE SERIOUS INJURY
OR DEATH.
Prior to using the equipment, READ the OWNER’S
MANUAL thoroughly, all danger, warning & caution
labels and instruction placards affixed to the machine.
If you are unsure on how to use the equipment,
seek the assistance of a certified training instructor,
dealer or TuffStuff customer
TuffStuff authorized
service personnel.
Immediately report any piece of equipment that is
not functioning properly. DO NOT ATTEMPT to use or
fix any piece of equipment yourself. Contact TuffStuff
immediately.
TUFFSTUFF FITNESS EQUIPMENT INC. CHINO, CA 91710ASTM F1749-96
22288
36
222
BNH3015
22295
22298
22237
22241
22294
22239
222101
22235
222104
22235
22299
28 SPT-6X Six-Pak Trainer
www.tuffstuffitness.com
SPT-6X Label Placement
22288
97
222
22238
22296
22297
34
222
33
222
222100
22236
222101
222105
22295
22240
22240
22237
22239
22241
22294
222104
22235
22299
www.tuffstuffitness.com
22298
29SPT-6X Six-Pak Trainer
Notes
30 SPT-6X Six-Pak Trainer
www.tuffstuffitness.com
Notes
www.tuffstuffitness.com
31SPT-6X Six-Pak Trainer
IMPORTANT: KEEP THIS OWNERS MANUAL FOR FUTURE REFERENCE
HOME LIFETIME WARRANTY
equiptment will be free from defects
T
I
E
F
I
L
M
E
for the life of the product while owned by the origional purchaser, and used only in a home or
residential environment.
This warranty does not cover:
products sold for and used in a commercial or institutional environment.
B. Any damage, failure or loss caused by accident, misuse, neglect, abuse, improper assembly, improper
maintenance, or failure to follow instructions or warnings in the owner’s manual and warning labels
posted on the machines.
C. Use of the product in a manner for which it was not designed.
E. Original product that is altered, or the use of replacement parts and components of another manufacturer.
F. VALID ONLY if the Product is assembled and installed according to the instructions provided in the
Owner’s manual.
repaired or replaced parts, and all transportation and insurance costs on returned or replaced equipment to and from
THE FOREGOING SHALL CONSTITUTE THE SOLE REMEDY OF THE PURCHASER AND THE
SOLE LIABILITY OF TUFFSTUFF WITH REGARD TO WARRANTY, WHETHER EXPRESS OR
IMPLIED BY OPERATION OF LAW OR OTHERWISE, INCLUDING BUT NOT LIMITED TO
ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS. TUFFSTUFF SHALL
IN NO EVENT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL LOSSES, DAMAGES,
OR EXPENSES IN CONNECTIONS WITH EXERCISE PRODUCTS. TUFFSTUFF’S LIABILITY
HEREUNDER IS EXPRESSLY LIMITED TO THE REPAIRS OR REPLACEMENTS OF
WARRANTED DEFECTIVE PARTS.
W
A
R
R
A
A seal of condence
and quality since 1971.
of
N
Y
T
performance of the equipment and no action for breach of this written warranty or any implied warranty shall be
its terms shall be binding on either party unless approved in writing by an authorized representative of the party. Contact
SERIAL #
Write your Serial number here for future reference Purchase Date
Fitness Equipment Inc.
13971 Norton Avenue, Chino, CA 91710, USA
Phone: 909-629-1600 Fax: 909-629-4967
www.tustutness.com
Loading...
