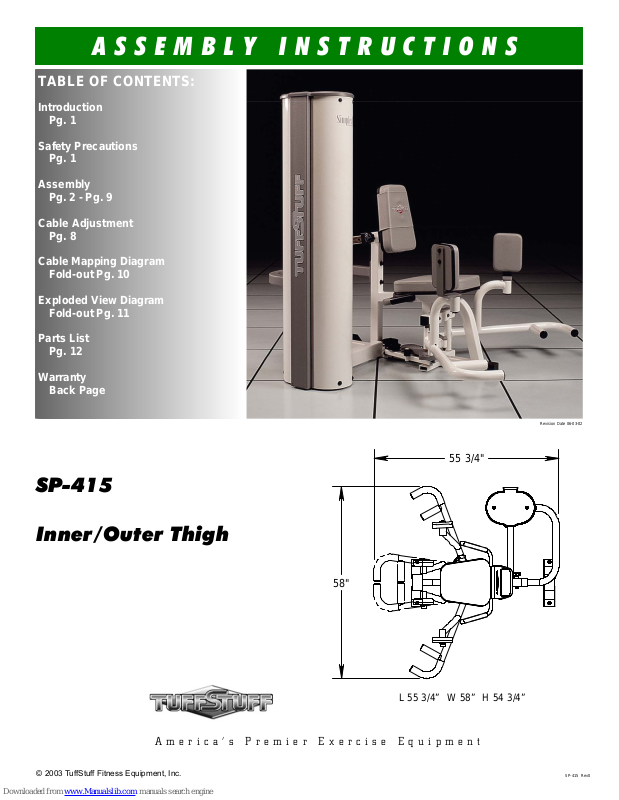

TuffStuff SP-415 Assembly Instructions Manual

Page 1
ASSEMBLY INSTRUCTIONS
TABLE OF CONTENTS:
Introduction Pg. 1
Safety Precautions Pg. 1
Assembly Pg. 2 - Pg. 9
Cable Adjustment Pg. 8
Cable Mapping Diagram Fold-out Pg. 10
Exploded View Diagram Fold-out Pg. 11
Parts List Pg. 12
Warranty Back Page
SP-415
Inner/Outer Thigh
55 3/4"
58"
L 55 3/4” W 58” H 54 3/4”
A m e r i c a ’ s P r e m i e r E x e r c i s e E q u i p m e n t
© 2003 TuffStuff Fitness Equipment, Inc.
SP-415 Rev0
Page 2
Introduction
SCREW LENGHT
About the Inner/Outer Thigh SP-415
Congratulations on your new purchase of the Inner/Outer. We hope you are completely satisfied with this product and wish you many years of enjoyment.
Tuff Stuff Equipment
This Tuffstuff product has been built to precise quality standards and has been carefully packaged to ensure that damage will not occur during shipment. The limited lifetime warranty and signature indicating final inspection has been conducted by our line foreman, is an expression of our confidence in the completeness, the materials, and workmanship of this product.
Warranty
SEE A COPY OF WARRANTY ON BACK PAGE
Registration Card
To avoid unnecessary delays in warranty service and to insure that a permanent record of your purchase is on file with our factory, be sure to complete the warranty registration card and send it to Task Industries today.
Specifications
1. Maximum Wt. Capacity - 150 Lbs.
2. Total Machine Weight - 487 Lbs.
3. Footprint (LWH) - See Front Page
Prior to the Assembly of the Inner/Outer Thigh
1. We advise you to consult your local Tuff Stuff retailer if you should have a question or problem regarding the proper assembly of this unit.
2. Neatly organize and identify all parts according to the Parts List and the Exploded View Diagram .
Tool Requirements
1. One 3/4” combination wrench
2. One 9/16” combination wrench
3. One 7/16” combination wrench
4. One ratchet
5. One 3/4” socket
6. One 9/16” socket
7. One 7/16” socket
8. Rubber mallet
9. Hammer
10. Windex or household glass cleaner
11. One can silicone spray / teflon spray lubricant
12. Measuring tape
13. Utility knife
Hardware Measurement Diagram
Note: Due to continuing product improvements, specifications and designs are subject to change
without notice.
S afety First
Regardless of how enthusiastic you may be about getting on your equipment and exercising, take the time to ensure that your safety is not jeopardized. A moment’s lack of attention can result in an accident, as can failure to observe certain safety precautions.
1. Read, study and understand the Owner’s Manual and all the warning labels on this product. Furthermore, it is recommended to familiarize yourself and others with the proper operation and workout recommendations for this Tuff Stuff product prior to use. Some of this information can be obtained in this Owner’s Manual, as-well-as from your local Tuff Stuff retailer.
2. It is imperative that you retain this Owner’s Manual and be sure all warning labels are legible and intact. Replacement of Owner’s Manuals and labels are available from your local Tuff Stuff retailer.
3. Consult with your physician before beginning any exercise program.
Safety Precautions
WASHER DIAMETER
SCREW WIDTH
4. Use proper discretion when children are present.
5. Frayed or worn cables can be dangerous and may cause injury. Periodically check these cables for any indication of wear.
6. Keep hands, limbs, loose clothing and long hair well out of the way of moving parts.
7. Do not attempt to lift more weight than you can control safely.
8. Inspect the Unit for any sign of wear on parts, hardware becoming loose or cracks on welds. If a problem is found, do not use or allow the machine to be used until the defective part is repaired or replaced.
NUT DIAMETER
1
SP-415 Inner/Outer Thigh
Page 3
Owner’s Manual: Assembly Instructions
1
37
FIG. 1 On a flat surface, attach the Bottom Cross Brace (#37) to the assembled Weight Stack Frame (#1), in the position as shown above, and secure it into place using two Hex Head Cap Screws 1/2­13 X 3 1/2 (#24), four Flat Washers SAE 1/2” (#29), and two Nylon In­sert Lock Nuts 1/2-13 (#22).
Note: Use the overhead view on the cover page for designing your layout before assembling.
1
4
5
FIG. 2 Remove the Guide Rod Retainer (#5), and the Top Plate
Selector Bar (#8) to allow the assembly of the weight plates.
Note: Lubricate the Guide Rods (#4) with silicone or teflon lu­bricant at this time.
8
7
7
15
FIG. 3 Carefully begin sliding the Weight Plates (#7) onto the
Guide Rods (#4), in position as shown above, allowing the first one
to rest on top of the Rubber Donuts (#15).
4
15
SP-415 Inner/Outer Thigh
Label
8
4
7
FIG. 4 Slide the Top Plate Selector Bar (#8) onto the Guide
Rods (#4) allowing it to rest on top of the completed Weight Stack.
Note: Be sure the label on the Top Plate Selector Bar (#8) is facing out, as shown above, before sliding the Top Plate Se-
lector Bar (#8) onto the Guide Rods (#4).
2
Page 4
1
5
8
89
8
89
4
FIG. 5 Maneuver the two Guide Rods (#4) into the holes on the bottom side of the Guide Rod Retainer (#5). Next, secure the Guide
Rod Retainer (#5) along with the two captive Guide Rods (#4) to the Weight Stack Frame (#1) using two Hex Head Cap Screws 1/2-13 X
3 1/4 (#27), four Flat Washers SAE 1/2” (#29), and two Nylon Insert Lock Nuts 1/2-13 (#22).
4
49
84 85
82
8
FIG. 6 Locate the Selector Pin w/Coil (#89) and slide the ring over the Selector Bar (#8) as shown above.
7
7
90
FIG. 7 Connect the Cable (#49) to the Top Plate Selector Bar
(#8) by threading the Finished Hex Nut 1/2-13 (#85) and inserting a
Split Lock Washer 1/2” (#82) to the Cable Hex Tap Bolt 1/2-13 X 3 (#84). Then, thread the Cable Hex Tap Bolt 1/2-13 X 3 (#84) to the threaded socket of the Top Plate Selector Bar (#8).
Loosely Fasten: Do not completely fasten this hardware as­sembly at this time, as it will be completely fastened later in the assembly process.
Note: Refer to Fig A on fold-out page 10 for further detailed il­lustration of this assembly.
3
90
FIG. 8 Adhere the Decal Weight Numbers (#90) to the Weight Plates (#7) in the corresponding order. Begin with the 20 at the top, 30 next, and so on.
SP-415 Inner/Outer Thigh
Page 5
Owner’s Manual: Assembly Instructions
5
3
1
37
FIG. 9 Route the Cable (#49) through the Bottom Cross Brace
(#37) tube, as shown above.
49
30
41
33
59
59
FIG. 10 Affix the Weight Shroud w/Plate (#3) to the bottom of the
Weight Stack Frame (#1) and at the top of the Guide Rod Retainer (#5) using four Hex Head Cap Screws 1/4-20 X 3/4 (#21), and four
Flat Washers 1/4” (#20).
Loosely Fasten: Do not completely fasten this hardware as­sembly at this time, as it will be completely fastened later in the assembly process.
31
41
30
41
34
41
59
59

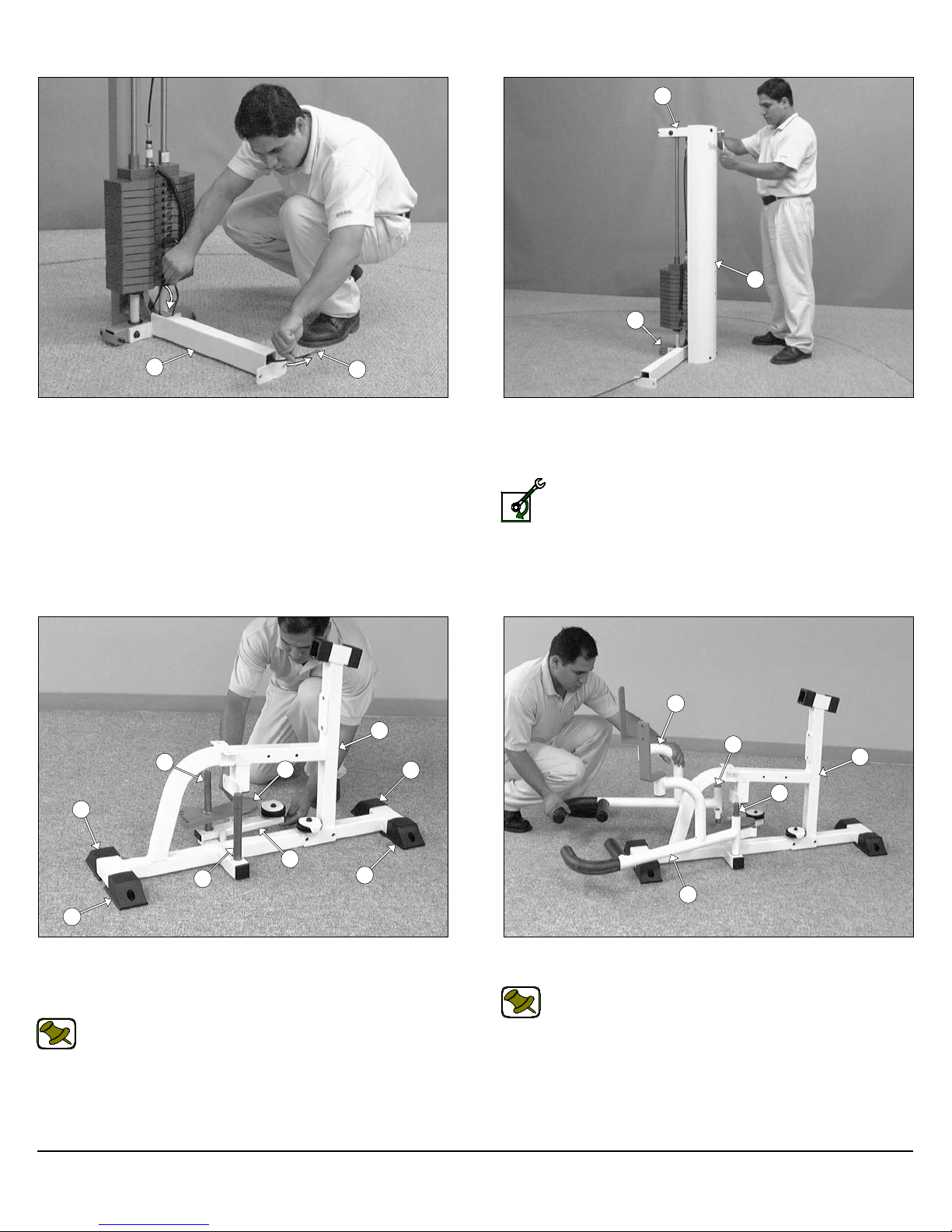

FIG. 11 Using a rubber mallet, insert four Plastic End Caps 2 X 3 (#59) onto the tube-ends of the Main Frame (#30). Next, attach the two Pivot Axles (#41), the Cam Support Tube (#34), and the Ad-
justable Cam (#33) to the Main Frame (#30).
Note: Refer to the Exploded View Diagram on fold-out page 11 for further illustration of this assembly.
SP-415 Inner/Outer Thigh
32
FIG. 12 Attach the Left Leg Arm (#32) to the corresponding Pivot
Axle (#41), repeat the procedure for the Right Leg Arm (#31) .
Note: Refer to the Exploded View Diagram on fold-out page 11 for further illustration of this assembly.
4
Page 6
67
35
30
67
35
30
31
32

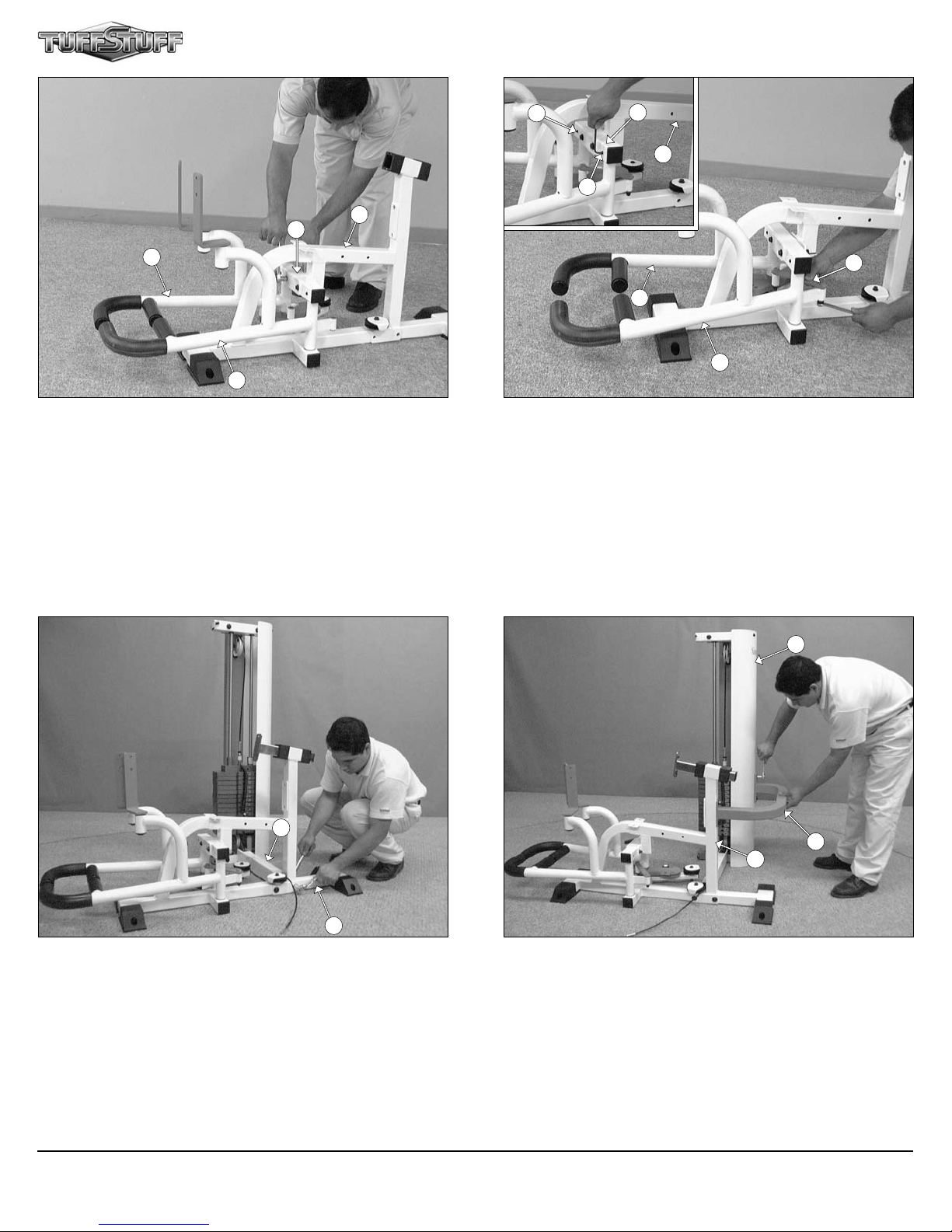

FIG. 13 Maneuver the two Pivot Axles (#41) into the holes on the bottom side of the Pivot Axle Support Tube (#35). Next, Loosel y Fasten the Pivot Axle Support Tube (#35) along with the two captive
Pivot Axles (#41) to the Main Frame (#30) using two Hex Head Cap
Screws 3/8-16 X 3 1/4 (#78), four Flat Washers SAE 3/8” (#19), and two Nylon Insert Lock Nuts 3/8-16 (#79).
36
31
32
FIG. 14 Attach the Pivot Actuator Plate (#36) to the Right Leg
Arm (#31) and the Left Leg Arm (#32) receptacles and secure it into
place using two Flat Washers SAE 3/8” (#19), and two Nylon Insert Lock Nuts 3/8-16 (#79). Next, fully fasten the Pivot Axle Support Tube (#35) to the Main Frame (#30). Then, thread the four Socket Set Screws 3/8­16 X 1/2 (#67) located on the Pivot Axle Support Tube (#35) to align the Leg Arms (#31, #32).
3
37
30
FIG. 15 Attach the Main Frame (#30) to the Bottom Cross Brace
(#37), in the position as shown above, using two Hex Head Cap
Screws 1/2-13 X 3 1/2 (#24), four Flat Washers SAE 1/2” (#29), and two Nylon Insert Lock Nuts 1/2-13 (#22).
5
44
30
FIG. 16 Affix the Top Cross Brace (#44) to the Main Frame (#30) using two Hex Head Cap Screws 1/2-13 X 3 1/2 (#24), four Flat Washers SAE 1/2” (#29), and two Nylon Insert Lock Nuts 1/2-13 (#22). Next, affix the Top Cross Brace (#44) to the Weight Shroud
w/Plate (#3) using two Hex Head Cap Screws 1/2-13 X 1 (#80), and
two Split Lock Washers B/O 1/2” (#83).
SP-415 Inner/Outer Thigh
Page 7
Owner’s Manual: Assembly Instructions
4
8
89

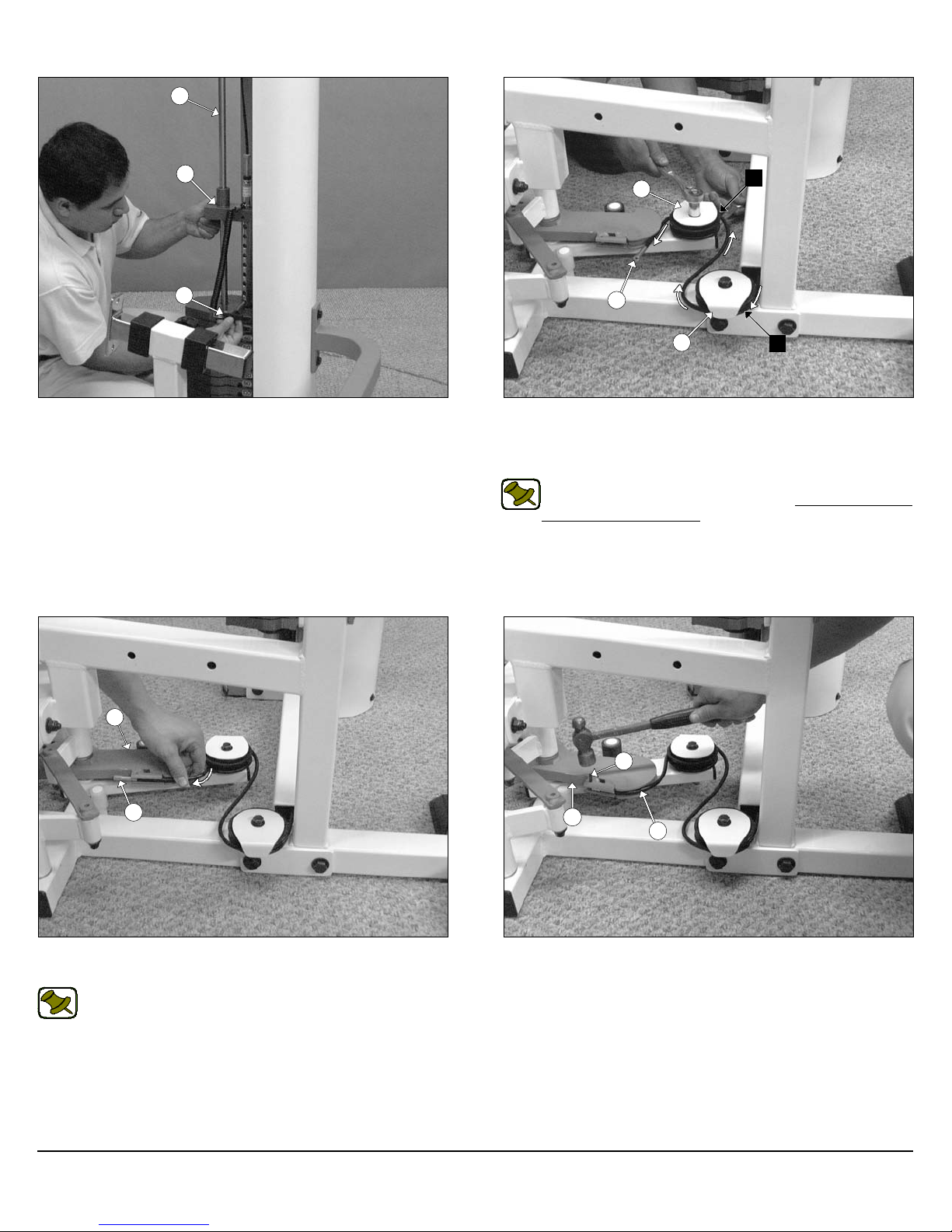

FIG. 17 Lift the Top Plate/Selector Bar (#8) about 8” over the weight stack and use the Selector Pin (#89) to lock it into that pos i­tion. This will facilitate the assembly of the Cable (#49) to the Ad-
justable Cam Plate (#33).
42
D
49
42
FIG. 18 Route the Cable (#49) around the Nylon Pulleys 3 1/2” Rd. (#81-Labeled C, D) passing the cable between the Nylon Pulleys and the Cover Plates (#42). Next, secure these assemblies and po­sition the two Cover Plates (#42) as shown above.
Note: The black boxed letter pointing to the pulleys are used throughout this manual as reference to the Cable Mapping Dia­gram on fold-out page 10. These black boxed letters will be primarily used for locating certain pulleys during the cable rout­ing process beginning with Fig. 18.
C
33
49
FIG. 19 Attach the Cable (#49) to the cable retainer of the Adjust-
able Cam Plate (#33).
Note: Refer to Fig B on fold-out page 10 for further detailed il­lustration of this assembly.
SP-415 Inner/Outer Thigh
53
33
49
FIG. 20 Using a hammer, insert the Roll Pin 3/16 X 3/4 (#53) to the cable retainer bracket of the Adjustable Cam Plate (#33) .
6
Page 8
38
30
45
39
FIG. 21 Attach the Right Handle (#38) and the Left Handle (#39) to the Main Frame (#30) using two Hex Head Cap Screws 3/8-16 X 3 1/4 (#78), four Flat Washers SAE 3/8” (#19), and two Nylon Insert Lock Nuts 3/8-16 (#79).
30
FIG. 22 Affix the Seat Pad (#45) to the Main Frame (#30), in the position as shown above, using two Hex Head Cap Screws 3/8-16 X 1 1/4 (#75), and two Flat Washers SAE 3/8” (19).
48
48
46
FIG. 23 Attach the Back Pad (#46) to the Adjustable Back Pad
Tube (#40) using two Hex Head Cap Screws 3/8-16 X 1 1/4 (#75),
and two Flat Washers SAE 3/8” (#19).
40
7
60
43
43
31
32
FIG. 24 Attach the two Leg Pads (#48) to the two Leg Pad Pivot
Brackets (#43) using three Button Head Socket Cap Screws 3/8-16 X
1 1/4 (#73), one Hex Head Cap Screw 3/8-16 X 1 3/4 (#65), one Rub­ber Bumper 3/8 X 1 1/2 (#60), and three Flat Washers SAE 3/8” (#19).
Note: Refer to the Exploded View Diagram on fold-out page 11 for further illustration of this assembly.
SP-415 Inner/Outer Thigh
Page 9

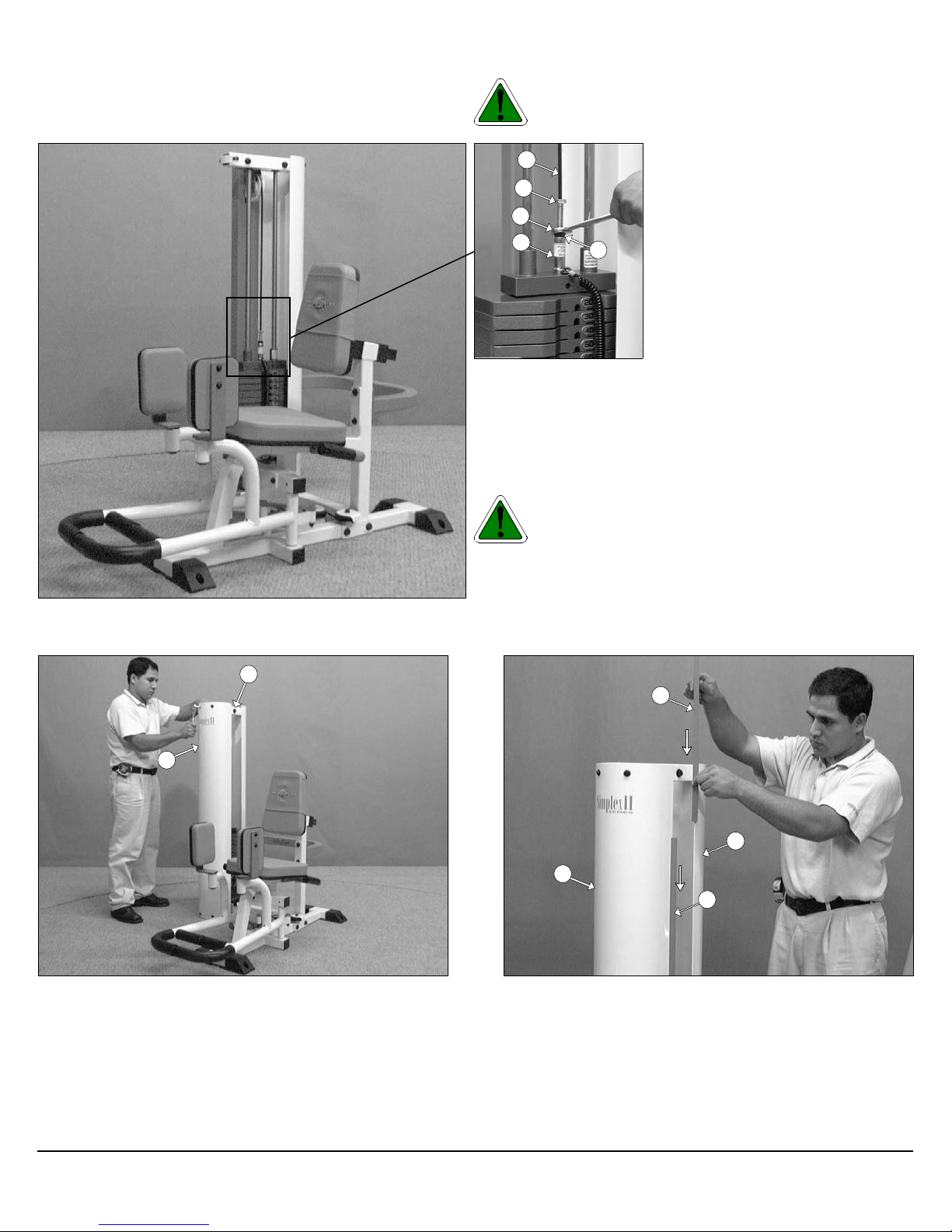

CABLE ADJUSTMENT
It is imperative that you maintain proper cable adjustment to ensure a safe and smooth operation.
Caution: The Cable should be inspected and adjusted periodi­cally to avoid any slack in the cable which would, consequently, prevent any damage to the equipment or personal injury.
49
84
85
8
Cable Adjustment
1. Loosen the Finished Hex Nut 1/2-13 (#85).
2. Thread the Cable Hex Tap Bolt 1/2-13 X 3 (#84) in or out of the threaded socket of the Top Plate Selector Bar (#8) to give the Cable (#49) proper tension.
3. Re-tighten the Finished Hex Nut 1/2-13 (#85) to complete the adjustment.
Caution: Make sure the Cable Hex Tap Bolt 1/2-13 X 3 (#84) is threaded at least 1/2” into the threaded socket of the Top Plate Selector Bar (#8) once the cable adjustment has been completed.
82
5
2

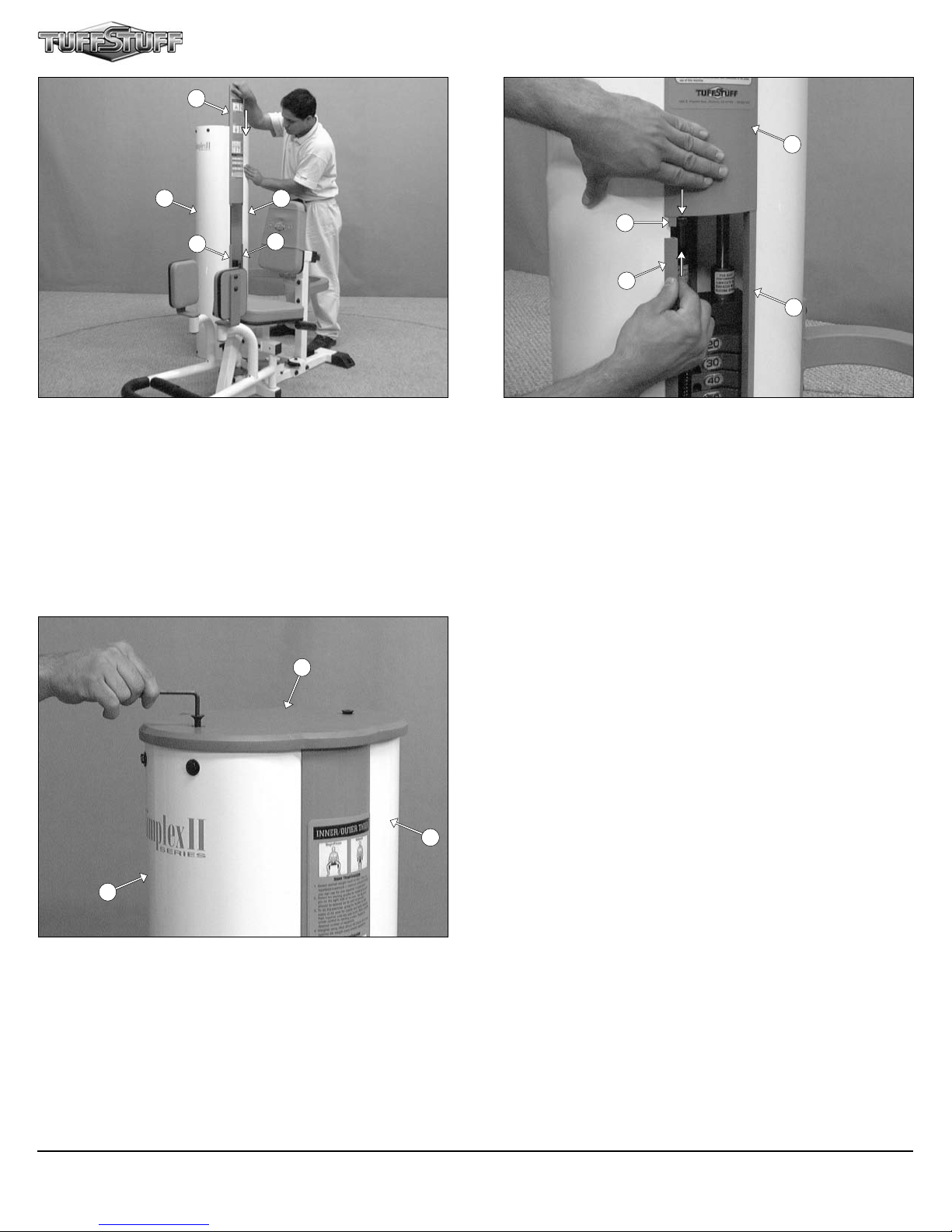

FIG. 25 Affix the Weight Shroud (#2) to the bottom of the Weight
Stack Frame (#1) and at the top of the Guide Rod Retainer (#5) us-
ing four Hex Head Cap Screws 1/4-20 X 3/4 (#21), and four Flat Washers 1/4” (#20).
11
3
2
11
FIG. 26 Insert the two Plastic Shroud Edge Protectors (#11) to both Shrouds (#2, #3), in the position as shown above, and slide them all the way down.
SP-415 Inner/Outer Thigh
8
Page 10
9
11
9
3 2
12
11
11
11
FIG. 27 Align the edges of both Shrouds (#2, #3) with the grooves of the Plastic Shroud Gap Cover (#9) and slide it down, as shown above.
10
3
FIG. 28 Connect the two Plastic Shroud Edge Protectors (#11) to the Plastic Shroud Gap Cover (#9) using the two Plastic Connectors (#12).
2
FIG. 29 Attach the Plastic Shroud Lid (#10) to the Guide Rod Re-
tainer (#5), in the position as shown above, and secure it into place
using two Flat Head Socket Cap Screws 3/8-16 X 3 (#25).
9
SP-415 Inner/Outer Thigh
Page 11
Owner’s Manual: Assembly Instructions
WEIGHT SHROUD W/PLATE 54" LONG
EDGE PROTECTOR GRAY 54" LONG
HEX HEAD CAP SCREW GR-5 B/O 1/2-13 X 3-1/2
FLAT HEAD SOCKET CAP SCREW B/O 3/8-16 X 3
HEX HEAD CAP SCREW GR-5 B/O 3/8-16 X 2
HEX HEAD CAP SCREW GR-5 B/O 1/2-13 X 3 1/4
DECAL-SMALL TUFFSTUFF LOGO DIAMOND SHAPE
DECAL-WARNING KEEP HANDS AND FINGERS...
BRONZE BUSHING 1 X 1 1/4 X 3/4 X 1 1/2 X 1/8
SP-415 Inner/Outer Thigh
Parts List
COLOR CHART
GRAY= SUB-ASSEMBLY PARTS
BLACK= HARDWARE
Item No. Description Part No. Qty Item No. Description Part No. Qty
1 WEIGHT STACK FRAME 54" LONG UP0780 1 52 NYLON BUSHING 1 X 1 1/2 X 7/8 X 1 3/4 X 1/8 BNH0531 4 2 WEIGHT SHROUD 54" LONG UP0781 1 53 ROLL PIN 3/16 X 3/4 BNH0663 1 3 4 GUIDE ROD 3/4 X 53 5/8 UP0783 2 55 PLASTIC INSERT CAP 1 3/4" SQ. BNH0053 1 5 GUIDE ROD RETAINER UP0784 1 56 PLASTIC INSERT CAP 1 3/4" RD. BNH0011 4 6 WEIGHT STACK SPACER 4" UP0786 2 57 PLASTIC INSERT CAP 2" SQ. BNH0012 4 7 15 LB WEIGHT PLATE BNH0926 14 58 PLASTIC INSERT CAP 1" X 2" BNH0005 3 8 10 LB TOP PLATE W/ADJ. SLTR BAR 14 WTS BNH1097 1 59 PLASTIC END CAP 2 X 3 (SIMPLEX) BNH0606 4
9 PLASTIC SHROUD GAP COVER 27" LONG BNH1083 1 60 RUBBER BUMPER 3/8 X 1 1/2 BNH0514 1 10 PLASTIC SHROUD LID 5/8 X 14-1/8 X 10 BNH0185 1 61 RUBBER TUBE 1.625 X 1.875 X 6 BNH0978 2 11 PLASTIC SHROUD EDGE PROTECTOR 1/8 X 27 BNH0599 2 62 RUBBER TUBE 1.625 X 1.875 X 11 3/4 BNH0980 2 12 SHROUD GAP COVER CONNECTOR BNH1183 2 63 RUBBER GRIP 1 ID X .125 X 7 1/4 BNH0963 2 13 14 URETHANE BUMPER 1 3/4 BNH0229 3 65 HEX HEAD CAP SCREW GR-5 B/O 3/8-16 X 1 3/4 BNH0274 1 15 RUBBER DONUT 3/4 X 2 1/2 BNH0068 2 66 TURN/PULL PIN BODY W/LOCK BNH0990 1 16 NYLON PULLEY 4 1/2 RD. WHITE BNH0556 2 67 SOCKET SET SCREW 3/8-16 X 1/2 BNH0474 4 17 U-STYLE TAPPED HOLE NUT 1/4-20 BNH0708 8 68 FLAT PHILLIPS MACHINE SCREW 8-32 X 1/4 BNH0408 1 18 FLAT WASHER USS B/O 3/4 X 2" BNH0878 4 69 SOCKET SET SCREW 10-32 X 1/8 BNH0473 4 19 FLAT WASHER SAE B/O 3/8" BNH0239 25 70 RETAINING SNAP RING EXT. PLAIN .925 X 1 X .042 BNH0419 2 20 FLAT WASHER USS B/O 1/4" BNH0233 8 71 ALUMINUM CAP 1" RD. (CAP-100) BNH0537 2 21 HEX HEAD CAP SCREW GR-5 B/O 1/4-20 X 3/4 BNH0890 8 72 PUSH PULL PIN 1/2 X 5 5/8 BNH0586 1 22 NYLON INSERT LOCK NUT B/O 1/2-13 BNH0212 8 73 BUTTON HEAD SOCKET CAP SCREW B/O 3/8-16 X 1 1/4 BNH0896 3 23 NYLON INSERT JAM LOCK NUT B/O 3/8-16 BNH0365 2 74 SPLIT LOCK WASHER B/O 3/8" BNH0658 1 24 25 26 27 28 RUBBER GROMMET 3/4" ID (2867-012) BNH0401 2 79 NYLON INSERT LOCK NUT B/O 3/8-16 BNH0214 7 29 FLAT WASHER SAE B/O 1/2" BNH0238 16 80 HEX HEAD CAP SCREW GR-5 B/O 1/2-13 X 1 BNH0259 2 30 MAIN FRAME UP0845 1 81 NYLON PULLEY 3 1/2" BNH0553 2 31 RIGHT LEG ARM UP0852 1 82 SPLIT LOCK WASHER Z/P 1/2" BNH0572 1 32 LEFT LEG ARM UP0352 1 83 SPLIT LOCK WASHER B/O 1/2" BNH0653 2 33 ADJUSTABLE CAM UP0846 1 84 CABLE HEX TAP BOLT Z/P 1/2-13 X 3 BNH1047 1 34 CAM SUPPORT TUBE UP0847 1 85 FINISHED HEX NUT B/O 1/2-13 BNH0201 1 35 PIVOT AXLE SUPPORT TUBE UP0848 1 86 HEX KEY 3/32" BNH0372 1 36 PIVOT ACTUATOR PLATE UP0357 1 87 HEX KEY 7/32" BNH0575 1 37 BOTTOM CROSS BRACE UP0849 1 88 HEX KEY 3/16" BNH0371 1 38 RIGHT HANDLE UP0270 1 89 SELECTOR PIN W/COIL DOUBLE LOCK UP0466 1 39 LEFT HANDLE UP0271 1 90 DECAL-WEIGHT NUMBERS 20-150 LB (14 PC SET) BNH1203 1 40 ADJUSTABLE BACK PAD TUBE UP0361 1 91 U-STYLE TAPPED HOLE NUT 3/8-16 BNH1211 2 41 PIVOT AXLE UP0363 2 92 DECAL-SIMPLEX II (1 7/8 X 5 3/16) BNH1199 1 42 SMALL COVER PLATE UP1000 2 93 DECAL-TUFFSTUFF (2 3/4 X 19 1/16) BNH1200 1 43 LEG PAD PIVOT BRACKET UP0364 2 94 DECAL-EXERCISE SP-415 INNER/OUTER THIGH BNH1196 1 44 TOP CROSS BRACE UP0891 1 95 45 SEAT PAD UP0188 1 96 DECAL-ADJUST CABLE HERE BNH0789 1 46 BACK PAD UP0811 1 97 DECAL-FOR BEST PERFORMANCE 1-1/4 X 1-1/2 BNH0143 1 47 WEAR COVER (OPTIONAL) UP0851 1 98 DECAL-DANGER TIGHTEN THIS RET..., 3/4 X 1-1/2 BNH0142 1 48 LEG PAD UP0365 2 99 DECAL-CAUTION 1 3/4 X 5-1/2 HORIZONTAL BNH0126 1 49 INNER/OUTER CABLE UP0867 1 100 50 51 BRONZE BUSHING 1/2 X 5/8 X 1/2 X 7/8 X 1/8 BNH0528 4
UP0782 1 54 PLASTIC TUBE GUIDE W/LIP-TEETH 2 1/4" SQ. BNH0059 2
BNH1148 2 64 UHMW STOPPER 3/4 ID X 1 OD 1 3/8 BNH0198 2
BNH0263 6 75 HEX HEAD CAP SCREW GR-5 B/O 3/8-16 X 1 1/4 BNH0273 4 BNH0787 2 76 HEX HEAD CAP SCREW GR-5 B/O 3/8-16 X 1 1/2 BNH0303 1 BNH0279 1 77 HEX HEAD CAP SCREW GR-5 B/O 3/8-16 X 3 BNH0282 1 BNH0576 2 78 HEX HEAD CAP SCREW GR-5 B/O 3/8-16 X 3 1/4 BNH0312 4
BNH0359 1
BNH0620 1
BNH0527 8 101 SUPER LUBE TEFLON LUBRICANT 82340 BNH0704 2
SP-415 Inner/Outer Thigh
12
Page 12
DO NOT DISCARD THIS MANUAL
LIMITED WARRANTY
TuffStuff warrants to the original purchaser only that TuffStuff equipment will be free from defects in material and workmanship. The warranty and remedies set forth herein are conditioned upon proper storage, installation, use, maintenance and conformance with any recommendations of TuffStuff. This warranty does not cover products not manufactured by TuffStuff or products which are altered without the express written consent of TuffStuff. This warranty as specified: a) Frame structure and welds — Lifetime, b) Moving parts (e.g. pulleys, bearings, bushings) — 5 years; c) Cables upholstery, hand­grips, finish and any miscellaneous parts not listed — 1 year; from the day of delivery to the original purchaser. The obligation of TuffStuff under this warranty is limited to repairing or replacing warranted defective parts, as TuffStuff may elect, at TuffStuff’s facility in Pomona, California, without charge to purchaser for either parts or labor. Purchaser is responsible for installation of repaired or replaced parts, and all transportation and insurance costs on returned or replaced equipment to and from TuffStuff’s facility in Pomona.
THE FORGOING SHALL CONSTITUTE THE SOLE REMEDY OF THE PURCHASER AND THE SOLE LIABILITY OF TUFFSTUFF WITH REGARD TO WARRANTY. NO IMPLIED STATUTORY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE SHALL AP­PLY. IN NO EVENT, WHETHER AS A RESULT OF BREACH OF CONTRACT, WARRANTY, NEG­LIGENCE OR OTHERWISE, SHALL TUFFSTUFF BE LIABLE FOR SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES INCLUDING, BUT NOT LIMITED TO, LOSS OF PROFITS OR REVENUE, LOSS OF USE OF EQUIPMENT, COST OF CAPITAL, COST OF SUBSTITUTION EQUIPMENT, DOWNTIME COST, OR CLAIMS OF CUSTOMERS OR PURCHASER FROM SUCH DAMAGE.
This warranty is the final, complete and exclusive agreement of the parties with respect to the quality or performance of the equipment and no action for breach of this written warranty or any implied war­ranty shall be commenced more than one (1) year after the accrual of the cause of action. No modifi­cation of this warranty or waiver of its terms shall be binding on either party unless approved in writing by an authorized representative of the party. Contact TuffStuff at 1325 E. Franklin Avenue, Pomona, California 91766, before returning any defective equipment.
Note: Retain your sales receipt and be sure to mail in the warranty registration card to insure that a
permanent record of your purchase is on file with the factory and to avoid unnecessary delays in warranty service.
TuffStuff Fitness Equipment, Inc.
1325 E. Franklin Avenue
Pomona, CA 91766, USA
Ph: 909-629-1600 Fax: 909-629-4967
E-mail: service@tuffstuff.net Net: www.tuffstuff.net
