Tuff Stuff RAC-365 User Manual
A S S E M B L Y I N S T R U C T I O N S
36"
28"
RAC-365
Seated Arm Curl Bench
TuffStuff Fitness Equipment, Inc.
1325 E. Franklin Avenue
Pomona, CA 91766, USA
Ph: 909-629-1600 Fax: 909-629-4967
E-mail: service@tuffstuff.net Net: www.tuffstuff.net
AMERICA’S PREMIER EXERCISE EQUIPMENT
43 1/4"
RAC-365 Rev0
Revision Date 6-07-2007
S
C
R
E
W W
I
D
T
H
W
A
S
H
E
R
D
I
A
M
E
T
E
R
N
U
T
D
I
A
M
E
T
E
R
S
C
R
E
W
L
E
N
G
T
H
Introduction
About the RAC-365 Seated Arm Curl Bench
Congratulations on your new purchase of the Seated Arm Curl
Bench. We hope you are completely satisfi ed with this product and
wish you many years of enjoyment.
TuffStuff Equipment
This Tuffstuff product has been built to precise quality standards
and has been carefully packaged to ensure that damage will not
occur during shipment. The Home Lifetime Warranty and signature
indicating fi nal inspection has been conducted by our line foreman,
is an expression of our confi dence in the completeness, the
materials, and workmanship of this product.
Registration Card
To avoid unnecessary delays in warranty service and to insure that
a permanent record of your purchase is on fi le with our factory,
be sure to complete the warranty registration card and send it to
TuffStuff Fitness Equipment today.
Specifi cations
1. Maximum Wt. Capacity - 250 lbs.
2. Total Machine Weight - 82 lbs.
3. Footprint (LWH) - See Front Cover.
Note: Due to continuing product improvements, specifi cations and designs are subject to change
without notice.
Prior to the Assembly of the Seated Arm Curl Bench
We advise you to consult your local TuffStuff retailer if you should
have a question or problem regarding the proper assembly of this
unit.
Tool Requirements
One 7/8” combination wrench1.
One 9/16” combination wrench2.
One 1/2” combination wrench3.
One ratchet4.
One 9/16” socket5.
Rubber Mallet6.
Windex or household glass cleaner7.
Measuring tape8.
Utility knife9.
Hardware Measurement Diagram

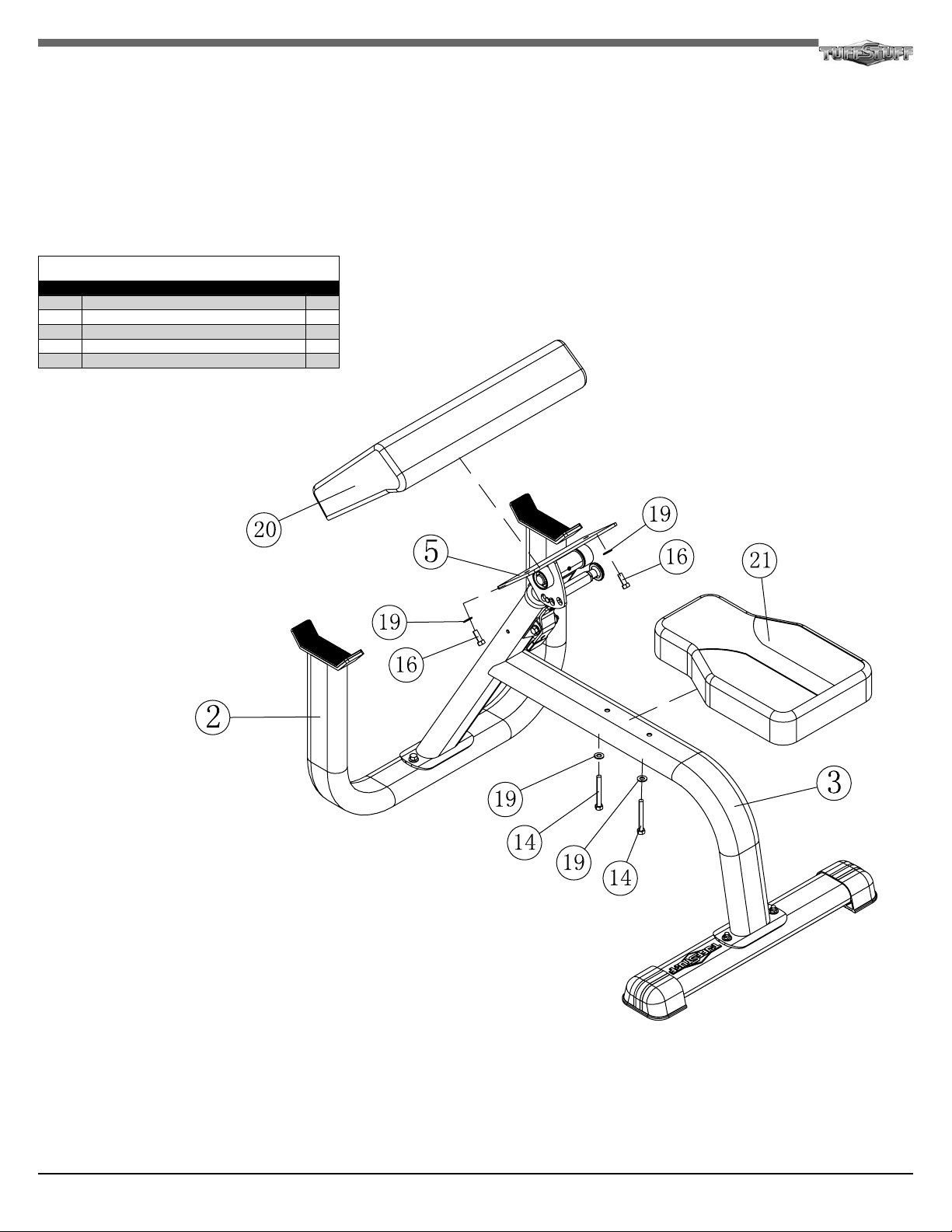

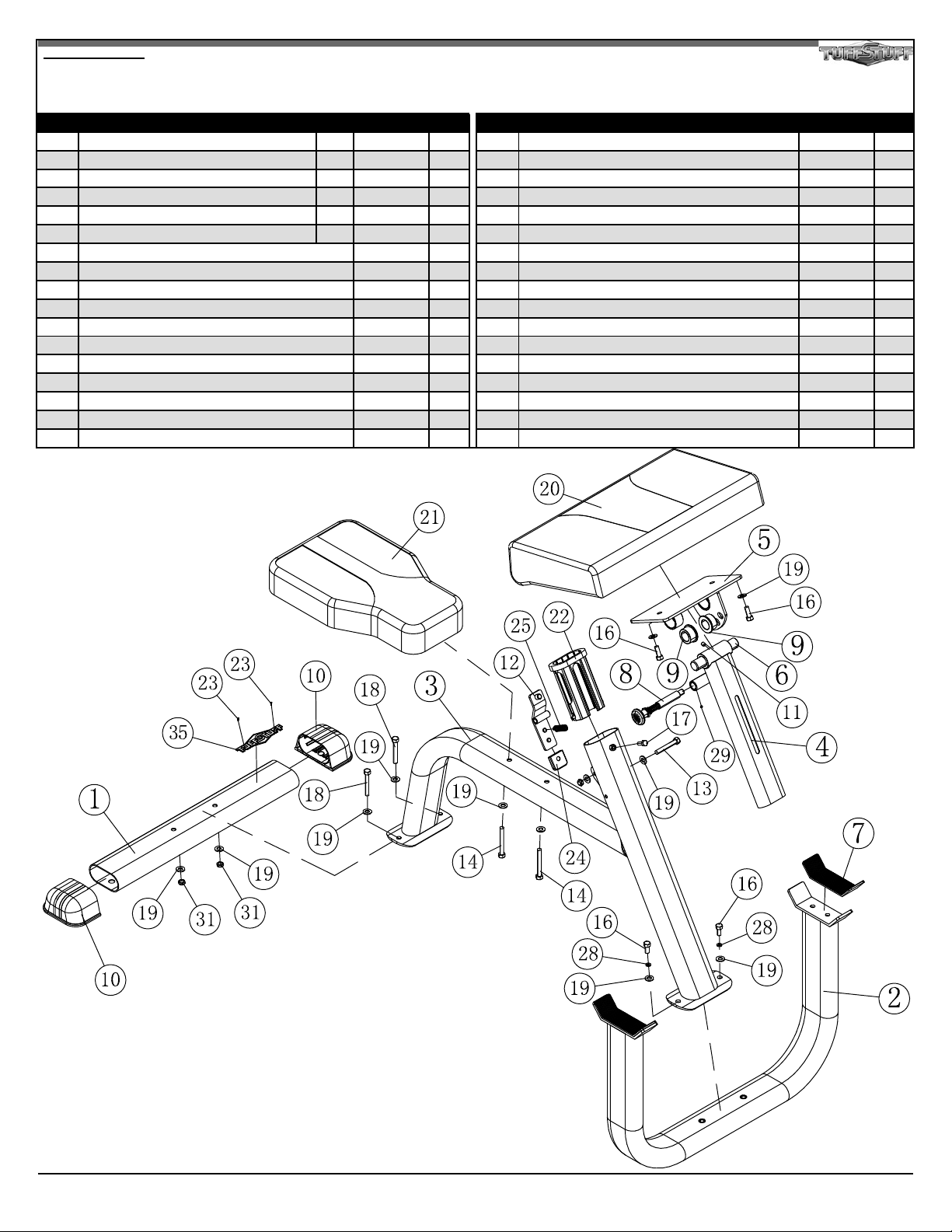

Step 1 Assembly List
Item # Description Qty.
1 REAR BASE FRAME 1
2 FRONT U FRAME 1
3 MAIN FRAME 1
4 ADJUSTABLE CHROME TUBE 1
10 PLASTIC ELLIPTICAL SHOE 2
16 HEX HEAD CAP SCREW 3/8-16 X 1 1/4 2
17 HEX HEAD CAP SCREW 5/16-18 X 3/4 1
18 HEX HEAD CAP SCREW 3/8-16 X 2 3/8 2
19 FLAT WASHER SAE 3/8” 6
28 SPLIT LOCK WASHER 3/8” 2
31 NYLON INSERT JAM LOCK NUT 3/8-16 2
2 RAC-365 Seated Arm Curl Bench
