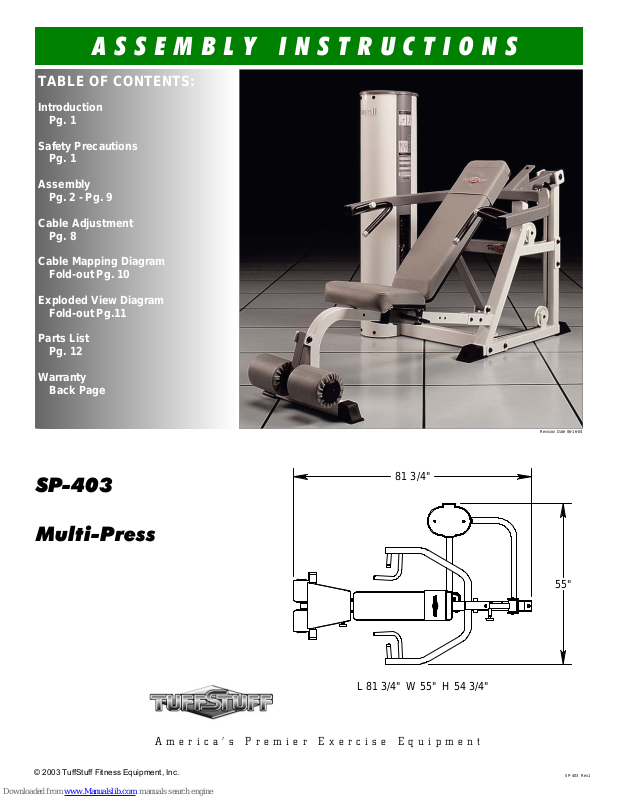

Page 1
ASSEMBLY INSTRUCTIONS
TABLE OF CONTENTS:
Introduction
Pg. 1
Safety Precautions
Pg. 1
Assembly
Pg. 2 - Pg. 9
Cable Adjustment
Pg. 8
Cable Mapping Diagram
Fold-out Pg. 10
Exploded View Diagram
Fold-out Pg.11
Parts List
Pg. 12
Warranty
Back Page
SP-403
Multi-Press
Revision Date 06-16-04
81 3/4"
55"
L 81 3/4" W 55" H 54 3/4"
A m e r i c a ’ s P r e m i e r E x e r c i s e E q u i p m e n t
© 2003 TuffStuff Fitness Equipment, Inc.
SP-403 Rev1
Page 2
Introduction
SCREW LENGHT
About the Multi-Press SP-403
Congratulations on your new purchase of the Multi-Press.
We hope you are completely satisfied with this product and
wish you many years of enjoyment.
Tuff Stuff Equipment
This Tuffstuff product has been built to precise quality
standards and has been carefully packaged to ensure that
damage will not occur during shipment. The limited lifetime
warranty and signature indicating final inspection has been
conducted by our line foreman, is an expression of our
confidence in the completeness, the materials, and
workmanship of this product.
Warranty
SEE A COPY OF WARRANTY ON BACK PAGE
Registration Card
To avoid unnecessary delays in warranty service and to
insure that a permanent record of your purchase is on file
with our factory, be sure to complete the warranty
registration card and send it to Task Industries today.
Specifications
1. Maximum Wt. Capacity - 200 Lbs.
2. Total Machine Weight - 605 Lbs.
3. Footprint (LWH) - See Front Page
Prior to the Assembly of the Multi -Press
1. We advise you to consult your local Tuff Stuff retailer if
you should have a question or problem regarding the
proper assembly of this unit.
2. Neatly organize and identify all parts according to the
Parts List and the Exploded View Diagram .
Tool Requirements
1. One 9/16” combination wrench
2. One 3/4” combination wrench
3. One 7/16” combination wrench
4. One ratchet
5. One 9/16” socket
6. One 3/4” socket
7. One 7/16” socket
8. Rubber mallet
9. Windex or household glass cleaner
10. One can silicone spray / teflon spray lubricant
11. Measuring tape
12. Utility knife
Hardware Measurement Diagram
Note: Due to continuing product improvements, specifications and designs are subject to change
without notice.
S afety First
Regardless of how enthusiastic you may be about getting on
your equipment and exercising, take the time to ensure that
your safety is not jeopardized. A moment’s lack of attention
can result in an accident, as can failure to observe certain
safety precautions.
1. Read, study and understand the Owner’s Manual and all
the warning labels on this product. Furthermore, it is
recommended to familiarize yourself and others with the
proper operation and workout recommendations for this
Tuff Stuff product prior to use. Some of this information
can be obtained in this Owner’s Manual, as-well-as from
your local Tuff Stuff retailer.
2. It is imperative that you retain this Owner’s Manual and be
sure all warning labels are legible and intact.
Replacement of Owner’s Manuals and labels are available
from your local Tuff Stuff retailer.
3. Consult with your physician before beginning any exercise
program.
Safety Precautions
WASHER DIAMETER
SCREW WIDTH
4. Use proper discretion when children are present.
5. Frayed or worn cables can be dangerous and may cause
injury. Periodically check these cables for any indication
of wear.
6. Keep hands, limbs, loose clothing and long hair well out of
the way of moving parts.
7. Do not attempt to lift more weight than you can control
safely.
8. Inspect the Unit for any sign of wear on parts, hardware
becoming loose or cracks on welds. If a problem is found,
do not use or allow the machine to be used until the
defective part is repaired or replaced.
NUT DIAMETER
1
SP-403 Multi-Press
Page 3
Owner’s Manual: Assembly Instructions
87
1
1
38
FIG. 1 On a flat surface, attach the Bottom Cross Brace (#38) to
the assembled Weight Stack Frame (#1), in the position as shown
above, and secure it into place using two Hex Head Cap Screws 1/213 X 3 1/2 (#24), four Flat Washers SAE 1/2” (#29), and two Nylon Insert Lock Nuts 1/2-13 (#22).
Note: Use the overhead view on the cover page for designing
your layout before assembling.
4
5
FIG. 2 Remove the Guide Rod Retainer (#5), and the Top Plate
Selector Bar (#9) to allow the assembly of the weight plates.
9
38
8
4
8
15
FIG. 3 Carefully begin sliding the Weight Plates (#8) onto the
Guide Rods (#4), in position as shown above, allowing the first one
to rest on top of the Rubber Donuts (#15).
15
Label
9
4
8
FIG. 4 Slide the Top Plate Selector Bar (#9) onto the Guide
Rods (#4) allowing it to rest on top of the completed Weight Stack.
Note: Be sure the label on the Top Plate Selector Bar (#9) is
facing out, as shown above, before sliding the Top Plate Se-
lector Bar (#9) onto the Guide Rods (#4).
SP-403 Multi-Press
2
Page 4
1
5
9
94
9
94
4
FIG. 5 Maneuver the two Guide Rods (#4) into the holes on the
bottom side of the Guide Rod Retainer (#5). Next, secure the Guide
Rod Retainer (#5) along with the two captive Guide Rods (#4) to the
Weight Stack Frame (#1) using two Hex Head Cap Screws 1/2-13 X
3 1/4 (#78), four Flat Washers SAE 1/2” (#29), and two Nylon Insert
Lock Nuts 1/2-13 (#22).
4
87
88
69
66
9
FIG. 6 Locate the Selector Pin w/Coil (#94) and slide the ring over
the Selector Bar (#9) as shown above.
8
8
FIG. 7 Connect the Cable (#87) to the Top Plate Selector Bar
(#9) by threading the Finished Hex Nut 1/2-13 (#69) and inserting a
Split Lock Washer 1/2” (#66) to the Cable Hex Tap Bolt 1/2-13 X 3
(#88). Then, thread the Cable Hex Tap Bolt 1/2-13 X 3 (#88) to the
threaded socket of the Top Plate Selector Bar (#9).
Loosely Fasten: Do not completely fasten this hardware assembly at this time, as it will be completely fastened later in
the assembly process.
Note: Refer to Fig A on fold-out page 10 for further detailed illustration of this assembly.
3
82
82
FIG. 8 Adhere the Decal Weight Numbers (#82) to the Weight Plates
(#8) in the corresponding order. Begin with the 20 at the top, 30 next,
and so on.
SP-403 Multi-Press
Page 5
87
Cable
Fishing
String
Owner’s Manual: Assembly Instructions
Cable
Fishing
String
38

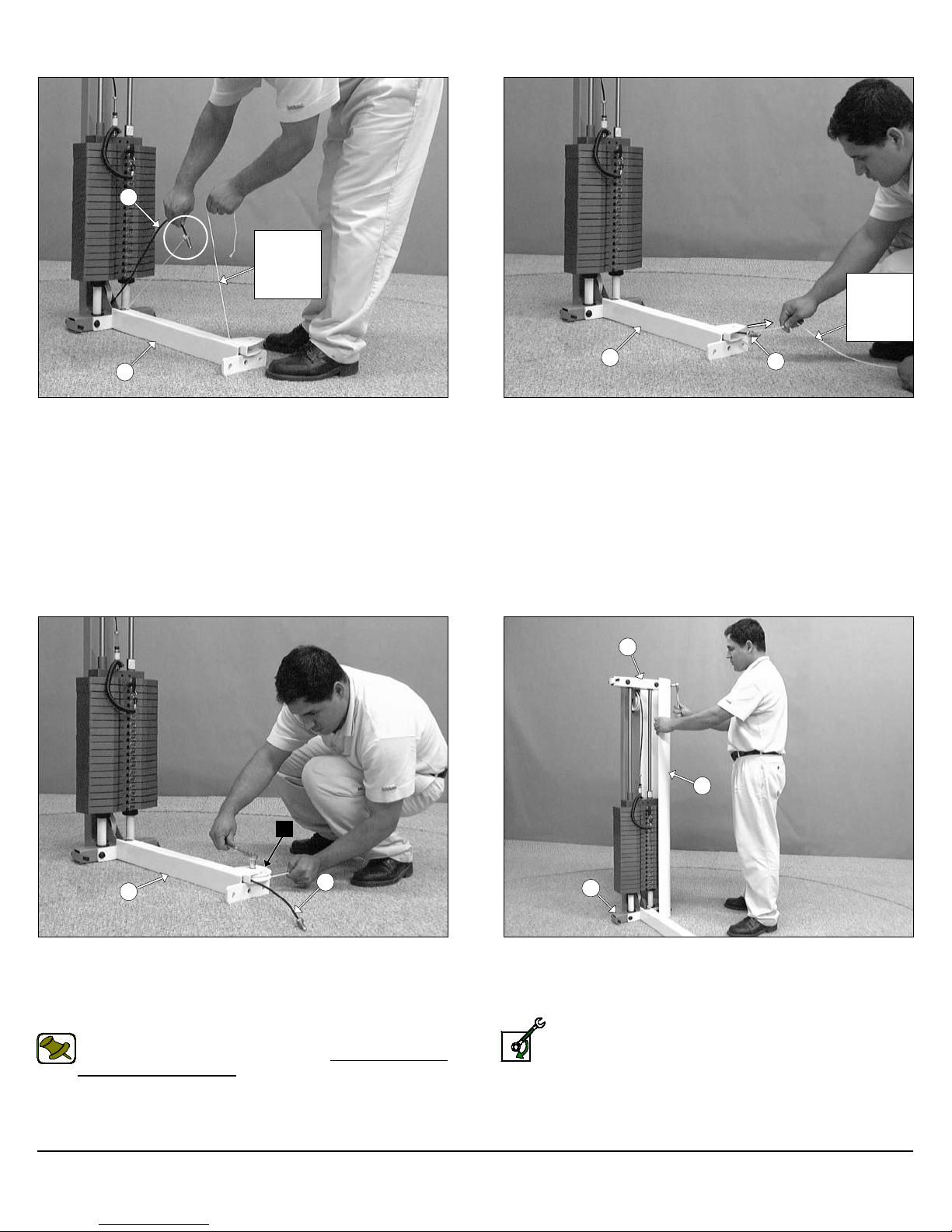

FIG. 9 To facilitate the routing of the Cable (#87) through the Bot-
tom Cross Brace (#38) use the supplied Cable Fishing String. Tie a
knot to the end of the Cable (#87) as shown above.
38
FIG. 10 Pull the Cable Fishing String along with the Cable (#87)
through the Bottom Cross Brace (#38) as shown above. Discard
the cable fishing string once completed with this process.
87
5
3
C
38
FIG. 11 Attach a Nylon Pulley 4 1/2” Rd. (#16-Labeled C) to the
Bottom Cross Brace (#38), in the position as shown above, and se-
cure it into place using one Hex Head Cap Screw 3/8-16 X 1 3/4
(#27), two Flat Washers SAE 3/8” (#19), and one Nylon Insert Jam
Lock Nut 3/8-16 (#23).
Note: The black boxed letter pointing to the pulleys are used
throughout this manual as reference to the Cable Mapping Diagram on fold-out page 10. These black boxed letters will be
primarily used for locating certain pulleys during the cable routing process beginning with Fig. 11.
87
SP-403 Multi-Press
1
FIG. 12 Affix the Weight Shroud w/Plate (#3) to the bottom of the
Weight Stack Frame (#1) and at the top of the Guide Rod Retainer
(#5) using four Hex Head Cap Screws 1/4-20 X 3/4 (#21), and four
Flat Washers 1/4” (#20).
Loosely Fasten: Do not completely fasten this hardware assembly at this time, as it will be completely fastened later in
the assembly process.
4
Page 6
3
39
53
53
38
53
FIG. 13 Using a rubber mallet, insert two Plastic End Caps 2 X 3
(#53) onto the tube-ends of the Press Bar Main Frame (#32). Next,
attach the Press Bar Main Frame (#32) to the Bottom Cross Brace
(#38), in the position as shown above, and secure it into place using
two Hex Head Cap Screws 1/2-13 X 4 3/4 (#84), four Flat Washers
SAE 1/2” (#29), and two Nylon Insert Lock Nuts 1/2-13 (#22).
32
32
40
32
FIG. 14 Affix the Rear Cross Brace (#39) to the Press Bar Main
Frame (#32) using two Hex Head Cap Screws 1/2-13 X 4 3/4 (#84),
four Flat Washers SAE 1/2” (#29), and two Nylon Insert Lock Nuts
1/2-13 (#22). Next, connect the Rear Cross Brace (#39) to the
Weight Shroud w/Plate (#3) using two Hex Head Cap Screws 1/2-13
X 1 (#80), and two Split Lock Washers B/O 1/2” (#62).
Note: Refer to the Exploded View Diagram on fold- out page 11
for further illustration of this assembly.
36
32
41
52
42
52
FIG. 15 Using a rubber mallet, insert two Plastic End Caps w/
Groove 2” Sq. (#52) onto the tube-ends of the Bench Main Frame
(#40). Insert the tube-end of the Bench Main Frame (#40) into the
receptacle of the Press Bar Main Frame (#32) and secure it into
place using two Hex Head Cap Screws 3/8-16 X 3 (#77), four Flat
Washers SAE 3/8” (#19), and two Nylon Insert Lock Nuts 3/8-16
(#30). Reinforce this assembly in the position indicated by the black
arrow using one Hex Head Cap Screw 3/8-16 X 1 (#74), and one Flat
Washer SAE 3/8” (#19).
Note: Refer to the Exploded View Diagram on fold- out page 11
for further illustration of this assembly.
5
37
42
FIG. 16 Attach the Bench Back Pad Frame (#36), in the position
as shown above, to the Bench Slide Carriage (#42) using one Hex
Head Cap Screw 1/2-13 X 4 1/2 (#83), two Flat Washers SAE
1/2” (#29), and one Nylon Insert Lock Nut 1/2-13 (#22). Next, attach
the Bench Support Bar (#37) to the Press Bar Main Frame (#32)
using one Hex Head Cap Screw 1/2-13 X 3 1/2 (#24), two Flat Washers SAE 1/2” (#29), and one Nylon Insert Jam Lock Nut 1/2-13 (#85).
Do not over-tighten these assemblies to allow free movement during
the use of the adjustment mechanism.
Note: Refer to the Exploded View Diagram on fold- out page 11
for further illustration of this assembly.
SP-403 Multi-Press
Page 7
C
87
F
33
D
E
32
Owner’s Manual: Assembly Instructions
33
89
66
90
87

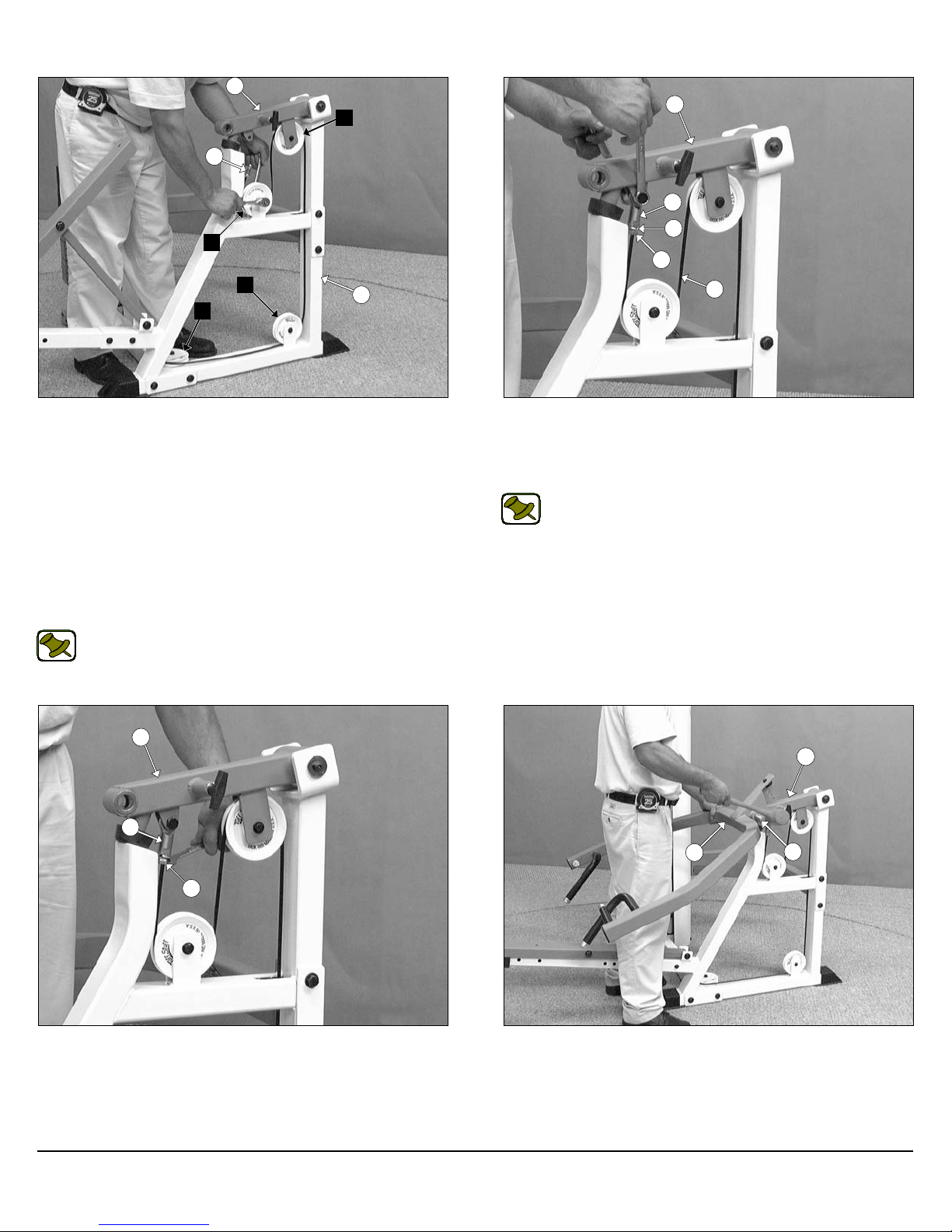

FIG. 17 Route the Cable (#87) under the Nylon Pulley 4 1/2 Rd.
(#16-Labeled D) and attach it to the Press Bar Main Frame (#32)
pulley bracket using one Hex Head Cap Screw 3/8-16 X 2 (#26), two
Flat Washers SAE 3/8” (#19), and one Nylon Insert Jam Lock Nut 3/816 (#23). Continue routing the Cable up through the opening on the
Press Bar Main Frame (#32). Next, route the cable over a Nylon
Pulley 4 1/2 Rd. (#16-Labeled E) and attach it to the Press Pivot
Arm (#33) pulley bracket using one Hex Head Cap Screw 3/8-16 X 2
(#26), two Flat Washers SAE 3/8” (#19), and one Nylon Insert Jam
Lock Nut 3/8-16 (#23). Next, route the cable under a Nylon Pulley 4
1/2 Rd. (#16-Labeled F) and attach it to the Press Bar Main Frame
(#32) pulley bracket using one Hex Head Cap Screw 3/8-16 X 2
(#26), two Flat Washers SAE 3/8” (#19), and one Nylon Insert Jam
Lock Nut 3/8-16 (#23).
Note: Refer to Cable Mapping Diagram on fold-out page 10
for further illustration of this assembly.
33
89
FIG. 18 Insert a Split Lock Washer Z/P 1/2” (#66) to the Cable Hex
Bolt 1/2-20 X 1 (#90) then thread the Rod End 1/2-20 (#89) to the Cable Hex Bolt 1/2-20 X 1 (#90). Next, affix the Rod End 1/2-20 (#89) to
the Press Bar Pivot Arm (#33) using one Hex Head Cap Screw 1/213 X 1 1/2 (#81), and one Nylon Insert Jam Lock Nut 1/2-13 (#85).
Note: Refer to Fig B on fold-out page 10 for further detailed illustration of this assembly.
33
31
35
90
FIG. 19 Fully fasten the Cable Bolt 1/2-20 X 1 (#90) to the Rod End
1/2-20 (#89).
SP-403 Multi-Press

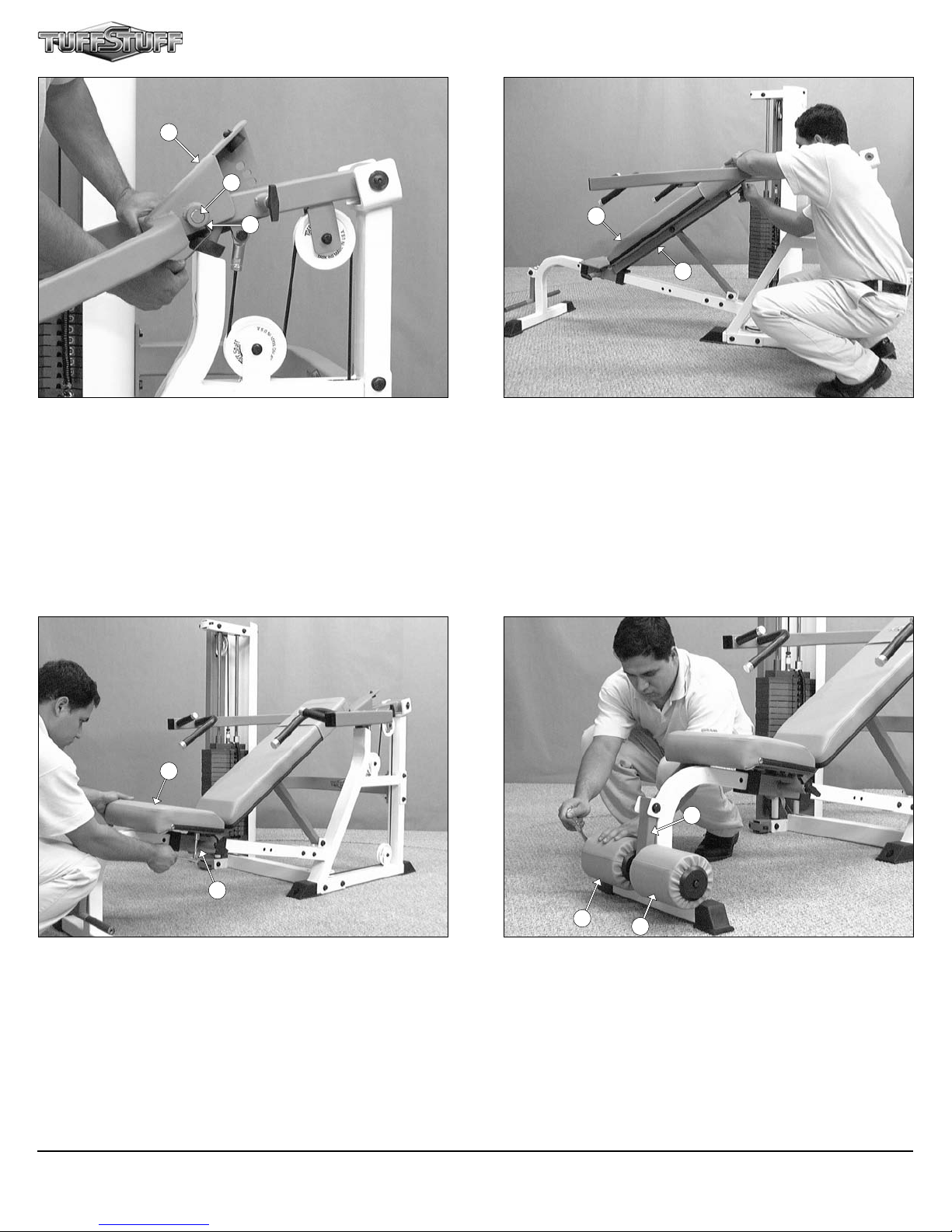

FIG. 20 Attach the Press Bar (#31) to the Press Bar Pivot Arm
(#33), in the position as shown above. Next, Using a rubber mallet,
insert the Press Bar Pivot Axle (#34) through the receptacles of the
Press Bar (#31) and the receptacle of the Press Bar Pivot Arm
(#33) until it becomes flush with both sides of the Press Bar (#31).
6
Page 8
31
34
86
FIG. 21 Secure the Press Bar (#31) to the Press Bar Pivot Axle
(#34) using two Socket Set Screws 1/4-20 X 1/4 (#86). Use the sup-
plied Hex Key 1/8” (#92) for securing both Socket Set Screws.
44
36
FIG. 22 Affix the Back Pad (#44) to the Bench Back Pad Frame
(#36), in the position as shown above, using two Flat Head Socket
Cap Screws 3/8-16 X 1 1/4 (#25). Use the supplied Hex Key
7/32” (#93) for securing both Flat Head Socket Cap Screws.
43
42
FIG. 23 Affix the Seat Pad (#43) to the Bench Slide Carriage
(#42), in the position as shown above, using four Hex Head Cap
Screws 3/8-16 X 1 1/4 (#75), and four Flat Washers SAE 3/8” (#19).
7
41
46
FIG. 24 Insert a Foot Roll 1 X 5 1/2 X 7 1/4 (#46) over each tubeend of the Bench Foot Roll Holder (#41), and secure them into
place using two Hex Head Cap Screws 3/8-16 X 1 1/2 (#76).
46
SP-403 Multi-Press
Page 9

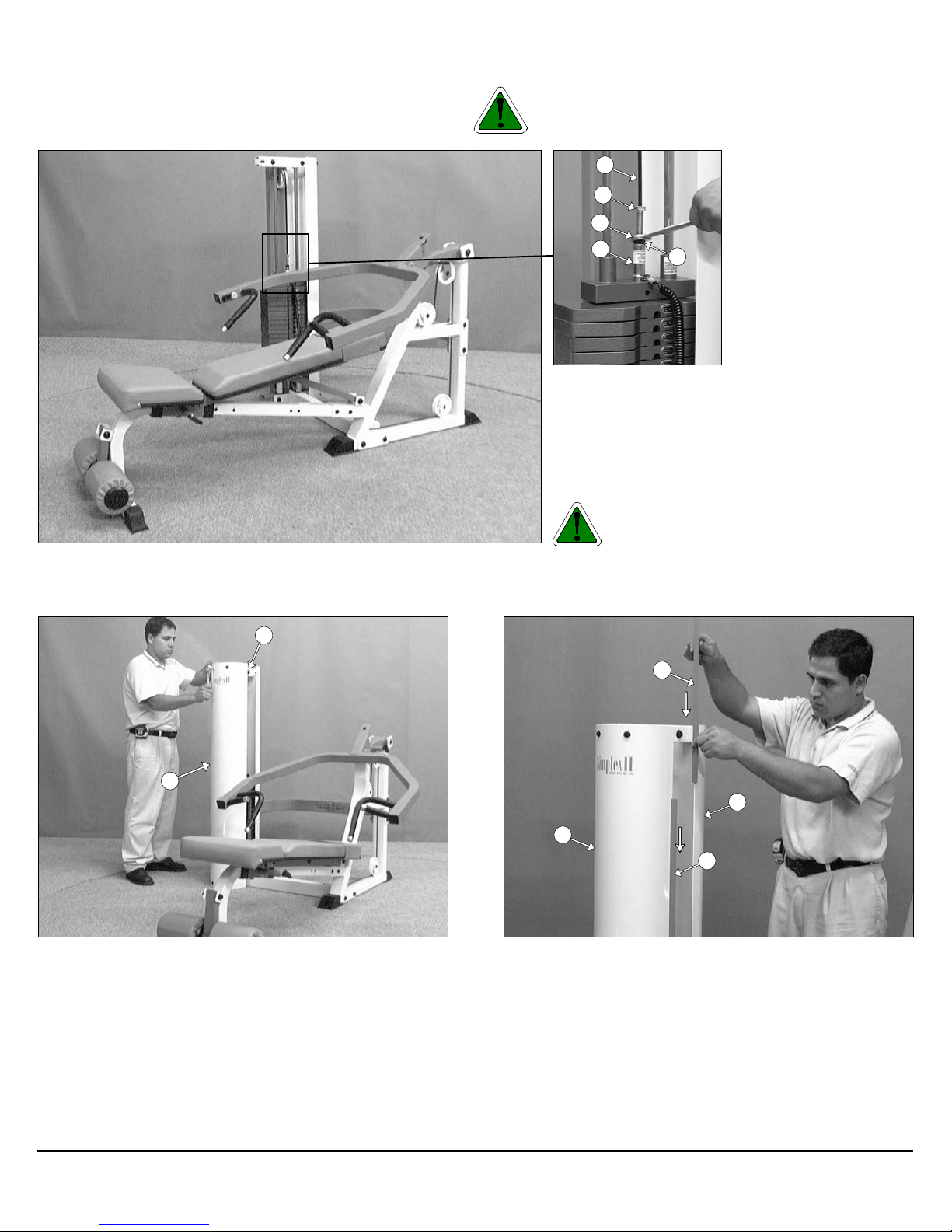

CABLE ADJUSTMENT
It is imperative that you maintain proper cable adjustment to ensure
a safe and smooth operation.
Caution: The Cable should be inspected and adjusted periodically to avoid any slack in the cable which would, consequently, prevent any damage to the equipment or personal injury.
87
88
69
9
Cable Adjustment
1. Loosen the Finished Hex Nut 1/2-13 (#69).
2. Thread the Cable Hex Tap Bolt 1/2-13 X 3 (#88) in or out
of the threaded socket of the Top Plate Selector Bar (#9)
to give the Cable (#87) proper tension.
3. Re-tighten the Finished Hex Nut 1/2-13 (#69) to complete
the adjustment.
Caution: Make sure the Cable Hex Tap Bolt 1/2-13
X 3 (#88) is threaded at least 1/2” into the threaded
socket of the Top Plate Selector Bar (#9) once the
cable adjustment has been completed.
66
5
2
FIG. 25 Affix the Weight Shroud (#2) to the bottom of the Weight
Stack Frame (#1) and at the top of the Guide Rod Retainer (#5) us-
ing four Hex Head Cap Screws 1/4-20 X 3/4 (#21), and four Flat
Washers 1/4” (#20).
12
3
2
12
FIG. 26 Insert the two Plastic Shroud Edge Protectors (#12) to both
Shrouds (#2, #3), in the position as shown above, and slide them all
the way down.
SP-403 Multi-Press
8
Page 10
10
10
2
3
12
FIG. 27 Align the edges of both Shrouds (#2, #3) with the grooves
of the Plastic Shroud Gap Cover (#10) and slide it down, as shown
above.
6
12
FIG. 28 Connect the two Plastic Shroud Edge Protectors (#12) to
the Plastic Shroud Gap Cover (#10) using the two Plastic Connectors
(#6).
12
11
2
FIG. 29 Attach the Plastic Shroud Lid (#11) to Guide Rod Retainer
(#5), in the position as shown above, and secure it into place using
two Flat Head Socket Cap Screws 3/8-16 X 3 (#25).
3
9
SP-403 Multi-Press
Page 11
Owner’s Manual: Assembly Instructions
Parts List
COLOR CHART
GRAY= SUB-ASSEMBLY PARTS
BLACK= HARDWARE
Item No. Description Part No. Qty Item No. Description Part No. Qty
1 WEIGHT STACK FRAME 54" UP0780 1 54 PLASTIC INSERT CAP 2" SQ. BNH0012 2
2 WEIGHT SHROUD 54" UP0781 1 55 RUBBER GRIP 1 ID X .125 X 4 1/2 BNH1129 2
3 WEIGHT SHROUD W/PLATE 54" UP0782 1 56 RUBBER GRIP 1 ID X .125 X 15 BNH1072 2
4 GUIDE ROD 3/4 X 53 5/8 UP0783 2 57 PLASTIC BLACK KNOB W/NYLON STUD 1/2-13 BNH0796 1
5 GUIDE ROD RETAINER UP0784 1 58 PYRAMID RUBBER BUMPER BNH0013 1
7 WEIGHT STACK SPACER 4" UP0786 2 59 UHMW STOPPER 27/64 ID X 1 1/2 OD X 1 BNH1314 1
8 15 LB WEIGHT PLATE BNH0926 19 60 RUBBER BUMPER 3/8 X 1 1/2 BNH0514 1
9 10 LB TOP PLATE W/ADJ. SLTR BAR 19 WTS BNH1100 1 62 SPLIT LOCK WASHER B/O 1/2" BNH0653 2
10 PLASTIC SHROUD GAP COVER 24" BNH1437 1 64 CHROME WASHER 3/8 X 1 1/2 BNH1015 2
11 PLASTIC SHROUD LID 5/8 X 14-1/8 X 10 BNH0185 1 65 SPLIT LOCK WASHER B/O 3/8" BNH0658 2
12 EDGE PROTECTOR GRAY 30" BNH0601 2 66 SPLIT LOCK WASHER Z/P 1/2" BNH0572 2
13 EDGE PROTECTOR GRAY 54" BNH1148 2 67 PUSH PULL PIN 1/2 X 5 5/8 BNH0586 2
14 URETHANE BUMPER 1 3/4 BNH0229 3 68 BRONZE BUSHING 1 X 1 1/4 X 3/4 X 1 1/2 X 1/8 BNH0527 2
15 RUBBER DONUT 3/4 X 2 1/2 BNH0068 2 69 FINISHED HEX NUT B/O 1/2-13 BNH0201 1
16 NYLON PULLEY 4 1/2 RD. WHITE BNH0556 6 70 ALUMINUM CAP 1" RD. (CAP-100) BNH0537 4
17 U-STYLE TAPPED HOLE NUT 1/4-20 BNH0708 8 71 SOCKET SET SCREW ALLOY 10-32 X 1/8 BNH0473 8
18 FLAT WASHER USS B/O 3/4 X 2" BNH0878 4 72 BALL BEARING #W 516 BNH0628 2
19 FLAT WASHER SAE B/O 3/8" BNH0239 26 73 BRONZE BUSHING 1/2 X 5/8 X 1 BNH0112 6
20 FLAT WASHER SAE B/O #12 (1/4") BNH0877 8 74 HEX HEAD CAP SCREW GR-5 B/O 3/8-16 X 1 BNH0275 1
21 HEX HEAD CAP SCREW GR-5 B/O 1/4-20 X 3/4 BNH0890 8 75 HEX HEAD CAP SCREW GR-5 B/O 3/8-16 X 1 1/4 BNH0273 6
22 NYLON INSERT LOCK NUT B/O 1/2-13 BNH0212 9 76 HEX HEAD CAP SCREW GR-5 B/O 3/8-16 X 1 1/2 BNH0303 2
23 NYLON INSERT JAM LOCK NUT B/O 3/8-16 BNH0365 7 77 HEX HEAD CAP SCREW GR-5 B/O 3/8-16 X 3 BNH0282 2
24 HEX HEAD CAP SCREW GR-5 B/O 1/2-13 X 3 1/2 BNH0263 4 78 HEX HEAD CAP SCREW GR-5 B/O 1/2-13 X 3 1/4 BNH0576 2
25 FLAT HEAD SOCKET CAP SCREW B/O 3/8-16 X 3 BNH0787 2 79 BUTTON HEAD SOCKET CAP SCREW B/O 3/8-16 X 1 BNH0115 2
26 HEX HEAD CAP SCREW GR-5 B/O 3/8-16 X 2 BNH0279 4 80 HEX HEAD CAP SCREW GR-5 B/O 1/2-13 X 1 BNH0259 2
27 HEX HEAD CAP SCREW GR-5 B/O 3/8-16 X 1 3/4 BNH0274 2 81 HEX HEAD CAP SCREW GR-5 B/O 1/2 13 X 1 1/2 BNH0727 1
28 RUBBER GROMMET 3/4" ID (2867-012) BNH0401 2 82 DECAL-NUMBERS 20-200 LBS. SET BNH1202 1
29 FLAT WASHER SAE B/O 1/2" BNH0238 26 83 HEX HEAD CAP SCREW GR-5 B/O 1/2-13 X 4 1/2 BNH0265 2
30 NYLON INSERT LOCK NUT B/O 3/8-16 BNH0214 2 84 HEX HEAD CAP SCREW GR-5 B/O 1/2-13 X 4 3/4 BNH0895 4
31 PRESS BAR UP0829 1 85 NYLON INSERT JAM LOCK NUT B/O 1/2-13 BNH0366 3
32 PRESS BAR MAIN FRAME UP0835 1 86 SOCKET SET SCREW ALLOY 1/4-20 X 1/4 BNH0790 2
33 PRESS BAR PIVOT ARM UP0823 1 87 MULTI-PRESS CABLE UP0925 1
34 PRESS BAR PIVOT AXLE UP0827 1 88 CABLE HEX TAP BOLT Z/P 1/2-13 X 3 BNH1048 1
35 PIVOT ARM AXLE UP0807 1 89 ROD END 1/2 X 20 BNH0674 1
36 BENCH BACK PAD FRAME UP0442 1 90 CABLE HEX BOLT GR-8 Z/Y 1/2-20 X 1 BNH1045 1
37 BENCH SUPPORT BAR UP0443 1 91 HEX KEY ALLOY 3/32" BNH0372 1
38 BOTTOM CROSS BRACE UP0830 1 92 HEX KEY ALLOY 1/8" BNH0797 1
39 REAR CROSS BRACE UP0831 1 93 HEX KEY ALLOY 7/32" BNH0575 1
40 BENCH MAIN FRAME UP4637 1 94 SELECTOR PIN W/COIL 3/8 X 4 GOLD KNOB UP3035 1
41 BENCH FOOT ROLL HOLDER UP0441 1 95 FLAT HEAD SOCKET CAP SCREW B/O 3/8-16 X 1 1/4 BNH0667 2
42 BENCH SLIDE CARRIAGE UP4642 1 96 U-STYLE TAPPED HOLE NUT 3/8-16 BNH1211 2
43 BENCH SEAT PAD UP0444 1 97 DECAL-SIMPLEX II (1 7/8 X 5 3/16) BNH1199 1
44 BENCH BACK PAD UP0445 1 98 DECAL-TUFFSTUFF (2 3/4 X 19 1/16) BNH1200 1
45 WEAR COVER (OPTIONAL) UP0833 1 99 DECAL-EXERCISE SP-403 MULTI- PRESS 4 1/2 X 19 1/4 BNH1188 1
46 FOOT ROLL 1 X 5 1/2 X 7 1/4 UP0350 2 100 DECAL-LARGE TUFFSTUFF LOGO DIAMOND SHAPE BNH0360 1
47 PLASTIC INSERT CAP "A" 1 RD. BNH0812 2 101 DECAL-ADJUST CABLE HERE BNH0789 1
48 PLASTIC INSERT CAP "B" 1 RD. BNH0813 2 102 DECAL-FOR BEST PERFORMANCE 1 1/4 X 1 1/2 BNH0143 1
49 PVC 1 X 7 1/4 BNH1023 2 103 DECAL-DANGER TIGHTEN THIS RET..., 3/4 X 1 1/2 BNH0142 2
50 NYLON STEM BUTTON .720" X .187" BNH0533 1 104 DECAL-CAUTION 1 3/4 X 5 1/2 HORIZONTAL BNH0126 1
51 PLASTIC TUBE GUIDE W/LIP-TEETH 2 1/2" SQ. BNH0060 2 105 DECAL-WARNING KEEP HANDS AND FINGERS... BNH0620 1
52 PLASTIC END CAP W/GROOVE 2" SQ. BNH0050 2 106 SUPER LUBE TEFLON LUBRICANT 82340 BNH0704 2
53 PLASTIC END CAP 2 X 3 BNH0606 2
SP-403 Multi-Press
SP-403 Multi-Press
12
Page 12
DO NOT DISCARD THIS MANUAL
LIMITED WARRANTY
TuffStuff warrants to the original purchaser only that TuffStuff equipment will be free from defects in
material and workmanship. The warranty and remedies set forth herein are conditioned upon proper
storage, installation, use, maintenance and conformance with any recommendations of TuffStuff. This
warranty does not cover products not manufactured by TuffStuff or products which are altered without
the express written consent of TuffStuff. This warranty as specified: a) Frame structure and welds —
Lifetime, b) Moving parts (e.g. pulleys, bearings, bushings) — 5 years; c) Cables upholstery, handgrips, finish and any miscellaneous parts not listed — 1 year; from the day of delivery to the original
purchaser. The obligation of TuffStuff under this warranty is limited to repairing or replacing warranted
defective parts, as TuffStuff may elect, at TuffStuff’s facility in Pomona, California, without charge to
purchaser for either parts or labor. Purchaser is responsible for installation of repaired or replaced
parts, and all transportation and insurance costs on returned or replaced equipment to and from
TuffStuff’s facility in Pomona.
THE FORGOING SHALL CONSTITUTE THE SOLE REMEDY OF THE PURCHASER AND THE
SOLE LIABILITY OF TUFFSTUFF WITH REGARD TO WARRANTY. NO IMPLIED STATUTORY
WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE SHALL APPLY. IN NO EVENT, WHETHER AS A RESULT OF BREACH OF CONTRACT, WARRANTY, NEGLIGENCE OR OTHERWISE, SHALL TUFFSTUFF BE LIABLE FOR SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES INCLUDING, BUT NOT LIMITED TO, LOSS OF PROFITS OR
REVENUE, LOSS OF USE OF EQUIPMENT, COST OF CAPITAL, COST OF SUBSTITUTION
EQUIPMENT, DOWNTIME COST, OR CLAIMS OF CUSTOMERS OR PURCHASER FROM SUCH
DAMAGE.
This warranty is the final, complete and exclusive agreement of the parties with respect to the quality
or performance of the equipment and no action for breach of this written warranty or any implied warranty shall be commenced more than one (1) year after the accrual of the cause of action. No modification of this warranty or waiver of its terms shall be binding on either party unless approved in writing
by an authorized representative of the party. Contact TuffStuff at 1325 E. Franklin Avenue, Pomona,
California 91766, before returning any defective equipment.
Note: Retain your sales receipt and be sure to mail in the warranty registration card to insure that a
permanent record of your purchase is on file with the factory and to avoid unnecessary delays in
warranty service.
TuffStuff Fitness Equipment, Inc.
1325 E. Franklin Avenue
Pomona, CA 91766, USA
Ph: 909-629-1600 Fax: 909-629-4967
E-mail: service@tuffstuff.net Net: www.tuffstuff.net
Loading...
