Tuff Stuff MFT-2700 User Manual

OWNER’S MANUAL

Maintenance & Assembly Instructions

NOTICE

It is the Purchaser’s/Owner’s obligation:

1. To disclose and post all Rules & Regulations, Danger, Warning and Caution
labels a xed on the machine to their customers/users.

2. Equipment to be installed by Tu Stu Authorized Dealer or a service
company approved by Tu Stu .

3. Provide trained personnel, supervision and correct usage of the equipment.

4. Provide scheduled inspection, maintenance & repairs and must be performed
by Tu Stu Authorized Dealer or a service company approved by Tu Stu .

5. Must use only genuine Tu Stu replacement parts.

6. Machine must be anchored to a solid and level surface.

MFT-2700

Multi-Functional Trainer

MFT-2700_Rev0

Revision Date 7-30-2012

IMPORTANT: KEEP THIS MANUAL FOR FUTURE REFERENCE

Table of Contents

DANGER, WARNING, & CAUTION LABELS INFORMATION ...............Page 3-5

ANCHORING UNIT .............................................................................................Page 6

IMPORTANT SAFETY INSTRUCTIONS ..........................................................Page 7

REGISTRATION, SERVICE & ASSEMBLY ........................................................Page 8

INSPECTION/MAINTENANCE ......................................................................... Page 9

CABLE INSPECTION ........................................................................................ Page 10

STEP 1 ................................................................................................................. Page 11

STEP 2 ...........................................................................................................Page 12-13

STEP 3 ...........................................................................................................Page 14-15

STEP 4 CABLE ROUTING ............................................................................... Page 16

STEP 5 CABLE ROUTING ............................................................................... Page 17

STEP 6 ................................................................................................................. Page 18

STEP 7 ................................................................................................................. Page 19

STEP 8 ................................................................................................................. Page 20

NOTES ................................................................................................................. Page 21

PARTS LIST ......................................................................................................... Page 22

EXPLODED VIEW ............................................................................................. Page 23

BASIC EXERCISE GUIDE ................................................................................. Page 24

BASIC EXERCISE GUIDE ................................................................................. Page 25

BASIC EXERCISE GUIDE ................................................................................. Page 26

WARRANTY ....................................................................................................... Page 27

L 118” X W 63” X H 82”

TOTAL WEIGHT 645 LBS

Tu Stu Fitness Equipment Inc. continually engages in research related to product improvements. Please take the time to carefully read through this manual thoroughly. Instructions contained in this

manual are not intended to cover all details or variations possible with equipment, or to cover every contingency that may be met in conjunction with assembly, installation, operation, maintenance
or troubleshooting of the equipment. Eventhough we have prepared this manual with extreme care, neither the manufacturer nor the author can accept responsibility for any errors in,
or omission from, the information given. Should additional information be required, or should situations arise that are not covered by this manual, the matter should be directed to Customer Service
at Tu Stu Fitness Equipment Inc. in Chino, California.

2

MFT-2700 Multi-Funtional Trainer

Carefully read ALL Danger, Warning & Caution labels posted on the machine

NOTE:

1. LABEL (G) GOES BEHIND THE ARM.

2. LABEL (S) GOES ON THE REAR SHIELD (#11).

G

DC

I

J

R

A

H

A

Y B L

S

G

I

J

T

A

H

A

J

O

E
P

N

M

F

MFT-2700 Multi-Funtional Trainer

J

O

E
K

N

Q

F

U
U

F

U

F

3

Carefully read ALL Danger, Warning & Caution labels posted on the machine

A

B

C

K

L

J

I

D

E

M

O

G

F

Q

U

4

MFT-2700 Multi-Funtional Trainer

Carefully read ALL Danger, Warning & Caution labels posted on the machine

HPN

S

Y

R

BE ALERT!

THE FITNESS EQUIPMENT IN THIS
FACILITY PRESENTS HAZARDS
WHICH, IF NOT AVOIDED, COULD
CAUSE SERIOUS INJURY OR DEATH.

Prior to using the equipment, READ the
warning labels and instruction placards
affixed to each machine.

If you are unsure on how to use a machine,
seek the assistance of our floor personnel.
We will be happy to instruct you on how to
use the equipment properly.

Immediately report any piece of equipment
that is not functioning properly to our floor
personnel so that it may be evaluated and
service promptly.

DO NOT ATTEMPT to use or fix any piece of
equipment that is not functioning properly.

TUFFSTUFF FITNESS EQUIPMENT INC. CHINO, CA 91710ASTM F1749-96

BNH3002

T

It is extremely important that the Facility Sign shown to the left
be installed in plain view of the unit.

You should have received it along with this Owners Manual. If
you did not receive this Facility Sign with your order, you can
obtain one at no cost to you from Tu Stu Fitness by contacting
our service department at:

1 [phone]
service@tu stu .net
service1@tu stu .net

MFT-2700 Multi-Funtional Trainer

5

Anchoring Unit

Holes on shoe plates are provided for anchoring the unit to the  oor. (See anchoring hole locations below)

7/16” DIAMETER
HOLE

6

MFT-2700 Multi-Funtional Trainer

Important Safety Instructions

It is the responsibility of the facility owner and/or owner of the equipment to review the Owner’s Manual with their facility personnel and
understand all Danger, Warning and Caution labels a xed on the machine. It is the responsibility of the  oor personnel to instruct users
on proper operation of the equipment and review all danger, warning and caution labels.

SERIOUS INJURY OR DEATH CAN OCCUR
IF THESE SAFETY PRECAUTIONS ARE NOT OBSERVED:

1. Obtain a medical exam before beginning any exercise program.

2. Read and understand Owner’s Manual and all Danger, Warning
and Caution labels before using this equipment. If you still need
help, seek assistance from  oor personnel.

3. Inspect the equipment before each use for wear and tear, loose
 ttings, worn or frayed cables and frame welds. DO NOT USE if it
appears to be inoperable or damaged.

4. Stop exercising if you feel faint or dizzy. Consult a physician if you
are experiencing pain.

5. Use this equipment only for the intended use and for

exercise(s) shown on page 24-26.

6. Keep body, clothing and hair clear from all moving parts. Do not
attempt to free any jammed parts by yourself.

7. Always warm-up before and cool-down after weight training.
Warm-up for 10-15 minutes with stretching and cardiovascular
exercises. Cool-down should include light stretching exercises for
5-15 minutes.

8. Never hold your breath – will limit the  ow of oxygen to your brain
and may cause dizziness. The most often used breathing pattern is
inhaling during least resistance and exhaling during maximum
resistance.

9. Do not use accessories or accessory attachments that are not
recommended by Tu Stu .

10. Make sure selector pin is completely inserted. Use only the selector
pin provided by the manufacturer.

11. Never pin the weights in an elevated position. Do not use the
machine if found in this condition.

5. Provide an adequate safety perimeter between the machine,
walls and other equipment to ensure that the facility has proper
clearance for usage and training.

6. Post and disclose all safety, rules and regulations on a bulletin
board easily accessible to users.

7. Perform regular maintenance (see Inspection Label). Pay special
attention to areas most susceptible to wear and tear, including but
not limited to cables, pulleys and rubber grips.

8. Do not lean against or pull on the framework, weight stack or
any component at all times.

9. Children must not be allowed near the equipment. Teenager must
be supervised.

10. Replace immediately all parts at  rst sign of wear or damage. If
unable to replace worn or damaged components/parts, remove
machine from service until the repair is made.

11. Use only genuine Tu Stu replacement parts. Failure to do so will
void warranty and could result in serious injury or death to the users.

12. Do not remove any decals a xed to the machine. Replace if
damaged.

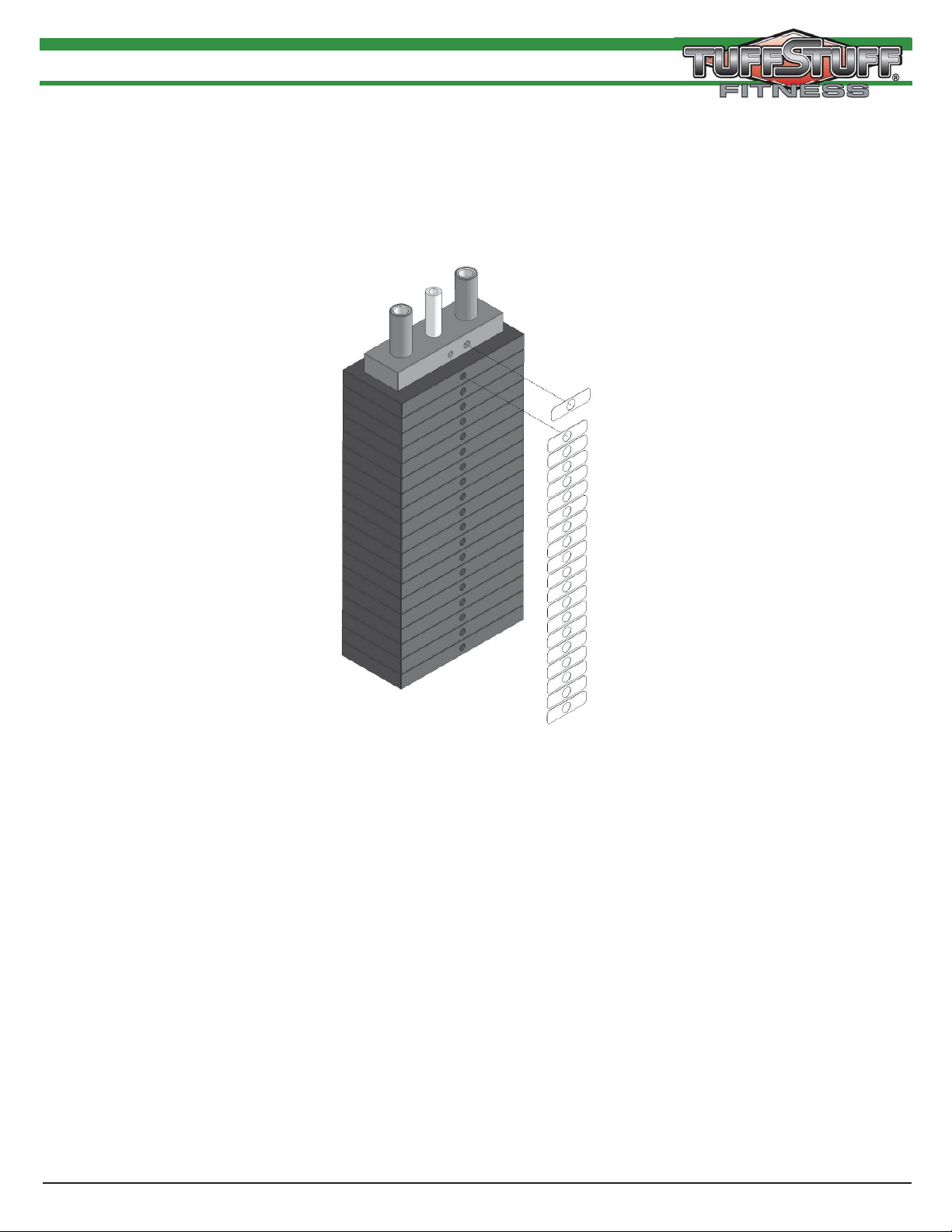

13. Do not alter or modify the original manufacturer’s 200 lbs. weight
stack with any add-on incremental weights, weight plates or
dumbbells except those with standard factory installed option.

14. Maintain a service contract with a Tu Stu Authorized Dealer or a
Professional Service Company approved by Tu Stu . Keep a service
log of all maintenance and repair activities. NOTICE: It is the sole
responsiblity of the owner or facility operator to ensure that regular
maintenance is performed.

Facility Safety Guidelines and Practices

1. Read and understand the Owner’s Manual before assembling,
servicing or using the equipment.

2. Equipment to be installed by Tu Stu Authorized Dealer or
Professional Service Company approved by Tu Stu .

3. Make sure each machine is set up and operated on a solid level
surface. Do not install equipment on an uneven surface.

4. Anchoring of equipment must be completed at time of
installation and inspected prior to use. Failure to anchor the
machine to the  oor could cause the machine to tip or fall over
due to incorrect usage and misuse, and could result in serious
injury or death.

MFT-2700 Multi-Funtional Trainer

DANGER: indicates an imminently hazardous situation which, if not
avoided, will result in death or serious injury.

WARNING: indicates a potentially hazardous situation which, if not
avoided, will result in death or serious injury.

CAUTION: indicates a hazardous situation which, if not avoided, could
result in minor or moderate injury.

7

Registration, Service & Assembly

Thank you for purchasing the MFT-2700 Multi-Functional Trainer. This machine is part of the Tu Stu line of quality strength training
equipment. To maximize your use of the equipment, please study the Owner’s Manual thoroughly.

Registration
To avoid unnecessary delays on warranty parts and to insure that a
permanent record of your purchase is on  le with our company, be
sure to register online at www.tu stu tness.com or mail to address
shown below within 10 days of purchase.

Obtaining Service

Please use this Owner’s Manual as your guide to all parts included in
your shipment. When ordering parts, you must specify the part number
and description from this manual. Use only genuine Tu Stu
replacement parts when servicing the equipment. Failure to do
so will void warranty and could result in serious injury or death.

For information about product operation or service:
Phone: [phone] Toll Free 888-884-8275
Fax: [phone]
E-mail: service@tu stu .net or service1@tu stu .net
Hours: M–F 8:00 – 4:30 PST
Or write to: Tu Stu Fitness Equipment Inc.
Customer Service
13971 Norton Avenue, Chino, CA 91710

Retain this Owner’s Manual for future reference when ordering
service or parts. To assist you better, please be prepared to
provide the following information:

1. Model Number 2. Place of Purchase

3. Serial Number 4. Part # and Description

Required Tools

The basic tools that you will need to assemble the MFT-2700 but are not
limited to:

• 9/16” , 3/4”, 1/2” combination wrenches

• Adjustable wrench

• Ratchet wrench with 9/16” , 3/4”, 1/2” sockets

• External retaining ring pliers

• Rubber mallet, measuring tape & utility knife

• Super Lube® spray lubricant and grease

• Windex or household glass cleaner

Allow ample space around the machine for safe unrestricted use an­d easier access.

Insert all bolts in the same direction. For aesthetic appearance, insert all
bolts in the same direction unless speci ed (in text or illustration) to do
otherwise.

Leave room for adjustments. Do not fully tighten fasteners until in­structed in the assembly steps to do so (to prevent any di culty with
alignment of parts during the assembly process). When not instructed,
tighten fasteners such as bolts, nuts and screws so the unit is stable, but
leave room for adjustments.

Assembly Tips

Read all “Notes” on each page before beginning each step.

While you may be able to assemble the MFT-2700 using the illustrations
only, IMPORTANT safety notes and other tips are included in the text.

Some pieces may have extra holes that you will not use. Use only those
holes indicated in the instructions and illustration.

NOTE: With so many assembled parts, proper alignment and
adjustment is critical. While tightening the nuts and bolts,
be sure to leave room for  nal adjustments.

CAUTION: Obtain assistance from Tu Stu if you have di culty
assemblying the MFT-2700. Please do not attempt to
complete the assembly as this could result in equipment
failure and serious injuries to the users.

Symbols & Description

Assembly Requirements

Follow these installation requirements when assemblying the MFT-2700.
Use the overhead view on the Content Page to layout your  oor plan
before assemblying.

Set up the MFT-2700 on a clean, solid,  at surface. A smooth,  at surface
under the machine helps keep it level.

8

Loosely Fasten

Finger tighten all hardware in this step. DO NOT wrench tighten.
Some component(s) may need pre-assembly and alignment during
the assembly process.

Fully Fasten

Wrench tighten all hardware in this step.

MFT-2700 Multi-Funtional Trainer

Inspection/Maintenance

Perform regular maintenance (see Inspection Label). Pay special attention to areas most susceptible to wear and tear, including but
not limited to cables, pulleys and rubber grip. Tu Stu recommends you maintain a service contract with a Tu Stu Authorized Dealer
or a Professional Service Company approved by Tu Stu . Keep a service log of all maintenance and repair activities. Extra copies can be
downloaded from our website.

INSPECTION / MAINTENANCE RECORDS

DATE REPLACEMENT REPAIRS INSPECTED BY

MFT-2700 Multi-Funtional Trainer

WARRANTY REPAIRS

DATE REPLACEMENT REPAIRS INSPECTED BY

9

Cable Inspection

WARNING:

THE FOLLOWING CONDITIONS MAY INDICATE A WORN CABLE. REPLACE IMMEDIATELY.

“NECKING”, STRECHED CABLE COVERING

A TEAR IN THE CABLE COVER

A CRACK IN THE CABLE COVER

A BREAK ON THE CABLE

CABLE END SLIPPING OUT

IMPORTANT NOTE:

DAMAGED OR WORNED CABLE (AS SHOWN ABOVE) MAY DAMAGE THE PULLEY(S). YOU MUST INSPECT
THE PULLEYS AT THIS TIME FOR WEAR AND TEAR. REPLACE IF NEEDED.

10

MFT-2700 Multi-Funtional Trainer

Step 1

)

Assembly List

Item # Description Qty.

10 LEFT STABILIZER 1
14 RIGHT STABILIZER 1
17 WEIGHT STACK FRAME 1
22 ALUMINUM PULLEY 3/8 X 1 X 3 1/2 2

23 ALUMINUM PULLEY 3/8 X 1 X 4 1/2 4
30 BUTTON HEAD SOCKET CAP SCREW GR-8 Z/P 1/2-13 X 1 1/2 4
34 BUTTON HEAD SOCKET CAP SCREW GR-8 Z/P 3/8-16 X 1 3/4 6
44 FLAT WASHER SAE Z/P 1/2” 4
45 FLAT WASHER SAE Z/P 3/8” 12
74 NYLON INSERT JAM LOCK NUT GR-8 Z/P 3/8-16 6
88 SPLIT LOCK WASHER Z/P 1/2” 4

WARNING

IT IS RECOMENDED TO HAVE ANOTHER PERSON ASSIST
YOU WITH THE INSTALLATION OF THIS UNIT.

23

23

45

45
34

34
30

30
44

44

17

17
74

74
45

45

88

88

SEE FIG A AND B

74

74
45

45

88

88

45

45
34

34

30

30

44

44

23

23

FIG A

FIG B

14

14

MFT-2700 Multi-Funtional Trainer

10

10

FULLY FASTEN

11

Step 2

)

74

74

45

45

45

45

35

35

22

22

22

22
16

16

40

40
88

88

33

33

45

45

89

89

22

22

16

16
40

40

88

88

22

22

74

74
45

45
45

45

35

35

19

19

18

18

7

7

82

82

15

15

SEE VIEW A AND B

15

15

18

18

82

82

7

7

FULLY FASTEN

12

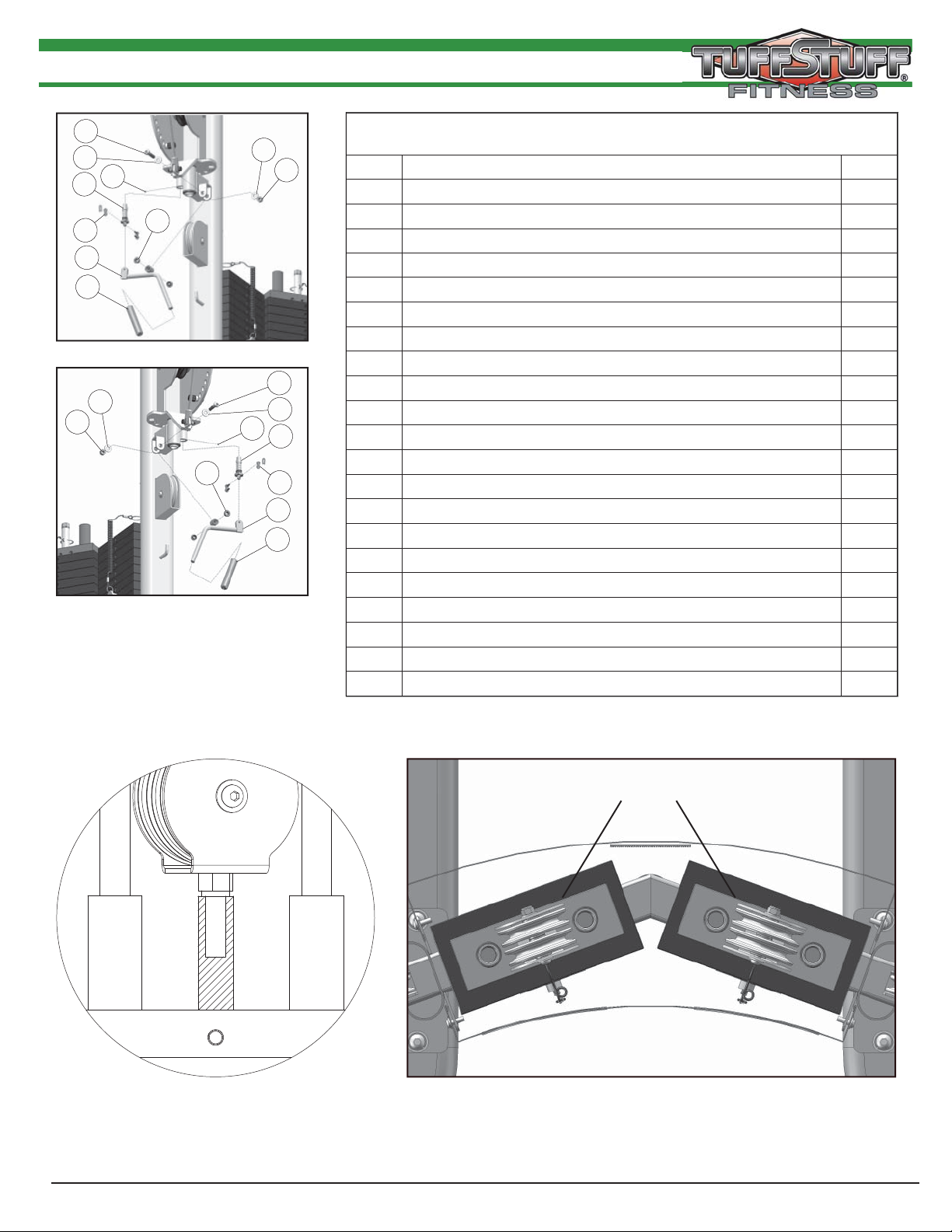

MFT-2700 Multi-Funtional Trainer

34

34

45

45
80

80

84

84

2

2

26

26

FIG A

45

74

86

86

29

29

29

45

45

86

FIG B

34

45

80

84

2

26

74

74

Assembly List

Item # Description Qty.

2 BOTTOM RELEASE HANDLE 2

7 GUIDE ROD 3/4 X 52 3/8 4
15 SELECTOR PIN W/COIL 3/8 X 4 GOLD KNOB 2
16 TOP PLATE DOUBLE PULLEY BRACKET 2

18 10 LB STEEL WEIGHT PLATE BLACK 4 9/16 X 9 7/16 38
19 10 LB TOP PLATE W/ADJ SLTR BAR 19 BLK WTS ASSY 2
22 ALUMINUM PULLEY 3/8 X 1 X 3 1/2 4
26 BLACK RUBBER GRIP 1/2 X 4 2
29 BRONZE FLANGED BUSHING 3/8 X 1/2 X 1/2 X 11/16 X 1/16 4
33 BUTTON HEAD SOCKET CAP SCREW GR-8 Z/P 3/8-16 X 1 4
34 BUTTON HEAD SOCKET CAP SCREW GR-8 Z/P 3/8-16 X 1 3/4 4
35 BUTTON HEAD SOCKET CAP SCREW GR-8 Z/P 3/8-16 X 2 3/4 2
40 FINISHED HEX NUT B/O 1/2-13 2
45 FLAT WASHER SAE Z/P 3/8” 12
74 NYLON INSERT JAM LOCK NUT GR-8 Z/P 3/8-16 4
80 PULL PIN ASSY 3 1/2 CUSTOM CUT HRD SPRING 2
82 RUBBER DONUT 3/4 X 2 1/2 4
84 SINGLE STRAND CONNECTING LINK #40 2
86 SOCKET SET SCREW Z/P 10-32 X 1/8 2
88 SPLIT LOCK WASHER Z/P 1/2” 2
89 SPLIT LOCK WASHER Z/P 3/8” 4

PROPER POSITION

NOTE:

1. FULLY SCREW TOP PLATE DOUBLE PULLEY BRACKET (#16) FOR PROPER INSTALLATION AT POSITION
SHOWN ABOVE.

MFT-2700 Multi-Funtional Trainer

13

Step 3

)

74

74
45

45

21

21
22

22
45

45
34

34

96

96

45

45

89

89

74

74
45

45

3

3

3

3

89

89

45

45

96

96

21

21
22

22
45

45

34

34

13

13

81

81

81

81

9

9

FULLY FASTEN

14

MFT-2700 Multi-Funtional Trainer

Assembly List

Item # Description Qty.

3 SUPPORT HOUSING 2

9 LEFT SIDE PIVOT ARM SWIVEL HOUSING 1
13 RIGHT SIDE PIVOT ARM SWIVEL HOUSING 1

21 ALUMINUM PULLEY 3/8 X 1 X 2 2
22 ALUMINUM PULLEY 3/8 X 1 X 3 1/2 2
34 BUTTON HEAD SOCKET CAP SCREW GR-8 Z/P 3/8-16 X 1 3/4 4
45 FLAT WASHER SAE Z/P 3/8” 12
74 NYLON INSERT JAM LOCK NUT GR-8 Z/P 3/8-16 4
81 RETAINING SNAP RING EXT. PLAIN .925 X 1 X .042 2
89 SPLIT LOCK WASHER Z/P 3/8” 4
96 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 1 4

MFT-2700 Multi-Funtional Trainer

15

Step 4 Cable Routing

)

NOTE:

1. USE WIRE TO CONDUCT THE CABLE.

2. MAKE SURE THE CABLE RUNS BETWEEN THE
PULLEYS.

3. SOME PARTS CUT/NOT SHOWN FOR
CLARITY.

BEGINNING POINT

Assembly List

Item # Description Qty.

1 MAIN CABLE 1/8” 2

38 CONTOUR ERGO HANDLE LONG STRAP 2
47 HARD PVC CABLE STOPPER 1 1/2 RD X 2 2
83 SHOULDER BOLT Z/P 3/8 X 3/4 2

FIG. A

38

38

85

85

90

90

83

83

FIG. B

1

1

88

88

47

47

87

1

1

87

11

FULLY FASTEN

16

MFT-2700 Multi-Funtional Trainer

Step 5 Cable Routing

)

Continue Assembly List

Item # Description Qty.

85 SNAP LINK Z/P 8MM X 80MM 2
87 SPLIT BOLT GR-8 Z/P 1/2-13 X 1 (.125 RND CUT) 2
88 SPLIT LOCK WASHER Z/P 1/2” 2
90 STRAP BRACKET 20 #SF20 STAINLESS STEEL 3/32” 2

NOTE:

1. USE WIRE TO CONDUCT THE CABLE.

2. MAKE SURE THE CABLE RUNS BETWEEN THE
PULLEYS.

3. SOME PARTS CUT/NOT SHOWN FOR
CLARITY.

BEGINNING POINT

FIG. A

47

1

83

90

85

38

88

1

FIG. B

87

1

MFT-2700 Multi-Funtional Trainer

FULLY FASTEN

17

Step 6

NOTE:

1. TOP PLATE LABEL GOES ON HOLE OFF CENTER AS
SHOWN. LABEL WILL COVER HOLE ON CENTER.

Weight stack label and lubrication instructions

1. Wipe front surface of weight stack with rubbing alcohol and wipe dry.

2. Peel o back sheet (adhesive side) from label (#61) and make sure that the label remains
attached to the application tape.

3. Line up left edge of label sheet with outside edge of weight holes.

4. Line up the  rst label to hole on top plate.

5. Make sure label is straight and slowly press into place.

6. Gently remove application tape and rub each label  rmly against the weight stack.

7. Allow labels to stand for 2 days to allow adhesive to cure fully.

8. Open the lube package provided and apply a thin  lm of lubricant around the  rst 3 inches
of the guide rods above the top plate.

9. After the cables are installed, do a set of reps to spread the lubricant thoroughly.

18

MFT-2700 Multi-Funtional Trainer

Step 7

)

Assembly List

Item # Description Qty.

6 FRONT WEIGHT SHIELD 1

11 REAR WEIGHT SHIELD 1

32 BUTTON HEAD SOCKET CAP SCREW GR-8 Z/P 1/4-20 X 3/4 8
43 FLAT WASHER SAE Z/P #12 (1/4”) 8

32

32

32

32

43

43

43

43

43

43

43

43

32

32

32

32

11

11

11

11

43

43

43

43

32

32

32

32

6

6

6

6

32

32

32

32

MFT-2700 Multi-Funtional Trainer

43

43

43

43

FULLY FASTEN

19

Step 8

)

Assembly List

Item # Description Qty.

32 BUTTON HEAD SOCKET CAP SCREW GR-8 Z/P 1/4-20 X 3/4 2
43 FLAT WASHER SAE Z/P #12 (1/4”) 2
77 PLASTIC CAP 1

32

32

NOTE:

1. MAKE SURE PLASTIC CAP SITS LEVELED.

77

77

43

43

FULLY FASTEN

20

MFT-2700 Multi-Funtional Trainer

Notes

MFT-2700 Multi-Funtional Trainer

21

Parts List

COLOR CHART
GRAY= SUB-ASSEMBLY PARTS

BLACK= HARDWARE

MFT-2700

REV0

Parts List

ItemȱNo. Description Rev. PartȱNo. Qty. ItemȱNo. Description PartȱNo. Qty.

1CABLEȱ 0 UP6792 2 51 LABELȱMFTȬ2700ȱEXERCISEȱCHART BNH2968 1

2 BOTTOMȱRELEASEȱHANDLE 0 UP6774 2 52 LABELȱMFTȬ2700ȱLEFTȱCAM BNH2962 1

SUPPORTȱHOUSING 0 UP6780 2

3

4 CHROMEȱLEVERȱHANDLEȱ 0 UP6791

ENDȱPULLEYȱBRACKETȱWLM 0 UP6455 2

5

6 FRONTȱWEIGHTȱSHIELDȱ 0 UP6785

7GUIDEȱRODȱ3/4ȱXȱ52ȱ3/8 0 UP6784

8 LEFTȱSIDEȱPIVOTȱARMȱ 0 UP6779

9 LEFTȱSIDEȱPIVOTȱARMȱSWIVELȱHOUSINGȱ 0 UP6777 1 59 LABELȱTUFFSTUFFȱFITNESSȱ(LGȱVERTICAL) BNH2933 1

10 LEFTȱSTABILIZERȱ 0 UP6783

11 REARȱ

12 RIGHTȱSIDEȱPIVOTȱARMȱ 0 UP6781

13 RIGHTȱSIDEȱPIVOTȱARMȱSWIVELȱHOUSINGȱ 0 UP6778 1 63 LABELȬDANGERȱCHECKȱRETAININGȱNUT...ȱȱ1.5X1.688 BNH2902

14 RIGHTȱSTABILIZERȱ 0 UP6782

15

16 TOPȱPLATEȱDOUBLEȱPULLEYȱBRACKET 0 UP6775 2 66 LABELȬINSPECTIONSȱRECOMMENDEDȱINSPECTION…

17 WEIGHTȱSTACKȱFRAMEȱ 0 UP6776 1 67 LABELȬWARNINGȱANCHORȱBOLT…

18 BNH1650 38 68

19

20

21

22

23

24

25 BNH3056 2 75 NYLONȱINSERTȱLOCKȱNUTȱZ/Pȱ5/16Ȭ18 BNH2056 4

26

27

28

29

30 BNH2993

31 BNH2994

32 BNH2995

33

34

35 BNH2996

36

37 BNH1719 4 87 SPLITȱBOLTȱGRȬ8ȱZ/Pȱ1/2Ȭ13ȱXȱ1ȱ(.125ȱRNDȱCUT) BNH2991 2

38

39 BNH3002 1 89 SPLITȱLOCKȱWASHERȱZ/Pȱ3/8Ȉ

40

41 BNH2999

42 BNH3053 4 92 SWIVELȱHOUSINGȱSTOPPER

43

44

45

46

47

48

49

50 BNH2936 1 100 HEXȱKEYȱ5/32Ȉ BNH2545

WEIGHTȱSHIELDȱ 0 UP6786

SELECTORȱPINȱW/COILȱ3/8ȱ

10ȱLBȱSTEELȱWEIGHTȱPLATEȱBLACKȱ4ȱ9/16ȱXȱ9ȱ7/16ȱASSY

10ȱLBȱTOPȱPLATEȱW/ADJȱSLTRȱBARȱ19ȱBLKȱWTSȱASSY

ALUMINUMȱPULLEYȱ1/2ȱXȱ1ȱXȱ3ȱ1/2

ALUMINUMȱPULLEYȱ3/8ȱXȱ1ȱXȱ2

ALUMINUMȱPULLEYȱ3/8ȱXȱ1ȱXȱ3ȱ1/2

ALUMINUMȱPULLEYȱ3/8ȱXȱ1ȱXȱ4ȱ

BALLȱBEARINGȱ25ȱXȱ47ȱXȱ12MM

BLACKȱACETALȱSTOPPERȱCAPȱ(MFTȬ2700)

YELLOWȱGRIPȱ1/2ȱXȱ4

BRONZEȱBUSHINGȱ1ȱXȱ1ȱ1/4ȱXȱ3/4ȱXȱ1ȱ1/2ȱXȱ1/8

BRONZEȱBUSHINGȱ1/2ȱXȱ5/8ȱXȱ1/2ȱXȱ7/8ȱXȱ1/8

BRONZEȱFLANGEDȱBUSHINGȱ3/8ȱXȱ1/2ȱXȱ1/2ȱXȱ11/16ȱX

BUTTONȱHEADȱSOCKETȱCAPȱSCREWȱGRȬ8ȱZ/Pȱ1/2Ȭ13ȱXȱ1ȱ1/2

BUTTONȱHEADȱSOCKETȱCAPȱSCREWȱGRȬ8ȱZ/Pȱ1/2Ȭ13ȱXȱ3ȱ3/4

BUTTONȱHEADȱSOCKETȱCAPȱSCREWȱGRȬ8ȱZ/Pȱ1/4Ȭ20ȱXȱ3/4

BUTTONȱHEADȱSOCKETȱCAPȱSCREWȱGRȬ8ȱZ/Pȱ3/8Ȭ16ȱXȱ1

BUTTONȱHEAD

BUTTONȱHEADȱSOCKETȱCAPȱSCREWȱGRȬ8ȱZ/Pȱ3/8Ȭ16ȱXȱ2ȱ3/4

BUTTONȱHEADȱSOCKETȱCAPȱSCREWȱGRȬ8ȱZ/Pȱ3/8Ȭ16ȱXȱ3ȱ3/4

CLEVISȱBRACKETȱ3/16ȈȱTHREADȱ8ȱMM

CONTOURȱERGOȱHANDLEȱLONGȱSTRAP

FACILITYȱSIGNȱBEȱALERT!ȱTHE

FINISHEDȱHEXȱNUTȱB/Oȱ1/2Ȭ13

FLANGEȱHEXȱNUTȱ3/8Ȭ16

FLATȱHEADȱSOCKETȱCAPȱSCREWȱZ/Pȱ1/2Ȭ13ȱXȱ3

FLATȱWASHERȱSAEȱZ/Pȱ#12ȱ(1/4Ȉ)

FLATȱWASHERȱSAEȱZ/Pȱ1/2Ȉ

FLATȱWASHERȱSAEȱZ/Pȱ3/8Ȉ

GASȱ

SHOCKȱNO.ȱC16Ȭ18868ȱ25ȱ33.94ȱEXT,ȱ16.14ȱSTROKE

HARDȱPVCȱCABLEȱSTOPPERȱ1ȱ1/2ȱRDȱXȱ2

HORIZONTALȱFOOTȱENDȱCAPȱ

LABELȱDANGERȱDOȱNOTȱLEANȱAGAINSTȱORȱPULL...

LABELȱMFTȱWEIGHTȱCONVERTIONȱCHART

ȱSOCKETȱCAPȱSCREWȱGRȬ8ȱZ/Pȱ3/8Ȭ16ȱXȱ1ȱ3/4

Xȱ4ȱGOLDȱKNOB 0 UP3035 2

1/2

ȱ1/16

ȱFITNESSȱEQUIPMENT...

BNH1982 2

BNH3051 2

BNH2452 2

BNH1266 8

BNH0069 4

BNH2725 4

BNH3059 4

BNH0527 8

BNH0528 4

BNH0738 4

BNH2033 4

BNH2426 12

BNH2435 2

BNH2738 2

BNH0201 2

BNH2982 10

BNH2031 8

BNH2030 42

BNH1705 2

BNH2258 2

BNH2555 4

BNH2955 1

53 LABELȱMFTȬ2700ȱLEVELERȱADJUSTMENT BNH2967 3

2

54 LABELȱMFTȬ2700ȱRIGHTȱCAM BNH2961 1

55 LABELȱMFTȬ2700ȱSCHEDULEȱREPLACEMENTȱPARTS... BNH2965 1

1

56 LABELȱ

4

57 LABELȱMFTȬ2700ȱWARRANTY BNH2963 1

1

58 LABELȱNUMBERSȱ10Ȭ200ȱLBS/KGSȱ7/8ȱXȱ3ȱYELLOWȱ&ȱBLACK BNH4069 2

1

60 LABELȱWARNING_SERIOUSȱINJURYȱORȱDEATH

1

61 LABELȱWEIGHTȱNUMBERSȱREFȱTPȬ10ȱ(200ȱLBS)

1

62

1

64

65 LABELȬIMPORTANTȱFORȱSMOOTHȱPERFORMANCE... BNH2925 2

69

70

71 LABELȬWARNINGȱKEEPȱBODY,ȱHANDS...

72

73 NYLONȱINSERTȱJAMȱLOCKȱNUTȱGRȬ8ȱZ/Pȱ1/2Ȭ13 BNH2997

74 NYLONȱINSERTȱJAMȱLOCKȱNUTȱGRȬ8ȱZ/Pȱ3/8Ȭ16 BNH2998

76 NYLONȱSTEMȱBUTTONȱ.720ȈȱXȱ.187Ȉ

77 PLASTICȱCAP BNH2875 1

78 PLASTICȱINSERTȱSTOPPERȱ1ȈȱRDȱȱ BNH3054 2

79 PLASTICȱWASHERȱ25ȱXȱ35ȱXȱ3MM

4

80 PULLȱPINȱASSYȱ3ȱ1/2ȱCUSTOMȱCUTȱHRDȱSPRING

2

81 RETAININGȱSNAPȱRINGȱEXT.ȱPLAINȱ.925ȱXȱ1ȱXȱ.042

10

82 RUBBERȱDONUTȱ3/4ȱXȱ2ȱ1/2

83 SHOULDERȱBOLTȱZ/Pȱ3/8ȱXȱ3/4

84 SINGLEȱSTRANDȱCONNECTINGȱ

2

85 SNAPȱLINKȱZ/Pȱ8MMȱXȱ80MM

86 SOCKETȱSETȱSCREWȱZ/Pȱ10Ȭ32ȱXȱ1/8

88 SPLITȱLOCKȱWASHERȱZ/Pȱ1/2Ȉ

90 STRAPȱBRACKETȱ20

1

91 SUPERȱLUBEȱTEFLONȱLUBRICANTȱ82340 BNH0704 2

93 URETHANEȱBUMPERȱ962 BNH0244 2

94 UȬSTYLEȱTAPPEDȱHOLEȱNUTȱ1/4Ȭ20

95 RUBBERȱCORRȱMATȱ1/8ȱXȱ3ȱ15/16ȱXȱ24ȱ7/32 BNH3057 2

96 HEXȱHEADȱCAPȱSCREWȱGRȬ5ȱZ/Pȱ3/8Ȭ16ȱXȱ1 BNH2037 4

97 HEXȱKEYȱ1/8Ȉ BNH2541

98 HEXȱKEYȱ3/16Ȉ BNH2542 1

99 HEXȱKEYȱ3/32

MFTȬ2700ȱSERIALȱ# BNH2964 2

LABELȬCAUTIONȱCHECKȱȱPULLȬPINȱISȱFULLY...

LABELȬDANGERȱUSEȱTHISȱEQUIPMENT...ȱ BNH2903 1

LABELȬWARNINGȱATTENTIONȱUSERS!... BNH2910 2

LABELȬWARNINGȱATTENTIONȱUSERS!... BNH2911

LABELȬWARNINGȱKEEPȱBODY,ȱHANDS... BNH2909 2

LEVELER

LINKȱ#40

ȱ#SF20ȱSTAINLESSȱSTEELȱ3/32Ȉ

Ȉ BNH2543

BNH2939

ȱȱBNH1542 1

BNH2912 4

BNH2922

BNH2990

BNH2926 2

BNH3052 3

18

BNH0533 2

BNH2726 2

BNH1723 4

BNH0419 4

BNH0068 4

BNH2392 8

BNH0066 4

BNH0065 2

BNH2088 4

BNH0572 8

BNH2032 8

BNH1904 2

BNH3055 2

BNH0708 2

1

4

1

4

2

2

1

1

1

22

MFT-2700 Multi-Funtional Trainer

21

21

22

22

45

45

74

74

45

45

34

34

22

22

22

22

74

74

16

16
45

45
35

35
40

40

88

88
19

19

18

18

Exploded View

74

74

34

34

75

75
37

37

26

83

83

46

46

48

48

7

7

26

75

75
37

37

83

83
43

43

81

81
24

24

5

5

24

24

79

79

45

45

89

89

96

96

27

27

12

12

73

73

44

44

74

74

4

4

83

83

80

80

84

84

86

86

45

45

76

76

74

74

28

28
20

20
92

92
25

25

45

45

27

27

44

44

96

96

89

89

32

32

45

45

13

13

45

45
36

36

31

31

3

3

27

27

81

81

27

27
74

74
45

45

23

23

45

45

88

88
30

30
44

44
42

42
48

48

34

34

94

94

17

17

78

78

32

32

89

89

33

33

45

45

SEE FIG A

SEE FIG B

72

72

41

41

77

77

43

43

94

94

78

78

34

34

27

27

45

45

23

23

45

45

74

74

88

88
30

30

44

44
42

42
48

48

81

81

89

89

45

45

3

3

45

45

89

89

9

9

45

45
36

36

31

31

27

27

32

32

96

96

44

44

96

96

27

27

27

27

45

45

28

28

20

20

92

92

25

25

74

74

73

73

76

76

45

45

74

74

44

44

86

86

79

79

24

24

8

8

81 74

81 74

24

24

5

5

26

26

4

4

83

83

80

80

84

84

75

75

37

37
83

83

95

95

43

43

95

95

34

34
75

75
37

37
83

83

46

46

16

16
45

45
35

35
40

40
88

88

45

45

7

7

18

18

34

34

22

22
22

22
74

74

74

74

45

45

21

21

22

22

82

82
61

61

34

34
45

45

86

86

80

80

29

84

84

26

26

2

2

29

FIG B

MFT-2700 Multi-Funtional Trainer

45

45

74

74

6

6

42

42

48

48

43

43

32

32

43

43

42

42

48

48

14

14

72

72

72

72

10

10

32

32

11

11

FIG A

74

74

45

45

23

23

45

45

34

34

82

82

61

61

45

45

22

22

34

34

75

75

93

93

23

Basic Exercise Guide

Use this equipment only for the exercises as shown. Know your limitations. If you are new to weight training, always start
with lighter weight, learn how to perform the exercise correctly and train at a controlled rate of speed. Warm up properly with

stretchings, calisthenics or cardiovascular exercises. Never hold your breath – general rule of thumb is to exhale when you exert.

Before working out, read and understand the Owner’s Manual, all danger, warning and caution labels listed on pages 3-5. This equipment is for HOME use only.
Obtain a medical examination before beginning any exercise program. If you feel faint, dizzy or pain, stop exercising immediately.

KNEELING LAT PULLDOWN

Mid- R angeStart/End

PECTORAL CROSSOVER

Mid- R angeStart/End

KNEELING AB CRUNCH

Mid- R angeStart/End

WOOD C HOP S

Mid- R angeStart/End

TRICEP PRESSDOWN

Mid- R angeStart/End

CHEST FLYS

Mid- R angeStart/End

TRICEP EXTENSION

Mid- R angeStart/End

REAR DELT FLYS

Mid- R angeStart/End

MFT-2700 Multi-Funtional Trainer MFT-2700 Multi-Funtional Trainer

24

Basic Exercise Guide

Use this equipment only for the exercises as shown. Know your limitations. If you are new to weight training, always start
with lighter weight, learn how to perform the exercise correctly and train at a controlled rate of speed. Warm up properly with

stretchings, calisthenics or cardiovascular exercises. Never hold your breath – general rule of thumb is to exhale when you exert.

Before working out, read and understand the Owner’s Manual, all danger, warning and caution labels listed on pages 3-5. This equipment is for HOME use only.
Obtain a medical examination before beginning any exercise program. If you feel faint, dizzy or pain, stop exercising immediately.

CORE ROTATION

Mid- R angeStart/End

OFFER UPS

Mid- R angeStart/End

CHEST PRESS

Mid- R angeStart/End

REVERSE WOOD CHOPS

Mid- R angeStart/End

SHOULDER PRESS

Mid- R angeStart/End

STANDING CURLS

Mid- R angeStart/End

LATERAL RAISE

Mid- R angeStart/End

UPR I GHT R OWS

Mid- R angeStart/End

25

Basic Exercise Guide

Use this equipment only for the exercises as shown. Know your limitations. If you are new to weight training, always start
with lighter weight, learn how to perform the exercise correctly and train at a controlled rate of speed. Warm up properly with

stretchings, calisthenics or cardiovascular exercises. Never hold your breath – general rule of thumb is to exhale when you exert.

Before working out, read and understand the Owner’s Manual, all danger, warning and caution labels listed on pages 3-5. This
equipment is for HOME use only. Obtain a medical examination before beginning any exercise program. If you feel faint, dizzy or pain, stop exercising immediately.

BENT OVER ROWS

Mid- R angeStart/End

CALF RAISE

Mid- R angeStart/End

TRICEP KICK BACK

Mid- R angeS tart/End

INNE R THIGH

Mid- R angeS tart/End

SHRUGS

OUTER THIGH

SQUATS

Mid- R angeS tart/End

Mid- R angeS tart/End

GLUTE KI CK

Mid- R angeS tart/End

Mid- R angeS tart/End

MFT-2700 Multi-Funtional Trainer

26

LIGHT COMMERCIAL WARRANTY

This warranty applies only in the United States to the products manufactured or distributed by TuStu Fitness Equipment Inc. under the
TUFFSTUFF brand name. TuStu warrants to the original purchaser that TuStu equipment will be free from defects in material and workmanship.
All warranty periods begin to run from the date of purchase to the original purchaser. The warranty and remedies set forth herein are conditioned
upon proper storage, installation, use and maintenance and conformance with any recommendations of TuStu. This warranty does not cover
products not manufactured by TuStu or products which are altered without the express written consent of TuStu.

Light Commercial Warranty:

Ten (10) Years: Structural Main Frames, Welds, Cams
and Weight Plates.
Five (5) Years: Pivot Bearings, Pulleys, Bushings, Guide Rods
and Gas Shocks.
One (1) Year: Linear Bearings and Pull-Pin Components
All other parts not mentioned elsewhere in the

warranty will expire from the date of delivery to
the original purchaser.

Six (6) Months: Upholstery, Cables, Finish and Rubber Grips.

Light Commercial Use:

Light Commercial warranty applies only to facilities like hotels, apartment
complexes, personal training studios, re & police stations, etc. where the
equipment would be used no more than 30 people per day.

The obligation of TuStu under this warranty is limited to repairing or replacing warranted defective parts as TuStu may elect, at TuStu’s
facility in Chino, California without charge to the purchaser. Purchaser is responsible for installation of repaired or replaced parts, and all
transportation and insurance costs on returned or replaced equipment to and from TuStu’s facility in Chino.

THE FOREGOING SHALL CONSTITUTE THE SOLE REMEDY OF THE PURCHASER AND THE SOLE LIABILITY OF TUFFSTUFF WITH REGARD
TO WARRANTY. NO IMPLIED STATUTORY WARRANTY OR IMPLIED STATUTORY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE SHALL APPLY. IN NO EVENT, WHETHER AS A RESULT OF BREACH OF CONTRACT, WARRANTY, NEGLIGENCE OR
OTHERWISE, SHALL TUFFSTUFF BE LIABLE FOR SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES INCLUDING, BUT NOT LIMITED TO,
LOSS OF PROFITS OR REVENUE, LOSS OF USE OF EQUIPMENT, COST OF CAPITAL, COST OF SUBSTITUTION EQUIPMENT, DOWNTIME COST,
OR CLAIMS OF CUSTOMERS OR PURCHASER FROM SUCH DAMAGE.

Home Lifetime Warranty:

Lifetime of the equipment while owned by the original
purchaser (applies to defects from manufacturer only).

This warranty DOES NOT cover:

1. TuStu equipment sold for and used in a commercial or
institutional environment.

2. Any damage, failure or loss caused by accident, misuse, neglect,
abuse, improper assembly & maintenance, or failure to follow
instructions or understand all danger, warning and caution labels
axed on the machine and in the owner’s manual

3. Use of the equipment in a manner for which it was not designed.

4. Original equipment that is altered, or the use of replacement parts
and components of another manufacturer other than TuStu.

This written warranty is the nal, complete and exclusive agreement of the parties with respect to the quality or performance of the equipment and no action for breach of this
written warranty or any implied warranty shall be commenced more than one (1) year after the accrual of the cause of action. No modication of this warranty or waiver of its
terms shall be binding on either party unless approved in writing by an authorized representative of the party. Contact TuStu Fitness Equipment Inc. at 13971 Norton Avenue,

Chino, CA 91710, before returning any defective equipment.

This warranty gives you specic legal rights and you may also have other rights, which may vary from state to state.

SERIAL #

Write your Serial number here for future reference Purchase Date

TuStu Fitness Equipment Inc.

13971 Norton Avenue, Chino, CA 91710, USA Phone: [phone] Fax: [phone]
www.tustutness.com service@tustu.net or service1@tustu.net
