Tu Stu Fitness Equipment Inc. continually engages in research related to product improvements. Please take the time to carefully read through this
manual thoroughly. Instructions contained in this manual are not intended to cover all details or variations possible with Gladiator equipment, or to cover
every contingency that may be met in conjunction with assembly, installation, operation, maintenance or troubleshooting of the equipment. Eventhough
we have prepared this manual with extreme care, neither the manufacturer nor the author can accept responsibility for any errors in, or omission from, the
information given. Should additional information be required, or should situations arise that are not covered by this manual, the matter should be directed
to Customer Service at Tu Stu Fitness Equipment Inc. in Chino, California.
2
EAB-35 Adjustable Abdominal Bench
Page 3
Carefully read ALL Danger, Warning & Caution labels posted on the machine
BNH2913BNH2915
BNH2916
BNH2906
EAB-35 Adjustable Abdominal Bench
BNH2918
3
Page 4
Carefully read ALL Danger, Warning & Caution labels posted on the machine
BNH2910BNH2917
BNH2907
BNH2903
BNH2919
4
EAB-35 Adjustable Abdominal Bench
Page 5
Important Safety Instructions
Before beginning any form of exercise program, it is important to get your physician approval. If you have
not participated in a regular exercise program, smoke or have signs of high blood pressure, you must consult
with your personal physician before performing any form of physical activities.
Before using the equipment, read and
understand the Owner’s Manual and all DANGER, WARNING & CAUTION
labels posted on the machine. SERIOUS INJURY OR DEATH CAN OCCUR IF
THESE RULES ARE NOT FOLLOWED:
1. Inspect the equipment before each use for wear and tear, loose
ttings, and welded joints for cracks. If it appears to be inoperable
or damaged, DO NOT USE equipment until repaired. Use only
genuine Tu Stu parts. Failure to do so will void warranty and
could result in serious injury or death.
2. Children must not be allowed near this machine. Teenager must
be supervised.
3. Stop exercising if you feel faint or dizzy. Consult a physician if you
are experiencing pain.
4. Use this equipment only for exercises shown
on page 14.
5. Use spotters/helpers to assist when using weights.
6. Keep body, clothing and hair clear from all moving parts. Do not
attempt to free any jammed parts by yourself.
7. Always warm-up before and cool-down after weight training.
Warm-up for 10-15 minutes with stretching and cardiovascular
exercises. Cool-down should include light stretching exercises for
5-15 minutes.
8. Never hold your breath – will limit the ow of oxygen to your brain
and may cause dizziness. The most often used breathing pattern is
inhaling during least resistance and exhaling during maximum
resistance.
9. Do not remove any decals a xed to the machine. Replace if
damaged.
10. Periodic maintenance is required to keep your equipment in safe
and proper operating condition. Follow the maintenance schedule
as shown in “Inpection” and “Schedule” labels.
11. Do not use accessories or accessory attachments that are not
recommended by Tu Stu .
12. Make sure all pull-pins are fully engaged and secured in the holes
before performing the exercises.
13. Do not use the equipment outdoors.
DO NOT ATTEMPT to use over
maximum weight capacity
MAXIMUM
400 lbs
LOAD
Personal Safety During Assembly
Before beginning assembly, it is important to take the time to read and
review all of the assembly instructions provided in this manual.
Read each step in the assembly instructions and follow the steps in
sequence. Do not skip ahead as you may learn later the you have to
disassemble the components and that you may have damaged the
components or parts.
Assemble, lubricate all moving parts, and operate the EAB-35 on a solid,
level and clean surface.
Locate the unit a few feet from the walls or furniture to provide easy
access.
After assembly, you should check all nuts & bolts that are wrenchtightened, and all functions to ensure correct operation. If you experience
problems, rst recheck the assembly instructions to locate any possible
errors made during assembly. If you are unable to correct the problem(s),
call the dealer from whom you made the purchase rst before contacting
Tu Stu Customer Service.
Obtaining Service
Please use this Owner’s Manual as your guide to all parts included in
your shipment. When ordering parts, you must specify the part number
and description from this manual. Use only genuine Tu Stu replacement
parts when servicing the equipment. Failure to do so will void your
warranty and could result in serious injury or death.
For information about product operation or service:
Phone: 909-629-1600
Fax: 909-629-4967
Toll Free: 888-884-8275
E-mail: service@tu stu .net
Hours: M–F 8:00 – 4:30 PST
Or write to: Tu Stu Fitness Equipment Inc.
Customer Service
13971 Norton Avenue, Chino, CA 91710
Retain this Owner’s Manual for future reference when ordering
service or parts. To assist you better, please be prepared to
provide the following information:
1. Model Number
2. Place of Purchase
3. Serial Number
4. Part # and Description
EAB-35 Adjustable Abdominal Bench
5
Page 6
EAB-35 Preparation & Assembly
Thank you for purchasing the Gladiator EAB-35 Adjustable Abdominal Bench. This bench is part of the Tu Stu
line of quality strength training equipment. To maximize your use of the equipment, please study the Owner’s
Manual thoroughly.
Required Tools
The basic tools that you will need to assemble the EAB-35 but are not
limited to:
• 9/16” , 1/2”, 14mm, and 13mm combination wrenches
• Adjustable wrench
• Ratchet wrench with 9/16” , 1/2”, 14mm, and 13mm
sockets
• Rubber mallet, measuring tape & utility knife
H
T
G
N
E
L
W
E
R
C
S
E
H
S
A
H
T
D
I
W
W
E
R
C
S
W
R
E
T
E
M
A
I
D
R
R
E
T
E
M
A
I
D
T
U
N
Assembly Requirements
Follow these installation requirements when assemblying the EAB-35.
Use the overhead view on the front page cover to layout your oor
plan before assemblying.
Assembly Tips
Read all “Notes” on each page before beginning each step.
While you may be able to assemble the EAB-35 using the illustrations
only, IMPORTANT safety notes and other tips are included in the text.
Some pieces may have extra holes that you will not use. Use only
those holes indicated in the instructions and illustration. Safety bolts
(Stopper) are placed in some pieces to prevent accidental removal of
moving parts, be sure to comply with the manufacturer’s request.
NOTE:With so many assembled parts, proper alignmentand adjustment is critical. While tightening the
nuts and bolts, be sure to leave room for nal
adjustments.
CAUTION: Obtain assistance if you feel like you can’t assemble
the EAB-35 by yourself. Please do not attempt to
do so as this could result in equipment failure and
injuries to you. Review the installation requirements
before proceeding with the assembly steps.
Set up the EAB-35 on a clean, solid, at surface. A smooth, at surface
under the machine helps keep it level.
Allow ample space around the machine for safe unrestricted use and
easier access.
Insert all bolts in the same direction. For aesthetic appearance,
insert all bolts in the same direction unless speci ed (in text or
illustration) to do otherwise.
Leave room for adjustments. Do not fully tighten fasteners until instructed in the assembly steps to do so (to prevent any di culty with
alignment of parts during the assembly process). When not instructed,
tighten fasteners such as bolts, nuts and screws so the unit is stable,
but leave room for adjustments.
Loosely Fasten
Finger tighten all hardware in this step. DO NOT wrench
tighten. Some component(s) may need pre-assembly
and alignment during the assembly process.
Fully Fasten
Wrench tighten all hardware in this step.
Maintenance Requirements
Gladiator equipment is designed to o er long-life service and
minimum maintenance. Please refer to the Inspection and Schedule
replacement part labels posted on the machine or on pages 3-4 of this
manual. Do not use Lysol or Windex as they will dry out and crack the
vinyl. Use a lanolin based hand cleaner or naugahyde cleaner on the
upholstery.
Registration Card
To avoid unnecessary delays on warranty parts and to insure that a
permanent record of your purchase is on le with our company, be
sure to mail in the warranty registration card or register online at
www.tu stu directonline.com within 10 days of purchase.
6
EAB-35 Adjustable Abdominal Bench
Page 7

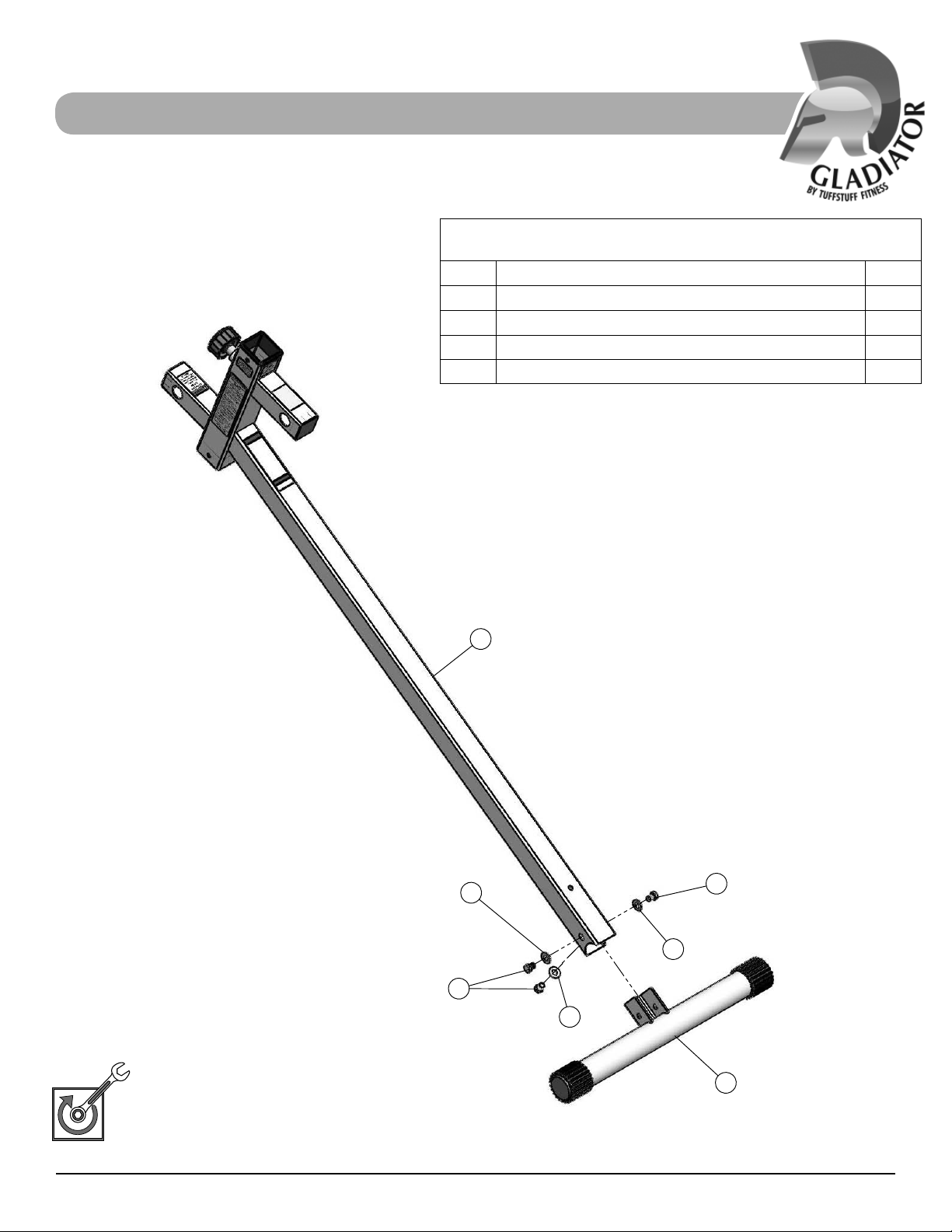

EAB-35 Step 1
)
Item #DescriptionQty.
1MAIN FRAME1
3STABILIZER W/CONNECTOR1
8FLAT WASHER SAE Z/P 3/83
12HEX HEAD CAP SCREW Z/P 3/8-16 X 1/23
Assembly List
1
8
12
8
12
8
3
FULLY FASTEN
EAB-35 Adjustable Abdominal Bench
7
Page 8

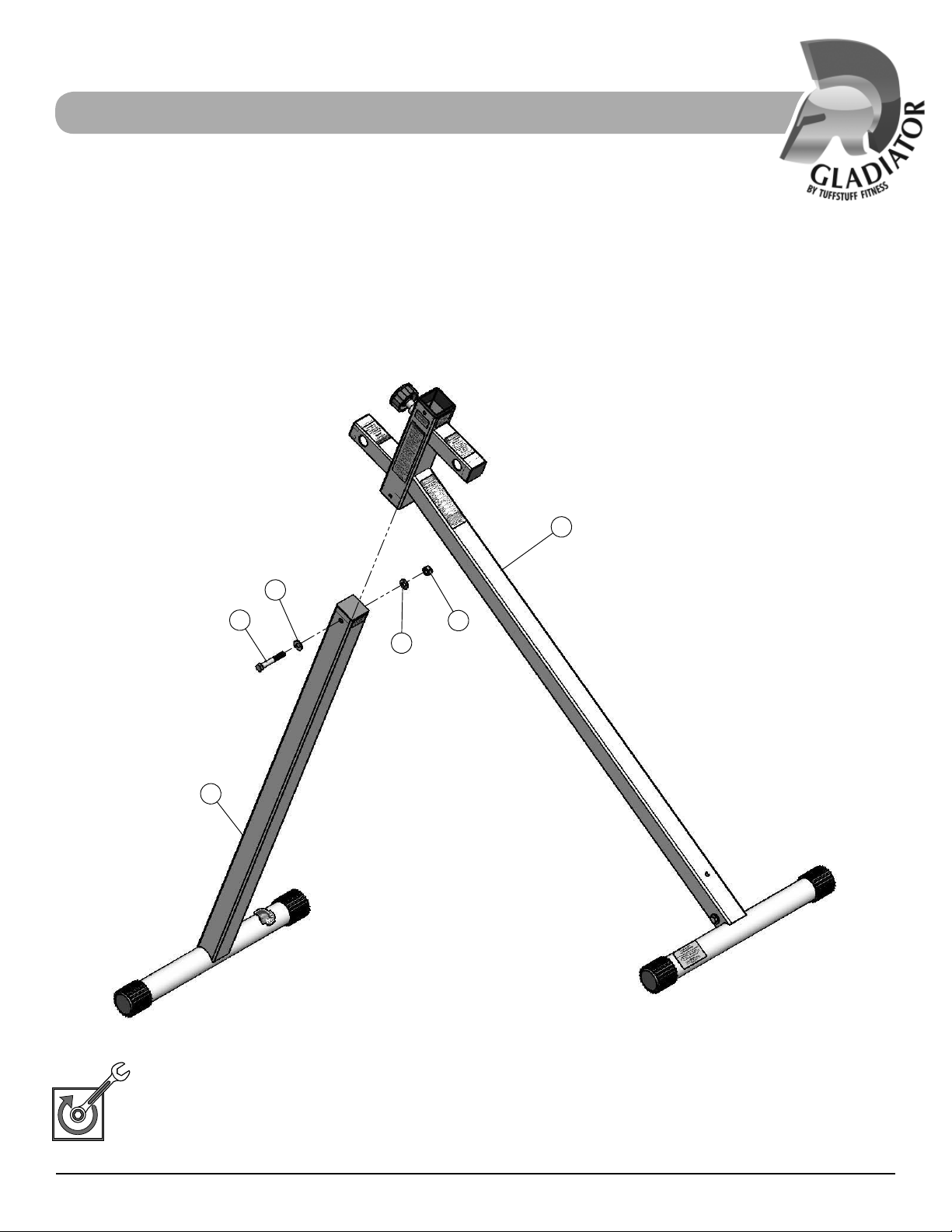

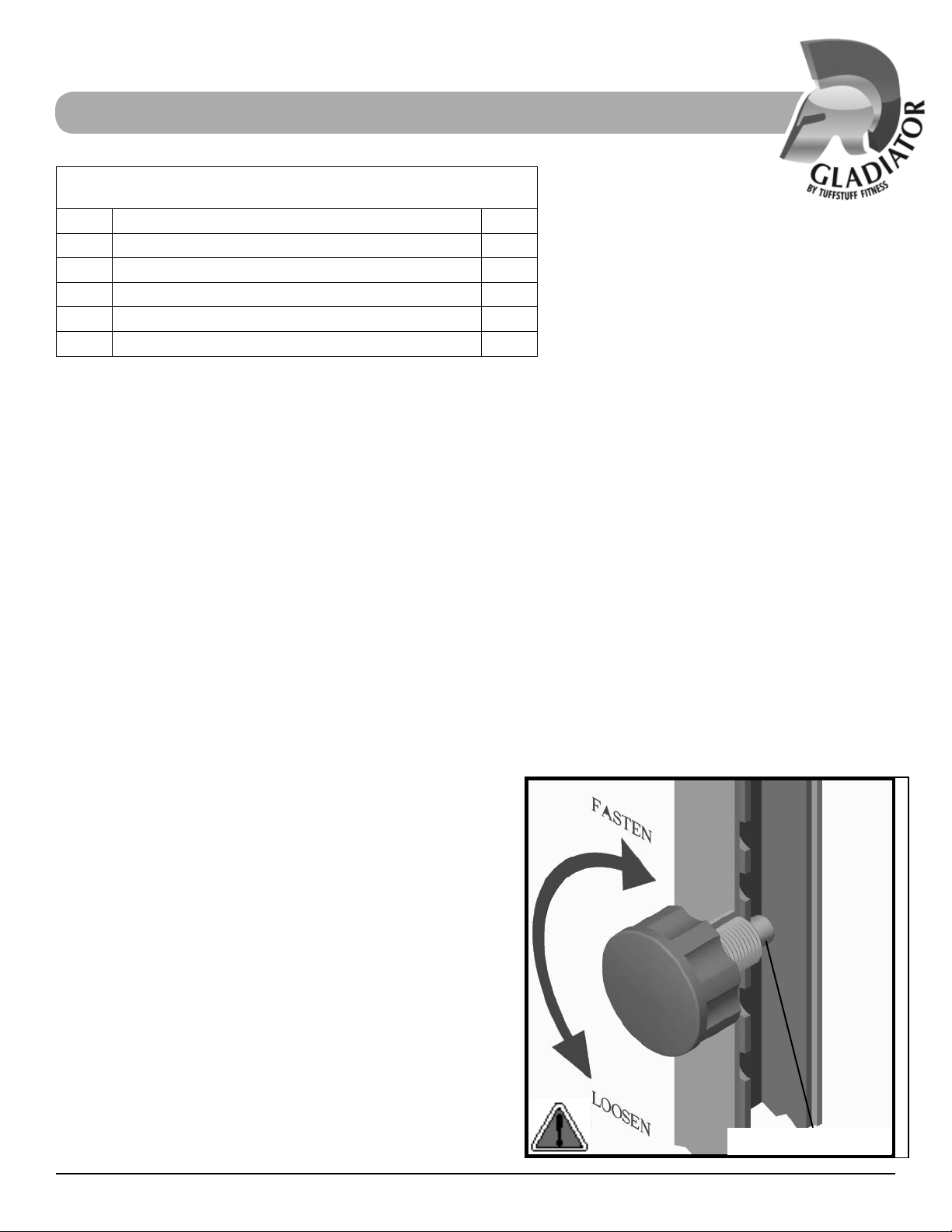

EAB-35 Step 2
Assembly List
Item #DescriptionQty.
1MAIN FRAME1
2SELECTORIZED UPRIGHT1
8FLAT WASHER SAE Z/P 3/82
13HEX HEAD CAP SCREW Z/P 3/8-16 X 2 5/81
16NYLON INSERT LOCK NUT Z/P 3/8-161
TURN/PULL PIN W/KNOB
FULLY ENGAGED
8
EAB-35 Adjustable Abdominal Bench
Page 9
EAB-35 Step 2
)
)
1
2
13
8
16
8
FULLY FASTEN
FULLY FASTEN
EAB-35 Adjustable Abdominal Bench
9
Page 10
)

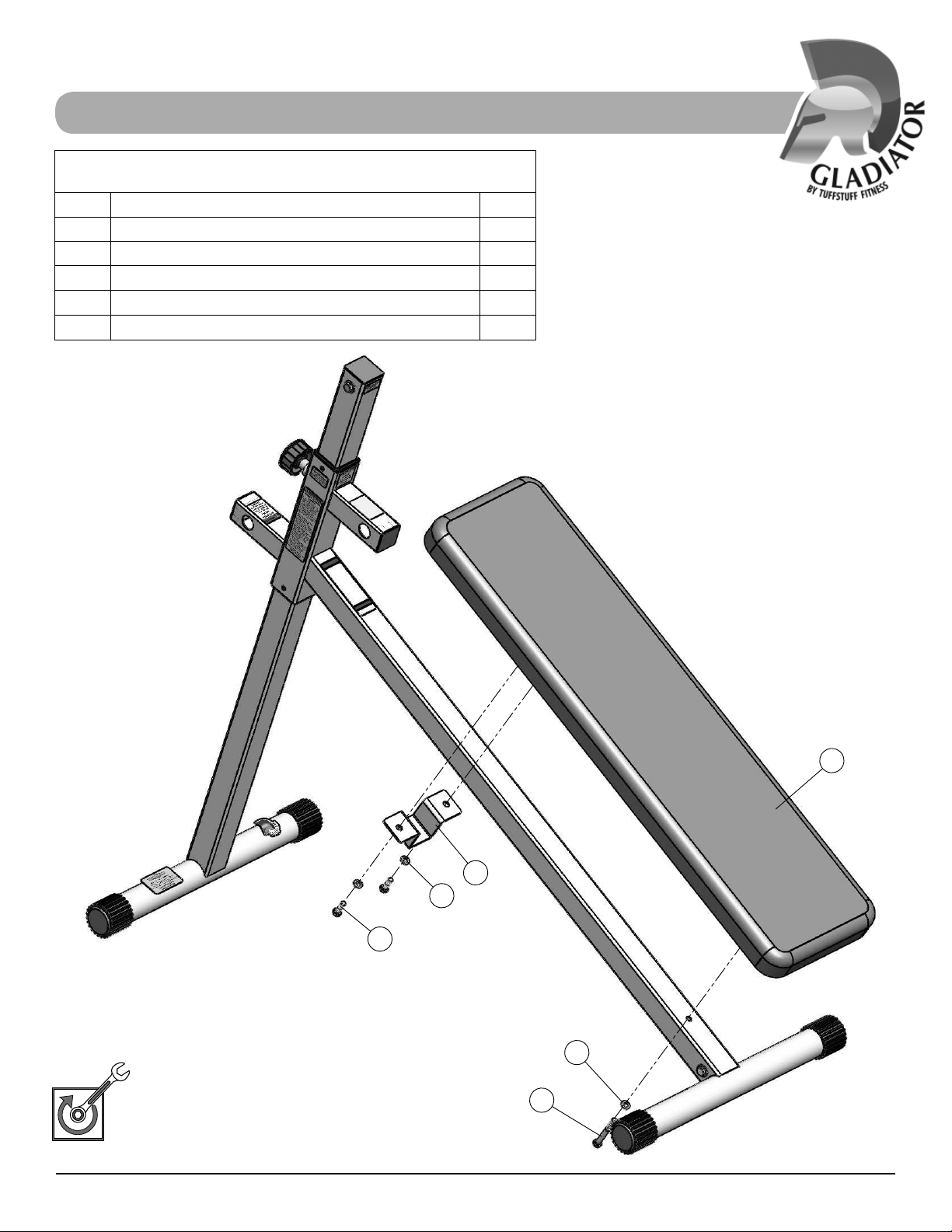

EAB-35 Step 3
Assembly List
Item #DescriptionQty.
4UPH PAD BRACKET1
7BACK PAD1
9FLAT WASHER SAE Z/P 5/163
14HEX HEAD CAP SCREW Z/P 5/16-18 X 12
15HEX HEAD CAP SCREW Z/P 5/16-18 X 2 3/41
FULLY FASTEN
10
7
4
9
14
9
15
EAB-35 Adjustable Abdominal Bench
Page 11

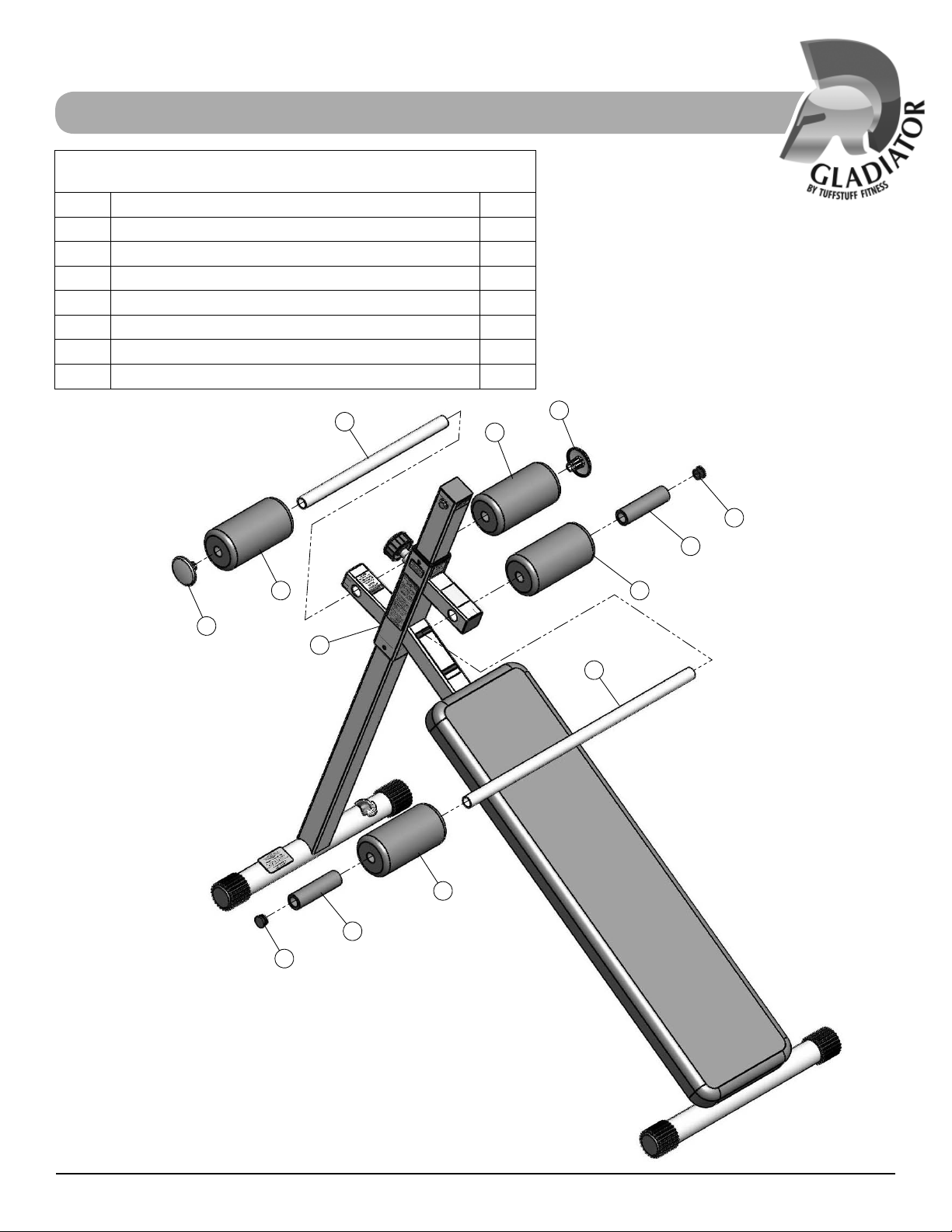

EAB-35 Step 4
Assembly List
Item #DescriptionQty.
1MAIN FRAME1
5FOOT ROLL TUBE 1 X 1.5 X 161
6FOOT ROLL TUBE 1 X 1.5 X 25 3/161
10FOAM ROLL 7 X 4 X 14
11FOAM ROLL PLASTIC END CAP 1” RD X 2 3/8 RD2
17PLASTIC INSERT CAP 1” RD2
21RUBBER GRIP Ø33*Ø23*120L2
11
10
1
5
11
10
17
21
10
6
17
EAB-35 Adjustable Abdominal Bench
10
21
11
Page 12
5
EAB-35 Parts List
EAB-3
Parts List
ITEMDESCRIPTIONREVPART NO.QTY
1MAIN FRAME0GLA10011
2SELECTORIZED UPRIGHT0GLA10021
3STABILIZER W/CONNECTOR0GLA10031
4UPH PAD BRACKET0GLA10041
5FOOT ROLL TUBE 1 X 1.5 X 160GLA10051
6FOOT ROLL TUBE 1 X 1.5 X 25 3/160GLA10061
7BACK PAD0GLA10071
8FLAT WASHER SAE Z/P 3/8BNH02395
9FLAT WASHER SAE Z/P 5/16BNH41363
10FOAM ROLL 7 X 4 X 1BNH00434
11FOAM ROLL PLASTIC END CAP 1" RD X 2 3/8 RDBNH41372
12HEX HEAD CAP SCREW Z/P 3/8-16 X 1/2BNH41383
13HEX HEAD CAP SCREW Z/P 3/8-16 X 2 5/8BNH41391
14HEX HEAD CAP SCREW Z/P 5/16-18 X 1BNH41402
15HEX HEAD CAP SCREW Z/P 5/16-18 X 2 3/4BNH41411
16NYLON INSERT LOCK NUT Z/P 3/8-16BNH41421
17PLASTIC INSERT CAP 1" RDBNH41432
18PLASTIC INSERT CAP 2" SQ.BNH41443
19PLASTIC TUBE GUIDE W/LIP 60*60 (50*50)BNH41752
20RUBBER CAP W/GROOVE 2" RD.BNH41464
21RUBBER GRIP Ø33*Ø23*120LBNH41472
22TURN/ PULL PIN W/ KNOBBNH41481
23BNH29031
LABEL-DANGER USE THIS EQUIPMENT...
24BNH29061
LABEL-DANGER DO NOT REMOVE...
25BNH29071
LABEL-WARNING SERIOUS INJURY OR DEATH CAN OCCUR...
26BNH29101
LABEL-WARNING ATTENTION USERS!...
27BNH29131
LABEL-CAUTION CHECK PULL-PIN IS FULLY...
28BNH29151
LABEL-INSPECTIONS RECOMMENDED INSPECTION...
29BNH29161
LABEL-IMPORTANT FOR SMOOTH PERFORMANCE...
30BNH29171
LABEL-SCHEDULE REPLACEMENT PARTS...
LABEL-GLADIATOR BY TUFFSTUFF FITNESS
31BNH29181
LABEL-GLADIATOR SERIES SERIAL #
32BNH29191
12
EAB-35 Adjustable Abdominal Bench
Page 13
17
EAB-35 Exploded View
20
7
12
3
8
21
11
10
19
22
18
10
6
18
19
1
16
8
12
9
4
9
14
8
9
2
15
20
20
5
EAB-35 Adjustable Abdominal Bench
10
11
10
18
21
17
8
13
20
13
Page 14
Basic Exercise Guide
Use this equipment only for the exercises as shown. Know your limitations. If you are new to weight training, always start
with lighter weight, learn how to perform the exercise correctly and train at a controlled rate of speed. Warm up properly with
stretchings, calisthenics or cardiovascular exercises. Never hold your breath – general rule of thumb is to exhale when you exert.
Before working out, read and understand the Owner’s Manual, all danger, warning and caution labels listed on pages 3-4. This
equipment is for HOME use only. Obtain a medical examination before beginning any exercise program. If you feel faint, dizzy or pain, stop exercising immediately.

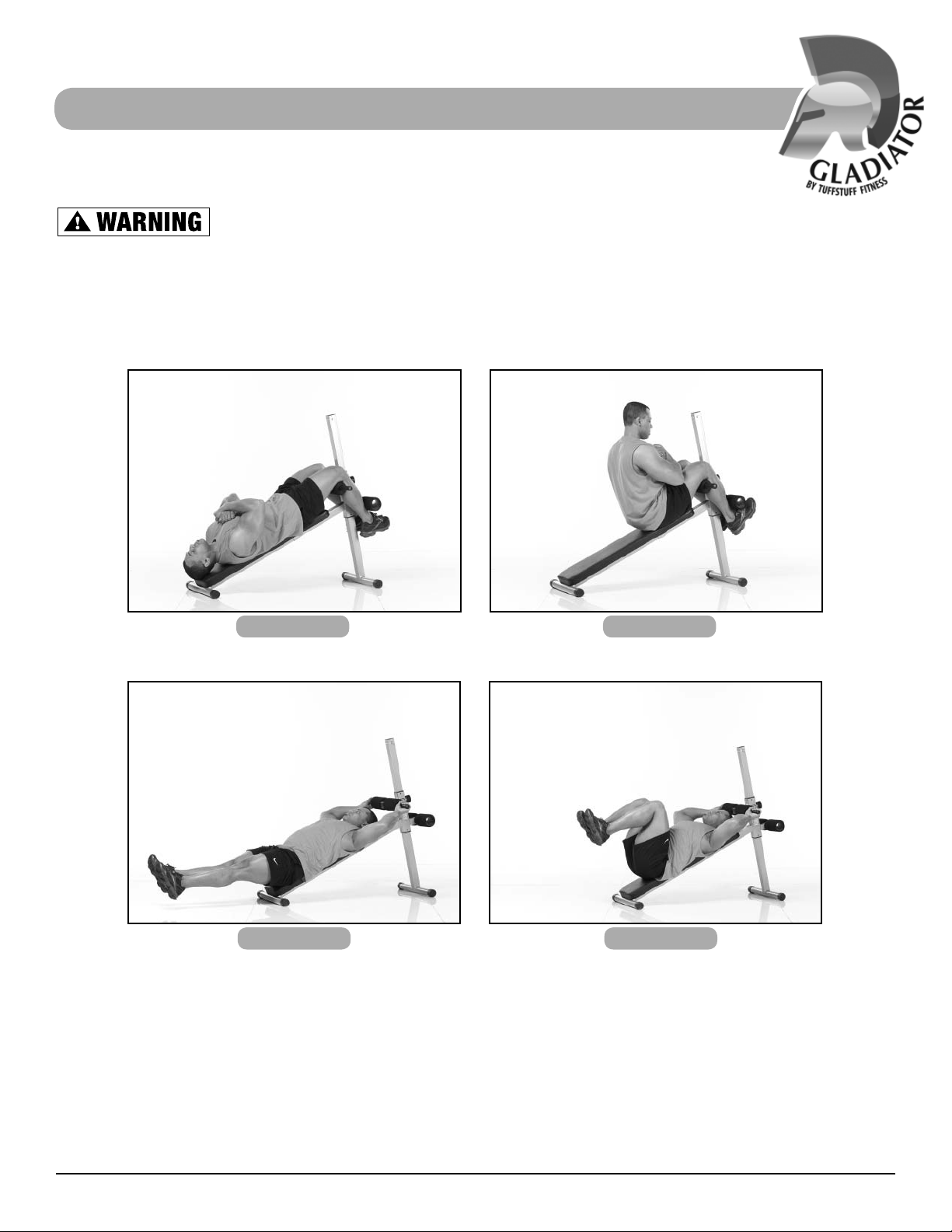

SIT-UPS:
Begin/EndMid-Range
REVERSE CRUNCH:
Begin/EndMid-Range
EAB-35 Adjustable Abdominal Bench
14
Page 15
NOTES
15
EAB-35 Adjustable Abdominal Bench
Page 16
IMPORTANT: KEEP THIS MANUAL FOR FUTURE REFERENCE
WARRANTY
This warranty applies only in the United States to the products manufactured or distributed by Tu Stu Fitness
Equipment Inc. under the Gladiator brand name. The warranty period to the original purchaser is 3 years on the frame
and 1 year on ALL parts. Tu Stu warrants that the Product you have purchased for personal, family or household use
from Tu Stu or from an authorized Tu Stu dealer is free from defects in materials or workmanship under normal use
during the warranty period. This warranty extends only to you, the original purchaser and it is not transferable to anyone.
This warranty does not cover:
A. Tu Stu products sold for and used in a commercial or institutional environment.
B. Any damage, failure or loss caused by accident, misuse, neglect, abuse, improper assembly, improper
maintenance, or failure to follow instructions or warnings in the owner’s manual and warning labels
posted on the machines.
C. Use of the product in a manner for which it was not designed.
D. It excludes expendable parts such as paint and nish.
E. Original product that is altered, or the use of replacement parts and components of another manufacturer.
F. VALID ONLY if the Product is assembled and installed according to the instructions provided in the
Owner’s manual.
The obligation of Tu Stu under this warranty is limited to repairing or replacing warranted defective parts as Tu Stu may
elect, at Tu Stu ’s facility in Chino, California without charge to the purchaser. Purchaser is responsible for installation of
repaired or replaced parts, and all transportation and insurance costs on returned or replaced equipment to and from
Tu Stu ’s facility in Chino.
THE FOREGOING SHALL CONSTITUTE THE SOLE REMEDY OF THE PURCHASER AND THE
SOLE LIABILITY OF TUFFSTUFF WITH REGARD TO WARRANTY, WHETHER EXPRESS OR
IMPLIED BY OPERATION OF LAW OR OTHERWISE, INCLUDING BUT NOT LIMITED TO
ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS. TUFFSTUFF SHALL
IN NO EVENT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL LOSSES, DAMAGES,
OR EXPENSES IN CONNECTIONS WITH EXERCISE PRODUCTS. TUFFSTUFF’S LIABILITY
HEREUNDER IS EXPRESSLY LIMITED TO THE REPAIRS OR REPLACEMENTS OF
WARRANTED DEFECTIVE PARTS.
This written warranty is the nal, complete and exclusive agreement of the parties with respect to the quality or
performance of the equipment and no action for breach of this written warranty or any implied warranty shall be
commenced more than one (1) year after the accrual of the cause of action. No modi cation of this warranty or waiver of
its terms shall be binding on either party unless approved in writing by an authorized representative of the party. Contact
Tu Stu Fitness Equipment Inc. at 13971 Norton Avenue, Chino, CA 91710, before returning any defective equipment.
This warranty gives you speci c legal rights and you may also have other rights, which may vary from state to state.
SERIAL #
Write your Serial number here for future referencePurchase Date
Gladiator is a brand name product manufactured and distributed by:
Tu Stu Fitness Equipment Inc.
13971 Norton Avenue, Chino, CA 91710, USA
Phone: 909-629-1600 Fax: 909-629-4967
service@tu stu .net service1@tu stu .net
www.tu stu directonline.com
Loading...
+ hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
