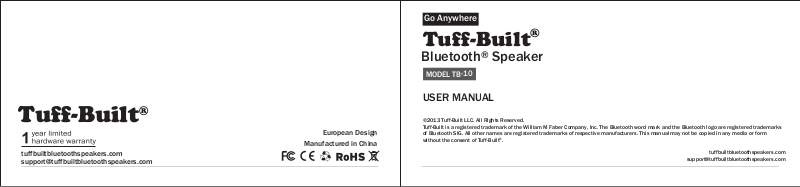

Page 1
Tuff-Built
tuffbuiltbluetoothspeakers.com
[email protected]
®
European Design
Manufactured in China
Go Anywhere
®
Tuff-Built
Bluetooth® Speaker
MODEL TB-10
USER MANUAL
©2013 Tuff-Built LLC. All Rights Reserved.
Tuff-Built is a registered trademark of the William M Faber Company, Inc. The Bluetooth word mark and the Bluetooth logo are registered trademarks
of Bluetooth SIG. All other names are registered trademarks of respective manufacturers. This manual may not be copied in any media or form
without the consent of Tuff-Built
®
.
tuffbuiltbluetoothspeakers.com
Page 2
Congratulations on your purchase of the Tuff-Built® Go Anywhere Bluetooth®
speaker, featuring the next-generation of Bluetooth sound.
Don’t let its small size fool you. The rugged, European-designed Tuff-Built® speaker
delivers room-filling, unparalleled sound. Use it to stream music from your
Bluetooth-enabled devices including phones, tablets and PCs, or as a speakerphone
to make hands-free calls.
The Tuff-Built® speaker is designed to work right out of the box. With just a few
steps, you’ll be able to pair the speaker to your Bluetooth device and begin enjoying
its amazing sound quality.
TABLE OF CONTENTS
● Product Features ...............................................................................................................................................4
● Speaker Diagram ...........................................................................................................................................5
● Operating Instructions ...................................................................................................................................6-7
● LED Light Status .............................................................................................................................................8
● Battery Charging ............................................................................................................................................9-10
● Bluetooth Pairing ...........................................................................................................................................11-12
● Troubleshooting ..............................................................................................................................................13
● Warranty ..........................................................................................................................................................14
● Contact Us ......................................................................................................................................................15
2
Tuff-Built® TB-10 Bluetooth® Speaker
Tuff-Built
®
TB-10 Bluetooth® Speaker
3
Page 3
PRODUCT FEATURES
TB-10 SPEAKER DIAGRAM
• Bluetooth® 4.0 version / A2DP next-generation technology
• Stream and control music from your Smartphone, Tablet or PC
• Works as a wireless speaker with Bluetooth-enabled devices
• Rugged rubber casing and sleek European design
• 6 powerful watts of sound
• USB port for easy charging
• 8 hours of battery playtime
• Bass Reflex System
• 3.5 mm stereo input for wired devices
Tuff-Built® TB-10 Bluetooth® Speaker
Tuff-Built
®
TB-10 Bluetooth® Speaker
1. Multi-Function Button
(press and hold to enter Bluetooth pairing mode)
2. Volume Up
3. Volume Down
4. Audio Input
5. USB Charging jack
6. On/ Off switch
5 4
Page 4

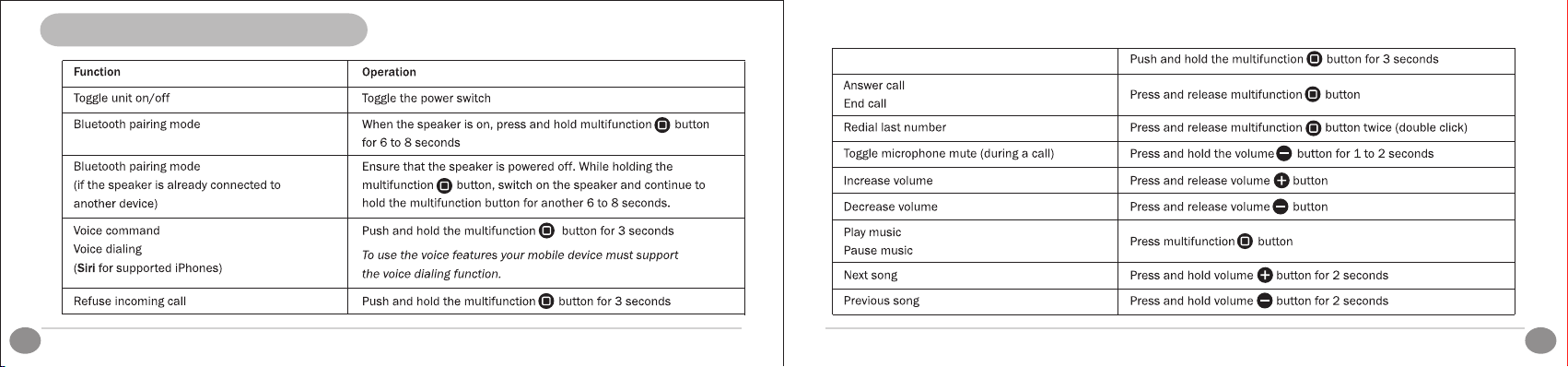

OPERATING INSTRUCTIONS
Switch and call between phone and TB-10
6 7
Tuff-Built® TB-10 Bluetooth® Speaker
®
Tuff-Built
TB-10 Bluetooth® Speaker
Page 5
LED LIGHT STATUS
BATTERY CHARGING, cont.
The TB-10 Bluetooth speaker is powered by a rechargeable battery. When the battery needs to be charged,
an alert tone will sound once every 30 seconds and the red LED light will flash. The speaker will automatically
shut down within 5 to 10 minutes if use continues.
It will take 2 to 3 hours to fully recharge the battery.
New batteries achieve the best performance after two or three complete charge and discharge cycles.
When the speaker is charging, the red LED light will be lit. The red LED will turn off when charging is complete.
Disconnect the speaker from its charging source when charging is complete. The battery can be charged and
discharged hundreds of times before it will need to be replaced.
8 9
Tuff-Built® TB-10 Bluetooth® Speaker
®
Tuff-Built
TB-10 Bluetooth® Speaker
Page 6
BATTERY CHARGING, cont.
BLUETOOTH PAIRING
Battery Recommendations and Warnings
Leaving a fully charged battery connected to a charging circuit may shorten battery life. If a fully
charged battery is left unused, the battery itself will be discharged after a period of time.
Optimal battery temperature is between 59˚ and 77˚. Avoid storing the speaker in a hot or cold
environment for long periods as this will reduce battery life.
Do not dispose of batteries in a fire in order to avoid battery explosion.
10
Tuff-Built® TB-10 Bluetooth® Speaker
Ensure that the speaker is ON. Hold the multifunction button for about 6 seconds until both the red and
the blue LED lights flash alternately.
Refer to your phone’s User Manual to turn on your phone’s Bluetooth function and search for the TB-10
Bluetooth speaker. After the phone finds the Bluetooth speaker, press OK to confirm pairing.
Enter the password or PIN #0000 if prompted, and press YES to Confirm. After a connection is made,
the blue LED light will flash every 5 seconds. If the pairing fails, both LEDs lights will continue to flash
alternately, and re-pairing is required.
®
Tuff-Built
TB-10 Bluetooth® Speaker
11
Page 7
BLUETOOTH PAIRING, cont.
TROUBLESHOOTING
Pairing mode will last 5 minutes. Durng that time, other mobile phones cannot search out the
Bluetooth speaker.
Automatic Reconnecting
If the Bluetooth speaker turned off, it will connected to the pre-set Bluetooth speaker automatically.
When the speaker is manually turned on, the TB-10 disconnects from the mobile phone if it is out
of the effective range of the speaker. The speaker will re-connect to the mobile phone within 10
minutes when the effective range is re-established.
If using Bluetooth 2.1, you do not need to enter the pairing code manually.
12
Tuff-Built® TB-10 Bluetooth® Speaker
Unable to pair to smartphone or tablet
Make sure that the speaker is in pairing mode. If you are unable to get the speaker into pairing mode, see the
Alternate Process under section Bluetooth Pairing. Re-open the Bluetooth configuration on your smartphone or
tablet and you should see the TB-10 speaker.
Speaker no longer connects to my device
Delete all existing pairings on all devices and try the pairing process again.
Speaker works with my smartphone but not my computer
The Bluetooth adapter In your computer needs to support the Stereo Bluetooth profile (A2DP). To ensure the
Bluetooth adapter for your computer is functioning correctly, update the drivers to the latest version. You may
need to verify that your computer's Bluetooth adapter supports A2DP (Advanced Audio Distribution Profile).
®
Tuff-Built
TB-10 Bluetooth® Speaker
13
Page 8
WARRANTY
Tuff-Built® warrants to the customer of record that this product is in good working condition and
free from defects in material or workmanship under normal use for a duration of 1 year after the
date of purchase. The product has been tested to meet the highest quality standards in each testing
category. In the unlikely event that the product proves to be defective, Tuff-Built
replace the product free of charge. If replacement is required and if Tuff-Built
product, then we reserve the right to substitute the product with a replacement product of like quality
and size, suitable for the intended use. This warranty is limited to repair or replacement of the
mentioned product only and is non-transferable and does not extend to any product damaged by
misuse, natural disasters or any other circumstances beyond Tuff-Built’s
not cover or provide for the reimbursement or payment of incidental or consequential damage
resulting from breach of the limited warranty described above.
14
Tuff-Built® TB-10 Bluetooth® Speaker
®
will repair or
®
no longer carries the
®
control. The warranty does
Except for the limited warranty described, we offer no other warranties expressed or implied,
and other than limited warranty expressly contained herein, we hereby disclaim any and all warranties,
including without limitation, any implied warranties of merchantability, suitability or for a particular
purpose.
CONTACT US
Please email us at [email protected] if you hve any questions or concerns
regarding your purchaase of the Tuff-Built
You can also visit us at tuffbuiltbluetoothspeakers.com for product updates and support.
®
TB-10 Bluetooth speaker.
®
Tuff-Built
TB-10 Bluetooth® Speaker
15
