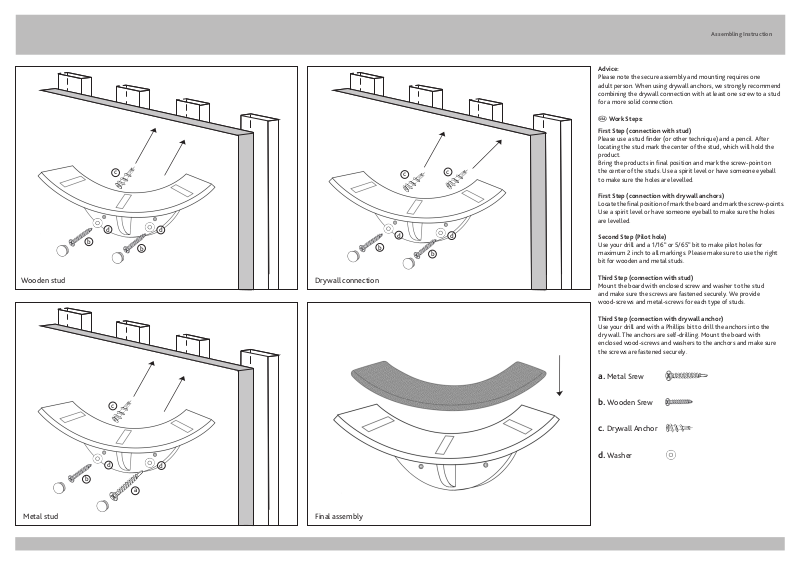

Assembling Instruction
Advice:
Please note the secure assembly and mounting requires one
adult person. When using drywall anchors, we strongly recommend
combining the drywall connection with at least one screw to a stud
for a more solid connection.
Work Steps:
First Step (connection with stud)
Please use a stud finder (or other technique) and a pencil. After
locating the stud mark the center of the stud, which will hold the
product.
Bring the products in final position and mark the screw-point on
c
d
b
d
b
b
c
d
c
d
b
the center of the studs. Use a spirit level or have someone eyeball
to make sure the holes are levelled.
First Step (connection with drywall anchors)
Locate the final position of mark the board and mark the screw-points.
Use a spirit level or have someone eyeball to make sure the holes
are levelled.
Second Step (Pilot hole)
Use your drill and a 1/16“ or 5/65” bit to make pilot holes for
maximum 2 inch to all markings. Please make sure to use the right
bit for wooden and metal studs.
Wooden stud Drywall connection
c
d
d
Third Step (connection with stud)
Mount the board with enclosed screw and washer to the stud
and make sure the screws are fastened securely. We provide
wood-screws and metal-screws for each type of studs.
Third Step (connection with drywall anchor)
Use your drill and with a Phillips bit to drill the anchors into the
dry wall. The anchors are self-drilling. Mount the board with
enclosed wood-screws and washers to the anchors and make sure
the screws are fastened securely.
a. Metal Srew
b. Wooden Srew
c. Drywall Anchor
d. Washer
b
a
Metal stud Final assembly
