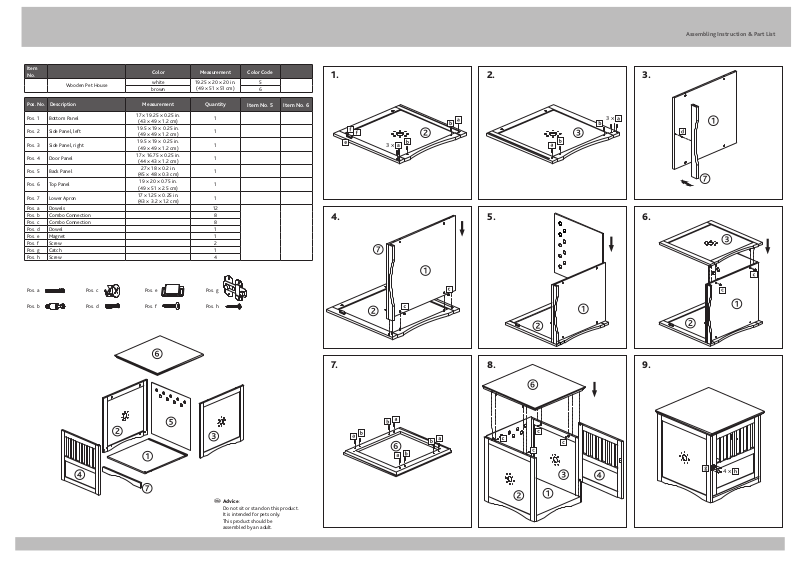

Aufbauanleitung/Assembling Instruction/Instruction de montage
Assembling Instruction & Part List
Item
No.
Wooden Pet House
Pos. No. Description Measurement Quantity
Pos. 1 Bottom Panel
Pos. 2 Side Panel, left
Pos. 3 Side Panel, right
Pos. 4 Door Panel
Pos. 5 Back Panel
Pos. 6 Top Panel
Pos. 7 Lower Apron
Pos. a Dowels 12
Pos. b Combo Connection 8
Pos. c Combo Connection 8
Pos. d Dowel 1
Pos. e Magnet 1
Pos. f Screw 2
Pos. g Catch 1
Pos. h Screw 4
Color Measurement Color Code
white
brown 6
17 × 19.25 × 0.25 in.
(43 × 49 × 1.2 cm)
19.5 × 19 × 0.25 in.
(49 × 49 × 1.2 cm)
19.5 × 19 × 0.25 in.
(49 × 49 × 1.2 cm)
17 × 16.75 × 0.25 in.
(44 × 43 × 1.2 cm)
27 × 18 × 0.2 in.
(45 × 48 × 0.3 cm)
19 × 20 × 0.75 in.
(49 × 51 × 2.5 cm)
17 × 1.25 × 0.25 in.
(43 × 3.2 × 1.2 cm)
19.25 × 20 × 20 in.
(49 × 51 × 51 cm)
1
1
1
1
1
1
1
5
Item No. 5 Item No. 6
1.
2.
3.
3 ×
3 ×
4. 5. 6.
Pos. cPos. a
Pos. b Pos. d
Pos. e
Pos. f
Pos. g
Pos. h
7. 8. 9.
4 ×
Advice:
U
Do not sit or stand on this product.
It is intended for pets only.
This product should be
assembled by an adult.
