read first REVIEW BEFORE ASSEMBLY
Dometop Roof

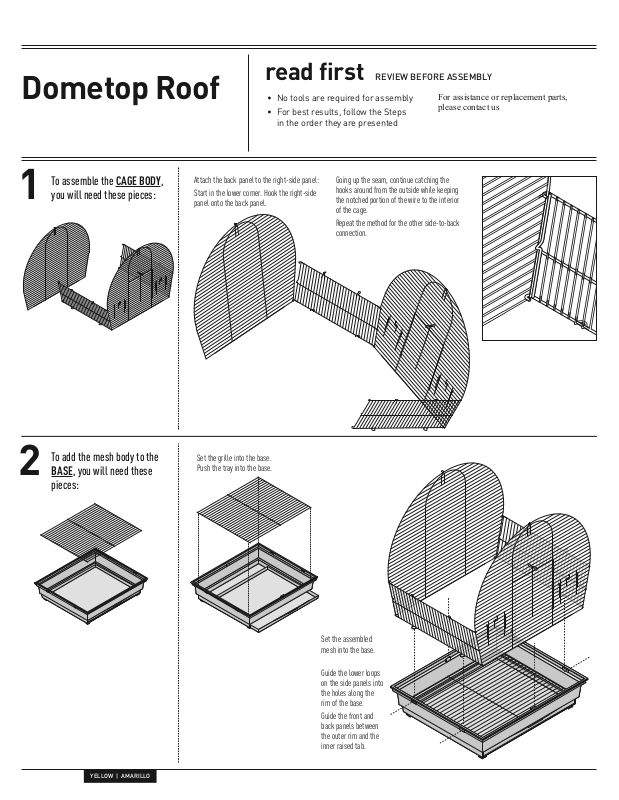

Attach the back panel to the right-side panel:
Start in the lower corner. Hook the right-side
panel onto the back panel.
1
To assemble the CAGE BODY,
you will need these pieces:
• No tools are required for assembly
• For best results, follow the Steps
in the order they are presented
Going up the seam, continue catching the
hooks around from the outside while keeping
the notched portion of the wire to the interior
of the cage.
Repeat the method for the other side-to-back
connection.
For assistance or replacement parts,
please contact us
2
To add the mesh body to the
, you will need these
BASE
pieces:
Set the grille into the base.
Push the tray into the base.
Set the assembled
mesh into the base.
Guide the lower loops
on the side panels into
the holes along the
rim of the base.
Guide the front and
back panels between
the outer rim and the
inner raised tab.
YELLOW | AMARILLO
Page 2
3
To add the ACCESSORIES,
you will need these pieces:
Assemble the two-piece cups. Carefully lift the
snap-hinge cup doors and insert the cups.
Insert the perches on a horizontal
wire at a level height.
4
To add the ROOF, you will
need these pieces:
Assemble the two-piece roof.
With the roof assembled, catch the
bottom horizontal wire of the roof
under the loops on the side panel.
Softly bend the roof mesh to
catch the roof line onto the
front and back panel loops.
Finish by catching the
roof onto the opposite
side loops.
YELLOW | AMARILLO
