Aufbauanleitung/Assembling Instruction/Instruction de montage

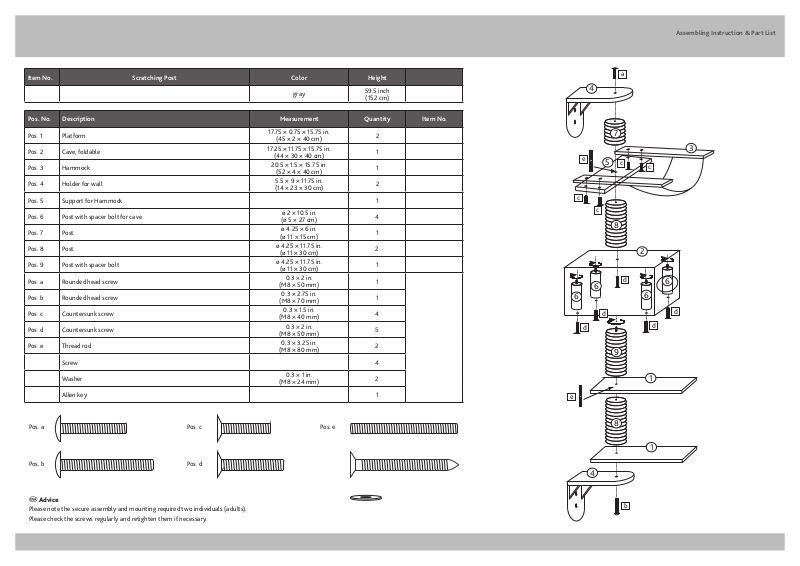

Assembling Instruction & Part List
Item No.
Pos. No. Description Measurement Quantity Item No.
Pos. 1 Platform
Pos. 2 Cave, foldable
Pos. 3 Hammock
Pos. 4 Holder for wall
Pos. 5 Support for Hammock 1
Pos. 6 Post with spacer bolt for cave
Pos. 7 Post
Pos. 8 Post
Pos. 9 Post with spacer bolt
Pos. a Rounded head screw
Pos. b Rounded head screw
Pos. c Countersunk screw
Pos. d Countersunk screw
Pos. e Thread rod
Screw 4
Scratching Post
Color Height
gray
17.75 × 0.75 × 15.75 in.
(45 × 2 × 40 cm)
17.25 × 11.75 × 15.75 in.
(44 × 30 × 40 cm)
20.5 × 1.5 × 15.75 in.
(52 × 4 × 40 cm)
5.5 × 9 × 11.75 in.
(14 × 23 × 30 cm)
ø 2 × 10.5 in.
(ø 5 × 27 cm)
ø 4.25 × 6 in.
(ø 11 × 15 cm)
ø 4.25 × 11.75 in.
(ø 11 × 30 cm)
ø 4.25 × 11.75 in.
(ø 11 × 30 cm)
0.3 × 2 in.
(M8 × 50 mm)
0.3 × 2.75 in.
(M8 × 70 mm)
0.3 × 1.5 in.
(M8 × 40 mm)
0.3 × 2 in.
(M8 × 50 mm)
0.3 × 3.25 in.
(M8 × 80 mm)
59.5 inch
(152 cm)
2
1
1
2
4
1
2
1
1
1
4
5
2
a
4
7
3
e
c
5
c
c
c
8
2
6
d
6
d
d
6
6
d
d
9
Washer
Allen key 1
Pos. a
Pos. b
Advice:
U
Please note the secure assembly and mounting required two individuals (adults).
Please check the screws regularly and retighten them if necessary.
Pos. c
Pos. d
0.3 × 1 in.
(M8 × 24 mm)
Pos. e
2
1
e
8
1
4
b
Aufbauanleitung/Assembling Instruction/Instruction de montage
Assembling Instruction
1
Stud
Wall
2
3
4
5
Screw
Washer
6
Please use a stud finder (or other
technique) and a pencil. After locating the stud mark the center of the
stud, which will hold the product.
Use the top-holder to mark the two
holes for the final position of the
top holder.
Advice:
U
Please note the secure assembly and mounting required two individuals (adults).
Please check the screws regularly and retighten them if necessary.
Assemble the complete cat tree as
shown in the manual.
Bring the cat tree in final position with
the top holder matching the markings.
Second person is using a spirit level
or eyeballs how the bottom holder
should sit on the stud. Mark the holes
for the bottom holder with the pencil.
Use your drill and the 1/16“ bit to
make pilot holes for maximum 2 inch
to all 4 markings.
Unscrew the top holder for the post
and mount the top holder to the wall
as shown.
Don’t fasten the screws all the way.
This will allow to shift the holder up
and down during final assembly.
Screw
Mount the cat tree with bottom holder to the wall and connect the top
post with the top holder.
Make sure all screws are tightened
securely.
