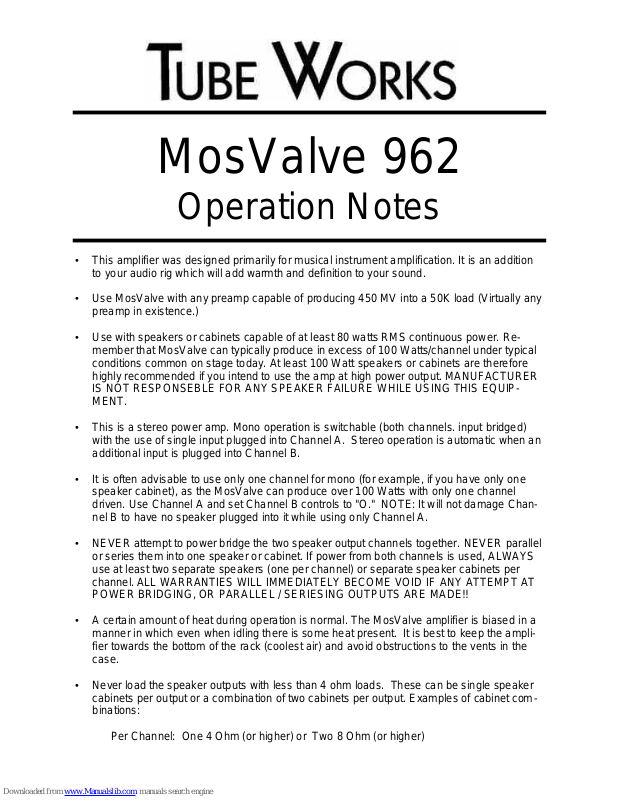

Tube Works MosValve 962 Operation Notes

MosValve 962

Operation Notes

• This amplifier was designed primarily for musical instrument amplification. It is an addition

to your audio rig which will add warmth and definition to your sound.

• Use MosValve with any preamp capable of producing 450 MV into a 50K load (Virtually any

preamp in existence.)

• Use with speakers or cabinets capable of at least 80 watts RMS continuous power. Re-

member that MosValve can typically produce in excess of 100 Watts/channel under typical
conditions common on stage today. At least 100 Watt speakers or cabinets are therefore
highly recommended if you intend to use the amp at high power output. MANUFACTURER
IS NOT RESPONSEBLE FOR ANY SPEAKER FAILURE WHILE USING THIS EQUIP­MENT.

• This is a stereo power amp. Mono operation is switchable (both channels. input bridged)

with the use of single input plugged into Channel A. Stereo operation is automatic when an
additional input is plugged into Ch annel B.

• It is often advisable to use only one channel for mono (for example, if you have only one

speaker cabinet), as the MosValve can produce over 100 Watts with only one channel
driven. Use Channel A and set Channel B controls to "O." NOTE: It will not damage Chan­nel B to have no speaker plugged into it while using only Channel A.

• NEVER attempt to power bridge the two speaker output channels together. NEVER parallel

or series them into one speaker or cabinet. If power from both channels is used, ALWAYS
use at least two separate speakers (one per channel) or separate speaker cabinets per
channel. ALL WARRANTIES WILL IMMEDIATELY BECOME VOID IF ANY ATTEMPT AT
POWER BRIDGING, OR PARALLEL / SERIESING OUTPUTS ARE MADE!!

• A certain amount of heat during operation is normal. The MosValve amplifier is biased in a

manner in which even when idling there is some heat present. It is best to keep the ampli­fier towards the bottom of the rack (coolest air) and avoid obstructions to the vents in the
case.

• Never load the speaker outputs with less than 4 ohm loads. These can be single speaker

cabinets per output or a combination of two cabinets per output. Examples of cabinet com­binations:

Per Channel: One 4 Ohm (or higher) or Two 8 Ohm (or higher)

TECHNICAL SPECS

OUTPUT POWER — 160 Watts RMS at 4 Ohms (80 watts per channel, both channels driven)
S/N RATIO — Better than 95 dB at 8 Ohms
HUM & NOISE — Better than -65 dBv at 8 Ohms (No input with controls at maximum)
SENSITIVITY — (For Rated Output): 450 MV (-5 dBv)
INPUT IMPEDANCE — 50 K Ohms
PRESENCE CONTROL — +/- 8 dB at IO KHZ (I 6 dB range)
MAX POWER CONSUMPTION — 120 VAC, 400 Watts (220-240 VAC, 50/60 HZ: 200 Watts)
COOLING SYSTEM — Constant-turbulence internal fan
SHORT-CIRCUIT PROTEC TION — Inherent to the design, thermal runaway-proof
SIZE — 3 1/2" H x 19" W x 7" D (Standard 2-space rackmount format)

(D = behind front panel)

OVERALL DEPTH — 8 1/2"
WEIGHT — 13 Lbs.

WARRANTY

Your TUBE WORKS product is warranted for a period of three years against defects in work­manship or materials in the electronic components. The speaker(s), reverb tank and cabinet (if
applicable) are warranted for a period of ninety (90) days. This warranty applies only to the
original registered owner provided he/she has returned a completely filled-out OWNER’S REG­ISTRATION CARD within fifteen (15) days of purchase. This warranty covers parts and labor
only; shipping charges remain the sole responsibility of the owner. Damage due to misuse,
modification or abuse is excluded from this warranty. If service is required, you must contact
Genz Benz Enclosures/Tube Works for a RETURN MERCHANDISE AUTHORIZATION NUM-
BER (RMA) by calling 480-941-0705. Whenever possible please use original packaging ma­terial for all returns, this will insure that the units are not further damaged in transit.

WARNING!!!

The use and operation of this device constitutes an agreement of full release of any and all li­ability connected with such use. Only personnel familiar with high-power audio equipment
should attempt to operate this device. In addition, by the use of this device, user agrees to
hold Genz Benz Enclosures/Tube Works, its designers, sales agents and all other affiliates and
related parties harmless in the event of any accident, injury, damage or loss resulting from
such use. Manufacturer's sole responsibility is to provide a warranty on the specified perform­ance of the product under normal conditions for a one-year period.

a division of Genz Benz Enclosures, Inc.

7811 E. Pierce St. ¿ Scottsdale, AZ 85257

Ph; 480-941-0705 Fax: [phone]

www.genzbenz.com
