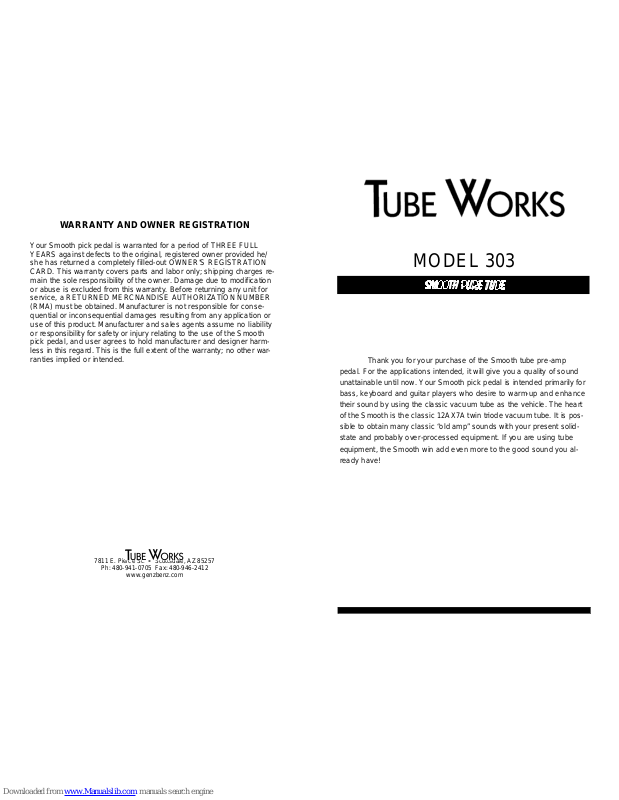

Page 1
WARRANTY AND OWNER REGISTRATION
Your Smooth pick pedal is warranted for a period of THREE FULL
YEARS against defects to the original, registered owner provided he/
she has returned a completely filled-out OWNER’S REGISTRATION
CARD. This warranty covers parts and labor only; shipping charges remain the sole responsibility of the owner. Damage due to modification
or abuse is excluded from this warranty. Before returning any unit for
service, a RETURNED MERCNANDISE AUTHORIZATION NUMBER
(RMA) must be obtained. Manufacturer is not responsible for consequential or inconsequential damages resulting from any application or
use of this product. Manufacturer and sales agents assume no liability
or responsibility for safety or injury relating to the use of the Smooth
pick pedal, and user agrees to hold manufacturer and designer harmless in this regard. This is the full extent of the warranty; no other warranties implied or intended.
7811 E. Pierce St. § Scottsdale, AZ 85257
Ph: 480-941-0705 Fax: 480-946-2412
www.genzbenz.com
MODEL 303
Thank you for your purchase of the Smooth tube pre-amp
pedal. For the applications intended, it will give you a quality of sound
unattainable until now. Your Smooth pick pedal is intended primarily for
bass, keyboard and guitar players who desire to warm-up and enhance
their sound by using the classic vacuum tube as the vehicle. The heart
of the Smooth is the classic 12AX7A twin triode vacuum tube. It is possible to obtain many classic “old amp” sounds with your present solidstate and probably over-processed equipment. If you are using tube
equipment, the Smooth win add even more to the good sound you already have!
Page 2

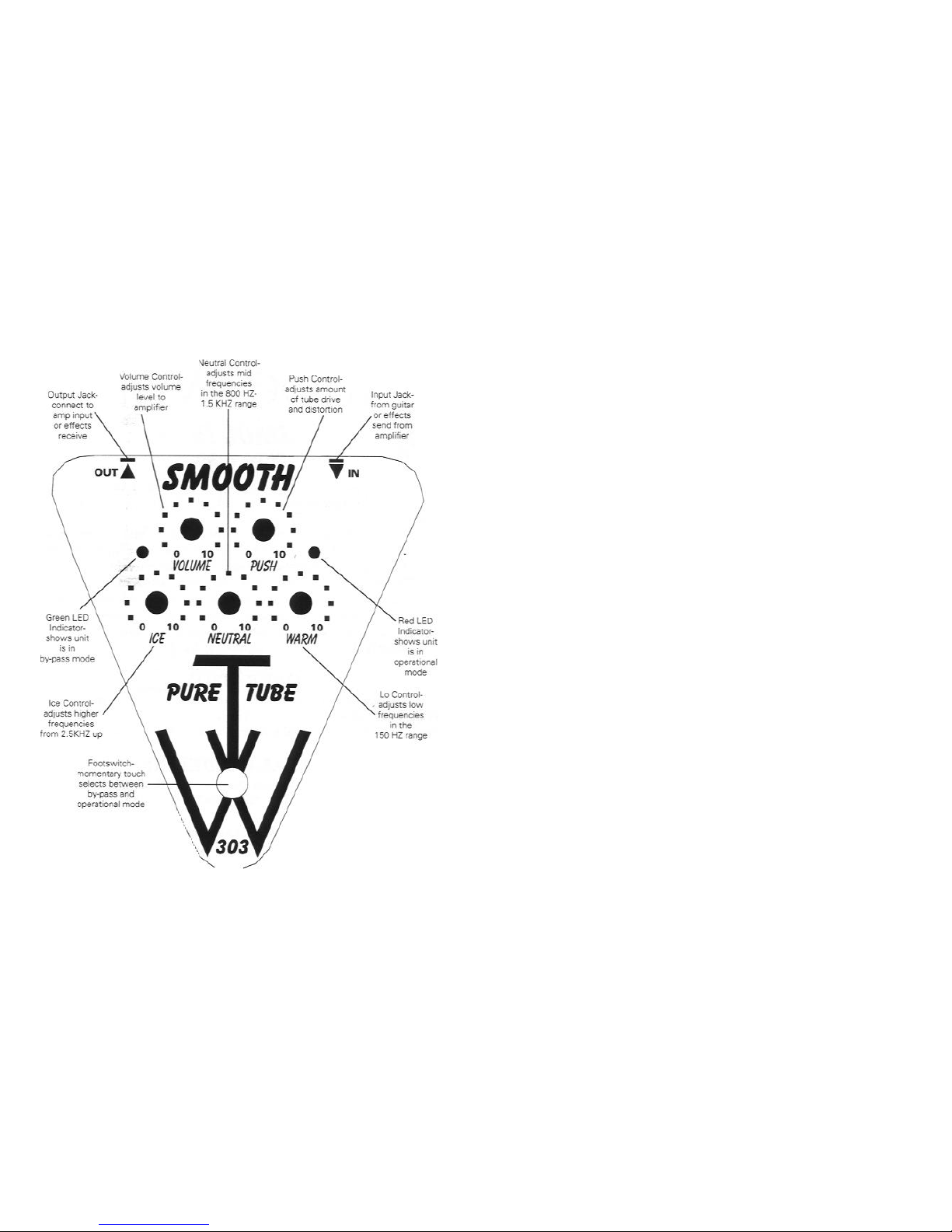

OPERATION
The Smooth is capable of a very good range of applications. While a
pedal always has certain limitations vs. Rack systems, care has been
taken to make your pedal as “pro” as possible.
GENERAL GUIDELINES
1. In order to get the cleanest possible sound, set the Volume control
to maximum and us the "Push" control as you would a standard volume control.
2. To get more Tube coloration and some overdrive, reduce the Volume control setting and increase the Push control setting.
SPECIFICATIONS
GENERAL NOTES
Although the Smooth is very ruggedly housed ]in heavy gauge steel,
care should be given to the unit as tubes are made from glass. Avoid
physical abuse. A soft touch to the foot switch is all that is needed to
switch the unit. You will note the absence of a power switch on the
Smooth. This was intentional on the part of the designer. There is no
possibility of unwanted power loss during a performance, and power
switches are just one more area of eventual wear- out that has been
avoided. The Smooth has been designed for prolonged periods of continuous use without overheating or damage. It has been observed that
the Smooth sound is actually enhanced with use as the tube ages.
VOLTAGE REQUIREMENT : 120 VAC, 9 WATTS
TUBE TYPE :12AX7/ECC83-SELECTED
INPUT IMPEDANCE :1 MEG. OHMS
SIN RATIO :70 dB (Typical)
HUM & NOISE :-85 dB (Typical)
OUTPUT HAPEDANCE :10K OHMS
OUTPUT LEVEL :0 dBV (.78 V Typical)
WEIGHT :3 lbs. shipping
