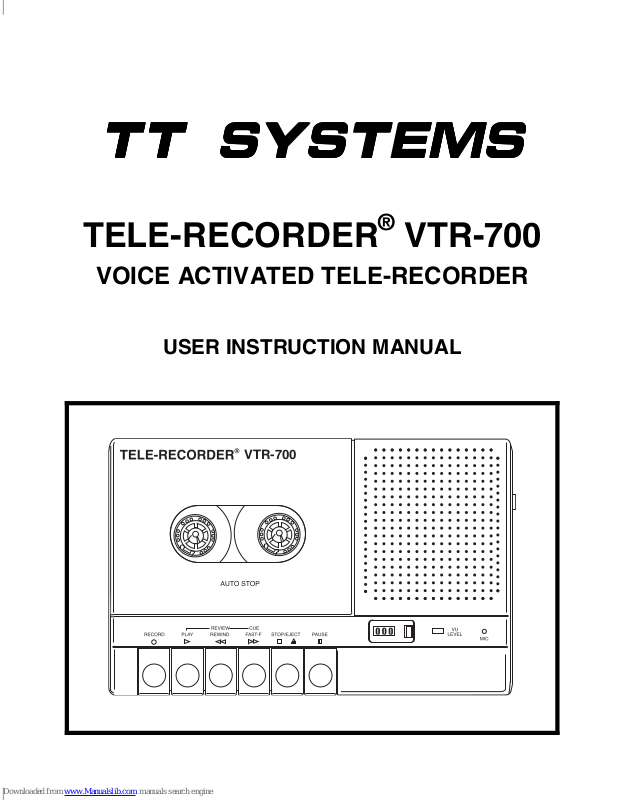

TELE-RECORDER® VTR-700
VOICE ACTIVATED TELE-RECORDER
USER INSTRUCTION MANUAL
VTR-700
1
TABLE OF CONTENTS
Important Safety Instructions
.................................................................. 3
Battery Cautionary Information
FCC Information
Features
Control Locations
Installation
Operation
.....................................................................................................6
.................................................................................................9
Battery Installation ............................................................................... 9
Single Line Telephone Installation .................................................... 10
Multi-Line Telephone Installation .......................................................11
................................................................................................. 12
Using the Record key ........................................................................ 12
Using the Play key ............................................................................. 12
Using the Review/Rewind key ........................................................... 13
Using the Cue/FF key ........................................................................ 14
Using the Stop/Eject key ...................................................................15
Using the Pause key .......................................................................... 15
Using the Tape Counter .................................................................... 16
Using the VU/Level LED .................................................................... 16
........................................................................................5
.....................................................................................7
...............................................................4
Using the Volume Control ................................................................. 17
Cassette Tape Compartment ............................................................ 17
Setting the Beep Tone switch ............................................................18
Remote Jack & Mic Jack ................................................................... 19
Using the Earphone Jack ..................................................................20
Setting the Monitor switch ................................................................. 20
Setting the Record Mode switch ........................................................ 21
Setting the Tape Speed switch .......................................................... 21
Setting the L/M/H Sensitivity switch .................................................. 22
Recording using the built-in microphone ...........................................23
Automatic Recording from the Telephone Line ................................. 24
Playing back recordings ....................................................................25
Maintenance ...................................................................................... 26
Limited Warranty ............................................................................... 27
2
IMPORTANT SAFETY INSTRUCTIONS
1 When using your telephone equipment, basic safety precautions should always be followed to reduce the risk
of fire, electric shock and injury to persons, including the following:
2 Read and understand all instructions.
3 Follow all warnings and instructions marked on the product.
4 Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a
damp cloth for cleaning.
5 Do not use this product near water, for example, near a bathtub, wash bowl, kitchen sink, or laundry tub, in a
wet basement, or near a swimming pool.
6 Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious damage to
the product.
7 Slots and openings in the cabinet and the back or bottom are provided for ventilation, to protect it from
overheating, these openings must not be blocked or covered. The openings should never be blocked by
placing the product on the bed, sofa, rug, or other similar surface. This product should never be placed near or
over a radiator or heat register. This product should not be placed in a built-in installation unless proper
ventilation is provided.
8 This product should be operated only from the type of power source indicated on the marking label. If you are
not sure of the type of power supply to your home, consult your dealer or local power company.
9 Do not allow anything to rest on the power cord. Do not locate this product where the cord will be abused by
persons walking on it.
10 Do not overload wall outlets and extension cords as this can result in the risk of fire or electric shock.
11 Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage
points or short out parts that could result in a risk of fire or electric shock. Never spill liquid of any kind on the
product.
12 To reduce the risk of electric shock, do not disassemble this product, but take it to a qualified serviceman when
some service or repair work is required. Opening or removing covers may expose you to dangerous voltages
or other risks. Incorrect reassembly can cause electric shock when the appliance is subsequently used.
13 Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following
conditions :
a. When the power supply cord or plug is damaged or frayed.
b. If liquid has been spilled into the product.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally by following the operating instructions. Adjust only those controls that
are covered by the operating instructions because improper adjustment of other controls may result in damage
and will often require extensive work by a qualified technician to restore the product to normal operation.
e. If the product has been dropped or the cabinet has been damaged.
f. If the product exhibits a distinct change in performance.
14 Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of
electric shock from lightning.
15 Do not use the telephone to report a gas leak in the vicinity of the leak.
SAVE THESE INSTRUCTIONS
3
BATTERY CAUTIONARY INFORMATION
CAUTION - To Reduce the Risk of Fire or Injury to Persons, Read and Follow these
Instructions
1. Use only the following type and size of battery: Four (4) AAA size 1.5 volt (24A)
carbon zinc or alkaline batteries.
2. Do not dispose of the battery in a fire. The cell may explode. Check with local codes
for possible special disposal instructions.
3. Do not open or mutilate the battery. Released electrolyte is corrosive and may cause
damage to the eyes or skin. It may be toxic if swallowed.
4. Exercise care in handling batteries in order not to short the battery with conductor
material such as rings, bracelets, and keys. The battery or conductor may overheat
and cause burns.
5. Do not attempt to recharge the battery provided with or identified for use with this
product by heating them. The batteries may leak corrosive electrolyte or explode.
6. Do not attempt to rejuvenate the battery provided with or identified for use with this
product by heating them. Sudden release of the battery electrolyte may occur
causing burns or irritation to eyes or skin.
.
7. All batteries should be replaced at the same time. Mixing fresh and discharged
batteries could increase internal cell pressure and rupture the discharged batteries.
8. When inserting batteries into this product, the proper polarity or direction must be
observed. Reverse insertion of batteries can cause charging, which may result in
leakage or explosion.
9. Remove the batteries from this product if the product will not be used for a long
period of time (several months or more) since during this time the battery could leak,
damaging the product.
10. Discard “dead” batteries as soon as possible since “dead” batteries are more likely to
leak in the product.
11. Do not store this product, or the batteries provided with or identified for use with this
product in high-temperature areas. Batteries that are stored in a freezer or
refrigerator for the purpose of extending shelf life should be protected from
condensation during the storage and defrosting. Batteries should be stabilized at
room temperature prior to use after cold storage
4
FCC INFORMATION
This equipment complies with Part 68 of the FCC Rules. On the bottom or back of
this equipment is a label that contains, among other information, the FCC
Registration Number and Ringer Equivalence Number (REN) for this equipment.
Upon request, you must provide this information to your telephone company.
The REN is useful to determine the quantity of devices you may connect to your
telephone line and still have all of those devices ring when your telephone number
is called. In most, but not all areas, the sum of the REN's of all devices connected
to one line should not exceed five (5).
If your telephone equipment causes harm to the telephone network, the telephone
company may discontinue your service temporarily. If possible, they will notify you
in advance. If advanced notice isn't practical, you will be notified as soon as
possible. You will be informed of your right to file a complaint with the FCC.
Your telephone company may make changes in its facilities, equipment, operations
or procedures that could affect the proper functioning of your equipment. If they do,
you will be notified in advance to give you an opportunity to maintain uninterrupted
telephone service.
If you experience trouble with this telephone equipment, disconnect this equipment
from the network until the problem has been corrected or until you are sure the
equipment is not malfunctioning.
IMPORTANT: If you have either a party line or pay telephone, the telephone
company will not allow installation of the VTR-700 because it will not work
correctly with these types of equipment.
Under the FCC registration program, no customer is authorized to repair this
equipment. This applies to equipment both in and out of warranty. If such
unauthorized repair is performed, the registration of the equipment will be null
and void. If the equipment is still in warranty, the remainder of the warranty
period will also be null and void. It is the responsibility of users requiring
service to report the need for service to TT SYSTEMS LLC. They will make the
necessary arrangements for repair or replacement. Should you have any
questions about the operation of your VTR-700, please call
Monday through Friday
Eastern time.
, between the hours of
9:00 A.M
914-968-2100
5:00 P.M
. to
,
.
5
FEATURES
The VTR-700 allows you to make automatic taped records of all your
phone calls. The VTR-700 is compact, and is simple to install, just plug
into existing modular telephone jack. The VTR-700 can be used with
most telephones including electronic KSU type multi-line systems
when used with the included handset adapter.
Dual tape speed - 1 7/8 ips standard, or 15/16 ips long play
•
Automatic record level
•
One touch record and play
•
Rewind/fast forward controls
•
Cue and review
•
Stop/tape cassette eject
•
Pause control
•
Playback level volume control
•
Automatic end of tape record disengage
•
Tape counter with reset button
•
Vox/Normal select switch
•
Voice controlled (VOX) start and stop function
•
Low/Med/Hi voice (VOX) activation sensitivity switch
•
Built-in condenser microphone for normal recording
•
Monitor switch for listening during the call
•
Optional beep tone every 15 seconds
•
External microphone jack
•
LED Record/Battery check indicator
•
Earphone jack for private listening
•
FCC approved
•
Compatible with most multi-line telephone systems
•
AC or battery powered operation (batteries not included)
•
Handset adapter, telecord, C-60 tape, AC power adapter included
•
6
CONTROL LOCATIONS
FIGURE 1
11
TOP PANEL CONTROLS
VTR-700
1 2 3 4 5 6
1. RECORD KEY 7. DIGITAL TAPE COUNTER
2. PLAY KEY 8. VU LEVEL LED
3. REVIEW/REWIND KEY 9. TAPE COUNTER RESET BUTTON
4. CUE/FAST FORWARD KEY 10. BUILT-IN CONDENSER MICROPHONE
5. STOP KEY 11. CASSETTE TAPE COMPARTMENT
6. TAPE PAUSE KEY
7
7 8
9
10
CONTROL LOCATIONS - continued
FIGURE 2
REAR PANEL CONTROLS
MIC
TEL
EAR
DC 6V 300mA
OFF ON
MONITOR
VOX NORM
REC MODE
STD EXT
SPEED
12
13
14
15
16
17
RIGHT SIDE VIEW
VOLUME
18
12. TELEPHONE LINE JACK 17. TAPE SPEED CONTROL SWITCH
13. EARPHONE JACK 18. VOLUME CONTROL
14. 6V DC POWER JACK 19. BEEP ON/OFF SWITCH
15. SOUND MONITOR ON/OFF SWITCH 20. BATTERY COMPARTMENT
16. REC MODE SWITCH 21. H/M/L SENSITIVITY SWITCH
19
20
8
21
INSTALLATION
BATTERY INSTALLATION
Four 1.5 volt, AA size batteries (not included) can be used instead of
the AC power adapter included with the VTR-700.
1. Remove the battery compartment cover located on the bottom
surface of the unit.
2. Insert 4 AA size alkaline batteries, making certain to insert each
battery in the correct direction. Be sure to observe the correct
polarity markings which can be found inside the battery
compartment.
3. If the VTR-700 is stored for long periods of time, or mainly used with
the DC 6 Volt power adapter, remove the batteries to prevent possible battery leakage damage to your recorder.
BATTERY COMPARTMENT
9
INSTALLATION - continued
SINGLE LINE TELEPHONE LINE INSTALLATION
The VTR-700 must be connected to the same telephone line that you
want to record.
1. All conversations can be recorded from any extension telephone
connected to the same telephone line as the VTR-700.
2. Locate an existing RJ-11 modular wall jack and confirm that it is
connected to the phone line you are going to record.
3. insert the small prong of the supplied dual pronged telecord into the
VTR-700
REM
jack and the large prong into the
MIC
jack.
4. Plug the modular end of the dual prong telephone line cord into the
RJ-11 modular wall jack.
10
INSTALLATION - continued
MULTI-LINE TELEPHONE INSTALLATION
A handset adapter has been included to conveniently connect the
VTR-700 to most multi-line telephones that have a fully modular
handset cord. Conversations can be recorded, one at a time, from the
line that is in use at the telephone where the VTR-700 is installed.
1. Remove the modular handset cord plug from the telephone base,
and insert the modular Handset Adapter plug into the handset jack.
2. Insert the handset cord plug into the smaller modular jack located
on the Handset Adapter.
3. Insert the VTR-700 modular telecord plug into the larger modular
jack located on the Handset Adapter.
4. When the Handset Adapter is used to connect the VTR-700 to your
telephone, the beep tone is not heard on the telephone line.
11
OPERATION
USING THE RECORD KEY
Pressing the
as well as the recording circuitry to create clear, precise recordings. Built-in
Automatic Record Level (ARL) circuitry eliminates the need for additional
recording controls.
IMPORTANT:
(with its record tab intact) has been inserted into the cassette
compartment.
1. When the tape reaches it’s end, recording will stop and the
will automatically disengage. Rewind the tape to resume normal
operation.
RECORD
Prior to depressing the
key engages the cassette tape deck mechanism
REC
key, make sure that a tape
REC
key
USING THE PLAY KEY
To listen to previously recorded tapes, set the
NORMAL
IMPORTANT: Failure to set the VOX/NORMAL switch to the NORMAL
position will prevent you from playing back a recorded tape.
1. Press the
comfortable listening level.
position.
PLAY
key, and adjust the
12
VOX/NORMAL
VOLUME
control as required for
switch to the
OPERATION - continued
2. When the tape reaches it’s end, playback will stop, and the
key will automatically disengage. Rewind the tape to resume normal
operation.
USING THE REVIEW/REWIND KEY
The
partially during playback, depress the
the tape begins to rewind.
REVIEW/REWIND
key is a dual function control. To rewind a tape
REVIEW/REWIND
button until
PLAY
1. The tape will rewind until the
which point the tape will resume to play.
REVIEW/REWIND
13
key is released, at
OPERATION - continued
2. To rapidly rewind the tape, press the
engages. The tape will rewind to the beginning.
3. To stop at other points, press the
4. When the tape finishes rewinding, the end of tape autostop will
automatically disengage the
rewind operation.
USING THE CUE/FF KEY
The
during playback, press the
rapidly.
CUE/FF
key is a dual function control. To advance a tape partially
CUE/FF
STOP/EJECT
REVIEW/REWIND
key until the tape begins to advance
REVIEW/REWIND
key when desired.
key and cancel the
key until it
1. The tape will advance until the
tape play will resume automatically.
2. To rapidly advance the tape, press the
The tape will automatically advance to the end.
3. To stop at other points, press the
4. In record, playback, or fast forward modes, the end of tape autostop will
automatically disengage the
reached.
CUE/FF
STOP/EJECT
CUE/FF
key when the end of the tape is
14
key is released at which point
CUE/FF
key until it engages.
key.
OPERATION - continued
USING THE STOP/EJECT KEY
The
STOP/EJECT
key is a dual purpose control. Press the
key lightly to stop the cassette tape in any mode.
1. Press the
STOP/EJECT
key until it engages to open the cassette
tape compartment lid and eject the tape.
USING THE PAUSE KEY
STOP/EJECT
Pressing the
or record operation. The
PAUSE
key stops the cassette tape motion during playback
PAUSE
feature allows you to conveniently edit
the tape while recording, or when playing back short segments of tape
without leaving the selected mode of operation.
15
OPERATION - continued
1. Press and engage the
PAUSE
key to stop the tape in record or
playback mode.
2. Depress the
PAUSE
key a second time to resume tape motion.
USING THE TAPE COUNTER
The tape counter provides easy reference for cassette tape indexing.
1. The tape counter digits can be reset at any time to
000
by pressing
the reset button.
VU
LEVEL
MIC
USING THE VU/LEVEL LED
The
VU/LEVEL
led will flash during recording mode and if there is a
recording on the tape in playback mode.
1. If you are using batteries, the flashing serves to indicate that the
batteries are installed properly and are usable for recording and playback.
2. If you are using an AC power adapter instead of batteries, the flashing
indicates that the AC power adapter is connected properly.
VU
LEVE
MIC
16
OPERATION - continued
USING THE VOLUME CONTROL
To listen to your calls, turn the
VOLUME
control in a counter-clockwise
direction to increase the sound level.
1. Adjust the volume control until you have a set comfortable sound
level.
VOLUME
Volume
Control
CASSETTE TAPE COMPARTMENT
Press the
partment cover. Press the
STOP/EJECT
key partially to open the cassette tape com-
STOP/EJECT
key completely to eject the
tape.
1. Open the cassette tape compartment cover and insert a blank tape
cassette. The exposed tape side of the cassette must be facing
toward the front of the unit.
2. Confirm that the cassette tape is properly seated before closing the
cassette tape compartment cover.
17
OPERATION - continued
USING THE BEEP TONE SWITCH
If desired, the VTR-700 can produce a beep tone on the telephone line
every 15 seconds during telephone line recording.
1. The
BEEP TONE
slide switch is located inside the battery
compartment.
2. Remove the battery cover and locate the
BEEP TONE
slide switch.
Remove batteries (not included) if previously installed, to provide
access to the switch.
3. Set the
BEEP TONE
switch to the
ON
position.
4. When the Handset Adapter is used to connect the VTR-700 to your
telephone, the beep tone is not heard on the telephone line.
18
OPERATION - continued
REMOTE JACK & MIC JACK
To record from the telephone line, insert the small prong of the supplied dual pronged telecord into the
into the
MIC
jack.
REMOTE
jack and the large prong
1. Plug the remaining end of the modular telecord into any modular
jack that is connected to the telephone line to be recorded.
2. To use the VTR-700 as a regular tape recorder, remove the dual
prong end of the telecord from the
REM
and
MIC
jacks. This
activates the built-in condenser microphone which is not affected by
the volume control setting.
2. To record from an external microphone, plug a single prong external
microphone into the
MIC
jack.
DC 6V JACK
The DC 6V jack allows the VTR-700 to operate from an external 6 volt
power source.
MIC
EAR
TEL
DC 6V 300mA
OFF ON
MONITOR
VOX NOR M
REC MODE
STD EXT
SPEED
19
OPERATION - continued
USING THE EAR JACK
An earphone (not included) with a 1/8 inch phone plug may be inserted
into the
EAR
jack for private listening ofAC powered.
MIC
TEL
EAR
DC 6V 300mA
OFF ON
MONITOR
VOX NORM
REC MODE
STD EXT
SPEED
USING THE MONITOR SWITCH
Set the
MONITOR
switch to the
automatically recorded. Adjust the
sound level.
ON
20
position to listen to a call being
VOLUME
control to a comfortable
OPERATION - continued
1. If you are a party of the conversation being recorded and located
near the VTR-700, do not engage the
VOLUME
2. Failure to lower the
control is turned to its lowest point.
VOLUME
control may cause an audio feedback
MONITOR
switch unless the
or squealing sound to occur through your telephone handset.
USING THE RECORD MODE SWITCH
Place the
RECORD MODE
switch in the
VOX
position whenever voice
activated recording operation is desired.
1. If voice activated recording is not desired, set the
switch to the
2. To playback recorded tapes, place the
NORMAL
the
NORMAL
position.
position.
RECORD MODE
RECORD MODE
switch in
USING THE SPEED SWITCH
The dual speed control allows selection of either standard 1-7/8 ips or
long play
1. The long play speed provides a recording time twice that stated on
the cassette.
15
/
ips tape speeds.
16
21
OPERATION - continued
2. For example, a 60 minute cassette tape will record at twice the time
or 60 minutes per side for a total of 120 minutes.
3. The long play speed is more economical when recording a
conversation where a standard cassette speed would often
necessitate the frequent changing of tapes.
4. It is not recommended to use a cassette tape longer than a C-90.
The tape used in a C-120 cassette is very thin and may break easily
or cause damage to the tape drive mechanism.
USING THE L/M/H SENSITIVITY SWITCH
The
level so that the tape will start and stop correctly.
Set the
telephone lines may have more "line noise" than normally expected.
L/M/H SENSITIVITY
L/M/H SENSITIVITY
switch sets the VTR-700 activation sensitivity
switch in the
HIGH (H)
position. Some
22
OPERATION - continued
2. If the tape does not stop when 6 to 8 seconds of silence occurs
during speaking, or hanging up the telephone, set the
to either the
MEDIUM (M)
LOW (L)
or
position.
RECORDING USING THE BUILT-IN MICROPHONE
The VTR-700 can be used as a regular tape recorder by removing the
dual prong end of the telephone line cord from the
jacks. This activates the built-in condenser microphone allowing
conference and memoranda recording without using an external
microphone. The built-in microphone is not affected by the volume
control setting.
To record from an external microphone, plug a single prong external
microphone into the
1. For voice activated recording, set the
VOX
position.
MIC
jack.
VOX/NORMAL
L/M/H
REM
switch to the
switch
and
MIC
3. Depress the tape counter
of the recording.
4. Press and engage the
5. Speak in a normal tone of voice and the tape should start to move.
The tape should stop whenever 6 to 10 seconds of silence occurs.
6. If the tape does not stop with 6 to 10 seconds of silence, the
background noise is too high. Set the
M
or L position.
7. If vox activation is not desired, set the
NORMAL
position.
RESET
RECORD
button to reference the beginning
button.
L/M/H
VOX/NORMAL
23
sensitivity switch to the
switch to the
OPERATION - continued
AUTOMATIC RECORDING FROM TELEPHONE LINE
To record automatically from the telephone line, confirm that the dual
prong telecord is plugged into the VTR-700
IMPORTANT, DO NOT USE THE VTR-700 ON A PARTY LINE, SINCE
IT WILL RECORD THE CONVERSATIONS OF ALL PARTIES. THIS
WOULD BE UNLAWFUL. FEDERAL LAW REQUIRES THE CONSENT
OF ALL PARTIES IN A CONVERSATION BEFORE THE CONVERSATION CAN BE RECORDED. CHECK YOUR STATE AND LOCAL
REGULATIONS FOR FURTHER GUIDELINES
1. Depress the tape counter reset button to reference the beginning of
the recording.
2. Confirm that the
3. Depress and engage the
4. Lift the telephone handset from the cradle, the VTR-700 tape should
VOX/NORMAL
RECORD
switch is set in the
button.
REM
.
and
MIC
VOX
jacks.
position.
start moving. Hang up the telephone, and the tape should stop
moving in approximately six seconds.
5. If the tape does not stop within 6 to 10 seconds after the telephone
is hung up, set the
6. When the tape is full, the end of tape autostop will automatically
disengage the
standby mode.
7. The tape must be either rewound and reviewed or the tape must be
turned over to the other side before additional recording can occur.
REC
L/M/H
key. The VTR-700 will stop recording and go to
sensitivity switch to the M or L position.
24
OPERATION - continued
PLAYING BACK RECORDINGS
To play back recordings from the cassette tape, set the
NORMAL
1. Press the
2. Press the
begining to assure that you have not missed any recordings.
3. When the tape has finished rewinding, press the
button to cancel the rewind mode.
4. Press and engage the
5. If necessary, adjust the
level.
6. During playback of the tape, the
key can be partially depressed to rewind or fast forward the tape
slowly.
switch to the
STOP/EJECT
REVIEW/REWIND
NORMAL
button to cancel record operation.
PLAY
button to playback the tape.
VOLUME
position.
button to rewind the tape to the
STOP/EJECT
control to a comfortable listening
REVIEW/REWIND
CUE/F.FWD
or
VOX/
7. When you have finished listening to your recordings, rewind the
tape to the begining. As you make new recordings, the old
recordings will be replaced.
25
MAINTENANCE
Periodically clean the VTR-700 tape heads, guides and pinch roller with a
soft cloth or a cotton swab moistened with denatured alcohol.
Tape heads and guides also become magnetized over a period of time,
and should be demagnetized periodically using a commercially available
head demagnetizer.
The VTR-700 has been designed to give years of trouble free service. To
help insure its longevity, please read the following maintenance
instructions:
Keep the VTR-700 dry. If it gets wet, first unplug the AC power adapter
•
then wipe the unit dry immediately. Liquids can contain minerals that
can corrode electronic circuits.
Use and store the VTR-700 only in normal temperature environments.
•
High temperatures can shorten the life of electronic components and
distort or melt its plastic parts.
Keep the VTR-700 away from dust and dirt, which can cause premature
•
product failure.
Handle the VTR-700 gently and carefully. Dropping it can cause serious
•
damage, which may result in causing it to malfunction.
26
TT SYSTEMS LLC
LIMITED WARRANTY
A. TT Systems warrants that the VTR-700 sold by TT Systems within the continental limits
of the United States, Hawaii and Alaska, is free from defects in materials and
workmanship under normal use and service for the period of ninety days. This warranty
is applicable only to the original purchaser of the VTR-700, and when accompanied by a
sales receipt stating the date of purchase and name of the company from which
purchased. This warranty is in lieu of and excludes all other warranties, expressed or
implied, including any implied warranty of merchantability or fitness, and of any other
obligation on the part of TT Systems.
B. If the VTR-700 shall prove to be defective, then TT Systems shall either replace or
repair the VTR-700 at its discretion as follows:
1. At no cost to the original purchaser, within 90 days of the date of purchase.
2. You may return the VTR-700 Tele-Recorder with a copy of your proof of purchase and a
check or money order for the amount of $7.50 to cover shipping and handling to:
TT Systems LLC
4 Excutive Plaza
Yonkers, New York 10701
Shipping charges are at the customer's expense.
C. There is no informal dispute settlement mechanism available.
D. Some states do not allow limitations on how long an implied warranty lasts, and/or do
not allow the exclusions or limitations of incidental or consequential damages, so the
above limitations or exclusions may not apply to you.
E. This warranty gives you specific legal rights, and you may also have other rights which
vary from state to state.
F. This warranty does not extend to any VTR-700 sold by TT Systems which has been
subjected to misuse, neglect, accident, improper application, improper installation or to
use in violation of the instructions furnished by TT Systems.
G. This warranty does not extend to, or apply to any VTR-700 which has been repaired or
altered by any persons who have not been expressly approved by TT Systems.
H. TT Systems shall not be liable for any special or consequential damages or for loss or
expense directly or indirectly arising from the use of the VTR-700 or any inability to use it
either separately or in combination with other equipment or from any other cause.
I TT Systems reserves the right to make changes in the design of the VTR-700 and to
make additions or improvements to its VTR-700 without incurring any obligation to
modify any units previously sold.
27
28
06A00
Loading...
