Specification
Channel Table
Channel Number
Channel 1
Channel 2
Channel 3
Channel 4
Channel 5
Channel 6
Channel 7
Channel 8
Frequency
5733 Mhz
5752 Mhz
5771 Mhz
5790 Mhz
5809 Mhz
5828 Mhz
5847 Mhz
5866 Mhz

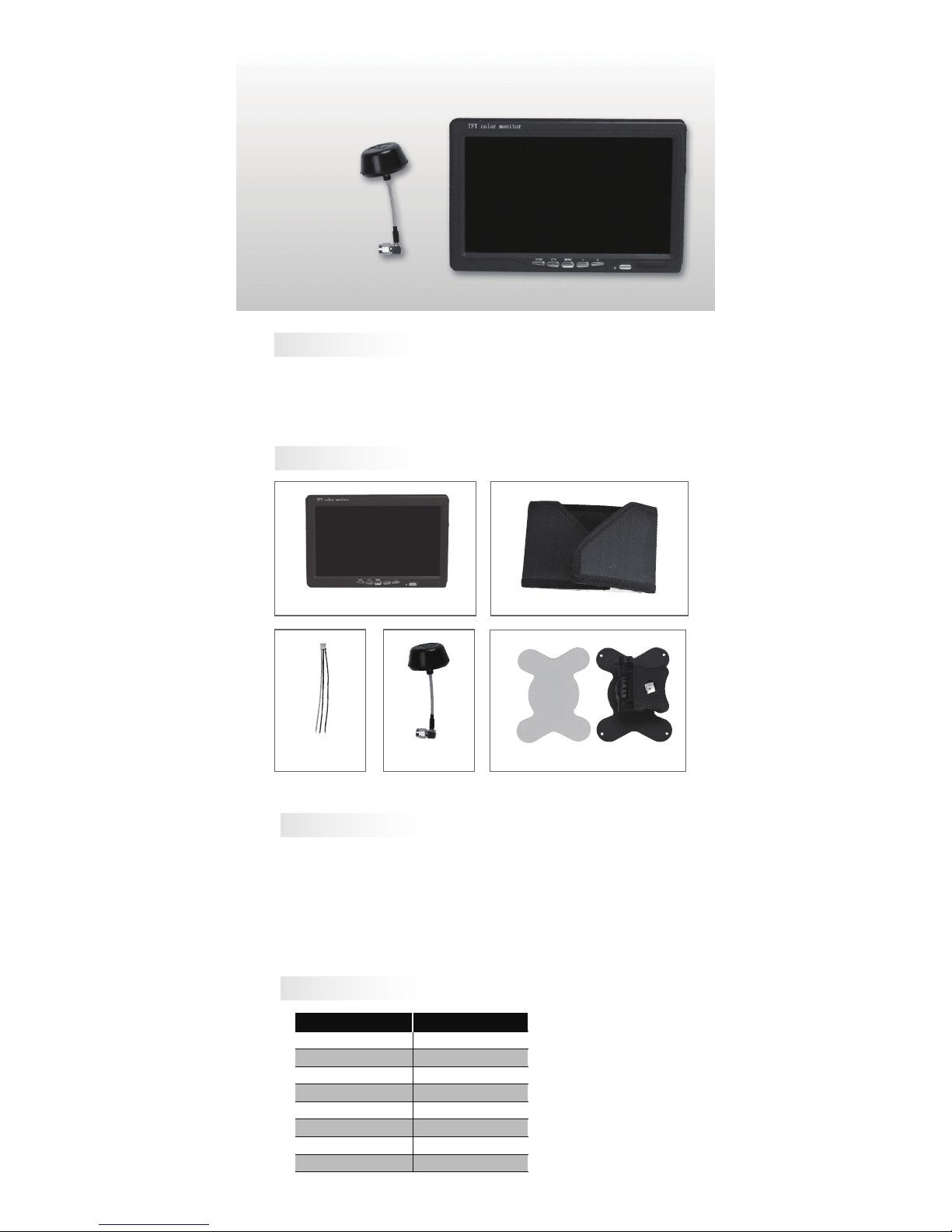

Product Contents
5.8GHz Receiver Monitor
user manual v1.0
Description
Antenna
AV out / AV in
Cable
Mounting parts
Outdoor Screen ShroudMainframe
Thanks for purchasing our 5.8GHz receiver monitor. The 5.8GHz receiver monitor
is a multifunctional monitor.It integrate the receiver,display screen and the battery.
The rate capacity of single cell battery is 4200mAh. The built-in 8 channels
5.8GHz receiver, the frequency of each channels refer to Channel Table
section.The monitor also provide various charge methods.
Power supply: 5V
Frequency: 5.8GHz
Available Channel: 8CH
Antenna Connector: SMA
Screen size: 7"
Dimension: 170*114*23mm
Page 2

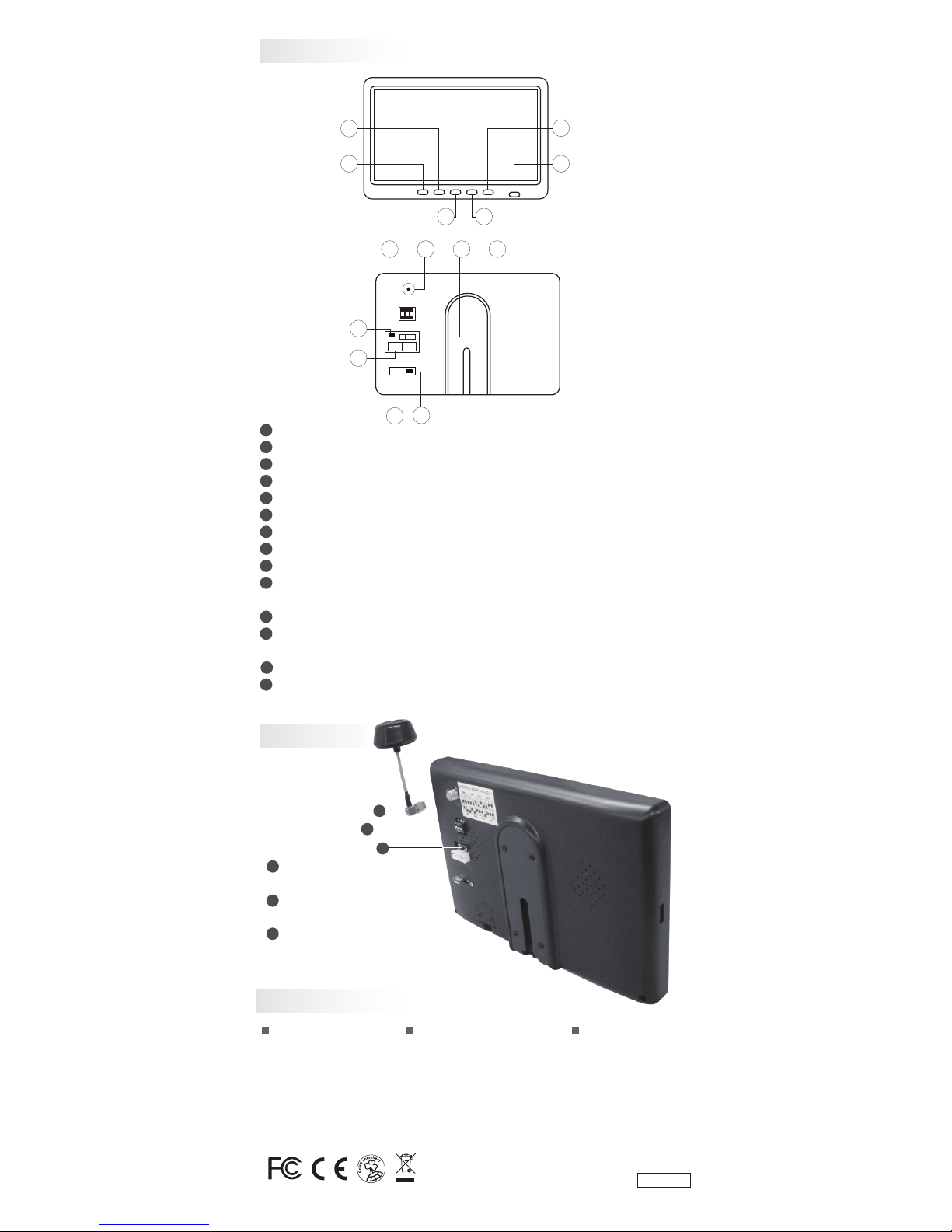

Operation diagram
Display rotate
Signal source switcher,switch the input between video-1 and video-2
Menu,open the setting panel of the screen display function
Volume increase
Screen on-off
Volume decrease
Channel switcher
SMA connector,the receive-antenna must be connected with this connector
The main power on-off,user show turn off this button to shut down the monitor
The video-1 output and video-2 input,it uses for input the second source from the
third-party and output the source of the built-in receiver.
The power-on LED-indicator
The rapid charge slot,it applies to the rated voltage 4.2V and rated current 1A
DC-power.
The micro-usb charge LED-indicator
The micro-usb charge slot,it applies to the rated voltage 5V and rated current 1A
DC-power.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
JC7408
1
2
3 4
5
6
7 8 9 10
11
12
14
13
Installation
1
2
3
1 Connect the antenna with
the SMA connector.
2 Check the channel is
the same as Tx
3 Swith on main power
3
Distribution
North America
Distributed by / Vertrieb :
THUNDER TIGER EUROPE GmbH,
Rudolf-Diesel-Str. 1, 86453 Dasing, Germany
For customer service please contact
[email protected]
Germany, Netherlands, Belgium,
Luxembourg, Austria, Italy
Distributed by :
Thunder Tiger Corporation
No.7 6th Road, Industry Park,
Taichung, Taiwan 40755
For customer service please contact
[email protected]
Tel : 886-4-23591632
For Other Countries
Distributed by :
HRP Distributing
2034 South 3850 West Salt Lake City,
UT 84104 USA
For customer service please contact
[email protected]
[email protected]
Tel : 1-844-887-6268
Attn : TT Support
