Page 1
www.ttfone.com

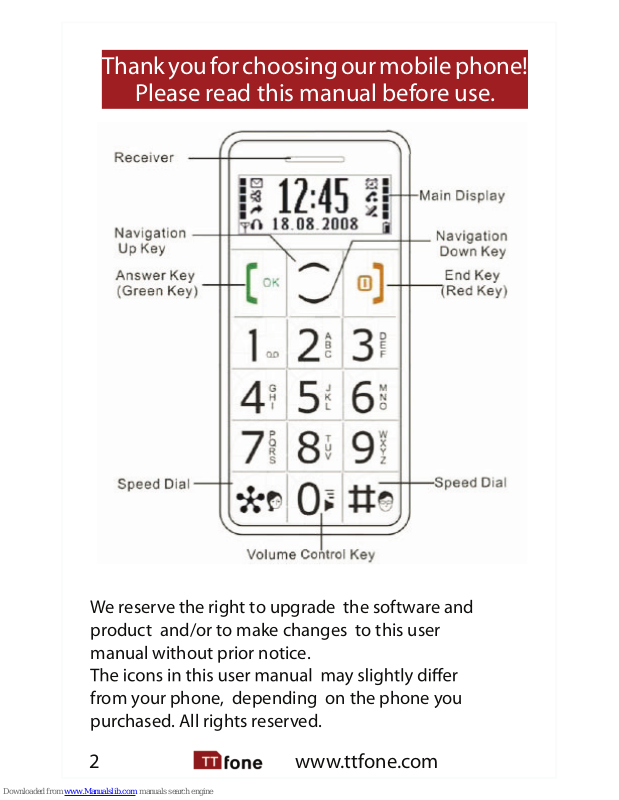

Thank you for choosing our mobile phone!
Please read this manual before use.
We reserve the right to upgrade the software and product and/or to make changes to this user manual without prior notice.
from your phone, depending on the phone you purchased. All rights reserved.
2
Page 2
www.ttfone.com
Contents
1. Safety Instructions.................................................... 5
2. Getting Started ..........................................................8
Install the SIM Card and Battery ......................8/9
Charging the Battery .............................................10
Battery Level Indication Bar ................................10
Low Battery Alert ....................................................10
3. Your Phone ................................................................11
Key Functions ...........................................................12
Display Screen Map ...............................................13
Icons on Screen .......................................................13
Volume Adjustment ...............................................14
4. Making and Receiving Phone Calls ..................14
To Make Calls ............................................................14
To Answer Calls ........................................................14
To End a Call..............................................................14
To Reject a Call .........................................................15
To Redial a Number ................................................15
Making International Calls ..................................15
5. Phone Book ...............................................................15
Storing, Searching and
Deleting Numbers in Phone Book ....................15
To Add a New Contact to Phone Book ............16
3
Page 3
www.ttfone.com4
To Search for an Existing Contact .....................16
To Delete an Existing Contact ............................16
To Pre-Set Phone Numbers
for Speed Dial
.............................................................17
To Add the four Emergency Contact
Numbers to the Phone Book ..............................17
6. SOS Emergency Button .................................18/19
7. Text Messaging (SMS) ...........................................19
Writing and Sending a Message .......................19
Receiving a Message .............................................20
The Following Commands are
Available for Text Messaging ..............................20
Letters and Numbers Input .................................21
8. Voice Mail ..................................................................22
9. Call Logs .....................................................................22
10. Radio ...........................................................................23
11. Flashlight ...................................................................24
12. Customize Your Settings ......................................24
Key Sound, Alarm, Brightness,
Time and Date ..........................................................24
Ring Tones .................................................................24
13. Troubleshooting ....................................... 25/26/27
13. Radio Frequency (RF) Exposure
and SAR ......................................................................28
Page 4
www.ttfone.com
5
This user manual includes important safety information. Please read below instructions carefully. It may be dangerous or illegal if you do not follow these instructions. Remember to follow any special regula­tions in force in any area and always switch o your device when its use is prohibited or when it may cause interference or danger.
Pay Attention to Trac Safety Obey local trac laws and do not use the phone while driving. Using a cell phone while driving is dangerous and it is illegal in some areas. Radio frequency (RF) signals may aect improperly installed or inadequately shielded electronic systems in motor vehi­cles such as electronic fuel injection systems, electronic antiskid (antilock) braking systems, electronic speed control systems, air bag systems. For more information, check with the manufacturer of your vehicle for any equip­ment that has been added. Do not place objects, including installed or portable wireless equipment in the area over the air bag or in the air bag deployment area.
1.Safety Instructions
Page 5
www.ttfone.com
Pacemaker Interference Pacemaker manufacturers recommend that a minimum separation of 15.3 centimeters (6 inches) be maintained between a wireless phone and a pacemaker in order to avoid potential interference with the pacemaker.
Turn O Your Cell Phone in Medical and Health Care Facilities. Switch o your device in health care facilities when any regulations posted in these areas instruct you to do so. Hospitals or health care facilities may be using equipment that could be sensitive to external RF energy.
Switch O on Airplanes Using your device while ying in aircraft is prohibited. Switch o your device before boarding an aircraft. The use of wireless devices in an aircraft may be dangerous to the operation of the aircraft, disrupt the wireless telephone network, and may be illegal.
Accessories and Batteries Use only the approved accessories and batteries. Please do not try to use with any
6
Page 6
www.ttfone.com
7
product that was not manufactured for use with this phone. Please be sure the phone has been switched o before taking out battery. Please dispose of scrap batteries properly ac­cording to the local regulations.
Cell Phone Should Be Turned O Near Sites of Explosion. Potentially explosive atmospheres include areas where you would normally be advised to turn o your vehicle engine. Sparks in such areas could cause an explosion or re resulting in bodily injury or even death. Switch o the device at refueling points such as near gas pumps at service stations and in any area with a potentially explosive atmosphere and obey all signs and instructions. Observe restrictions on the use of radio equipment in fuel depots, storage, chemical plants or where blasting opera­tions are in progress.
Using the Phone Correctly Please use this phone in its normal intended po­sition. Do not let children use the phone without supervision. Your phone contains small parts such as SIM card, which can be accidentally swallowed by a child.
Page 7
Your Phone is Not Waterproof This phone is not waterproof. Please do not expose your phone to wet weather or environ­ment (such as rain, snow, seawater, etc.).
the charger before removing the battery. Keep all SIM cards out of the reach of small chil­dren. For availability and information about using SIM card services, contact your SIM card vendor. This may be the service provider, network operator, or other vendor. The SIM card and its contacts are easily damaged by scratches or bending, so please be careful when handling, inserting, or removing the card.
2. Getting Started
Install the SIM card and battery
1. Open the battery cover by lightly pressing on the back of the phone and sliding the cover panel down.
8
Page 8
9
2. Install SIM card by sliding it into its nest and under the metal holding plate. (To remove the SIM card, gently press on it and slide it out of its nest.)
3. Install the battery into the battery slot, making sure that the three metal­lic stripes on the battery align with the three metallic prongs in the battery slot.
4. Put on the battery cover. Make sure the cover is completely matched and the matching sound could be heard.
5. To turn the phone on press and hold the key until the screen lights up. To turn it
Page 9
www.ttfone.com10
Connect the charger to its port on the bottom panel of the phone, and then plug it into the 240V electrical outlet. To
the charger from the electrical outlet and then disconnect it from the phone.
Low Battery Alert
The phone will sound an alert when the battery is low and display a message of low battery on the screen.
Battery Level Indication
Charging the Battery
Battery can be charged when the phone is
battery is inserted into the phone before charging.
Page 10
www.ttfone.com 11
3. Your Phone
Your phone is in Stand By mode when it is on but no operation is chosen
Page 11
www.ttfone.com
Making Phone Calls: Press to make a call or Press to pick up an incoming call Standby Mode: Press to enter call logs Operating: Press to conrm the function Turn the Phone O: Press and hold Turn the Phone On: Press and hold Operating: Press to cancel last action Standby Mode: Press for main menu Operating: Press to scroll up Standby Mode: Press for phonebook Operating: Press to scroll down Standby Mode: Press and hold to call set phone number directly or press once to type in “#” symbol Edit Mode: Press to switch typing method Standby Mode: Press and hold to call the set number directly or press once to type in “*” symbol, twice to type in “+” symbol and three times to type in “P” Editing mode: Press to access punctuation symbols list Press to add volume during connection Press “+” to increase and press “–“ to de­crease the sound volume for phone or radio Turns the ashlight on and o Locks and unlocks the keypad Press the SOS key to call emergency number To turn the radio on/o slide the FM button up/down

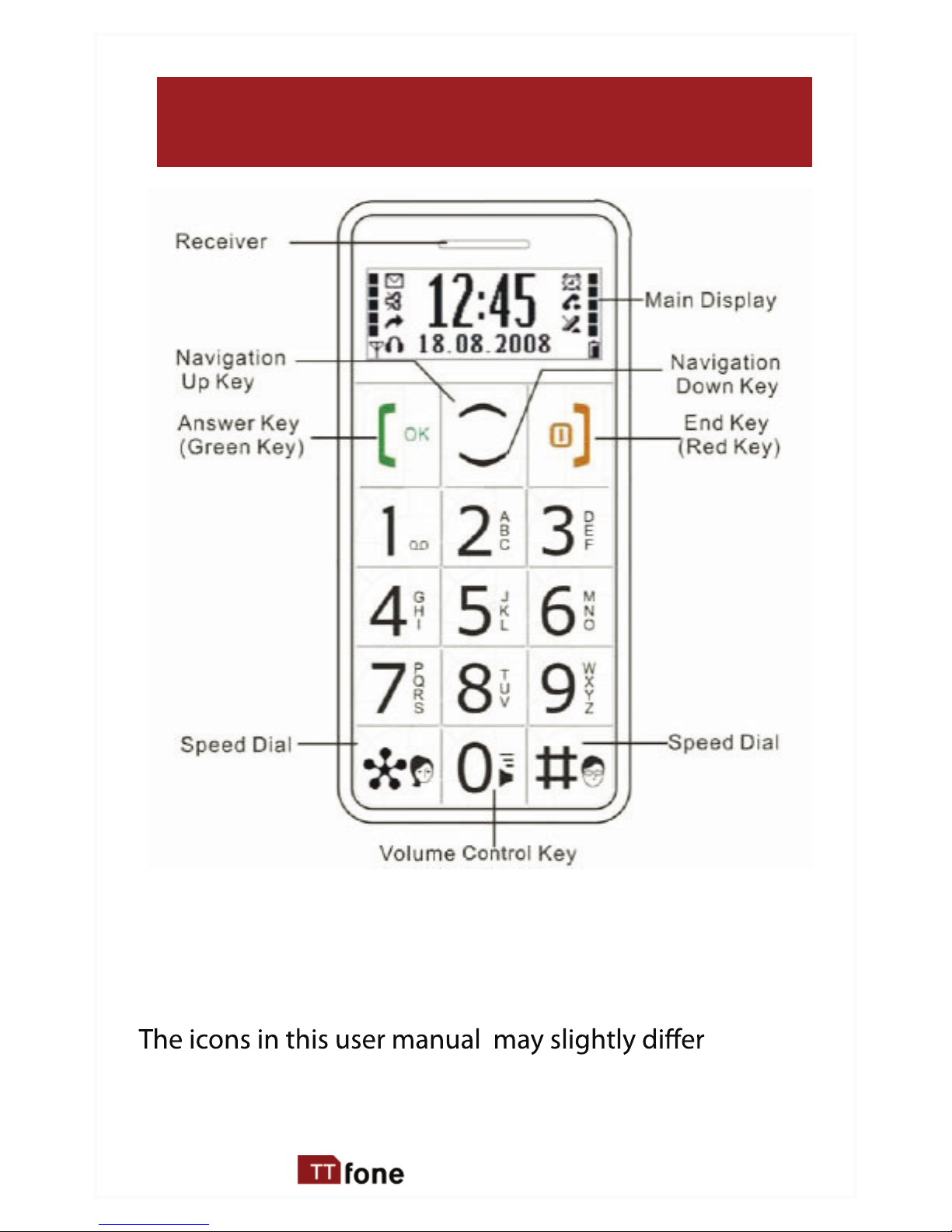

Answer Key (Green Key)
End Key (Red Key)
Navigation Up Key Navigation Down Key # Key
* Key
Volume Control and Switch Flashlight Lock SOS Button Radio Key

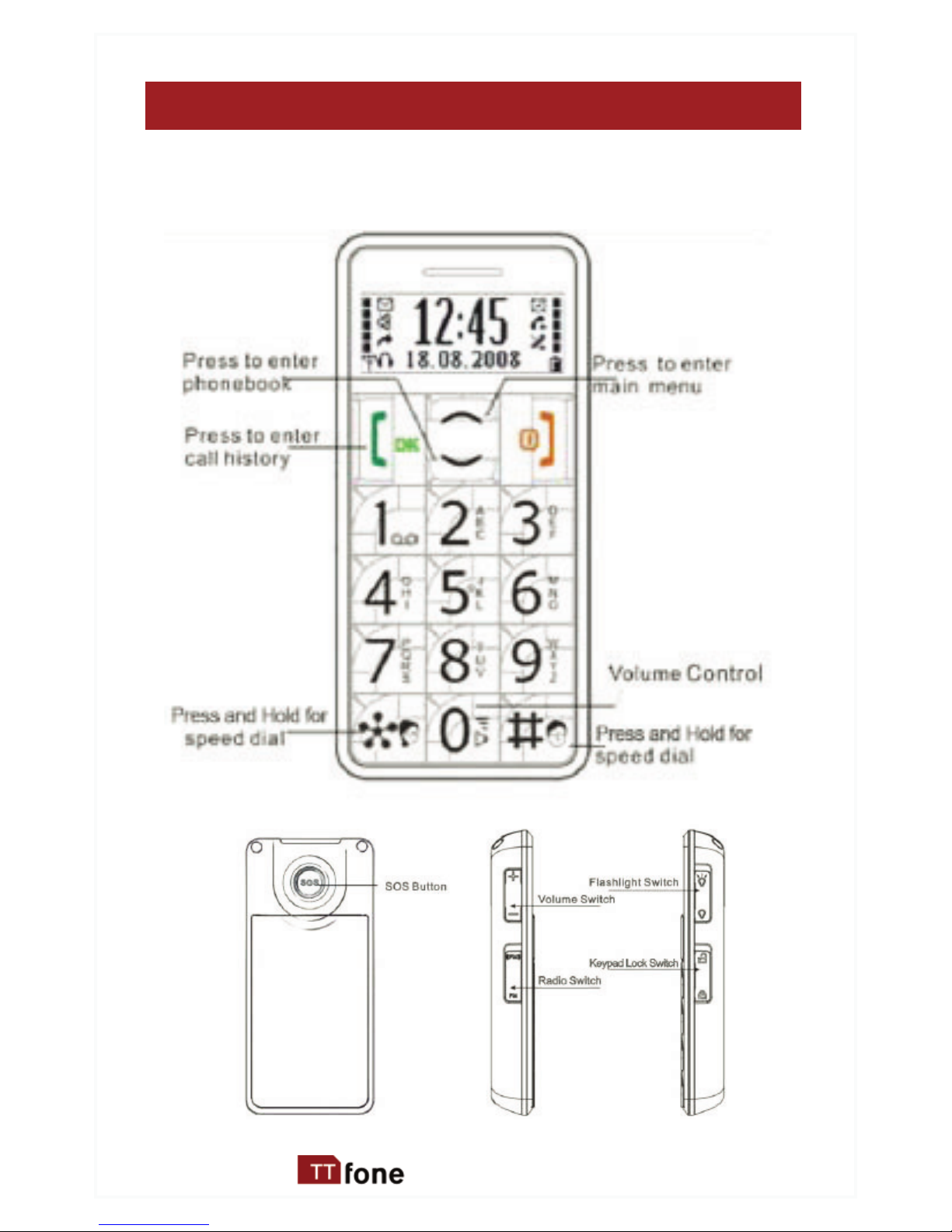

Key Functions
Key Functions
12
Page 12
www.ttfone.com 13
Display Screen Map
Icons on Screen
1. Network Signal
2. Battery Level Indication
3. Icons shows related functions
4. Icons shows related functions
5. Time
6. Date
1 3 4 2
5
6
Battery Status
Network Signal Status
Alarm Unread Message Message Memory Full Call Transfer (For ward) Missed Call Silent Mode Roaming Headset is Connected Keypad is Locked New Message Indication in Locked Keypad Mode Missed Call Indication in Locked Keypad Mode New Message and Missed Call Indication in Locked Keypad Mode
Following icons may be displayed on the screen:
Page 13
www.ttfone.com14
Volume Adjustment
During a normal or hands-free call connection, press and hold Volume Control key to increase the volume.
Whilst in a phone call to reach max volume you can press the ‘0’ key, this is an aid for users with a hearing aid. This feature can be switched on/o via ‘phone set-up’ in the menu
To Make Calls:
Enter a number and press the green key . To delete a digit press red key. Press and hold red key to clear the screen.
To Answer Calls:
When your phone rings or vibrates, press the green key .
During a Call,
To Access the menu press the green key, scroll up or down to the desired command by using up/ down key and press the green key again.
To End a Call:
Press the red key
4. Making and Receiving Phone Calls
Page 14
www.ttfone.com 15
To Reject a Call:
Press the red key when your phone rings or vi­brates.
To Redial a Number:
From the home screen, press the green key to see a list of command options. When “Dialled Call” op­tion appears press the green key again. Then scroll down to desired number by using the up/down key and once you nd the entry you want to call press the green key.
Making International Calls:
t1SFTTUIFi* ” key twice, a “+” character will ap-
pear on the screen. Enter country code, area code and phone number as instructed by your long dis­tance network service carrier. Press the green key.
t5PEJTQMBZi1wTZNCPMGPSJOUFSOBUJPOBMDBMMJOH
press the “
* ” key three times.
5. Phone Book
Storing, Searching And Deleting Numbers In Phone Book
Phone numbers can be stored in the phone memory directly or on the SIM card. “ “ symbol indicates that the contact is saved in the phone.
Page 15
www.ttfone.com16
You can store up to 200 entries in the phone memory.
To Add a New Contact to Phone Book:
Press up key to access the menu. Select option “Phone Book” by pressing the green key. Press up or down untiI “Add New Contact” option is dis­played. Press the green key. Here you can enter the name of the new contact by pressing the green key again and selecting “Edit”. Once the name is set press the down button to enter the Number.
To Search for an Existing Contact:
Press up key to access the menu.Select option “Phone Book’” by pressing the green key. Press up or down until “Contacts list” option is displayed. Press green key. Scroll up or down to search for the contact.
To Delete an Existing Contact:
Press up key to access the menu. Select option
tQIPOF#PPLtCZQSFTTJOHUIFHSFFOLFZUIFO TFMFDUtDPOUBDUMJTUtBOEQSFTTHSFFOLFZ1SFTT
key up or down to nd the contact which you want to delete.Select the contact and press up or down
VOUJJ%FMFUFtPQUJPOJTEJTQMBZFE1SFTTUIFHSFFO
key twice until contact list is displayed.
Page 16
www.ttfone.com 17
To Pre-Set Phone Numbers for Speed Dial:
Up to 10 numbers can be set for speed dial on number keys from 2 to 9, “
*” key and “#” key.
Press up key to access the menu. Select option “Phone Book” by pressing the green key.Press up or down until “Speed dial” option is displayed. Press the green key. Here you can scroll up and down to choose the correct key and press the green key to edit, choose a contact from the phone book and press the green key again to save.
To Add the Emergency Contact Numbers to the Phone Book:
Press the menu button and go to the “Settings” Select the option “Emergency Setting” Here you can edit the SOS message and you can change the SOS numbers.
Page 17
www.ttfone.com18
Important Notice: Wireless phones, includ­ing this device, operate using radio signals, wireless networks, landline networks, and user-programmed functions. Because of this, connections in all conditions and/or locations cannot be guaranteed. You should never rely solely on any wireless device for medical emer­gency communication.
You can set the emergency numbers in the phone book according to your requirement; you can set a total of up to 4 emergency numbers.
In case of an emergency, when the SOS but­ton is pushed down the phone will automati­cally send a text message to the emergency numbers set up on the phone. The mobile phone will then make the emergency call. If the rst call fails, the phone will proceed to dialling the second emergency number. In this manner the phone will circulate the emergency contact numbers 3 times in order to receive an answer. The phone will also sound an alarm when an emergency call or message is sent.
6. SOS Emergency Button
Page 18
www.ttfone.com
Attention!
Emergency SOS button will only make calls if a SIM card has been inserted into the mobile.
19
Writing and Sending a Message:
Press up key to access the menu. Select option “Messages” by pressing the green key. Press key up or down until “write Message” option is dis­played. Press the green key and start typing your text. When done press the green key twice, input a phone number by typing it directly or press the up/ down keys to search for a number in your phone book. Press the green key twice to send your mes­sage. You can also access a stored message in your inbox and reply to it by selecting option “Inbox” instead of “New Message” and following the same commands. Also, once you typed your message, before sending it you can scroll up or down and select other commands such as “Save”, “Insert Number”, “Insert Template”, etc.
7. Text Messaging (SMS)
Page 19
www.ttfone.com20
Receiving a Message:
When you receive a new text message, your phone will display an envelope icon and “New Message” notication. Press the green key twice to read the message. Press it again to see a list of available commands such as “Reply ”, “Delete”, etc.
The Following Commands are Available for Text Messaging:
View- to view the message Reply- to reply the message Delete- to delete the message Copy to Sim- copy the message from your phone to the sim card Move to Sim- move the message from your phone to the sim card Delete all- delete all messages Copy all- copy all messages Move all- move all messages
Page 20
www.ttfone.com 21
Letters and Numbers Input:
English letters are set on number keys from “2” to “9”. You can input numbers, upper or lower case letters and punctuation symbols. Pressing “#” key while typing lets you switch between the dierent types of input modes. t&BDIOVNCFSLFZJTTFUGPSUISFFPSGPVSMFU­ters. Press the number key one time to display the rst letter, two times to display the second letter, etc.
t5PFOUFSQVODUVBUJPOQSFTTUIFi
* ” key to
display the list of punctuation symbols and then use number keys “2”, “8”, “4” and “6” to navigate between the symbols. Press number key “5” to select and enter a symbol into your message.
t5PFOUFSBOVNCFSJOTUFBEPGBMFUUFSQSFTT
“#” key to switch input mode from letter to numerical and then use number keys from 1 to 0 to enter numbers. Press “#” again to switch back to letter input mode.
t5PFOUFSBTQBDFQSFTTiwLFZXIFOJOMFUUFS
mode.
t
Icon on the screen means that your mes­sage box is full. Please delete some messages to clear the memory.
Page 21
www.ttfone.com
Your voice mail access number has to be provided by your network carrier. Once you know that num­ber, this is how to save it in your phone: Press up key to access the menu. Select option “Messages” by pressing the green key. Press key up or down until “Voicemail” option is displayed. Press the green key twice and type in the voice mail access phone number provided by your network carrier. Press the green key to save.
t5PEJBMZPVSWPJDFNBJMJOCPYQSFTTBOEIPMEiw
on the key pad. IF by Pressing “1” button on your phone will not take you to your voicemail we sug­gest you to call your carrier and ask your voicemail number which you can store as a fast dial on your keyword afterwards.
22
This option stores recently dialled calls, received calls and missed calls. Your phone can store up to 20 records for each function. Press up key to access the menu. Select option “Call Logs” by pressing the green key. Press key up or down to scroll through available functions, press the green key to select the desired function.
9. Call Logs
8. Voice Mail
Page 22
www.ttfone.com 23
“((FM)) FM” (a switch on the left side of the phone)
Listen to the radio on the speaker phone or connect the headset into the headset jack. t5VSOUIFi'.'.wTXJUDIUPi'.wQPTJ­tion to turn the radio on (or turn it to FM posi­tion to switch it o).
t5PTDBOGPSTUBUJPOTQSFTTUIFiwLFZ5PDPOUJOVF
scanning, press the green key to nd the next sta­tion.
t5PTUPQTDBOOJOHQSFTTUIFSFELFZ t5PFOUFSBDIBOOFMEJSFDUMZFYJUUIFTDBONPEF
rst (by pressing the red key) and then input the frequency by pressing number keys followed by the green key. t5PBEKVTUWPMVNFQSFTTUIFiwPSiiLFZT on the left side of the phone.
t5PNVUFUIFSBEJPQSFTTUIFSFELFZ5PSFTVNF
press the red key again.
t5PUVSOUIFSBEJPPòTXJUDIUPi'.wQPTJUJPO
*The quality of radio sound depends on signal quality at your particular location. The headphones act as an aerial so you will get better reception when they are plugged in
10. Radio
Page 23
www.ttfone.com24
Use the switch indicated by light bulb icons on the right side of the phone to turn the built in
11. Flashlight
ing tones, message alert tones, and other tones for
cess the menu and scroll to “Settings” then choose
Customise Menu
(note- Use the volume buttons on the side of the phone to scroll up or down to change the settings)
Incoming call - you can choose a new ringtone Alert type- choose either Ring or Silent Ring Volume- the volume level for incoming calls Ring type- Repeat,Acscending or Single ringtone Message tone - choose a new message tone Keypad tone- Human voice,Silent,Click or Tone Keytone Volume - the volume level for the keypad
12.Customize Your Settings
Page 24
www.ttfone.com 25
13. Troubleshooting
1. Ensure you have held the power button down for more than 5 seconds.
2. Re-insert the battery and retry phone boot.
3. Plug charger into the phone and make sure the battery is charged.
1. Signal strength may be weak, try move location and try again.
2. It may be possible that you are using the phone beyond the network service coverage area.
3. Check to make sure your SIM card is inserted correctly and is valid. (contact network provider)
1. Check SIM card is correctly installed.
2. You may need to unlock your key­pad using the button on the side of the phone or your keypad (password maybe required).
3. You may have permanently locked your phone by entering the pin code incorrectly 3 times, obtain your PUK code from your network provider.
4. Increase the screen brightness in settings.
Phone does not turn on.
Cannot connect to a network.
No information displayed when phone is on.
Problems Solutions
Page 25
www.ttfone.com26
1. Increase the call volume use (+ -) key on the side of the phone.
2. It may be that the network reception is poor in your location. Try moving to another area to achieve a better connection.
1. Standby time is related to system settings, in poor areas of reception the phone will use more battery to try and nd a base station, in this event the standby time will be reduced to save battery power.
2. It could also be the case that the battery of the phone has become exhausted, you may need to consider changing the battery.
1. Reinstall the SIM card into the phone, ensure the metal contact is clean, wipe gently with a clean cloth before inserting into the phone.
2. SIM card may not be correctly installed.
3. If the SIM card is damaged contact your service provider.
1. This could be due to an operation error on the phone, switch mobile phone o and restart after 30 seconds.
2. The network provider may not support the feature you are trying to use and this may prevent its use.
Phone call quality poor
Shorter Standby Time
SIM card Error
Some feature do not operate or cannot be set
Page 26
www.ttfone.com 27
1. Ensure your mobile phone is switched on and connected to a network.
2. Make sure your SIM card is correctly installed.
3. Call restrictions may be prohibiting incoming phone calls, so these settings must be checked.
4. Poor areas of network coverage can prevent incoming calls so check the network status of your phone.
1. Bad connections can hinder the phone charging; make sure all contacts are correctly connected.
2. Check to see whether the phone charging slot or the charge itself is damaged. If so discontinue use. Replace battery or charger.
3. The phone cannot be charged in temperature below 10˚C or above 55˚C.
1. Conrm that once the number is inputted using the keypad the green call button must be pressed to dial the phone number.
2. Check the phone number entered is correct.
3. Check reception coverage status of your mobile phone.
4. Make sure the call restriction settings are correct in order for you to dial outgoing calls.
Cannot receive incoming calls
Phone not charging
Does not dial numbers
Page 27
28 www.ttfone.com
This Device Meets International Guidelines For Exposure To Radio Waves Your Mobile Device Is A Radio Transmitter And Receiver. It Is Designed And Manufac­tured Not To Exceed The Limits For Exposure To Radio Frequency (Rf) Recommended By International Guidelines (Icnirp). These Limits Are Part Of Comprehensive Guidelines And Establish Permitted Levels Of Rf Energy For The General Population. The Guidelines Were Developed By Independent Scientic Organizations Through Periodic And Thorough Evaluation Of Scientic Studies. The Exposure Standard For Mobile Devices Employs A Unit Of Measurement Known As The Specic Absorption Rate, Or Sar. Although The Sar Is Determined At The Highest Certied Power Level, The Actual Sar Of The Device While Operating Can Be Well Below The Maximum Value. This Is Because The Device Is Designed To Operate At Multiple Power Levels So As To Use Only The Power Required To Reach The
14.Radio Frequency (RF) Exposure and SAR
Page 28
29www.ttfone.com
Network. In General, The Closer You Are To A Base Station, The Lower Is The Power Output Of The Device. Sar Values May Vary Depending On National Reporting And Testing Requirements And The Network Band. Use Of Device Accessories And Enhancements May Result In Dierent Sar Values.
The SAR Limit For Mobile Devices Used By The Public Is 2.0 W/Kg (Watts Per Kilogram) Averaged Over 10 Grams Of Body Tissue. The Guidelines Incorporate A Substantial Margin Of Safety To Give Additional Protection For The Public And To Account For Any Variations In Meas­urements. The Highest Sar Value This Model Phone Tested For While In Use Is 0.873 W/Kg.
Check out our other fantastic range of products at www.ttfone.com
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
