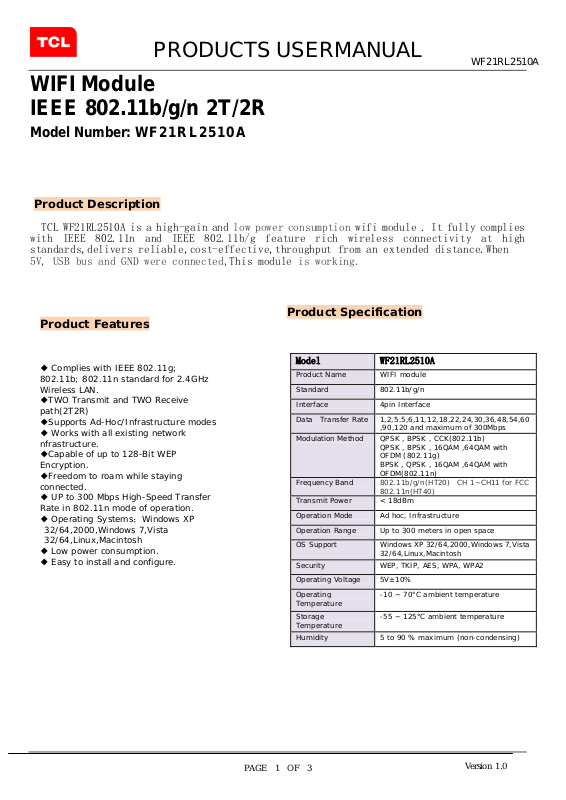

TTE Technology WF21 Users Manual

PRODUCTS USERMANUAL

WIFI Module

WF21RL2510A

IEEE

Model Number:

Product Description

802.11b/g/n

WF21RL2510A

2T/2R

TCL WF21RL2510A is a high-gain and low power consumption wifi module . It fully complies
with IEEE 802.11n and IEEE 802.11b/g feature rich wireless connectivity at high
standards,delivers reliable,cost-effective,throughput from an extended distance.When

5V, USB bus and GND were connected,This module is working.

Product Features

Product Specification

◆ Complies with IEEE 802.11g;

802.11b; 802.11n standard for 2.4GHz
Wireless LAN.

◆TWO Transmit and TWO Receive
path(2T2R)

◆Supports Ad-Hoc/Infrastructure modes

◆ Works with all existing network

nfrastructure.

◆Capable of up to 128-Bit WEP
Encryption.

◆Freedom to roam while staying
connected.

◆ UP to 300 Mbps High-Speed Transfer

Rate in 802.11n mode of operation.

◆ Operating Systems：Windows XP
32/64,2000,Windows 7,Vista
32/64,Linux,Macintosh

◆ Low power consumption.

◆ Easy to install and configure.

Model WF21RL2510A

Product Name WIFI module
Standard 802.11b/g/n
Interface 4pin Interface
Data Transfer Rate 1,2,5.5,6,11,12,18,22,24,30,36,48,54,60

Modulation Method QPSK , BPSK , CCK(802.11b)

Frequency Band 802.11b/g/n(HT20) CH 1~CH11 for FCC

Transmit Power < 18dBm
Operation Mode Ad hoc, Infrastructure
Operation Range Up to 300 meters in open space
OS Support Windows XP 32/64,2000,Windows 7,Vista

Security WEP, TKIP, AES, WPA, WPA2
Operating Voltage 5V±10%
Operating

Temperature
Storage

Temperature
Humidity 5 to 90 % maximum (non-condensing)

,90,120 and maximum of 300Mbps

QPSK , BPSK , 16QAM ,64QAM with
OFDM (802.11g)
BPSK , QPSK , 16QAM ,64QAM with
OFDM(802.11n)

802.11n(HT40)

32/64,Linux,Macintosh

-10 ~ 70°C ambient temperature

-55 ~ 125°C ambient temperature

PAGE 1 OF 3

Version 1.0

PRODUCTS USERMANUAL

WF21RL2510A

FCC Statement

This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference

to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the following
measures:

-Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.

-Consult the dealer or an experienced radio/TV technician for help.

To assure continued compliance, any changes or modifications not expressly approved by the
party responsible for compliance could void the user’s authority to operate this equipment.

FCC Radiation Exposure Statement

This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment.
This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.

The devices must be installed and used in strict accordance with the manufacturer’s
instructions as described in the user documentation that comes with the product. Modular
could be only used in mobile or fix device, and could not be used in any portable device.
The module must be installed in TV set.
In the event that these conditions can not be met (for example certain laptop configurations
or co-location with another transmitter), then the FCC authorization is no longer considered
valid and the FCC ID can not be used on the final product. In these circumstances, the OEM
integrator will be responsible for re-evaluating the end product (including the transmitter)
and obtaining a separate FCC authorization.

Caution!

The manufacturer is not responsible for any radio or TV interference caused by unauthorized
modifications to this equipment. Such modifications could void the user authority to operate
the equipment.

Regulation information

(1) This device and its antenna(s) must not be co-located or operating in conjunction with

any other antenna or transmitter.

(2) This compliance to FCC radiation exposure limits for an uncontrolled environment, and

minimum of 20cm separation between antenna and body.

PAGE 2 OF 3

Version 1.0
