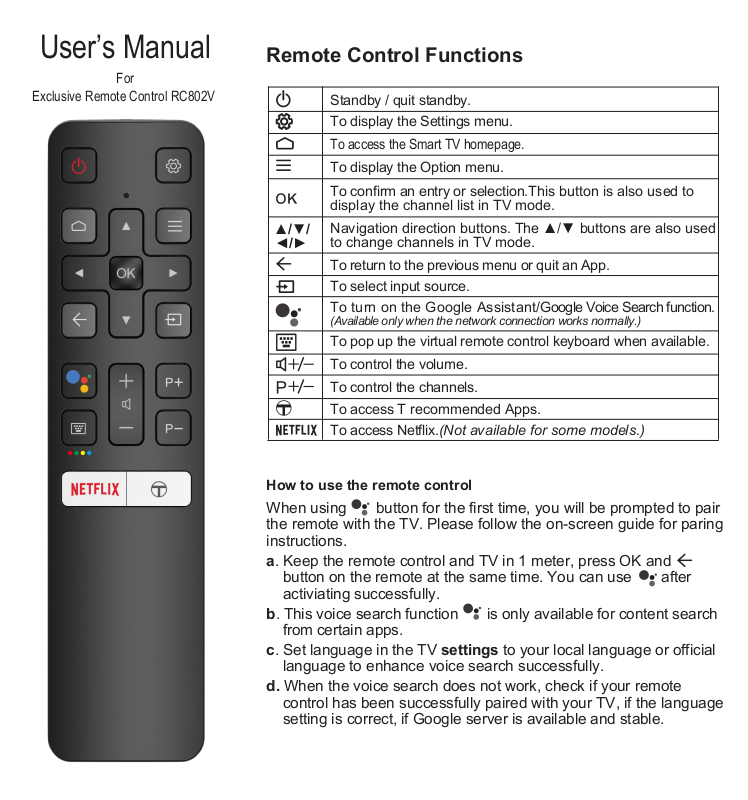

User’s Manual
For
Exclusive Remote Control RC802V
Remote Control Functions
Standby / quit standby.
To display the Settings menu.
To access the Smart TV homepage.
To display the Option menu.
To confirm an entry or selection.This button is also used to
display the channel list in TV mode.
Navigation direction buttons. The ▲/▼ buttons are also used
▲/▼/
to change channels in TV mode.
◄/►
To return to the previous menu or quit an App.
To select input source.
To turn on the Google Assistant/Google Voice Search function.
(Available only when the network connection works normally.)
To pop up the virtual remote control keyboard when available.
To control the volume.
To control the channels.
To access T recommended Apps.
To access Netflix.(Not available for some models.)
How to use the remote control
When using button for the first time, you will be prompted to pair
the remote with the TV. Please follow the on-screen guide for paring
instructions.
a. Keep the remote control and TV in 1 meter, press OK and
button on the remote at the same time. You can use after
activiating successfully.
b. This voice search function is only available for content search
from certain apps.
c. Set language in the TV settings to your local language or official
language to enhance voice search successfully.
d. When the voice search does not work, check if your remote
control has been successfully paired with your TV, if the language
setting is correct, if Google server is available and stable.
Installing Batteries
1. Push to open the back cover as illustrated.
2. Insert two AAA batteries according to the
polarities marked on the battery case.
3. Replace the back cover as illustrated.
Warning
Batteries (battery pack or batteries installed)
shall not be exposed to excessive heat such
as sunshine, fire or the like.
For the purpose of performance improve-
ment, design and specifications are subject
to change without notice.
1
2
3
What’s in the Box
1. Remote Control 2. Batteries 3. User’s Manual
Specifications
Remote control size
Operating environment
temperpature
Weight
Communication methods
RF Operating distance >15m
IR Operating distance >10m
Battery type Zn/MnO2 1000mAh
Voice search current
Sleep current
MIC
154.6mm x 37.9mm x 16.4mm
-25~40 C
0.05kg
RF2.4G Adaptive
>
15mA
>
10mAOther button current
<5μA (automatically enter sleep mode
after Bluetooth disconnected)
Built-in microphone
Handheld keyboardKeyboard
Information for Users
on Disposal of Old
Equipment and Batteries
Notice: The sign Pb below the
symbol for batteries indicates
Products
that this battery contains lead.
These symbols indicate that
the electrical and electronic
equipment, and the battery
with this symbol should not
Pb
be disposed of as general
Battery
household waste at its
end-of-life. Instead, the products should
be handed over to the applicable
collection points for the recycling of
electrical and electronic equipment as
well as batteries for proper treatment,
recovery and recycling in accordance
with your national legislation.
By disposing these products correctly,
you will help to conserve natural
resources and will help to prevent
potential negative effects on the
environment and human health which
could otherwise be caused by
inappropriate waste handling of these
products. For more information about
collection points and recycling of these
products, please contact your local
municipal office, your household waste
disposal service or the shop where you
purchased the product. Please do so in
accordance with applicable national
legislation or other rules in your country
for the treatment of old electrical
equipment and batteries.
Penalties may be applicable for incorrect
disposal of this waste, in accordance
with national legislation.
FCC
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Caution: The user is cautioned that changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
FCC Supplier’s Declaration of Conformity
TCL / RC802V
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Suppliers Name :TTE Technology, Inc. (dba TCL North America)
Suppliers Address (USA) :1860 Compton Ave, Corona, CA 92881, USA
Suppliers phone number and internet contact information:1-877-300-9509, http://support.tclusa.com/
IC
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and
Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two
conditions:
1. This device may not cause interference.
2. This device must accept any interference, including interference that may cause undesired operation of
the device.
L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence.
L’exploitation est autorisée aux deux conditions suivantes:
1. L’appareil ne doit pas produire de brouillage;
2. L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en
compromettre le fonctionnement.
