Caution: To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside.
Refer servicing to qualied service personnel.
This symbol indicates “dangerous voltage”
inside the product that presents a risk of
electric shock or personal injury.
WARNING
To reduce the risk of re or electric shock, do not
expose this product to rain or moisture. This product
should not be exposed to dripping or splashing. No
objects lled with liquids, such as vases, should be
placed on the component.
WARNING
Refer to the identication/rating label located on the back panel of your product for its proper operating voltage.
FCC regulations state that unauthorized changes or modications to this equipment may void the user’s authority to
operate it.
Cable TV Installer: This reminder is provided to call your attention to Article 820-40 of the National Electrical Code
(Section 54 of the Canadian Electrical Code, Part 1) which provides guidelines for proper grounding and, in particular,
species that the cable ground should be connected to the grounding system of the building as close to the point of
cable entry as practical.
Important: This television is a table model and is designed to sit on a rm, at surface. Don’t place the TV on soft
carpeting or similar surface because the ventilation slots on the bottom of the unit will be blocked, resulting in reduced
lifetime from overheating. To assure adequate ventilation for this product, maintain a spacing of 4 inches from the top
and side of the TV receiver and 2 inches from the rear of the TV receiver and other surfaces.
Also, make sure the stand or base you use is of adequate size and strength to prevent the TV from being accidentally
tipped over, pushed off, or pulled off. This could cause personal injury and/or damage to the TV. Refer to the
Important Safety Instructions on the next page.
The Power button (followed by the power symbol) on this TV and your remote control puts the TV into a very
low-power standby mode but will not completely turn the power off. In order to completely shut the power off, you will
need to disconnect the power cord from the outlet. The mains plug/appliance coupler is used as disconnect device,
the disconnect device shall remain readily operable. Therefore, you should ensure that the TV is installed in a manner
that allows you to disconnect the power cord when desired.
The batteries shall not be exposed to excessive heat such as sunshine, re or the like.
This symbol indicates that this product contains mercury. Special disposal of this product for environmental
reasons may be required under the laws applicable to your jurisdiction. For disposal or recycling information,
please contact your local authorities or the Electronic Industries Alliance: www.eiae.org.
This symbol indicates that this product incorporates
double insulation between hazardous main voltage
and user accessible parts. When servicing, use only
identical replacement parts.
This symbol indicates important
instructions accompanying the product.
WARNING
The TV is unstable if it is not properly attached to
the base or mounted to the wall. Please follow the
base or wall mounting instructions provided in the
User’s Guide to ensure your safety.
Product Registration
Please register your TCL purchase on-line at www.tclusa.com. It will make it easier to contact you should it ever be
necessary. Registration is not required for warranty coverage.
Product Information
Keep your sales receipt to obtain warranty parts and service and for proof of purchase. Attach it here and record the
serial and model numbers in case you need them. These numbers are located on the product.
Model No. ______________________ Serial No._____________________________________
Purchase Date __________________ Dealer/Address/Phone___________________________
1
Important Safety Instructions
1. Read and follow all instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
5. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including ampliers) that produce heat.
6. Protect the power cord from being walked on or pinched particularly at plugs, receptacles, and the
point where it exits from the component.
7. Do not use this component near water.
8. Only use the attachments/accessories specied by the manufacturer.
9. Clean only with dry cloth.
10. Use only with the cart, stand, tripod, bracket, or table specied by the manufacturer, or sold with
the component. When the TV is placed on a cart, use caution when moving the cart to avoid injury
from tip-over.
11. Warning: To avoid any injury caused by lean of the product, please always ensure the whole
product was place within the table surface in horizontal.
12. Unplug this component during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualied service personnel. Service is required when the component is
damaged in any way, such as power supply cord or plug damage, liquid spilled on or objects falling
onto the component, rain or moisture exposure, abnormal operation, or if the component has been
dropped.
14. If an outside antenna or cable system is connected to the product, be sure the antenna or
cable system is grounded so as to provide some protection against voltage surges and built-up
static charges. Section 810 of the National Electrical Code, ANSI/NFPA No. 70-1984 (Section
54 of Canadian Electrical Code, Part 1) provides information with respect to proper grounding of
the mast and supporting structure, grounding of the lead-in wire to an antenna-discharge unit, size
of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes,
and requirements for the grounding electrode. See following example:
ELECTRIC SERVICE
EQUIPMENT
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PA RTH)
2
ANTENNA LEAD IN WIRE
GROUND CLAMP
ANTENNA DISCHARGE
UNIT(NEC SECTION 810-20)
Table of Contents
Important Information ................................ 1
Important Safety Instructions ..................... 2
Chapter 1 - Connections and Setup
Before Initial Setup .....................................4
Check Supplied Parts ............................... 4
Attaching Your TV to the Table Stand ............ 5
Mounting Your TV to the Wall .................... 5
Buttons on TV
Explanation of Jacks on TV
............................................. 6
......................... 6
Choose Your Connections ......................... 7
Remote Control Functions ......................... 9
Obtain the Signal ..................................... 10
Switching On ........................................... 10
Switching Off ........................................... 10
• Connect all components before you plug any power cords into the wall outlet or power strip.
• NEVER plug your TV into an outlet that is controlled by a wall switch.
• Turn off the TV before you connect or disconnect any cables.
• Make sure all antennas and cables are properly grounded. Refer to the Important Safety
Instructions.
Safety Information
• Protect components from overheating.
• Don’t block ventilation holes on any of the components. Arrange the components so that air can
circulate freely.
• Don’t stack components.
• If you place the component in a stand, make sure you allow adequate ventilation.
• If you connect an audio receiver or amplier, place it on the top shelf so the heated air from it won’t
harm other components.
Avoid Audio Interference
• Position cables properly; insert each cable rmly into the designated jack.
• If you place components above the TV, route all cables down one side of the back of the TV instead
of straight down the middle.
• If your antenna uses 300-ohm twin lead cables, do not coil the cables.
• Keep twin lead cables away from audio/video cables.
Avoid Direct Light
Don’t place the TV where sunlight or room lighting is directed toward the screen. Use soft or indirect
lighting.
Check Supplied Parts
Check that the following parts were packed with your product.
• 1 Remote Control and 2 AAA Batteries
• User’s Guide
• Quick Start Guide
• Parts for Table Stand
Replacing your remote
If you need to replace your remote, visit www.tclusa.com. A shipping and handling fee, and the appropriate sales tax, will be charged
upon ordering. Have your Visa or MasterCard ready.
Graphics contained within this publication are presentation only.
4
Connections and Setup
Attaching Your TV to the Table Stand
Your TV comes without the table stand attached so that you can choose to mount your TV either to its table
stand or to a wall (wall mount sold separately). If you want to mount your TV to the wall, don’t attach the table
stand. Follow the Mounting Your TV to the Wall instructions.
First, remove the TV bag and place it on a large, at surface such as a table or countertop. Remove the TV
from the carton and place it face down on the TV bag. Be sure that the TV is face down to avoid scratching
the screen.
Then follow the steps below:
Mounting Your TV to the Wall
If you are mounting your TV to the wall, don’t attach the table stand.
To mount your TV to the wall, purchase a VESA wall mount.
Models of 39” or larger size
The VESA number is the horizontal and vertical measurement of the mounting holes. For example,
200x200 refers to the fact that the mounting measurements are 200mm horizontally and 200mm vertically.
Notes: Follow the directions included with the wall mount to mount the TV to the wall.
Caution: Your wall mount must be able to bear a minimum of ve times the TV’s net weight to avoid causing damage.
Purchase a VESA 200 x 200, M6 screw
5
Connections and Setup
Buttons on TV
If you cannot locate your remote, you can use the TV panel buttons on
your TV to operate many TV features.
CH+/- Selects channels stored in the channel list or acts as the up/
down arrow (▲/▼) through the menu items.
VOL+/- Increases/decreases the volume or acts as the right/left
MENU Brings up the TV’s main menu.
INPUT Selects the signal source.
arrow (◄/►) through the menu items.
VOL+ also acts as the OK button when in the menu system.
(POWER button) Turns the TV on or to standby mode.
Explanation of Jacks on TV
This section describes the jacks on the side/back panel of your TV. There
are several ways to connect components.
COMPONENT IN (CMPT) Lets you connect a component that has
component video jacks, such as a DVD player or set-top box.
for Y, Blue jack for Pb and Red jack for Pr )
• Y Pb Pr (Component Video) Provides good picture quality because the
video is separated into three signals. Use three video-grade or
component video cables for the connection.
• L/R AUDIO Provides left and right audio connection when using the
CMPT VIDEO input.
connection. (
input.
) (Note:AUDIO/VIDEO IN and COMPONENT IN share the same L/R
AUDIO input jacks.)
AUDIO/VIDEO IN (AV)
video jacks, such as a VCR, DVD player or set-top box.
VIDEO connection, red and white jacks for R AUDIO and L AUDIO connection. (
For mono audio sources, be sure to use the L AUDIO INPUT.
DVI/PC AUDIO IN (used for DVI/PC only) Provides audio connection when using HDMI/DVI INPUT 1 jack for DVI or when using PC VIDEO IN.
Note: If using a DVI component, remember to connect the audio cable
because the DVI cable carries only the picture signal, not the sound.
VGA (PC VIDEO IN) Connect your computer or other component with a
VGA output to this jack using a 15-pin,D-sub cable.
SPDIF OUT - DIGITAL AUDIO OUT (coaxial) Use a digital coaxial cable to
connect your TV to a compatible audio receiver.

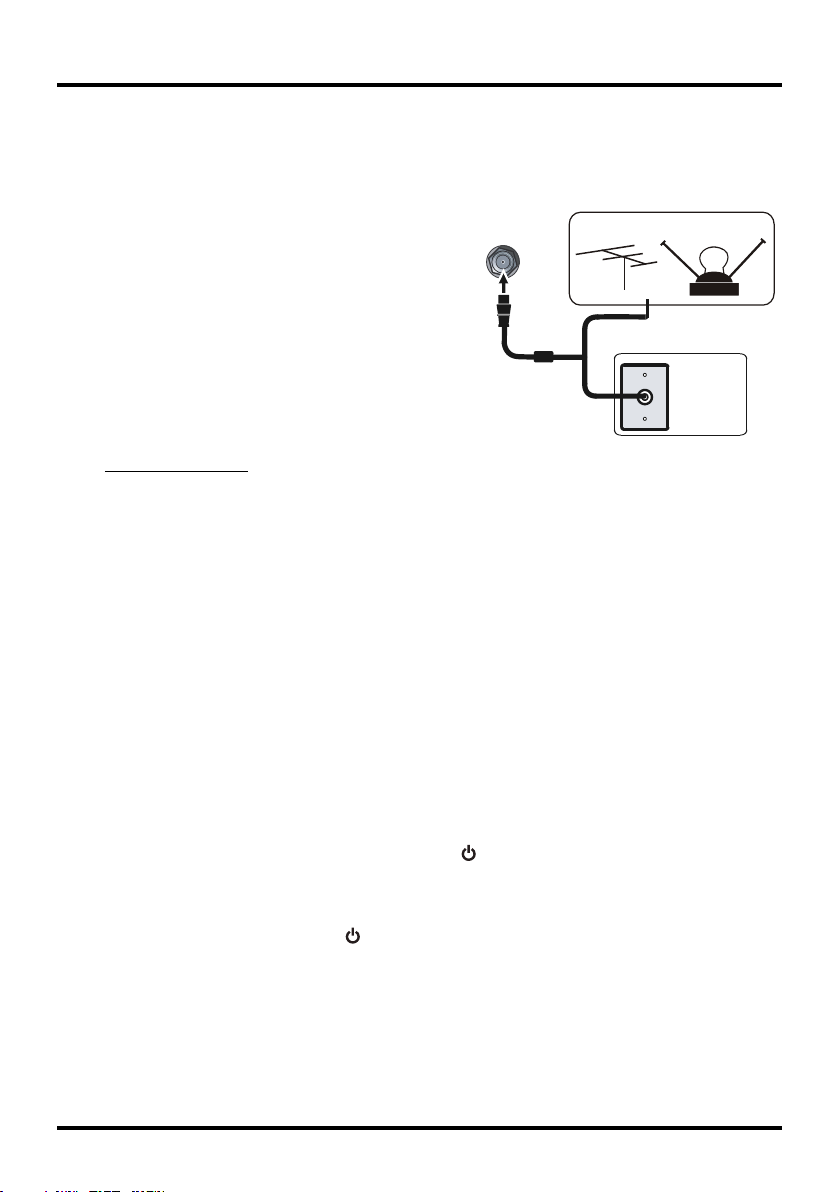

ANT/CABLE/SAT IN Lets you connect a coaxial cable to receive the signal
from your antenna, cable, or cable box, or satellite receiver.
Red and white jacks for R AUDIO and L AUDIO
For mono audio sources, be sure to use the L AUDIO
Lets you connect a component that has composite
( Green jack
Yellow jack for
)
MENU
INPUT
6
Connections and Setup
USB Allows you to connect a compatible mass storage device.
HDMI 1 /DVI IN (High-Denition Multimedia Interface/Digital Visual Interface) Provides an uncompressed
digital connection that carries both video and audio data by way of an integrated mini-plug cable. Since HDMI
technology is based on Digital Visual Interface (DVI), the jack on the back of your TV is also compatible with
DVI components.
HDMI 2 IN Lets you connect a component, such as a digital cable box, with an HDMI output for the best
picture quality.
(HEADPHONE) Allow you to connect headphones to listen to the sound coming from the TV.

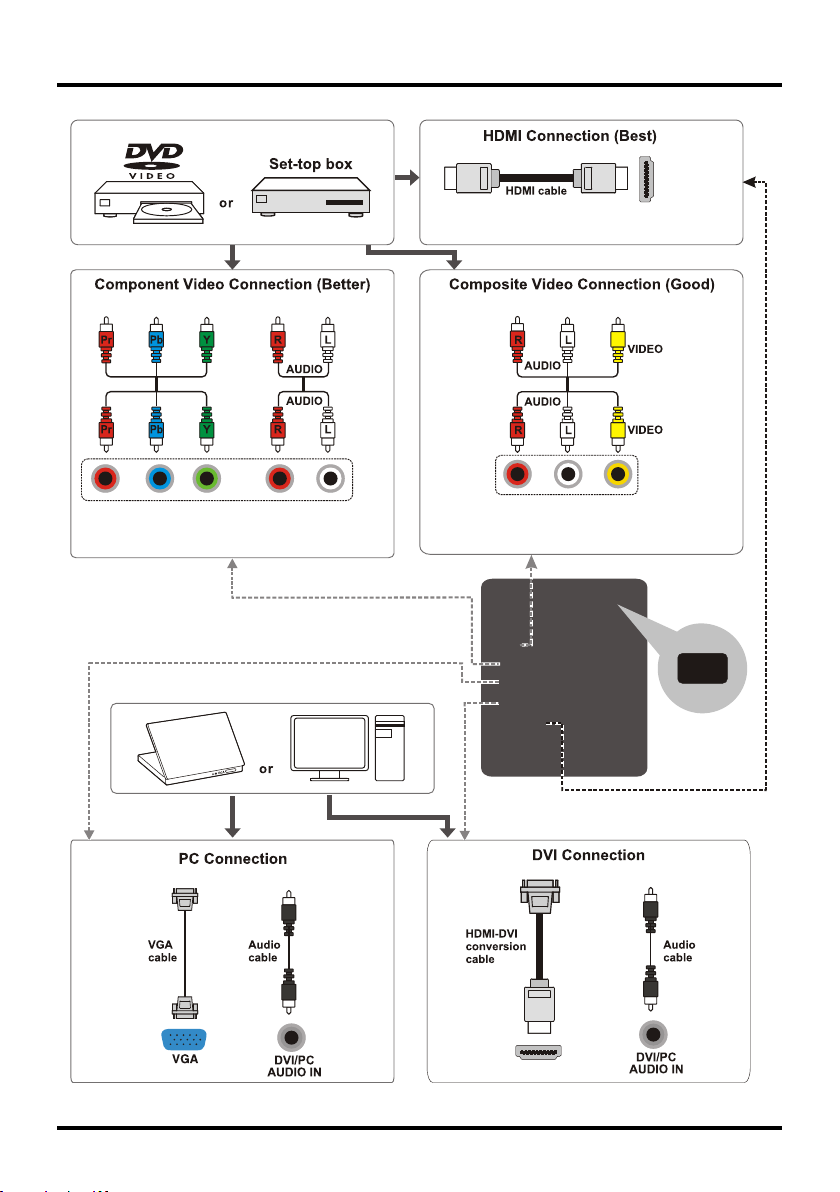

Choose Your Connections
There are several ways to connect components, such as DVD players and set-top boxes, to your TV.
Note: No cables are supplied with this unit. Please purchase the necessary cables. A high-speed HDMI cable
is recommended for better compatibility.
Input Signal Compatability
Antenna/Cable 480i, 480p, 720p, 1080i (NTSC, ATSC, and QAM formats)
