TTE Technology LE32HDF3010STA, LE32HDF3010TA, LE32HDF3010S, LE32HDF3010 User Manual
For use with models: LE32HDF3010 / LE32HDF3010S
/ LE32HDF3010TA / LE32HDF3010STA
Need assistance?
visit our website at www.tclusa.com
or call 1-877-300-8837 (for mainland 48 States),
or 1-877-800-1269 (for AK, HI, and Puerto Rico).
Figures and illustrations in this User’s Guide are
actual product appearance. Product design and
Important Information
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN.
Caution: To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside.
Refer servicing to qualied service personnel.
This symbol indicates “dangerous voltage”
inside the product that presents a risk of
electric shock or personal injury.
WARNING
To reduce the risk of re or electric shock, do not
expose this product to rain or moisture. This product
should not be exposed to dripping or splashing. No
objects lled with liquids, such as vases, should be
placed on the component.
WARNING
Refer to the identication/rating label located on the back panel of your product for its proper operating voltage.
FCC regulations state that unauthorized changes or modications to this equipment may void the user’s authority to
operate it.
Cable TV Installer: This reminder is provided to call your attention to Article 820-40 of the National Electrical Code
(Section 54 of the Canadian Electrical Code, Part 1) which provides guidelines for proper grounding and, in particular,
species that the cable ground should be connected to the grounding system of the building as close to the point of
cable entry as practical.
Important: This television is a table model and is designed to sit on a rm, at surface. Don’t place the TV on soft
carpeting or similar surface because the ventilation slots on the bottom of the unit will be blocked, resulting in reduced
lifetime from overheating. To assure adequate ventilation for this product, maintain a spacing of 4 inches from the top
and side of the TV receiver and 2 inches from the rear of the TV receiver and other surfaces.
Also, make sure the stand or base you use is of adequate size and strength to prevent the TV from being accidentally
tipped over, pushed off, or pulled off. This could cause personal injury and/or damage to the TV. Refer to the
Important Safety Instructions on the next page.
The Power button (followed by the power symbol) on this TV and your remote control puts the TV into a very lowpower standby mode but will not completely turn the power off. In order to completely shut the power off, you will
need to disconnect the power cord from the outlet. The mains plug/appliance coupler is used as disconnect device,
the disconnect device shall remain readily operable. Therefore, you should ensure that the TV is installed in a manner
that allows you to disconnect the power cord when desired.
The batteries shall not be exposed to excessive heat such as sunshine, re or the like.
This symbol indicates that this product
incorporates double insulation between hazardous
main voltage and user accessible parts. When
servicing, use only identical replacement parts.
This symbol indicates important
instructions accompanying the product.
WARNING
The TV is unstable if it is not properly attached to the
base or mounted to the wall. Please follow the base
or wall mounting instructions provided in the User’s
Guide to ensure your safety.
Product Registration
Please register your TCL purchase on-line at www.tclusa.com. It will make it easier to contact you should it ever be
necessary. Registration is not required for warranty coverage.
Product Information
Keep your sales receipt to obtain warranty parts and service and for proof of purchase. Attach it here and record the
serial and model numbers in case you need them. These numbers are located on the product.
Model No. ______________________ Serial No._____________________________________
Purchase Date __________________ Dealer/Address/Phone__________________________
1
Important Safety Instructions
1. Read and follow all instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
5. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
ampliers) that produce heat.
6. Protect the power cord from being walked on or pinched particularly at plugs, receptacles, and the point
where it exits from the component.
7. Do not use this apparatus near water.
8. Only use the attachments/accessories specied by the manufacturer.
9. Clean only with dry cloth.
10. Use only with the cart, stand, tripod, bracket, or table specied by the manufacturer, or sold with the
component. When the TV is placed on a cart, use caution when moving the cart to avoid injury from tipover.
11. Warning: To avoid any injury caused by lean of the product, please always ensure the whole product was
place within the table surface in horizontal.
12. Unplug this component during lightning storms or when unused for long periods of time.
13. Refer all servicing to qualied service personnel. Service is required when the component is damaged
in any way, such as power supply cord or plug damage, liquid spilled on or objects falling onto the
component, rain or moisture exposure, abnormal operation, or if the component has been dropped.
14. If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is
grounded so as to provide some protection against voltage surges and built-up static charges. Section 810
of the National Electrical Code, ANSI/NFPA No. 70-2011 (Section 54 of Canadian Electrical Code, Part 1)
provides information with respect to proper grounding of the mast and supporting structure, grounding of
the lead-in wire to an antenna-discharge unit, size of grounding conductors, location of antenna-discharge
unit, connection to grounding electrodes, and requirements for the grounding electrode. See following
example:
ELECTRIC SERVICE
ELECTRIC SERVICE
EQUIPMENT
EQUIPMENT
ANTENNA LEAD IN WIRE
ANTENNA LEAD IN WIRE
GROUND CLAMP
GROUND CLAMP
ANTENNA DISCHARGE UNIT
ANTENNA DISCHARGE
UNIT(NEC SECTION 810-20)
(NEC SECTION 810-20)
GROUNDING CONDUCTORS
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
(NEC SECTION 810-21)
GROUND CLAMPS
GROUND CLAMPS
POWER SERVICE GROUNDING
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
ELECTRODE SYSTEM (NEC ART
(NEC ART 250, PA RTH)
250, PARTH)
2
Table of Contents
Important Information ................................1
Important Safety Instructions ..................... 2
Chapter 1 - Connections and Setup
Before Initial Setup .................................... 4
Check Supplied Parts ................................ 4
Attaching Your TV to the Base Stand ........ 5
Mounting Your TV to the Wall .................... 5
Buttons on TV ............................................ 6
Explanation of Jacks on TV ....................... 6
Choose Your Connections ......................... 7
Remote Control Functions ......................... 9
Obtain the Signal ..................................... 10
Switching On ...........................................10
Switching Off ...........................................10
Setup Wizard ............................................11
Chapter 2 - Menu Operation
Menu Display ........................................... 12
Using Menu System ................................12
Input Menu............................................... 12
Picture Menu ...........................................12
Picture Mode.................................................12
Brightness .....................................................12
Contrast ........................................................12
Saturation .....................................................12
Sharpness.....................................................12
Tint ................................................................12
Color Mode ...................................................12
Back Light ..................................................... 12
Dynamic Backlight ........................................12
Geometry ...................................................... 12
Advanced Settings ........................................14
Sound Menu ............................................ 14
Equalizer .......................................................14
Speaker ........................................................14
SPDIF Type ..................................................14
Smart Volume ............................................... 14
MTS ..............................................................14
Audio Language ...........................................14
Settings Menu.......................................... 14
Language ......................................................14
Channel ........................................................15
Closed Caption .............................................15
Parental Control ............................................16
Time Setup ..................................................17
Software Info. ...............................................17
Location .......................................................18
Restore to Default ........................................18
USB Menu ............................................... 18
Chapter 3 - Other Information
Frequently Asked Questions (FAQs) ....... 19
Troubleshooting ....................................... 20
Care and Cleaning................................... 22
Television Specications.......................... 22
Limited Warranty .....................................23
Legal Statement of TCL ...........................25
3
Chapter 1 Connections and Setup
Before Initial Setup
Protect Against Power Surges
• Connect all components before you plug any power cords into the wall outlet or power strip.
• NEVER plug your TV into an outlet that is controlled by a wall switch.
• Turn off the TV before you connect or disconnect any cables.
• Make sure all antennas and cables are properly grounded. Refer to the Important Safety Instructions.
Safety Information
• Protect components from overheating.
• Don’t block ventilation holes on any of the components. Arrange the components so that air can circulate
freely.
• Don’t stack components.
• If you place the component in a stand, make sure you allow adequate ventilation.
• If you connect an audio receiver or amplier, place it on the top shelf so the heated air from it won’t harm
other components.
Avoid Audio Interference
• Position cables properly; insert each cable rmly into the designated jack.
• If you place components above the TV, route all cables down one side of the back of the TV instead of
straight down the middle.
• If your antenna uses 300-ohm twin lead cables, do not coil the cables.
• Keep twin lead cables away from audio/video cables.
Avoid Direct Light
Don’t place the TV where sunlight or room lighting is directed toward the screen. Use soft or indirect lighting.
Check Supplied Parts
Check that the following parts were packed with your product.
• 1 Remote Control and 2 AAA Batteries
• User’s Guide
• Quick Start Guide
• Parts for Base Stand Assembly:
• Base Stand
• (M4 x 25) Screw x 4
Replacing your remote
If you need to replace your remote, visit www.tclusa.com. A shipping and handling fee, and the appropriate sales tax, will be charged
upon ordering. Have your Visa or MasterCard ready.
4
Connections and Setup
Attaching Your TV to the Base Stand
Your TV comes without the base stand attached so that you can choose to mount your TV either to its base
stand or to a wall (wall mount sold separately). If you want to mount your TV to the wall, don’t attach the base
stand. Follow the Mounting Your TV to the Wall instructions.

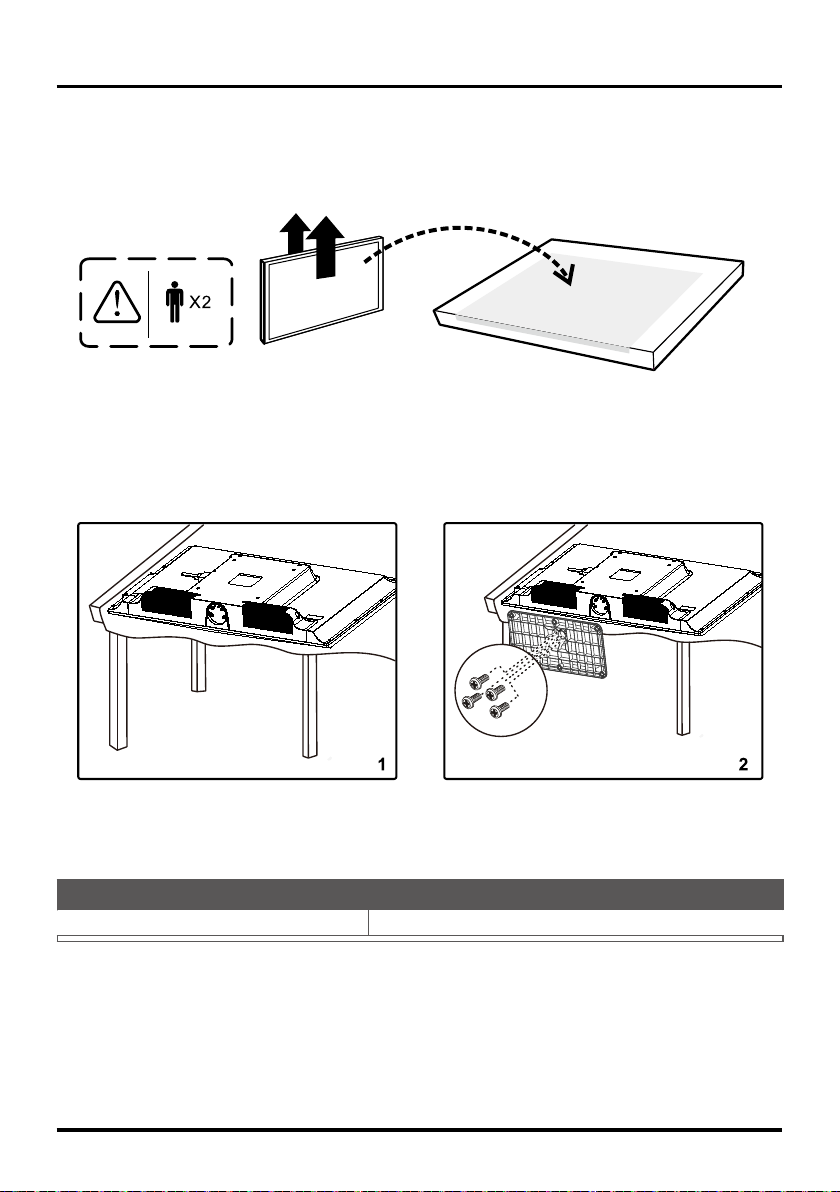

First, remove the TV bag and place it on a large, at surface such as a table or countertop. Remove the TV
from the carton and place it face down on the TV bag. Be sure that the TV is face down to avoid scratching
the screen.
Then follow the steps below:
Note: Keep the screws and plastic parts away from grease and organic solvents to avoid damage. Especially
during the assembly process.
Screws
M4×25
Mounting Your TV to the Wall
If you are mounting your TV to the wall, don’t attach the base stand.
To mount your TV to the wall, purchase a VESA wall mount.
Models of 32” Purchase a VESA 200 x 200, M6 screw
The VESA number is the horizontal and vertical measurement of the mounting holes. For example, 200x200
refers to the fact that the mounting measurements are 200mm horizontally and 200mm vertically.
Notes: Follow the directions included with the wall mount to mount the TV to the wall.
Caution: Your wall mount must be able to bear a minimum of ve times the TV’s net weight to avoid causing
damage.
5
Connections and Setup
Buttons on TV

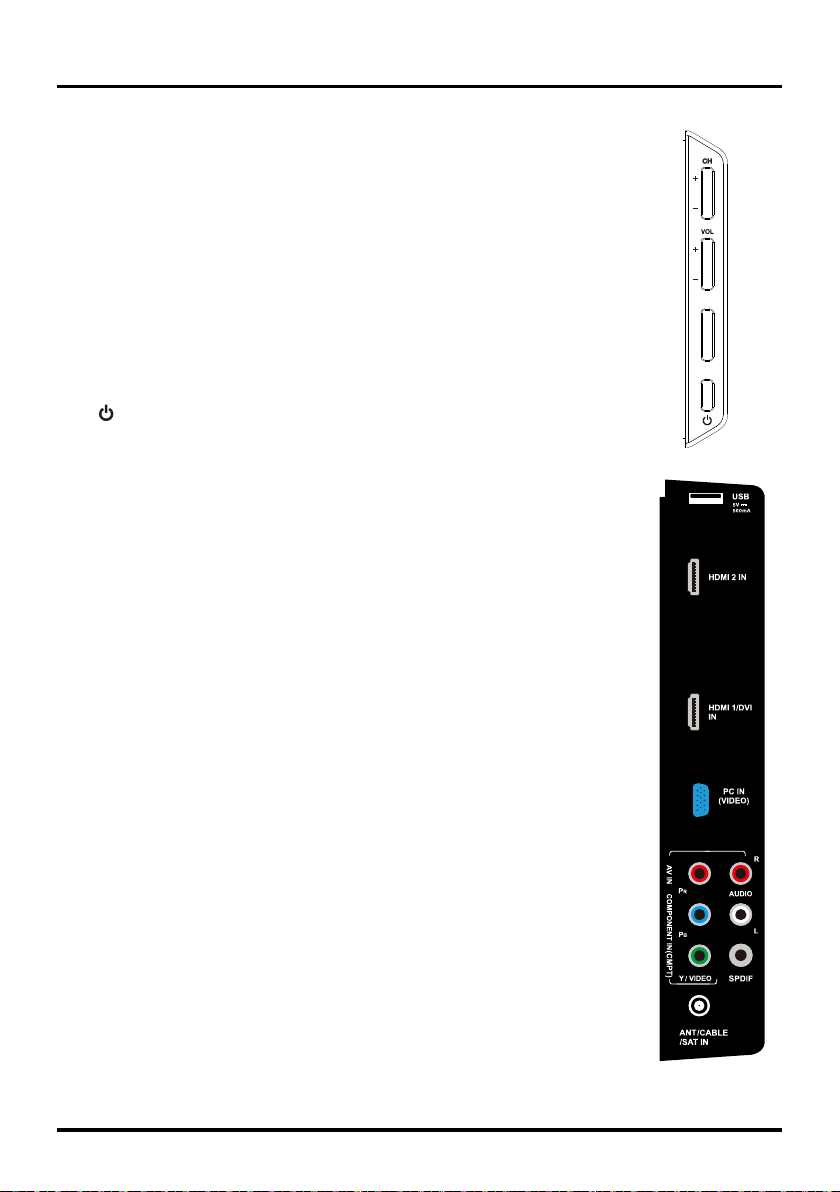

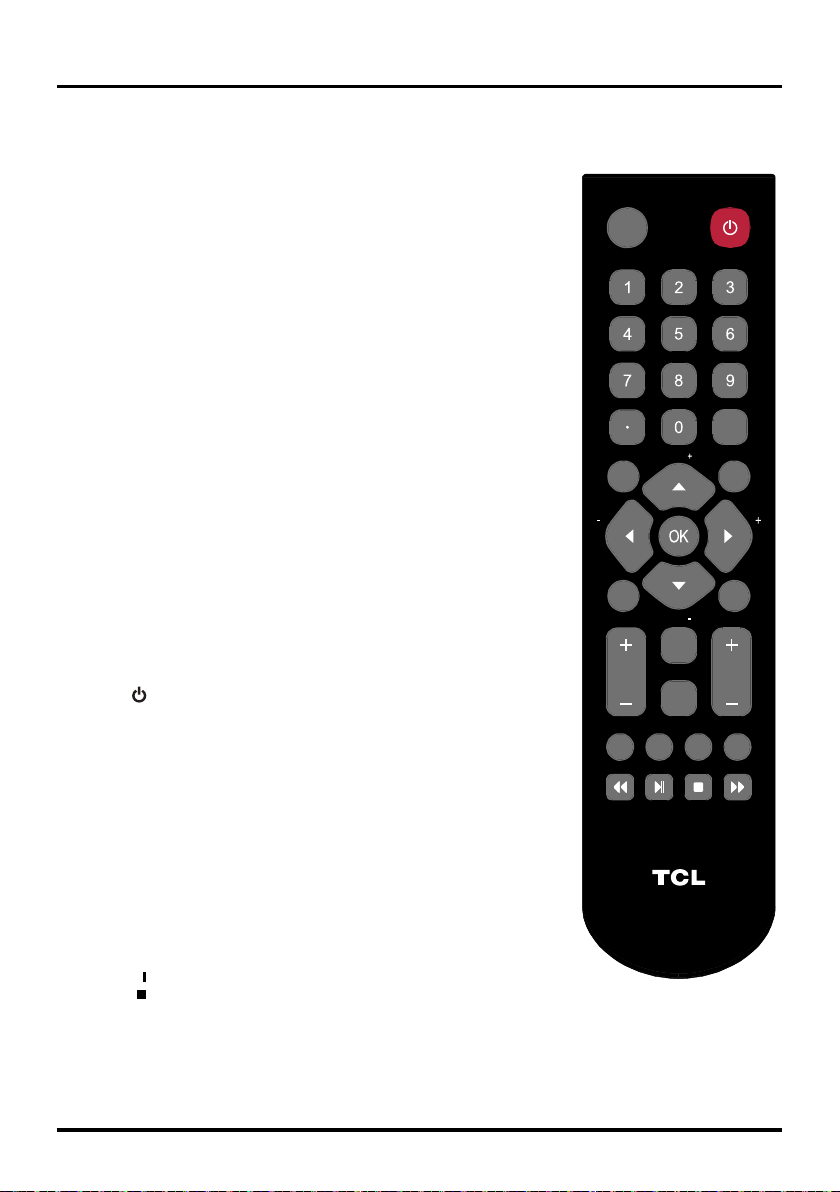

If you cannot locate your remote, you can use the TV panel buttons on your
TV to operate many TV features.
Selects channels stored in the channel list or acts as the up/
CH+/-
down arrow (▲/▼) through the menu items.
Increases/decreases the volume or acts as the right/left
VOL+/-
MENU Brings up the TV’s main menu.
INPUT Selects the signal source.
Explanation of Jacks on TV
This section describes the jacks on the side/back panel of your TV. There are several
ways to connect components.
SPDIF OUT - DIGITAL AUDIO OUT (coaxial): Use a digital coaxial cable to connect
your TV to a compatible audio receiver.
COMPONENT IN (CMPT) Lets you connect a component that has component video
jacks, such as a DVD player or set-top box. ( Green jack for Y, Blue jack for Pb and
Red jack for Pr )
• Y Pb Pr (Component Video): Provides good picture quality because the video is
• L/R AUDIO: Provides left and right audio connection when using the CMPT
AUDIO/VIDEO IN (AV IN): Lets you connect a component that has composite video
jacks, such as a VCR, DVD player or set-top box. Green jack for VIDEO connection,
red and white jacks for R AUDIO and L AUDIO connection.
VGA (PC IN (VIDEO) ): Connect your computer or other component with a VGA
output to this jack using a 15-pin,D-sub cable.
L/R AUDIO: Provides audio connection when using HDMI 1/DVI IN jack for DVI or
when using PC VIDEO IN. (Note: DVI IN and PC IN share the same L/R AUDIO
input jacks of COMPONENT IN.)
Note: If using a DVI component, remember to connect the audio cable because the
DVI cable carries only the picture signal, not the sound.
ANT/CABLE/SAT IN: Lets you connect a coaxial cable to receive the signal from
your antenna, cable, or cable box, or satellite receiver.
USB: Allows you to connect a compatible mass storage device.
HDMI 1 / DVI IN (High-Denition Multimedia Interface/Digital Visual Interface):
Provides an uncompressed digital connection that carries both video and audio data
arrow (◄/►) through the menu items.
VOL+ also acts as the OK button when in the menu system.
(POWER button) Turns the TV on or to standby mode.
separated into three signals. Use three video-grade or component video cables
for the connection.
VIDEO input. Red and white jacks for R AUDIO and L AUDIO connection.(Note:
AV IN and COMPONENT IN share the same L/R AUDIO and Y/Video input
jacks.)
MENU
INPUT
HDMI 2 IN
6
Connections and Setup
by way of an integrated mini-plug cable. Since HDMI technology is based on Digital
Visual Interface (DVI), the jack on the back of your TV is also compatible with DVI
components.
HDMI 2 IN: Lets you connect a component, such as a digital cable or satellite box,
with an HDMI output for the best picture quality.
Choose Your Connections
There are several ways to connect components, such as BD player, DVD players and set-top boxes, to your
TV.
Note: No cables are supplied with this unit. Please purchase the necessary cables. A high-speed HDMI cable
is recommended for better compatibility.
Input Signal Compatability
Antenna/Cable 480i, 480p, 720p, 1080i (NTSC, ATSC, and QAM formats)
Composite Video 480i
Component Video 480i, 480p, 720p/60Hz, 1080i/60Hz
HDMI 480i, 480p, 720p/60Hz, 1080i/60Hz, 1080p/60Hz
PC VGA SVGA XGA SXGA WXGA
7
or
Set-top box
Connections and Setup
HDMI Connection (Best)
HDMI 2 IN
HDMI cable
Same connection to HDMI 1/DVI IN
Same connection to HDMI 1/HDMI 3 IN
HDMI 2 IN
COMPONENT IN (CMPT)
Menu operation for input source selection
or select the input source directly by pressing
INPUT button.
or
DVI Connection
HDMI /DVI IN1
AUDIO
Y / VIDEO (VIDEO)
Input
Input
PC Connection
PC IN (VIDEO)
8
Connections and Setup
Remote Control Functions
INPUT Press INPUT repeatedly to select the video input
0-9 (Alphanumeric buttons) Enters a channel number, then
press OK (or let the entry timeout).
• (dot) To enter a digital channel with a sub-channel,
enter the main channel; then, press the dot (•), the subchannel, and then the OK button.
MENU Brings up the main menu or press to return to the
▲/▼◄/► (arrows) Highlights different items in the TV menu and
ZOOM+/- (◄/►) Selects the desired screen format.
SLEEP+/- (▲/▼) Sets the TV to turn off after a given amount of
VOL+/- Increases or decreases the TV volume.
MEDIA Goes to the USB menu.
GUIDE Toggles the Electronic Programme Guide between on
CLEAR Removes any menu or display from the screen and
GO BACK Returns you to the previously viewed channel.
◄◄ / ►►/ ►
previous menu.
adjusts the menu controls.
time.
PIC Selects picture mode.
INFO If no menus are currently active, press INFO to display
the Channel information.
MUTE Turns the volume on and off.
FAV Press the FAV button to browse the channels set in
your favorite list. Use ▲/▼ to select one of the favorite
channel to watch. Press CLEAR to exit the menu.
(POWER button) Turns the TV on or standby.
and off. Only available for digital channels.
return to normal viewing.
OK Displays Channel List menu. When the TV is in the
menu system, press to conrm your selection.
CH+/- Selects channels and external input mode.
TV Press to access to the TV mode.
MTS Press to select your desired sound mode.
These buttons can be used for playing music and
/
photos in the USB menu.
9
Connections and Setup
Obtain the Signal
The rst step in connecting your TV is obtaining the signal. The back panel of your TV allows you to receive
analog and/or digital channels by using the HDMI or ANT/CABLE/SAT connections. To obtain the best
quality, use the HDMI connection.
Connect the outside ariel to the ANT/CABLE/SAT IN
connection on the back of the TV to receive off-air channels.
Use an HDMI connection to display the best picture and
sound quality for satellite and cable
• If you have a set-top box, you may need to call your
cable company or satellite service provider. They may
recommend special cables to allow you to view digital
channels.
• The aerial socket (75 OHM - VHF / UHF / cable) can be
used for connecting an external aerial or other equipment
tted with a modulator (video recorder, satellite receiver,
etc.). We recommend that you do not connect other
equipment (video recorder, satellite receiver, etc.) to
your TV set to begin with, so as not to complicate the
set-up procedure with the additional steps involved. Connect them when you have nished setting up the
channels.
• Visit www.antennaweb.org for help in deciding what type of antenna to use in order to receive the local
digital channels available to you. Enter your location, and the program will list local analog and digital
stations available using your antenna.
Switching On
Follow the instructions on this page on how to switch on your TV set and use the remote control before going
on to following pages describing how to use the channel scan procedure.
1. Insert two AAA batteries in the remote control.
Precautions on using batteries:
- Only use the battery types specied.
- Make sure you use the correct polarity.
- Do not mix new and used batteries.
- Do not use rechargeable batteries.
- Do not expose batteries to excessive heat such as sunshine, re or the like, throw them in a re,
recharge them or try to open them, as this could cause them to leak or explode.
- Remove the batteries from the remote control if you are not using it for a long period of time.
2. Connect the power cable to a power outlet. (If the power cable is not connected to the television, please
rst connect the power cable to the television.) Your TV set should only be connected to an AC supply.
It must not be connected to a DC supply. If the plug is detached from the cable, do not, under any
circumstances, connect it to a power outlet, as there is a risk of electric shock.
3. When powered on, if the TV set is in standby mode, press
turn on the TV.
ANT/CABLE
/SAT IN
Outdoor or indoor Antenna
Or
Or
RF Coaxial
Wire
(75 ohm)
on the remote control or on the TV set to
Cable Box,
(Wall Outlet)
Switching Off
To put the TV set into standby mode, press on the remote control or on the TV, the TV set remains
powered up, but with low energy consumption.
To disconnect power from the TV set, unplug the power cord from the power outlet.
10
Setup Wizard
Perform the following steps before you press on the remote
control unit.
• Insert the batteries into the remote control unit.
• Connect the antenna cable to the TV.
• Plug in the AC cord to the AC outlet.
The rst time you switch the set on, the Setup Wizard opens,
which guides you through the setup process.
1. The rst step of the setup requires you to select your
preferred language for the menu system. Press ▲/▼ to
select your language, then press OK to enter the next
screen.
2. A menu screen asks you to set the power on mode.
• Choosing “Home Mode” for the TV assigns the optimal
picture settings for most home environments.
• Choosing “Retail mode”, which is not ENERGY STAR
compliant, sets the unit up with predened settings for
retail displays. In this setting, the power consumption
may exceed the requirements of the ENERGY STAR®
qualication. Use ▲/▼ to select the desired location
setting (“Home Mode” or “Retail mode”); then press OK
to continue to the next screen.
Note: if you select “Retail Mode”, a screen menu will
display to ask you go back to the previous menu to select
“Home Mode” by pressing ◄ to select Go Back and press
OK to conrm , or you can select “Proceed“ to proceed to
the next screen.
3. Use ▲/▼ to select the current local time zone. Press OK
to continue to the next screen.
4. Select either “Antenna” or “Cable/Sat” as the channel scan
type. Press OK to begin the channel scan process.
Note: Make sure what kind of connection is made with
your TV when selecting “Antenna” or “Cable/Sat”.
5. The screen will change to show the progress of the channel
scanning process, available channels will be stored in the
TV’s memory.
Note: If you do not want to scan for channels at this time,
you can press CLEAR or MENU to exit the scanning
process, and perform the channel scan later in the “Setting”
menu.
If you are using a cable set-top box and connect using the
RF connection, you do not have to complete the Channel
Scan. You can simply tune to channel 3 or 4 on the TV,
then use the remote that came with yout cable/satellite
box.
6. When the scanning is nished, the unit will switch to the
rst channel found.
Connections and Setup
Français
11
Chapter 2 Menu Operation
Menu Display

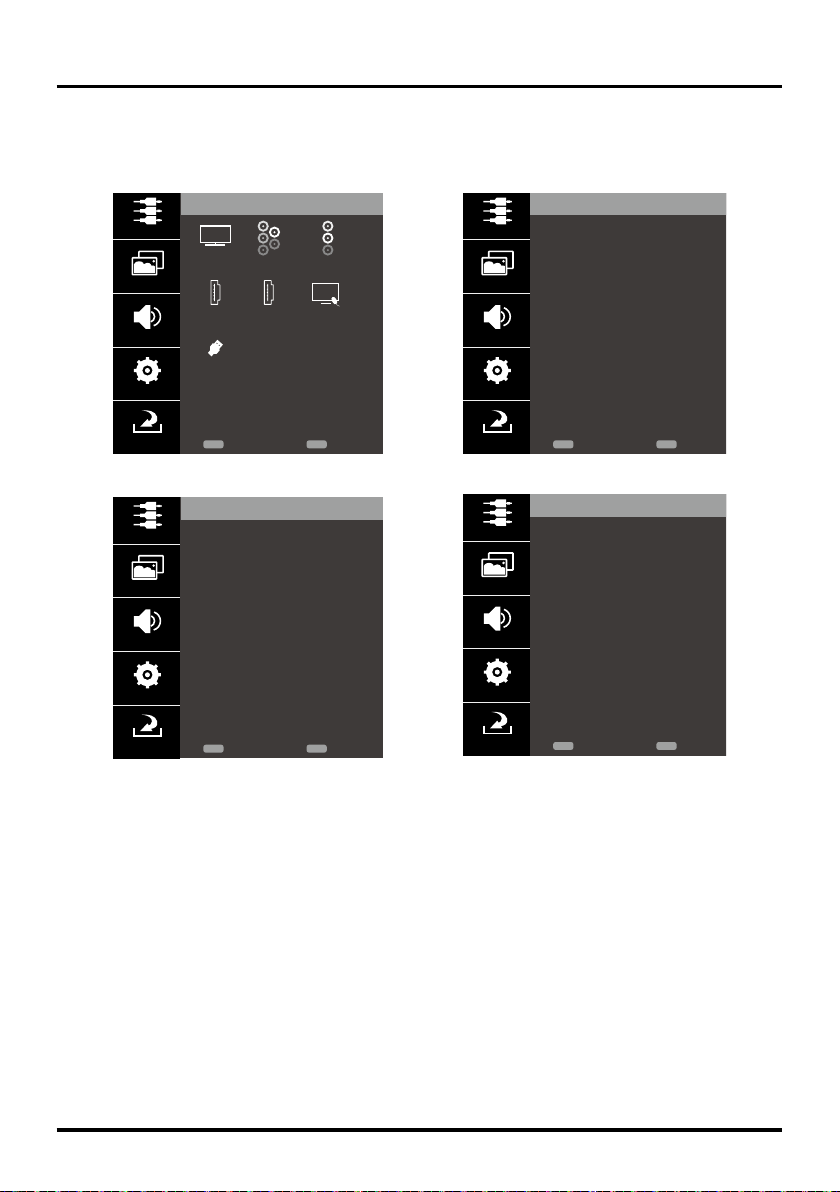

The following are just illustrations of the menu display. Some menu items may not be displayed depending on
the selected input source.
Input
Sound
Settings
Input
Component AV
TV
HDMI1HDMI2
USB
Input
PC
Sound
Settings
Picture Mode
Brightness
Contrast
Saturation
Sharpness
Tint
Color Mode
Back Light
Dynamic Backlight
Geometry
Advanced
< Vibrant >
48
49
12
12
8
< Cool >
64
< Off >
>
>
Exit
Input
Sound
Settings
Exit
MENUCLEAR
Return
Sound
Equalizer
Speaker
SPDIF Type
Smart Volume
MTS
Audio Language
MENU CLEAR
Return
Exit
>
< On >
< Dolby Digltal >
< Off >
< Stereo >
< English >
Exit
Exit
Input
Sound
Settings
Exit
MENU CLEAR
Return
Settings
Language
Channel
Closed Caption
Parental Control
Time Setting
Software Info.
Location
Restore to Default
MENU CLEAR
Return
Exit
< English >
>
>
>
>
>
< Home >
>
Exit
12
Menu Operation
Using Menu System
This section explores the menus of your TV. Each
menu is outlined and detailed to help you get the
most from your TV. Example:
Input
Sound
Settings
Exit
Picture Mode
Brightness
Contrast
Saturation
Sharpness
Tint
Color Mode
Back Light
Dynamic BackLight
Geometry
Advanced
MENU CLEAR
Return
< Vibrant >
48
49
12
12
8
< Cool >
64
< Off >
>
>
Exit
Energy Star
Vibrant
Cinematic
Natural
Sports
Personal
1. Press MENU to display the menu screen.
2. press ▲/▼ to select the desired menu (selected
item will turn to blue), then press OK/► to enter.
3. Press ▲/▼ to highlight a specic adjustment
item, and then press ◄/► to set functions or
change values.
• Additional related adjustment items may be
displayed. Press▲/▼/◄/►to select or adjust
the desired item, if necessary press OK to
conrm.
4. Press MENU to return to the previous menu or
press CLEAR to close the menu.
Note: Operations vary depending on the function
or item. Some menu items may not be displayed
or may be displayed in grey (not selectable)
depending on the selected input source.
Input Menu
The input menu allows you to select the input
source.
Press MENU to display the menu screen. Press▲/▼
to select Input, then press OK/►to display options.
Press ▲/▼/◄/► to select the desired input source:
" TV / Component/ AV / HDMI1 / HDMI 2 / PC / USB ".
Press OK to conrm.
display the menu screen. Press▲/▼ to select
“Picture”, then press OK/► to display options.
Picture Mode
Displays a list that lets you select one of the preset
picture settings: “Energy Star, Vibrant, Cinematic,
Natural, Sports, Personal.” Choose the setting that
best for your viewing environment.
Note: “Energy Star” makes this product qualify for
ENERGY STAR, if you select some other options,
the power consumption may change.
Brightness
Adjusts the brightness of the picture.
Contrast
Adjusts the difference between the light and dark
areas of the picture.
Saturation
Adjusts the richness of the color.
Sharpness
Adjusts the crispness of the edges in the picture.
Tint
This option adjusts the balance between the red and
green levels.
Color Mode
Adjusts the color temperature: “Normal, Warm and
Cool”.
Back Light
Adjusts the backlight level. the menu line is grayed
out by default. Only when “Dynamic Backlight” set to
“Off”, the menu line can be adjustable.
Dynamic Backlight
This option automatically adjusts the brightness
of the backlight according to the content of the
incoming signal. “Dynamic Backlight” optimizes the
picture quality and decreases power consumption.
Picture Menu
The menus for adjusting the picture are used to
obtain the best picture settings according to your
preference, the type of program you are watching
and the ambient lighting.
To access the “Picture” menu, press MENU to
Note: When “Dynamic Backlight” is set to “Off”, the
power consumption may exceed the requirements of
the ENERGY STAR® qualication.
Geometry
This option allows you to adjust the PC settings
when in PC mode.
13
Menu Operation
Advanced Settings
Zoom Mode: Selects the desired screen format.
The screen format may vary depending on the
incoming signal.
3DNR (Noise Reduction): This setting reduces
picture “static” or any type of interference. This
feature is especially useful for providing a clearer
picture in weak analog signal conditions. Choose
between these options:
Auto for auto noise reduction adjustment.
Low for a softer, smoother picture that retains
picture sharpness and detail.
Medium for a slightly softer picture than the Low
setting.
High for an even softer, smoother picture than
the other settings (the picture detail is somewhat
decreased).
Off for no adjustment.
Film Mode – Select “On” to automatically detect a
lm-based source, analyzes it then recreates each
still lm frame for high-denition picture quality.
Sound Menu
The “Sound” menu lets you adjust audio output.
To access the “Sound” Menu, press MENU on
the remote, and then use ▲/▼ to select “Sound”.
Press OK/► to enter. The following options will be
displayed:
Equalizer
The ve-band equalizer allows you to adjust the
audio frequency settings. You can select one of the
ve preset options or create a custom preset.
Sound Mode: Allows you to choose a specic
sound preset: “Standard, Music, Movie, Sports and
Personal”.
Balance: Adjust the amount of audio sent to the
left and right speakers.
Frequency Range: Choose a band and make
adjustments. When making adjustments, the
“Sound Mode” option automatically changes
to “Personal”. Press ▲/▼ to select the desired
frequency (100Hz, 300Hz, 1.5KHz, 5KHz, 10KHz)
you wish to adjust. Use ◄/► to adjust the level.
Speaker
Option “On/Off”. When you select the “Off” option,
the sound speaker on the TV will be turned off.
SPDIF Type
This option controls the type of audio stream sent to
the Digital Audio Output jack (SPDIF OUT). Available
options are “Dolby Digital, PCM”.
Smart Volume
Option “On/Off”. This option reduces the annoying
blasts in volume that often occur during commercial
breaks, and also amplies softer sounds in program
material, eliminating the need for constant volume
adjustment.
MTS
This option controls the manner in which the sound
comes through your speakers. Options available
vary according to the input selected.
Note: The MTS option is only available for analog
channels.
Mono (available for regular TV viewing only):
This option plays the sound in mono only. Use
this setting when receiving broadcasts with weak
stereo signals.
Stereo: This option splits the incoming stereo
audio signal into left and right channels. Most TV
programs and recorded materials have stereo
audio.
Second Audio Program (SAP): This option
plays the program’s audio in a second language,
if available. SAP audio is broadcast in mono only.
SAP is also used to broadcast a program’s audio
with descriptions of the video for the visually
impaired.
Audio Language
Choose from the list of languages available for the
program you’re watching. The language chosen
becomes your preferred language for all digital
channels until you turn the TV off. If the language
chosen is not being broadcasted with a program,
the TV plays the default language for the program
(usually “English” in the US).
Note: The “Audio Language” option is only available
for digital channels.
Settings Menu
The “Settings” menu allows you to congure the TV
with your preferences. Press MENU to diaplay the
menu screen. Press ▲/▼ to select “Settings”; then
press OK/► to display the following options:
Language
14
Menu Operation
Select the OSD menu language from English,
Spanish, or French.
Channel
Signal Source: Choose the signal source (“Cable/
Sat” or “Antenna”) you have connected to the
ANT/CABLE/SAT IN.
Scan: When you perform a Channel Scan, your
TV searches for channels with signals and stores
the channel information in the Channel List. Then,
as you watch TV and press CH+ or CH-, your
TV goes to the next or previous channel in the
Channel List and skips the channels that do not
have signals. If the TV signal source changes – for
example, if you change from an outdoor antenna
to cable TV – you will need to rescan for channels.
To automatically scan for channels:
1. After choosing a signal source, select Setting >
Channel > Scan.
2. Press OK/► to start the scan. You can see
the search progress and how many channels
are found in the on-screen menu. (Note: If
you wish to stop the search, press the CLEAR
button.)
3. After the scan is complete, the unit will exit
menu automatically.
Favorite:
1. Select “Setting > Channel > Favorite”, press
OK/► to enter, a list of available channels
displayed.
2. Press ▲/▼ to select the desired chanel, then
press OK to set it as the favorite, and a heart
icon appears to the right side of the channel
indicating this channel already stored in the
favorite channel list.
3. Set other favorite channels the same way.
4. You can easily select the favorite channel to
watch using FAV and ▲/▼ buttons.
Show/Hide: You can hide channels in the Channel
List. Then, when you press the CH+ or CH- button,
the TV will skip the hidden channels. You can still
tune to these hidden channels by pressing the
number of the channel on the numeric keypad.
To hide specic channels:
1. Select “Show/Hide”, press OK/► to open the
submenu.
2. Press ▲/▼ to highlight the channel you wish
to hide; then press OK to check the highlighted
channel. You can add the channel back into the
Channel List by highlighting it and un-checking
it.
3. Repeat the process to hide additional channels.
4. Press MENU to return to the previous menu, or
press CLEAR to close the menu.
DTV Signal: Show the condition of DTV signal:
Good or Bad, Normal. Bad for no DTV signal or
very weak DTV signal.
Closed Caption
Many programs are encoded with closed captioning
information, which allows you to display the audio
portion of a program as text on the TV screen.
Note: Closed caption settings are not available for
HDMI, CMPT or PC inputs. These settings must be
set in the connected component’s menu. Closed
captioning is not available on all channels at all
times. Only specic programs are encoded with
closed captioning information.
The Closed Caption options are:
CC Mode: This option allows you to choose the
way closed captioning information appears on the
screen.
CC Off - No captioning information displayed.
CC On - Chooses this option if you want
captioning information to be shown whenever
available.
On When Mute - This option allows the closed
captioning to display (when available) whenever
the TV’s sound is muted. The captioning
information is not displayed when the sound is
not muted.
Analog CC Option: This option lets you select
the captioning mode (CC1-CC4, TEXT1-TEXT4,
Off) used for displaying caption information, when
available. If you are unsure of the differences
among the modes, you may prefer to leave the
closed captioned mode set to CC1, which displays
complete text of the program in the primary
language in your area.
Digital CC Option: If available, this allows you
to select a closed caption service mode (1-6) for
digital channels.
CC Option
Mode - Select either “Default” or “Custom”
options. “Custom” mode allows you to set the
options below.
Font Style - Allows you to choose a character
design for the digital closed caption text. A font
is a complete assortment of letters, numbers,
punctuation marks, etc. in a given design. You
can choose from a variety of fonts.
Font Size - Allows you to set the size of the
15
Menu Operation
digital closed caption text.
Font Edge Style - Allows you to set edge style
of the closed caption text.
Font Edge Color - lets you set the color of the
closed caption text edge.
FG Color - Allows you to set the color of the
digital closed caption text.
BG Color - Allows you to choose the color of
the area of the screen behind the digital closedcaption.
FG Opacity - Allows you to sets the appearance
of the digital closed caption text.
BG Opacity - Allows you to a set the appearance
of the space behind the digital closed-caption
text.
Parental Control
The choices in the US V-Chip and Canada V-Chip
menus involve software inside your TV, referred to
as V-Chip, which allows you to block TV programs
and movies. TV programs can be blocked by agebased ratings, such as TV-MA. If available, TV
programs can also be blocked by content, such as
adult language (L). Movies can only be blocked
by age-based ratings. Once you block programs,
you can unblock them by entering a password. By
default, the software inside your TV is turned off or
unlocked.
V-Chip reads the program’s age-based rating (TVMA, TV-14, etc.) and content themes (Violence
(V), Adult Language (L), etc.). If you have blocked
the rating and/or content themes that the program
contains, you receive a message that the channel
is currently blocked. Change the channel or to
enter your password and temporarily deactivate the
parental controls.
Broadcasters are not required to provide content
themes, so programs received with no content
themes are blocked only if you block their agebased rating. You can also block programs that have
been given an Exempt rating, and programs that are
considered unrated.
Change V-Chip Password
The rst time you enter the Parental Control menu,
you must enter the default secret code 0000 to
adjust other parental control settings. Then set
your individual password:
1. Selelct “Parental Control > Change Password”,
press OK/► to enter.
2. Use the number buttons to enter the four-digit
number for your password.
3. Re-enter the same code to conrm the pass
word.
Note: The password must be entered before
the TV will continue with Parental settings next
time. The super password is 2458, If you forget
your password, enter it to override any existing
password.
System Lock
You must remember to set “System Lock” to On
mode to have the following parental lock settings
to take effect.
Input Block
1. Select “Parental Control > Input Block”, press
OK/► to display the Input source list screen.
2. Press ▲/▼ to select a input source, and press
◄/► to select to block or unblock the input.
When you tune to the blocked input, you will
need to enter a password to view it.
US
Press OK/► to display its submenus:
US V-Chip TV Ratings
You can automatically block all program ratings
above a specied age-based rating level.
1. Select “Parental Control > US > TV Rating”,
press OK/► to enter the US TV Ratings
screen.
In the US TV Ratings panel you can customize
the program blocking of the following TV
ratings:
TV–Y All children
TV–Y7 Children 7 years and older
TV–G General audience
TV–PG Parental guidance suggested
TV–14 Parents strongly cautioned
TV–MA Mature audience only
You can also customize the TV ratings for the
following content:
D Sexual explicit dialog
L Adult language
S Sexual situations
V Violence
FV Fantasy violence
2. Press ▲/▼/◄/► to navigate through the TV
rating options. Press OK to block or (unlocked).
US V-Chip Movie Ratings (MPAA)
You can automatically block all program ratings
above a specied age-based rating level.
1. Select “Parental Control > US > MPAA”, press
16
Loading...
