MAGNETIC COMPONENTS SELECTOR GUIDE 2006 EDITION
We reser ve the right to change specif ications without prior notice.
54
Notes: (1) Inductance is measured at 100kHz, 100 mVrms, OADC.
(2) RMS current is the approximate current at which inductance will decrease by 10% from its initial value (zero DC)
or the DC current at which
∆T = 40°C, whichever is lower.
(3) Saturation current for approximately 30% roll-off.

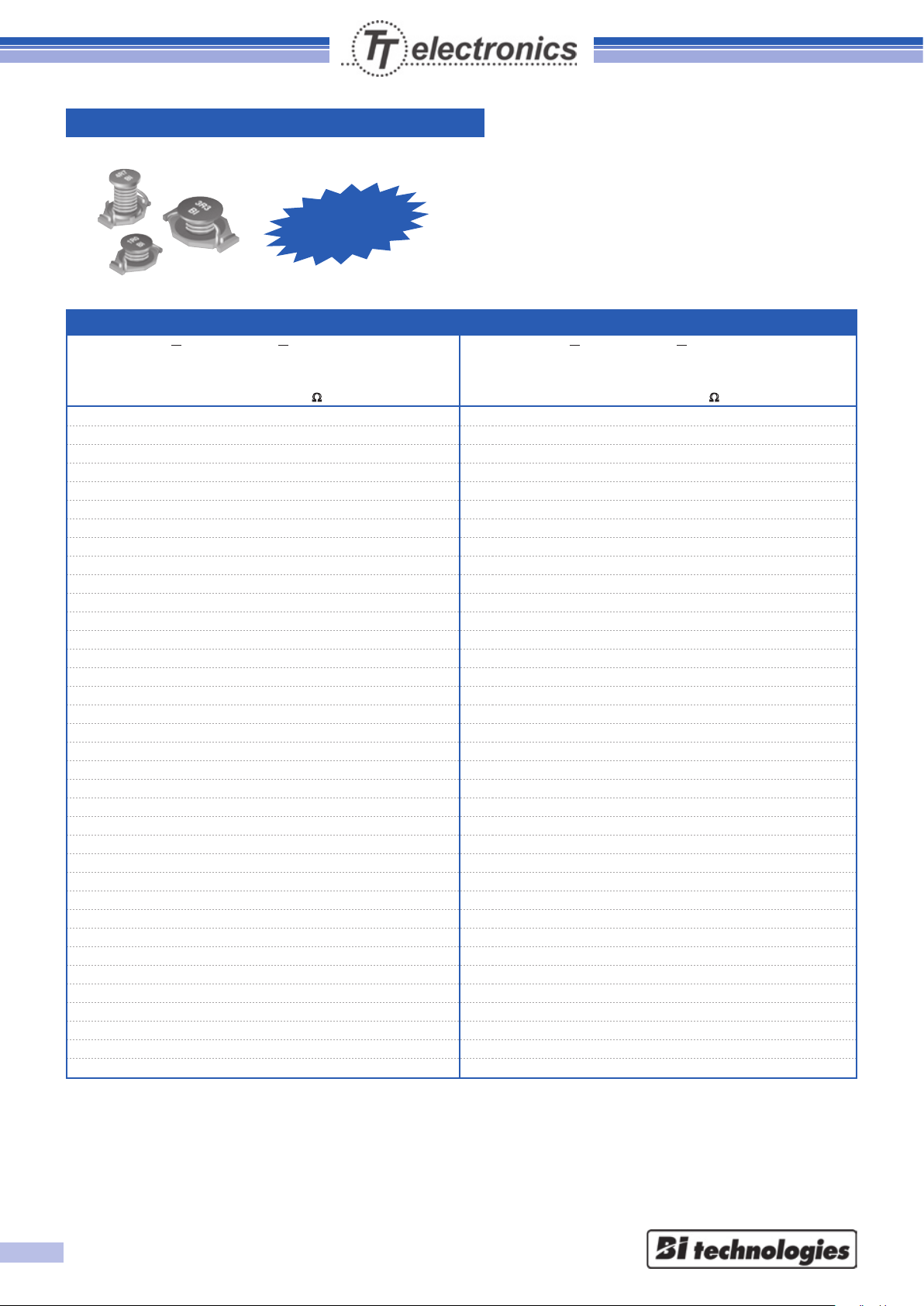

HM75-10R47LF 0.47 0.47 7.9 6.0 7.7
HM75-101R0LF 1.0 1.0 12.5 4.4 5.3
HM75-101R5LF 1.5 1.6 14.5 4.2 4.5
HM75-102R2LF 2.2 2.26 24.1 3.1 3.5
HM75-103R3LF 3.3 3.45 31.8 2.9 3.0
HM75-104R7LF 4.7 4.85 54.7 2.2 2.6
HM75-106R8LF 6.8 6.9 57.1 1.7 2.2
HM75-10100LF 10 10.4 81.3 1.5 1.9
HM75-10150LF 15 15.3 124 1.2 1.5
HM75-10220LF 22 23 183 1.0 1.2
HM75-10330LF 33 33.6 265 0.82 0.99
HM75-10470LF 47 48.5 334 0.72 0.87
HM75-20R33LF 0.33 0.33 2.0 16 20
HM75-20R68LF 0.68 0.80 3.5 12 13
HM75-201R0LF 1.0 1.1 4.6 10 11
HM75-201R5LF 1.5 1.5 6.1 9 9
HM75-202R2LF 2.2 2.3 7.8 7.4 7.8
HM75-202R7LF 2.7 2.9 10.0 6.6 7.0
HM75-203R3LF 3.3 3.3 11.0 5.9 6.4
HM75-204R7LF 4.7 4.8 15.1 4.8 5.4
HM75-20100LF 10 10.0 35 3.3 4.3
HM75-20150LF 15 15.43 45 3.1 3.0
HM75-20220LF 22 22.5 62 2.8 2.0
HM75-20330LF 33 33.2 92 2.1 1.7
HM75-20470LF 47 48.7 139 1.7 1.4
HM75-20680LF 68 68.2 177 1.5 1.2
HM75-20101LF 100 103 237 1.2 0.95
HM75-30R47LF 0.47 0.45 2.1 16 25.1
HM75-301R0LF 1.0 1.34 3.8 12.5 15.3
1.5 1.65 4.9 10 12
HM75-302R2LF 2.2 2.3 5.1 9.2 10.2
HM75-303R3LF 3.3 3.44 10 8.0 9.3
HM75-304R7LF 4.7 5.0 11.4 6.5 7.7
HM75-306R8LF 6.8 6.9 17.8 5.8 6.2
10 11 22.8 4.3 5.2
HM75-30150LF 15 16.4 35.0 3.9 4.36
Specifications @ 25°C
HM75-30220LF 22 23.9 49.1 3.1 3.7
HM75-30330LF 33 33.9 69 2.4 3.0
HM75-30470LF 47 51 108.2 1.9 2.4
HM75-30680LF 68 69.5 156 1.6 2.0
HM75-30101LF 100 101.4 205.5 1.4 1.8
HM75-40R47LF 0.47 0.47 1.7 19.2 51.7
HM75-401R0LF 1.0 0.92 2.5 17.3 37.3
HM75-401R3LF 1.3 1.3 3.5 15 25
HM75-402R2LF 2.2 2.2 4.7 12 20
HM75-403R3LF 3.3 3.3 8.4 10 17
HM75-403R9LF 3.9 3.9 7.5 9 15
HM75-404R7LF 4.7 5.3 9.5 8.5 15
HM75-406R0LF 6.0 6.0 13.7 7.5 12
HM75-407R8LF 7.8 7.8 15.4 7.5 11
HM75-40100LF 10 10.0 22.0 6.0 10
HM75-40150LF 15 15.6 29.5 5.5 9.1
HM75-40220LF 22 22.6 34 4.5 7.6
HM75-40330LF 33 34.5 52 3.7 6.1
HM75-40470LF 47 48.0 71 3.1 5.2
HM75-40680LF 68 69.2 104 2.4 4.3
HM75-40101LF 100 103 156 2.0 3.6
HM75-50R78LF 0.78 0.78 2.6 15 30
HM75-501R0LF 1.0 0.92 3.1 17.3 37.3
HM75-501R5LF 1.5 1.52 4.0 15 28.9
HM75-502R2LF 2.2 2.27 5.6 12 23.7
HM75-503R3LF 3.3 3.2 7.0 11 20.0
HM75-503R9LF 3.9 4.0 10 9 15
HM75-504R7LF 4.7 4.7 9.5 6.5 10.7
HM75-507R5LF 7.5 7.5 15 6 9.8
HM75-50100LF 10 10 40 3.5 8.0
HM75-50150LF 15 15 50 3.0 7.0
HM75-50220LF 22 22 66 2.5 5.5
HM75-50330LF 33 33 80 2.0 4.0
HM75-50470LF 47 47 110 1.6 3.8
HM75-50680LF 68 68 170 1.2 3.0
HM75-50101LF 100 100 220 1.2 2.5
Rated Inductance Rated
L w/o DC DCR Current
Part L
DC
LO
(1)
Max. I
RMS
(2)
I
SAT
(3)
Number µH Typ. µH ±20% mΩ Amps Amps
Rated Inductance Rated
L w/o DC DCR Current
Part LDC LO
(1)
Max. I
RMS
(2)
I
SAT
(3)
Number µH Typ. µH ±20% mΩ Amps Amps
• Operating Temperature Range -40°C to +125°C
• Ambient Temperature, Maximum 85°C
• Insulation System Class B, 130°C
• Temperature Rise, Maximum 40°C
Electrical / Environmental
High Current Surface Mount Inductors
RoHS
Compliant
2006 EDITION MAGNETIC COMPONENTS SELECTOR GUIDE
We reser ve the right to change specif ications without prior notice
www.bitechnologies.com
55
Ordering Information

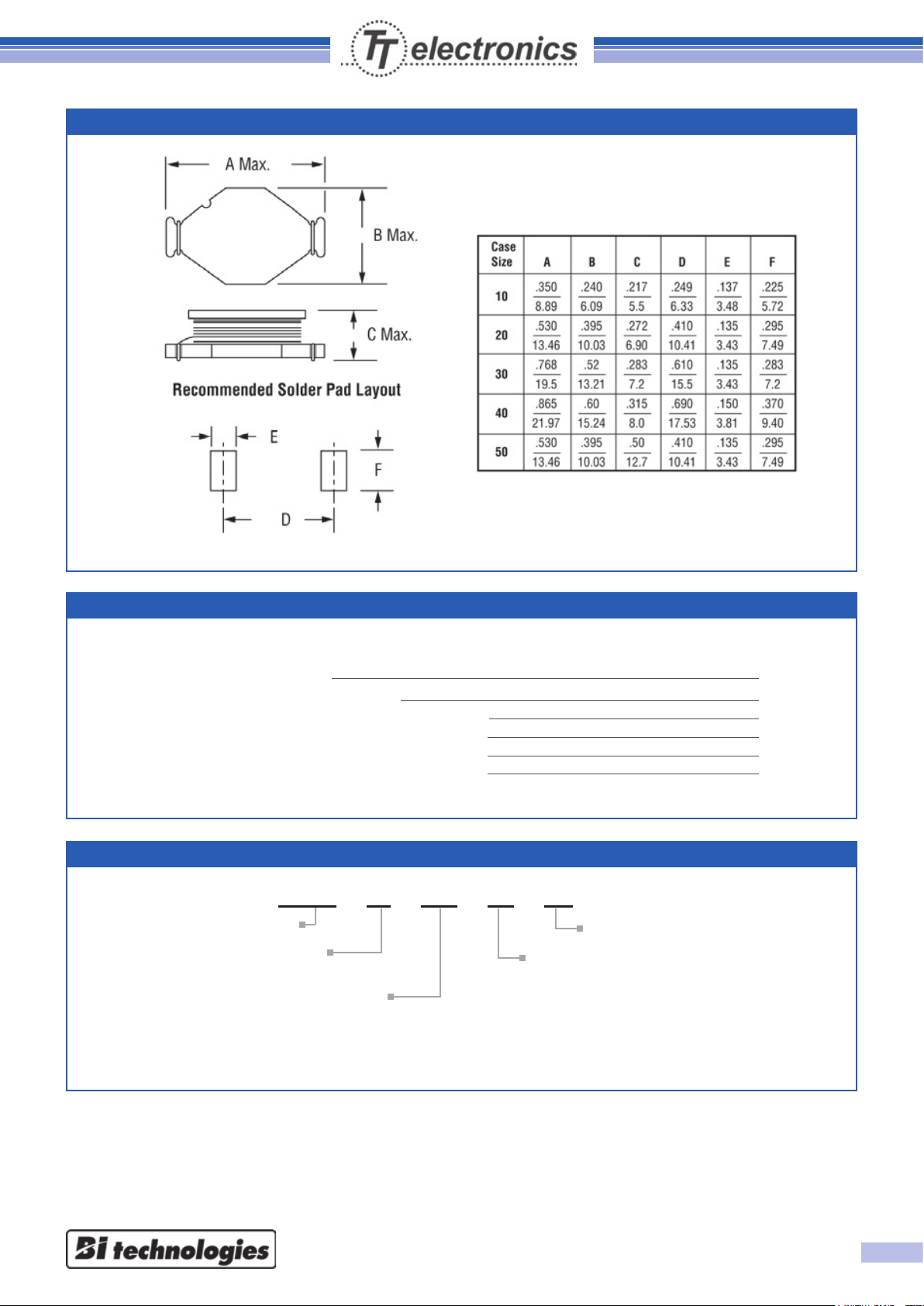

Outline Dimensions (Inch/mm)
Packaging
Standard: Embossed Tape and Reel
Reel: Diameter: = 13” (330.2mm)
Capacity: Case size 10 = 1,000 Units
Case size 20 = 550 Units
Case size 30 = 450 Units
Case size 40 = 275 Units
Case size 50 = 250 Units
Inductance Code:
First 2 digits are significant. Last digit denotes
the number of trailing zeros. For values below
10µH, “R“ denotes the decimal point.
Model Series
Case Size:
Tape & Reel Packing
Lead Free
HM75 20 101 LF TR
