Owner’s Manual
READ ENTIRE MANUAL
CAREFULLY BEFORE
OPERATING UNIT!
WARNING
Made in U.S.A.
Model Nos. 2001/3001
Commercial Jump Starter/Chargers
Clore Automotive • Kansas City, MO 64161 • www.solaronline.com • 913.310.1050
Congratulations! Y
WAR NING
Read these instructions completely before using the SOLAR Jump Starter/Charger and save them for future
reference. Before using the SOLAR Jump Starter/Charger to jump start a car, truck, boat or to power any
equipment, read these instructions and the instruction manual/safety information provided by the car, truck,
boat or equipment manufacturer. Following all manufacturers’ instructions and safety procedures will reduce
the risk of accident.
Working around lead-acid batteries may be dangerous. Lead-acid batteries release explosive gases during
normal operation, charging and jump starting. Carefully read and follow these instructions for safe use. Always
follow the specific instructions in this manual and on the SOLAR Jump Starter/Charger each time you jump
start using the SOLAR Jump Starter/Charger.
All lead-acid batteries (car, truck and boat) produce hydrogen gas which may violently explode in the presence
of fire or sparks. Do not smoke, use matches or a cigarette lighter while near batteries. Do not handle the
battery while wearing vinyl clothing because static electricity sparks are generated when vinyl clothing is
rubbed. Review all cautionary material on the SOLAR Jump Starter/Charger and in the engine compartment.
Always wear eye protection, appropriate protective clothing and other safety equipment when working near
lead-acid batteries. Do not touch eyes while working on or around lead-acid batteries.
Always return clamps to their proper storage positions, away from each other or common conductors. Improper
storage of clamps may cause the clamps to come in contact with each other, or a common conductor, causing
the battery to short circuit and generate high enough heat to ignite most materials.
Never touch the air compressor or fittings connected to the air compressor, with bare hands during or
immediately after usage. It will become very hot during and after use, if necessary, wear heat resistant gloves.
Use extreme care while working within the engine compartment, because moving parts may cause severe
injury. Read and follow all safety instructions published in the vehicle's Owner's Manual.
The battery in the SOLAR Jump Starter/Charger contains liquid acids which are hazardous if spilled. In
addition, batteries being charged with the SOLAR Jump Starter/Charger unit likely contain liquid acids which
are hazardous if spilled.
DO NOT TIP UNIT OR LAY UNIT FLAT WITH BATTERY INSTALLED!
WAR NING
ou have just purchased the most versatile and dependable unit on the market today.
Keep the unit plugged in when not in use and it will provide long, continuous service and satisfaction.
The SOLAR Jump Starter/Charger is specifically designed to jump start and/or charge 12 Volt lead-acid
batteries. Follow all battery/vehicle manufacturer's jump starting or charging instructions. Our units will
deliver 600 Amp-1000 Amp starting power depending upon the model and battery installed.
DO NOT JUMP START WITH AC POWER CORD CONNECTED TO 110 VOLT AC POWER SOURCE.
The unit’s charger will maintain the it’s internal battery and recharge most lead-acid batteries
within two hours. It will automatically shut off. The ampere needle flickering at zero indicates the battery is
fully charged. The charger constantly monitors it's storage battery or the battery it's charging. It may be used
to charge maintenance-free, conventional, deep cycle, gelled electrolyte, and recombination batteries.
The automatic shut off air compressor (Model No. 3001) will fill a tire in minutes to a pre-selected pressure (3075 lbs.). The 150 PSI compressor is specifically designed for automotive and small truck tires. DO NOT
INFLATE TIRES OR FLIP "ON/OFF" SWITCH "ON" WITH UNIT CONNECTED TO 110 AC POWER SOURCE.
SAFETY INSTRUCTIONS
Never alter the AC cord or plug provided – if it will not fit outlet, have proper outlet installed by a qualified
electrician. This unit is for use on a 120 Volt, 60 Hz cycle circuit. A temporary adapter may be used to connect
this plug to a two-pole receptacle if a properly grounded outlet is not available. The temporary adapter should
be used only until a properly grounded outlet can be installed by a qualified electrician. Before using adapter,
be certain that center screw of outlet plate is grounded. The green rigid ear or lug extending from adapter must
be connected to a properly grounded outlet – make certain it is grounded. If necessary, replace original outlet
cover plate screw with a longer screw that will secure adapter ear or lug to outlet cover plate and make ground
connection to grounded outlet.
DANGER
Use of an attachment not recommended or sold by manufacturer may result in a risk of fire, electric shock,
1.
or injury to persons.
2. To reduce risk of damage to electric plug and cord, pull by plug rather than cord when disconnecting unit.
3. Make sure cord is located so that it will not be stepped on, tripped over, or otherwise subjected to damage
or stress.
4. An extension cord should not be used unless absolutely necessary. Use of an improper extension cord could
result in a risk of fire and electric shock. If an extension cord must be used, make sure pins on plug of
extension cord are the same number, size, and shape as those of plug on unit; extension cord is properly
wired and in good condition; wire size is large enough for the length of cord as specified in the following
chart:
Length in feet: 25 50 100 150
Cord AWG size: 16 12 10 8
5. Do not operate unit with damaged cord or plug - replace them immediately.
6. Do not disassemble unit – take it to/or call a qualified technician when service or repair is required.
Incorrect reassembly may result in a risk of electric shock or fire.
7. To reduce risk of electric shock, unplug unit from outlet before attempting any maintenance or cleaning.
PERSONAL SAFETY PRECAUTIONS
1. Someone should be within range of your voice or close enough to come to your aid when you work near
a lead-acid battery. Have plenty of fresh water and soap nearby in case battery acid contacts skin, clothing
or eyes.
2. If battery acid contacts skin or clothing, wash immediately with soap and water. If acid enters eye,
immediately flood eye with running cold water for at least 10 minutes and get medical attention immediately.
NEVER smoke or allow a spark or flame in vicinity of battery or engine.
3.
4. Be extra cautious to reduce risk of dropping a metal tool onto battery. It might spark or short-circuit battery
or other electrical part that may cause explosion.
5. Remove personal metal items such as rings, bracelets, necklaces, and watches when working with a
lead-acid battery. A lead acid battery can produce a short circuit current high enough to weld a ring or
the like to metal, causing a severe burn.
6. When using unit as charger, charge a LEAD-ACID battery only. It is not intended to supply low-voltage
power for applications other than battery charging. Do not use with batteries that are commonly used
with home appliances. These batteries may burst and cause injury to persons and damage property.
NEVER JUMP START OR CHARGE a frozen battery. Any battery that is suspected of being frozen must
7.
be thawed before jump starting or charging.
GROUNDING AND AC POWER CONNECTION INSTRUCTIONS
Unit should be grounded to reduce risk of electric shock. Unit is equipped with an electric cord having an
equipment grounding conductor and a grounding plug. The plug must be plugged into an outlet that is properly
installed and grounded in accordance with all local codes and ordinances.
SELECTING AND INSTALLING THE BATTERY
BATTERY SELECTION
1. Battery Size (Group) to Use:
Model No. 2001 – Group 31 1000 CCA and up
Model No. 3001 – Group 31 1000 CCA and up
2. A high quality battery will last longer and perform better than a marginal quality battery.
3. Use a battery with a sealed top or with screw type flush fill caps. This will help prevent acid leakage
should unit be inadvertently laid flat or turned over.
4. Use battery with 3/8" threaded studs.
5. A high quality battery emits less gases as it recharges. Using this type of battery will extend charger
and wiring life. Battery acid and petroleum resistant wiring is used in this unit.
6. Check battery water level every 90-120 days to extend battery life.
BATTERY INSTALLATION – ALL MODELS
1. Remove back panel by removing (2) 1/4” – 20 bolts securing panel.
2. Place battery on back edge of unit with negative facing inward.
3. Connect Negative (–) jumper cable with Black (NEG – ) wire to Negative (N, –) stud of battery with
3/8" nut provided. (See Figure 1a.)
4. Slide battery under internal ladder structure to front of unit moving Negative (–) jumper cable to left
of bottom platform. Battery will slightly drop down when fully inserted.
5. Connect Positive (+) jumper cable with Red (POS +) wire to Positive (P, +) stud of battery with
3/8" nut provided. (See Figures 1b and 1c.)
6. Replace back panel and secure with (2) 1/4” – 20 bolts.
7. Volt gauge should read between 12.5 and 14 volts.
8. Plug in unit to charge battery. Amp gauge will take 3 seconds to register battery and apply
proper charge rate.
9. When amp gauge approaches "2" or less and flickers, battery is fully charged and unit is ready to use.

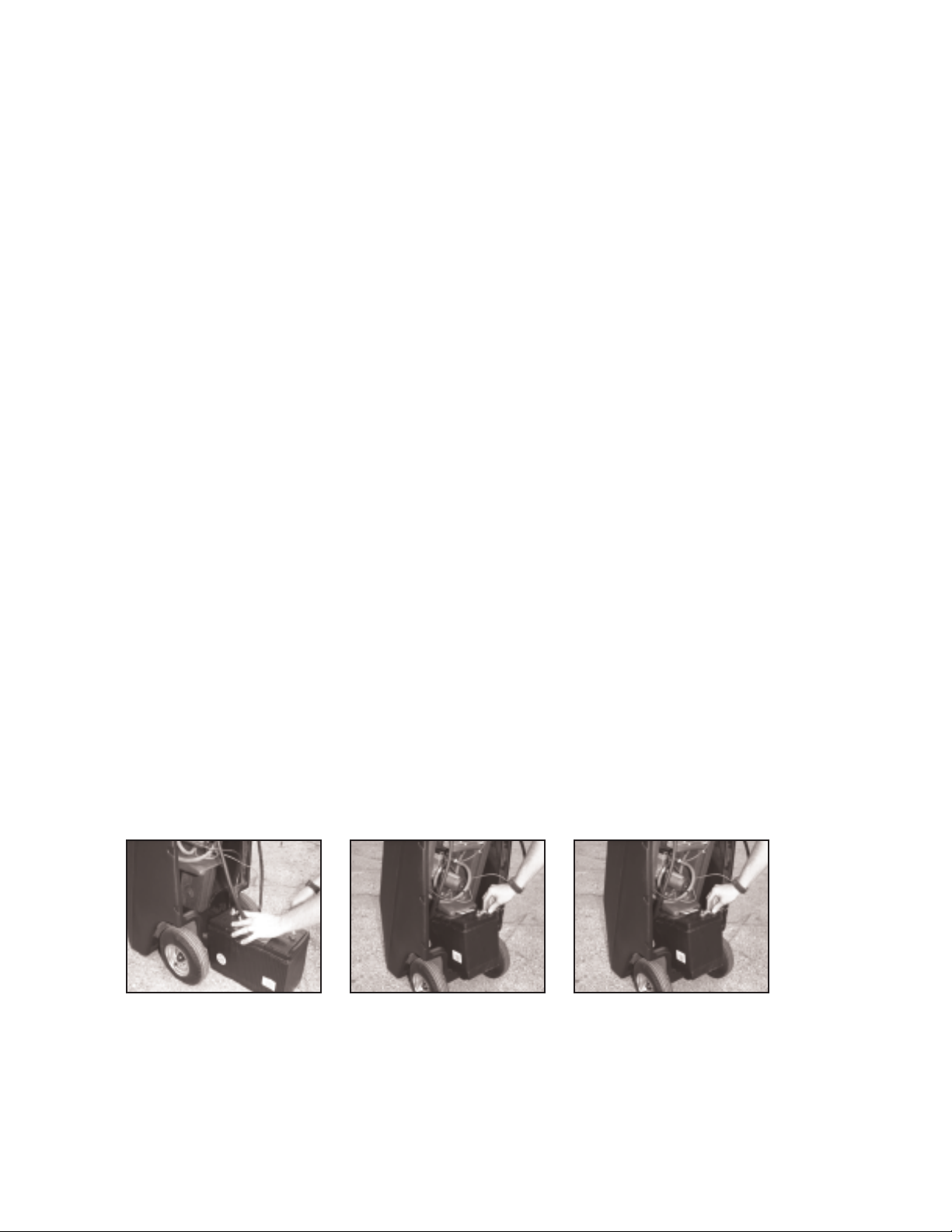

Figure 1a Figure 1b Figure 1c
OPERATING INSTRUCTIONS
OPERA
Warning: DO NOT JUMP START WHILE THE UNIT IS PLUGGED INTO 110 AC POWER SOURCE!
1. Position DC jumper cables to reduce risk of damage by hood, door, or moving engine part.
2. Stay clear of fan belts, pulleys, and other parts that can cause injury to persons.
3. Check polarity of battery posts. POSITIVE (POS, P, +) and NEGATIVE (NEG, N, –).
4. Determine which post of battery is grounded (connected) to the chassis. If negative post is grounded
5. a) For negative-grounded vehicle, connect POSITIVE (RED) grip from unit to POSITIVE (POS, P, +)
6. After jump starting vehicle, disconnect the unit from the vehicle. When disconnecting unit, ALWAYS
TING THE UNIT AS A JUMP STARTER
NEVER JUMP START A FROZEN BATTERY!
A SPARK NEAR BATTERY MAY CAUSE BATTERY EXPLOSION – FOLLOW INSTRUCTIONS
BELOW TO REDUCE RISK OF A SPARK NEAR BATTERY.
to chassis (as in most vehicles) see step 5a. If positive post is grounded to the chassis, see step 5b.
ungrounded post of battery. Connect NEGATIVE (BLACK) grip from unit to vehicle chassis or engine
block away from battery.
For positive-grounded vehicles only, connect NEGATIVE (BLACK) grip from unit to NEGATIVE
b)
(NEG, N, –) ungrounded post of battery. Connect POSITIVE (RED) grip from unit to vehicle chassis or
engine block away from battery.
pre-1970 farm tractors. This is a rare occurrence.)
Note: Do not connect grip to carburetor, fuel lines, or sheet-metal body parts.
Connect to a heavy gauge metal part of the frame or engine block.
remove grip from vehicle chassis first, then remove grip from battery terminal second.
(This arrangement is usually found in pre-1970 foreign vehicles or
OPERATING THE UNIT AS A BATTERY CHARGER (USE ON LEAD-ACID BATTERIES ONLY)
Warning: DO NOT JUMP START WHILE THE UNIT IS PLUGGED INTO 110 AC POWER SOURCE!
NEVER JUMP START A FROZEN BATTERY!
A SPARK NEAR BATTERY MAY CAUSE BATTERY EXPLOSION – FOLLOW INSTRUCTIONS
BELOW TO REDUCE RISK OF A SPARK NEAR BATTERY.
1. Position DC jumper cables to reduce risk of damage by hood, door, or moving engine part.
2. Stay clear of fan belts, pulleys, and other parts that can cause injury to persons.
Check polarity of battery posts: POSITIVE (POS, P, +) and NEGATIVE (NEG, N, –).
3.
Determine which post of battery is grounded (connected) to the chassis. If negative post is grounded
4.
to chassis (as in most vehicles) see step 5a. If positive post is grounded to the chassis, see step 5b.
5. a) For negative-grounded vehicle, connect POSITIVE (RED) grip from unit to POSITIVE (POS, P, +)
ungrounded post of battery
block away from battery
b) For positive-grounded vehicles only, connect NEGATIVE (BLACK) grip from unit to NEGATIVE
(NEG, N, –) ungrounded post of battery. Connect POSITIVE (RED) from unit to vehicle chassis or
engine block away from battery
Do not connect grip to carburetor
6.
part of the frame or engine block.
7. Connect AC power cord to 110 AC outlet. When battery being charged is fully charged, the ampere gauge
(on front panel) will flicker on "0".
8. Upon completion of charging, disconnect unit from vehicle. When disconnecting unit, ALWAYS
remove grip from vehicle chassis first, then remove grip from battery terminal second.
. Connect NEGA
.
.
, fuel lines, or sheet-metal body parts. Connect to a heavy gauge metal
TIVE (BLACK) grip from unit to vehicle chassis or engine
OPERA
TING THE UNIT AS AN AIR COMPRESSOR
(Model No. 3001 Only)
Warning: DO NOT INFLATE TIRES OR FLIP AIR COMPRESSOR "ON/OFF" SWITCH WHILE THE UNIT
IS PLUGGED INTO 110 AC POWER SOURCE!
Snap air chuck on tire valve stem (some wheel covers may require use of valve stem extension).
1.
2. Flip "ON/OFF" air switch on front panel to "ON" position.
3. Tire will inflate to preset pressure and compressor will shut off.
4. Disconnect air chuck from tire valve stem (compressor will come on again).
5. Flip "On/Off" air switch on front panel to "Off" position.
6. See Compressor section below to adjust shut off pressure.
Adjusting the Compressor Shut Off Pressure
1. Remove back panel by removing
(2) 1/4” – 20 bolts securing panel.

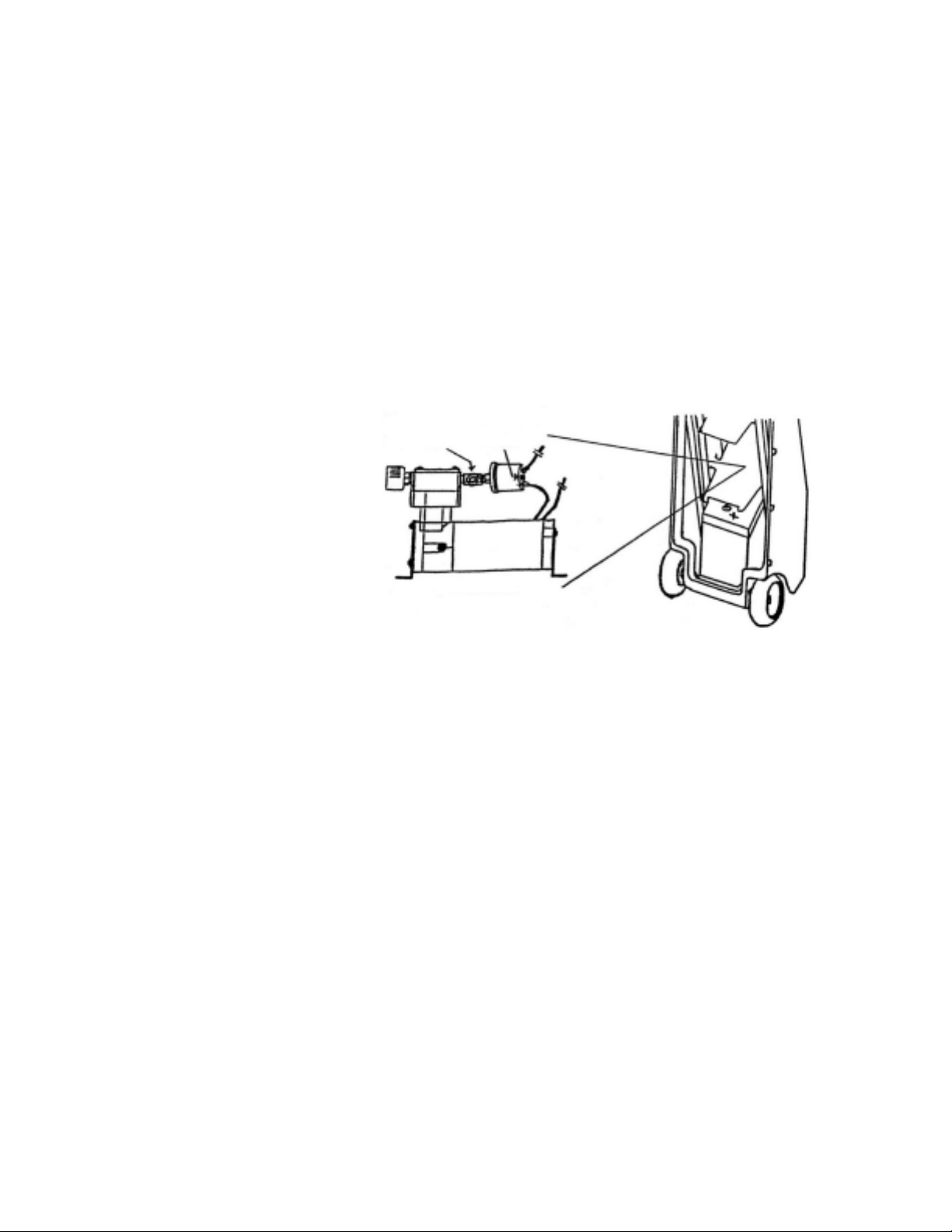

2. Locate the pressure switch
Air
Hose
Connector
and set screw (center of switch).
3. When adjusting shut-off pressure,
turn no more than 1/2 turn between settings.
4. To increase pressure setting, turn
clockwise (1/4 turn = approximately 4 lb.).
5. To decrease pressure setting, turn counterclockwise (1/4 turn = approximately 4 lb.).
6. Check pressure setting by inflating a tire and
checking tire pressure with an air gauge.
If more adjustment is necessary, return to step 4 or 5.
7. Secure back panel with (2) 1/4” – 20 bolts bolts.
Pressure
Set
Screw
Compressor
TROUBLESHOOTING
PROBLEM: Unit does not jump start.
POSSIBLE CAUSE
Poor grip connection Check grip connection
Low/defective battery Load test/charge/replace battery
Loose jumper cable connection to battery Tighten battery connections
SOLUTION
PROBLEM: Unit does not charge.
POSSIBLE CAUSE SOLUTION
Poor grip connection Check grip connection
Faulty 1
Bad plug on unit Check continuity of plug pins/replace plug
Loose/defective connections Check unit for loose connections
Defective amp gauge Replace gauge
Faulty charger Replace charger
10 AC outlet Check or change outlet
PROBLEM: Unit does not inflate tires.
POSSIBLE CAUSE SOLUTION
Low/defective battery indicated by Recharge/replace battery
clicking of circuit breaker
Loose/defective connections Check unit for loose connections
Defective air pressure switch Replace pressure switch
Defective "On/Off" switch Replace "On/Off" switch
Defective compressor Replace compressor
For Diagnostic and Repair Help, call the Clore Automotive
Technical Service Hot Line at (800) 328-2921 or visit www.solaronline.com
LIMITED WARRANTY
Clore Automotive, LLC warrants your SOLAR Commercial Jump Starter/Charger to be free from defects
in material and workmanship for a period of one year from the date of sale to the original user or consumer
purchaser
of the warranty period because of a defect in material or workmanship, we will replace it. If your SOLAR
Commercial Jump Starter/Charger malfunctions or fails within the 12 month warranty period because of
a defect in material or workmanship, we will repair it without charge.
This warranty is in lieu of all other express warranties. The duration of any implied warranty, including but not
limited to any implied warranty of merchantability or fitness for a particular purpose, made in respect to your
SOLAR Commercial Jump Starter/Charger is limited to the period of the express warranty set forth above.
This warranty excludes and does not cover defects, malfunctions, or failures of your SOLAR Commercial
Jump Starter/Charger which were caused by repairs made by an unauthorized person, mishandling,
modifications, normal wear, unreasonable use or damage to the SOLAR Commercial Jump Starter/Charger
while in your possession. This warranty applies neither to battery, deterioration of the battery, nor damage
to the unit caused by the use of a faulty battery.
In no event shall Clore Automotive, LLC be liable for consequential or incidental damages. Some states
do not allow limitations on the length of the implied warranty or the exclusion or limitation of incidental or
consequential damages so the above limitations or exclusions may not apply to you. This warranty gives
you specific legal rights and you may also have other rights which vary from state to state.
. If your
SOLAR Commercial Jump Starter/ Charger malfunctions or fails within the first 30 days
Owner’s Manual
Model Nos. 2001/3001
Commercial
Jump Starter/Chargers
READ CAREFULLY
BEFORE OPERATING UNIT!
ARNING:
W
to the State of California to cause cancer
reproductive harm. Wash hands after handling.
Clore Automotive • Kansas City, MO 64161 • www.solaronline.com • 913.310.1050
© 2006 Clore Automotive 841-023-000
This product contains chemicals, including lead, known
, birth defects and other
WARRANTY AND
TECHNICAL SUPPORT REGISTRATION
Please complete the attached registration card to be eligible to receive
FREE technical support, product updates and warranty service.
TECHNICAL SUPPORT
Technical support is available to registered users only.
Call (800) 328-2921 Monday through Friday, 8:00 AM to 4:30 PM CST.
THREE EASY WAYS TO REGISTER
1. Mail in the completed registration card below OR
2. Fax the completed registration card to (800) 716-6531 OR
3. Register your product online at www.cloreregistration.com.
(Complete information below, detach at perforation and mail)
WARRANTY AND TECHNICAL SUPPORT
REGISTRATION CARD
Model Number:____________________________________________________
Date of purchase:___/___/___ Purchased from:_______________________
Company Name:___________________________________________________
Shipping
City:______________________ State:_________ Postal Code:______________
Country:_______________ Contact Name:_______________________________
elephone:( ) _________________ Fax: ( ) ___________________
T
E-mail Address:
Address:__________________________________________________
_____________________________________________________
BUSINESS REPLY MAIL
-CLASS MAIL PERMIT NO. 5445 SHAWNEE MISSION KS
FIRST
POSTAGE WILL BE PAID BY ADDRESSEE
WARRANTY REGISTRATION
CLORE AUTOMOTIVE
8735 ROSEHILL RD STE 220
LENEXA
KS 66215-9901
IN
AGE
THE
NO POST
NECESSARY
IF MAILED
UNITED STATES
Loading...
