ttec SoundMate Play User Manual

www.hellottec.com

Contents

Thank you........................................................................................................

Overview and Functions....................................................................................

Connecting the SoundMate Play Portable Bluetooth Speaker ............................

Multi-functional Usage.......................................................................................

Specications....................................................................................................

Maintenance.....................................................................................................

4
5
7
8
9

10

3

Thank You

Thank you for purchasing our SoundMate Play Portable Bluetooh® Speaker.

Contents of the box;

1 x Portable Bluetooth® Speaker

1 x USB Cable

1 x User Manual

4

Overview and Functions

Main Functions

Power Button: Press and

hold to power on/off

1. When you use Bluetooth and AUX at the same
time, the Bluetooth has a higher priority.
Press the POWER button to play/pause when
you’re only using Bluetooth.

2. When you use Bluetooth and AUX at the same
time if Bluetooth mode is on and the AUX cable
is plugged press the POWER button to switch to
AUX mode. To mute the AUX connection press
the POWER button again. If you are listening over
Bluetooth please play music via your device, i.e
your smartphone.

5

Overview and Functions

DC 5V

Charging: DC5V-1A USB adapter

Anti-skid silicone pads

Built-in 3.5mm audio cable

6

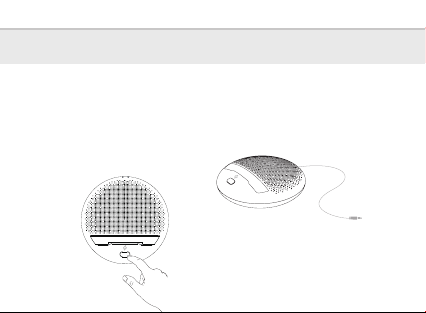

Connecting the SoundMate Play Portable Wireless Speaker

Pairing: SPress and hold power button
on the SoundMate Play Portable Wireless
Speaker. Then, enable the Bluetooth
discovery function on your smartphone,
iPad or other devices. Pair your device
with the speaker when it nds “ttec
SoundMate Play”.

Connecting via Aux Cable: Press and hold
the power button to power on the speaker.
Then plug the 3.5mm audio cable to connect
the smartphone or other devices.

7

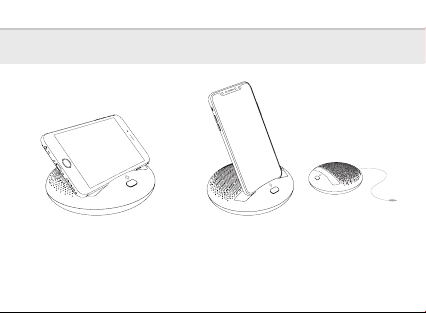

Multi-functional Usage

It is compatible with 3.5-7” smartphones which t securely in the dock.

8

Specications

• Bluetooth wireless playback

• Supports 3.5mm AUX input via provided audio cable.

• Smartphone docking function

• Built-in Lithium battery

Bluetooth version Bluetooth 4.2
AUX 3.5mm cable input
Speaker unit 2” 4Ω
Output power 3W
Frequency interval 100 Hz-18 KHz
Power capacity Built-in 1500mAh lithium battery

Dimensions 123mmx123mmx39.5mm

USB input power DC5V=1A

Net weight 240g (Including built-in lithium battery)

9

Maintenance

You device is free of defects in design and workmanship.
Please follow the recommendations below to preserve the scope of warranty.

· Please store all accessories and attachments out of children’s reach.

· Please make sure to keep the device dry. Rain, moisture and all kind of liquid has
minerals that are corrosive to electronic circuits.

· If your device gets wet please dry it thoroughly. Please do not use and store the
device in dusty and dirty environments. Moving parts and electronic parts may be
damaged.

· Please do not store the device in hot environments. High temperatures may shorten
the electronic devices’ life, damage batteries and cause certain plastic parts to melt
and to be deformed.

10

· Please do not store the device in cold environments. When the device returns to
the normal temperature it causes moisture buildup within the device and electronic
circuits may be damaged.

· Please avoid dropping, impacts and shaking. Rough use may cause breaking the
built-in circuits and sensitive mechanical parts.

· Do not use harsh chemicals, cleaning solvents and detergents to clean the device.

· Do not paint the device. Painting may restrict the moving parts and prevent them
from functioning properly.

All recommendations above apply to the device, battery, charger and all other ac­cessories. If any device parts does not function properly please contact your nearest
authorized service center.

11

Guidelines for Use

• Before starting to use the product please read “INTRODUCTION and USER MANUAL”
thoroughly.

• Guidelines for Use

• Please keep your product away from heat sources.

• Please pay attention to keep your product away from spillage and liquid exposure.

• Please do not expose your product to liquid and moisture.

• Failure to do so may result in electric shock.

• Please use your product as instructed in the user manual.

• Please do not expose your device to dust.

• Please unplug the device and its accessories when you do not use them.

Guidelines for Transport

Please do not expose your device to any impacts during transport.

12

Health, Safety and Environmental Considerations

Please keep your product away from heat sources such as radiators and ovens.
Please dispose of the product in recycle bins because of the negative effects of harmful
components on environment and human health.

Information about the user maintenance, repair and cleaning

There is no user-repairable parts inside. In case of faults please contact the authorized
service centers (please see the list of authorized service centers) or the authorized seller
from which you bought the product.

Periodic Maintenance

After warranty technical maintenance should be performed by only authorized service
centers.

Connection and Assembly

Connection and assembly should be performed as instructed in the user manual.
In case of any problems during connection and assembly please contact authorized
service centers (please see the list of authorized service centers)

Lifecycle

The “LIFECYCLE” of the device is 3 years in terms of spare part supply and proper
function.

13

INFORMATION ABOUT MAINTENANCE, REPAIR AND
CLEANING

No need for any maintenance as long as the requirements in the user manual are
followed.

IMPORTER - MANUFACTURER COMPANY

TESAN İLETİŞİM A.Ş.
ÇOBANÇEŞME MAHALLESİ BİLGE 1 SOK.
NO:17 YENİBOSNA / İSTANBUL
Tel: [phone]
Faks: 0212 454 60 20
www.tesan.com.tr

Technical Service: 0212 454 60 70

14

The “LIFECYCLE” of the device is 3 years in terms of spare part supply and proper
function.
Note: Our company is not responsible from any possible errors during writing and
printing.

*** This product complies with AEEE Directive.

*** This product is marked according to and norms.

*** This product complies with RoHS Directive.

15

RoHS Directive

All lead-free products of this company complies with the restriction of the use of
certain hazardous substances (RoHS) directive. This means that there is not any lead or
hazardous substances in our production process and our products.

Crossed-out Wheelie Bin symbol indicates that user should segregate the
product from other waste at end-of-life.
This applies to your product with this symbol and its attachments.
Please do not treat those products as unclassied waste.

Proper Disposal of Batteries

(Applies to companies which have waste collection systems)
If you intend to dispose of the product, necessary measures will be taken
in the waste collection areas for reprocessing and repair of the product,
including the battery.

The lifecycle of this device is 3 years.

16
