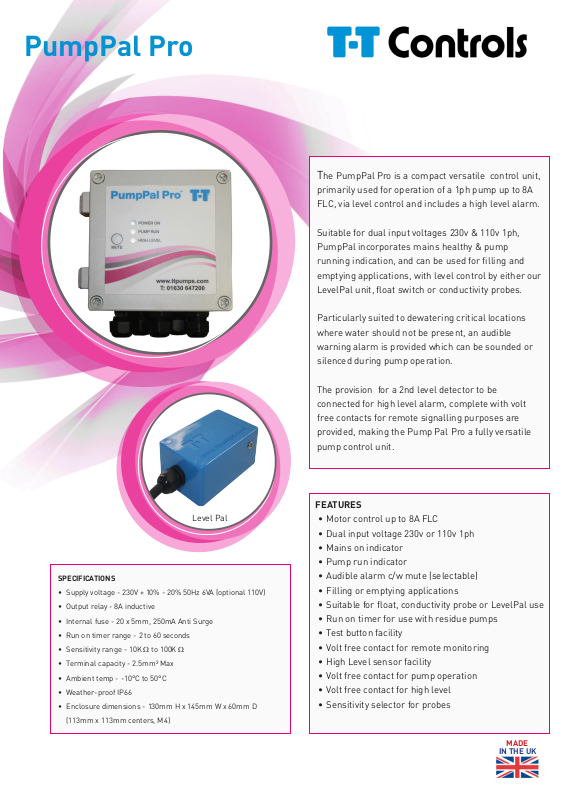

PumpPal Pro
The PumpPal Pro is a compact versatile control unit,
primarily used for operation of a 1ph pump up to 8A
FLC, via level control and includes a high level alarm.
Suitable for dual input voltages 230v & 110v 1ph,
PumpPal incorporates mains healthy & pump
running indication, and can be used for lling and
emptying applications, with level control by either our
LevelPal unit, oat switch or conductivity probes.
Particularly suited to dewatering critical locations
where water should not be present, an audible
warning alarm is provided which can be sounded or
silenced during pump operation.
Level Pal
SPECIFICATIONS
• Supply voltage - 230V + 10% - 20% 50Hz 6VA (optional 110V)
• Output relay - 8A inductive
• Internal fuse - 20 x 5mm, 250mA Anti Surge
• Run on timer range - 2 to 60 seconds
• Sensitivity range - 10K Ω to 100K Ω
• Terminal capacity - 2.5mm² Max
• Ambient temp - -10°C to 50°C
• Weather-proof IP66
• Enclosure dimensions - 130mm H x 145mm W x 60mm D
(113mm x 113mm centers, M4)
The provision for a 2nd level detector to be
connected for high level alarm, complete with volt
free contacts for remote signalling purposes are
provided, making the Pump Pal Pro a fully versatile
pump control unit.
FEATURES
• Motor control up to 8A FLC
• Dual input voltage 230v or 110v 1ph
• Mains on indicator
• Pump run indicator
• Audible alarm c/w mute (selectable)
• Filling or emptying applications
• Suitable for oat, conductivity probe or LevelPal use
• Run on timer for use with residue pumps
• Test button facility
• Volt free contact for remote monitoring
• High Level sensor facility
• Volt free contact for pump operation
• Volt free contact for high level
• Sensitivity selector for probes
MADE
IN THE UK
Page 2

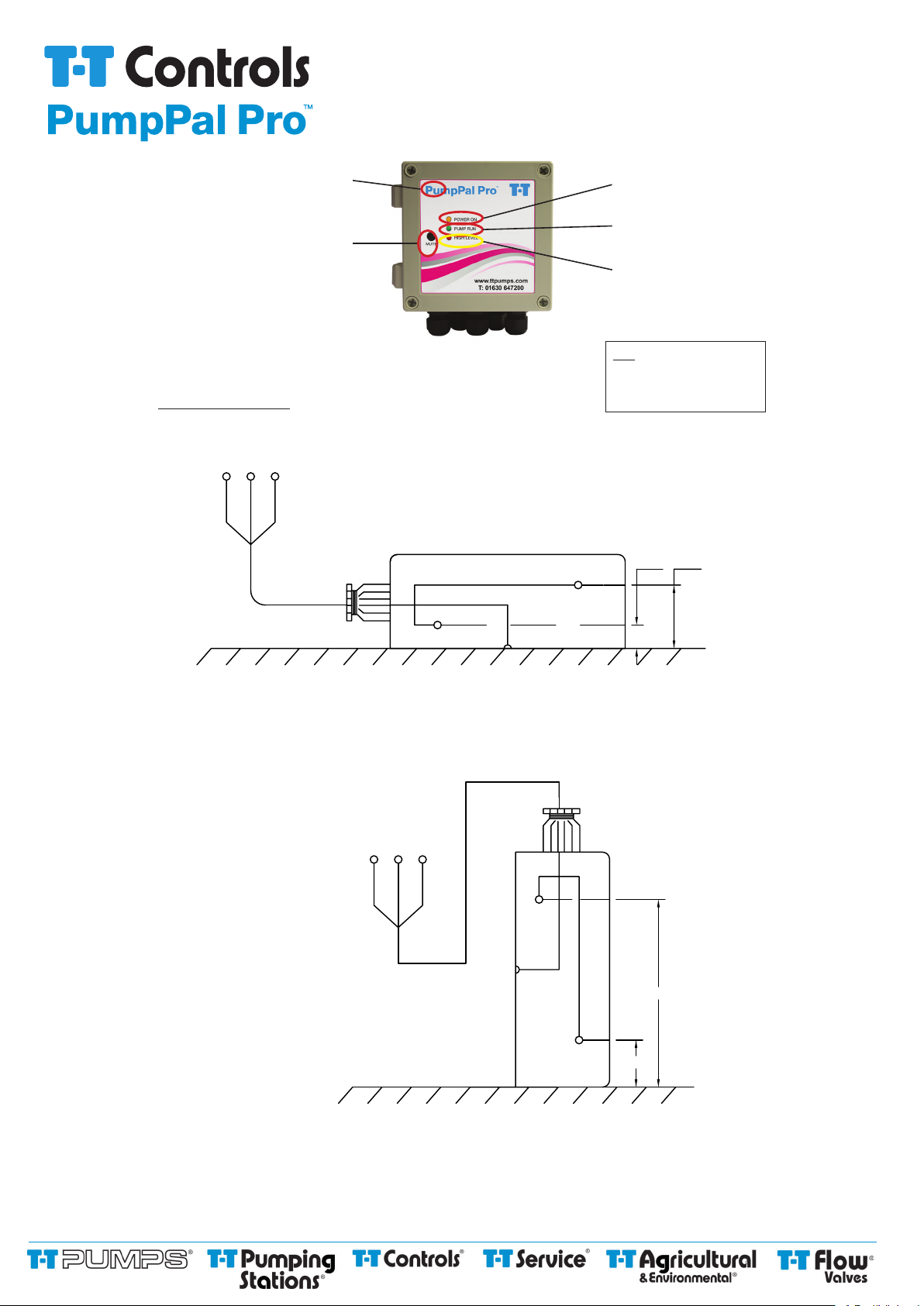

Door mounted alarm sounder
(Internal)
Mute/alarm test push button
Using LevelPal
P1
G1
(G2)
G1 P1 P2
GY
(P3)
P2
(P4)
BNBE
Power on LED indicator
Pump running LED indicator
High level LED indicator
Key
BE = Blue Core
BN = Brown Core
GY = Green/Yellow Core
Fixed On/Off duty switching
by the LevelPal
PUMP ON/OFF STANDARD POSITION
Alternate position with a greater differential suitable for On/
Off switching by the LevelPal
P1
G1
(P3)(G2) (P4)
GY BN BE
Fixed On/Off duty switching
by the LevelPal
BE
P2
LEVEL PAL
P1
FLOOR
BN
P2
G1
P4
G2
P3
14mm
10mm
90mm
39mm
33mm
(TIMER)
HIGH LEVEL POSITION
T-T PUMPS Ltd., Woore, Cheshire, CW3 9RU
Tel: 01630 647200 Fax: 01630 642100
www.ttpumps.com e-mail: [email protected]
20mm
FLOOR
© T-T PUMPS Ltd. 2015 DATA1669B: 11/2015
