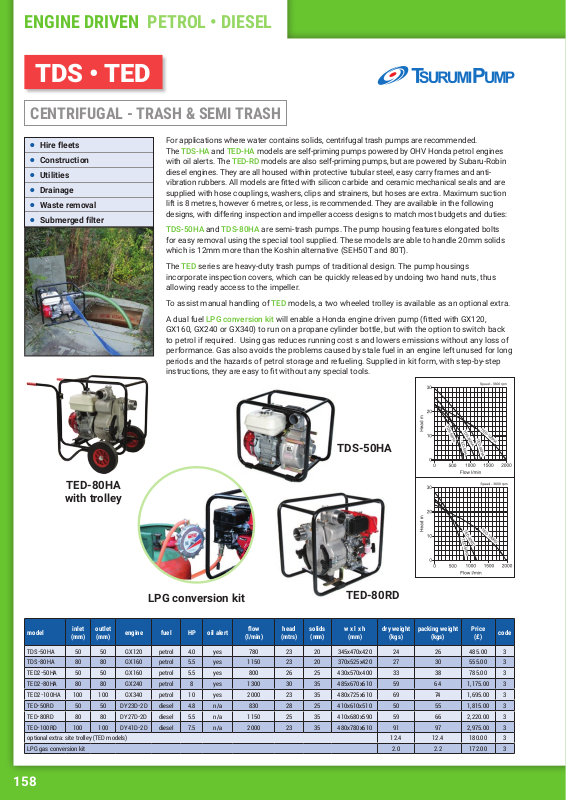

ENGINE DRIVEN PETROL • DIESEL
TDS • TED
CENTRIFUGAL - TRASH & SEMI TRASH
●
Hire fleets
●
Construction
●
Utilities
●
Drainage
●
Waste removal
●
Submerged filter
For applications where water contains solids, centrifugal trash pumps are recommended.
The TDS-HA and TED-HA models are self-priming pumps powered by OHV Honda petrol engines
with oil alerts. The TED-RD models are also self-priming pumps, but are powered by Subaru-Robin
diesel engines. They are all housed within protective tubular steel, easy carry frames and anti-
vibration rubbers. All models are tted with silicon carbide and ceramic mechanical seals and are
supplied with hose couplings, washers, clips and strainers, but hoses are extra. Maximum suction
lift is 8 metres, however 6 metres, or less, is recommended. They are available in the following
designs, with differing inspection and impeller access designs to match most budgets and duties:
TDS-50HA and TDS-80HA are semi-trash pumps. The pump housing features elongated bolts
for easy removal using the special tool supplied. These models are able to handle 20mm solids
which is 12mm more than the Koshin alternative (SEH50T and 80T).
The TED series are heavy-duty trash pumps of traditional design. The pump housings
incorporate inspection covers, which can be quickly released by undoing two hand nuts, thus
allowing ready access to the impeller.
To assist manual handling of TED models, a two wheeled trolley is available as an optional extra.
A dual fuel LPG conversion kit will enable a Honda engine driven pump (tted with GX120,
GX160, GX240 or GX340) to run on a propane cylinder bottle, but with the option to switch back
to petrol if required. Using gas reduces running cost s and lowers emissions without any loss of
performance. Gas also avoids the problems caused by stale fuel in an engine left unused for long
periods and the hazards of petrol storage and refueling. Supplied in kit form, with step-by-step
instructions, they are easy to t without any special tools.
TDS-50HA
TED-80HA
with trolley
LPG conversion kit
inlet
model
TDS-50HA 50 50 GX120 petrol 4.0 yes 780 23 20 345x470x420 24 26 485.00 3
TDS-80HA 80 80 GX160 petrol 5.5 yes 1150 23 20 370x525x420 27 30 555.00 3
TED2-50HA 50 50 GX160 petrol 5.5 yes 800 26 25 430x570x400 33 38 785.00 3
TED2-80HA 80 80 GX240 petrol 8 yes 1300 30 35 485x670x610 59 64 1,175.00 3
TED2-100HA 100 100 GX340 petrol 10 yes 2000 23 35 480x725x610 69 74 1,695.00 3
TED-50RD 50 50 DY23D-2D diesel 4.8 n/a 830 28 25 410x610x510 50 55 1,815.00 3
TED-80RD 80 80 DY27D-2D diesel 5.5 n/a 1150 25 35 410x680x590 59 66 2,220.00 3
TED-100RD 100 100 DY41D-2D diesel 7.5 n/a 2000 23 35 480x780x610 91 97 2,975.00 3
optional extra: site trolley (TED models) 12.4 12.4 180.00 3
LPG gas conversion kit 2.0 2.2 172.00 3
(mm)
outlet
(mm)
engine fuel HP oil alert
flow
(l/min)
head
(mtrs)
solids
(mm)
TED-80RD
w x l x h
(mm)
dry weight
(kgs)
packing weight
(kgs)
Price
(£)
code
158
