Page 1
0
0.5
1
1.5
2
2.5
3
3.5
4
4.5
5
5.5
6
6.5
7
7.5
8
8.5
9
9.5
10
10.5
11
11.5
12
12.5
[m]
0.24
0.28
0.32
0.36
0.4
0.44
0.48
[kW]
0
4
8
12
16
20
24
28
[%]

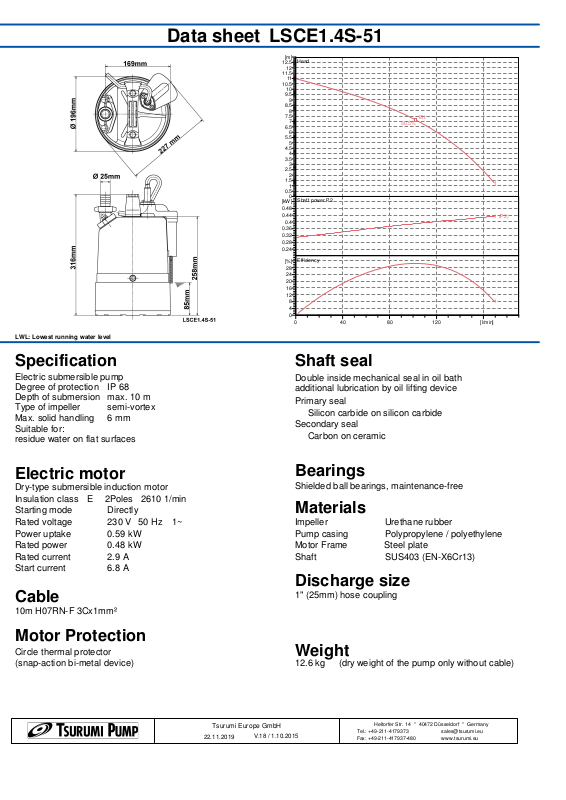

Data sheet LSCE1.4S-51
Head
Shaft power P2
Efficiency
30.5%
Eff.
1
1 (P2)
1
LWL: Lowest running water level
Specification
Electric submersible pump
Degree of protection
Depth of submersion
Type of impeller
Max. solid handling
IP 68
max. 10 m
semi-vortex
6 mm
Suitable for:
residue water on flat surfaces
Electric motor
Dry-type submersible induction motor
Insulation class E 2Poles 2610 1/min
Starting mode Directly
Rated voltage 230 V 50 Hz 1~
Power uptake 0.59 kW
Rated power
Rated current
Start current
0.48 kW
2.9 A
6.8 A
Cable
10m H07RN-F 3Cx1mm²
0 40 80 120 [l/min]
Shaft seal
Double inside mechanical seal in oil bath
additional lubrication by oil lifting device
Primary seal
Silicon carbide on silicon carbide
Secondary seal
Carbon on ceramic
Bearings
Shielded ball bearings, maintenance-free
Materials
Impeller
Pump casing
Motor Frame
Shaft
Urethane rubber
Polypropylene / polyethylene
Steel plate
SUS403 (EN-X6Cr13)
Discharge size
1" (25mm) hose coupling
Motor Protection
Circle thermal protector
(snap-action bi-metal device)
Tsurumi Europe GmbH
22.11.2019
V.18 / 1.10.2015
Weight
12.6 kg (dry weight of the pump only without cable)
Heltorfer Str. 14 * 40472 Düsseldorf * Germany
Tel.: +49-211-4179373 [email protected]
Fax: +49-211-417937-480
www.tsurumi.eu
Page 2

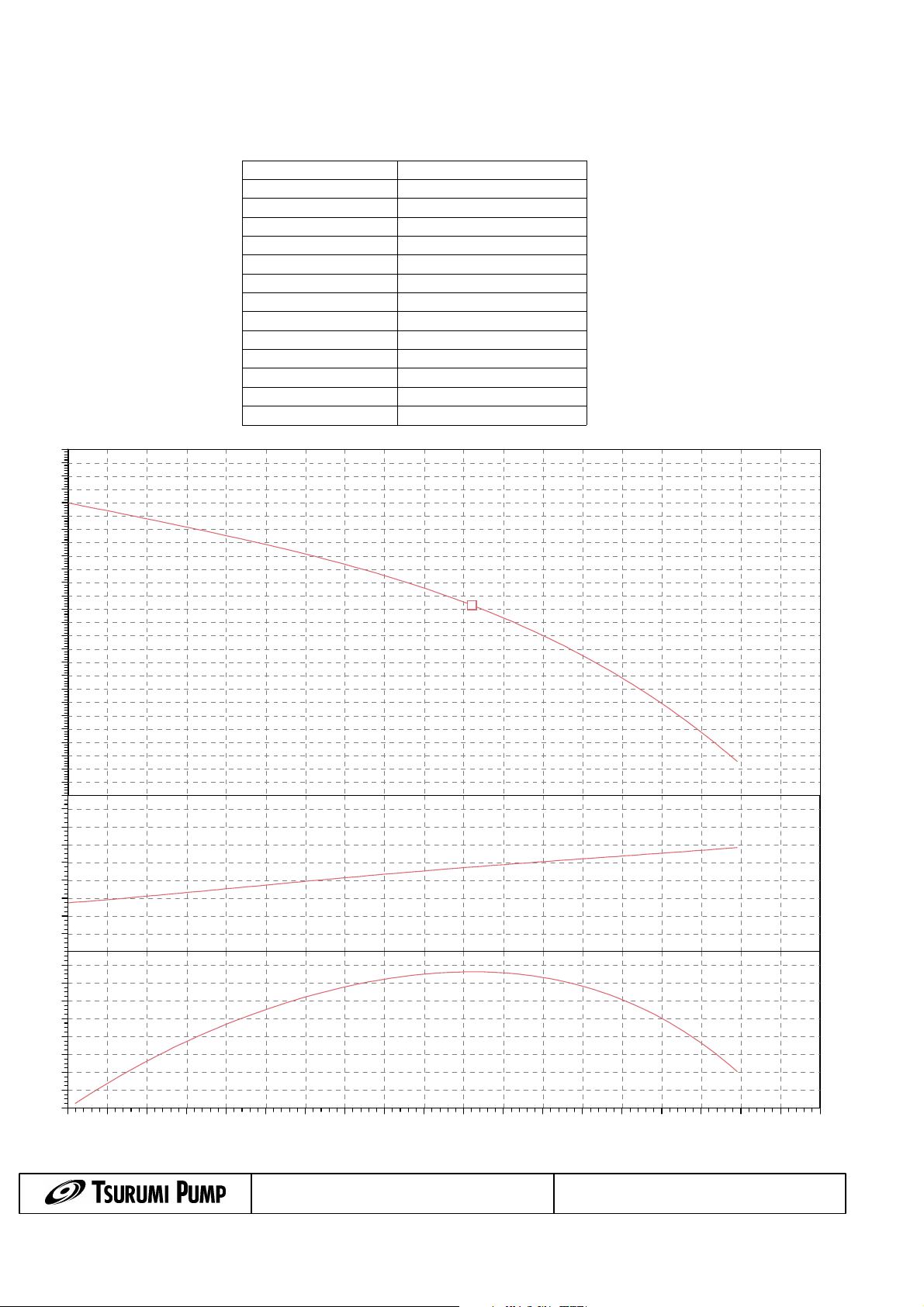

Performance curve
LSCE1.4S-52
Discharge port
Head
Flow
Rated power
Power input
Phases
Voltages
Frequency
Rated current
Starting current
Number of poles
Speed
Starting mode
Insulation class
[m]
Head
12.5
12
11.5
11
10.5
10
9.5
9
8.5
8
7.5
7
6.5
6
5.5
5
4.5
4
3.5
3
2.5
2
1.5
1
0.5
0
Shaft power P2
[kW]
0.48
0.44
0.4
0.36
0.32
0.28
0.24
Efficiency
[%]
28
24
20
16
12
8
4
0
0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 [l/min]
DN 25
11.0 m
169.1 l/min
0.48 kW
0.59 kW
1~
230 V
50 Hz
2.9 A
6.82 A
2
2610 1/min
Directly
E
Eff.
30.5%
1
1 (P2)
1
Tsurumi Europe GmbH
22.11.2019
V.18 / 1.10.2015
Heltorfer Str. 14 * 40472 Düsseldorf * Germany
Tel.: +49-211-4179373 [email protected]
Fax: +49-211-417937-480
www.tsurumi.eu
Page 3

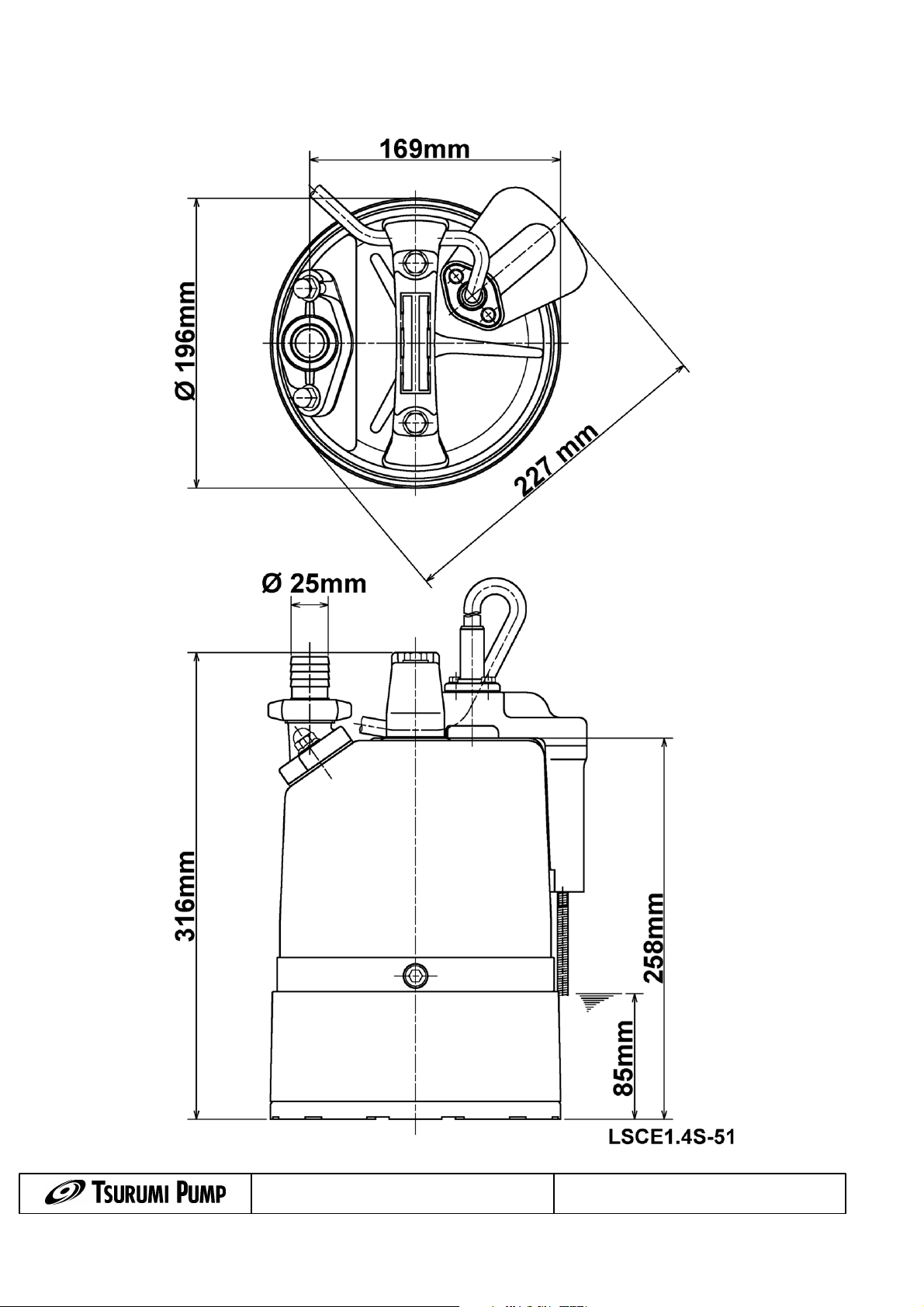

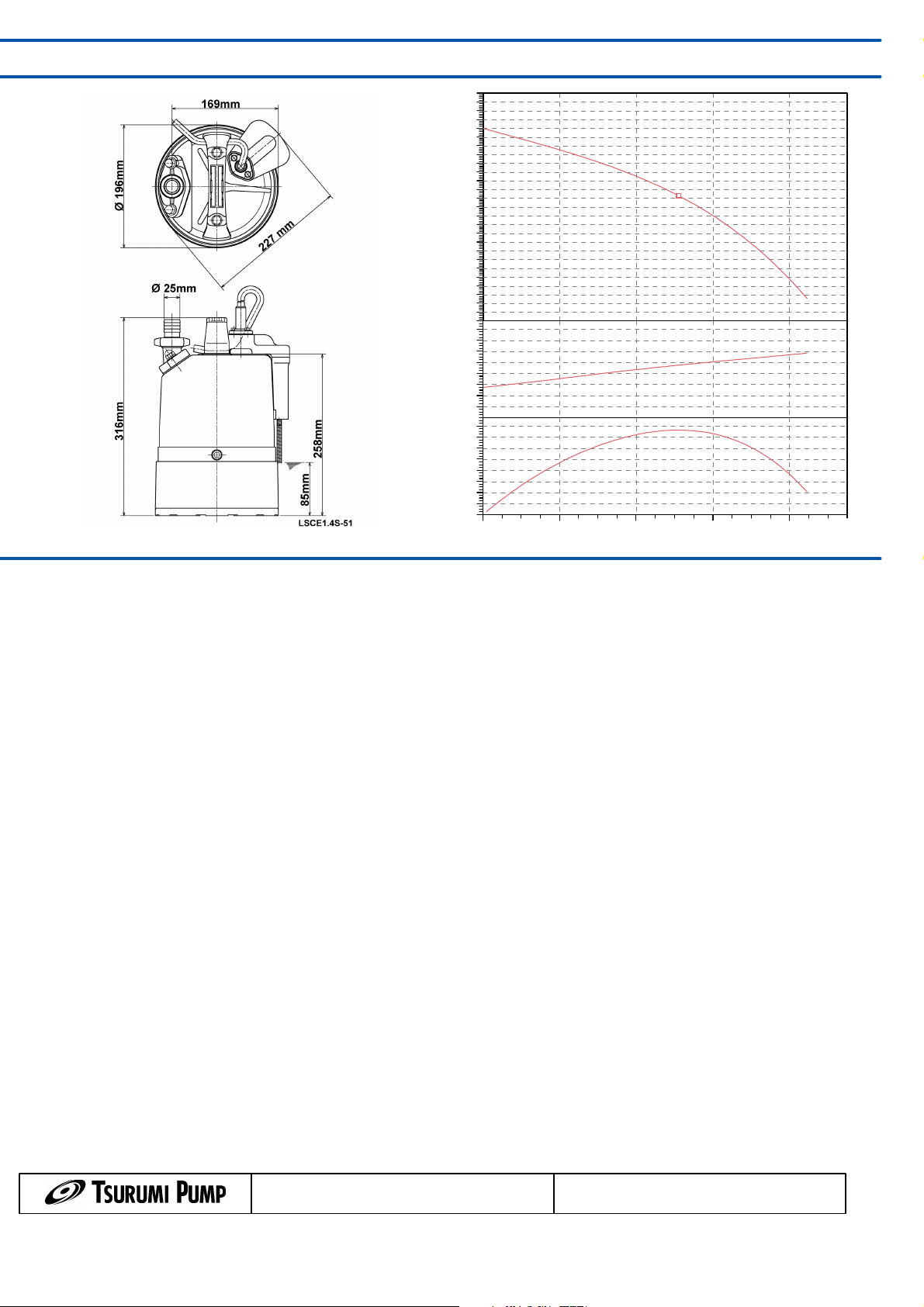

Dimensions
LSCE1.4S-51
CWL: Continuous running water level
LWL: Lowest running water level
Tsurumi Europe GmbH
22.11.2019
V.18 / 1.10.2015
Heltorfer Str. 14 * 40472 Düsseldorf * Germany
Tel.: +49-211-4179373 [email protected]
Fax: +49-211-417937-480
www.tsurumi.eu
Page 4

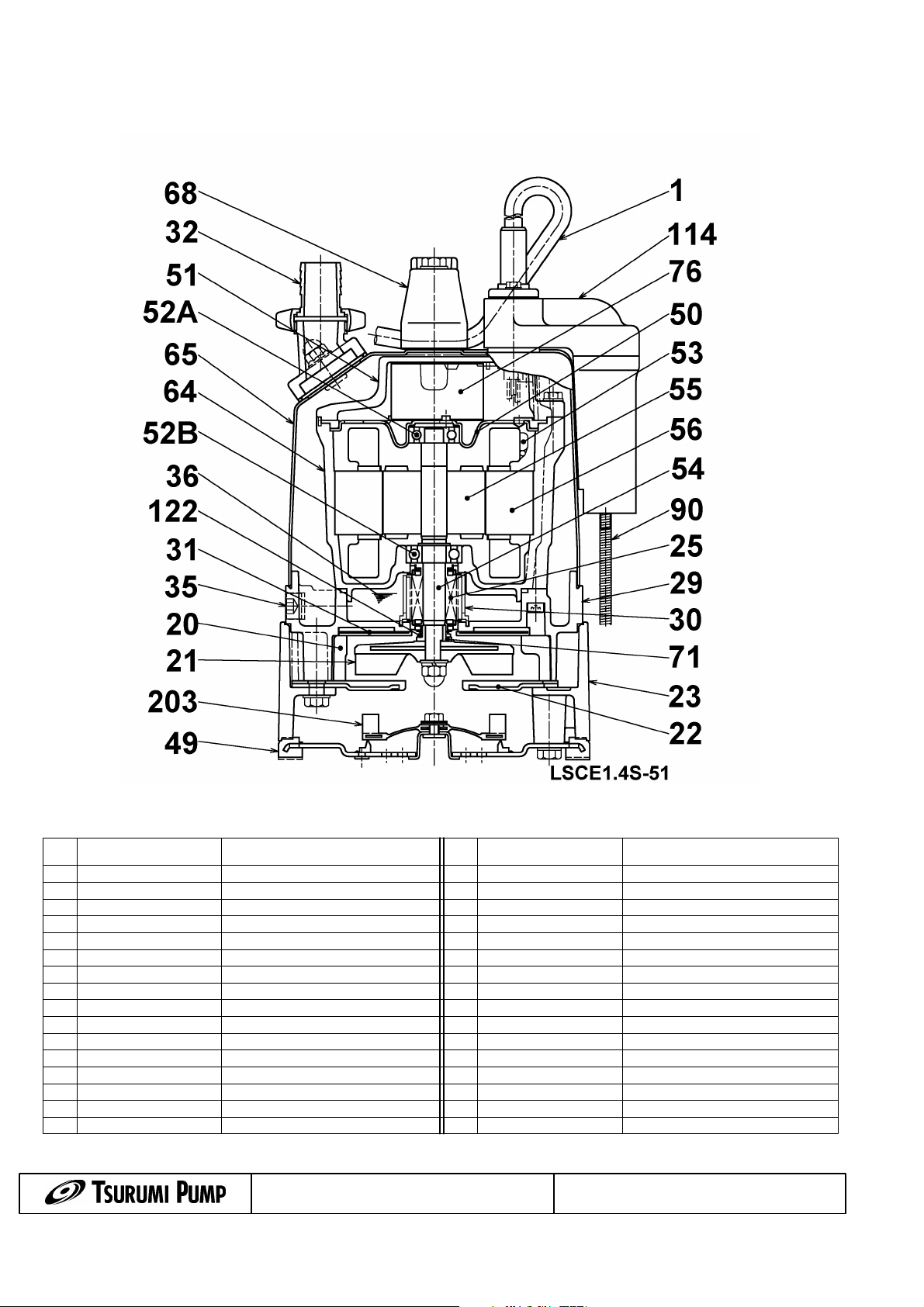

Sectional drawing
LSCE1.4S-51
No. Description Remark
1
Cable
20
Pump casing
21
Impeller
22
Suction cover
23
Strainer
25
Mechanical seal
26
Oil seal
29
Oil casing
30
Oil distributor
31
Attrition plate
32
Discharge coupling
35
Oil screw
36
Lubricant
49
Bottom Plate
50
Motor cover
51
Main cover
H07RN-F
Polypropylene / polyethylene
Urethane rubber
Steel plate + Urethane rubber
Aluminium die casting
Siliziunkarbid, W-14VL
Butadieneacrylnitrilerubber
Aluminium die casting
Plastic
Urethane rubber
Aluminium die casting
SUS304 (EN-X5CrNi18-10)
Turbine oil (ISO VG32)
Steelplate + butadieneacrylnitrilerubber
Steel plate
Aluminium die casting
Tsurumi Europe GmbH
22.11.2019
V.18 / 1.10.2015
No.
Description Remark
52A
Upper bearing
52B
Lower bearing
53
Miniature protector
54
Shaft
55
Rotor
56
Stator
64
Motor Frame
65
Outer Cover
68
Handle
71
Shaft protection sleeve
76
Condenser
203
Nonreturn valve
Heltorfer Str. 14 * 40472 Düsseldorf * Germany
Tel.: +49-211-4179373 [email protected]
Fax: +49-211-417937-480
6201ZZC3
6202ZZC3
.
SUS403 (EN-X6Cr13)
.
.
Steel plate
Aluminium die casting
Plastic
SUS304 (EN-X5CrNi18-10)
.
Styrenebutadienerubber
www.tsurumi.eu
