Tsunami TYPHOON User Manual

DIGITAL BAKING VAPORIZER

USER MANUAL

DESIGNED AND DEVELOPED IN THE USA

CONTENTS

1-INTRODUCTION ---------------------------------------------------------------3

2-FEATURES ----------------------------------------------------------------------3

3-KIT INCLUDES------------------------------------------------------------------4

4-SPECIFICATIONS--------------------------------------------------------------4

5-HOW TO USE-----------------------------------------------------------------4-5

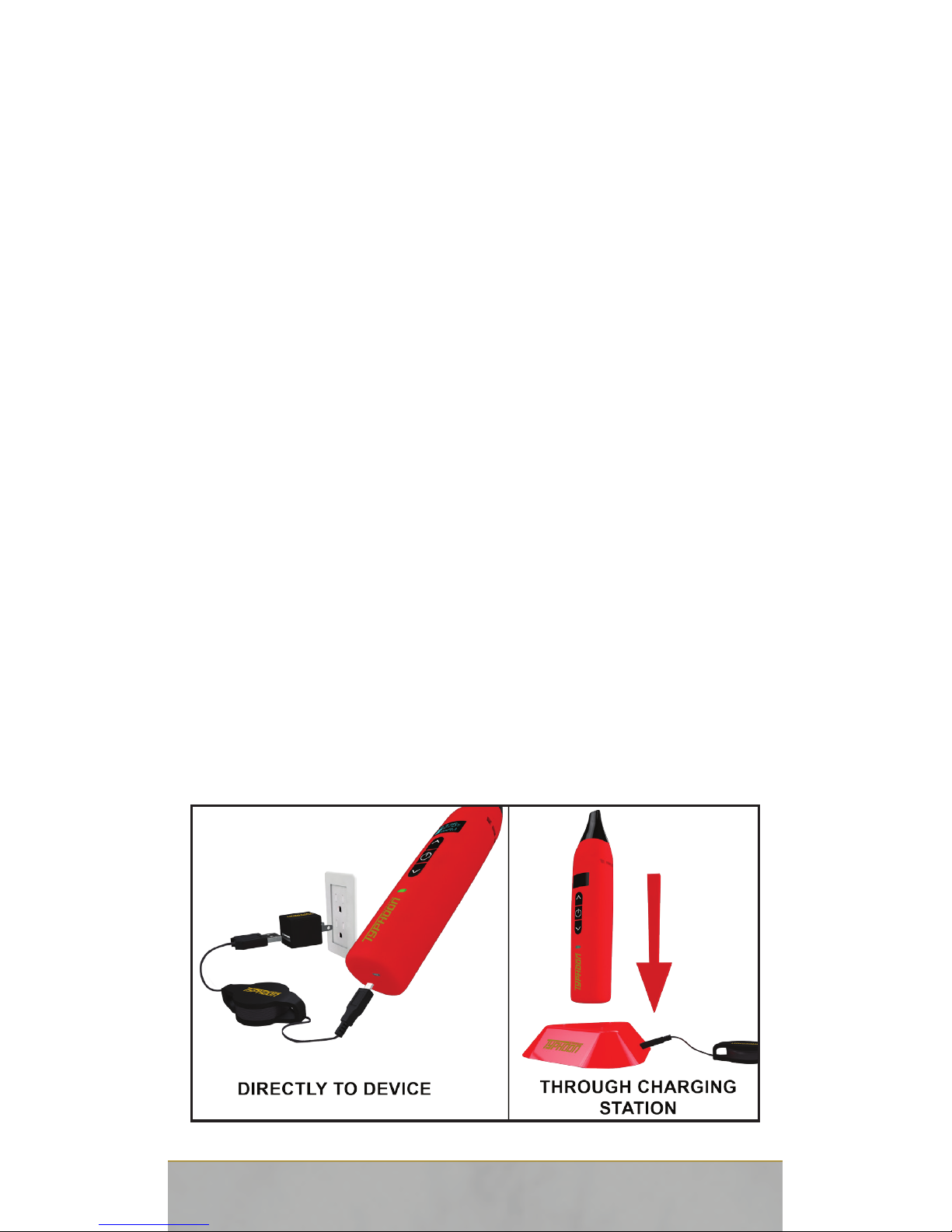

5A-CHARGING THE BATTERY-----------------------------------5

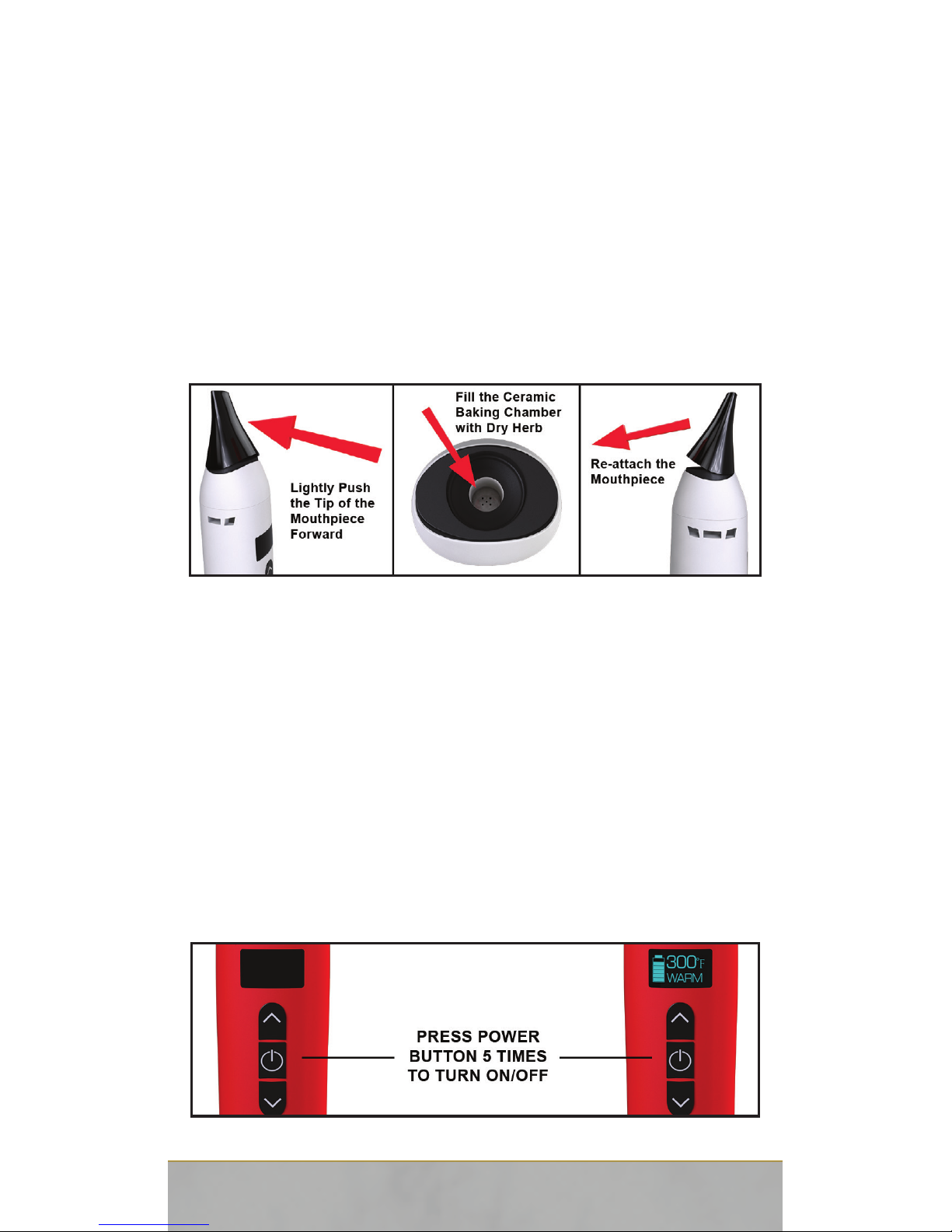

5B-LOADING-----------------------------------------------------------6

5C-TURN THE DEVICE ON / OFF-------------------------------6

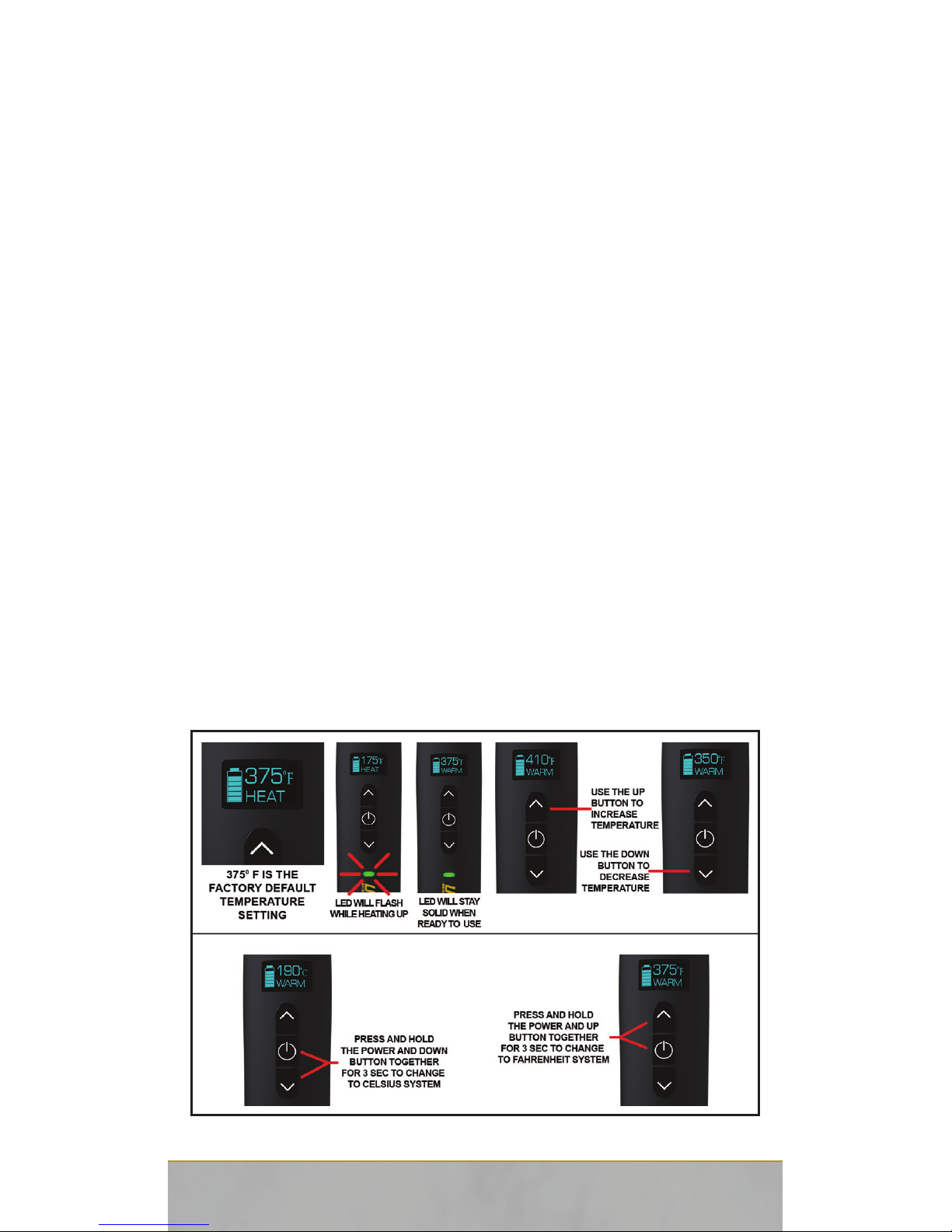

5D-TEMPERATURE SETTING------------------------------------7

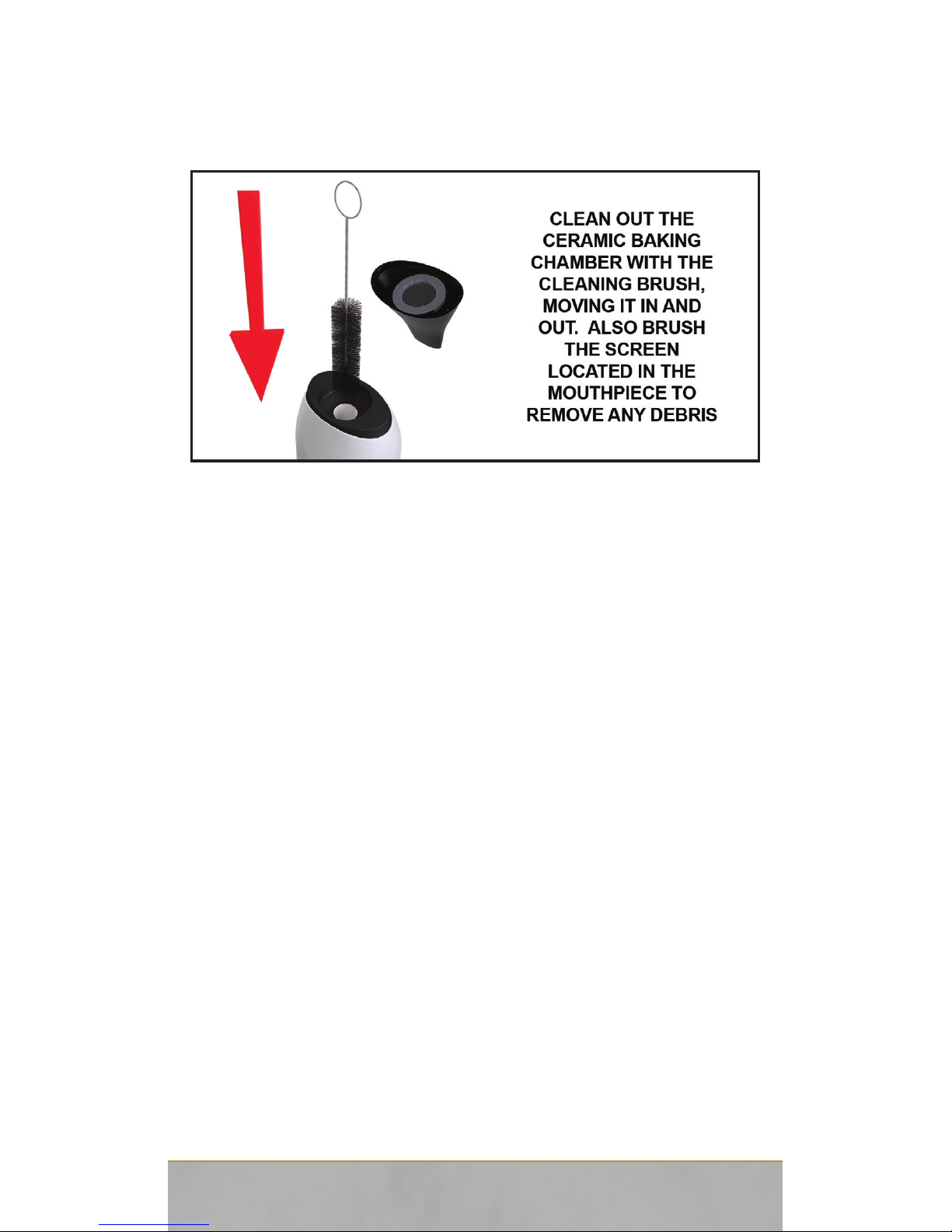

6-CLEANING AND MAINTAINING--------------------------------------------8

7-IMPORTANT SAFETY INFORMATION------------------------------------8

8-STORAGE------------------------------------------------------------------------8

9-ELECTRICAL MIS-USAGE---------------------------------------------------9

10-ENVIRONMENTAL MIS-USAGE------------------------------------------9

11-WARRANTY-------------------------------------------------------------------10

12-WARNING-----------------------------------------------------------------10-11

2

1-INTRODUCTION

TSUNAMI WOULD LIKE TO THANK YOU FOR PURCHASING THE TYPHOON
DEVICE, THIS IS THE ADVANCED OELD DISPLAY AROMATHERAPY DEVICE
WITH FULL TEMPERATURE CONTROL (300º F - 435º F) FOR VAPORIZING
DRY HERBS. THE HIGH GRADE CERAMIC HEATING CHAMBER MAKE THE
VAPORIZATION PROCESS EXCEPTIONAL AND DRIVE THE DESIRED EF­FECT BY BACKING THAN COMBUSTION, WITCH INSTANTLY DESTROY THE
KEY ELEMENTS FOUND IN VARIOUS HERBS AND RELEASES A MULTITUDE
OF NEW CHEMICAL COMPOUNDS. WE HOPE YOU ENJOY THE QUALITY
AND PERFORMANCE OF YOUR NEW TYPHOON VAPORIZER. TO ENSURE
OPTIMAL PERFORMANCE AND SAFETY OF YOUR TYPHOON DEVICE,
PLEASE READ THE USER MANUAL FOR INSTRUCTIONS

2 - FEATURES

1 - 2200 MAH HIGH CAPACITY LI-POLYMER BATTERY
2 - MOUTHPIECE
3 - REPLACEABLE SCREEN
4 - CERAMIC HEATING CHAMBER
5 - AIRFLOW HOLES
6 - OLED DISPLAY
7 - INCREASE TEMPS BUTTON
8 - DECREASE TEMPS BUTTON
9 - POWER ON/OFF BUTTON
10 - LED LIGHT
11 - MICRO USB PORT
12 - LIGHT UP CHARGING DOCKING STATION

3

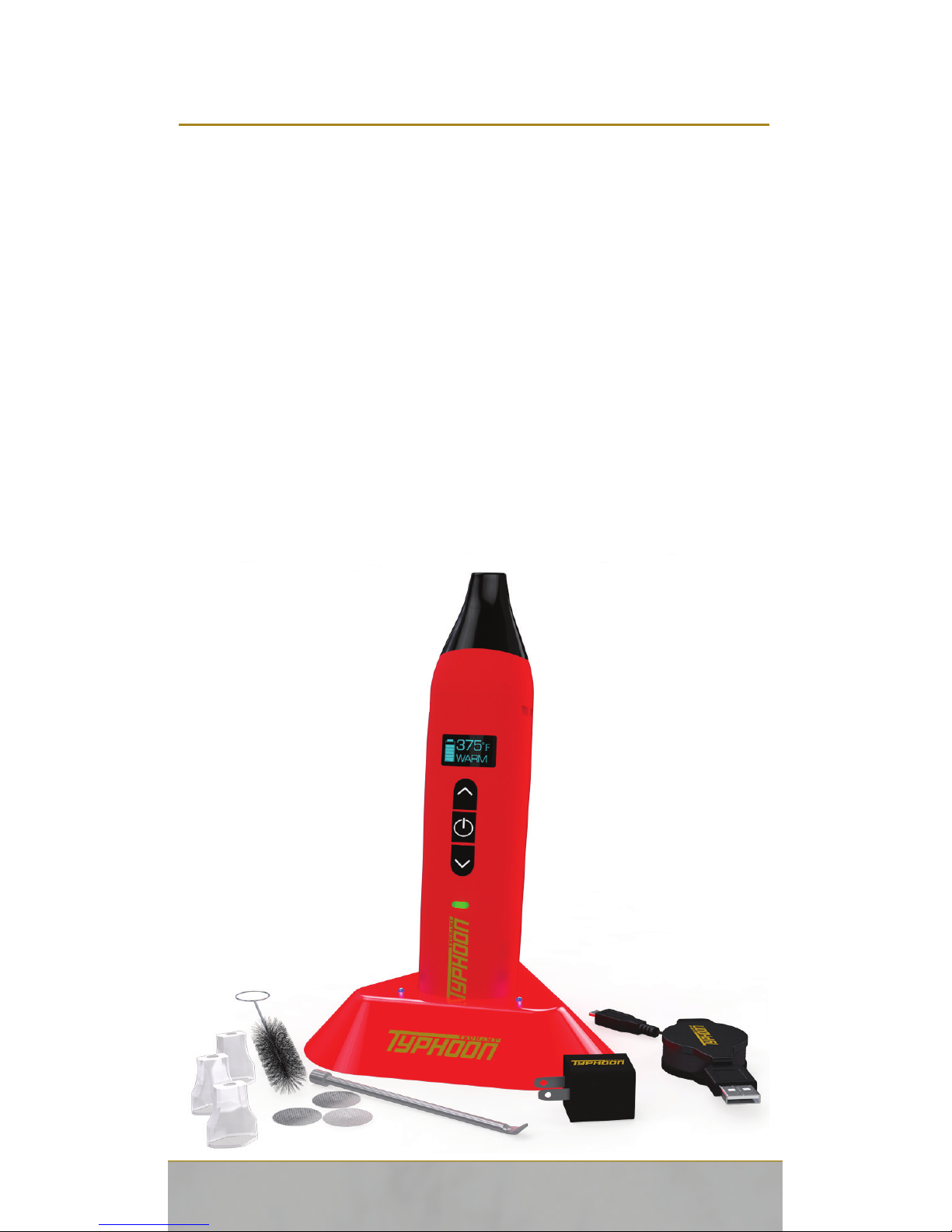

3 - KIT INCLUDES

1 - TYPHOON DRY HERB VAPORIZER 2200 MAH LITHIUM POLYMER
BATTERY
1 - EASY ACCESS MOUTHPIECE
1 - CHARGING DOCKING STATION
1 - MICRO USB CHARGER
1 - WALL ADAPTER
1 - PACKING TOOL
1 - CLEANING BRUSH
1 - 3 X TITANIUM SCREEN
1 - 3 X RUBBER MOUTHPIECE

1 - USER MANUAL

4 - SPECIFICATIONS

DEVICE SIZE------------------------------------------------------------- 5.7*1.3*1.1 INCHES
HEATING CHAMBER SIZE-------------------------------------------------.40*.80 INCHES
CAPACITY@OUTPUT------------------------2200 MAH LI-POLYMER BATTERY, 10V
RESISTANCE-----------------------------------------------------------------------0.4~0.6 OHM
HEATING UP TIME---------------------------------------------------WITHIN 30 SECONDS
SAFETY POWER TIME------------------------------------------------------------5 MINUTES
CHARGING TIME-------------------------------------------------------------------3-4 HOURS
LOW POWER-------------THE LED RED LIGHT WILL START FLASHING 8 TIMES
SAFETY FEATURES----------------------------------------DUAL PCB/IC PROTECTION

5 - HOW TO USE

WARNING:

1 - TSUNAMI TYPHOON DEVICE SHOULD ONLY BE CHARGED WITH

TSUNAMI TYPHOON CHARGER,INCOMPATIBLE CHARGERS MAY
CARRY A DIFFERENT VOLTAGE, WHICH MAY BE A FIRE HAZARD,
FOR THIS REASON,WE STRONGLY REQUEST TO USE TYPHOON
CHARGERS,THE USE OF ANY OTHER CHARGERS WILL VOID THE
WARRANTY

4
