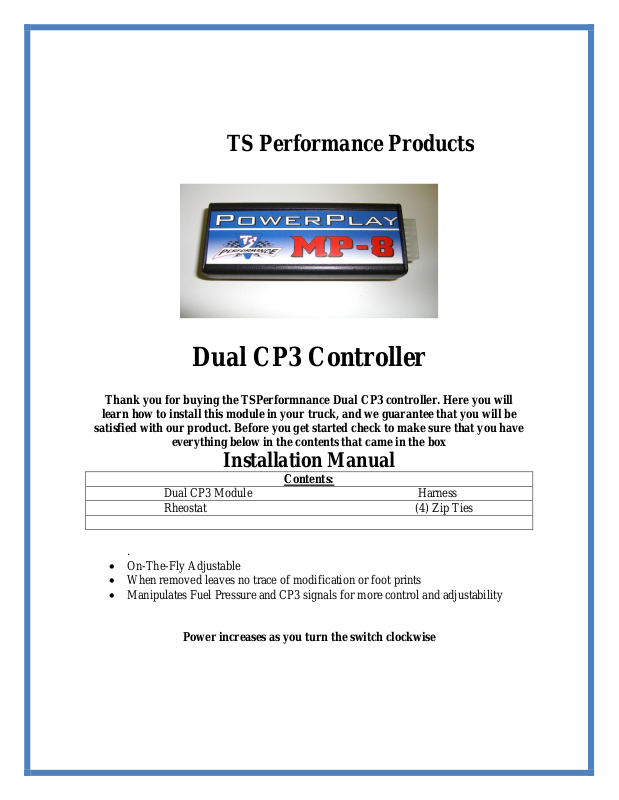

Page 1
TS Performance Products
Contents:
Dual CP3 Module Harness
Rheostat (4) Zip Ties
Dual CP3 Controller
Thank you for buying the TSPerformnance Dual CP3 controller. Here you will
learn how to install this module in your truck, and we guarantee that you will be
satisfied with our product. Before you get started check to make sure that you have
everything below in the contents that came in the box
Installation Manual
.
On-The-Fly Adjustable
When removed leaves no trace of modification or foot prints
Manipulates Fuel Pressure and CP3 signals for more control and adjustability
Power increases as you turn the switch clockwise
Page 2
Installation of the TS Performance Power Play Dual
CP3 Controller
Read all instructions and fully understand them before installing you TS Performance MP-8 module.
Disconnect the battery terminals and remove keys from ignition before installation.
Place Di-Electric Grease onto every electrical connection.
1. Remove battery terminals from both batteries. We will first connect the two CP3 fuel
pumps together in conjunction with the ECU.
2. Disconnect the two pin bosch connector from the stock CP3 fuel pump
3. Plug our two pin bosch connectors in line with the factory connector allowing our module
to monitor the ECU control signal.
4. Route the other two pin bosch connector to the new CP3 pump.
5. Locate the Fuel Pressure Sensor on the fuel rail. It should be a three pin bosch connector
identical to the one on our harness. Disconnect the Fuel Pressure sensor and plug our
connector’s inline.
6. To power the module connect the black wire to good clean ground and the red wire to
Key-on +12V.
7. Route the rheostat through the firewall and mount in easy access location. Connect the
rheostat to the Dual CP3 module for on-the-fly control.
8. Re-connect battery terminals and your new Dual CP3 controller will be ready to go.
Page 3
TS Performance
851 Lovers Ln
Bowling Green, KY 42103
270-746-9999
www.tsperformance.com
READ CAREFULLY BEFORE INSTALLING ANY TS PERFORMANCE PRODUCT
REMEMBER THIS IS A HIGH PERFORMANCE PRODUCT. USE AT YOUR OWN RISK. FOR OFF ROAD USE ONLY.
Do not use this product until you have carefully read the following agreement. This agreement sets forth the terms and
conditions for the use of the TS Performance product. The installation of this product indicates that the buyer has read and fully
understands this agreement and accepts its terms and conditions.
DISCLAIMER OF LIABILITY
TS Performance, its distributors or dealers shall in no way be responsible for the product’s proper use and service. The buyer of
this system hereby waives all liability claims. The buyer acknowledges that he is not relying on the sellers skill or judgment to
select or furnish goods suitable for any particular purpose and that there are no liabilities which extend beyond the description on
the face hereof, and the buyer hereby waives all remedies or liabilities, expressed or implied arising by law or otherwise,
(including without obligations of the seller with respect fitness, merchantability and consequential damages) or whether or not
occasioned by the seller’s negligence.
The seller disclaims any warranty and expressly disclaims any liability for personal injury or damages. The buyer acknowledges
and agrees that the disclaimer of any liability for personal injury is a material term for this agreement and the buyer agrees to
indemnify the seller and to hold the seller harmless from any claim related to the item of the equipment purchased. Under no
circumstances will the seller be liable for any damages or expenses by reason of use or sales of any such equipment.
The seller assumes no liability regarding the improper installation or misapplication of its products. It is the installer’s
responsibility to check for proper installation and if in doubt the manufacturer is to be contacted.
LIMITED LIFETIME WARRANTY
STATEMENT POLICY
The warranty policy is the best warranty within the high performance diesel industry.
All TS Performance products have been inspected, tested and trial in the factory laboratories and on the field.
Nothing in this Statement of Policy shall alter or enlarge the terms of warranties, obligation or liabilities of these
products.
TS Performance is not responsible or liable for any products damaged or destroyed due to improper installation.
TERMS OF WARRANTY
The defective product must be freight prepaid and returned to TS Performance for further investigation, otherwise this
warranty shall be deemed null and voided and of no effect.
This warranty is void on any products that show evidence of misapplication, negligence, and improper installation, and
abuse, lack of proper maintenance or alternation from its original design.
In no event will TS Performance be liable for any consequential or incidental damages for breach of any express or
implied warranty on the product.
This warranty is not transferable or assignable.
TS Performance is not responsible or liable for any products damaged or destroyed due to improper installation
.IN THE EVENT THAT THE BUYER DOES NOT AGREE WITH THIS AGREEMENT: THE BUYER
MAY PROMPTLY RETURN THIS PRODUCT IN A NEW ANDN UNUSED CONDITION WITH A
Page 4
DATED PROOF OF PURCHASE TO THE PLACE OF PURCHASE WITHIN TEN (10) DAYS FROM
DATE OF PURCHASE FOR A FULL REFUND.
WWW.TSPERFORMANCE.COM
FOR TECHNICAL SUPPORT
(270) 746-9999
