Page 1
TS PERFORMANCE
WE ARE DIESEL

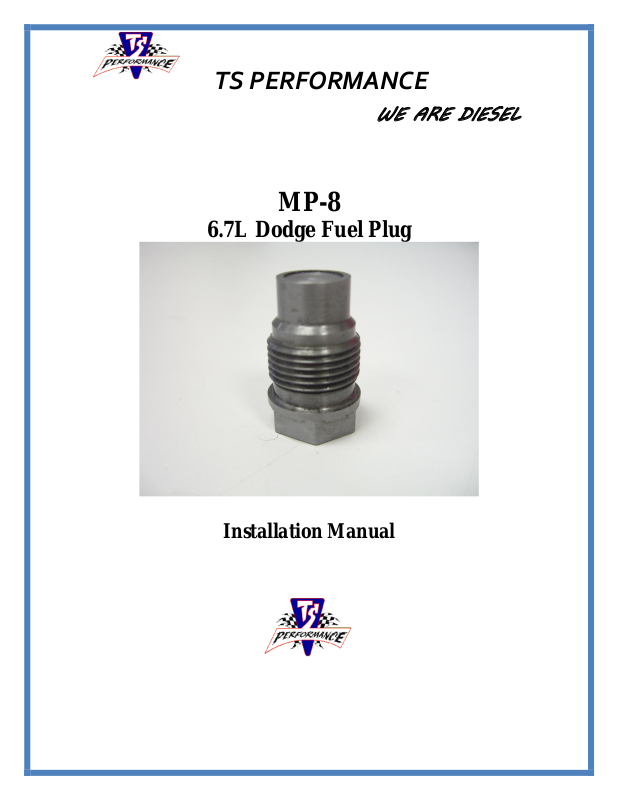

MP-8
6.7L Dodge Fuel Plug
Installation Manual
Page 2
Continued
Dodge 6.7L Release Valve Plug
1. Remove the dipstick and 4 bolts holding the plastic cover plate on top of the
engine.
2. Using an 11mm wrench remove
the 2 clamps holding the EGR tube
that crosses in front of the valve
cover. You do not have to remove
the tube only tilt the tube up
towards the front of the truck.
3. Using a 10mm socket and wrench, remove the bolt that holds the dipstick tube to
the bracket and the 6 bolts that hold the air horn to the manifold. Making sure not
to damage the gasket, slide the air horn forward so that you can access the front of
the fuel rail.
4. Remove the 18mm fuel rail valve
located on the front of the fuel rail.
5. Once you have the fuel rail valve out
of the rail, remove the rubber seal
around the valve.
6. Place this rubber seal onto the new
fuel rail valve and insert it back into
the fuel rail.
7. Re-install the fuel valve and tighten it down to 100 ft. lbs.
8. Now you can re-install the air horn, make sure to line up the six holes in the
gasket with the bolt holes for the air horn. Also connect the dipstick tube to the
bracket on the air horn.
9. Line the EGR tube back up. For easier installation line up one side to its
connection, install the clamp but leave it loose enough so you have a little
movement to connect the other side. Then fully tighten both sides, once you have
both sides lined up correctly.
Page 3
Continued
851 Lovers Ln
Bowling Green, KY 42103
270-746-9999
www.tsperformance.com
TS Performance
READ CAREFULLY BEFORE INSTALLING ANY TS PERFORMANCE PRODUCT
REMEMBER THIS IS A HIGH PERFORMANCE PRODUCT. USE AT YOUR OWN RISK. FOR OFF ROAD USE ONLY.
Do not use this product until you have carefully read the following agreement. This agreement sets forth the terms
and conditions for the use of the TS Performance product. The installation of this product indicates that the buyer has
read and fully understands this agreement and accepts its terms and conditions.
DISCLAIMER OF LIABILITY
TS Performance, its distributors or dealers shall in no way be responsible for the product’s proper use and service. The
buyer of this system hereby waives all liability claims. The buyer acknowledges that he is not relying on the sellers
skill or judgment to select or furnish goods suitable for any particular purpose and that there are no liabilities which
extend beyond the description on the face hereof, and the buyer hereby waives all remedies or liabilities, expressed or
implied arising by law or otherwise, (including without obligations of the seller with respect fitness, merchantability
and consequential damages) or whether or not occasioned by the seller’s negligence.
The seller disclaims any warranty and expressly disclaims any liability for personal injury or damages. The buyer
acknowledges and agrees that the disclaimer of any liability for personal injury is a material term for this agreement
and the buyer agrees to indemnify the seller and to hold the seller harmless from any claim related to the item of the
equipment purchased. Under no circumstances will the seller be liable for any damages or expenses by reason of use or
sales of any such equipment.
The seller assumes no liability regarding the improper installation or misapplication of its products. It is the installer’s
responsibility to check for proper installation and if in doubt the manufacturer is to be contacted.
LIMITED LIFETIME WARRANTY
STATEMENT POLICY
The warranty policy is the best warranty within the high performance diesel industry.
All TS Performance products have been inspected, tested and trial in the factory laboratories and on the
field.
Nothing in this Statement of Policy shall alter or enlarge the terms of warranties, obligation or liabilities of
these products.
TS Performance is not responsible or liable for any products damaged or destroyed due to improper
installation.
TERMS OF WARRANTY
The defective product must be freight prepaid and returned to TS Performance for further investigation,
otherwise this warranty shall be deemed null and voided and of no effect.
This warranty is void on any products that show evidence of misapplication, negligence, and improper
installation, and abuse, lack of proper maintenance or alternation from its original design.
In no event will TS Performance be liable for any consequential or incidental damages for breach of any
express or implied warranty on the product.
This warranty is not transferable or assignable.
TS Performance is not responsible or liable for any products damaged or destroyed due to improper
installation
.IN THE EVENT THAT THE BUYER DOES NOT AGREE WITH THIS AGREEMENT: THE
BUYER MAY PROMPTLY RETURN THIS PRODUCT IN A NEW ANDN UNUSED
CONDITION WITH A DATED PROOF OF PURCHASE TO THE PLACE OF PURCHASE
WITHIN TEN (10) DAYS FROM DATE OF PURCHASE FOR A FULL REFUND.
