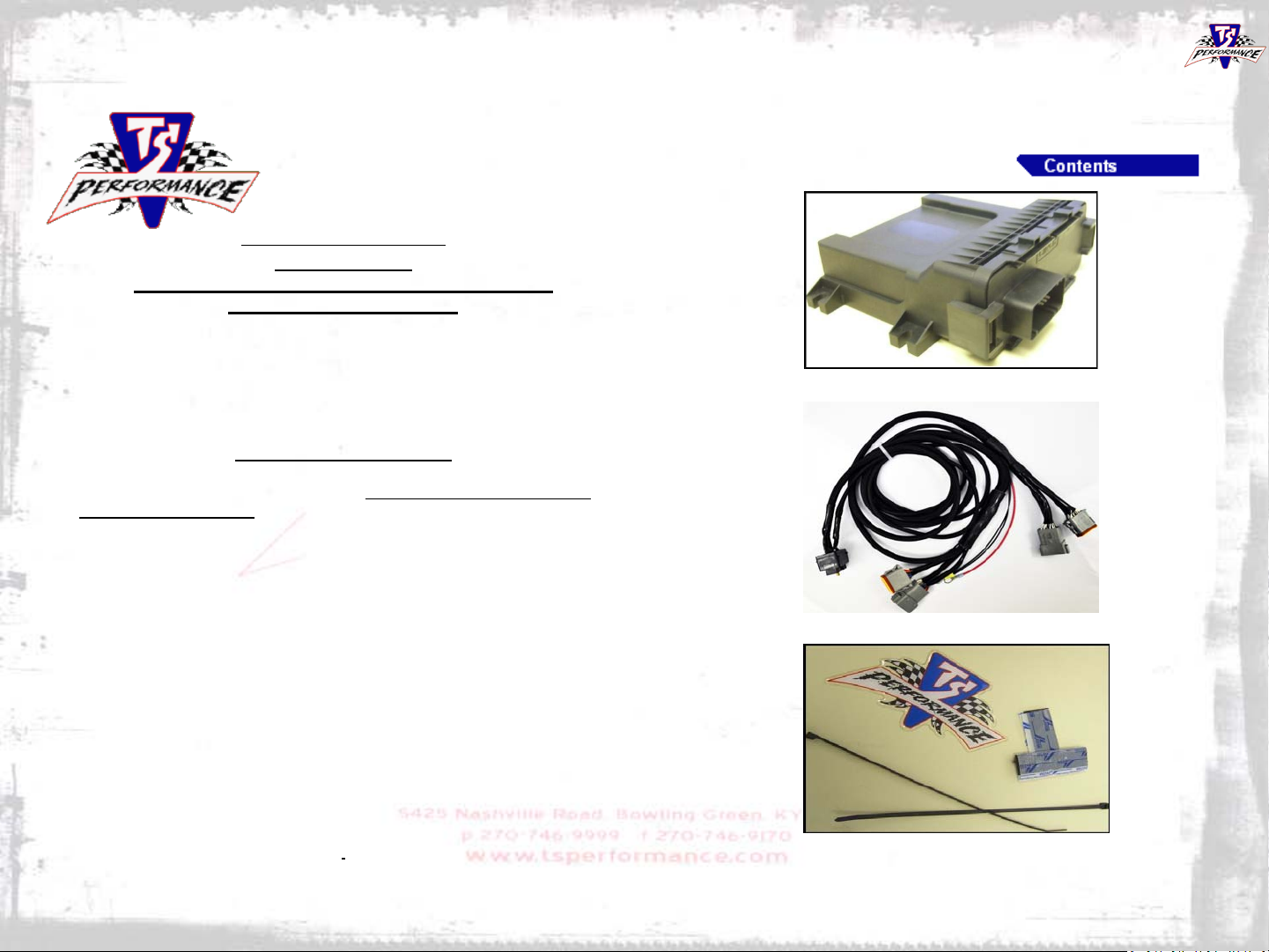

Contents of box
Caterpillar Module
Caterpillar Acert Harness
Sticker, zip ties, velcro
9
2
Page 4
Installation Overview
Updating
UPDATE SECTION

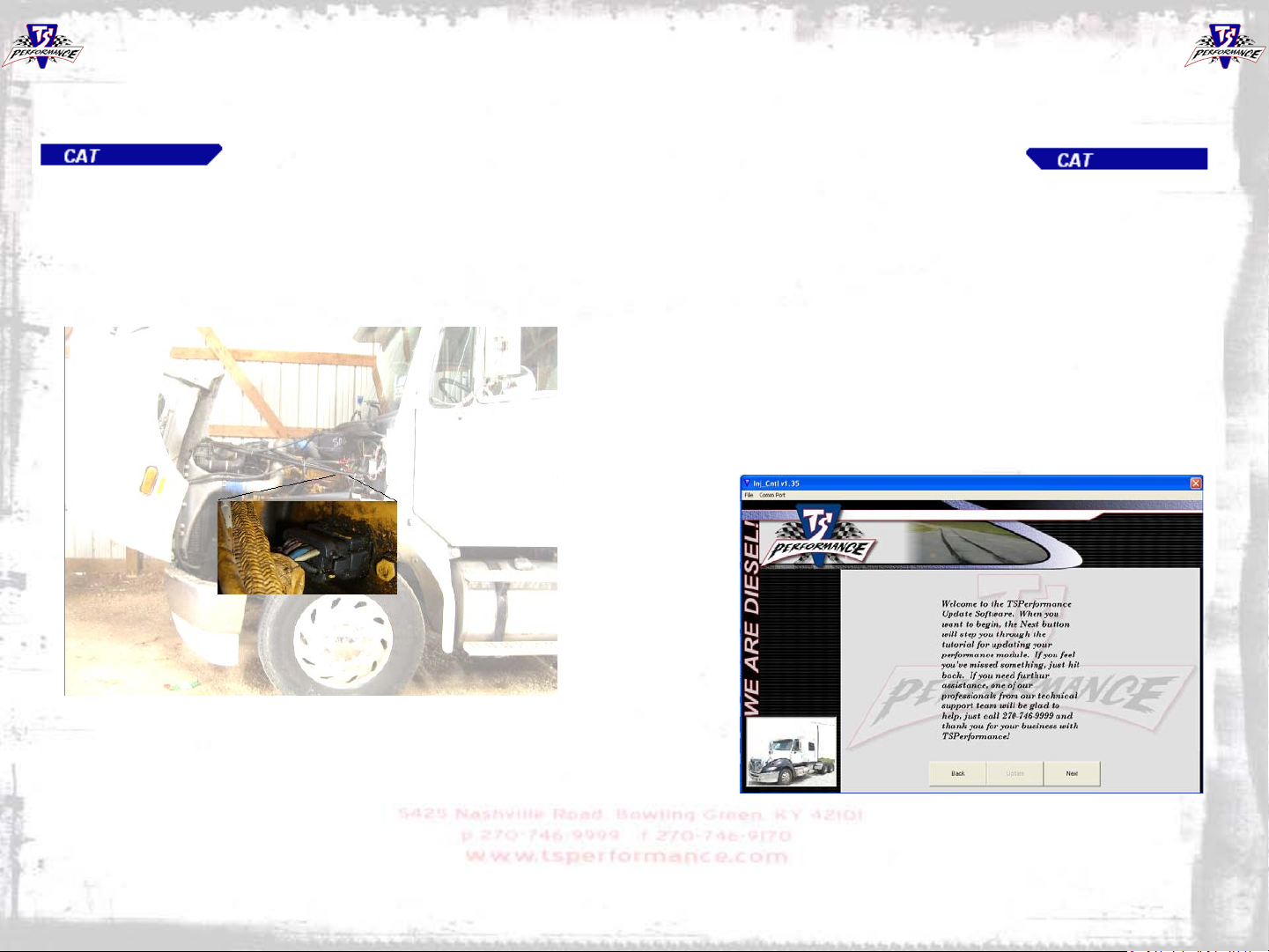

With changes being made every year to engine parameters
and EPA restrictions, TS Performance has developed an
online Updater so your fuel module will never be out dated.
The Updater is located on our website. Utilizing the internet
allows your module to be updated with no CD’s or hardware
to be mailed back and forth. TS Performance fuel modules
are designed to change with an ever changing industry so
your vehicle will timeout before your TS Performance
purchase.
3
The Caterpillar fuel injection system harness plugs
directly into valve cover on the intake side of the engine.
The TS Performance power module monitors each
injector and enhances the fuel economy and
horsepower by optimizing the duration of fuel to each
injector.
***Need help or more info??? Call: 270 -746-9999***
8
Page 5
Troubleshooting
Insulation: Module
Troubleshooting Section
1. Be sure you have nice clean +12 Volt power to
RED wire with eyelet on fuel module.
2. The BLACK wires on the module should be
routed to a good clean chassis ground.
3. Check all wiring connections, and confirm that
they are secure.
4. If engine is still performing poorly, or any other
problems exist in engine performance,
UNPLUG the MPHD Module while leaving the
module harness still connected to the injectors
in the valve cover. Start the engine and
examine engine performance once again.
**If engine still performs poorly, confirm that
all wiring connections are secure and contact
TS Performance at (270) 746 – 9999.**
7
CA T ACERT Installation
1. Shut machine off

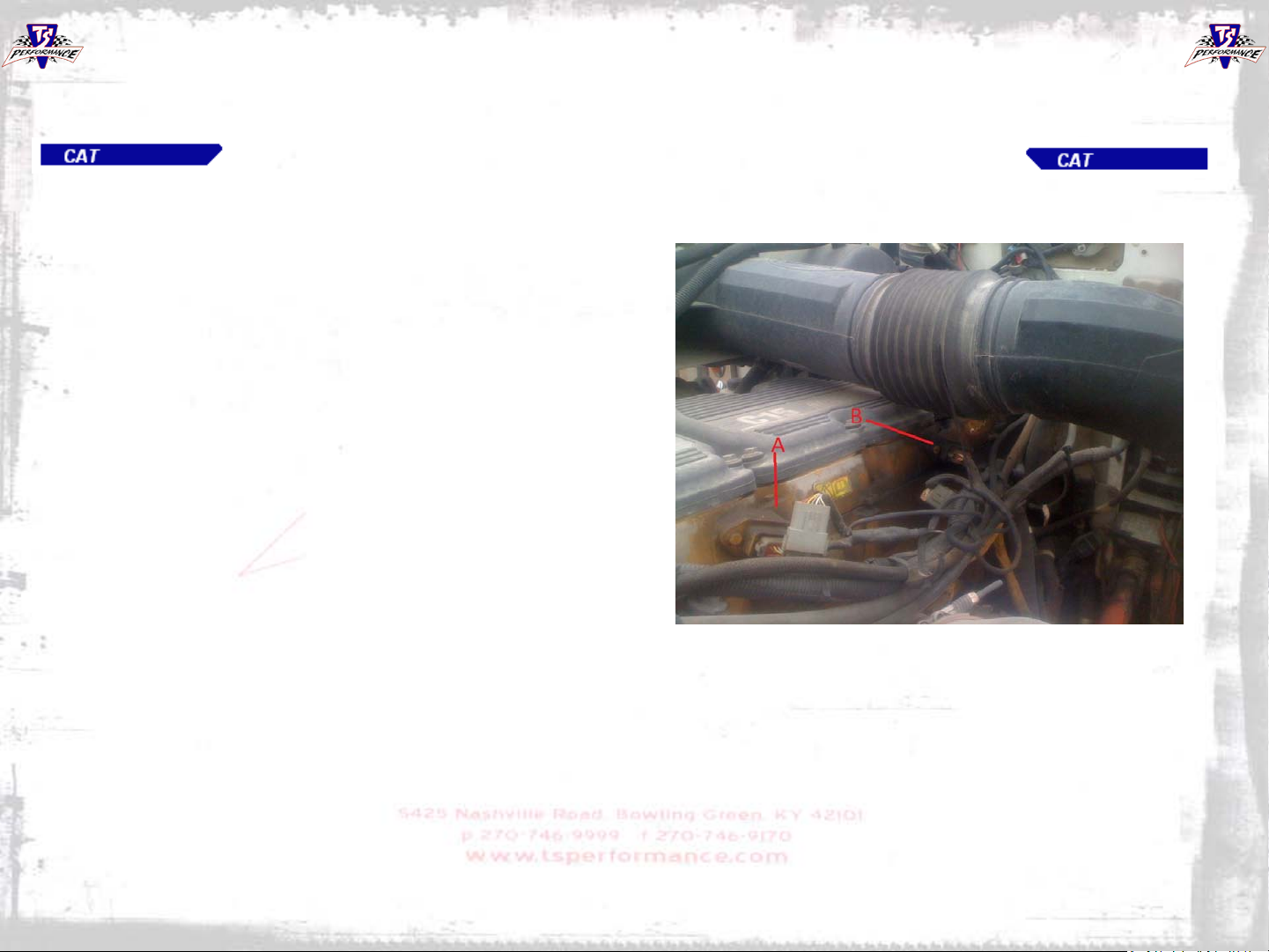

2. Locate the factory injector harness connections on the
driver’s side of the engine (labeled A and B in the picture
above).
3. Disconnect the factory harness from the connectors.
4. Connect the supplied MP-HD harness into the appropriate
connections. Our harness is labeled (A) and (B). (A) will
connect to the factory connection toward the front and (B)
will connect to the conection to the rear. (On our harness,
connector A will be in the middle of the harness and (B) will
be at the end of the harness.
5. Now connect the factory harness to the remaining open
connections on the MP-HD harness.
4
Page 6
Installation: Power and Ground
Power

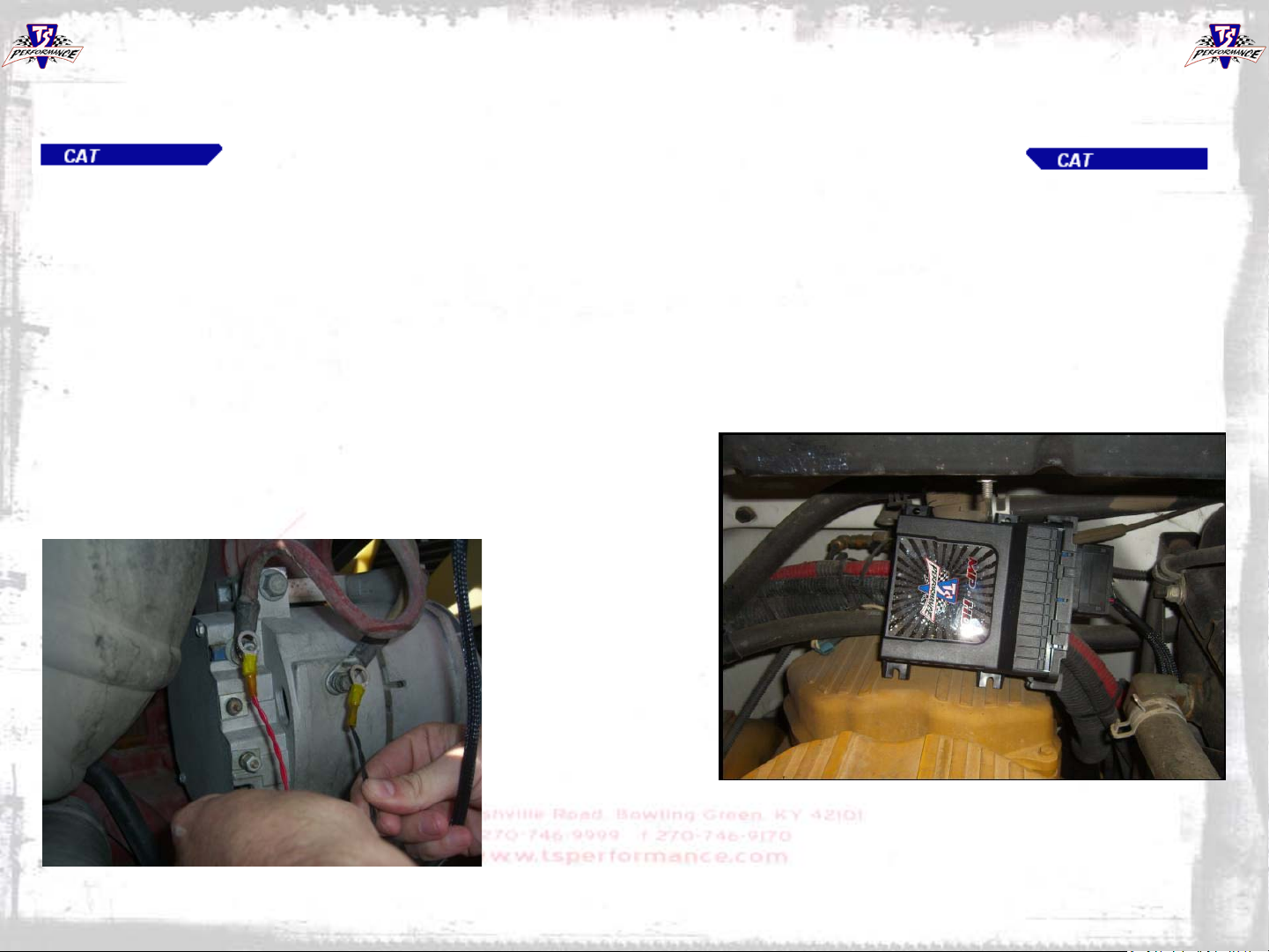

1. Route the RED power wire from the module to clean 12
Volts, usually wired to the alternator on the passenger side
of the vehicle.
Ground
2. Route the BLACK ground wires from the module to clean
chassis ground or directly to battery, usually the alternator
on the passenger side of the vehicle is sufficient and easily
accessed.
Installation: Mounting
Mounting location
1. You can mount the MPHD module anywhere away from
extreme environments. There’s plenty of room in the
harness to mount away from heat. The area just above the
valve cover has served for a great mounting location using
the supplied zip ties and/or velcro. Just be sure the module
is tightly secured to prevent damage.
5
6
