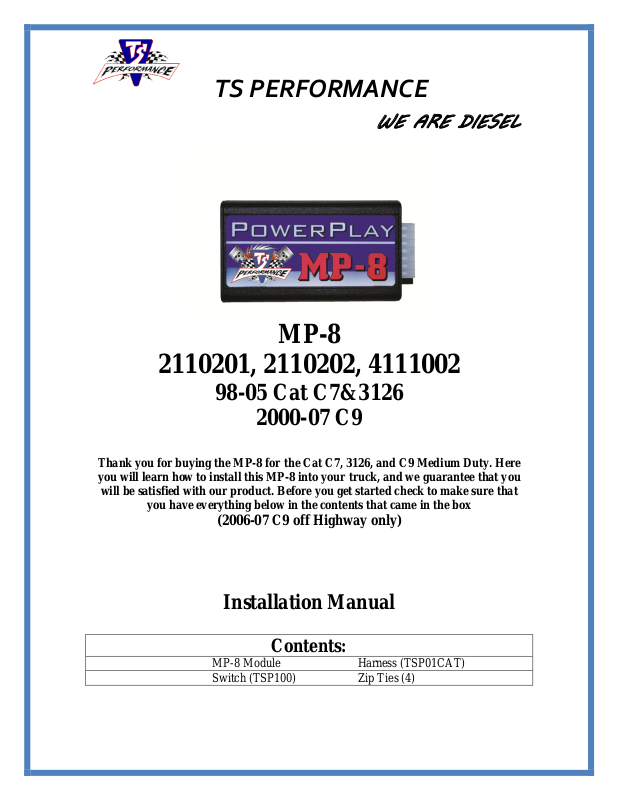

TS PERFORMANCE
WE ARE DIESEL
MP-8
2110201, 2110202, 4111002
98-05 Cat C7&3126
2000-07 C9
Thank you for buying the MP-8 for the Cat C7, 3126, and C9 Medium Duty. Here you will learn how to install this MP-8 into your truck, and we guarantee that you will be satisfied with our product. Before you get started check to make sure that you have everything below in the contents that came in the box
(2006-07 C9 off Highway only)
Installation Manual
Contents:
|
MP-8 Module |
Harness (TSP01CAT) |
|
|
Switch (TSP100) |
Zip Ties (4) |
|
|
|
|
|
|
|
|
|
Continued
Installation of TS Performance Power Play MP-8
Caterpillar C-7, C9, & 3126
Read all instructions and fully understand them before installing your TS Performance MP-8 module. Disconnect the battery terminals and remove keys from the ignition before installation.
Place Di-Electric Grease onto every electrical connection.

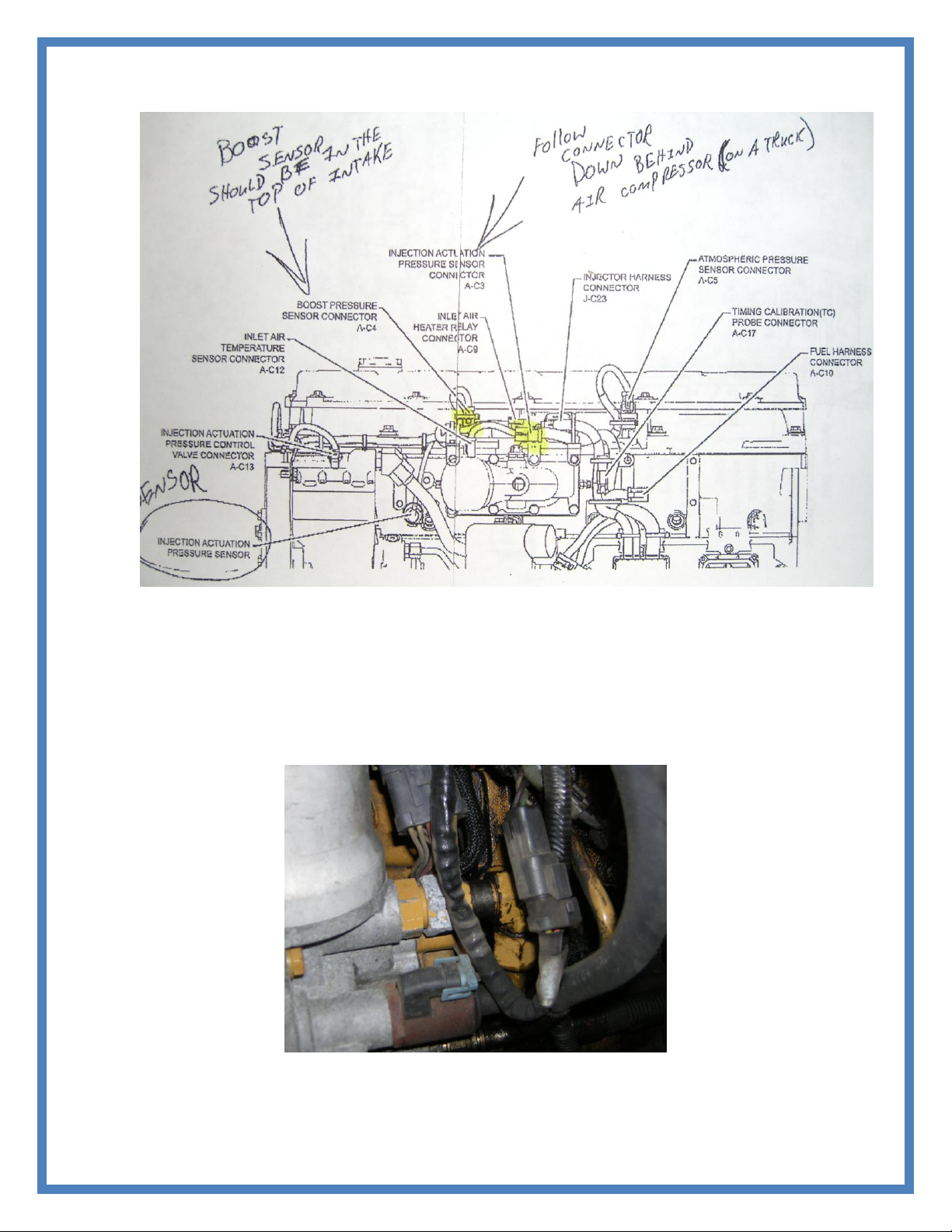

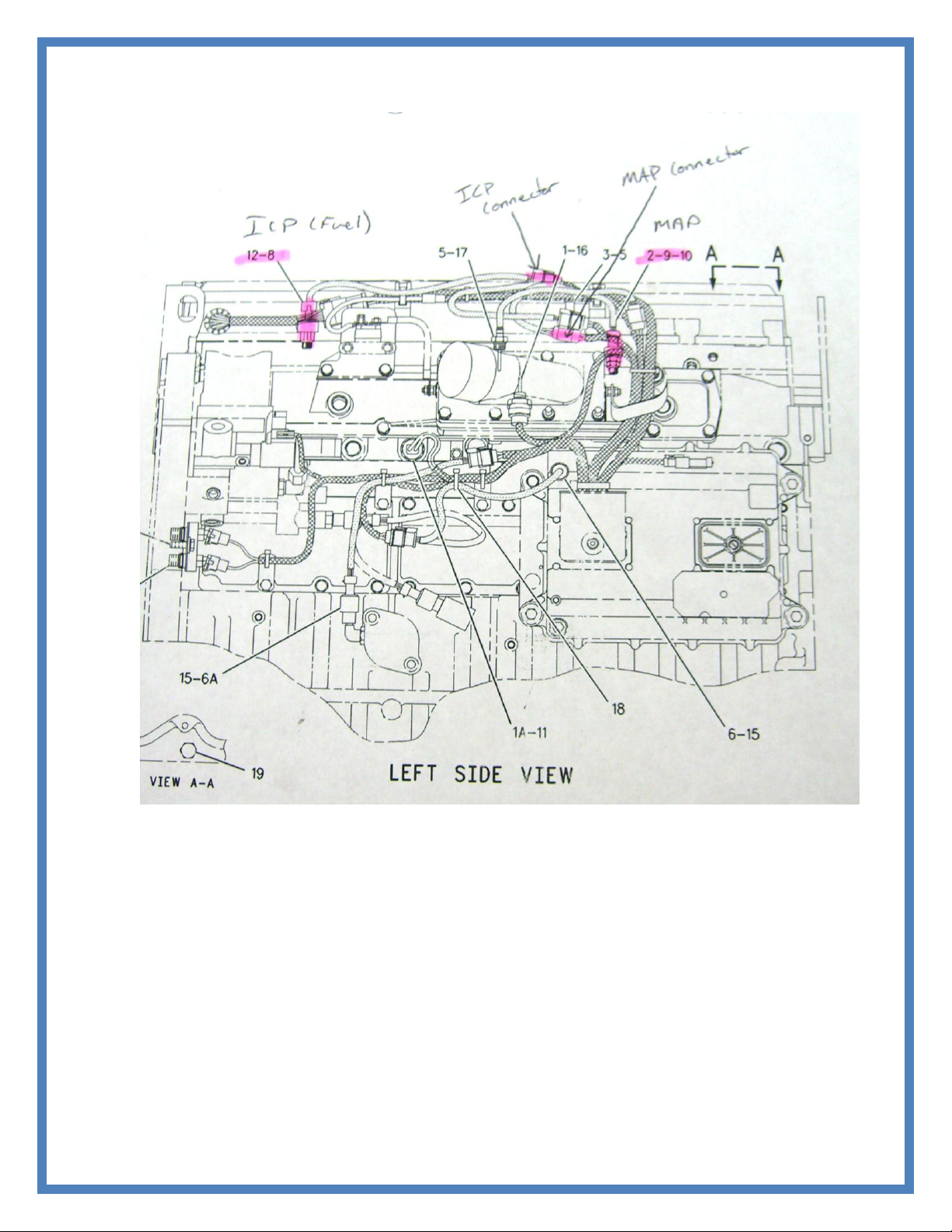

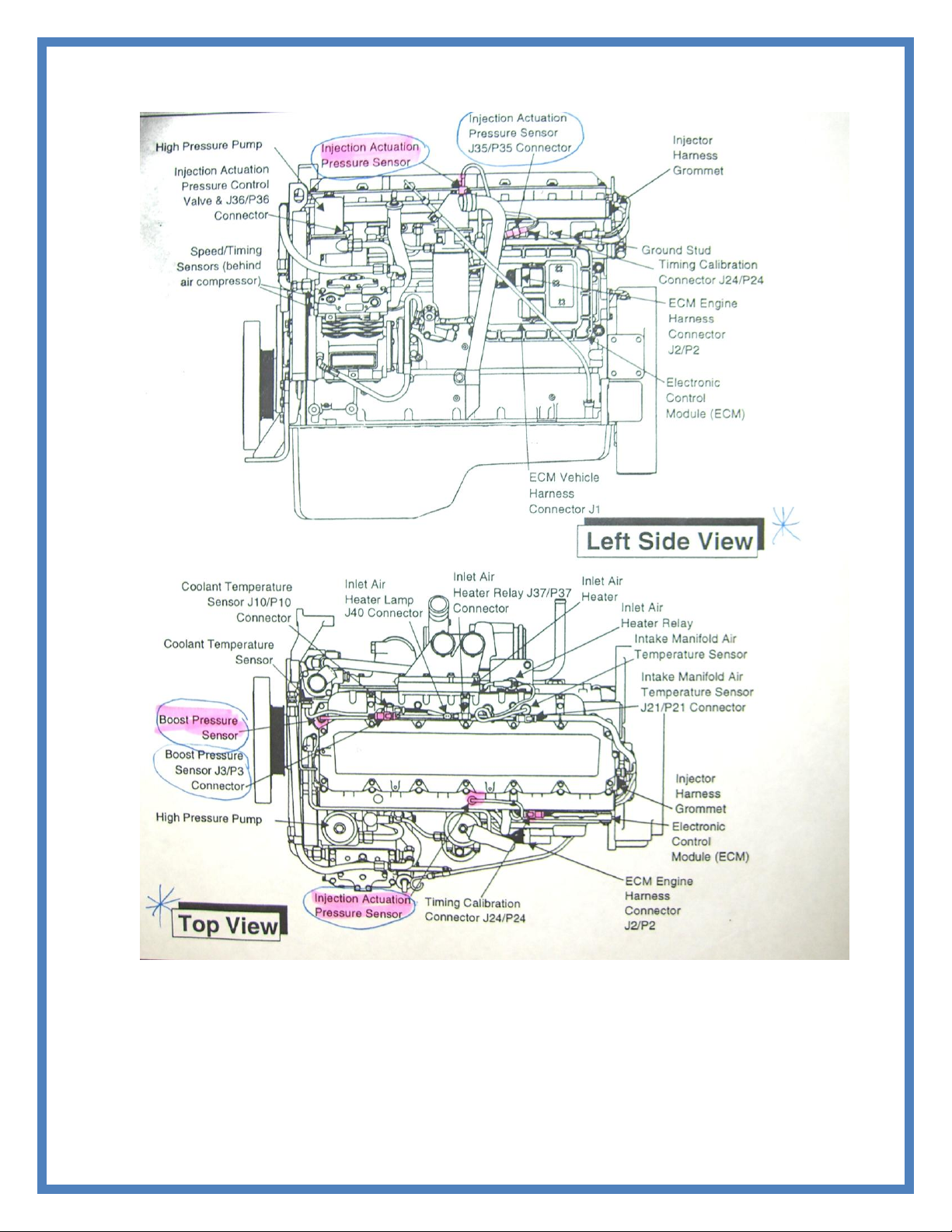

ICP
Fuel Pressure Sensor
MAP/ Boost
Sensor

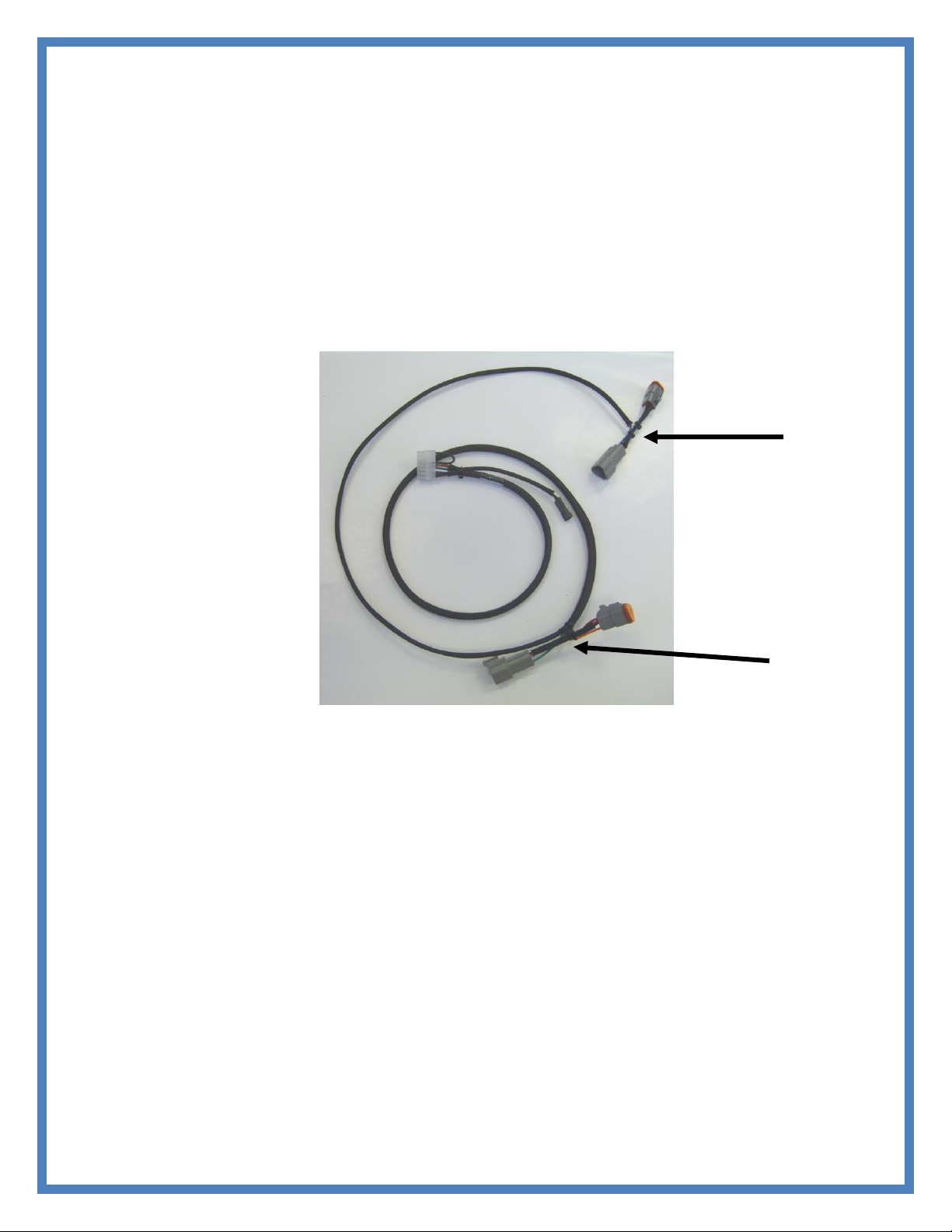

TSP01CAT HARNESS
1.Locate a place to mount the MP-8 module inside the engine compartment on the driver’s side where it will be free from extreme heat and moisture. Use the supplied zip ties to securely mount the module.
Continued
1999-2005 - 3126 CAT / C7 CAT / 2000-2005 C9
