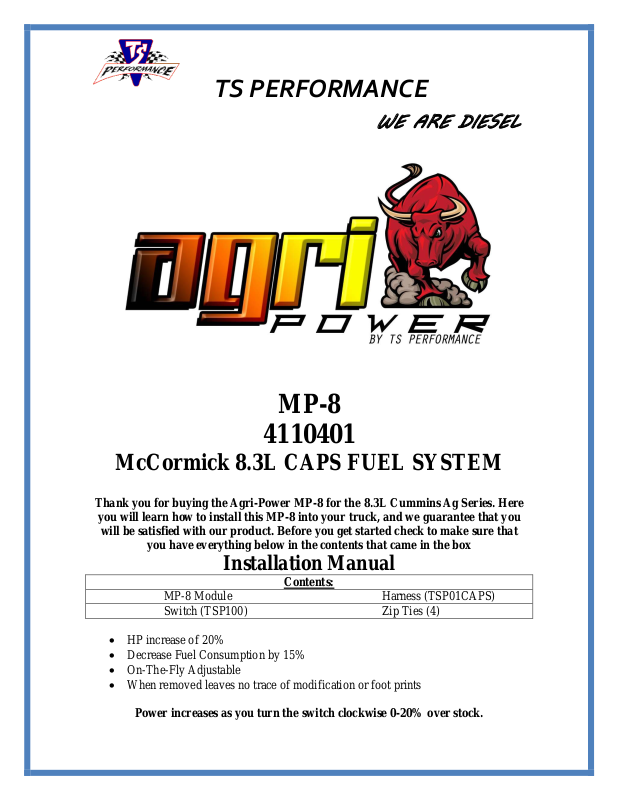

TS PERFORMANCE
Contents:
MP-8 Module Harness (TSP01CAPS)
Switch (TSP100) Zip Ties (4)
WE ARE DIESEL
MP-8
4110401
McCormick 8.3L CAPS FUEL SYSTEM
Thank you for buying the Agri-Power MP-8 for the 8.3L Cummins Ag Series. Here
you will learn how to install this MP-8 into your truck, and we guarantee that you
will be satisfied with our product. Before you get started check to make sure that
you have everything below in the contents that came in the box
Installation Manual
HP increase of 20%
Decrease Fuel Consumption by 15%
On-The-Fly Adjustable
When removed leaves no trace of modification or foot prints
Power increases as you turn the switch clockwise 0-20% over stock.
Page 2
Continued
Instructions for Installation
Place Di-Electric Grease onto every electrical connection.
1. Locate the CAPS Fuel Pump. It will be located on the
side of the engine with six steel lines that run to the
injectors.
2. Now locate the fuel pressure sensor. This will be found
on the on the back side of the pump and will be the only
connector that looks the same as the SUPPLIED
harness as shown below.
3. Unplug the sensor; plug the connector from the
SUPPLIED harness in to the sensor.
4. Now plug the factory harness in to the left over
connector.
5. NEXT locate the map sensor shown in picture below.
6. Unplug the sensor; plug the connector from the
SUPPLIED harness in to the sensor.
7. Now plug the factory harness in to the left over
connector.
8. The MODULE comes with four zip ties to secure the
box.
9. Route the cables away from any moving parts or places
that might damage the cable with the 4” zip ties
supplied and mount the box in a dry cool location.
10. The switch may be mounted in the cab or under the
hood.
DO NOT unplug the TS PERFORMANCE MODULE unit while the engine is
running. This may result in engine or component failure and may void warranty on
the engine or the unit.
Page 3
Continued
851 Lovers Ln
Bowling Green, KY 42103
270-746-9999
TS Performance
www.tsperformance.com
DISCLAIMER
READ CAREFULLY BEFORE INSTALLING ANY TS PERFORMANCE PRODUCT
REMEMBER THIS IS A HIGH PERFORMANCE PRODUCT. USE AT YOUR OWN RISK. FOR OFF ROAD USE ONLY.
Do not use this product until you have carefully read the following agreement. This agreement sets forth the terms
and conditions for the use of the TS Performance product. The installation of this product indicates that the buyer has
read and fully understands this agreement and accepts its terms and conditions.
DISCLAIMER OF LIABILITY
TS Performance, its distributors or dealers shall in no way be responsible for the product’s proper use and service. The
buyer of this system hereby waives all liability claims. The buyer acknowledges that he is not relying on the sellers
skill or judgment to select or furnish goods suitable for any particular purpose and that there are no liabilities which
extend beyond the description on the face hereof, and the buyer hereby waives all remedies or liabilities, expressed or
implied arising by law or otherwise, (including without obligations of the seller with respect fitness, merchantability
and consequential damages) or whether or not occasioned by the seller’s negligence.
The seller disclaims any warranty and expressly disclaims any liability for personal injury or damages. The buyer
acknowledges and agrees that the disclaimer of any liability for personal injury is a material term for this agreement
and the buyer agrees to indemnify the seller and to hold the seller harmless from any claim related to the item of the
equipment purchased. Under no circumstances will the seller be liable for any damages or expenses by reason of use or
sales of any such equipment.
The seller assumes no liability regarding the improper installation or misapplication of its products. It is the installer’s
responsibility to check for proper installation and if in doubt the manufacturer is to be contacted.
LIMITED LIFETIME WARRANTY
STATEMENT POLICY
The warranty policy is the best warranty within the high performance diesel industry.
All TS Performance products have been inspected, tested and trial in the factory laboratories and on the
field.
Nothing in this Statement of Policy shall alter or enlarge the terms of warranties, obligation or liabilities of
these products.
TS Performance is not responsible or liable for any products damaged or destroyed due to improper
installation.
TERMS OF WARRANTY
The defective product must be freight prepaid and returned to TS Performance for further investigation,
otherwise this warranty shall be deemed null and voided and of no effect.
This warranty is void on any products that show evidence of misapplication, negligence, improper
installation, and abuse, lack of proper maintenance or alternation from its original design.
In no event will TS Performance be liable for any consequential or incidental damages for breech of any
express or implied warranty on the product.
This warranty is not transferable or assignable.
TS Performance is not responsible or liable for any products damaged or destroyed due to improper
IN THE EVENT THAT THE BUYER DOES NOT AGREE WITH THIS AGREEMENT: THE BUYER MAY PROMPTLY
RETURN THIS PRODUCT IN A NEW ANDN UNUSED CONDITION WITH A DATED PROOF OF PURCHASE TO THE
PLACE OF PURCHASE WITHIN TEN (10) DAYS FROM DATE OF PURCHASE FOR A FULL REFUND.
installation.
Page 4
Continued
WWW.TSPERFORMANCE.COM
FOR TECHNICAL SUPPORT
(270) 746-9999
