Page 1
Contents:
MP-8 Module Harness (TSP08BE)
Velcro (1) Zip Ties (2)
HP increase of 50HP
Decrease Fuel Consumption
When removed leaves no trace of modification or foot prints
TS PERFORMANCE
WE ARE DIESEL

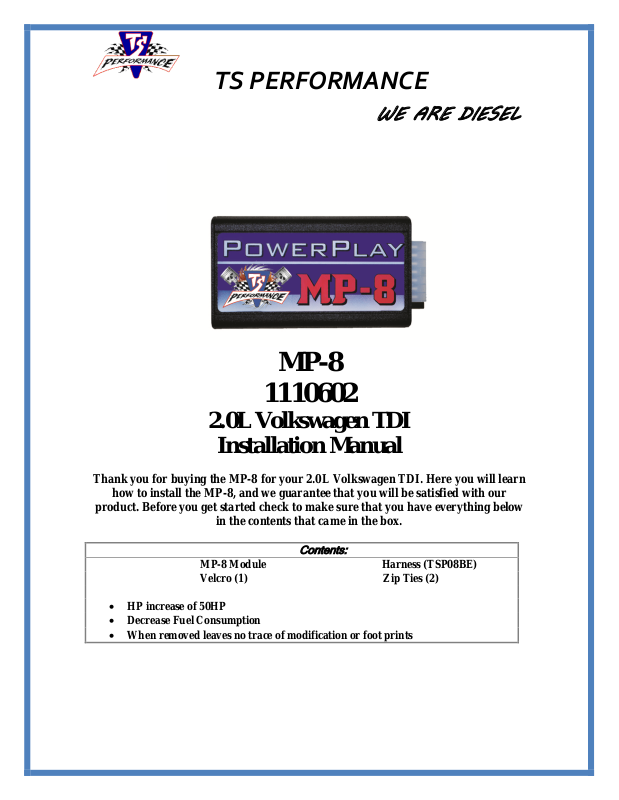

MP-8
1110602
2.0L Volkswagen TDI
Installation Manual
Thank you for buying the MP-8 for your 2.0L Volkswagen TDI. Here you will learn
how to install the MP-8, and we guarantee that you will be satisfied with our
product. Before you get started check to make sure that you have everything below
in the contents that came in the box.
Page 2
Continued
Installation of the TS Performance MP-8
2.0L Volkswagen TDI
Read all instructions and fully understand them before installing you TS Performance MP-8 module.
Disconnect the battery terminals and remove keys from ignition before installation.
1. Remove the plastic engine cover. To do this you will need to remove the oil filler
cap and pull up on the front of the cover and pull it forward to clear the firewall.
2. Locate the fuel rail on the engine. It will run along the intake side of the engine
and will have 4 lines coming from it going to each injector. On the end of the rail
there will be a fuel pressure sensor.
3. Disconnect the factory wire harness from the sensor and plug our supplied harness
into the factory harness and the sensor.
4. Now you will need to mount the module in a location away from moving parts.
We recommend mounting it to one of the inner fenders away from extreme heat
with the Velcro supplied.
5. Once you have the module mounted you will need to replace the plastic engine
cover. The cover will snap onto its mounts. Then replace the factory oil filler
cap.
Page 3
Continued
TS Performance
851 Lovers Ln
Bowling Green, KY 42103
270-746-9999
www.tsperformance.com
READ CAREFULLY BEFORE INSTALLING ANY TS PERFORMANCE PRODUCT
REMEMBER THIS IS A HIGH PERFORMANCE PRODUCT. USE AT YOUR OWN RISK. FOR OFF ROAD USE ONLY.
Do not use this product until you have carefully read the following agreement. This agreement sets forth the terms
and conditions for the use of the TS Performance product. The installation of this product indicates that the buyer has
read and fully understands this agreement and accepts its terms and conditions.
DISCLAIMER OF LIABILITY
TS Performance, its distributors or dealers shall in no way be responsible for the product’s proper use and service. The
buyer of this system hereby waives all liability claims. The buyer acknowledges that he is not relying on the sellers
skill or judgment to select or furnish goods suitable for any particular purpose and that there are no liabilities which
extend beyond the description on the face hereof, and the buyer hereby waives all remedies or liabilities, expressed or
implied arising by law or otherwise, (including without obligations of the seller with respect fitness, merchantability
and consequential damages) or whether or not occasioned by the seller’s negligence.
The seller disclaims any warranty and expressly disclaims any liability for personal injury or damages. The buyer
acknowledges and agrees that the disclaimer of any liability for personal injury is a material term for this agreement
and the buyer agrees to indemnify the seller and to hold the seller harmless from any claim related to the item of the
equipment purchased. Under no circumstances will the seller be liable for any damages or expenses by reason of use or
sales of any such equipment.
The seller assumes no liability regarding the improper installation or misapplication of its products. It is the installer’s
responsibility to check for proper installation and if in doubt the manufacturer is to be contacted.
LIMITED LIFETIME WARRANTY
STATEMENT POLICY
The warranty policy is the best warranty within the high performance diesel industry.
All TS Performance products have been inspected, tested and trial in the factory laboratories and on the
field.
Nothing in this Statement of Policy shall alter or enlarge the terms of warranties, obligation or liabilities of
these products.
TS Performance is not responsible or liable for any products damaged or destroyed due to improper
installation.
TERMS OF WARRANTY
The defective product must be freight prepaid and returned to TS Performance for further investigation,
otherwise this warranty shall be deemed null and voided and of no effect.
This warranty is void on any products that show evidence of misapplication, negligence, and improper
installation, and abuse, lack of proper maintenance or alternation from its original design.
In no event will TS Performance be liable for any consequential or incidental damages for breach of any
express or implied warranty on the product.
This warranty is not transferable or assignable.
TS Performance is not responsible or liable for any products damaged or destroyed due to improper
installation
.IN THE EVENT THAT THE BUYER DOES NOT AGREE WITH THIS AGREEMENT: THE
BUYER MAY PROMPTLY RETURN THIS PRODUCT IN A NEW ANDN UNUSED
CONDITION WITH A DATED PROOF OF PURCHASE TO THE PLACE OF PURCHASE
WITHIN TEN (10) DAYS FROM DATE OF PURCHASE FOR A FULL REFUND.
