TS PERFORMANCE
Contents:
MP-8 Module Harness (TSP01FO)
Switch (TSP100) Velcro (1)
Zip Ties (2)
WE ARE DIESEL

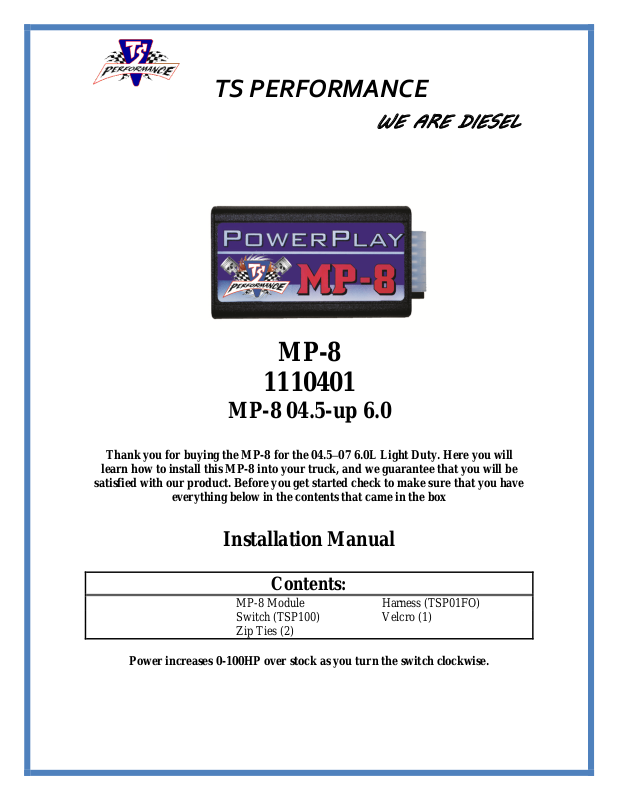

MP-8
1110401
MP-8 04.5-up 6.0
Thank you for buying the MP-8 for the 04.5–07 6.0L Light Duty. Here you will
learn how to install this MP-8 into your truck, and we guarantee that you will be
satisfied with our product. Before you get started check to make sure that you have
everything below in the contents that came in the box
Installation Manual
Power increases 0-100HP over stock as you turn the switch clockwise.
Page 2
Continued
Installation of TS Performance Power Play MP-8
6.0L Powerstroke 04.5-06
Read all instructions and fully understand them before installing your TS Performance MP-8
module. Disconnect the battery terminals and remove keys from ignition before installation.
Place Di-Electric Grease onto every electrical connection.
1. Find a proper location for mounting the module. We
recommend the canister located directly behind the
passenger’s side battery or the bracket the MAP Sensor
is connected to. Use the supplied Velcro to fasten the
MP-8 securely.
2. Route the adjustable switch wire through the firewall to
the MP-8. We recommend with an automatic, using the
available hole on the upper part of the firewall. Simply
poke a hole in the foil and run the wire through it. If
your truck is a manual we suggest making a small hole
in a rubber boot and run the wire through it. Be careful
not to cut any factory wiring. Route the wire away
from any moving devices and away from extreme heat
that may burn the wire.
3. Locate the ICP Sensor on the passenger’s side valve
cover. Disconnect the harness and make sure the small
key way connector comes out with the factory plug. If
it does not, use a small pair of needle nose pliers to
remove it and place it on the factory connector. If it
remains in the ICP Sensor, you will not be able to plug
our connectors to the sensor. Use the supplied
connectors and plug into the ICP Sensor and the factory
plug.
4. Mount the switch on the inside of the cab. We suggest
mounting it just to the right side of the steering column.
If you do not want to drill your dash you can also hang the
switch beside the steering column.
If there are any questions on the product or installation of
the module give us a
Call at TS Performance (270) 746-9999
Page 3
Continued
TS Performance
851 Lovers Ln
Bowling Green, KY 42103
270-746-9999
www.tsperformance.com
DISCLAIMER
READ CAREFULLY BEFORE INSTALLING ANY TS PERFORMANCE PRODUCT
REMEMBER THIS IS A HIGH PERFORMANCE PRODUCT. USE AT YOUR OWN RISK. FOR OFF ROAD USE ONLY.
Do not use this product until you have carefully read the following agreement. This agreement sets forth the terms
and conditions for the use of the TS Performance product. The installation of this product indicates that the buyer has
read and fully understands this agreement and accepts its terms and conditions.
DISCLAIMER OF LIABILITY
TS Performance, its distributors or dealers shall in no way be responsible for the product’s proper use and service. The
buyer of this system hereby waives all liability claims. The buyer acknowledges that he is not relying on the sellers
skill or judgment to select or furnish goods suitable for any particular purpose and that there are no liabilities which
extend beyond the description on the face hereof, and the buyer hereby waives all remedies or liabilities, expressed or
implied arising by law or otherwise, (including without obligations of the seller with respect fitness, merchantability
and consequential damages) or whether or not occasioned by the seller’s negligence.
The seller disclaims any warranty and expressly disclaims any liability for personal injury or damages. The buyer
acknowledges and agrees that the disclaimer of any liability for personal injury is a material term for this agreement
and the buyer agrees to indemnify the seller and to hold the seller harmless from any claim related to the item of the
equipment purchased. Under no circumstances will the seller be liable for any damages or expenses by reason of use or
sales of any such equipment.
The seller assumes no liability regarding the improper installation or misapplication of its products. It is the installer’s
responsibility to check for proper installation and if in doubt the manufacturer is to be contacted.
LIMITED LIFETIME WARRANTY
STATEMENT POLICY
The warranty policy is the best warranty within the high performance diesel industry.
All TS Performance products have been inspected, tested and trial in the factory laboratories and on the
field.
Nothing in this Statement of Policy shall alter or enlarge the terms of warranties, obligation or liabilities of
these products.
TS Performance is not responsible or liable for any products damaged or destroyed due to improper
installation.
TERMS OF WARRANTY
The defective product must be freight prepaid and returned to TS Performance for further investigation,
otherwise this warranty shall be deemed null and voided and of no effect.
This warranty is void on any products that show evidence of misapplication, negligence, improper
installation, and abuse, lack of proper maintenance or alternation from its original design.
In no event will TS Performance be liable for any consequential or incidental damages for breech of any
express or implied warranty on the product.
This warranty is not transferable or assignable.
TS Performance is not responsible or liable for any products damaged or destroyed due to improper
installation.
IN THE EVENT THAT THE BUYER DOES NOT AGREE WITH THIS AGREEMENT: THE BUYER MAY PROMPTLY
RETURN THIS PRODUCT IN A NEW ANDN UNUSED CONDITION WITH A DATED PROOF OF PURCHASE TO THE
PLACE OF PURCHASE WITHIN TEN (10) DAYS FROM DATE OF PURCHASE FOR A FULL REFUND.
THE INSTALLATION OF THIS PRODUCT INDICATES THAT THE BUYER HAS READ AND UNDERSTATNDNS
THIS AGREEMENT AND ACCEPTST ITS TERMS AND CONDITITONS.
Page 4
Continued
WWW.TSPERFORMANCE.COM
FOR TECHNICAL SUPPORT
(270) 746-9999
