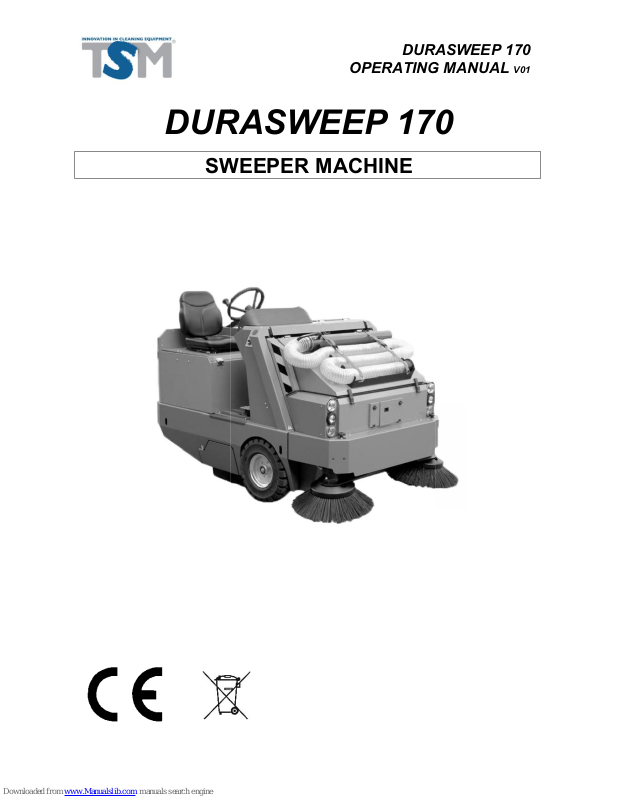

TSM DURASWEEP 170 Operating Manual

DURASWEEP 170

SWEEPER MACHINE

DURASWEEP 170

OPERATING MANUAL V01

TSM - Technological Systems by Moro Srl

Via F.lli Zambon,9 - 33080 Fiume Veneto (PN) – Italy

Tel. [phone] - Fax [phone]

www.tsmitaly.com – [e-mail]

1

DECLARATION OF CONFORMITY

TSM S.r.l.

Via F.lli Zambon, 9

33080 Fiume Veneto (PN) – Italy

Declares that:

SWEEPER

1. Type: ............................................................ DURASWEEP 170

Is conform to the following CE laws:

2006/42/CE (Machine directive)
2006/95/CE, 93/68 CE (Low-tension directive),
2004/108/CE (EMC directive)
2000/14 CE (Environmental acoustic emission directive)

Unified / national norms of reference:

UNI-EN 292-1, UNI-EN 292-2, PR EN 1127, EN 418, EN 60204, EN 349

Fiume Veneto, October 2014

DURASWEEP 170

OPERATING MANUAL V01

TSM - Technological Systems by Moro Srl

Tel. [phone] - Fax [phone]

www.tsmitaly.com – [e-mail]

1

TSM S.r.l.

Via F.lli Zambon, 9

Declares that:

SWEEPER

TSM - Technological Systems by Moro Srl

Via F.lli Zambon,9 - 33080 Fiume Veneto (PN) – Italy

Tel. [phone] - Fax [phone]

www.tsmitaly.com – [e-mail]

2

GENERAL INFORMATION

This OPERATION AND SERVICE HANDBOOK has been drawn up for the uses permitted by the law; all improper uses
by third parties will be punished in accordance with current laws.

ATTENTION: PLEASE CAREFULLY READ THE SECTION CONCERNING SAFETY REGULATIONS AND
RECOMMENDATIONS FOR USE.

The operation and service manual forms an integral part of the machine and must therefore be kept.
The machines are built in compliance with EC regulations.

CONTENTS OF THE MANUAL

This manual contains instructions for use and correct maintenance of the following machines:

SWEEPER MOD. 170 Diesel/ Petrol/LPG/Battery powered

In it you will find all information concerning safe operation and maintenance, useful also for obtaining top performance
and long life. The manual is divided into two parts:

1. Safety/Instructions for use and maintenance,

2. Spare parts catalogue

The advanced technical solutions adopted are designed to ensure top performance and low running costs in complete
safety.

The machines are built in compliance with EC regulations.

DURASWEEP 170

OPERATING MANUAL V01

TSM - Technological Systems by Moro Srl

Tel. [phone] - Fax [phone]

www.tsmitaly.com – [e-mail]

2

GENERAL INFORMATION

CONTENTS OF THE MANUAL

TSM - Technological Systems by Moro Srl

Via F.lli Zambon,9 - 33080 Fiume Veneto (PN) – Italy

Tel. [phone] - Fax [phone]

www.tsmitaly.com – [e-mail]

3

1 TECHNICAL ASSISTANCE

For any servicing or repair work required, you are advised to contact the manufacturer directly. Our customer service
department is run by skilled personnel and is equipped with specific equipment for the above work. We are always at
your disposal for machine information and advice. The user is required to refer to us for all extraordinary maintenance
and in any case for all operations/repair jobs not specifically described in the operation handbook.

2 MACHINE MARKING

The machine is provided with the following clearly marked information:

1. Manufacturer’s name and address

2. CE Mark

3. Model

4. Serial number

5. Year of manufacture

The above information must always be quoted when requesting spare parts.
The identification plate is affixed on the driver’s side below the seat.

3 INTENDED USE OF THE MACHINE

The sweeper is designed for indoor and outdoor cleaning without creating dust. It can collect no bulky material by means
of a brush, conveying the rubbish into a bin.

NO OTHER USE IS PERMITTED

THE MACHINE IS NOT APPROVED FOR ROAD USE

DURASWEEP 170

OPERATING MANUAL V01

TSM - Technological Systems by Moro Srl

Tel. [phone] - Fax [phone]

www.tsmitaly.com – [e-mail]

3

NO OTHER USE IS PERMITTED

TSM - Technological Systems by Moro Srl

Via F.lli Zambon,9 - 33080 Fiume Veneto (PN) – Italy

Tel. [phone] - Fax [phone]

www.tsmitaly.com – [e-mail]

4

4 SAFETY REGULATIONS, RECOMMENDATIONS FOR USE AND USER OBLIGATIONS

The whole of this chapter must ALWAYS be read before carrying out any maintenance operation and when
using the machine for the first time.

NON-AUTHORISED PERSONS ARE FORBIDDEN TO STAND IN THE MACHINE WORKING RANGE.

1. Refuse container:

- Never stand below the refuse container when raised or near it during emptying.

- When servicing or inspecting the container, secure the locking lever below the container.

2. Fire:

- Only perform cleaning operations in premises provided with fire-fighting systems.

- Do not smoke on board and near the machine.

- Do not collect red-hot material (cigarette ends, burning paper, etc.).

- In the event of fire inside the container, do not open the cover: direct the extinguisher nozzle
inside the container via the filter.

- Switch the engine off before opening the bonnet.

3. Speed:

- Reduce the speed when travelling uphill/downhill and on bends and in particular when the

container is full.

- Be careful not to press the forward pedal by mistake with the engine on.

- Remove the starting key when the machine is at a standstill and pull the handbrake.

4. Maintenance:

- All maintenance operations must be performed with the machine at a standstill after

disconnecting the power supply.

- Before charging the battery, read the directions in the instruction manual.

5. Prolonged use of the machine:

- If the environment is dusty, use an appropriate mask for nose and mouth.

- Use ear defenders for internal combustion engine models.

6. Miscellaneous:

- Do not remove the safety devices installed.

5 INSTRUCTIONS FOR OPERATION AND SERVICING - RECOMMENDATIONS

N.B.: Before proceeding with any routine or extraordinary maintenance operation, carefully read the chapter
entitled: “SAFETY REGULATIONS AND RECOMMENDATIONS FOR USE AND MAINTENANCE”.

The routine maintenance programme is established on the basis of optimum machine conditions, the machine
operating mode and the environment in which it is normally used. It is therefore essential to establish and follow
a regular inspection and maintenance programme.

TSM Srl declines all responsibility for injury to persons and/or da mage to things resulting from failure to follow
the above instructions or irregular and/or incorrect use of the machine.

DURASWEEP 170

OPERATING MANUAL V01

TSM - Technological Systems by Moro Srl

Tel. [phone] - Fax [phone]

www.tsmitaly.com – [e-mail]

4

TSM - Technological Systems by Moro Srl

Via F.lli Zambon,9 - 33080 Fiume Veneto (PN) – Italy

Tel. [phone] - Fax [phone]

www.tsmitaly.com – [e-mail]

5

6 DESCRIPTION OF THE MACHINE

6.1 For on-the-spot checking of your machine

1. SIDE BRUSH

2. DUST FILTER

3. REFUSE CONTAINER

4. CENTRAL BRUSH

5. DUST SEALS

3

DURASWEEP 170

OPERATING MANUAL V01

TSM - Technological Systems by Moro Srl

Tel. [phone] - Fax [phone]

www.tsmitaly.com – [e-mail]

5

6. CONTROL PANEL

7. ENGINE COMPARTMENT

8. HOSE INSTALLATION / INSPECTION

9. VACUUM WAND

10. MOTOR COVER

11. SIDE BRUSH PRESSURE SYSTEM

1

2

5

7
