TSI Quest SD-200 Quick Start Manual

Sound Detector SD-200

QUICK START

GUIDE

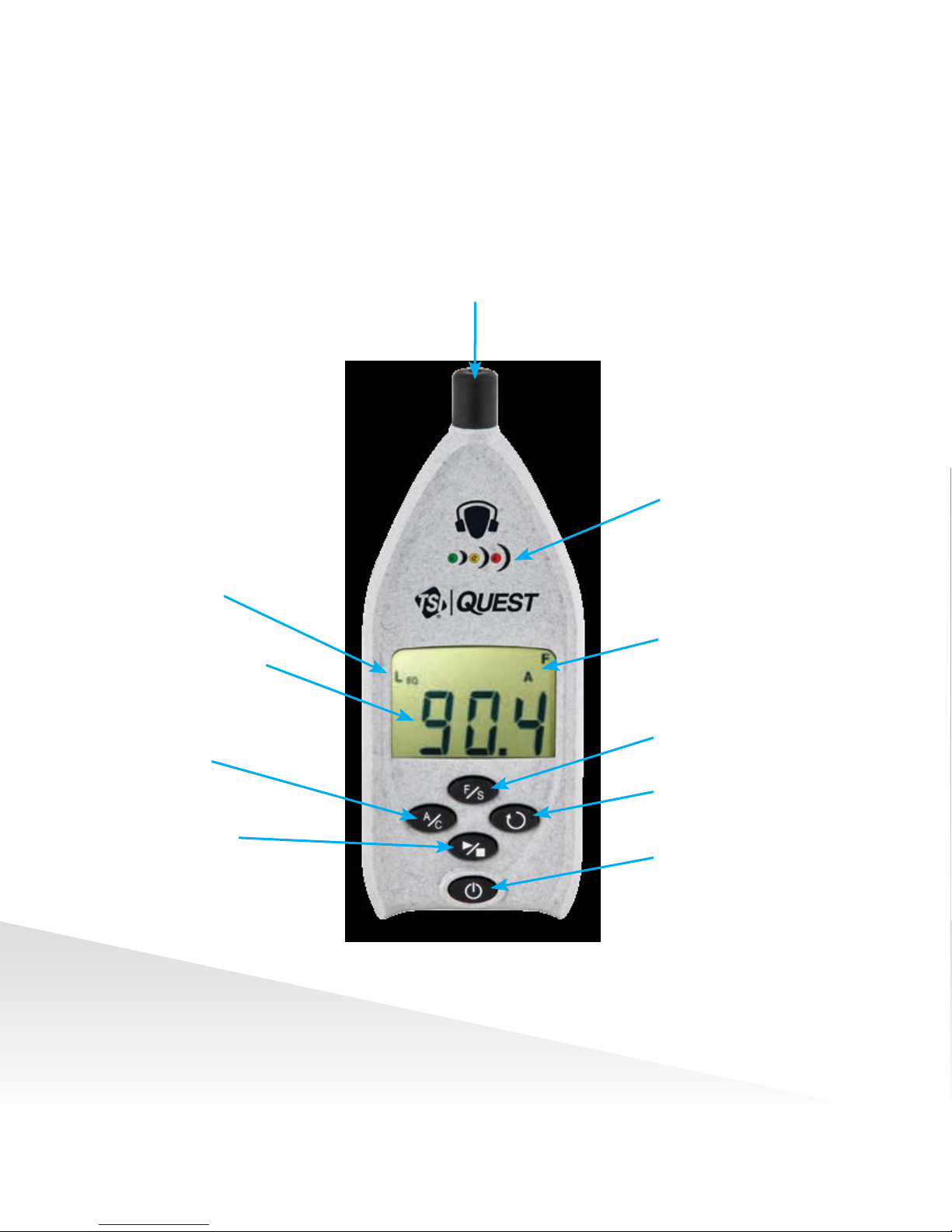

Sound Detector SD-200
components

Measurement Screen
Indicators (Time Response
and Frequency weighting)

Measurement Value

Alert LED Indicators

Measurement Type
(SPL, LEQ, LAVG, LED
Alert, MAX, MIN,
Run-Time)
NOTE: No indicator
signies SPL

Microphone

F/S key (Fast/Slow
Time Response)

Mode Key (Cycles Through
Measurement Screens)

Power On/O Key

A/C Key
(Frequency
Weighting)

Run/Stop Key
(For Averaging
Values)

DANGERS, WARNINGS, CAUTIONS

DANGER
Failure to observe the following procedures may result in serious personal injury

+ Not for use in explosive or hazardous locations. This product is not intrinsically safe.
+ Contains built-in lithium polymer battery. Do not incinerate or dispose of in re.

Do not disassemble, alter or re-construct.

WARNING
Failure to observe the following procedures could damage the instrument

+ Read the manual before operation
+ Do not store outside of the temperature range of -4° F to 158° F (-20° C to 70° C).
+ Do not immerse in liquids.
+ Condensation may damage your instrument.
+ Substitution of components may impair the accuracy of the instrument.

Repair should be done by authorized service personnel only.

CAUTION - General

+ The battery in this instrument has limited shelf-life, even if never used.
+ A non-condensing environment is required for proper instruments
+ Do not charge the battery outside of the range of 32° F to 104° F (0°C to 40°C).
+ Battery run-time may be reduced when operating at temperatures lower than 32° F (0°C).
+ The SD-200 Sound Level Meter may not be sucient to carry out a full risk assessment of

workers exposed to hazardous noise levels to help comply with the European Physical
Agents (Noise) Directive 2003/10/EC. For further information contact a Safety
Professional or Industrial Hygienist.

Charging

It is recommended that the SD-200 is charged for approximately 12 hours before rst use.

Intended use

The SD-200 Sound Level Meter is intended to measure sound pressure levels in air and provide sound
and noise detection measurements. For suitability and proper use follow local regulations and refer to all
information supplied. For more information contact a safety professional.

Measuring sound pressure level

1 Place windscreen over microphone (if not attached).

2. Switch on the SD-200 and check that the battery indicator is not present.
+ If present, charge the instrument prior to measuring.

3. Select desired weighting and/or response time (A/C Key, F/S Key).

4. Position the SD-200 microphone at 0 degrees for the reference direction or at 70 degrees for
random incidence direction.

5. Measuring: When rst switched on, the current SPL will be displayed or the last viewed parameter.

+ For integrated measurements, press the Run/Stop Key. Unlike SPL, the LEQ/LAVG values will provide

steadier values over a period of time until values become more stable.
+ To cycle through the measurements, repeatedly press the mode key.
+ To stop measuring, press Run/Stop Key.

6. Switch o by pressing and holding the Power Key until it turns o (When not in Run mode).

NOTE: It is advisable to perform a eld calibration before taking measurements to ensure your measurements are accurate
in the current environment. An optional calibrator and calibrator adaptor are used for this procedure.

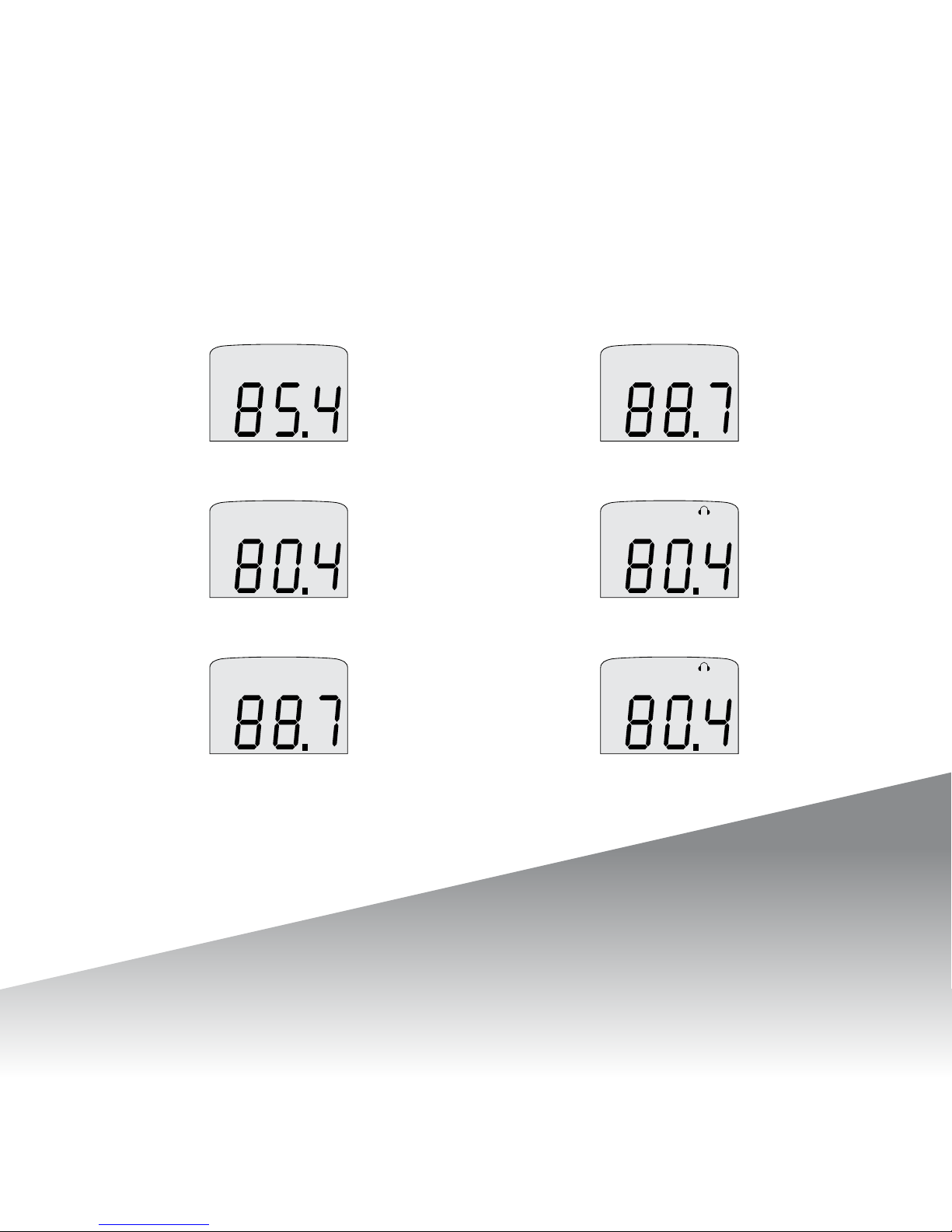

Viewing measurements

The mode key is used to cycle through the measurement screens with its
related values. (as displayed below):

1. SPL (Nomeasurement screen indicator) 4. MIN*

S
A

F

M

IN

A

2. LEQ/LAVG* 5. Optime alert and HP*

S
A

EQ

L

S
A

EQ

L

3. MAX* 6. Run-time*

S

M

AX

A

S
A

EQ

L

*When integrating measurement has occurred.

P/N 34-8706-9358-6 Rev B ©2018 TSI Incorporated

TSI Incorporated

- Visit our website www.tsi.com for more information.

North America and Asia Pacic
Telephone: [phone] (USA)
[phone] (Outside USA)
Fax: [phone]
E-mail: [email protected]

Europe, Middle East, and Africa
Telephone: [phone]

Fax: [phone]
E-mail:

[email protected]

Quest is a trademark, and TSI
and the TSI logo are registered
trademarks of TSI Incorporated.

IMPORTANT: For appropriate
use of hearing protection devices,
consult your safety professional

This product complies with the requirements of
IEC61672-1 with the exception of clause 9.1c - “An instruction
manual shall be provided as a printed document in one or more parts”.
A printed copy of the instruction manual is available on request.

Alert and Hearing Protection (HP) screen

Alert and hearing protection indicator levels

Green LED

Flashes when noise measurements are 80-85dB(A)

Green and Yellow LEDs Flashes when noise measurements are 83-85 dB(A)

Yellow LED Flashes when noise measurements are 83-93 dB(A)

Yellow and Red LEDs Flashes when noise measurements are 87-93 dB(A)

Red LED Flashes single slow pulses when noise measurements

are 87-95 dB(A)

Double Flashes when noise measurements

are >95 dB(A)
