iii Table of Contents
Contents
Table of Contents
Introduction ............................................................ 1
QUESTempº Models ............................................... 1
Getting Started ....................................................... 2
Up and Running overview ................................... 2
Keypad Operation ................................................ 3
Turning on/off and basic operation ...................... 4
Placement for Monitoring/Testing ........................ 4
Sensors ................................................................... 5
Natural Wet Bulb Thermometer ........................... 5
Globe Thermometer ............................................ 5
Dry Bulb Thermometer ........................................ 6
Relative Humidity Sensor .................................... 6
Tri-sensor Calculation and Remote Cable .......... 7
Tri-sensor weighted average ............................... 7
Measurements ........................................................ 8
Wet Bulb Globe Temperature .............................. 8
Stay Times/Rest Times (QTº36 only) .................. 8
Heat Index/Humidex ............................................ 9
Air Flow ................................................................ 9
Thermal Comfort (QUESTempº 36
model only) ........................................................ 9
Operating QUESTempº 34 & 36 .......................... 10
View ................................................................... 10
Setup ................................................................. 10
Print ................................................................... 11
Reset ................................................................. 11
Run .................................................................... 12
Displayed Items .................................................... 13
Stay Time........................................................... 14
Data Logging ........................................................ 15
Printing .................................................................. 16
Serial .................................................................. 16
Parallel ............................................................... 16
Air Flow functionality .......................................... 18
Operating sequence .......................................... 19
Data Logging Air Flow ....................................... 19
Batteries for Air Probe ....................................... 19
Operational Check ............................................... 20
Power options .................................................... 20
9-Volt Alkaline Battery Replacement ................. 20
Approved 9-Volt Batteries ................................. 21
NiMH Battery Pack ............................................ 21
Appendix A: Specifications ............................... 22
Measurements ................................................... 22
Data Logging ..................................................... 22
Languages ......................................................... 22
Housing ............................................................. 22
Size ................................................................... 22
Weight ............................................................... 22
Sensor Types .................................................... 22
Accuracy ............................................................ 22
Operating Temperature Range ......................... 22
Remote Sensor Bars ......................................... 23
Power Options ................................................... 23
Battery Life ........................................................ 23
Charge Time (NiMH Battery Pack) .................... 23
Air Probe Accessory (QUESTempº 36
model only) ...................................................... 23
Product markings and batteries ........................ 23
Appendix B: Heat Exposure Tables .................. 25
ACGIH ............................................................... 25
ACGIH Clothing Corrections ............................. 26
United States Navy ............................................ 26
Electrical power research institute (EPRI) ......... 28
Appendix C: Accessories ................................... 29
Air Probe Accessories ....................................... 29
Appendix D: Detection Management
Software DMS ..................................................... 30
DMS Quick overview ......................................... 30
Downloading your sessions in DMS .................. 30
Viewing/Analyzing and Quick Reporting in
DMS ................................................................ 32
Reporting and Printing....................................... 34
Contact/Service information ............................... 35
Technical Support Contacts .............................. 35
Service Contact Information .............................. 35
Returning for Service ......................................... 36
Calibration ............................................................ 36
Warranty ............................................................... 37
iv Table of Contents
List of Figures and Tables
1-1: QUESTempº 36 model ...................................... 1
1-2: Keypad explained .............................................. 3
1-3: Main menu of the QUESTempº 34 & 36 ........... 4
1-4: Filling wet bulb reservoir ................................... 5
1-5: Ports identified .................................................. 7
1-6: Viewing measured data ................................... 10
1-7: Setup selected in main menu .......................... 10
1-8: Run mode indicator ......................................... 12
1-9: Wet and Dry screen ........................................ 13
1-10: Globe screen ................................................... 13
1-11: WBGTi & WBGTo screen ............................... 13
1-12: RH and H.I/HU screen ...................................... 13
1-13: Air Flow screen ................................................. 14
1-14: Stay times (ACGIH) .......................................... 14
1-15: Time & Date screen .......................................... 14
1-16: Battery & Memory screen ................................. 14
1-17: Navy Stay time screen ...................................... 15
1-18: EPRI Stay time screen ...................................... 15
1-19: Sample printout (page 1) ............................... 16
1-20: Sample printout (page 2) ................................. 17

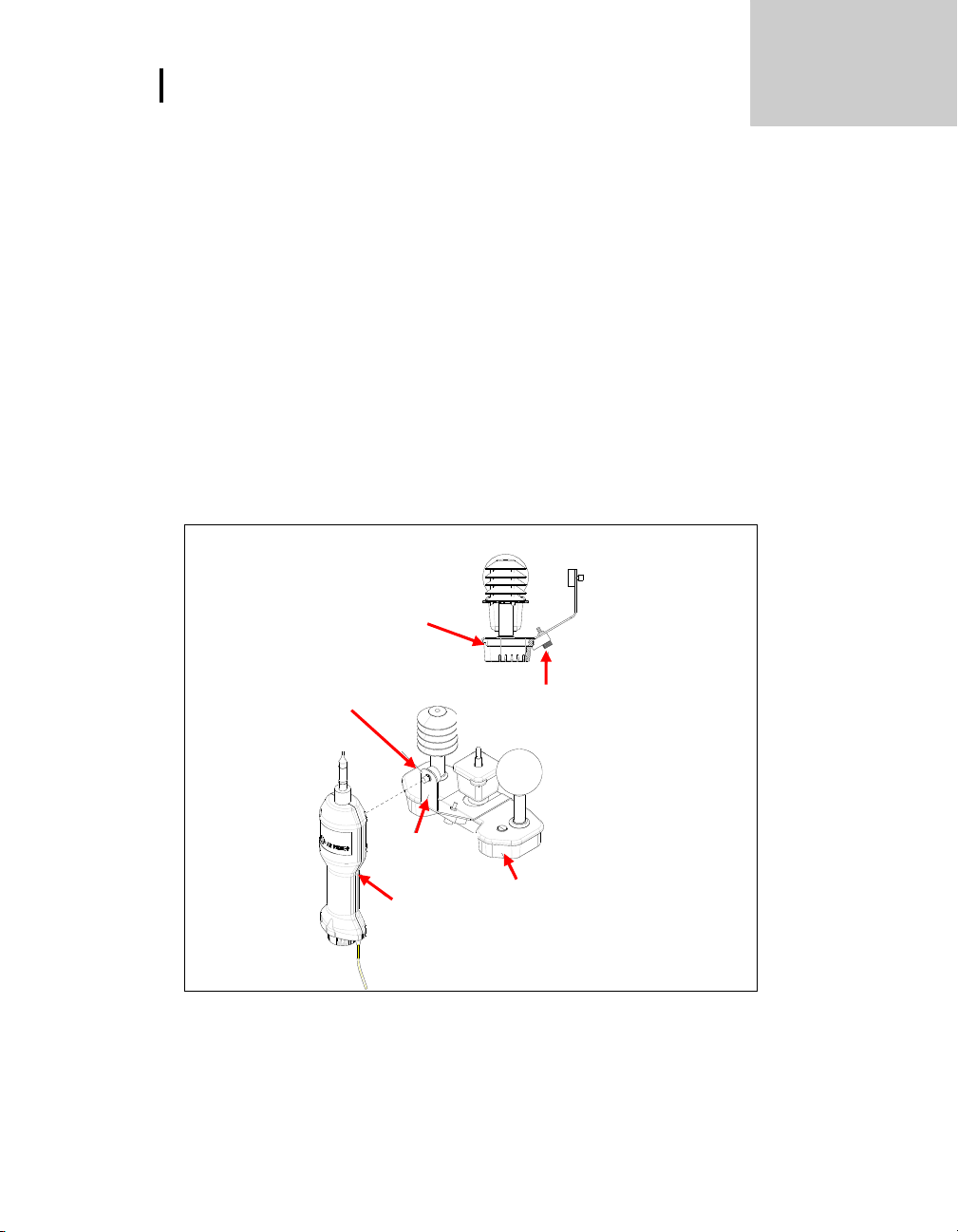

1-21: Air flow configuration ....................................... 18
1-22: 9-volt battery .................................................... 20
1-23: NiMH rechargeable battery ............................. 21
1-24: Communicating to DMS .................................. 30
1-25: Downloading with the QT⁰34/36 ..................... 31
1-26: Data Finder page (Analyze/Quick Report
options) ........................................................... 32
1-27: Data layout page (displays your data in
charts and graphs) .......................................... 33
1-28: Reporting and printing ..................................... 34
Tables
1-1: Example of a Memory table ............................. 15
1 Introduction
QTº36 model with (optional)
air-probe attachment
Introduction
Up and Running Overview
Introduction
The QUESTempº 34/36 models are portable heat stress monitors that are designed to be rugged,
easy-to use instruments to quickly and accurately assess the potential for individual heat stress
based on environmental conditions.
QUESTempº Models
The QUESTempº 34 and QUESTempº 36 models measure and calculate the dry bulb
temperature, wet bulb temperature, globe temperature, WBGT indoor index, WBGT outdoor
index, relative humidity, and Heat Index or Humidex. These models support RS-232
communications and works with the optional software analysis program, TSI Detection
Management Software (DMS).
With the QUESTempº 36, you have the capability to display stay times in order to manage
work/rest regimens. Guidance is based on the screening criteria for heat stress as defined in the
ACGIH TLV Handbook, U.S. Navy PHEL charts, and EPRI Action Limits. (See Appendix B for
detailed chart information.)
An additional feature with the QUESTempº 36 is an optional detachable air-probe for measuring
air velocity (wind speed) to determine appropriate levels of indoor thermal comfort monitoring.
Figure 1-1: QUESTempº 36 Heat Stress Monitor
Getting Started
2
1. Make sure the wet bulb wick is clean. Fill reservoir with distilled water. DO NOT use
ordinary tap water.
• See “check wick and fill natural wet bulb”.
2. Place the QUESTempº 34 & 36 in the work area in a safe location approximately 3.5 feet
off the ground.
3. Power On the QUESTempº34 & 36 and check the battery.
• If the battery voltage displayed during the power-on sequence is less than or equal
to 6.4 volts, replace or recharge the batteries.
4. Be aware that the sensors require 10 minutes to stabilize to a new environment.
5. In the main menu, View will be selected (an indicator arrow denotes the selected menu).
Press the I/O Enter key to select.
6. Press the Run/Stop key to begin storing data.
7. Use the Up/Down Arrow keys to set the display to the desired items.
Getting started
Up and Running Overview
Getting Started
Up and Running Overview
Getting Started
3
Keys
Explanation
I/O Enter key
The unit turns on with a single key press. The unit turns off by
holding the key down while a countdown of 3-2-1 occurs in the
lower right corner of the display. This key is also used to select a
mode (such as Setup or View) or enter setup changes.
Pressing and releasing the key while viewing temperatures causes
the display to view the next available sensor bar (indicated in the
upper right corner of the display).
Up Arrow key
Changes items appearing in the display. Scrolls up.
Down Arrow key
Changes items appearing in the display. Scrolls down.
Run/Stop key
From the menu or view modes, pressing this key starts or stops the
run mode. Pressing this key will exit the setup, print or reset
modes.
Escaping or moving
back one screen
If you are in the setup, print, reset, or calibration screens, you can
press Run/Stop key to escape or move back one screen.
I/O Enter key
Run/Stop key
Up arrow key
Down arrow key

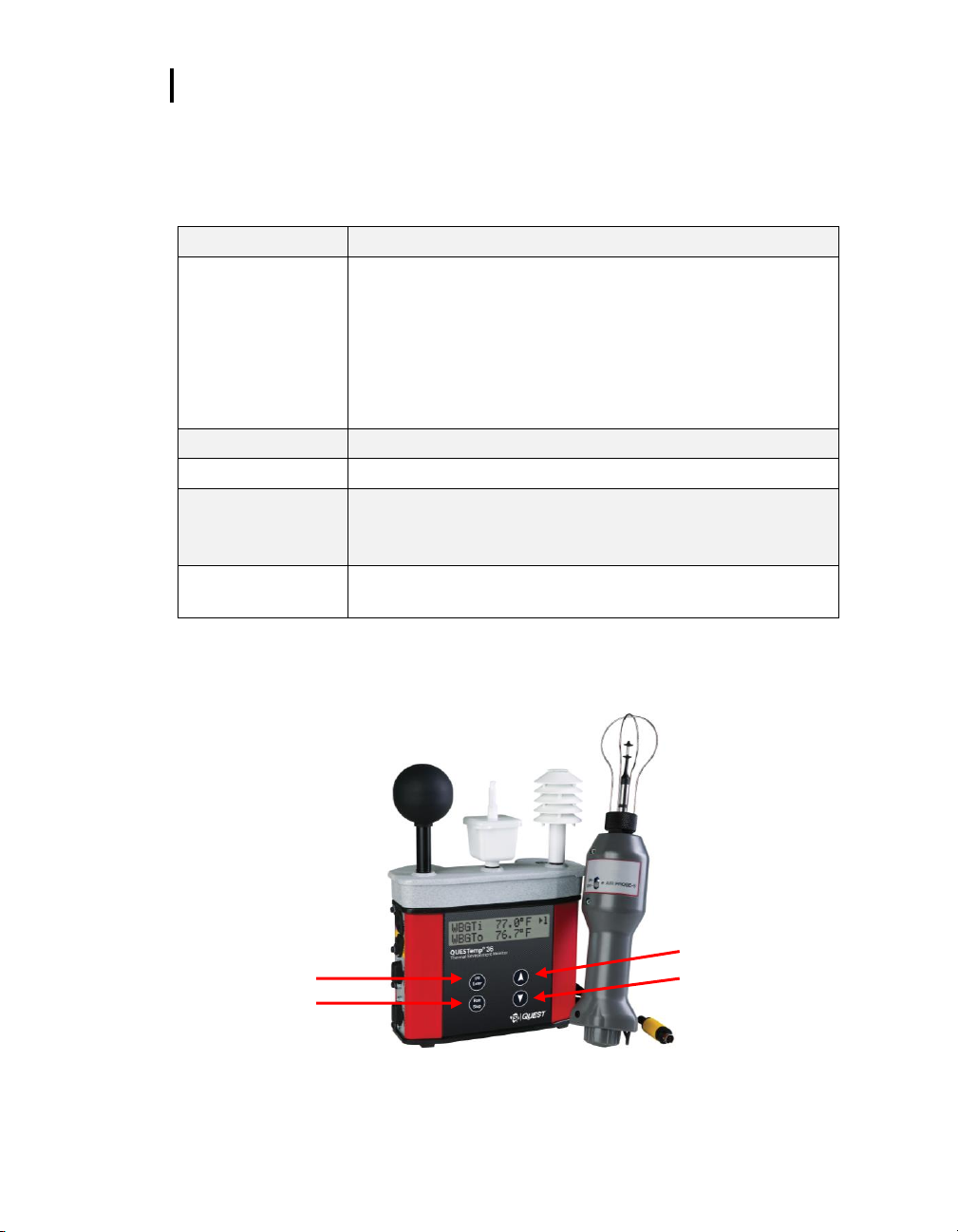

Keypad Operation
Keypad Operation
The unit operates using a keypad with four keys. The I/O Enter key responds when the key is
released while all other keys respond when the key is pressed.
NOTE: The QUESTempº 34 & 36 models have the same keypad. Figure 1-2 is an example
of the QUESTempº 36 model with the optional air-probe attachment.
Figure 1-2: Keypad explained
Getting Started
4
VIEW PRINT
SETUP RESET
Indicator arrow
Indicates the selected menu option. Then press I/O
enter to select or press up/down arrows to select
another option
Turning On/Off and Basic Operation
Turning On/Off and Basic Operation
To quickly get you started with the QUESTempº 34 & 36 model, the following section explains
how to turn on the instrument, run, and stop your session.
1. Press the I/O Enter key to turn on. Following the model and revision information displayed
on the screen, the main menu will appear.
Figure 1-3: Main menu of the QUESTempº 34 & 36
2. Press the I/O Enter key (when view is selected) to access the measurement screens.
The Wet and Dry measurements screen will display. (See Figure 1-6 for screen
example.)
3. To view different measurements, press the Up or Down arrow key to toggle through the
views.
NOTE: There are five user-selectable languages. If you see the fields such as Wet, Dry,
WBGTi, and WBGTo this indicates the measurements are displaying in English.
To display an alternative language, select Setup from the main menu. Press the Down
arrow repeatedly until “English” (or the appropriate language) appears. Then repeatedly
press the I/O enter key to toggle through the languages. Once selected, all menus and
measurement screens will change to the selected language. To return to the main
menu, press the Run/Stop key.
4. To return to the main menu, press and hold the I/O Enter key (3, 2, 1 countdown will
appear) and the main menu will display.
To select an option on the main menu, press the up or down arrow until an arrow
appears directly in front of the appropriate menu selection and then press I/O enter key.
5. To power off, press and hold the I/O enter key from the main menu.
Placement for Monitoring/Testing
The QUESTempº 34 & 36 model should be placed at a height of 3.5 feet (1.1 m) for standing
individuals or 2 feet (.6 m) for seated individuals. Tripod mounting is recommended to get the unit
away from anything that might block radiant heat or air flow. A 1/4" x 20 threaded bushing on the
bottom of the instrument allows mounting to a standard photographic tripod. DO NOT stand close to
the unit during sampling.
NOTE: Before measuring, allow 10 minutes for the sensors readings to stabilize.
Sensors
5
The natural wet bulb thermometer
gives an indication of the effects of
humidity on an individual. Relative
humidity and wind speed are taken
into account by measuring the
amount of evaporative cooling taking
place at a thermometer covered with
a moistened wick.
A B C
A. Globe thermometer
B. Natural wet bulb
thermometer
C. Dry bulb thermometer
Wick
Reservoir cover
Reservoir
Filling wet bulb reservoir
1. Remove reservoir cover and fill with
distilled or de-ionized water.
2. Replace reservoir cover.
Sensors
Natural Wet Bulb Thermometer
Sensors
Natural Wet Bulb Thermometer
Check Wick and Fill Natural Wet Bulb
The QUESTemp° Heat Stress Monitor uses a cotton wick immersed into a reservoir containing
distilled water. DO NOT use ordinary tap water, as the contaminants that are left behind after
evaporation will shorten the life of the wick and cause high readings. If the wick is discolored it
should be replaced. To replace the wick, slide the old wick off the top of the sensor. Place a
new wick over the sensor, making sure that the bottom of the wick is down in the reservoir.
Globe Thermometer
The globe thermometer (left position) gives an indication of the radiant heat exposure on an
individual due to either direct sunlight or hot objects in the environment. This is accomplished by
placing a temperature sensor inside a blackened copper sphere and measuring the temperature
rise. The WBGT index is based on the response of a 6 inch diameter globe. The QUESTemp°
uses a 2-inch diameter globe for a faster response time. The temperature of the 2-inch globe is
correlated to match that of a 6 inch globe.
Figure 1-4: Filling wet bulb reservoir
Sensors
6
Dry Bulb Thermometer
Dry Bulb Thermometer
The dry bulb thermometer (right position) measures the ambient air temperature. This
measurement is used in the outdoor WBGT calculation when a high solar radiant heat load may
be present. The series of white plates surrounding the sensor shield it from radiant heat.
Relative Humidity Sensor
A relative humidity sensor is located in a compartment inside of the sensor bar housing. Slots in
the housing allow air to circulate around the sensor.
Tri-sensor Calculation and Remote Cable
7
WBGTw = (WBGT
head
+ (2 x WBGT
abdomen
) + WBGT
ankles
)/4
Removable sensor bar
RS-232
Tri-sensor calc.
Sensor
Bars 2 & 3
Tri-sensor
Calculation and
Remote Cable
Tri-sensor Weighted Average
Tri-sensor Calculation and Remote Cable
The top sensor bar (sensor 1) may be removed from the instrument and used through a
remote cable. Shelter the instrument and remote the sensor bar if the measured
environment is expecting heavy rain or if temperatures are above 60C.
The sensor 2 and sensor 3 jacks on the side of the instrument allow simultaneous monitoring of
up to three sensor arrays using connecting cables.
Cable lengths of up to two hundred feet (61 meters) may be used without a decrease in
accuracy provided the environment does not contain strong electromagnetic fields.
The data from these arrays may be viewed separately or combined into a weighted average
WBGT reading per ISO 7243. Change the displayed sensor bar by pressing and releasing
the enter key. The upper right corner of the display shows the current sensor bar. 1 refers
to the top sensor bar, 2 and 3 are labeled on the side of the unit, W indicates the weighted
average which only appears if a WBGT is displayed and all three of the sensor bars are
attached.
Tri-sensor Weighted Average
Per the recommendations outlined in ISO 7243:2017, when the temperature in the space
surrounding a worker is not uniform, it is necessary to determine the WBGT index at three
heights corresponding to the worker's ankles, abdomen and head and perform a weighted
average on those values. It is computed using the formula:
The QUESTemp 36 always assigns the top sensor bar the double weighting. This calculation
is shown if a WBGT display has been selected and if three sensor sets are connected.
Figure 1-5: Ports identified
Measurements
8
WBGT (indoor) = 0.7WB + 0.3G (denoted as “WBGTi” on the display)
WBGT (outdoor) = 0.7WB + 0.2G + 0.1DB (denoted as “WBGTo” on the display)
Measurements
Wet Bulb Globe Temperature
Measurements
The QUESTemp 34 & 36 data logging area heat stress monitor directly senses the four
parameters: ambient or dry bulb temperature (DB), natural wet bulb temperature (WB), globe
temperature (G), and relative humidity (RH).
The QT 34/ 36 compute the Wet Bulb Globe Temperature (WBGT), stay times for three
possible indices (QT 36 only), and the Heat Index (HI) or the Canadian Humidex. Using inputs
on the side of the instrument, two additional sensor arrays can monitor up to three locations
simultaneously.
On the QUESTempº 36 model, you can measure air flow, in meters per second, by plugging an
optional hot wire anemometer sensor into a side jack on the unit.
Using Detection Management Software (DMS), you can determine the thermal comfort indices,
Predicted Mean Vote (PMV) and Predicted Percent Dissatisfied (PPD) (with the QUESTempº
36 model only).
Wet Bulb Globe Temperature
The WBGT is a weighted average of the three temperature sensors, a globe thermometer, a
wet bulb thermometer, and a dry-bulb thermometer, using the equations listed below.
The resulting WBGT values can then be compared to indices of work-rest regimens (stay times)
based upon workloads.
Stay Times/Rest Times (QTº36 only)
Stay times represent how long a worker should be able to safely work under heat stress
conditions (available on QUESTempº 36 only). Select one of the three indices for displaying
and printing from the unit: ACGIH Stay Times, NAVY PHEL’s, or EPRI Action Limits. (For
setup, refer to “Setup.” For detailed rest times refer to charts in Appendix B.)
Measurements
9
Heat Index/Humidex
Heat Index/Humidex
The Heat Index is determined using the dry bulb temperature and relative humidity. Based upon
charts available from the U.S. National Weather Service, Heat Index represents how an average
person feels relative to climate conditions. For a given temperature, the higher the humidity, the
higher the heat index.
The Heat Index is defined over a temperature range of 70F – 120F (21C – 49C) and a relative
humidity range of 30% - 99%. Outside of this range, the instrument will show dashes in the display
for the Heat Index.
The Humidex, used primarily in Canada, functions similar to the Heat Index concept. The values are
slightly different. The Humidex is defined over a temperature range of 70F – 109F (21C – 43C)
and a relative humidity range of 20% – 99%. Outside of this range, the instrument will show dashes
in the display for the Humidex.
Air Flow
The QUESTemp 36 measures air flow if the Air Probe accessory is used. The Air Probe uses an
omni-directional anemometer sensor that measures air flow between 0 and 20 meters per second in
0.1 m/s increments. See “Air Flow Functionality,” for more details.
Thermal Comfort (QUESTempº 36 model only)
Thermal comfort readings for indoor environments are a benefit of DMS software and are not
displayed or printed from the instrument directly. Readings are derived from the dry bulb, relative
humidity, mean radiant temperature, air flow, and user entered parameters of clothing, metabolic rate
and external work.
Thermal comfort indices, Predicted Mean Vote (PMV) and Predicted Percent Dissatisfied (PPD), help
predict the thermal satisfaction level of a person with their indoor environment. The PMV is a rating
scale of +3 to -3 where +3 is much too warm, -3 is much too cool, and 0 is thermally neutral. The
PPD reflects what percent of people in a given location would be dissatisfied with their thermal
surroundings.
The formulas used by DMS software to derive the PMV and PPD come from the international
standard ISO 7730 “Moderate thermal environments - Determination of the PMV and PPD indices
and specification of the conditions for thermal comfort.”
Operating QUESTempº 34 & 36
10
WET 65.5º F 1
DRY 74.0º F
View mode
Indicates you are viewing sensor one data
VIEW PRINT
SETUP RESET
Setup selected
Operation
View
Operating QUESTempº 34 & 36
Use the Up Arrow and Down Arrow keys to move the marker in the display in front of the
desired mode. Pressing the I/O Enter key will select the mode.
View
Displays the measured data but does not log it. If more than one set of sensors is plugged into
the unit, these can be displayed by pressing and releasing the I/O ENTER key. The displayed
sensor set is shown in the upper right corner.
Figure 1-6: Viewing measured data
NOTE: To return to the menu, hold down the I/O ENTER key while a 3, 2, 1 countdown is
shown in the lower right corner of the display. Then the menu screen will appear
(see Figure 1-3 for an example).
Setup
The setup screen is used to change the following parameters: temperature units, language, time,
date, logging rate (QUESTempº 36 only), selecting between Heat Index and Humidex, and
setting stay time parameters.
To Setup parameters do one of the following:
1. From the main menu, select Setup by pressing the I/O Enter key.
2. Use the Arrow keys to select an item (listed below).
Temperature: Celsius, Fahrenheit.
Language: English, Spanish, French, Italian, German.
Time: 24 hour clock only.
Date: Day-month-year format.
Log Rate: 1, 2, 5, 10, 15, 30, 60 minutes.
Heat Index (United States), Humidex (Canada)
Figure 1-7: Setup selected in main menu
Operating QUESTempº 34 & 36
11
Index Settings
Explanation
TLV and action limit
These index settings only apply to the ACGIH Index.
EPRI and Navy will ignore this setting.
Clothing Correction
Parameters are set from 0 - 9.9C. This is a clothing
correction for the WBGT in degrees Celsius and is
applied to the selected WBGT when the work duration
is calculated. (It will not affect the WBGT as displayed
by the unit.) This value should typically be set to 0.0 for
the Navy. (The field is noted as “Clo Corr”.)
Print
Flow: On, Off .
Index: none, ACGIH, Navy, EPRI and select either: WBGTi (indoor), WBGTo
(outdoor) for Index setting.
3. Press the I/O Enter key to change a parameter. Time and date require using the Up/Down
Arrows and I/O Enter keys to modify each number.
NOTE: At any time, you can move back one level, by pressing the Run/Stop key.
4. Exit Setup by pressing the Run/Stop key.
QTº34/36 allows printing to a parallel or serial printer or to a computer. The QUESTempº 36 will
recognize the cable plugged in and configure itself for serial or parallel. If no cable is plugged in,
it will default to serial. Press I/O Enter key to begin printing. Press Run/Stop key to return to
the menu.
NOTE: If you want to stop the printing, press I/O enter key until you return to the main menu.
When the printer has stopped printing, remove the cable from the printer to the
instrument.
Reset
Resetting enables you to clear the logged data from memory. Press the I/O Enter key to enter
the Reset mode. Clear the memory by holding down the I/O Enter key while the display counts
down from three.
Operating QUESTempº 34 & 36
12
WBGTi 66.7º F 1
WBGTo 68.6º F
Run indicator
Run
Run
The run mode begins a session in memory and logs the data.
1. Begin a session by pressing the Run/Stop key from the view mode (or measurement
view). An asterisk in the lower right corner indicates the run mode.
To toggle through the views, press the up or down arrow.
2. End the session by pressing the Run/Stop key again. (The session will stop recording
when the asterisk is no longer displayed.)
NOTE: If the logging memory is full or if there are no sensors plugged into the unit,
attempting to enter the Run mode will result in an error message. If the memory
capacity is exceeded, the asterisk in the lower right corner of the display will
turn into an “F” and the memory remaining screen will show “0.0”.
Figure 1-8: Run mode indicator
Displayed Items
13
Screen 1: WET (Wet bulb)
DRY (Dry bulb)
WET 80.5º F 1
DRY 92.2º F
Screen 2: GLOBE
GLOBE 92.4.º F 1
Screen 3: WBGTi (Indoors)
WBGTo (Outdoors)
WBGTi 84.1 º F 1
WBGTo 107.5 º F
Screen 4: RH (Relative Humidity)
H.I. or HU
(Heat Index or Humidex)
RH 66.2 % 1
H.I. 84.3º F
Displayed Items
Run
Displayed Items
For the QUESTemp 34 & 36 models, the number in the upper right corner indicates which
sensor bar’s data is displayed.
“1”indicates the sensor bar placed on (or attached to) the top of the instrument. Sensors 2
and 3 are labeled on the side of the unit as “Sensor 2”, and “Sensor 3”.
“W” indicates the weighted average which only appears if a WBGT is displayed and all
three sensor bars are attached. An asterisk in the lower right corner indicates that the unit is
in the run mode and is logging data.
The following measurements can be accessed on the display:
Figure 1-9: Wet and Dry screen
Figure 1-10: Globe screen
Figure 1-11: WBGTi & WBGTo screen
Figure 1-12: RH and H.I/HU screen
Displayed Items
14
Screen 5: Air Flow
(If turned ON via setup
with QUESTempº 36 only)
FLOW 0.3m/s 1
Screen 6: Stay times
(QUESTempº 36 only)
L M H VH 1
60 45 30 15
Screen 7: Time (24 hour format)
Date (day, month, year)
TIME 11:04:13 1
DATE 26-JUN-08
Screen 8: BAT (Battery voltage)
MEM (Logging memory
available in days)
BAT 11:04:13 1
MEM 10.4dy
Stay Time
Figure 1-13: Air Flow screen
Figure 1-14: Stay times (ACGIH)
Figure 1-15: Time & Date screen
NOTE: A series of dashes appear in the display if one of the following occur:
The Heat Index or Humidex is outside of its allowable range.
The temperature is outside of its allowable range.
A temperature sensor has failed.
Stay times temperatures are outside of the defined range.
Stay Time
The screen(s) displaying stay time data appear different for each of the possible indices
(available with QUESTempº 36 model only).
If ACGIH is selected, the recommended working minutes per hour are shown for each of the
workload categories Light (L), Moderate (M), Heavy (H), and Very Heavy (VH). (See Figure 1-14
above.)
Figure 1-16: Battery & Memory screen
Data Logging
15
PHEL_5 3:10 1
PHEL_6 2:10
L M H 1
4:01 3:00 1:30
Light, Medium, and Heavy maximum hours
displayed
Log Rate
1 min
2 min
5 min
10 min
15 min
30 min
60 min
1 sensor
11.2
22.5
56.2
112.4
168.6
337.3
674.5
2 sensors
5.6
11.2
28.1
56.2
84.3
168.6
337.3
3 sensors
3.7
7.5
18.7
37.5
56.2
112.4
224.8
Stay Time
If the Navy PHELS are selected, the recommended working hours are shown based on a
maximum of eight hours. Three screens are used to display the PHELs two at time.
NOTE: “8:01” following one of the PHELs indicates greater than eight hours.
If EPRI is selected, the recommended working hours are shown based on a maximum of four
hours. Working hours for Light (L), Moderate (M), and Heavy (H) workload categories are
displayed below.
NOTE: “4:01” indicates greater than four hours.
Data Logging
Data from each sensor is recorded at the interval set by the logging rate (for QUESTempº 34 &
36 models only). Every time Run/Stop is pressed, a session is either started or ended in
memory. Each session contains a header with time, date, and summary information.
Figure 1-17: Navy Stay time screen
Figure 1-18: EPRI Stay time screen
Memory Table: Gives the number of logging DAYS.
Table 1-1: Example of a Memory table
Printing
16
TSI Page 1
HEAT STRESS REPORT
File Name _________________________ Questemp 36 Rev 1.00
Serial # TK09090909
Employee _________________________
Facility _________________________ Session (3)
Start: 21-FEB-08 11:07:32
Department _________________________ Stop: 21-FEB-08 11:10:15
Job _________________________ Printed: 21-FEB-08 11:16:00
Comments/Notes______________________________________________
____________________________________________________________
Logging Interval: 1 minutes
Degrees Fahrenheit
MAXIMUM LEVELS, Sensor 1
WBGT IN 69.2 21-FEB-08 11:10:14
WBGT OUT 68.3 21-FEB-08 11:10:08
WET BULB 59.7 21-FEB-08 11:10:08
DRY BULB 82.7 21-FEB-08 11:09:56
GLOBE 91.4 21-FEB-08 11:10:12
HEAT INDEX 0 00-XXX-00 00:00:00
REL HUMIDITY 14% 21-FEB-08 11:07:32
FLOW (m/s) 0.6 21-FEB-08 11:09:08
MAXIMUM LEVELS, Sensor 2
WBGT IN 81.2 21-FEB-08 11:10:06
WBGT OUT 80.5 21-FEB-08 11:10:11
WET BULB 70.5 21-FEB-08 11:10:11
DRY BULB 99.2 21-FEB-08 11:09:07
Printing
Serial
Printing
The recorded data can be sent to a computer through the serial RS-232 port or to a parallel
printer. Serial transmission requires TSI cable #054-715. Parallel transmission requires TSI cable
#056-875. With the cable plugged into the RS-232 auxiliary port, select Print from the menu and
press the I/O Enter key to enter the Print mode. Begin printing by pressing the I/O Enter key.
Press the key again to abort printing.
Serial
DMS software is recommended for downloading, storing, and graphing your data.
Communications programs such as Windows® HyperTerminal® program may also be used to
capture the printout into a file. The baud rate is fixed at 9600.
Parallel
Data can be sent directly to parallel printers that accept direct ASCII test input without special
drivers. Make sure the printer is powered on and is online, ready to accept data, prior to
printing.
Figure 1-19: Sample printout (page 1)
Printing
17
Session: 3 Page 2
Sensor: 1
Degrees Fahrenheit
Stay Times: ACGIH, Acclimated, WBGTi, clo correction = 1.0 C
TIME WBGTi WBGTo WET DRY GLOBE RH HI FLOW L M H VH
----- ----- ----- ----- ----- ----- --- --- ----- --- --- --- --11:08 68.7 67.9 59.4 82.4 90.7 13 0 0.5 60 60 60 60
11:09 69.0 68.1 59.5 82.6 91.3 12 0 0.5 60 60 60 60
Session: 3 Page 3
Sensor: 2
Degrees Fahrenheit
Stay Times: ACGIH, Acclimated, WBGTi, clo correction = 1.0 C
TIME WBGTi WBGTo WET DRY GLOBE RH HI L M H VH
----- ----- ----- ----- ----- ----- --- --- --- --- --- --11:08 79.9 79.3 69.4 98.9 104.5 15 0 60 45 30 15
11:09 80.8 80.2 70.3 99.2 105.6 15 0 60 45 30 15
Session: 3 Page 4
Sensor: 3
Degrees Fahrenheit
Stay Times: ACGIH, Acclimated, WBGTi, clo correction = 1.0 C
TIME WBGTi WBGTo WET DRY GLOBE RH HI L M H VH
----- ----- ----- ----- ----- ----- --- --- --- --- --- --11:08 68.6 68.1 58.3 88.0 92.7 11 0 60 60 60 60
11:09 68.8 68.4 58.6 88.3 92.9 11 0 60 60 60 60
Session: 3 Page 5
Sensor: WBGT(W-AVG) = .50*WBGT(1) + .25*WBGT(2) + .25*WBGT(3)
Degrees Fahrenheit
Stay Times: ACGIH, Acclimated, WBGTi, clo correction = 1.0 C
WBGTi WBGTo
TIME W-AVG W-AVG L M H VH
----- ----- ----- --- --- --- --11:08 71.5 70.8 60 60 60 60
11:09 71.8 71.1 60 60 60 45
Parallel
Figure 1-20: Sample printout (page 2)
Air Flow functionality
18
Air flow
Functionality
Air Probe
QTº36 sensor bar
1. Clip front of bracket around lip of
sensor bar.
2. Tighten bracket to sensor bar with
thumb screw.
3. Attach air probe to bracket
with thumb screen
Bracket
Parallel
Air Flow functionality
(Available using TSI’s Air Probe on QUESTempº 36 model.)
Air flow is measured in meters per second over a range of 0 to 20 m/s in 0.1 m/s increments. The
sensor should be placed or held perpendicular in the air stream. Unlike many anemometers, the
omni-directional sensor does not require rotating to find the maximum reading. Be careful not to
block the air flow with your body during measurements. The sensor’s measuring tip is fragile; be
cautious if measuring in ducts.
The Air Probe may be either hand held or mounted behind the QUESTemp 36 using the
mounting bracket hooked to the sensor bar beneath the center bulb sensor. (See Figure 1-21
below.)
A green lamp indicator in the Air Probe indicates that it is turned on and the battery is good. If the
green indicator turns off while the switch is in the On position, replace or recharge the battery.
To connect, follow steps 1-3 below.
Figure 1-21: Air flow configuration
Air Flow functionality
19
Operating Sequence
Operating Sequence
1. Turn Flow On in the setup menu of the QUESTemp 36 Heat Stress Monitor.
2. Plug the Air Probe into the port labeled Flow on the side of the QUESTemp 36.
3. Turn on the Air Probe ON and make sure the green lamp is lit.
In the View or Run modes, air flow is displayed on the fifth screen.
Data Logging Air Flow
To data log air flow in the QUESTemp 36, the following two conditions must be met.
1. First, turn Flow On in the setup menu.
2. Second, make sure that a temperature sensor bar is connected to the Sensor 1 location
(top) of the QUESTemp 36. Flow prints out with the Sensor 1 data therefore air flow data
will only be reported if a sensor bar is plugged in. Air flow is recorded during the run mode
at the interval the QUESTemp 36 is setup for.
Batteries for Air Probe
The Air Probe uses a single NiMH Black&Decker® VersaPak Gold battery. Typical operating
time of the battery is between 6 and 8 hours.
To change the battery, push in and twist, counterclockwise, the cap on the bottom of the Air
Probe. Pull out the battery. Insert a fully charged battery and replace the cap.
To recharge the batteries, set the battery into the VersaPack charger. The supplied charger
accepts one or two batteries. A full charge takes 9 hours. An indicator light shows that the battery
is properly charging and it will remain on as long as the battery is in the charger. Continuous
charging is not a safety concern.
Operational Check
20
The 2-position switch located in the battery compartment must
be set by the user if the power supply method is changed. The
up position is for the 9-volt battery. The down position allows for
either the AC adapter or the rechargeable batteries. The AC
adapter will trickle charge the rechargeable batteries if they are
in place or it will simply allow for line power operation of the unit.
Figure 1-22: 9-volt battery
Operational
Check
Power options
Operational Check
A verification module, TSI model 053-923, may be used to check the operation of the
QUESTemp° Heat Stress Monitor. Remove the top sensor bar and plug the verification module
into the top of the unit. With the QUESTemp° set to read in degrees Celsius, verify that the
displayed readings match those printed on the module within ±0.5C.
If the readings are not within the ±0.5C tolerance, then have the unit serviced and calibrated.
Power options
There are three options for powering the QUESTempº 36: a 9-volt alkaline battery, a NiMH (Nickel
Metal Hydride) rechargeable 6-cell battery pack, and an AC adapter. A door on the back of the unit
allows the user access to the 9-volt battery. The rechargeable battery pack is located inside of the
unit. If the rechargeable battery pack ever needs to be replaced, it can be accessed by removing the
screws from the bottom panel of the unit.
9-Volt Alkaline Battery Replacement
WARNING: Replace batteries only in a non-hazardous environment.
The 9-volt battery should be replaced or the NiMH battery pack should be recharged when the
voltage drops below 6.4 volts. The battery voltage is displayed when the instrument is turned on.
While turned on, the battery voltage can be displayed at any time by pressing the up or down
arrow keys to move through the display until the battery voltage screen appears. If, while
operating, the battery voltage drops below 6.4 volts, the display will automatically switch to the
display showing the battery voltage along with a low battery message. After a low battery occurs,
the unit will continue to operate for approximately 8 hours. When the battery voltage falls to
6.2 volts or below, the unit will automatically turn off.
Replace only with an approved 9-volt alkaline battery.
Operational Check
21
NIMH Battery
To install: Slide into case and
plug in connector as shown.
Approved 9-Volt Batteries
Approved 9-Volt Batteries
Eveready: Energizer 522, EN22, 6LR61
Duracell: MN1604
Panasonic: 6LR61, 6AM6X
Rayovac: A1604
UltraLife: U9V
NiMH Battery Pack
WARNING: Recharge batteries only in a non-hazardous environment.
The NiMH rechargeable battery pack is charged in the instrument using TSI’s AC 120V AC to 9V
DC adapter (part #015-910) or 220V AC to 9V DC adapter (part #015-680). A discharged battery
pack requires an “overnight” charge of 16 hours (for the 120V adapter). Leaving the AC adapter
plugged in for extended lengths of time or when operating the instrument will not harm the
rechargeable batteries.
Figure 1-23: NiMH rechargeable battery
Appendix A: Specifications
22
Appendix A
Appendix A: Specifications
Measurements
Globe temperature, dry bulb temperature, wet bulb temperature, % relative humidity,
WBGTin, WBGTout, WBGT weighted average (if 3 sensor sets), and Heat Index / Humidex.
Temperatures given in Celsius or Fahrenheit.
Data Logging
Records and prints all measurements at user selected interval of 1, 2, 5, 10, 15, 30, or 60
minutes. 128K bytes of data memory.
Languages
English, French, Spanish, Italian, German
Housing
Designed water resistant to a light rain or mist. If rain is frequent, best practice would be to
remote the sensor bar and keep the instrument sheltered.
Size
Height 9.2 in. (23.5 cm); Width 7.2 in. (18.3 mm); Depth 3.0 in. (7.5 mm)
Dimensions include mounted sensor assembly
Weight
2.6 lbs. (1.2 kg) with mounted sensor assembly
Sensor Types
Temperature: 1000 ohm platinum RTD
Humidity: Integrated circuit with capacitive polymer sensor
Accuracy
Temperature: ±0.5C between 0°C and 120°C
Relative humidity: ±5% between 20 to 95% (non-condensing)
Operating Temperature Range
Sensor Assembly: -5°C to +100°C
Electronics: -5°C to 60°C
Appendix A: Specifications
23
Remote Sensor Bars
2 x 15-pin D-sub jacks are located on the side of the unit for plugging in 1 or 2 additional
sensor bars by using remote cables up to 200 feet (61 m). The top sensor bar can also be
remote with a cable.
Power Options
9V alkaline, 7.2V NiMH rechargeable pack (charged in the unit), or AC adapter wall power
cube (AC adaptor will operate the unit or recharge the NiMH battery pack)
Battery Life
9V alkaline: 140 hours
Rechargeable Nickel Metal Hydride: 300 hours
(Adding additional sensor bars reduces battery life.)
Charge Time (NiMH Battery Pack)
16 hours (charge in the unit)
Air Probe Accessory (QUESTempº 36 model only)
Range: 0 – 20 meters per second. 0.1m/s increments
Sensor: Omni directional heated thermistor
Accuracy: ±(0.1 m/s + 4%) of measurement value
Battery Life: 6 – 8 hours for fully charged NiMH battery
Charge Time: 9 hours
Product markings and batteries
Year of Manufacture markings
The year of manufacture is determined by the third character in the instrument’s serial number.
“A” was manufactured in 2000, “B” in 2001, “C” in 2002, “I” in 2009 and so forth.
Appendix A: Specifications
24
Type
Manufacturer
U9V
Ultralife
MN1604
Duracell
522 or EN22 or 6LR61
Energizer
A1604 or BR232
Rayovac
6LR61 or 6AM6
Panasonic
Batteries
Only the following battery types may be used:
Non-rechargeable battery
Rechargeable battery
Integral NiMH battery pack type DC2121
The rechargeable battery may only be recharged with class 2 charger, rated 9 VDC, 1 A max.
Appendix B: Heat Exposure Tables
25
Work and recovery
(TLV )
Light
Moderate
Heavy
Very Heavy
75% to 100%
31.0
28.0
26.0*
23.5*
50% to 75%
31.0
29.0
27.5
25.5*
25% to 50%
32.0
30.0
29.0
28.0
0% to 25%
32.5
31.5
30.5
30.0
Work and recovery
(Action Limit )
Light
Moderate
Heavy
Very Heavy
75% to 100%
28.0
25.0
22.5*
20.0*
50% to 75%
28.5
26.0
24.0
22.5*
25% to 50%
29.5
27.0
25.5
24.5
0% to 25%
30.0
29.0
28.0
27.0
Appendix B
ACGIH
Appendix B: Heat Exposure Tables
ACGIH
Screening Criteria for Heat Stress Exposure. WBGT values in C.
NOTE: According to the ACGIH’s guidelines, the temperature values represent a work and rest
process which is explained in the standards. Refer to the ACGIH TLVs and BEIs for specific
details.
*Values not specified by ACGIH have been estimated for continuity.
Cited from American Conference of Governmental Industrial Hygienists, Threshold Limit Values
and Biological Exposure Indices for 2008. Reprinted with permission.
Appendix B: Heat Exposure Tables
26
Clothing type
Clothing correction
(Addition to WBGT (ºC)
Work clothes (long sleeve shirt and pants)
0º
Cloth (woven material) coveralls
0º
Double-layer woven clothing
3º
SMS polypropylene coveralls
0.5º
Polyolefin coveralls
1º
Limited-use vapor-barrier coveralls
11º
WBGT(F)
I
II
III
IV V VI
80.0
>8:00
>8:00
>8:00
8:00
6:35
4:30
81.0
>8:00
>8:00
>8:00
8:00
6:35
4:30
82.0
>8:00
>8:00
8:00
7:05
5:25
3:40
83.0
>8:00
8:00
7:45
6:25
4:55
3:20
84.0
>8:00
8:00
7:05
5:55
4:30
3:05
85.0
8:00
7:45
6:30
5:20
4:05
2:50
86.0
8:00
7:05
5:55
4:55
3:45
2:35
87.0
7:25
6:30
5:25
4:30
3:25
2:20
88.0
6:45
5:55
4:55
4:05
3:10
2:10
89.0
6:10
5:25
4:30
3:45
2:50
2:00
90.0
5:40
5:00
4:10
3:25
2:40
1:50
91.0
5:15
4:35
3:50
3:10
2:25
1:40
ACGIH Clothing Corrections
ACGIH Clothing Corrections
The following clothing corrections are in degrees Celsius. When a clothing correction is entered
into the setup portion of the QUESTemp 36, the value is added to the WBGT only for looking up
the stay times. The WBGT value displayed by the unit does not reflect corrections.
Cited from American Conference of Governmental Industrial Hygienists, Threshold Limit Values
and Biological Exposure Indices for 2008. Reprinted with permission.
United States Navy
Physiological Heat Exposure Limits (PHEL) Time Table
(Without the presence of fuel combustion gases/fuel vapors)
The recommended working hours are shown based on a maximum of eight hours. Naval
personnel will follow a category, I - VI, based upon their function.
PHEL Curves (Total Exposure Time in Hours: Minutes)
Appendix B: Heat Exposure Tables
27
WBGT(F)
I
II
III
IV V VI
92.0
4:50
4:10
3:30
2:55
2:15
1:30
93.0
4:25
3:50
3:15
2:40
2:00
1:25
94.0
4:05
3:35
3:00
2:25
1:50
1:15
95.0
3:45
3:15
2:45
2:15
1:45
1:10
96.0
3:25
3:00
2:30
2:05
1:35
1:05
97.0
3:10
2:45
2:20
1:55
1:25
1:00
98.0
2:55
2:35
2:10
1:45
1:20
0:55
99.0
2:40
2:20
2:00
1:40
1:15
0:50
100.0
2:30
2:10
1:50
1:30
1:10
0:45
101.0
2:20
2:00
1:40
1:25
1:05
0:45
102.0
2:10
1:50
1:35
1:15
1:00
0:40
103.0
2:00
1:45
1:25
1:10
0:55
0:35
104.0
1:50
1:35
1:20
1:05
0:50
0:35
105.0
1:40
1:30
1:15
1:00
0:45
0:30
106.0
1:35
1:25
1:10
0:55
0:45
0:30
107.0
1:30
1:15
1:05
0:50
0:40
0:25
108.0
1:20
1:10
1:00
0:50
0:35
0:25
109.0
1:15
1:05
0:55
0:45
0:35
0:25
110.0
1:10
1:00
0:50
0:40
0:30
0:20
111.0
1:05
1:00
0:50
0:40
0:30
0:20
112.0
1:00
0:55
0:45
0:35
0:25
0:20
113.0
0:55
0:50
0:40
0:35
0:25
0:15
114.0
0:55
0:45
0:40
0:30
0:25
0:15
115.0
0:50
0:45
0:35
0:30
0:20
0:15
116.0
0:45
0:40
0:35
0:25
0:20
0:15
117.0
0:45
0:40
0:30
0:25
0:20
0:10
118.0
0:40
0:35
0:30
0:25
0:15
0:10
119.0
0:35
0:35
0:25
0:20
0:15
0:10
120.0
0:35
0:30
0:25
0:20
0:15
0:10
121.0
0:35
0:30
0:25
0:20
0:15
0:10
122.0
0:30
0:25
0:20
0:15
0:15
0:10
123.0
0:30
0:25
0:20
0:15
0:10
0:10
United States Navy
Appendix B: Heat Exposure Tables
28
WBGT(F)
I
II
III
IV V VI
124.0
0:25
0:25
0:20
0:15
0:10
0:05
WBGT°C
Light
Moderate
Heavy
28
4:01
4:01
3:00
29
4:01
4:00
2:00
30
4:01
3:00
1:30
31
4:01
2:00
1:15
32
4:00
1:30
1:00
33
3:30
1:15
0:45
34
3:00
1:00
0:40
35
2:30
0:53
0:35
36
2:00
0:45
0:30
37
1:45
0:40
0:25
38
1:30
0:35
0:20
39
1:15
0:33
0:18
40
1:00
0:30
0:15
41
0:53
0:28 0 42
0:45
0:25
0
43
0:38
0:23 0 44
0:30
0:20 0 45
0:28
0:18 0 46
0:25
0:15 0 47
0:23 0 0
48
0:20 0 0
49
0:18 0 0
50
0:15 0 0
Electrical power research institute (EPRI)
Electrical power research institute (EPRI)
The recommended working hours are shown based on a maximum of four hours. A time of 4:01
indicates greater than 4 hours.
Appendix C: Accessories
29
Appendix C
Air Probe Accessories
Appendix C: Accessories
Sensor array with 2-inch globe ......................... 056-795
Sensor array with 6-inch globe ......................... 056-780
6-foot shielded remote sensor cable ................ 053-924
25-foot shielded remote sensor cable .............. 053-925
100-foot shielded remote sensor cable ............ 053-926
200-foot shielded remote sensor cable ............ 053-927
Serial computer cable ........................................ 054-715
Parallel printer cable .......................................... 056-875
120 VAC to 9 VDC adapter ............................... 015-910
220 VAC to 9 VDC adapter ............................... 015-680
Verification module ............................................ 053-923
Tripod ................................................................. 059-045
Replacement wicks............................................ 056-679
Water bottle 2 oz. ............................................... 056-068
User’s manual .................................................... 056-663
Air Probe Accessories
NiMH battery ...................................................... 053-039
Dual 120 volt charger ........................................ 053-037
Dual 220 volt charger ........................................ 053-038
30 Appendix D: Detection Management Software DMS
QT⁰ 34/36 data port
Connected and powered on
Connected to serial port
Appendix D
DMS Quick overview
Appendix D: Detection Management Software DMS
The QUESTemp 34/36 Heat Stress Monitor has the flexibility to communicate, download data, create
reports, and save customized setups using the TSI Detection Management Software DMS.
DMS Quick overview
The focus of this section is to briefly explain how to download, create quick reports, and a quick
overview of setup parameters. (Refer to the DMS User Manual for further instructions.)
Downloading your sessions in DMS
Once the QUESTemp⁰ 34/36 is communicating and run/stops are stored on the instrument, this data
may be downloaded into DMS for further analysis and reporting.
Downloading your sessions
1. Download the DMS software. (NOTE: You may have purchased this with your instrument.)
2. Using a TSI cable, part number 054-715, plug the cable into the computer and plug the
opposite end into the side jack of the QT⁰34/36 data port.
Figure 1-24: Communicating to DMS
Appendix D: Detection Management Software DMS
31
❶
❷ ❸ ❹
2. Power on the QUESTempº 36 by pressing and holding the I/O Enter key.
3. Open DMS and click on button.
4. Select Heat Stress and then select the Model Type by clicking on QT⁰34 or QT⁰36. (See
❶ and ❷). (You are now ready to setup or download your instrument.)
5. Click in the Data Finder checkbox (see ❸) and then select button (see ❹).
NOTE: When downloading, DMS will state it successfully received the files (at the
bottom of the page). It will then open the Data Finder Page.
Figure 1-25: Downloading with the QT⁰34/36
Appendix D: Detection Management Software DMS
32
❶
Double-click
to select/view
QT⁰34/36
data in charts
and graphs
❷
❸
Viewing/Analyzing and Quick Reporting in DMS
In the Data Finder page, your heat stress data is stored by instrument family and then by model.
There are two options in the data finder page which include analyzing and printing a quick report. See
below for more details.
Analyze data
1. In the Data finder page, click a heat stress session by expanding the Family heat stress
and selecting the session.
NOTE: To view the recently downloaded data, click on Recent and then select the
session by looking at the Start Time/Date field.
Figure 1-26: Data Finder page (Analyze/Quick Report options)
Appendix D: Detection Management Software DMS
33
❶
❷ ❹ ❹
❹
❸
2. The session page layout will appear.
Work items ❶ – select either the session or study (in order to view appropriate data).
Add panel ❷ – double-click on a chart/table type and it will appear as a panel on
your screen.
Arrange panels ❸ – displays the displays the order of the charts/tables which
appear in the panel layout. Also, when a chart/table is selected in the arrange panels
palette, the associated data panel is selected. The resize handles are applied and the
panel is brought into view allowing you to resize/reposition. To delete a panel, rightclick on a chart/table and press delete from your keyboard.
Data Panels ❹ – used to view your measurement and/or parameters from your
study.
Figure 1-27: Data layout page (displays your data in charts and graphs)
Appendix D: Detection Management Software DMS
34
Customize the report by inserting on-site testing images
Print
Report example with
logged data chart
from the QT⁰36
Reports are displayed
in the order in which
they are displayed
from the panel layout.
Customize the report
by inserting on-site
testing images via
the button.
Quickly switch back to the panel layout view (charts & tables)
Reporting and Printing
If you are in the Data finder page, you have the option to select button and this will give
you a report instantaneously using a standard template of graphs and charts (also called panels.).
Viewing reports: if you are in the data layout page and you have rearranged the charts/tables, the
report will print in the sequence in which they appear on the screen.
Printing reports: while in the report view page you have two options outlined below:
Click on the icon from the title bar.
Click on the icon from the session report title bar.
Figure 1-28: Reporting and printing
Contact/Service information
35
North America and Asia Pacific
Telephone: 1-800-680-1220 (USA);
+1 651-490-2860 (Outside
USA)
Fax: +1 651-490-3824
E-mail: technical.services@tsi.com
Europe, Middle East, and Africa
Telephone: +49 241-52303-0
Fax: +49 241 52303-49
E-mail: tsigmbh@tsi.com
North America and Asia Pacific
TSI Incorporated
1060 Corporate Center Drive
Oconomowoc, WI 53006-4828
Europe, Middle East, and Africa
TSI Instruments Ltd.
Stirling Road
Cressex Business Park
High Wycombe, Bucks
HP12 3ST
United Kingdom
Telephone: 1-800-680-1220 (USA);
+1 651-490-2860 (Outside
USA)
E-mail: technical.services@tsi.com
Telephone: +44 (0) 149 4 459200
E-mail: tsiuk@tsi.com
Contact/Service
Information
Contact/Service information
This section gives directions for contacting TSI Incorporated for technical information and directions
for returning the QUESTemp° 34/36 for service.
Technical Support Contacts
If you have any difficulty setting or operating the instrument, or if you have technical or application
questions about this system, contact TSI’s Technical Support.
Service Contact Information
If your instrument does not operate properly, or if you are returning the instrument for service, visit our
website at http://rma.tsi.com for a Return Material Authorization, or contact Customer Service.
Calibration
36
Returning for Service
Visit our website at http://rma.tsi.com and complete the on-line “Return Merchandise Authorization”
form or call TSI at 1-800-680-1220 (USA) or (651) 490-2860, or 001 651 490 2860 (International) for
specific return instructions.
Customer Service will need the following information:
The instrument model number
The instrument serial number
A purchase order number (unless under warranty)
A billing address
A shipping address
Use the original packing material to return the instrument to TSI. If you no longer have the original
packing material, seal off any ports to prevent debris from entering the instrument and ensure that the
display and the connectors on the instrument front and back panels are protected. This instrument is
very fragile and must be packed in a manner appropriate for a precision instrument.
Calibration
The QUESTempo 34/36 heat stress monitor and TSI field calibrator devices should be examined
regularly by the factory. An annual calibration is recommended. (See Service Information above.)
Warranty
37
Warranty
(For country-specific terms and conditions outside of the USA, please visit www.tsi.com.)
Seller warrants the goods, excluding software, sold hereunder, under normal use and service as described in the operator's
manual, to be free from defects in workmanship and material for 12 months, or if less, the length of time specified in the
operator's manual, from the date of shipment to the customer. This warranty period is inclusive of any statutory warranty. This
limited warranty is subject to the following exclusions and exceptions:
a. Hot-wire or hot-film sensors used with research anemometers, and certain other components when indicated in
specifications, are warranted for 90 days from the date of shipment;
b. Pumps are warranted for hours of operation as set forth in product or operator’s manuals;
c. Parts repaired or replaced as a result of repair services are warranted to be free from defects in workmanship and material,
under normal use, for 90 days from the date of shipment;
d. Seller does not provide any warranty on finished goods manufactured by others or on any fuses, batteries or other
consumable materials. Only the original manufacturer's warranty applies;
e. This warranty does not cover calibration requirements, and seller warrants only that the instrument or product is properly
calibrated at the time of its manufacture. Instruments returned for calibration are not covered by this warranty;
f. This warranty is VOID if the instrument is opened by anyone other than a factory authorized service center with the one
exception where requirements set forth in the manual allow an operator to replace consumables or perform recommended
cleaning;
g. This warranty is VOID if the product has been misused, neglected, subjected to accidental or intentional damage, or is not
properly installed, maintained, or cleaned according to the requirements of the manual. Unless specifically authorized in a
separate writing by Seller, Seller makes no warranty with respect to, and shall have no liability in connection with, goods
which are incorporated into other products or equipment, or which are modified by any person other than Seller.
The foregoing is IN LIEU OF all other warranties and is subject to the LIMITATIONS stated herein. NO OTHER EXPRESS OR
IMPLIED WARRANTY OF FITNESS FOR PARTICULAR PURPOSE OR MERCHANTABILITY IS MADE. WITH RESPECT
TO SELLER’S BREACH OF THE IMPLIED WARRANTY AGAINST INFRINGEMENT, SAID WARRANTY IS LIMITED TO
CLAIMS OF DIRECT INFRINGEMENT AND EXCLUDES CLAIMS OF CONTRIBUTORY OR INDUCED INFRINGEMENTS.
BUYER’S EXCLUSIVE REMEDY SHALL BE THE RETURN OF THE PURCHASE PRICE DISCOUNTED FOR
REASONABLE WEAR AND TEAR OR AT SELLER’S OPTION REPLACEMENT OF THE GOODS WITH NON-INFRINGING
GOODS.
TO THE EXTENT PERMITTED BY LAW, THE EXCLUSIVE REMEDY OF THE USER OR BUYER, AND THE LIMIT OF
SELLER'S LIABILITY FOR ANY AND ALL LOSSES, INJURIES, OR DAMAGES CONCERNING THE GOODS (INCLUDING
CLAIMS BASED ON CONTRACT, NEGLIGENCE, TORT, STRICT LIABILITY OR OTHERWISE) SHALL BE THE RETURN OF
GOODS TO SELLER AND THE REFUND OF THE PURCHASE PRICE, OR, AT THE OPTION OF SELLER, THE REPAIR OR
REPLACEMENT OF THE GOODS. IN THE CASE OF SOFTWARE, SELLER WILL REPAIR OR REPLACE DEFECTIVE
SOFTWARE OR IF UNABLE TO DO SO, WILL REFUND THE PURCHASE PRICE OF THE SOFTWARE. IN NO EVENT
SHALL SELLER BE LIABLE FOR LOST PROFITS, BUSINESS INTERRUPTION, OR ANY SPECIAL, INDIRECT,
CONSEQUENTIAL OR INCIDENTAL DAMAGES. SELLER SHALL NOT BE RESPONSIBLE FOR INSTALLATION,
DISMANTLING OR REINSTALLATION COSTS OR CHARGES. No Action, regardless of form, may be brought against Seller
more than 12 months after a cause of action has accrued. The goods returned under warranty to Seller's factory shall be at
Buyer's risk of loss, and will be returned, if at all, at Seller's risk of loss.
Buyer and all users are deemed to have accepted this LIMITATION OF WARRANTY AND LIABILITY, which contains the
complete and exclusive limited warranty of Seller. This LIMITATION OF WARRANTY AND LIABILITY may not be amended,
modified or its terms waived, except by writing signed by an Officer of Seller.
Service Policy
Knowing that inoperative or defective instruments are as detrimental to TSI as they are to our customers, our service policy is
designed to give prompt attention to any problems. If any malfunction is discovered, please contact your nearest sales office or
representative, or call TSI’s Customer Service department at 1-800-874-2811 (USA) or +001 (651) 490-2811 (International).
USA Tel: +1 800 874 2811
UK Tel: +44 149 4 459200
France Tel: +33 1 41 19 21 99
Germany Tel: +49 241 523030
India Tel: +91 80 67877200
China Tel: +86 10 8219 7688
Singapore Tel: +65 6595 6388
TSI Incorporated – Visit our website www.tsi.com for more information.
P/N 056-663 Rev. J ©2018 TSI Incorporated Printed in U.S.A.
Loading...
