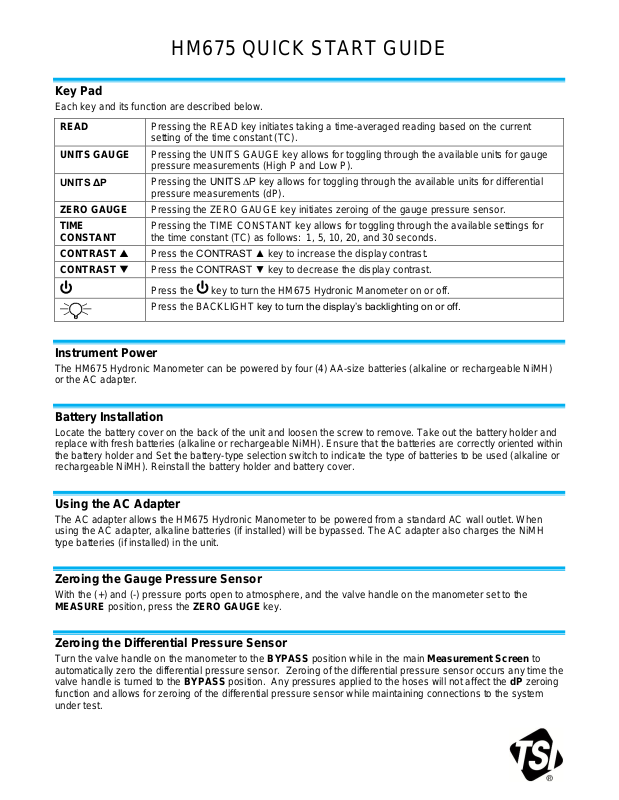

HM675 QUICK START GUIDE

READ

Pressing the READ key initiates taking a time-averaged reading based on the current
setting of the time constant (TC).

UNITS GAUGE

Pressing the UNITS GAUGE key allows for toggling through the available units for gauge
pressure measurements (High P and Low P).

UNITS ΔP

Pressing the UNITS ∆P key allows for toggling through the available units for differential
pressure measurements (dP).

ZERO GAUGE

Pressing the ZERO GAUGE key initiates zeroing of the gauge pressure sensor.

TIME
CONSTANT

Pressing the TIME CONSTANT key allows for toggling through the available settings for
the time constant (TC) as follows: 1, 5, 10, 20, and 30 seconds.

CONTRAST 

Press the CONTRAST ▲ key to increase the display contrast.

CONTRAST 

Press the CONTRAST ▼ key to decrease the display contrast.

Press the key to turn the HM675 Hydronic Manometer on or off.

Press the BACKLIGHT key to turn the display’s backlighting on or off.

Key Pad

Each key and its function are described below.

Instrument Power

The HM675 Hydronic Manometer can be powered by four (4) AA-size batteries (alkaline or rechargeable NiMH)
or the AC adapter.

Battery Installation

Locate the battery cover on the back of the unit and loosen the screw to remove. Take out the battery holder and
replace with fresh batteries (alkaline or rechargeable NiMH). Ensure that the batteries are correctly oriented within
the battery holder and Set the battery-type selection switch to indicate the type of batteries to be used (alkaline or
rechargeable NiMH). Reinstall the battery holder and battery cover.

Using the AC Adapter

The AC adapter allows the HM675 Hydronic Manometer to be powered from a standard AC wall outlet. When
using the AC adapter, alkaline batteries (if installed) will be bypassed. The AC adapter also charges the NiMH
type batteries (if installed) in the unit.

Zeroing the Gauge Pressure Sensor

With the (+) and (-) pressure ports open to atmosphere, and the valve handle on the manometer set to the

MEASURE position, press the ZERO GAUGE key.

Zeroing the Differential Pressure Sensor

Turn the valve handle on the manometer to the BYPASS position while in the main Measurement Screen to
automatically zero the differential pressure sensor. Zeroing of the differential pressure sensor occurs any time the
valve handle is turned to the BYPASS position. Any pressures applied to the hoses will not affect the dP zeroing
function and allows for zeroing of the differential pressure sensor while maintaining connections to the system
under test.

USA Tel: [phone]
UK Tel: [phone]
France Tel: [phone]
Germany Tel: [phone]

India Tel: [phone]
China Tel: [phone]
Singapore Tel: [phone]

Attaching the Hoses to the Manometer

Time Constant: 5 Seconds

0.00ft.H2O dP

0.00 ft.H2O High

0.00 ft.H2O Low

70.0°F Probe1

70.0°F Probe2

High Side

Pressure

Low Side

Pressure

Temperature

Differential

Pressure

Battery
Status

Connect the straight female flare fitting on the High pressure (red) hose to the male fitting on the top of the
manometer marked with a plus (+) sign. Connect the straight female flare fitting on the Low pressure (blue) hose
to the male fitting on the top of the manometer marked with a minus (-) sign.

Bleeding Entrained Air from the Hoses

1. Turn the shut-off ball valve on both the High and Low pressure hoses to the closed position.

2. Turn the valve handle on the manometer to the MEASURE position.

3. Using an appropriate fitting, connect the open end of the High pressure (red) hose to the test point with the
higher line pressure.

4. Attach the appropriate fitting to the open end of the Low pressure (blue) hose.

5. To ensure all the air is bled from the hoses, hold the open end of the Low pressure (blue) hose in an upright
position over a suitable receptacle or near a drain.

6. Turn the shut-off ball valve on both the High and Low pressure hoses to the open position.

7. Turn the valve handle on the manometer to the BYPASS position to allow the liquid flow to displace the
entrained air.

8. Once the liquid is flowing steadily from the Low pressure (blue) hose, turn the valve handle on the manometer
to the MEASURE position.

Performing Pressure Measurements

The HM675 Hydronic Manometer allows for simultaneous and continuous measurement and display of the High­side gauge and Differential pressure. The calculated Low-side gauge pressure is also displayed.

Discrete Pressure Measurements

Taking a discrete pressure measurement provides a single time-averaged reading taken over the sampling period
as defined by the current time constant setting when the READ key is pressed. Discrete pressure measurement
values are displayed on-screen for a period of 10 seconds and then returns to continuous measurement mode.

Performing Temperature Measurements

The accessory temperature probes are optional for the HM675 Hydronic Manometer and can be connected to the
3-pin mating connector located on the right-hand side of the manometer. The unit of measurement for
temperature (°F or °C) is driven by the differential pressure measurement:

TSI Incorporated – Visit our website www.tsi.com for more information.

P/N 6006775 Rev A ©2013 TSI Incorporated Printed in U.S.A.

Differential pressure in psi, inH2O, ftH2O, or inHg → temperature in °F
Differential pressure in kPa, mH2O, mmHg, or bar → temperature in °C
